3-канальный светодиодный постоянный ток dmx драйвер декодер
2 995,05 ₽

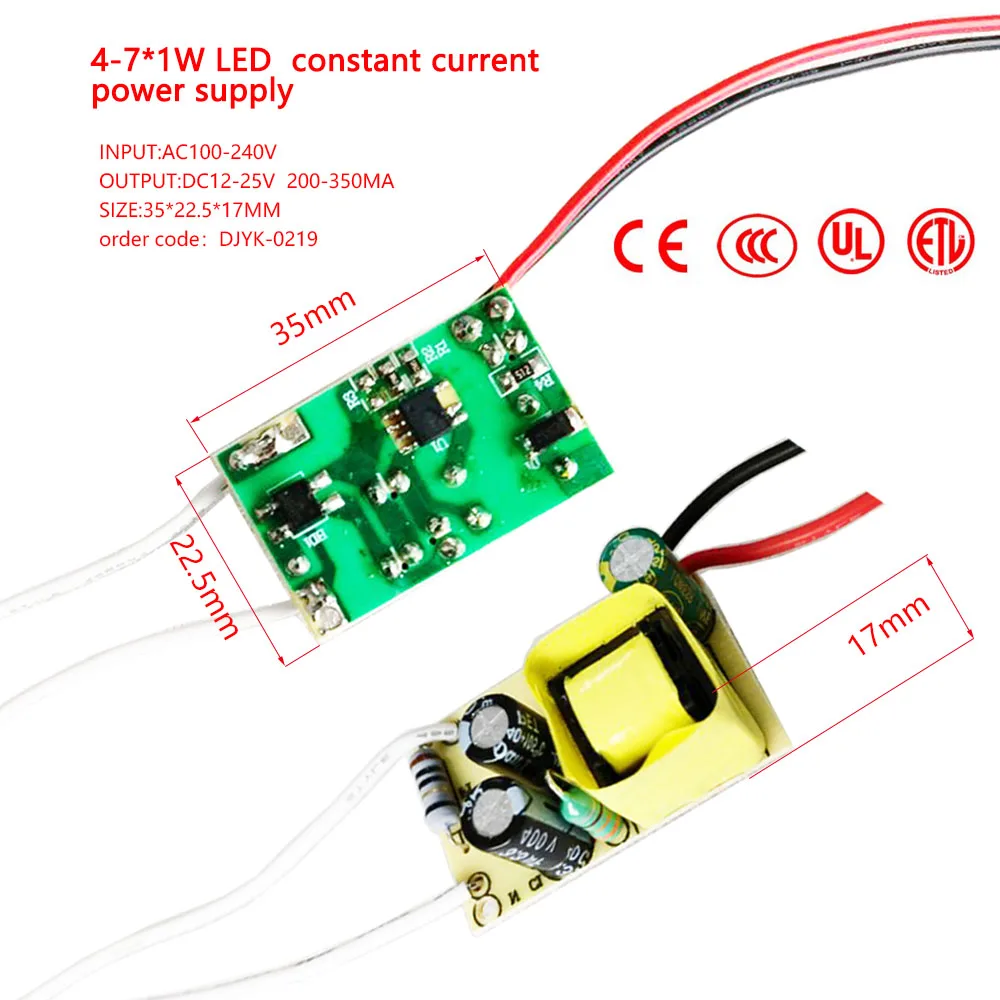

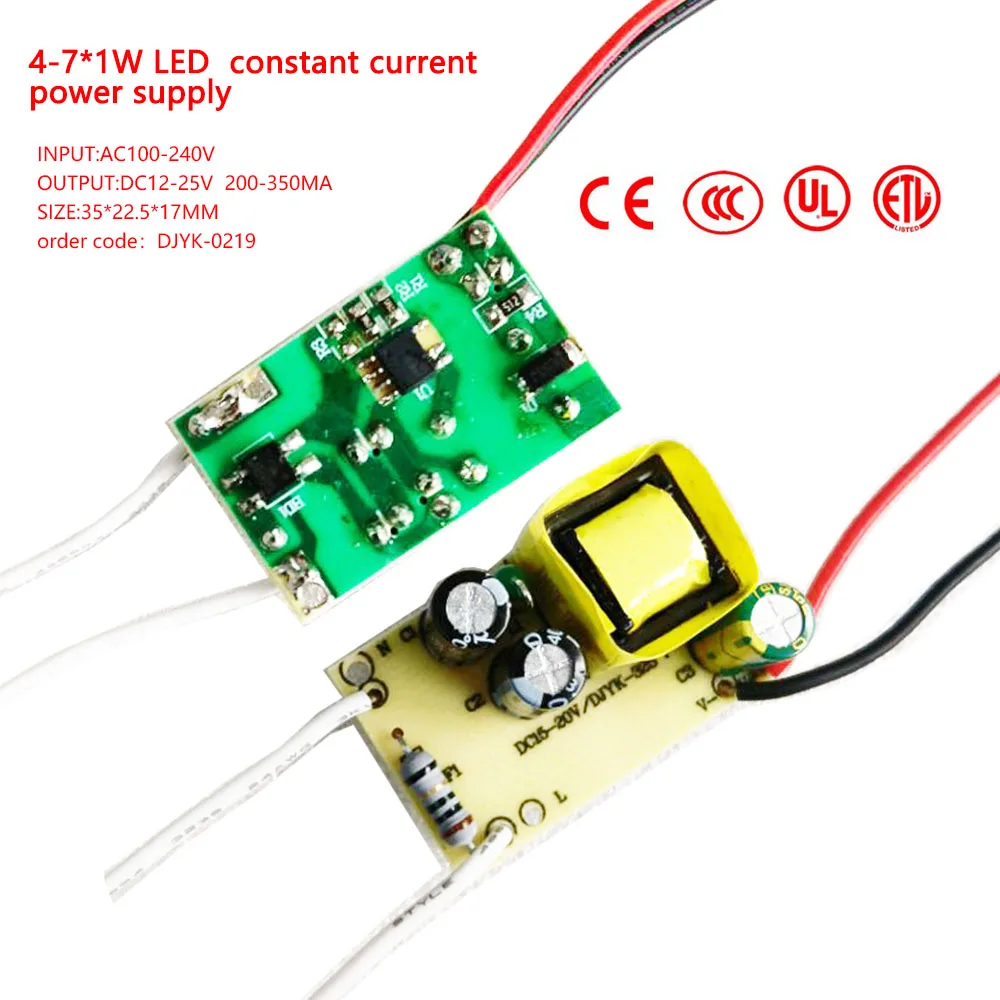

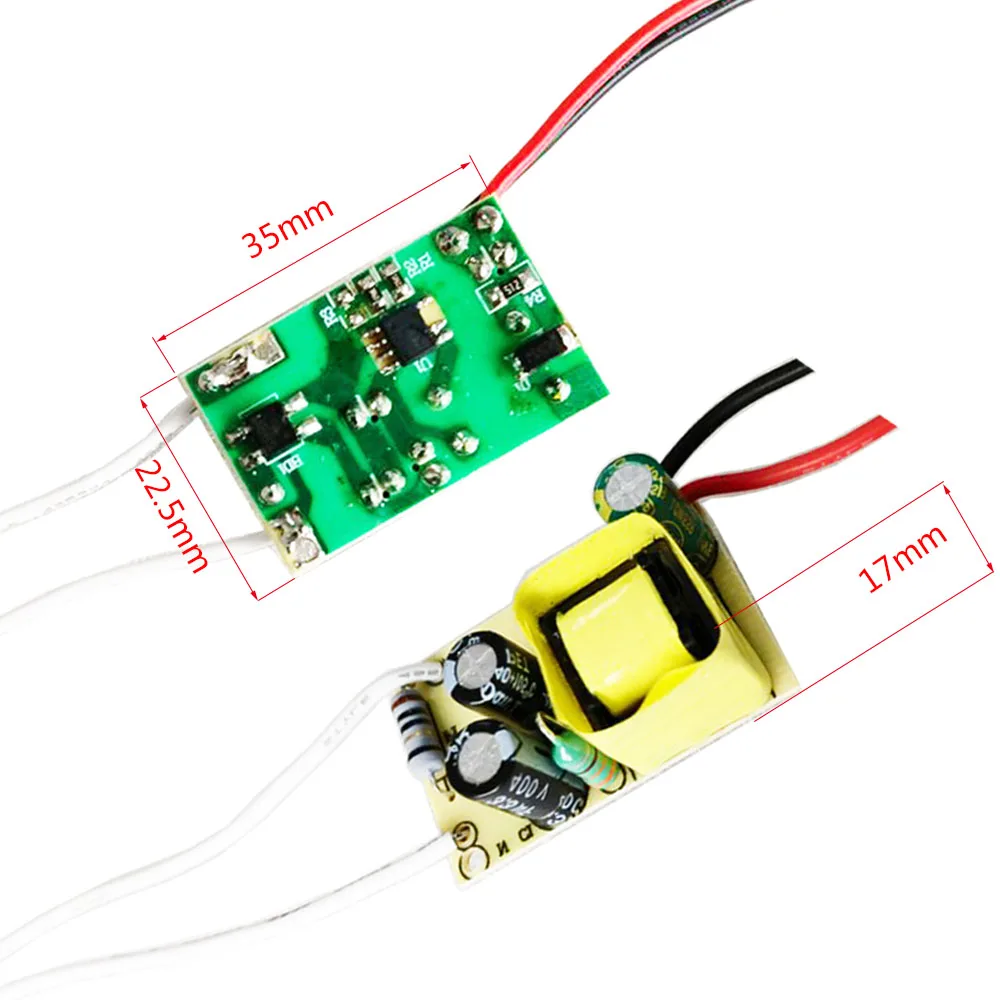

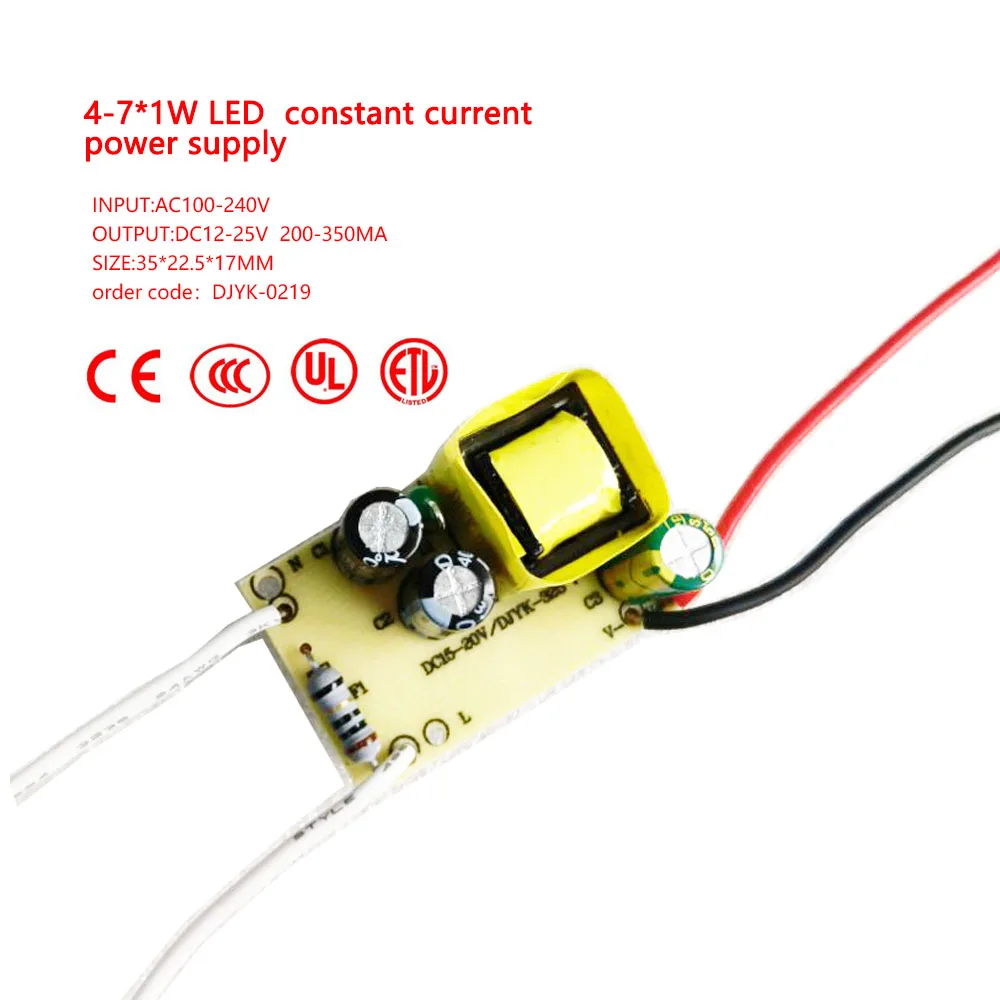

CE certuficated 4 7*1 Вт светодиодный драйвер постоянного тока питания небольшой размер решетки лампы шаровой для кухни и ванной комнаты лампа 08
- Категория: >>>
- Поставщик: Shenzhen Djyoke Electronics Co. Ltd.
Сохранить в закладки 1601205950187:
Описание и отзывы
Характеристики
Main products
product details
1.Input parameters | Parameters | Unit | Test description | Minimum | Typical | Maximum | ||||
Input Voltage | V(AC) | Normal | 100 | 220 | 240 | |||||
Input frequency | HZ | Normal | 50 | 50 | 60 | |||||
Power factor | PF | Normal | 0.547 | 0.574 | 0.634 | |||||
Input Inrush Current | A | Cold start under normal conditions | ||||||||
2.Output parameters | Parameters | Unit | Minimum | Typical | Maximum | |||||
Output current | MA | 260 | 276 | 284 | ||||||
Output voltage | V | 12 | 18 | 24 | ||||||
Output ripple | MV | |||||||||
Constant current accuracy | % | 1% | 3% | 5% | ||||||
3.Overall performance (12V 280MA test condition) | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
100 | 4.78 | 12 | 284 | 0.615 | 0.71 | |||||
110 | 4.66 | 12 | 279 | 0.600 | 0.72 | |||||
120 | 4.62 | 12 | 278 | 0.590 | 0.72 | |||||
170 | 4.56 | 12 | 275 | 0.593 | 0.72 | |||||
200 | 4.68 | 12 | 277 | 0.571 | 0.71 | |||||
220 | 4.75 | 12 | 279 | 0.566 | 0.70 | |||||
240 | 4.87 | 12 | 282 | 0.547 | 0.69 | |||||
3.Overall performance (15V 280MA test condition) | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
100 | 5.85 | 15 | 282 | 0.622 | 0.72 | |||||
110 | 5.70 | 15 | 277 | 0.610 | 0.73 | |||||
120 | 5.66 | 15 | 276 | 0.601 | 0.73 | |||||
170 | 5.55 | 15 | 273 | 0.604 | 0.74 | |||||
200 | 5.69 | 15 | 276 | 0.582 | 0.73 | |||||
220 | 5.74 | 15 | 278 | 0.578 | 0.73 | |||||
240 | 5.80 | 15 | 281 | 0.555 | 0.73 | |||||
3.Overall performance (18V 280MA test condition) | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
100 | 6.92 | 18 | 279 | 0.626 | 0.73 | |||||
110 | 6.76 | 18 | 275 | 0.616 | 0.73 | |||||
120 | 6.65 | 18 | 274 | 0.608 | 0.74 | |||||
170 | 6.56 | 18 | 271 | 0.612 | 0.74 | |||||
200 | 6.60 | 18 | 274 | 0.592 | 0.75 | |||||
220 | 6.63 | 18 | 276 | 0.574 | 0.75 | |||||
240 | 6.82 | 18 | 278 | 0.570 | 0.73 | |||||
3.Overall performance (21V 280MA test condition) | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
100 | 7.86 | 21 | 273 | 0.629 | 0.73 | |||||
110 | 7.75 | 21 | 273 | 0.620 | 0.74 | |||||
120 | 7.67 | 21 | 271 | 0.614 | 0.74 | |||||
170 | 7.41 | 21 | 269 | 0.618 | 0.76 | |||||
200 | 7.50 | 21 | 270 | 0.601 | 0.76 | |||||
220 | 7.74 | 21 | 273 | 0.590 | 0.74 | |||||
240 | 7.85 | 21 | 277 | 0.577 | 0.74 | |||||
3.Overall performance (24V 280MA test condition) | AC Input | Output | ||||||||
Input Voltage(V) Input Voltage | Power consumption(W) | Output Voltage(V) | Output current(MA) | Power factor | Efficience | |||||
100 | 8.60 | 24 | 260 | 0.634 | 0.73 | |||||
110 | 8.78 | 24 | 269 | 0.625 | 0.74 | |||||
120 | 8.67 | 24 | 269 | 0.617 | 0.74 | |||||
170 | 8.55 | 24 | 268 | 0.624 | 0.75 | |||||
200 | 8.53 | 24 | 269 | 0.605 | 0.76 | |||||
220 | 8.58 | 24 | 272 | 0.595 | 0.76 | |||||
240 | 8.68 | 24 | 274 | 0.582 | 0.76 | |||||
4. Using environment Parameters | Parameters | Unit | Test description | Minimum | Typical | Maximum |
Working ambient temperature | ℃ | Full load operation | -18 | +40 | +60 | |
Storage ambient temperature | ℃ | -25 | 25 | +75 |
