Product Description
Product details and advantages
Product advantage
A variety of conveyor bandwidths are available
Dt-ii belt conveyor bandwidth of 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm, can be used to meet a variety of specifications and sizes of material transportation needs.
Wide range of driving power and large transmission capacity
Dt-ii belt conveyor can be configured with 1.5, 2.2, 3.0, 4.0, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45, 55, 75, 90, 110, 132, 160, 200KW and other power drive motor.
The equipment is widely used to adapt to the variety of materials
Dt-ii belt conveyor can be used for raw coal, clean coal, coke, metal and non-metal ore, sinter, sand, aggregate, mineral powder, grain, water slag, ash, coal ash and other bulk, granular, bag material transportation.
The structure is simple and easy to maintain
The structure of DTII belt conveyor is mainly composed of transmission drum, reversing drum, roller or no roller parts, driving device, brake device, conveyor belt and other major components. It has few components, strong versatility, reliable operation, high efficiency and highly automated control.
DTII has a long distance and large throughput
It can be transported from hundreds of kilograms to thousands of tons per hour, and it is continuously transported without stopping, which has a stronger carrying capacity than the TD75. The length of a single machine can reach ten meters to tens of kilometers, which is very popular in foreign countries, according to the actual situation, there is no need to transfer points.
Material adaptability to meet a variety of properties
The conveyor belt of DTII type belt conveyor can be manufactured into a conveyor belt with anti-wear, flame retardant, corrosion resistance, high and low temperature resistance and other performance requirements according to the characteristics of the conveying objects, so it can transport a variety of bulk materials, blocks, chemicals and concrete.
Dt-ii belt conveyor bandwidth of 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm, can be used to meet a variety of specifications and sizes of material transportation needs.
Wide range of driving power and large transmission capacity
Dt-ii belt conveyor can be configured with 1.5, 2.2, 3.0, 4.0, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45, 55, 75, 90, 110, 132, 160, 200KW and other power drive motor.
The equipment is widely used to adapt to the variety of materials
Dt-ii belt conveyor can be used for raw coal, clean coal, coke, metal and non-metal ore, sinter, sand, aggregate, mineral powder, grain, water slag, ash, coal ash and other bulk, granular, bag material transportation.
The structure is simple and easy to maintain
The structure of DTII belt conveyor is mainly composed of transmission drum, reversing drum, roller or no roller parts, driving device, brake device, conveyor belt and other major components. It has few components, strong versatility, reliable operation, high efficiency and highly automated control.
DTII has a long distance and large throughput
It can be transported from hundreds of kilograms to thousands of tons per hour, and it is continuously transported without stopping, which has a stronger carrying capacity than the TD75. The length of a single machine can reach ten meters to tens of kilometers, which is very popular in foreign countries, according to the actual situation, there is no need to transfer points.
Material adaptability to meet a variety of properties
The conveyor belt of DTII type belt conveyor can be manufactured into a conveyor belt with anti-wear, flame retardant, corrosion resistance, high and low temperature resistance and other performance requirements according to the characteristics of the conveying objects, so it can transport a variety of bulk materials, blocks, chemicals and concrete.
Application field
Application industry: DT-II belt conveyor can be widely used in metallurgy, mining, coal, port, power station, building materials, chemical industry, light industry, machinery, petroleum and other industries.
Application materials: DT-II belt conveyor is used for raw coal, clean coal, coke, metallic ore, non-metallic ore, sinter, sand, aggregate, mineral powder, grain, water slag, ash, coal ash and other materials.
Application conditions: DT-II belt conveyor with high versatility, the use of protective measures, can be used for heat, cold, waterproof, anti-corrosion, explosion-proof, flame retardant and other working conditions.
Application materials: DT-II belt conveyor is used for raw coal, clean coal, coke, metallic ore, non-metallic ore, sinter, sand, aggregate, mineral powder, grain, water slag, ash, coal ash and other materials.
Application conditions: DT-II belt conveyor with high versatility, the use of protective measures, can be used for heat, cold, waterproof, anti-corrosion, explosion-proof, flame retardant and other working conditions.
Product Paramenters
Bandwidth （mm） | Delivery capacity Iv(m³/h) | ||||||||||||||||
Belt speed v(m/s) | |||||||||||||||||
0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | 4.0 | （4.5） | |||||||||
500 | 69 | 87 | 108 | 139 | 174 | 217 | |||||||||||
650 | 127 | 159 | 198 | 254 | 318 | 397 | |||||||||||
800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | ||||||||||
1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | |||||||||
1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2674 | |||||||||
1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 3718 | |||||||||
1600 | 2186 | 2733 | 3444 | 4373 | 4920 | ||||||||||||
1800 | 2795 | 3494 | 4403 | 5591 | 6219 | ||||||||||||
2000 | 3470 | 4338 | 5466 | 6941 | 7808 | ||||||||||||
2200 | 6843 | 8690 | 9776 | ||||||||||||||
2400 | 8289 | 10526 | 11842 | ||||||||||||||
Note: 1. The Iv value of conveying capacity is calculated when the dynamic accumulation angle is 20 ° and the roller groove angle is 35 ° according to the attribute transportation. 2. The belt speed (4.5) and (5.6) m/s in the table are non-standard values, which are generally not recommended.

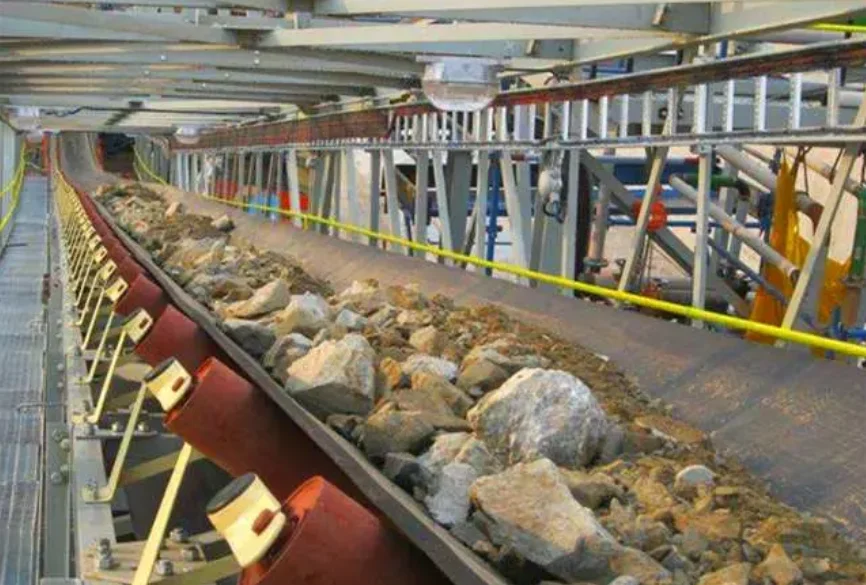

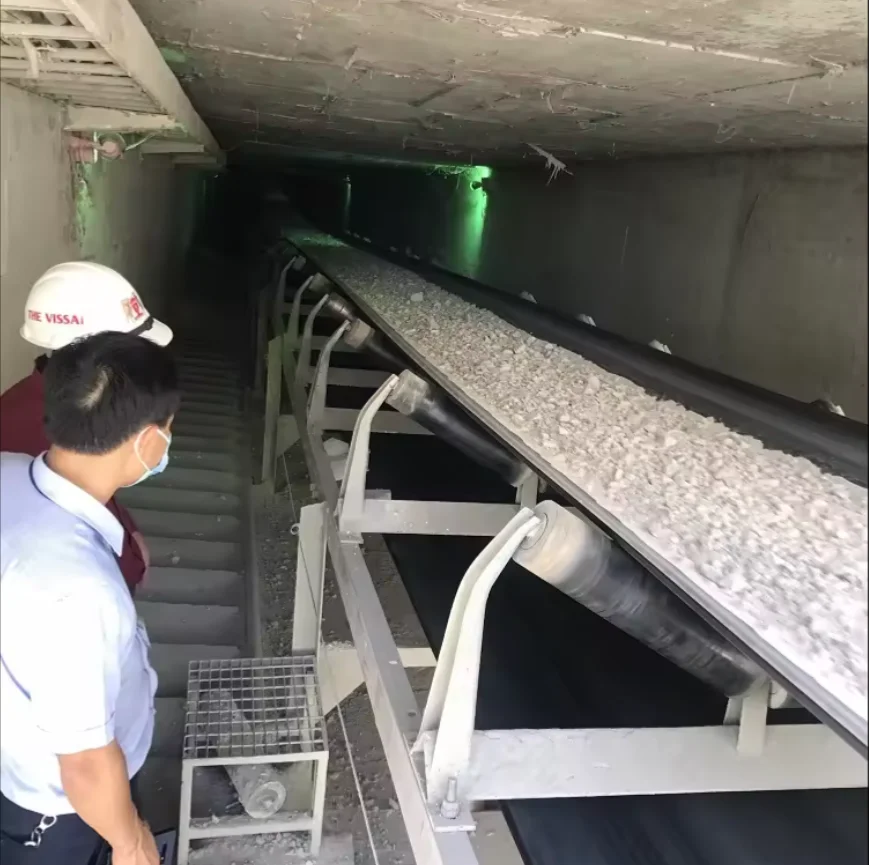

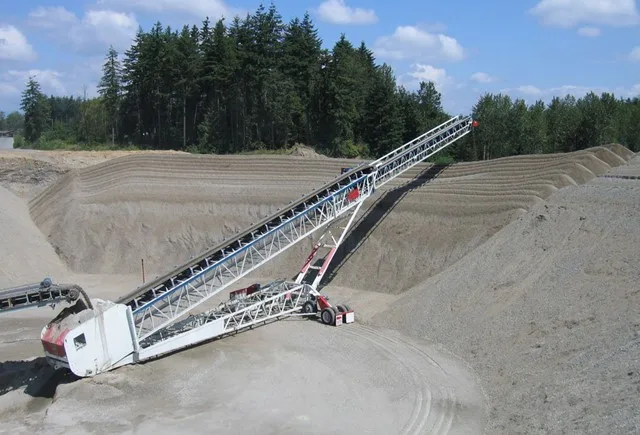

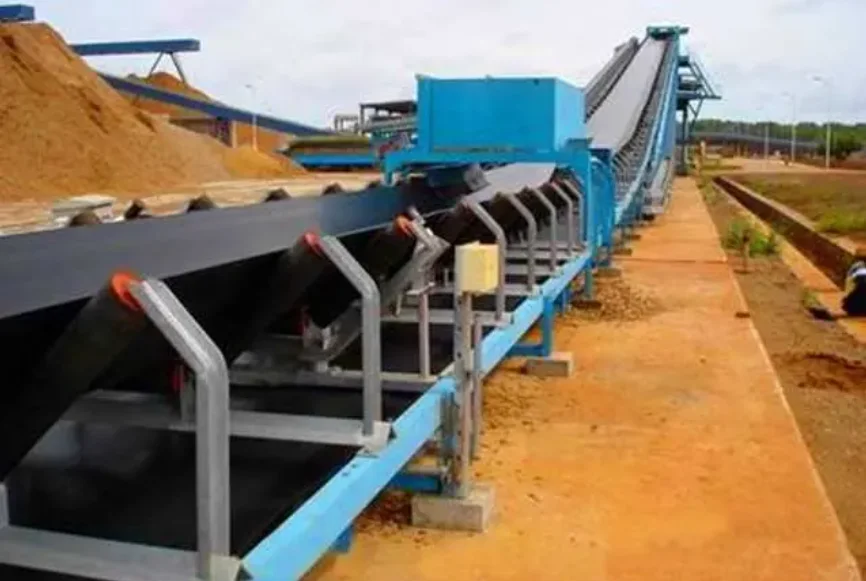

Working site
