H770 Хорошая эффективность небольшая многоцветная офсетная печатная машина цена

Good efficiency small multi color offset printing machine price

Features
1. Easy operation by one hand lever to control dampening, inking and pressing.
2. Accurate Location by front stop and both side-pulled stop ensures perfect printing.
3. Dampening and inking system is separate to adjust water and ink supplying easily.
4. PLC system is adopted to control the circuit.
5. Presetting Counter can make the machine stop automatically when finish preset quantity.
6. Doulbe sheets detection can eliminate the troubles of multiple sheets automatically.
7. Powdering Function can avoid paper dirty.
8. Centralized lubricating system is more convenient for maintenance.
9. Numbering and perforating unit is optional.

Technicial data

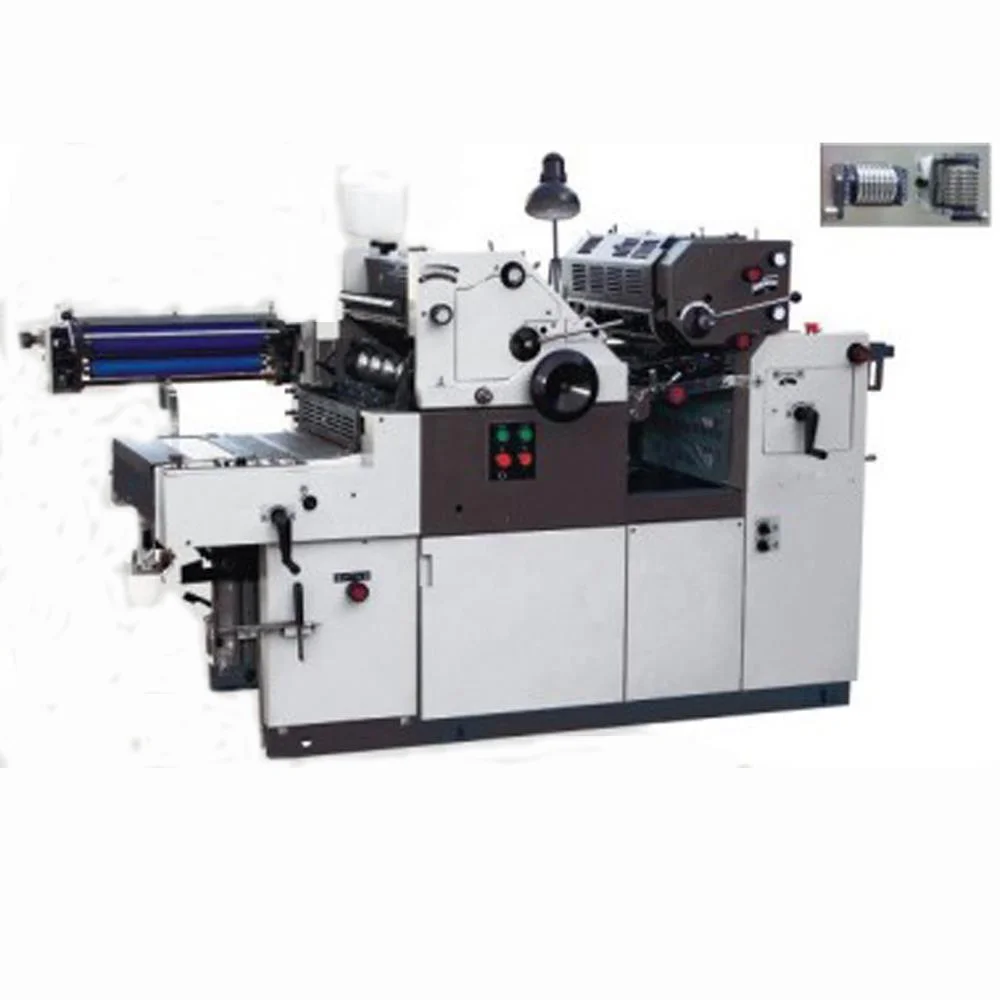

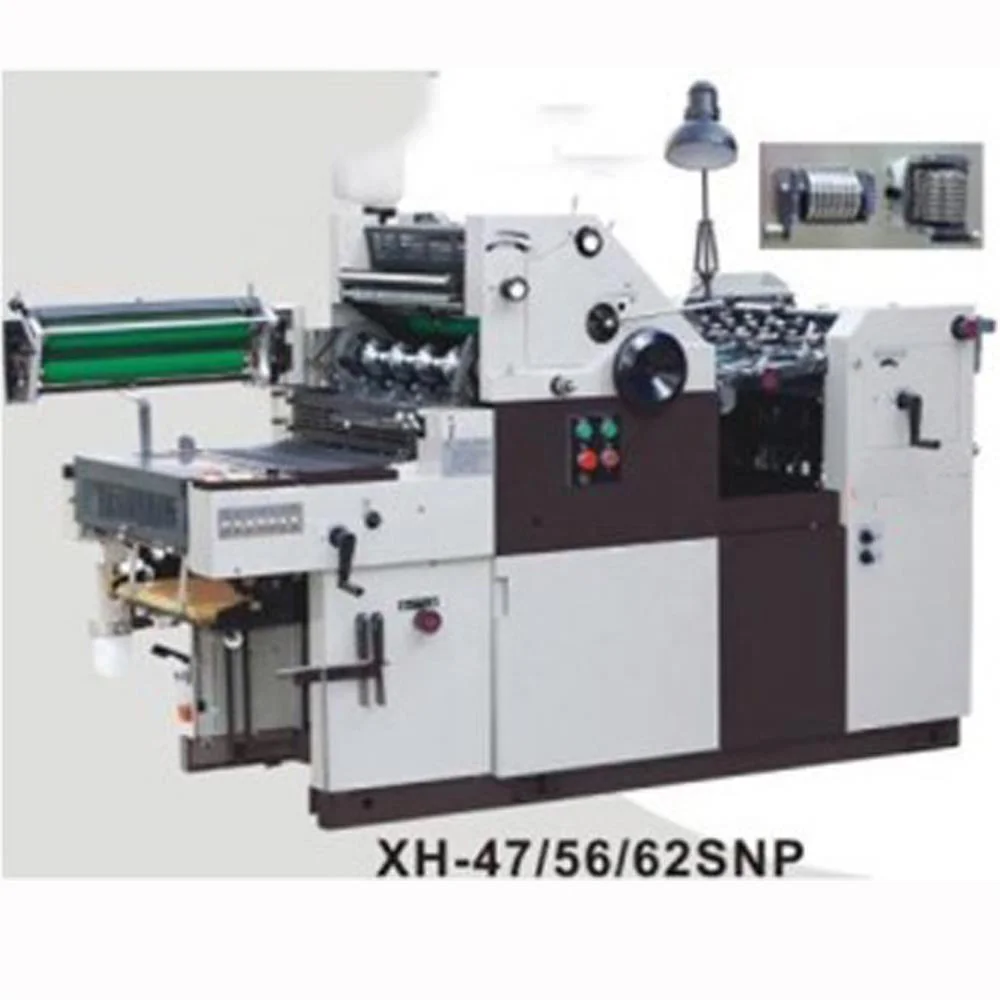

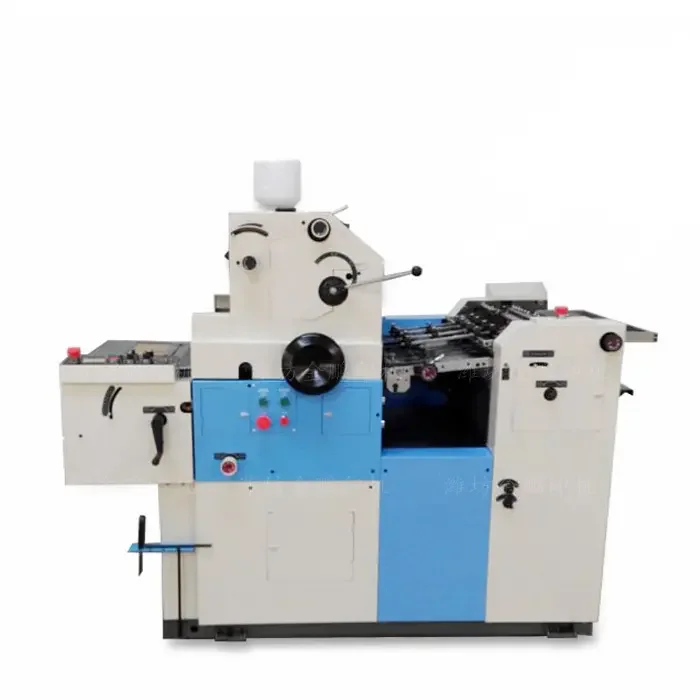

Product name	Single Color Offset Printing Machine
Model	ES47S/ES47SNP	ES56S/ES56SNP	ES62S/ES62SNP
Max. paper size	470*365mm	560*400mm	620*440mm
Max. printing area	454*345mm	550*370mm	605*440mm
Min. paper size	210*297mm	210*297mm	210*297mm
PS plate size	470*395*0.15mm	560*420*0.15mm	620*485*0.15mm
Rubber blanket size	466*415*1.95mm	560*454*1.95mm	620*510*1.95mm
Paper weight	28-250gsm
Register device	wheel-type side pull guide
Feeding mode	suction, cross feed
Dampening mode	molton mode
Ink roller	10pcs(2 forme roller) 14pcs(3 forme roller)		16pcs(3 forme roller)
Dampening roller	4pcs(1 forme roller) 5pcs(2 forme roller)		5pcs(2 forme roller)
Power	220V/50HZ(single phase)
Power of main motor	1.1KW	1.1KW	1.65KW
Power of air-pump motor	0.55KW	0.55KW	0.55KW
Printing speed	2000-8000sheets/hour	2000-8000sheets/hour	2000-8000sheets/hour
Dimensions	1800*1000*1450mm 2100*1000*1450mm(SNP)	1800*1100*1450mm 2100*1100*1450mm(SNP)	2000*1200*1500mm 2300*1200*1500mm(SNP)
Weight	600/800kg	800/1000kg	1000/1200kg
Optional
Number capacity	Lateral: 7row*7column=49/7row*8column=56/7row*9column=63 Vertical: 5row*8column=40/5row*10column=50/5row*11column=55



Product name	Satellite Type Double Colors Offset Printing Machine
Model	ES47D/ES47DNP	ES56D/ES56DNP	ES62D
Max. paper size	470*365mm	560*400mm	620*440mm
Max. printing area	454*345mm	550*370mm	605*440mm
Min. paper size	210*297mm	210*297mm	210*297mm
PS plate size	470*395*0.15mm	560*420*0.15mm	620*485*0.15mm
Rubber blanket size	466*415*1.95mm	560*454*1.95mm	620*510*1.95mm
Paper weight	28-250gsm
Register device	wheel-type side pull guide
Feeding mode	suction, cross feed
Dampening mode	molton mode
Ink roller	10pcs(2 forme roller) 14pcs(3 forme roller)		16pcs(3 forme roller)
Dampening roller	4pcs(1 forme roller) 5pcs(2 forme roller)		5pcs(2 forme roller)
Power	220V/50HZ(single phase)
Power of main motor	1.1KW	1.1KW	1.65KW
Power of air-pump motor	0.55KW	0.55KW	0.55KW
Printing speed	2000-8000sheets/hour	2000-8000sheets/hour	2000-8000sheets/hour
Dimensions	1800*1000*1550mm 2100*1000*1550mm(SNP)	1800*1100*1550mm 2100*1100*1550mm(SNP)	2000*1200*1500mm
Weight	650/850kg	850/1050kg	1050/1250kg
Optional
Number capacity	Lateral: 7row*7column=49/7row*8column=56 Vertical: 5row*8column=40/5row*10column=50



Product name	Two Colors Offset Printing Machine
Model	ES247T/ES247TNP	ES256T/ES256TNP	ES262T/ES262TNP
Max. paper size	470*365mm	560*400mm	620*450mm
Max. printing area	450*345mm	550*375mm	605*440mm
PS plate size	470*395*0.15mm	560*417*0.15mm	620*485*0.15mm
Blanket size	470*420*1.95mm	560*460*1.95mm	620*505*1.95mm
Paper weight	28-250gsm
Motor power	2.2+1.1KW
Printing speed	2000-6000sheets/hour	2000-7000sheets/hour	2000-7000sheets/hour
Machine size Pakage size	2600*935*1400mm 2910*935*1400mm	2600*1035*1400mm 2910*1035*1400mm	2800*1100*1600mm 3000*1100*1600mm
Weight	1500/1700kg	1560/1760kg	1900/2100kg

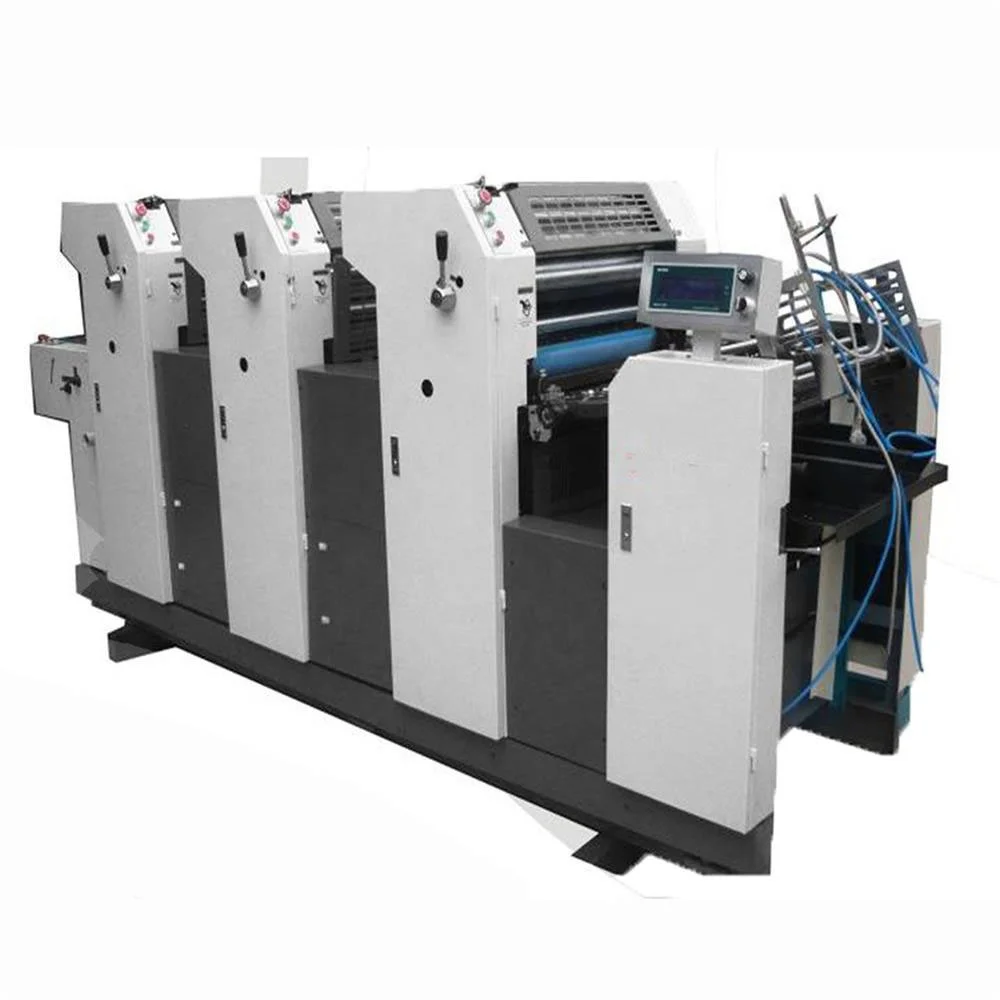

Product name	Four Colors Offset Printing Machine
Model	ES447F/ES447FNP	ES456F/ES456FNP
Max. paper size	470*365mm	560*400mm
Min. paper size	90*140mm	90*140mm
Max. printing area	450*345mm	550*375mm
Paper weight	28-250gsm	28-250gsm
Printing speed	2000-8000sheets/hour	2000-8000sheets/hour
Printing plate size	470*395*0.15mm	560*420*0.15mm
Ink roller	14 pieces(3 ink form roller)	14 pieces(3 ink form roller)
Damping roller	5 pieces(2 damping roller)	5 pieces(2 damping roller)
Blanket size	466*415*1.95mm	560*455*1.95mm
Power of primary motor	2.2KW	2.2KW
Power of air-pump power	0.75KW	0.75KW
Power supply	220V/50HZ	220V/50HZ
Dimension size	4600*935*1400mm	4600*1040*1400mm
Machine weight	1800kg	2400kg

Machine Details



Q1:Are you manufacturer or trading company?
A1:We are manufacturer.

Q2:What is the price term?
A2:The price listed is FOB There might be additional forwarder costs depends on different forwarder and shipment
method. The price may fluctuate due to material cost / labor cost / exchange rate change. Please consult our sales people before confirming an order.

Q3:How long do you need to produce the products?
A3:We arrange the shipment in 7~15 days.

Q4:How to place order and arrange payment?
A4:If you buy our RTS product, you can contact our sales to draft PI or trade assurance order for you or you can press " start to order " button on Alibaba.

Q5:What documents do you provide?
A5:We provide Commercial Invoice, Packing List, Bill of Loading, Certificate of Origin, Fumigation Certificate. If your markets have any special requirements such as SONCAP, PVOC, please let us know.

Q6:What is the payment term? How can I arrange payment?
A6:We accept TT / LC / Trade assurance payment.

If you have any other questions or any doubt about customization, please click“Chat Now” on the right or send us email, we provide 24 hours for you.
