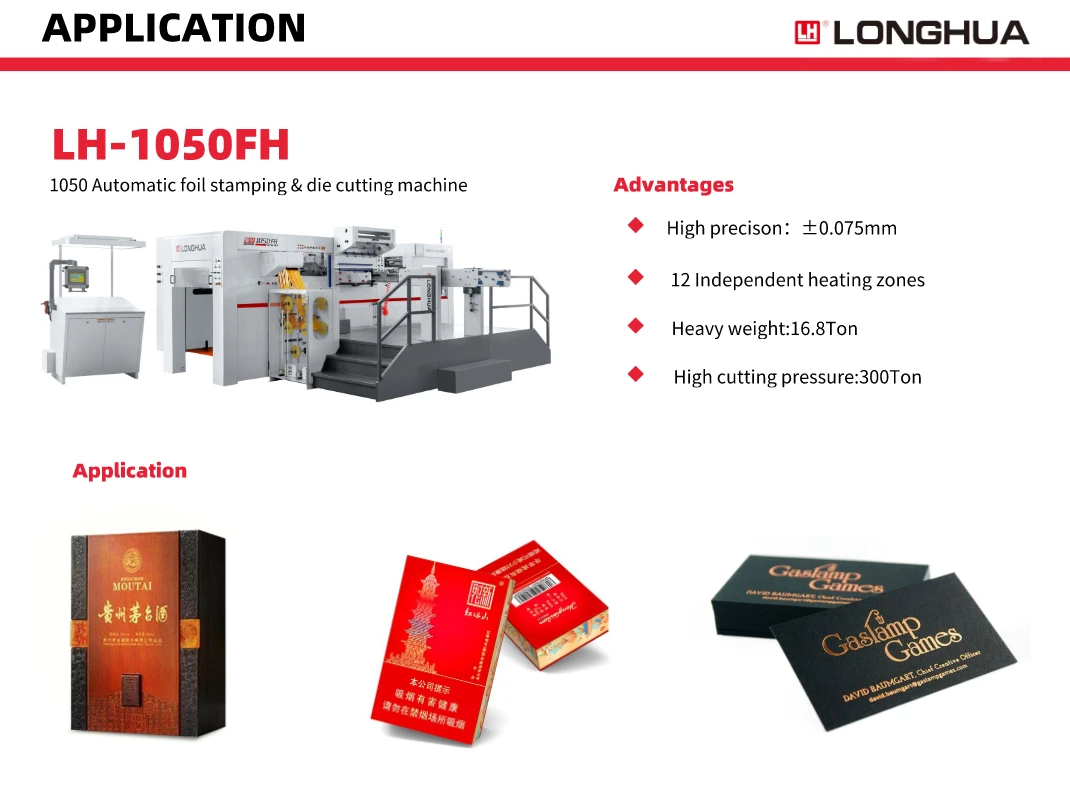

LH-1050FH Automatic foil stamping&die cutting machine
1.Automatic Hot Foil Stamping Die Cutting Machine is designed both for die cutting and foil stamping.It suits for 60-2000g/m2
paperboard/cardboard, and below 4mm corrugated paper/ carton,/pasting paper/laminating paper and so on.

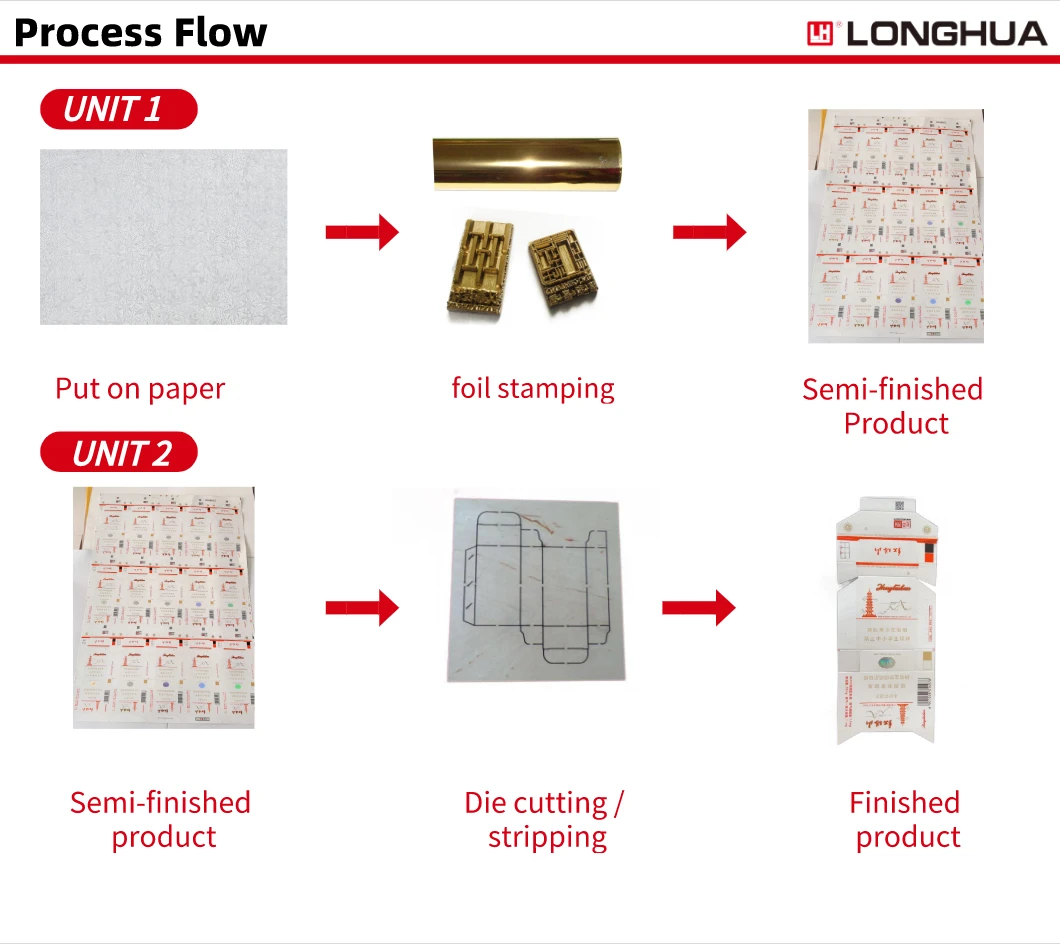

2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section.finishes feeding,hot foil stamping,die
cutting and collecting work cycle automatically. 90% of the machine accessories are imported, chosed from the manufacturers which
have great name.
3.The electrical part is provided by main motor,and the 7 servo motors ensure the foil stamping accuration . 12 independent
heating zones provide 0-200°temperature, witch the pattern keeps high-quality,no bubble, no coking,no drape, meanwhile, maintain
the precision of the stamping work be ±0.075mm, always within the top standard.
4.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all scraped by hands, make them
full of criss-cross scrath and crab more oil. Let the machine last longer and run more stable.
paperboard/cardboard, and below 4mm corrugated paper/ carton,/pasting paper/laminating paper and so on.
2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section.finishes feeding,hot foil stamping,die
cutting and collecting work cycle automatically. 90% of the machine accessories are imported, chosed from the manufacturers which
have great name.
3.The electrical part is provided by main motor,and the 7 servo motors ensure the foil stamping accuration . 12 independent
heating zones provide 0-200°temperature, witch the pattern keeps high-quality,no bubble, no coking,no drape, meanwhile, maintain
the precision of the stamping work be ±0.075mm, always within the top standard.
4.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all scraped by hands, make them
full of criss-cross scrath and crab more oil. Let the machine last longer and run more stable.
Technical Data | LH-1050FH | |
Max. Sheet Size | 1050 x 750 mm | |
41.34 x 29.53 inch | ||
Min. Sheet Size | 400 x 360 mm | |
15.75 x 14.17 inch | ||
Max. Cutting Size | 1040 x 720 mm | |
40.94 x 28.35 inch | ||
Max. Foil Stamping Size | 1020 x 600 mm | |
Die Cutting Steel Plate Size | 1080 x 736 mm | |
Processed Materials | 80-2000 g/m2 | |
0.1~2 mm Cardboard | ||
≤4mm Corrugated | ||
0.1~2 mm Plastic | ||
Cutting Pressure | 300 tons | |
Min. Waster Side Width | 8 mm | |
Max. Cutting Speed | 7500 sheets / hour | |
Max. Foil Stamping Speed | 6500 sheets / hour | |

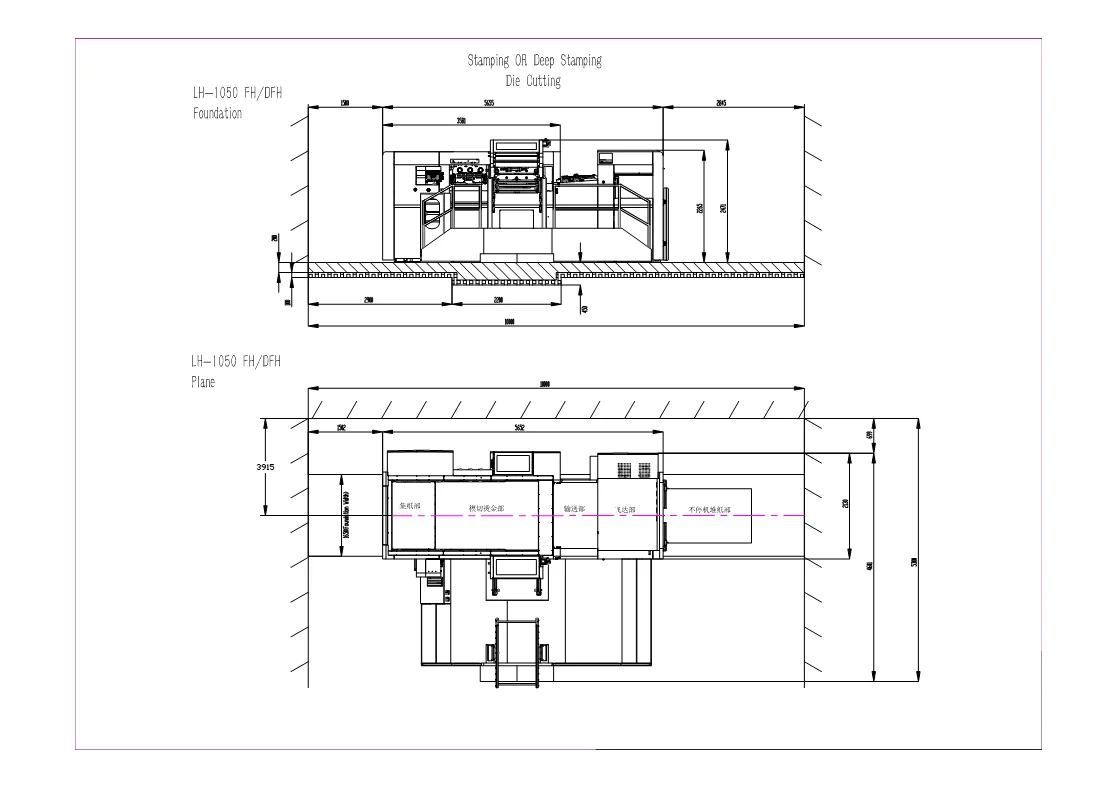

Size of Machine (L x W x H) | 7060 x 4669 x 2230 mm | |
278 x 184 x 88 inch | ||
Total Weight | 16.8 tons | |
Heated System Zone | 12 | |
Stamping Temp. Range | 0ºC - 200ºC | |
Electric hot plate with electricity | 24 kw | |
Total Power | 57 kw | |
VERTICAL FOIL STAMPING SECTION PERFORMANCE SPECIFICATION | ||
Max.Foil Width | 1020mm | |
Min.Foil Width | 25mm | |
Max.Length of Pull Foil | 700mm | |
Max.Put Foil Roll Diameter | Φ240mm | |
HORIZONTAL FOIL STAMPING SECTION PERFORMANCE SPECIFICATION | ||
Max.Foil Width | 600mm | |
Min.Foil Width | 25mm | |
Max.Length of Pull Foil | 1020mm | |
Max.Put Foil Roll Diameter | Φ200mm | |
Machine features
1.Feeder/Feeding Section
* Imported high quality feeder, high precision，stable in high speed.
* Four suction nozzles, four sending nozzles, ensure feeding smoothly.
*Adopt imported screw air-blowing device, it could make the sheet send smoothly.
* Suction angle and height can be adjustable.
* Non-stop paper feeding device
* Double sheet detecting system
* Suction-blow two function vacuum pump
.
2.Feeding Positioning Section
location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch
easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.
3. Cutting Section/Horizontal and vertical foil stamping system
Adopt advanced technology with single gripper location could adjust the front-and-back registration. Horizontal hot stamping
dual-anxis/Vertical hot stamping collection of waste foil frame into operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.
dual-anxis/Vertical hot stamping collection of waste foil frame into operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.
4. Foil Stamping/ Die Cutting Section
Die Cutting Plate
Foil Stamping Plate
Embossing Plate
The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively.
FAQ
1. Q:Whether your company are manufacturer ?
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine.
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine.
2. Q:Whether you have export licence ?
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
3.Q:Can you customize the equipment according to my needs?
A:Yes,the specification,configuration,function and appearance can be customized.
A:Yes,the specification,configuration,function and appearance can be customized.

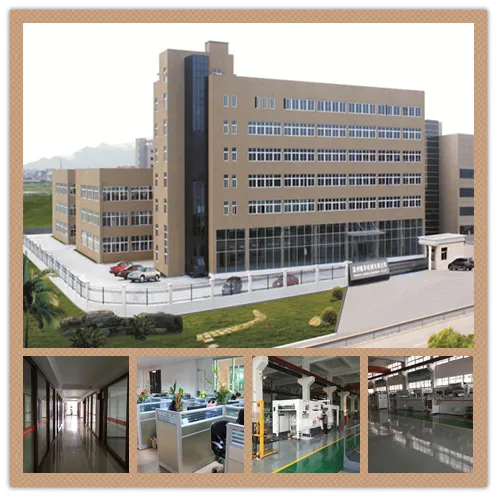

4. Q:Where you are located ?
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china .
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help,Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production?
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china .
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help,Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production?
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
Language Spoken:English,Chinese.
