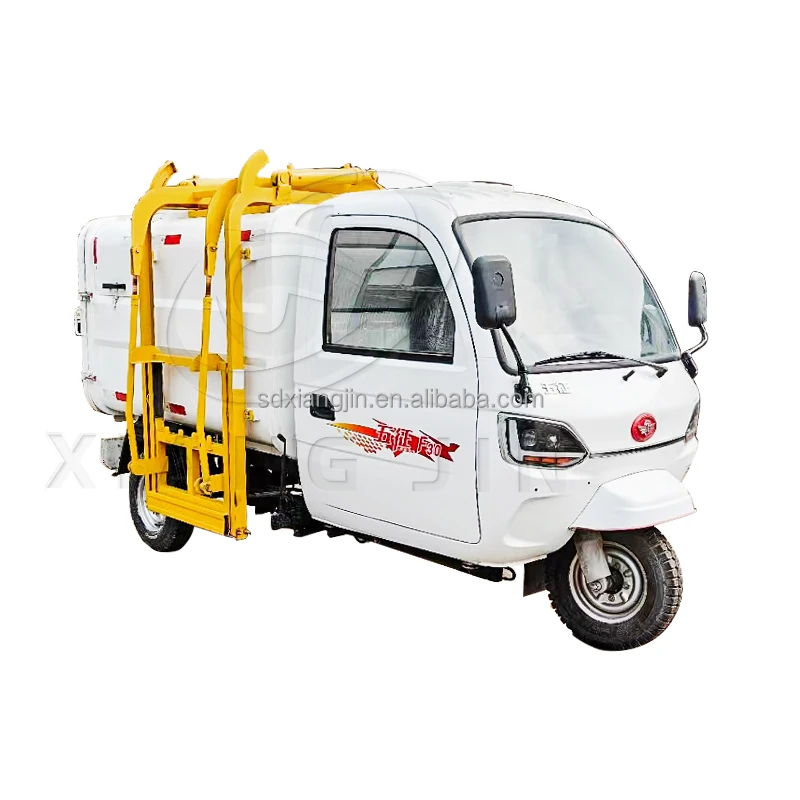

SDXJ небольшой Электрический трехколесный грузовик с боковой загрузкой для мусора на продажу
4 200,00-4 580,00 $
Заводская цена Foton 4X2 10cbm рулонный мусоровоз с поворотным рычагом
- Категория: >>>
- Поставщик: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.Hubei Ltd.
Сохранить в закладки 1601206520831:
Описание и отзывы
Характеристики
Product Description

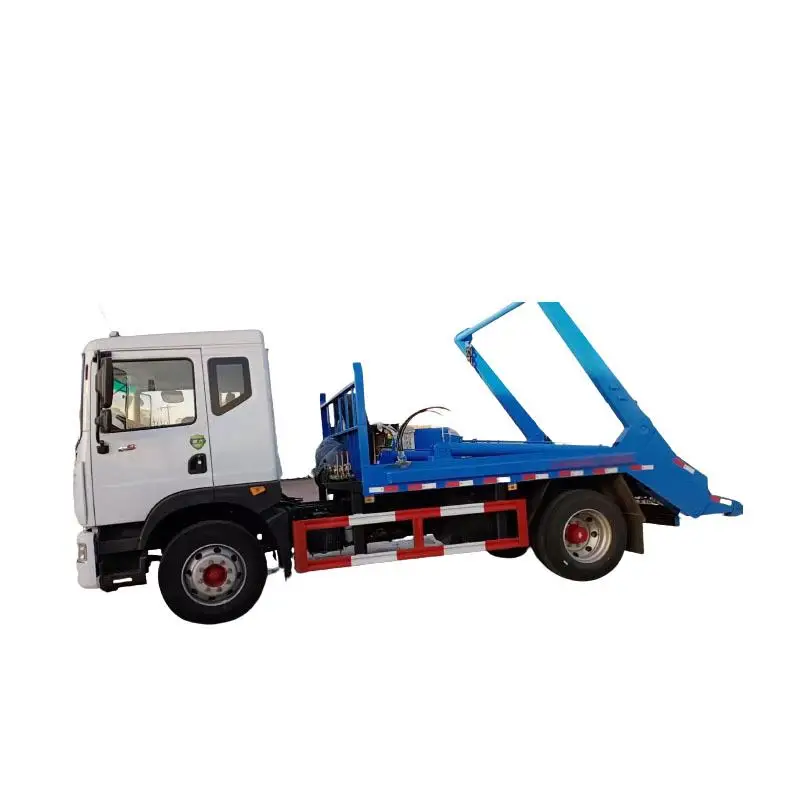

Factory price Foton 4X2 10cbm Arm Roll Garbage Truck Swing Arm Garbage Truck
Arm roll truck swing arm garbage truck waste disposal truck
1. Dustbin volume:10~12CBM.
2. Chassis brand: Dongfeng,SINOTRUK,JAC,ISUZU,FAW,FOTON etc.
3. Drive type:4*2
4. Engine :180/210HP/132/155kw
5. Emission standard:Euro 3/Euro 4/Euro 5.
6. With 3C and passes the ISO9001-2008,SGS.
7.The swing arm garbage truck can be used for multiple dustbins with dump function.
8. OEM, We are a professional manufacturer and can produce all kinds of sizes for swing arm garbage truck.
Swing Arm Garbage Truck Technical Parameters:
Cabin | Driving type 4x2 | |
H5 Cabin with two seats,with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2500x3500 |
Wheel base (mm) | 4200 | |
Wheel track (front/rear) (mm) | 1980/1860 | |
Approach/Departure angle(°) | 24/15 | |
Weight in KGS | Tare Weight | 8000 |
Loading Capacity | 10000 | |
Front axles loading capacity | 1×6000 | |
Rear axles loading capacity | 1x12000 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | YUCHAI |
Model | YC6J220-33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 220 HP | |
Emission standard | Euro Ⅲ | |
Gearbox | DC6J65TC, 6 forwards &1 reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF steering, hydraulic steering with power assistance | |
Fuel tank (L) | 300 L | |
Tire | 10.00R20 tires with one spare, totally 7 pcs. | |
Swing arm system with cargo box | ||
l Garbage cargo box :10CBM , Carbon steel material , underground type or aboveground type can be optional. l PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg l Swing arm maximum pivot angle 145 ; hoisting time 30s ; Unloading time 50s. | ||
Related Products
1.Water Truck 2.Insulated Truck and Milk Truck 3.Sewage Suction Truck
4.Garbage Truck 5. High-altitude Operation Truck/Truck with Crane
6.Fuel Truck 7.Chemical Liquid Truck 8.Bulk Cement Truck
9. Concrete Mixer Truck 10.Tractor 11.Semi-Trailer
12. Fire Fighting Truck 13.Dump Truck 14.Van Truck/Refrigerated Truck/Refrigeration Truck
15.Wrecker/Tow Truck 16.Flatbed Truck/Low Bed Truck 17.Sweeper Truck
18. High Pressure Cleaning Truck 19.Liquefied Gas Transport Truck 20.Pressure Vessel
Packaging & Shipping
Certifications
FAQ
1.Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions
2. FAQ
Q1. Are your manufacturer ?
A : Yes. We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q5. What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles. We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
Company Information
1. Hubei Chusheng Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
manufacturer with very professional experience in special automobile field for more than 15 years inChina.
We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru,Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea,Philippines,Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Contact Us
For more information about Swing arm Garbage Truck PRODUCTS, please contact:
Molly Ke
Sales Manager
Hubei Chusheng Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
Tel: +86-27-59215038; Fax: +86-27-59215082
Mob/: +86-15871800183
Web: www.cs-vehicle.com
Похожие товары

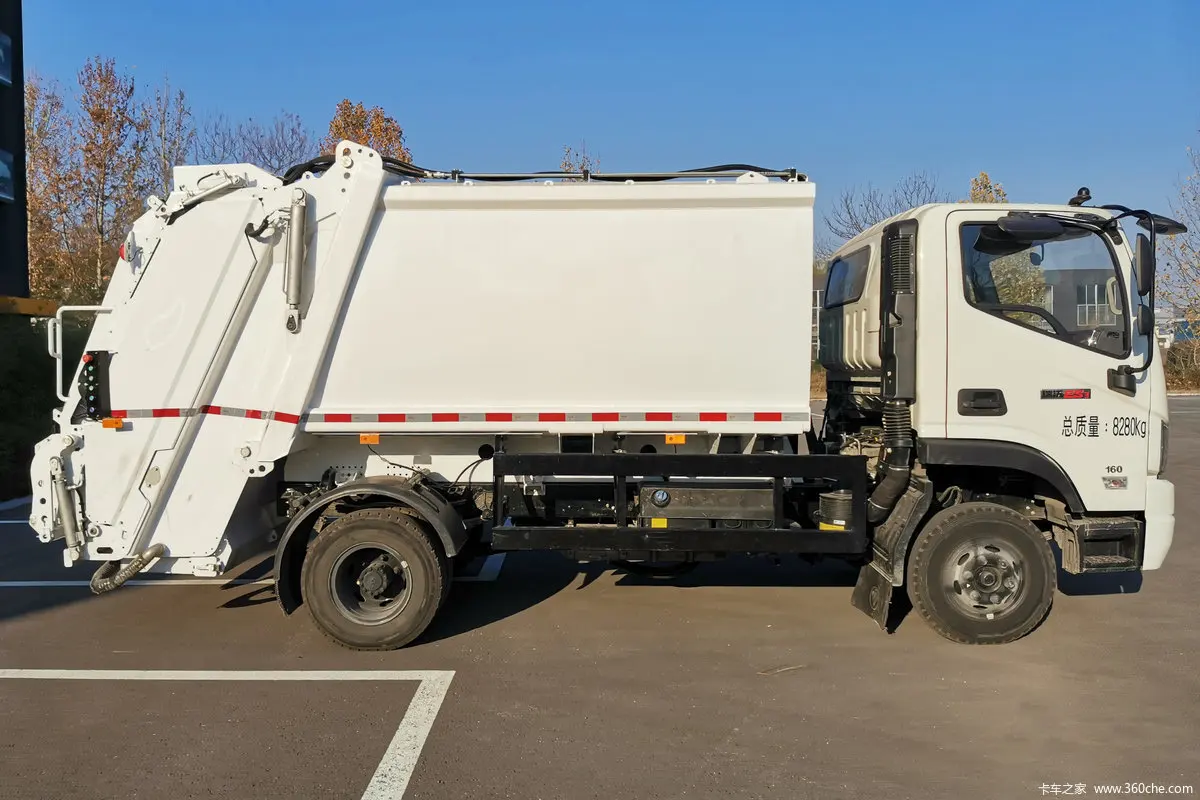

Новый стиль шасси 8 куб. М 6 колес дизельный сжатый мусоровоз уплотнитель отходов
3 600,00-3 800,00 $
KEEYAK самозагружающийся гидравлический уплотнитель для опрокидывания мусоровоз цена автоматический мусоросборник
10 000,00 $

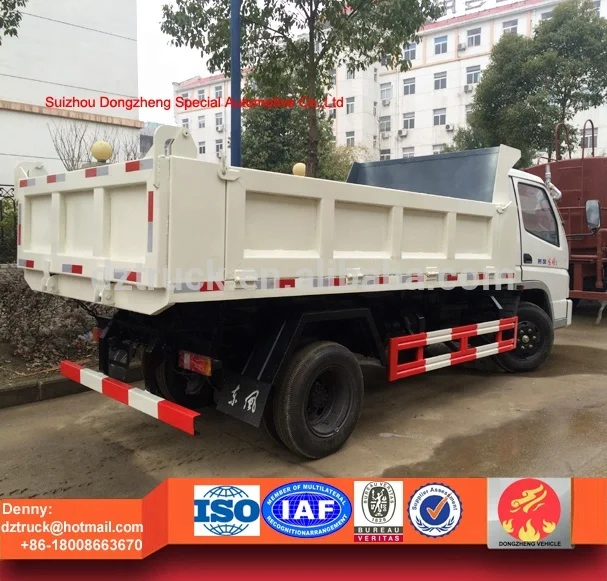

Самосвал shifeng самосвал грузоподъемностью 5 тонн
14 600,00-14 999,00 $

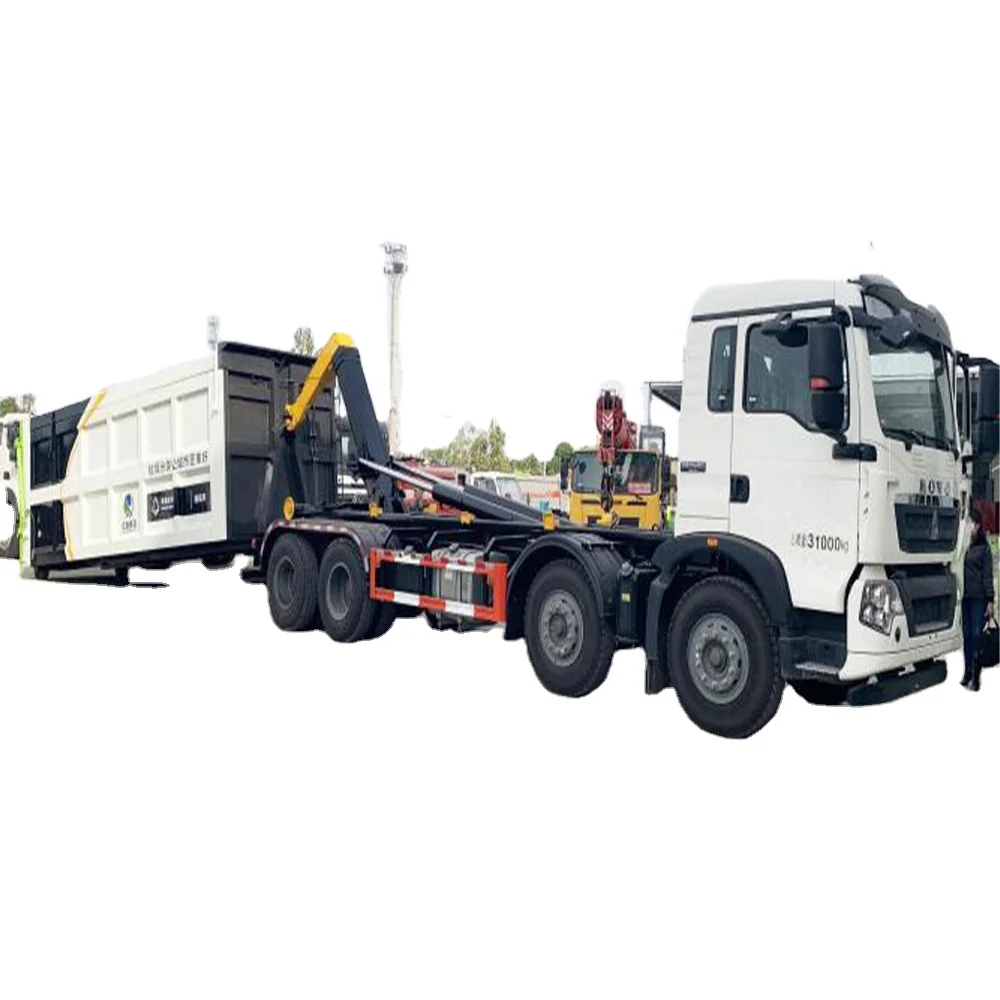

Sinotruck Howo Новый 8x4 крюк рычаг подъемник самосвал мусоровоз
3 055,00-5 720,00 $
Вакуумная шина Dongfeng 4x2 для грузовиков и мусоровозов 275
1-3 тонны гидравлический крюковый подъемник установленный на большегрузных грузовиках предназначенный для транспортировки материалов в переработке металлолом
8 800,00-8 900,00 $

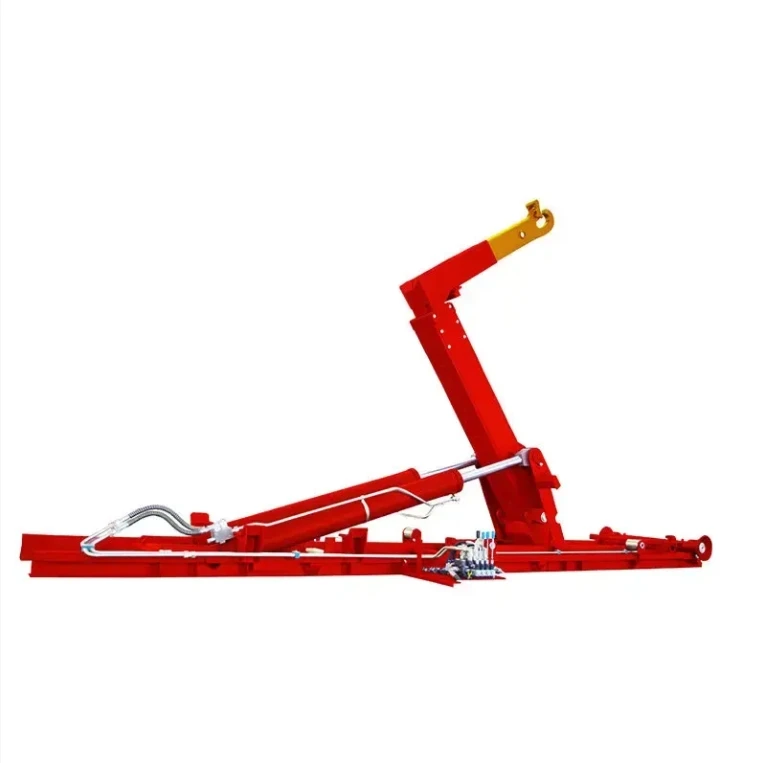

Заводская цена комплект подъемника для самосвала и мусоровоза
