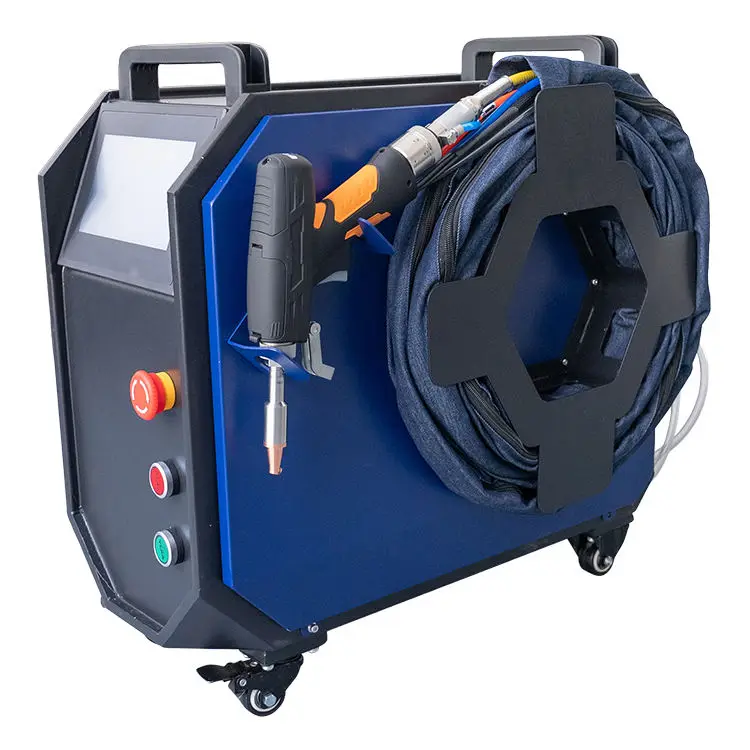

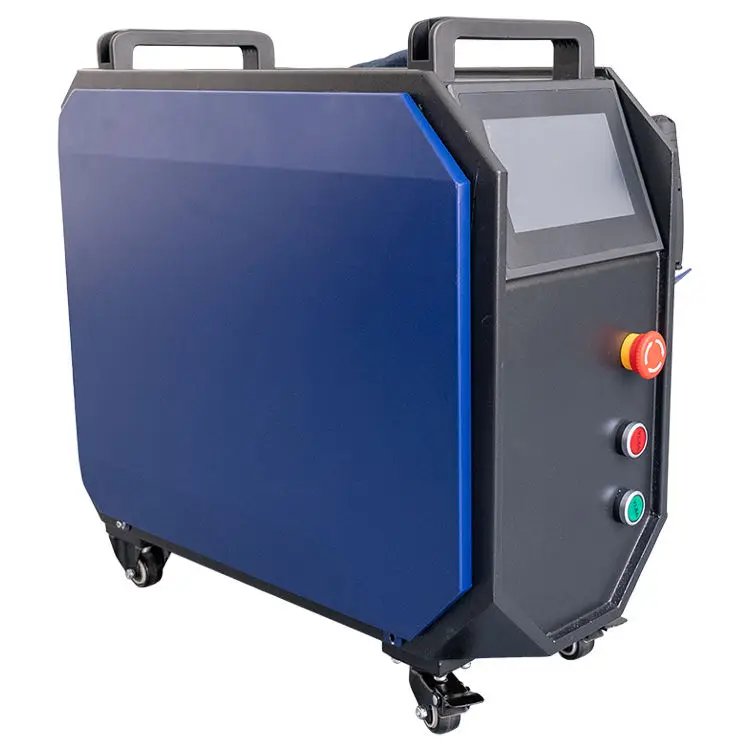

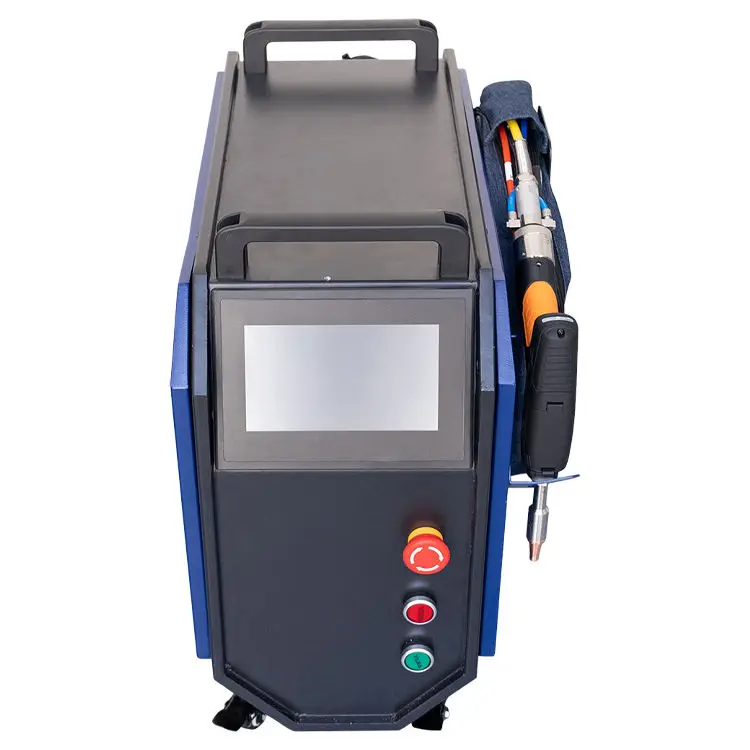

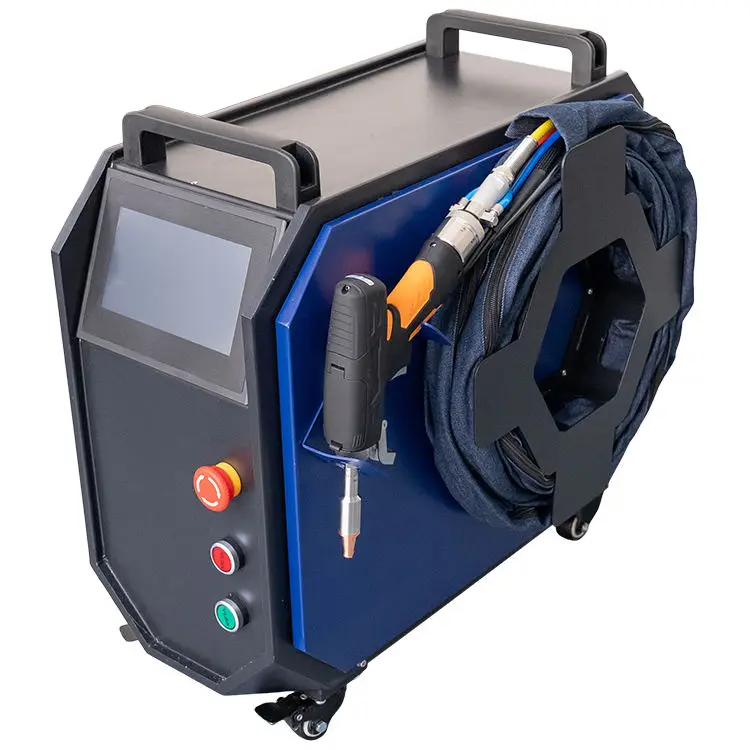

Небольшой лазерный сварочный аппарат 4 в 1 воздушное охлаждение 3000 Вт для домашнего бизнеса
- Категория: >>>
- Поставщик: Jiangsu Junfei Laser Technology Co. Ltd.
Сохранить в закладки 1601206569687:
Описание и отзывы
Характеристики
Video Introduction
Equipment Mode | JFW-H1500 | JFW-H2000 | JFW-H3000 | ||
Laser Type | FIBER LASER | ||||
Laser Power | 1500W | 2000W | 3000W | ||
Total Power | 5500W | 7000W | 11000W | ||
Laser Wavelength | 1064-1080nm | ||||
Pulse Frequency | 5000~10000Hz | ||||
Welding Width | 0.2-5mm | ||||
Cooling Type | Water Cooling | ||||
Laser Source Brand | Max, Raycus, IPG, Reci | ||||
Spot adjustment range | 0-5mm | ||||
Effective light aperture | 16mm | ||||
Optical fiber interface | QBH | ||||
Collimating focal length | 50mm | ||||
Focal length | 150mm | ||||
Core diameter of supported wire | 3.0mm | ||||
Maximum wire feed speed | 80mm/s | ||||
Control Panel | Touch Screen | ||||
Fiber Cable Length | 10m | ||||
Auto Wire Feeder Net Weight | 16.2KG | ||||
Auto Wire Feeder Dimension | 560*240*472mm | ||||
Machine Package Dimension | 698*440*810mm | ||||
Machine Package Weight | 45KG | 60kg | 80kg | ||
Title goes here.
Advantages of laser welding
1. It can weld some other components that are easy to be damaged or cracked during welding without contact and will not cause
mechanical stress to the welding object 2. It can irradiate the narrow parts that cannot be accessed by the soldering iron head on
the circuit with dense components and change the angle when there is no distance between adjacent components in dense assembly,
without heating the whole circuit board 3. During welding, only the welded area is heated locally, and other non welded areas are
not subject to thermal effect 4. The welding time is short, the efficiency is high, and the solder joint will not form a thick
intermetallic layer, so the quality is reliable
5. High maintainability. The traditional electric soldering iron welding needs to replace the soldering iron head regularly, while
the laser welding needs to replace very few accessories, so the maintenance cost can be reduced
1. It can weld some other components that are easy to be damaged or cracked during welding without contact and will not cause
mechanical stress to the welding object 2. It can irradiate the narrow parts that cannot be accessed by the soldering iron head on
the circuit with dense components and change the angle when there is no distance between adjacent components in dense assembly,
without heating the whole circuit board 3. During welding, only the welded area is heated locally, and other non welded areas are
not subject to thermal effect 4. The welding time is short, the efficiency is high, and the solder joint will not form a thick
intermetallic layer, so the quality is reliable
5. High maintainability. The traditional electric soldering iron welding needs to replace the soldering iron head regularly, while
the laser welding needs to replace very few accessories, so the maintenance cost can be reduced
Q1: I knew a little about this machine, what kind of machine i should choose? A1:Very easy to choose. Just tell us what you want
to do by using CNC laser machine, then let us give you perfect solutions and suggestions. Q2: When I got this machine, but I don’t
know how to use it. What should I do? A2:We will send video and English manual with the machine. If you still have some doubts, we
can talk by telephone or skype and e-mail. Q3: If some problems happen to this machine during warranty period, what should I do?
A3:We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long
after-sales service. So any doubts, just let us know, we will give you solutions.
to do by using CNC laser machine, then let us give you perfect solutions and suggestions. Q2: When I got this machine, but I don’t
know how to use it. What should I do? A2:We will send video and English manual with the machine. If you still have some doubts, we
can talk by telephone or skype and e-mail. Q3: If some problems happen to this machine during warranty period, what should I do?
A3:We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long
after-sales service. So any doubts, just let us know, we will give you solutions.
