Product Overview

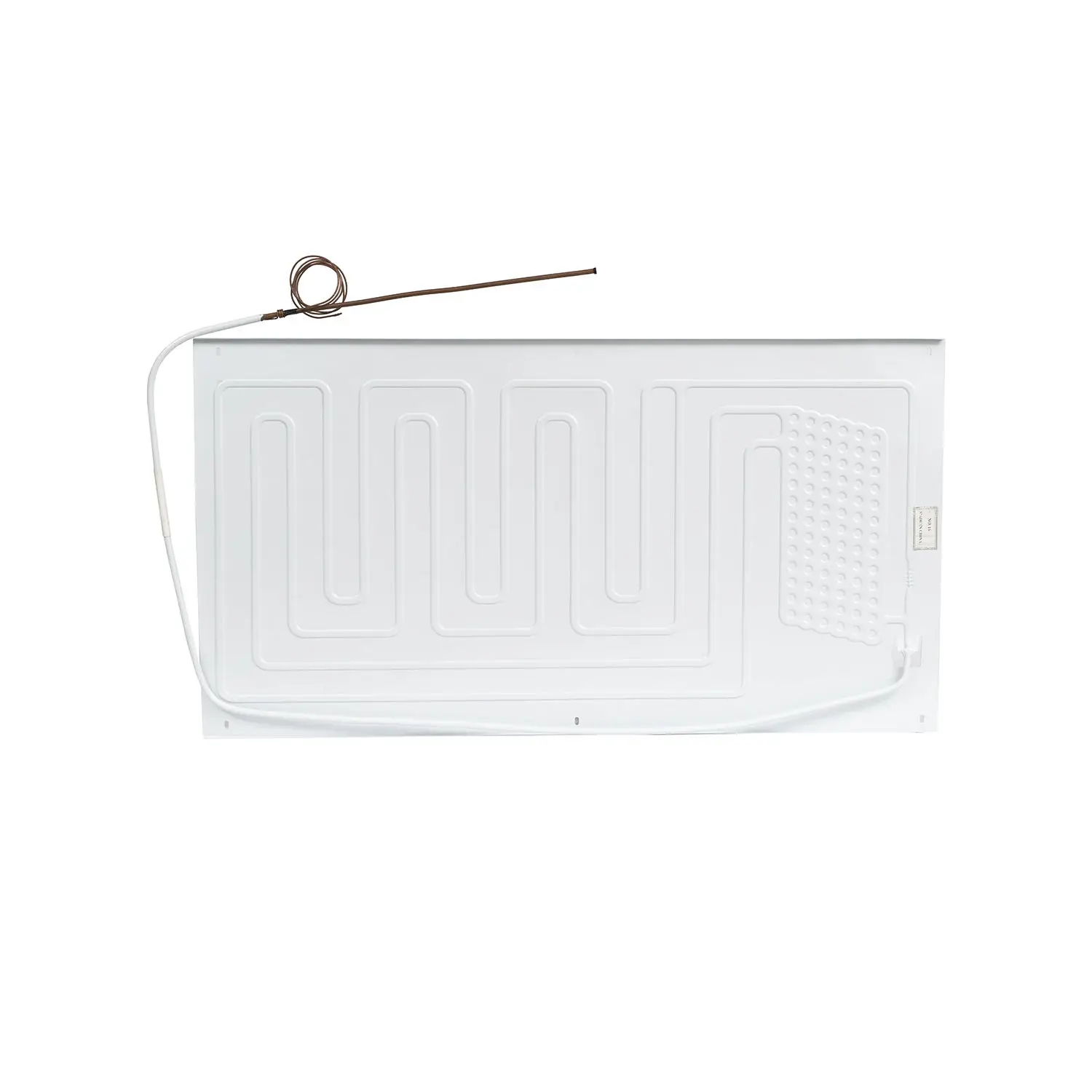

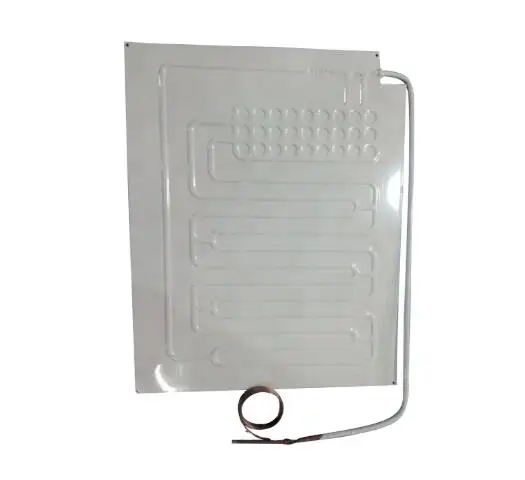

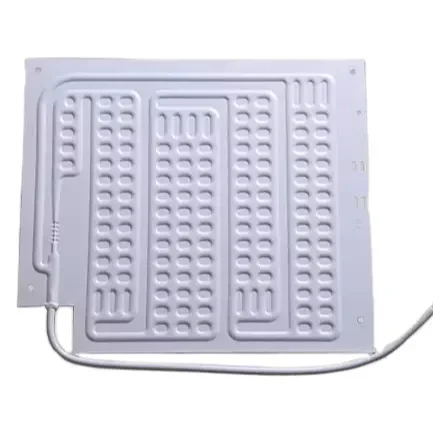

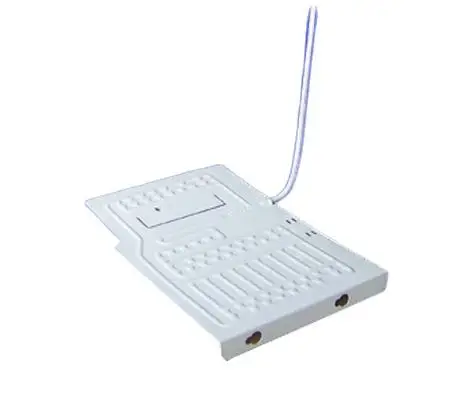

ROHS Aluminum Freezer and Ice Box Roll Bond Evaporator
New Arrival Bond Evaporator For Refrigerator, White Powder Painting Roll Bond Evaporator For Refrigerator, Aluminium Plate Roll Bond Evaporator For Refrigerator ,1031x448mm Single Side RollBond Evaporator,AL Plate Max Width 590mm Roll Bond Evaporator Evaporator,Roll Bond Evaporator,Refrigerator Evaporator,Refrigerator Roll Bond Evaporator,Aluminium Plate Evaporator,Aluminium Evaporator,Refrigerator Aluminium Plate Single Side Roll Bond Evaporator can be produced or designed according customers' request.




MODEL
SIZE/MM(W*L)
ERRG-01
1185*305
ERRG-02
1050*465
ERRG-03
485*440
ERRG-04

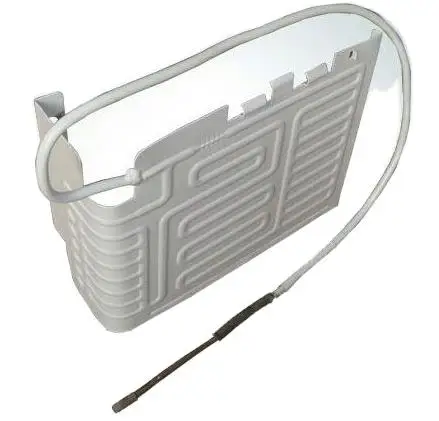

715*485bent
ERRG-05
380*440bent
ERRG-06
980*450+430*320
ERRG-07
380*350
ERRG-08
1511*273
ERRG-09
950*440
ERRG-10
550*350
ERRG-11
1170*550
ERRG-12
470*269bent
ERRG-13
915*520


MODEL
SIZE/MM(W*L)
SPECIFICATION
PRRK-01
228*305
9”*12”
PRRK-02
381*229
9”*15”
PRRK-03
380*310
12”*15”
PRRK-04
410*350
14”*16”
PRRK-05
381*915
15”*36”
PRRK-06
381*1042
15”*41”
PRRK-07
406*482
16”*19”
PRRK-08
419*1067
16.5”*42”
PRRK-09
457*991
18”*39”
PRRK-10
457*1067
18”*42”
PRRK-11
457*1194
18”*47”
PRRK-12
482.6*1143
19”*45”
PRRK-13
483*1220
19”*48”
PRRK-14
508*1143
20”*45”
PRRK-15
508*1219.2
22”*48”
PRRK-16
559*1270
22”*50”


Raw material
Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm
Structure
Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator
Key process
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping,
Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards
1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help
the clients design and produce different models of roll bond evaporator.
Performance
1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC
cooling system. 3) Can satisfy the cooling capability requirements.
Capacity
3.5 million sets per year (10000 sets per day)
R134a Cooling System Tube Inside standards
Residual moisture
≤5 /100cm3
Residual impurity
≤1 /100cm3
Residual mineral oil
≤100 /100cm3
Residual chlorine
≤5vloppm
Residual paraffin
≤3 /
Biggest single impurity
≤0.5mm
Specification of coating
Coating thickness
thickness of coating40 90 μ m
Hardness of coating
≥2H
Impact of coating
50cm?kg/cm impact, no crack
Adhesion of coating
≥two grade
Flexibility of coating
Around R=3D bend 180?, no crack or no fall off


Company Profile


Jinan Retek Industries Inc is a professional supplier in China, specializing in refrigeration parts. Now we have 3 factories in China, First one is condenser & heat exchanger, second one is filter drier, the other one is insulation tube. Now we sell our products mainly to refrigerator, freezer , air conditioner and electrical car factoryies in more than 70 countries .
From year 2018 , we begin to develop 5G Base Station Radiator . Now we are supplying 5G station radiator to many famous mobile company . Aluminium cooling Evaporator Radiator Plate for Mobile 5G Communication Base Station






Aluminum plate roll bond evaporator production key process : preparing materials – cleaning plate– roughing surface-printing – Pressed two aluminum plates togetherSoftened aluminium sheet- expansion pipe –punching –drill holes –adding the capillary – assemble welding – leakage testing – cleaning and drying – coating -curing- inspection – packing.


prepare material
clean material
print


punch two plates together
softened plate
punching and drill


welding
cleaning and leakage test
packing


Product packaging




FAQ


1. Do you accept products customization? Is they need mold fee?
Yes, we accept products customization.Need mold fee,because products usually need extra mold cost.But,we can return the mold fee when you reach a specific quantity.
2. Can you supply free samples?
Yes
3.What is the type of payment?
Usually you should prepay 30% of the total amount. The balance should be pay off before we get the original B/L. L/C also is acceptable.
4.Are you middle man or factory?
We are factory.Provide the most direct service. We have a technical development team more than 30 person of technical engineers. Can supply you best service.
5.What is the MOQ for the product and its delivery time?
It depends on which item the client making order,normally 1000 pcs
