Двухшнековый экструдер для розлива шоколадного крема
18 000,00-30 000,00 $
300 кг/ч биоразлагаемый наполнитель вспененный кукурузный крахмал водорастворимый пенопласт Разлагаемый гранулированный экструдер Упаковка Арахиса
- Категория: >>>
- Поставщик: Jinan Sunward Machinery Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601206690929:
Описание и отзывы
Характеристики
Fully Automatic Degradable Packing Foam Filler Production Line
Product Description

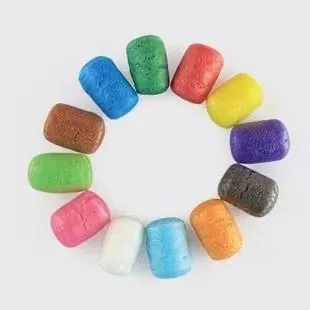

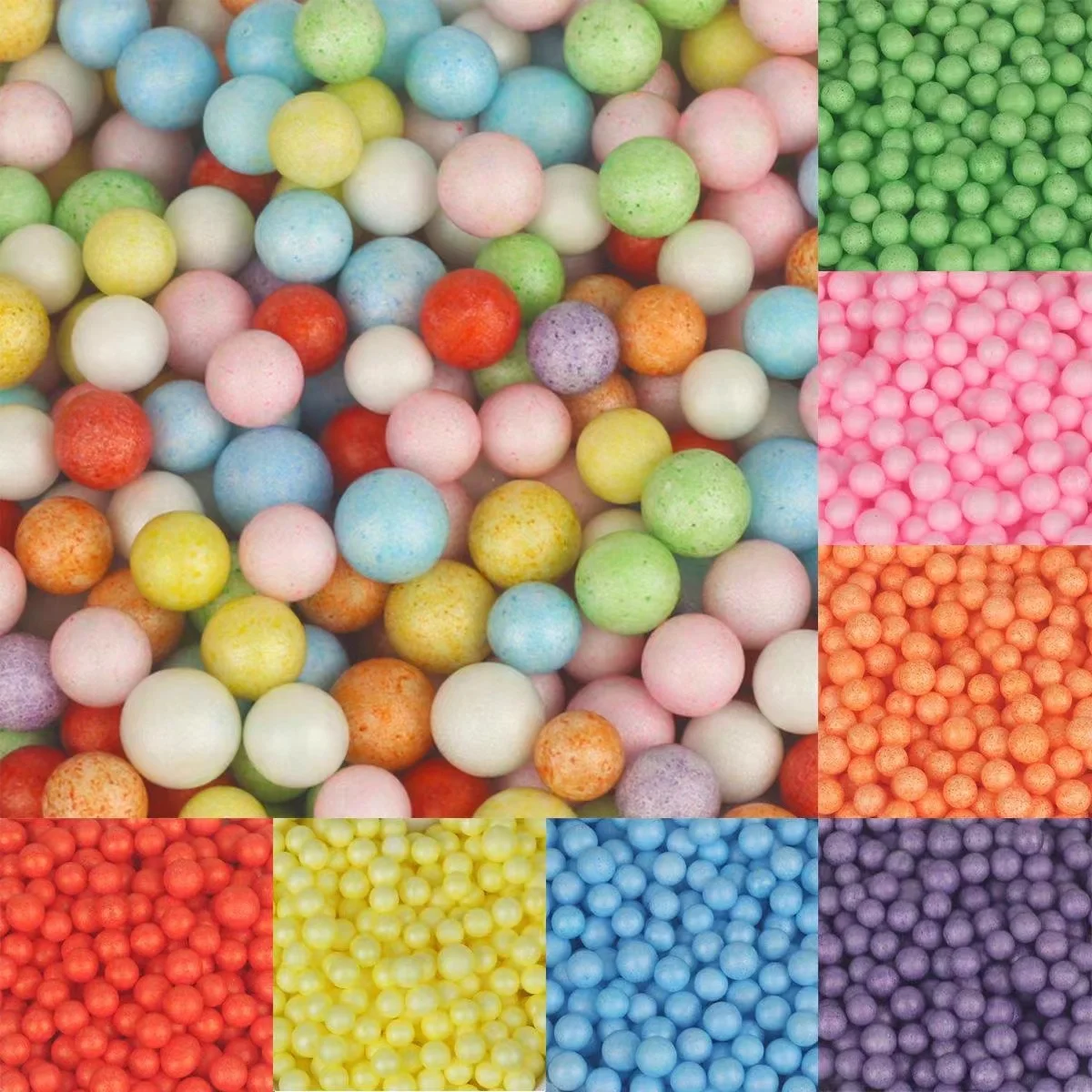

Packaging bubble peanut making machine uses corn starch, cassava starch, potato starch cosrice, corn, beans and all kinds of grains as raw materials. Through extruding,inflating,dryin it could produce many kinds of degradable packing filling pellet material.
1.Capacity: 100-800kg/h
2.Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.
3. Raw Materials: Corn Starch, PLA/PP.
4. Technical Parameter:
| Model | TSE65-III | TSE70 | TSE85 | TSE95 |
| Installed Power | 70kw | 105kw | 150kw | 120kw |
| Power Consumption | 50kw | 75kw | 100kw | 95kw |
| Capacity | 100-150kg/h | 200-260kg/h | 300-500kg/h | 600-800kg/h |
| Dimension(m) | 1.7*1.3*2.0 | 2.0*1.5*2.2 | 3.0*1.5*2.6 | 3.0*1.5*2.6 |

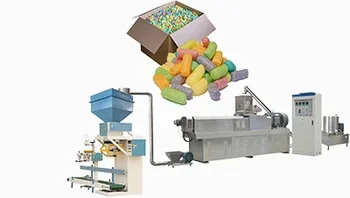

5. Flow chart: Mixer→Screw conveyor→Twin screw extruder→Air conveyor→Dryer→Cooling
Main equipments
Mixer
Capacity: 40k/batch
Power: 4.0kw
Consumption:3kw/h
Diameter : 600mm
Dimension(m): 1.03×0.72×1.35
Mixing Time: 2minutes-3minutes/batch
Stainless steel and mild steel construction.The raw material is mixed with water or other liquid additives. The discharge hole adopts the new handle-opened design, safe and sealed well.
Screw convenyor
Tube size:114mm
Power(KW): 0.75
Consumption: 0.5kw/h
Dimension(m): 3.3×0.8×2.3
Capacity:100-500kg/h
Screw conveyor is used to convey mixed flour into feeder on extruder; there is wheel on screw conveyor, easy to move.

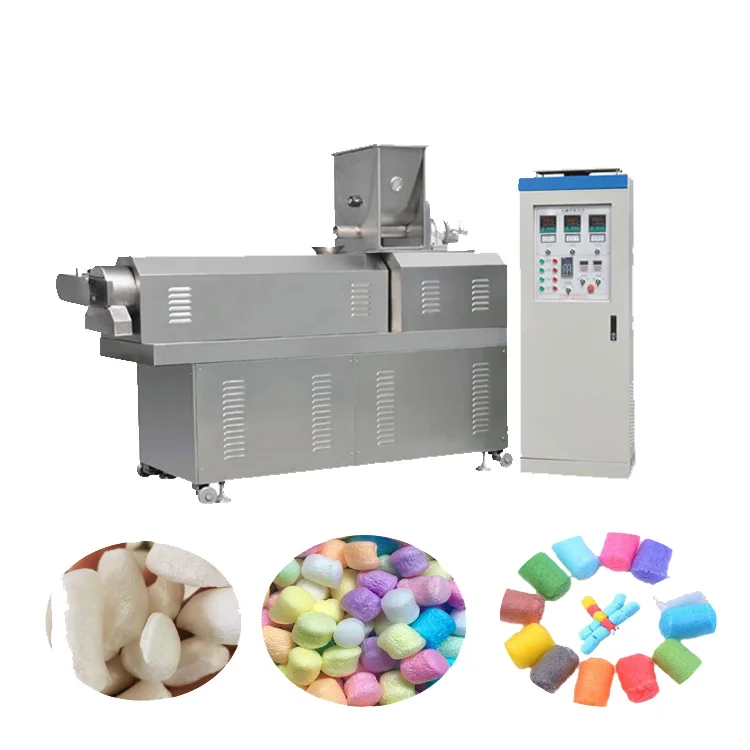

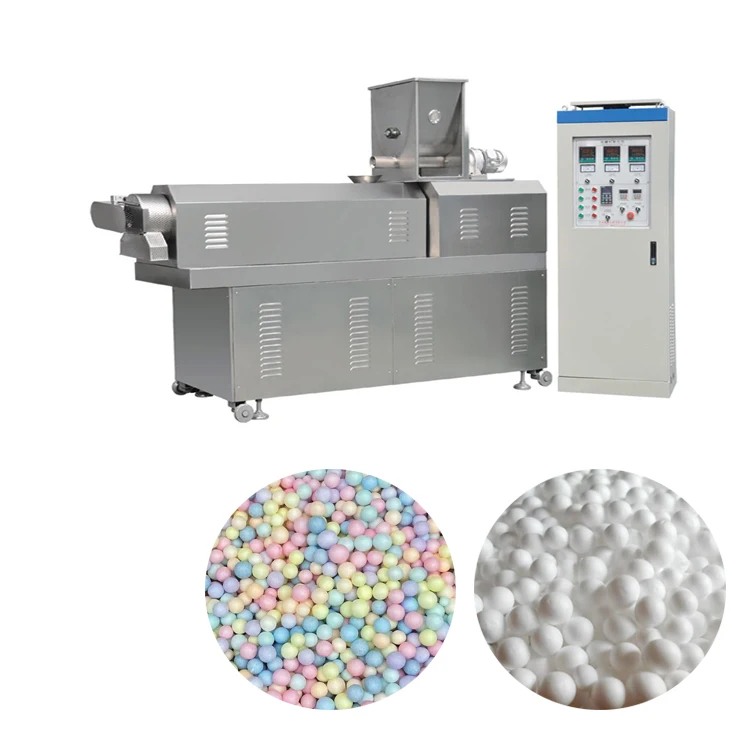

Twin screw extruder
1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.Self-cleaning , when stopping, it can be cleaned without disassembling.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.Self-cleaning , when stopping, it can be cleaned without disassembling.
Multi layer dryer
Baking and drying the food. All kinds of the inflating food, pet food, TVP food, peanut, nut, chew nut can be dried.
The dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.The belt and the heat preservation use the stainless steel; it is suitable for food industry.The running speed of belt net can be controlled (frequency).The temperature can be controlled willfully and designed according to the need.Material touching the food is stainless steel, bracket is iron with paint.
Cooling machine
Cooling machine plays an important role in food production lines. In the food processing process, cooling machine is one of the essential processes, which can quickly reduce high temperature food to room temperature or lower temperature, so that the next step of food processing. In this process, the cooling machine can provide stable cooling water to control the temperature of the food, ensuring that the food is maintained at the best temperature throughout the processing process to avoid bacterial growth and deterioration.
Company Information
Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It covers main machines for grain milling system, corn flakes/breakfast cereal making system, baby food making system, corn puff snacks making system, Fish feed and pet food making system, artificial/ fortified rice making system, soy nuggets making system, edible drinking straw system, degradable knife and fork making system, biodegradable filling equipment, etc.
It was dounded in 2009. For supplying the best survice, the technology department, the sales department, the producing department, the after-sales department are always avaliable for you. Our machines have been exported to more than 100 countries of Asia, America, Africa, Europe, etc. Machines are well received at home and abroad. So until now, there are not only direct customers, but also some long term cooperation agents, such as Indoesia agent, Indian agent, Nigeria agent, and so on.
Packaging & Shipping
1. Testing Machine before delivery.
2. Packaging: inside is covered in plastic film, outside is a wooden case.
3. Shipping: 15-30 working days after receiving the deposit.
Our Services
-- Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3.According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment(compensable service).
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
