Автоматическая машина для разрезки пленки из вспененной бумаги
- Категория: >>>
- Поставщик: ZHENGZHOU ALLRAISE COMPANY LTD.ZHENGZHOU LTD.
Сохранить в закладки 1601206847695:
Описание и отзывы
Характеристики
Products Description

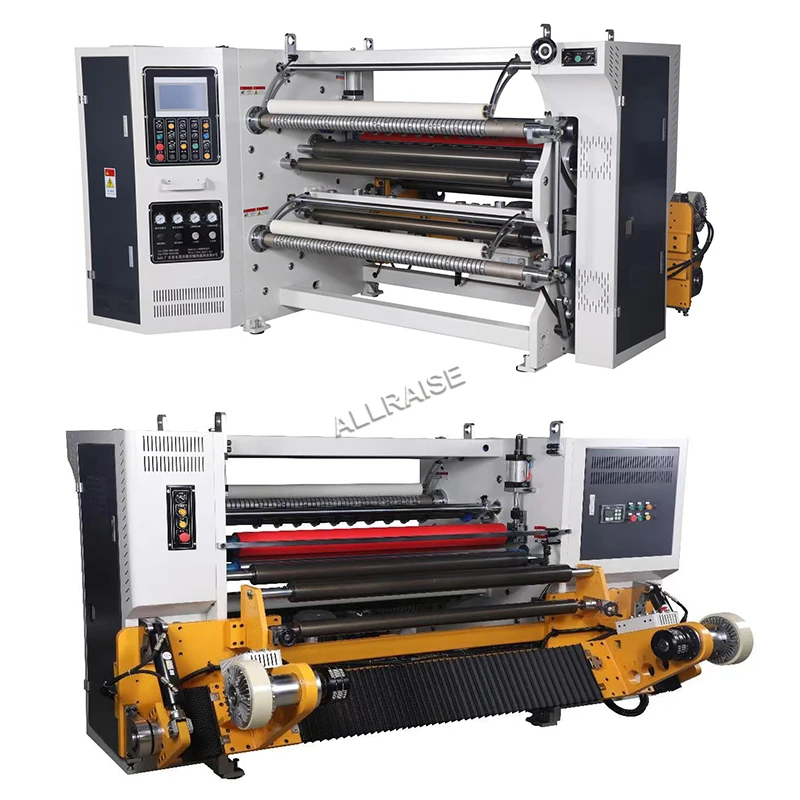

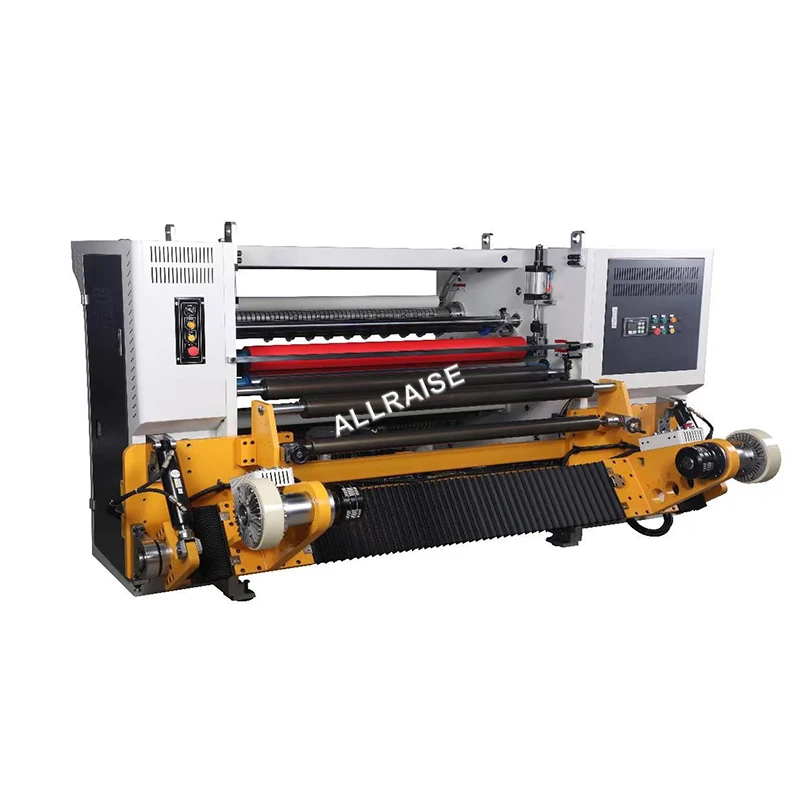

Automatic Foam Paper Plastic PE PVC Film Slitter Rewinder Protective Film Slitting Device Optical Film Slitting Machine
Product Parameters
Product Name | Automatic Foam Paper Plastic PE PVC Film Slitter Rewinder Protective Film Slitting Device Optical Film Slitting Machine |
Raw material width | 1350mm |
Maximum unwinding diameter | 800mm |
Unwinding tube core range | Three\\six inches (interchangeable):480-1650mm |
Max. paper board | Three\\six inches (integrated):200-1400mm |
Maximum rewinding diameter | 530mm |
Slitting width | 30-1350mm |
Slitting end surface uniformity | 0.1mm |
Rewinding tube core inner diameter | 3" |
Machine running speed | 0-210m/mim |
Power supply | 380v 50hz |
Total machine power | 19kw |
Machine size | 2800*3000*1700mm |
Machine weight | 3800kg |
Correcting system | Ultrasonic correction |
Wallboard thickness | 42mm |
Product Description
An optical film slitting machine is a device designed to precisely cut and separate large rolls of optical film into narrower strips, ensuring accurate dimensions and minimal material waste for further applications in electronic displays, lenses, or other optical devices.
1 | Automatic Foam Paper Slitting Machine: Three-motor linkage control: unwinding taper tension control, traction mechanism feeding, and winding motor tension control through inverter torque. | ||||||
2 | Plastic PE PVC Film Roll Slitting Machine:Unwinding adopts dual magnetic powder control, and the material is lifted and lowered by shaftless oil pressure, saving manpower and labor. | ||||||
3 | Film Slitter Rewinder:The winding shaft adopts a slip shaft and an upper and lower shaft structure, which is convenient for unloading. | ||||||
4 | Plastic Screen Protective Film Rewinding Machine :The edge material standard is medium-pressure fan wind blowing type (optional built-in winding edge material collection). | ||||||
5 | The upper rubber roller is made of imported silicone rubber, and is matched with a lower fine-ground steel roller. | ||||||
6 | The whole machine adopts PLC human-machine interface, which is easy to operate. | ||||||

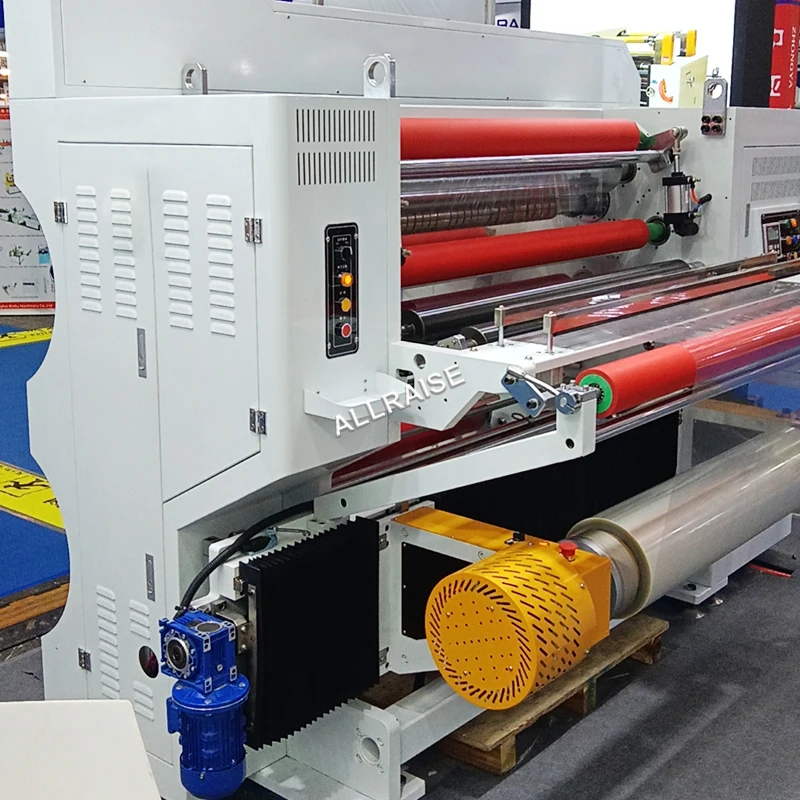

I) Unwinding part:
1. It adopts shaftless loading and can bear 1 ton of raw materials, saving manpower and shortening the loading and unloading time.
2. The unwinding diameter is automatically detected by the proximity switch at the unwinding transmission shaft. There is no need to input the material thickness. The unwinding residual diameter can be set to automatically decelerate and stop to facilitate the splicing of the next roll.
3. It is equipped with a mechanism for manually adjusting the elastic edge of the material release. The adjustment range is ±20mm.
4. The CCD automatic correction system automatically corrects the material along the edge. The entire machine uses a guide rail to move left and right. The moving part uses a threaded screw and is pushed left and right by a servo motor to achieve automatic correction.
1. It adopts shaftless loading and can bear 1 ton of raw materials, saving manpower and shortening the loading and unloading time.
2. The unwinding diameter is automatically detected by the proximity switch at the unwinding transmission shaft. There is no need to input the material thickness. The unwinding residual diameter can be set to automatically decelerate and stop to facilitate the splicing of the next roll.
3. It is equipped with a mechanism for manually adjusting the elastic edge of the material release. The adjustment range is ±20mm.
4. The CCD automatic correction system automatically corrects the material along the edge. The entire machine uses a guide rail to move left and right. The moving part uses a threaded screw and is pushed left and right by a servo motor to achieve automatic correction.
5. Use pneumatic pressing device, square steel structure, and rubber skin pressing to reduce material scrap and
facilitate material receiving.
6. The unwinding uses magnetic powder brake to control the tension.
facilitate material receiving.
6. The unwinding uses magnetic powder brake to control the tension.
(II) Traction part: The mirror traction roller is driven by a 5.5KW servo motor.
(III) Waste edge recycling device: Waste is discharged while suctioning.

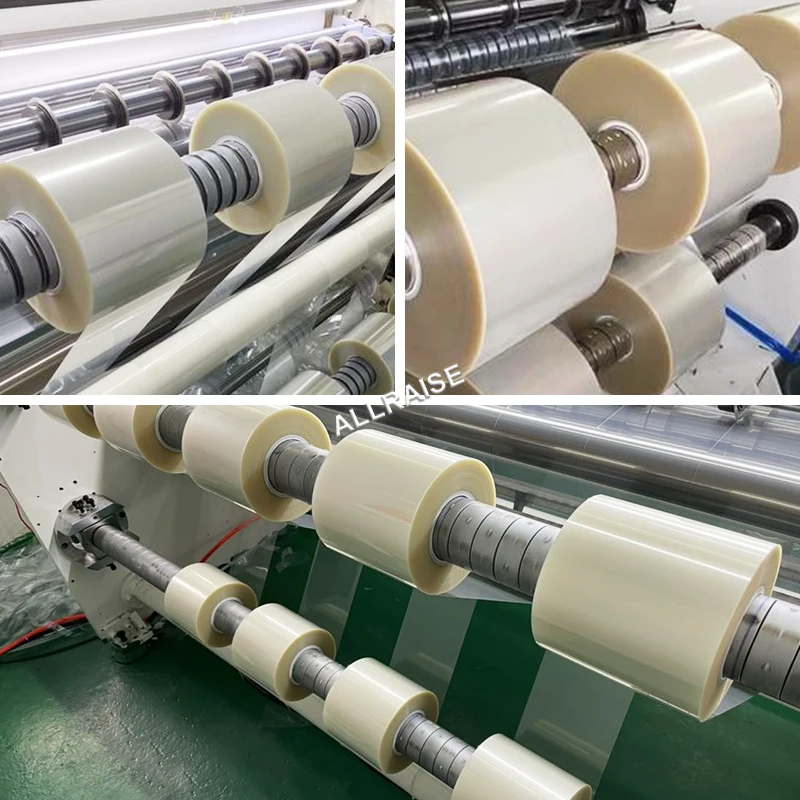

7. Rewinding mechanism:(1). Use upper and lower double shafts to independently wind up the cut material. (2). Each of the upper and lower rewinding reels has a 5. 5KW servo motor to drive the slip shaft/air expansion shaft. The rewinding tension is automatically controlled by PLC according to the current roll diameter, so that there is no material thickness factor when cutting multiple strips, and all rolls The disc end surface is flat, and the flatness of the disc.
(III) Waste edge recycling device: Waste is discharged while suctioning.
7. Rewinding mechanism:(1). Use upper and lower double shafts to independently wind up the cut material. (2). Each of the upper and lower rewinding reels has a 5. 5KW servo motor to drive the slip shaft/air expansion shaft. The rewinding tension is automatically controlled by PLC according to the current roll diameter, so that there is no material thickness factor when cutting multiple strips, and all rolls The disc end surface is flat, and the flatness of the disc.
Surface is freely switched between pneumatic pressure rollers and self-weight pressure rollers. The tightness of the inner and
outer layers of the finished roll is controllable, that is, the spiral winding method.
outer layers of the finished roll is controllable, that is, the spiral winding method.
