Ki3 лазер 355nm UV 3 Вт маркировочная машина pcb лазерная lazer гравировальный станок

Описание и отзывы

Характеристики

!!! Please notice: this link didn't include water chiller, please buy water chiller locally or from our accessory category (Model is CS-ARC-Q580).

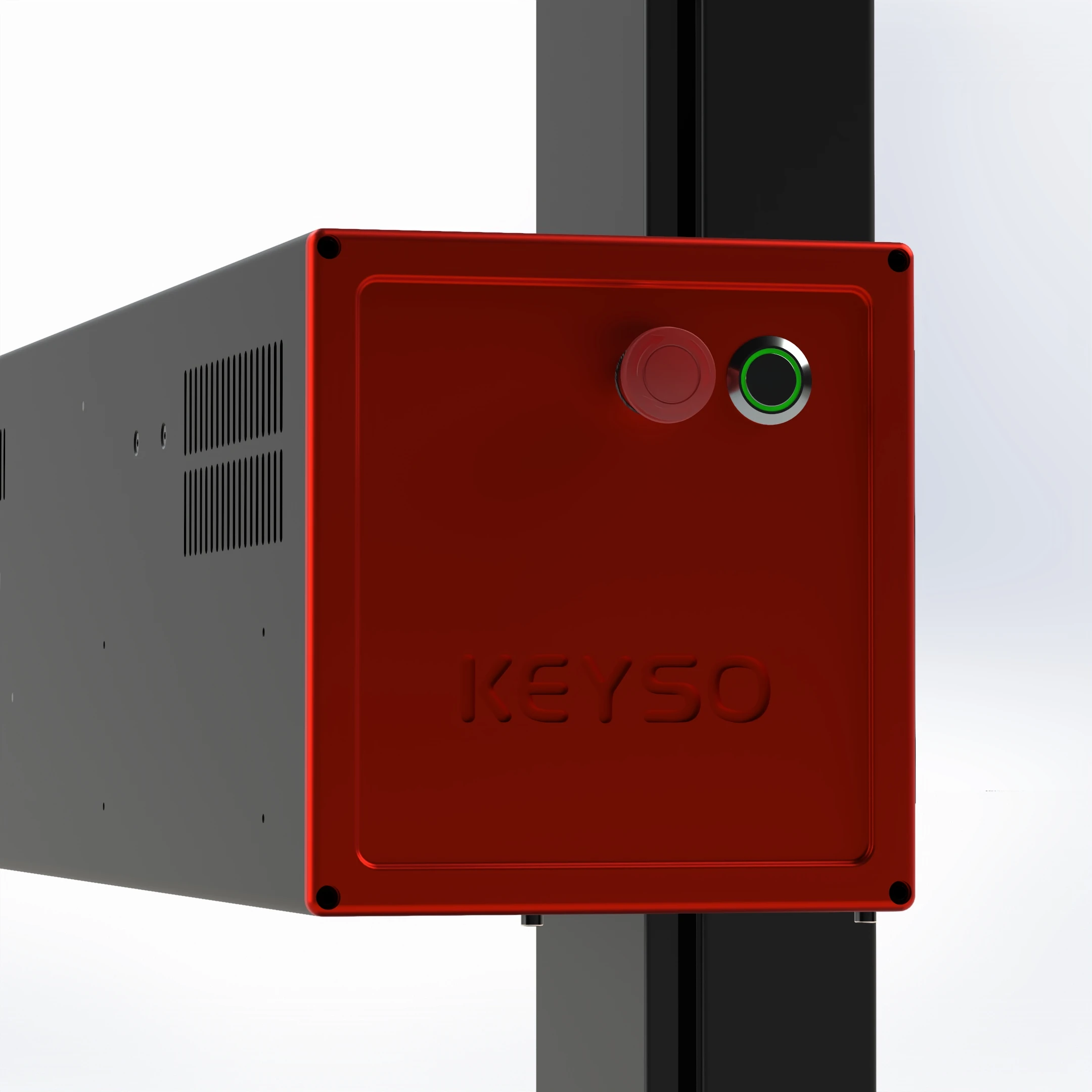

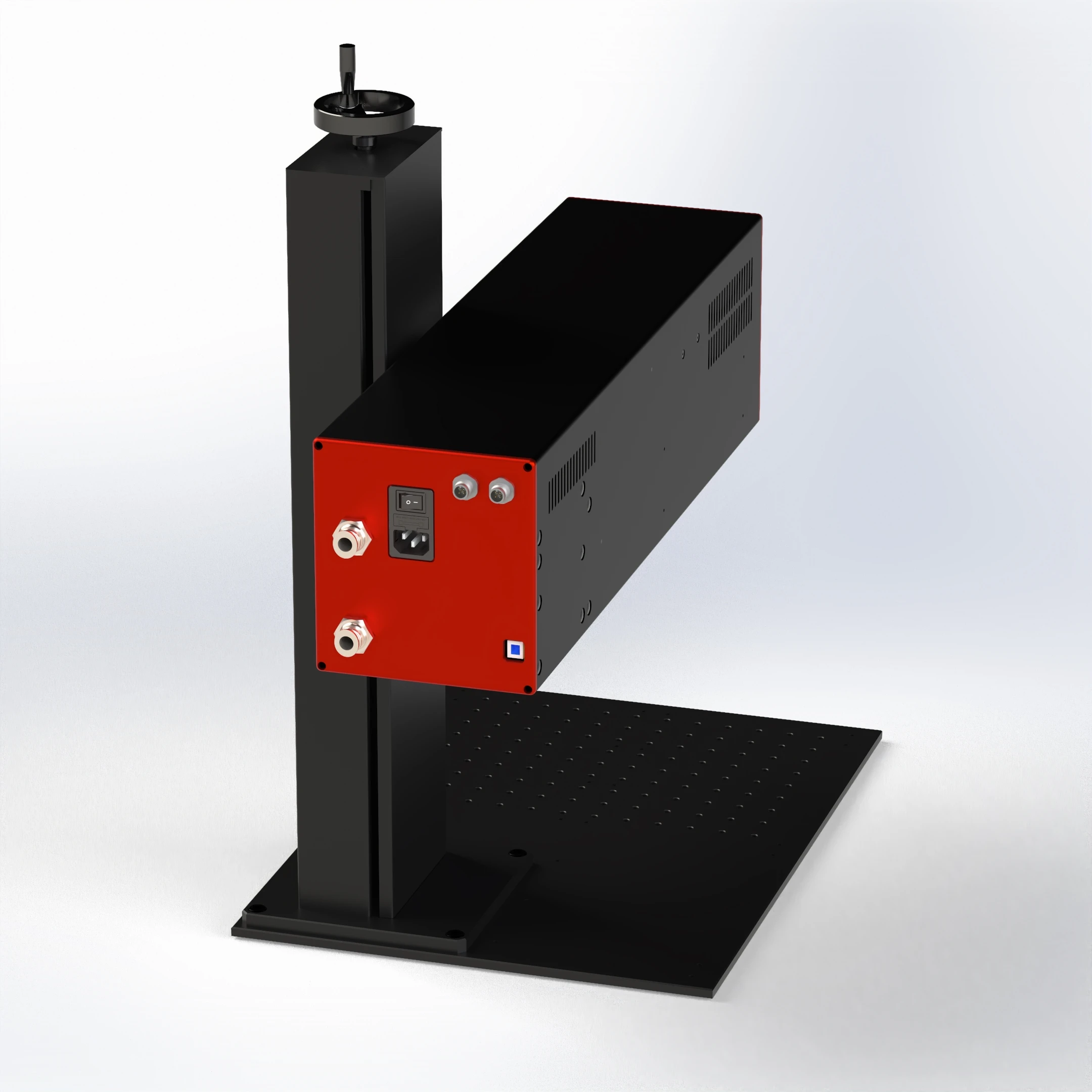

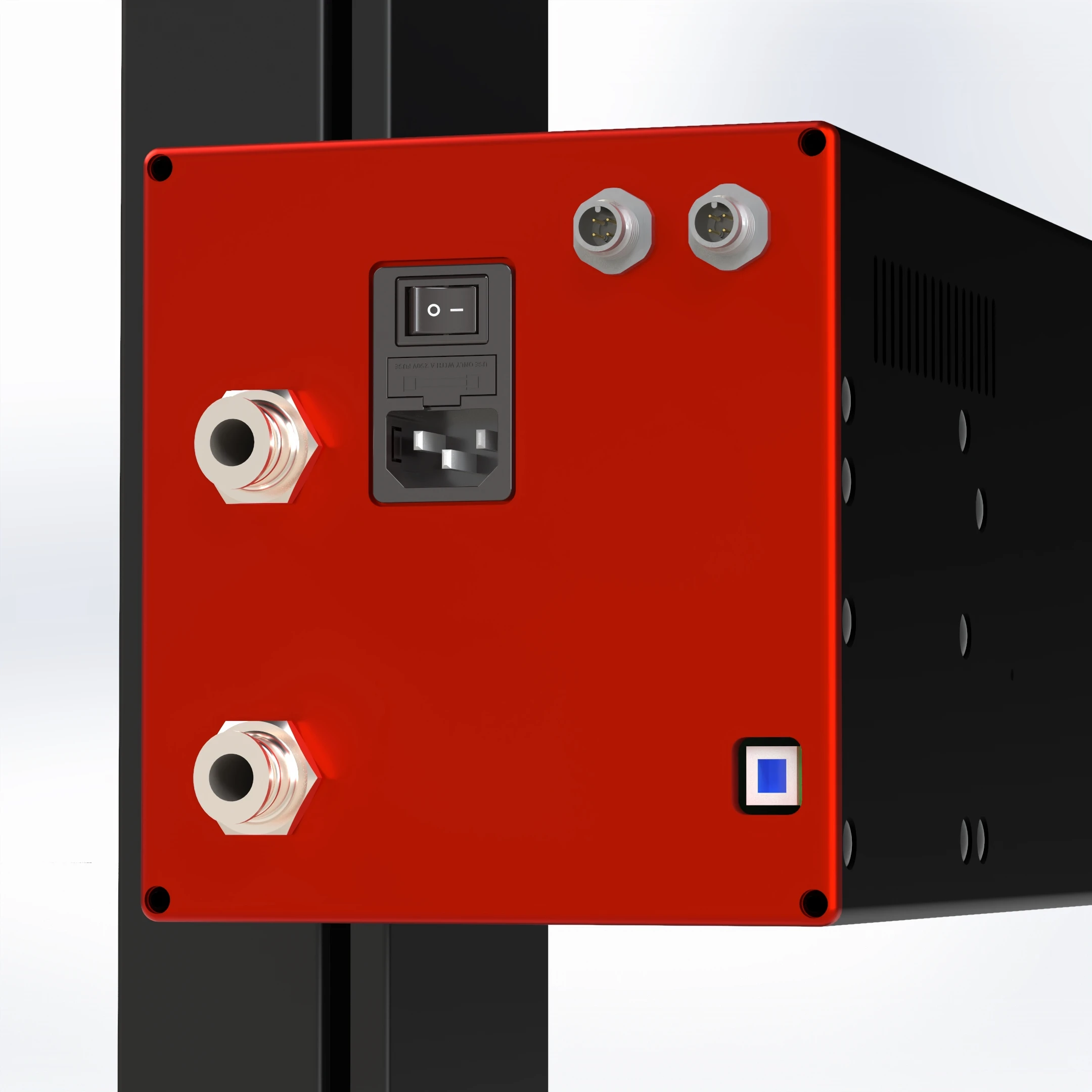

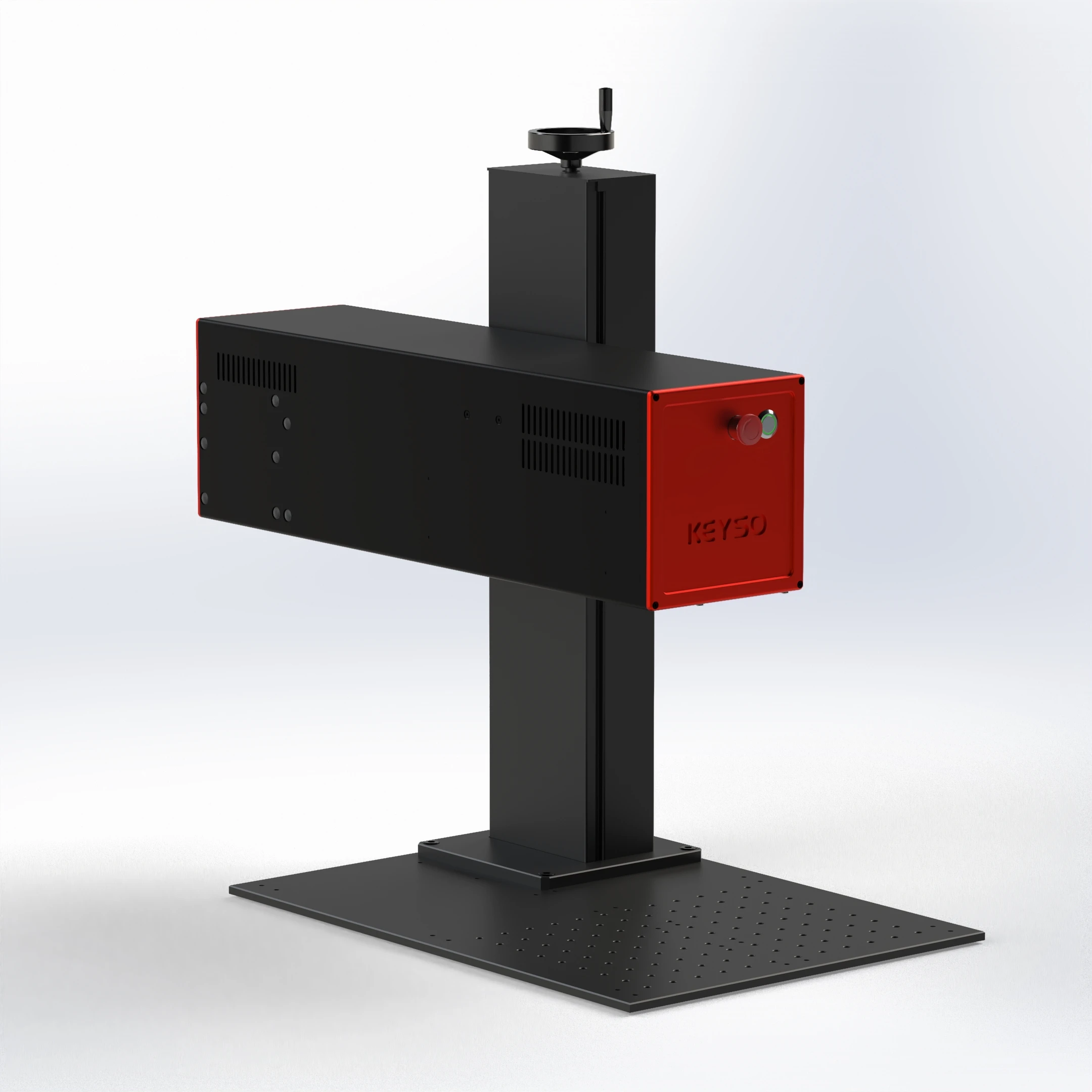

Powerful Industrial UV Laser Marker

Heavy-duty design, based on cast aluminum structure, and high-quality components guarantee strength and low maintenance. 3W is adapted for all kind of materials, while 5W is suitable higher speed and bigger area.

Technical Specifications

Overall Dimension

Features of KEYSO Ki UV Series

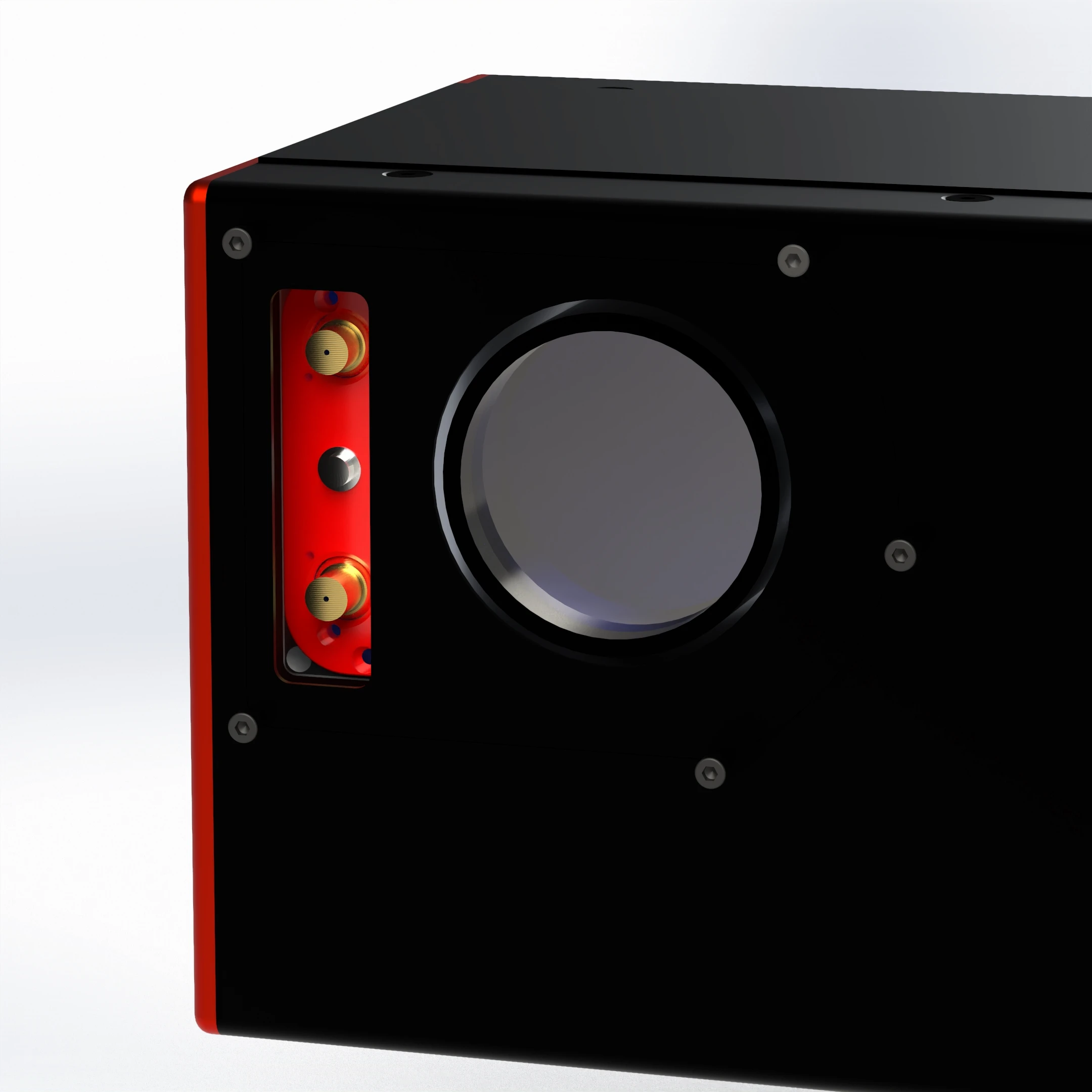

Extruded aluminum head and case

Integrated design, small size, cut by high accuracy CNC center

Anodized dyeing for durable color

Industrial standard

3~5W UV laser source, 355 nm wavelength, 15000 hours laser life

High-speed scanner

Rated marking speed 2m/s, rated positioning speed 10m/s, with 2 red indicator

Integrated laser path

Small size, fully enclosed laser path

UV lens

Special lens for UV laser 355nm

Easy maintenance

Fully screw mounted, easy access to all parts, low maintenance cost

Exquisite accessory package

CE certified OD6+ grade protective goggles 1 pcs

*Optical density (OD) is used to express the percentage of laser light of a specific wavelength that can pass through laser protective glasses.

*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.

*The same principle is as follows:

OD5+:0.0001%

OD6+:0.00001%

Imperial + Metric folding ruler 1pcs

Multiple function clamp 2 pcs

Patent application is pending, picture is temporarily unavailable

Foot switch and Allen wrench each 1 pcs

Sample gift package 1 set

Package include: 1 box painted aluminun card, 1 set of gift.

Note: We may change the gift package according to purchase availability, without further inform.

Branded 64GB USB disk 1 pcs

Power cable (according to models)1 pcs, USB cable 1 pcs

Optional: Chuck rotary C42

 Coming soon...

Optional: Roller rotary R42

 Coming soon...

Optional: Motorized lift

 Coming soon...

Optional: Smoke and dust filter

200W power, 280m³/h, AC220V (AC110V available)

Software

KF series laser marker support 2 different software (no need to change control card)

1.     KeysoCAD (similar as EzCAD)

For customer who is familiar with EzCAD, we have KeysoCAD software as replacement (Free to use). The good feature of KeysoCAD is, it supports Windows 7 to Windows 11. There is no need to keep a windows 7 computer anymore! Download KeysoCAD software user manual here: keyso.com.cn

2.     LightBurn

LightBurn (Need to buy license) is a native application written for Windows, Mac OS, and Linux. we officially opened our API to LightBurn for 100% stable and compatible. Learn for LightBurn here: lightburnsoftware.com

Software functions

Field lens choice reference

A+: Very good results, stronger with laser focus;

A: Moderately effective, less efficient than A+ field lenses.

B: Normal effective, suitable for materials that do not require high energy density.

C: Light is weak and not recommended.

KEYSO Laser Marker Model Compare

Available Certificate

CE and FDA

Services of KEYSO

Video and manual

Provide video tutorial and user manual.

Remote support

We can build remote support for troubleshooting and machine operation.

Free test

A free test can be provided before purchasing, to know the laser performance on certain materials. And get suggested settings.

FAQ

Q: Is your company a trader or a factory?

A: We are a factory with R&D, OEM, and ODM capabilities.

Q: Where is your company located? Can I come to visit?

A: Our R&D and sales center is in Changsha city, and our manufacturing center is in Liaocheng city. You are welcome to visit us.

Q: Do you recruit dealers? What are the conditions of dealers.

A: We welcome dealers, please contact us for specific conditions.
