10 кВт 220 В генератор ветровой турбины генераторы энергии 8 лопастей энергетической системы
140 349,96 ₽ - 175 437,44 ₽
10 кВт небольшая солнечная ветровая гибридная энергия с питанием природная возобновляемая свободная резервная система генератора eolico для дома
- Категория: >>>
- Поставщик: ELEGE NEW ENERGY (ZHANGJIAGANG) CO. LTD
Сохранить в закладки 1601206988531:
Описание и отзывы
Характеристики
10kw small solar wind hybrid energy with power bank nature renewable free energy standby eolico generator motor system for home
◎ Safety The vertical blade is adopted, and the main stress point is concentrated on the hub, so the problems of blade falling off, fracture and blade flying out have been better solved. |
◎ Noise Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment. |
◎ Wind resistance The principle of horizontal rotation and vertical flat blade makes it less subject to wind pressure and can resist super typhoon. |
◎ Turning radius Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency. |
◎ Generation curve characteristics The start-up wind speed is lower than that of other types of wind turbines, and the rising range of power generation is relatively gentle. Therefore, within the wind speed range of 5 ~ 8m, its power generation is 10% ~ 30% higher than that of other types of wind turbines. |
◎ Utilization wind speed range The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m / s, maximize the use of wind resources, obtain greater total power generation, and improve the economy of wind power equipment. |
◎ Braking device The blade itself has speed protection and is also equipped with electromagnetic brake. |
Wind-solar, off/on-grid, hybrid grid systems totaling 10KW are enough to meet the daily use of most households. System components include: 5KW 48V wind turbine + 6m high wind turbine tower + 5KW 48V wind controller + 5KW solar panel + mounting bracket + combiner box + hybrid inverter + lithium battery + accessories.
item | FS-200 | FS-400 | FS-600 | FS-1000 | FS-2000 | ||||
Started wind speed (m/s) | 1.3 m/s | 1.3 m/s | 1.3 m/s | 1.5m/s | 1.5m/s | ||||
Cut-in wind speed (m/s) | 2.5 m/s | 2.5 m/s | 2.5 m/s | 3m/s | 3m/s | ||||
Rated Wind speed (m/s) | 12 m/s | 11 m/s | 11 m/s | 11m/s | 11m/s | ||||
Rated voltage(AC) | 12/24V | 12/24V | 12/24V | 24v/48v | 48v/96v | ||||
Rated power(W) | 200W | 400W | 600W | 1000w | 2000w | ||||
Max power(W) | 230W | 450W | 650W | 1100w | 2100w | ||||
Rotor Diameter of Blades(m) | 0.42 | 0.52 | 0.52 | 0.67m | 0.8m | ||||
Product assembly weight (Kg) | <20Kg | <23Kg | <23Kg | <25Kg | <35Kg | ||||
Blades height(m) | 0.9m | 1m | 1m | 1.3m | 1.5m | ||||
Safe wind speed (m/s) | ≤40m/s | ||||||||
Blades quantity | 2 | ||||||||
Blade material | glass/basalt | ||||||||
Generator | Three phase permanent magnet suspension motor | ||||||||
Control System | Electromagnet | ||||||||
Mount Height(m) | 7~12m (9m) | ||||||||
Generator protection grade | IP54 | ||||||||
Work environment temperature | -25~+45ºC, | ||||||||
Work environment humidity | ≤90%, | ||||||||
Altitude: | ≤4500m | ||||||||
Overspeed protection | Electromagnetic brake | ||||||||
Overload protection | Electromagnetic brake and the unloading unit | ||||||||

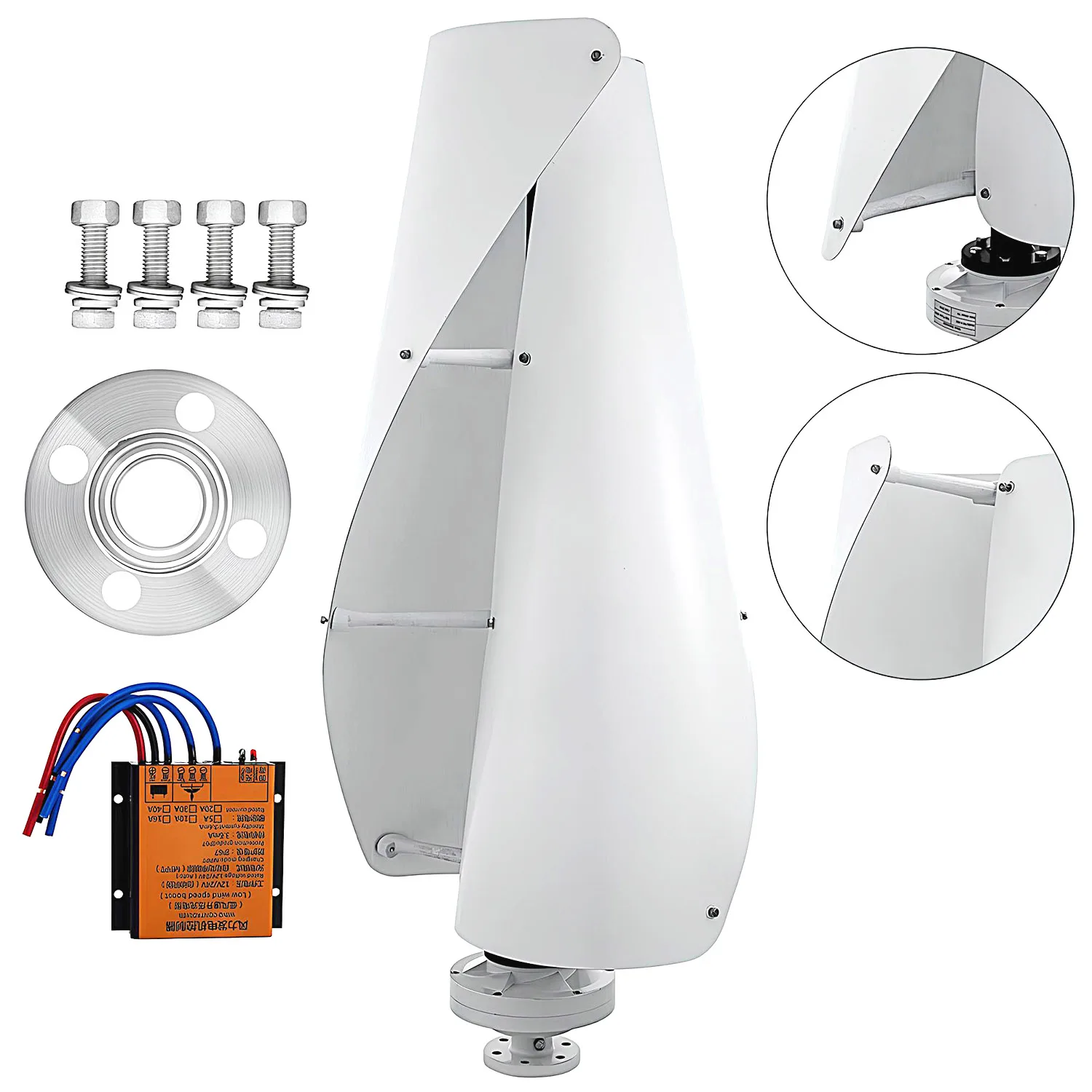

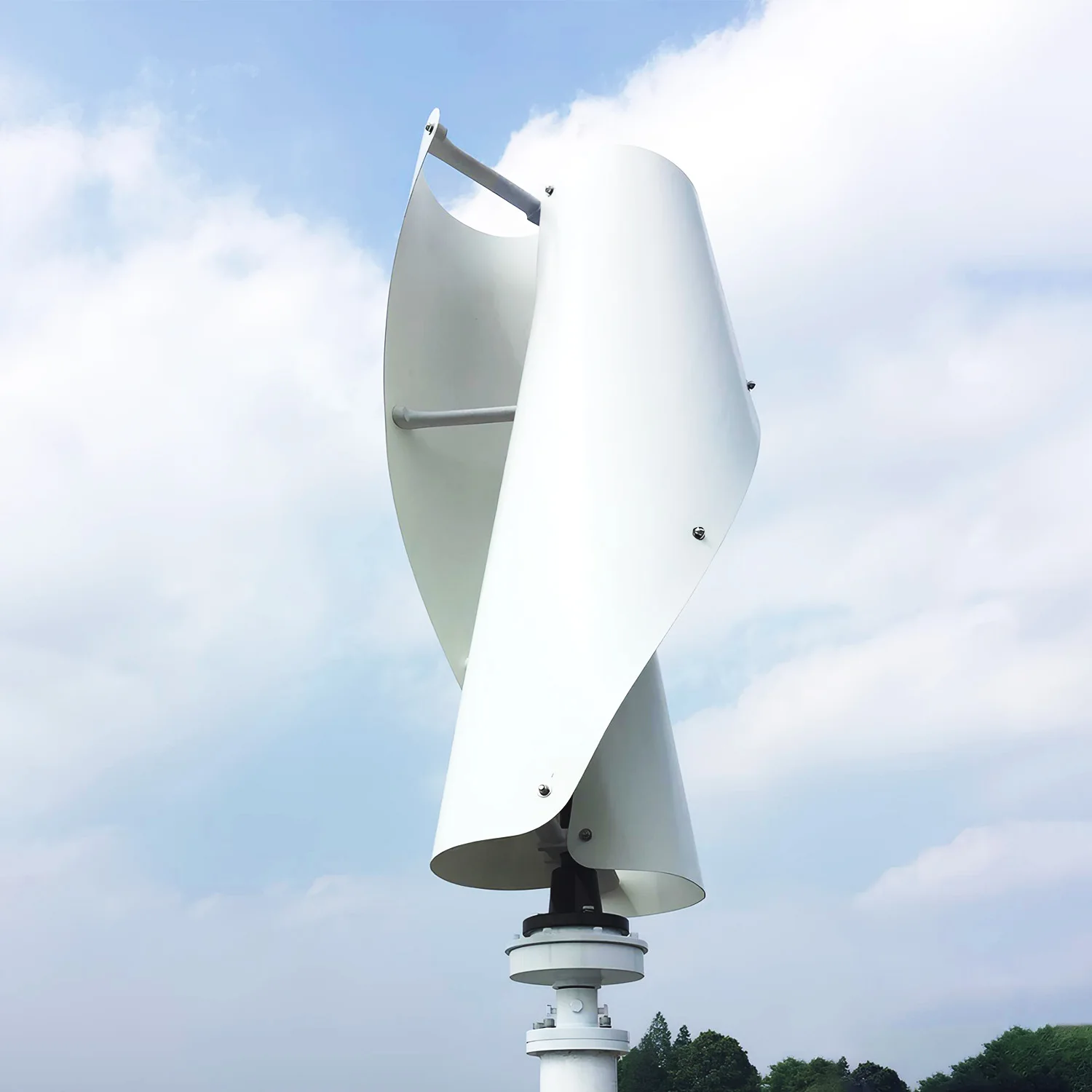

Vertical Axis Wind Turbine---FS
1. Less noise
2. Low starting wind speed
3. Adapt to all wind directions
4. High strength nylon composite material blades
5.Patent technology permanent magnet generator, high-power conversion
Solar Panels
1. 25 years Warranty;
2. Highest conversion efficiency of 17%;
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.
2. Highest conversion efficiency of 17%;
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.
Solar Power Inverter
1. Pure sine wave inverter;
2. Inverter running without battery ;3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
2. Inverter running without battery ;3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
Lithium Ion Batteries
1. Safety; 2. Fast charging;
3. Long span life;
4. Support customization;
5. Large capacity & small volume;
6. Environmental materials adoption;
7. Good high-temperature performance;
8. Advanced BMS protection function.
3. Long span life;
4. Support customization;
5. Large capacity & small volume;
6. Environmental materials adoption;
7. Good high-temperature performance;
8. Advanced BMS protection function.
PV Panel Mounting Bracket
1. Residential Roof(Pitched Roof);
2. Commercial Roof(Flat roof&workshop roof);
3. Ground Solar Mounting system;
4. Vertical wall solar mounting system;
5. Aluminum structure solar mounting system;
6. Car parking solar mounting system.
2. Commercial Roof(Flat roof&workshop roof);
3. Ground Solar Mounting system;
4. Vertical wall solar mounting system;
5. Aluminum structure solar mounting system;
6. Car parking solar mounting system.
Off-grid system
**Definition**: Off-grid wind and solar hybrid power generation system refers to a system that is not connected to the power grid and relies entirely on independent power supply from wind and solar energy. It is usually equipped with energy storage devices such as batteries.
1. **Independent operation**: The system operates independently of the public power grid and is suitable for areas with high electricity costs, no power grid coverage, and unstable power grids.
2. **Energy storage equipment**: Energy storage batteries need to be equipped to store excess electrical energy during the day or when the wind is strong, so that it can be used at night or when there is no wind or light.
3. **Energy Management**: Through intelligent control systems, effective conversion and utilization of wind and solar energy are achieved to ensure the continuity and stability of power supply.
4. **Lifestyle**: It feels good to live off the grid and be self-sufficient. For some, this feeling is worth more than saving money.
On-grid system
**Definition**: Grid-connected wind and solar hybrid power generation system refers to a system connected to the public power grid that can transmit excess power to the power grid and also obtain power from the power grid.
1. **Connected to the power grid**: The system is connected to the public power grid. It can feed back excess power to the power grid or obtain power from the power grid. It is suitable for areas covered by the power grid.
2. **Reduce the demand for energy storage equipment**: Since the power grid can be relied upon to adjust the balance of electric energy supply and demand, only small energy storage batteries are usually required, reducing system and maintenance costs.
3. **Electric energy trading**: Excess electric energy can be sold to the power grid to obtain economic benefits, and electric energy can be obtained from the grid when power is insufficient to ensure stable power supply.
4. **Application Scenario**: Many utility companies usually use this to reduce the pressure of peak power consumption, which improves the efficiency of enterprise systems.
**Definition**: Off-grid wind and solar hybrid power generation system refers to a system that is not connected to the power grid and relies entirely on independent power supply from wind and solar energy. It is usually equipped with energy storage devices such as batteries.
1. **Independent operation**: The system operates independently of the public power grid and is suitable for areas with high electricity costs, no power grid coverage, and unstable power grids.
2. **Energy storage equipment**: Energy storage batteries need to be equipped to store excess electrical energy during the day or when the wind is strong, so that it can be used at night or when there is no wind or light.
3. **Energy Management**: Through intelligent control systems, effective conversion and utilization of wind and solar energy are achieved to ensure the continuity and stability of power supply.
4. **Lifestyle**: It feels good to live off the grid and be self-sufficient. For some, this feeling is worth more than saving money.
On-grid system
**Definition**: Grid-connected wind and solar hybrid power generation system refers to a system connected to the public power grid that can transmit excess power to the power grid and also obtain power from the power grid.
1. **Connected to the power grid**: The system is connected to the public power grid. It can feed back excess power to the power grid or obtain power from the power grid. It is suitable for areas covered by the power grid.
2. **Reduce the demand for energy storage equipment**: Since the power grid can be relied upon to adjust the balance of electric energy supply and demand, only small energy storage batteries are usually required, reducing system and maintenance costs.
3. **Electric energy trading**: Excess electric energy can be sold to the power grid to obtain economic benefits, and electric energy can be obtained from the grid when power is insufficient to ensure stable power supply.
4. **Application Scenario**: Many utility companies usually use this to reduce the pressure of peak power consumption, which improves the efficiency of enterprise systems.
Load Name | Load’s Watt | Quantity |
lights | 11w | 8 |
fan | 80w | 2 |
computer | 150w | 2 |
printer | 250w | 1 |
Fax machine | 300w | 2 |
Refrigerator | 120w | 1 |
Washing machine | 300w | 2 |
microwave | 1000w | 1 |
Electric cooker | 300w | 1 |
Air conditioner(2HP) | 1500w | 1 |
Color TV | 100w | 2 |
China has a certain technological leading position in the field of wind power generation, which is reflected in the following aspects:
1. Progress and Innovation: We have broken through a number of key technologies and core manufacturing, forming independent intellectual property rights and brand advantages. This includes the design, research and development, manufacturing, installation, commissioning, and operational capabilities of large capacity offshore wind turbines.
2. Policy support: The Chinese government attaches great importance to the strategic position and role of wind power as a clean and renewable energy source, and has formulated a series of encouragement and support policies to make our products more cost-effective.
3. Rich project experience: China has fully utilized the abundant wind energy resources on Earth, vigorously developed onshore and offshore wind power projects, and has project experience in various regional situations.
4. Global leading position: China has become the world's largest manufacturer and market for wind turbines.
1. Progress and Innovation: We have broken through a number of key technologies and core manufacturing, forming independent intellectual property rights and brand advantages. This includes the design, research and development, manufacturing, installation, commissioning, and operational capabilities of large capacity offshore wind turbines.
2. Policy support: The Chinese government attaches great importance to the strategic position and role of wind power as a clean and renewable energy source, and has formulated a series of encouragement and support policies to make our products more cost-effective.
3. Rich project experience: China has fully utilized the abundant wind energy resources on Earth, vigorously developed onshore and offshore wind power projects, and has project experience in various regional situations.
4. Global leading position: China has become the world's largest manufacturer and market for wind turbines.
• Q: Are you a factory?
A: We have our own electronic equipment, antenna production factory.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
A: We have our own electronic equipment, antenna production factory.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
If you want to know more detailed information, please contact us
