Производители прецизионного литья Oem литые по воску базовые детали для мотоцикла из углеродистой стали литье инвестиций
- Категория: >>>
- Поставщик: Foshan Zeren Precision Casting Co. Ltd.
Сохранить в закладки 1601207067303:
Описание и отзывы
Характеристики
Product Name | Motorcycle Base Parts |
Standard /Non- Standard | Non-Standard Products |
Material | carbon steel |
Classification | Motorcycle Accessories |
Process | Silica Sol Investment Casting +CNC machining |
Certification | ISO9001:2015 + SGS |
Service | OEM/ODM One-Stop Service |
▷ Product General Specs | ||
1.Alloy cast steel: 4140, 4150, 4340, 8620, GS-25CrMo4 2.Hardened stainless steel:17-4PH, 410, 420, 440C 3.Alloy cast steel: 4140, 4150, 4340, 8620, GS-25CrMo4 4.Casting alloy tool steel: CS-2, CS-7, CrWMn 5.Carbon steel: 1020, 1025(WCB), 1030, 1040, 1045, 1050 | ||
Weight | 1g-30kg | |
Casting tolerance | CT4-CT7/GBT6414-1999; VDG Merkblad P690 | |
Surface Roughness | Ra1.6-Ra6.3 | |
Thickness | Min 2mm (1mm in Micro-region) | |
Casting Radius | Round radius ≥0.3mm, Internal fillet radius≥0.5mm | |
Blind Hole Depth | Max 30mm (Diamter 10mm) | |
Machining | Turning,Milling,Drilling,Boring,Threading, Grinding,CNC Machining & test equipment | |
Heat Treatment | Annealing,Hardening, Normalizing,Carburizing, Aging | |
Surface Finishing | Black Oxide,Black Coating,Anti-Pollution Flashover Coating,Mirror Polish | |
Industry Standards | ASTM, ICI, BS, DIN, JIS, ISO | |
Design Software | Pro-E, UG,Solidworks, AutoCAD | |
File Format | IGS, STP, XT, PDF, JPEG, JPG | |

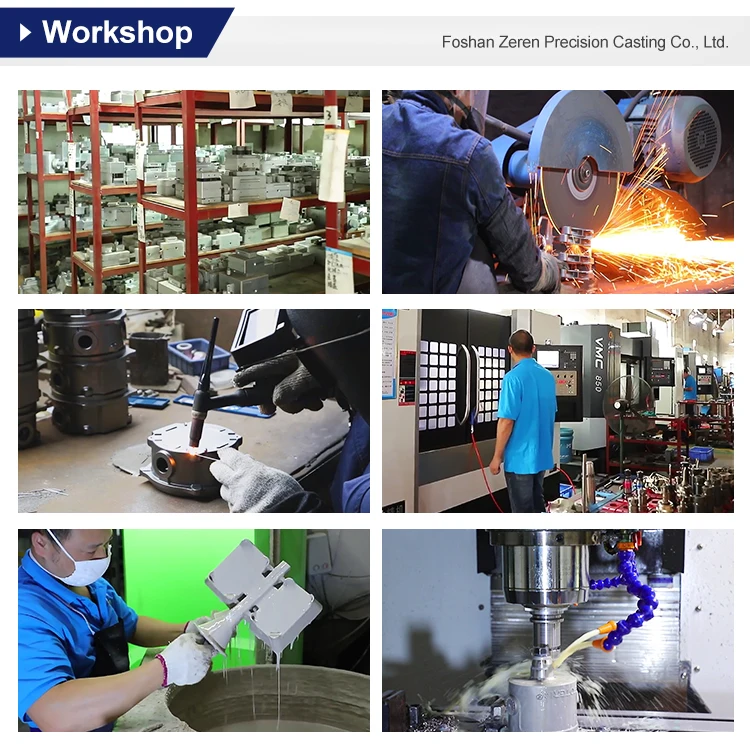

Foshan Zeren Precision Casting Co.,Ltd.was founded in 2009, with an investment casting plant and a CNC mechanical processing plant, located at Foshan,Guangdong, China.

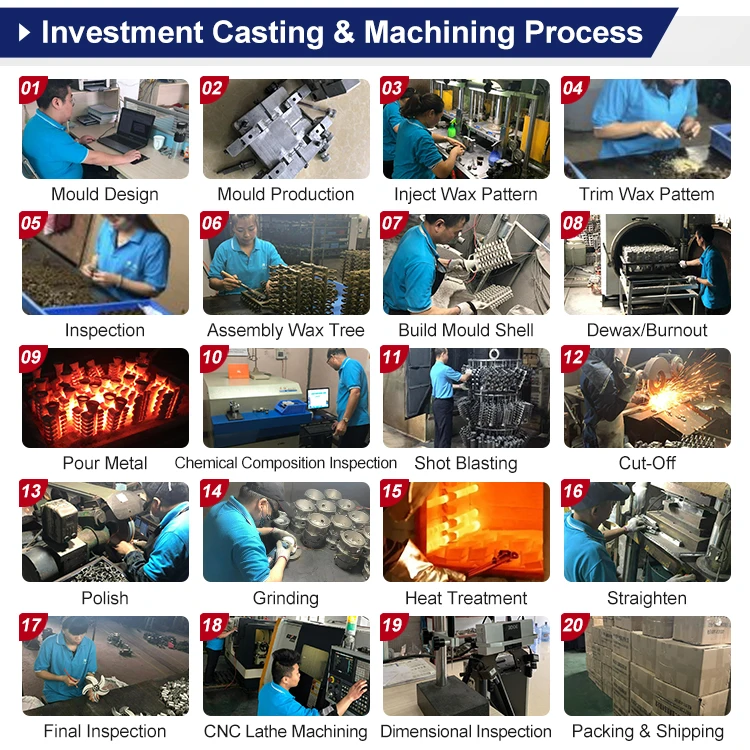

We use advanced investment casting ( lost wax casting )process for precision castings production, which are made of stainless steel, carbon steel and alloy steel, etc.
Our key advantage is using 3D printing technology for sample production, which save the cost and time of mold production (Rapid Prototyping).
We can also provide subsequent CNC machining service of casting, and we have passed and implemented the ISO9001:2015 quality management system.
1. Direct Investment Casting Factory, Non-Standard Parts.
2. All of our products are silica sol inves tm-ent casting(better surface roughnessRa3.2)instead of water glass investment casting.
3.30+ Years Lost Wax Investment Casting Experience, Professional Engineering Team.
4. One-Stop OEM/ODM Customized Invest-ment Casting &CNC Machining Service.
5.3D Printing Technology for Sample Pro-duction, save the cost and time of mold pro duction(Rapid Prototyping).
6.With ISO9001:2015 & SGS Certificate,Products meet RoHS Standards.
7. Low Minimum Order & On Time Delivery.
4. One-Stop OEM/ODM Customized Invest-ment Casting &CNC Machining Service.
5.3D Printing Technology for Sample Pro-duction, save the cost and time of mold pro duction(Rapid Prototyping).
6.With ISO9001:2015 & SGS Certificate,Products meet RoHS Standards.
7. Low Minimum Order & On Time Delivery.
8. Quality Assurance(Provide Chemical Compositon Testing Report and FAI Ins-pection Form )
In 2012, our company developed a product for HUAWEI: wrench casting-tool door and window hardware (as shown below), the material is A3 steel.
During the production process, we found the following problems: because the casting is easy to deform, subsequent shaping is difficult, and after the surface is polished, it needs to be plated with copper and then chrome-plated.
At the same time, electroplating will have a magnifying effect on surface defects, and sand holes are prone to occur, resulting in rework or even scrapping after final polishing. Therefore, we recommend only casting the head of the product.
The rear plane part is processed by steel plate and then butted together, which does not affect the performance of the product, and overcomes the above defects, and reduces the cost by about 50%.
During the production process, we found the following problems: because the casting is easy to deform, subsequent shaping is difficult, and after the surface is polished, it needs to be plated with copper and then chrome-plated.
At the same time, electroplating will have a magnifying effect on surface defects, and sand holes are prone to occur, resulting in rework or even scrapping after final polishing. Therefore, we recommend only casting the head of the product.
The rear plane part is processed by steel plate and then butted together, which does not affect the performance of the product, and overcomes the above defects, and reduces the cost by about 50%.
In 2016, our company produced diffuser impellers (impeller accessories) according to the drawings provided by customers (as shown below), the material is 304 stainless steel.
This product contains five curved air-dissipating holes. It is very difficult to build the mold, make the shell and remove the sand, resulting in a high scrap rate.
In this regard, after research and discussion, our engineers decided to use a sand core ma- terial that not only has high temperature strength but also is easy to remove sand after high temperature, and finally perfectly solved the problem of curved hole casting.
This product contains five curved air-dissipating holes. It is very difficult to build the mold, make the shell and remove the sand, resulting in a high scrap rate.
In this regard, after research and discussion, our engineers decided to use a sand core ma- terial that not only has high temperature strength but also is easy to remove sand after high temperature, and finally perfectly solved the problem of curved hole casting.
In addition,there is also a steam valve (as shown below), the material is 316 stainless steel.
Due to the small opening and complex inner cavity, finally successfully solved the pro-blem for the customer by using this sand core material, produced the product, and estab-lished a long-term good cooperative relationship with the customer.
Due to the small opening and complex inner cavity, finally successfully solved the pro-blem for the customer by using this sand core material, produced the product, and estab-lished a long-term good cooperative relationship with the customer.
In 2018, our company produced the pressure vent valve body (valve accessories) for customers (as shown below). The material is 316 stainless steel.
Because the opening is too small, the inner cavity is small and complicated, and it is almost impossible to clean the internal sand core, so we opened a square hole on the back of the product, welded it with a stainless steel square plate, and opened a dovetail groove at the weld, which is conducive to a strong weld.
We also used a sand core that has both high-temperature strength and is easy to remove sand after high-temperature action to make this product. After the casting was processed, the air-tightness test was carried out, and was successful, so the product was mass-pro-duced , and finally met the customer's requirements and won the trust of the customer.
Because the opening is too small, the inner cavity is small and complicated, and it is almost impossible to clean the internal sand core, so we opened a square hole on the back of the product, welded it with a stainless steel square plate, and opened a dovetail groove at the weld, which is conducive to a strong weld.
We also used a sand core that has both high-temperature strength and is easy to remove sand after high-temperature action to make this product. After the casting was processed, the air-tightness test was carried out, and was successful, so the product was mass-pro-duced , and finally met the customer's requirements and won the trust of the customer.
In 2020,our company produced the main casting of the coffee pot-kitchenware and bath- room hardware for an ltalian customer(as shown below).The material is 316 stainless steel.
Through communication with the customer, we learned that the customer has verticality requirements for the center of the upper and lower parts of the casting, but due to the inner cavity of this product is complex, and it is impossible to make a mold as a whole.
Therefore, we divided the wax mold of the part into upper and lower parts and made them separately, and then assembled the wax molds of the upper and lower parts into a whole.
Through communication with the customer, we learned that the customer has verticality requirements for the center of the upper and lower parts of the casting, but due to the inner cavity of this product is complex, and it is impossible to make a mold as a whole.
Therefore, we divided the wax mold of the part into upper and lower parts and made them separately, and then assembled the wax molds of the upper and lower parts into a whole.
The combined wax mold successfully passed the verticality tooling inspection procedure, and finally all aspects of performance have met the customer's requirements, so the customer is very satisfied with our professional technical level and perfect product quality.
Our Thesis Published in Academic Journals:
Our company's technicians have more than 30 years of experience in the foundry industry.And we have also published 8 papers in casting industry professional academic journals.
(1) The“Prevention methods for shrinkage cavity and surface burr defects of investmentcastings"<>
2020 (7)
(2)“Solutions of shrinkage in small castings with isolated hot joints"<> 2002,(2)
(3)“Reconsideration Solutions for shrinkage in small castings with isolated hot joints"<>2002, (6)
The above 3 papers have directly rewritten this part of the textbook of casting majors in Chinese universities.
LOGISTICS: BY SEA/ BY AIR/BY LAND
EXPRESS: TNT/ UPS/ DHL/EMS/ FEDEX
PACKAGING: Waterproof Polybag Inside Non-Fumigation Wooden Box or Carton Box, Pallet According to your request, provide one-stop shipping (door to door delivery)
PAYMENT: T/T Bank Transfer/ West Union/T/T/ L/C/ Credit card/PAYPAL
EXPRESS: TNT/ UPS/ DHL/EMS/ FEDEX
PACKAGING: Waterproof Polybag Inside Non-Fumigation Wooden Box or Carton Box, Pallet According to your request, provide one-stop shipping (door to door delivery)
Q1: What size products can you produce?
A: We can produce products of various sizes for different industries, weighing anywhere from a few ounces to as much as 250 pounds.
Q2: What materials can you cast? Can l OEM logo on the product?
A: We work with a variety of materials, including stainless steel, carbon steel, alloy steel, aluminum alloy, copper alloy, nickel-based alloy, etc. We can assist in material selection based on your specific requirements. Yes we can OEM logo.
Q3: What surface finish can be produced?
A: Ra3.2,and the machining finish can reach about Ra0.4. Other surface treatments can be done from electrophoresis, blackening, polishing, galvanizing to chrome plating, etc.
Q4: How to get sample?
A: Sample is acceptable. Please tell us what product you need.
Q5:What kind of CAD files can I send? How do I upload a CAD/large file to you?
A: You can send anything you run but the most beneficial are UG, STP,STEP or Parasolid. Please send us directly or to our email casting@gdzeren.com.
Q6: What's your payment policy?
A: For the sample order, our payment policy is 100% T/T payment (Telegraphic transfer payment) in advance or other payment method. For the bulk order, our payment policy is 30% T/T in advance, 70% balance should be paid 7 working days before delivery.
Q7: What is delivery logistics?
A: We accept a variety of logistics methods. You can choose the most convenient or cost-effective way.
Q8: How long is your delivery time?
A: It depends on order quantity and specific requirements.Usually sample needs 7-10 days, mass order needs 20-50 days.
A: We can produce products of various sizes for different industries, weighing anywhere from a few ounces to as much as 250 pounds.
Q2: What materials can you cast? Can l OEM logo on the product?
A: We work with a variety of materials, including stainless steel, carbon steel, alloy steel, aluminum alloy, copper alloy, nickel-based alloy, etc. We can assist in material selection based on your specific requirements. Yes we can OEM logo.
Q3: What surface finish can be produced?
A: Ra3.2,and the machining finish can reach about Ra0.4. Other surface treatments can be done from electrophoresis, blackening, polishing, galvanizing to chrome plating, etc.
Q4: How to get sample?
A: Sample is acceptable. Please tell us what product you need.
Q5:What kind of CAD files can I send? How do I upload a CAD/large file to you?
A: You can send anything you run but the most beneficial are UG, STP,STEP or Parasolid. Please send us directly or to our email casting@gdzeren.com.
Q6: What's your payment policy?
A: For the sample order, our payment policy is 100% T/T payment (Telegraphic transfer payment) in advance or other payment method. For the bulk order, our payment policy is 30% T/T in advance, 70% balance should be paid 7 working days before delivery.
Q7: What is delivery logistics?
A: We accept a variety of logistics methods. You can choose the most convenient or cost-effective way.
Q8: How long is your delivery time?
A: It depends on order quantity and specific requirements.Usually sample needs 7-10 days, mass order needs 20-50 days.
