2 Вт Высокая мощность 868 915 мГц Fcc 3 6S Широкий расстояние передачи T один Tx модуль для Fpv дальнего действия гоночный Дрон
- Категория: >>>
- Поставщик: Shenzhen Xinjiaguo Technology Co. Ltd.
Сохранить в закладки 1601207294502:
Описание и отзывы
Характеристики
Product Description
Specifications:
Introduction:

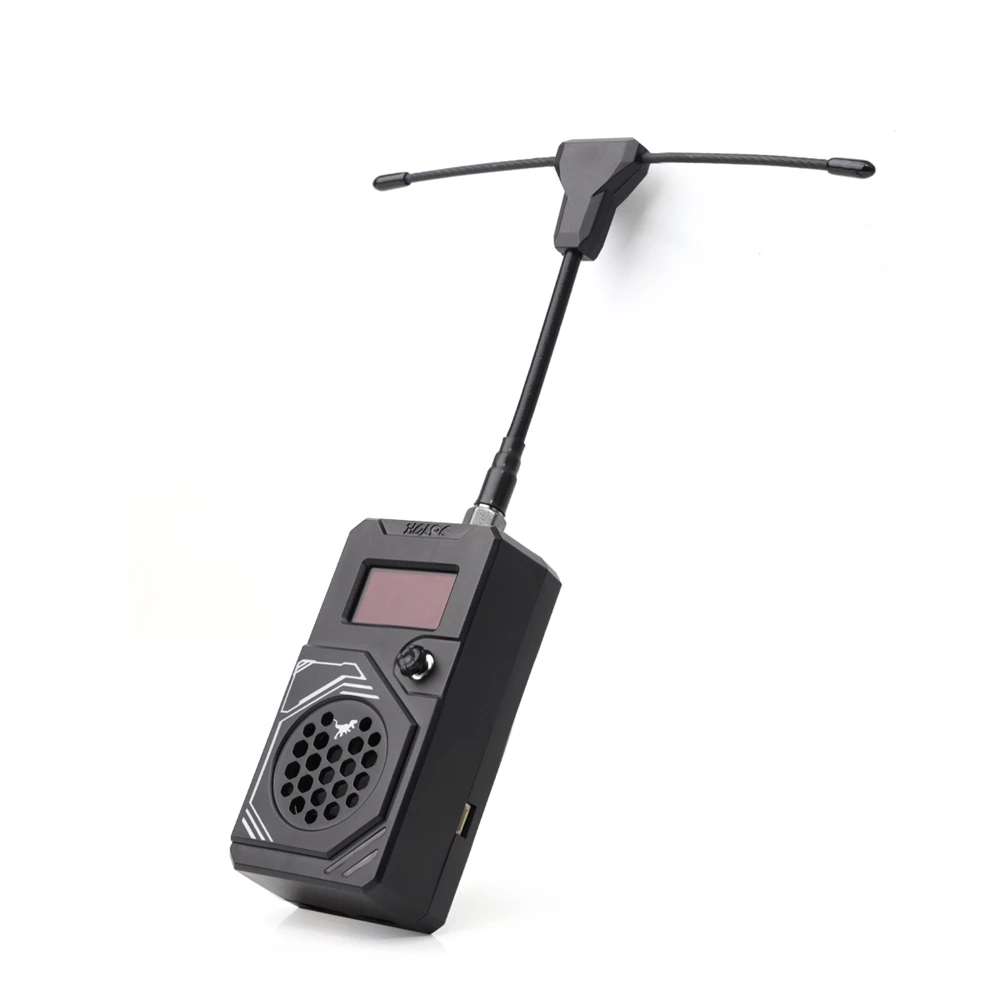

The HGLRC ELRS T ONE TX Module is based on the ExpressLRS project, an open source RC link for RC applications. T ONE has a high
power of up to 2W, which can escort customers to long-distance flights. The heat sink across the entire high-frequency head is not
afraid of high power and long-term operation. The two replaceable bottom shells are perfectly compatible with most remote controls
on the market.
Features:
The performance has been upgraded, and the maximum wireless power can reach 2w, which can escort ultra-long-distance flight, bring
stronger signals, longer transmission distance and wide remote control range.
The cooling system composed of CNC metal heat sink and turbofan across the entire TX Module is not afraid of the high temperature
caused by high-power operation. Even at 2W power, it can run stably for a long time without losing power under normal environment.

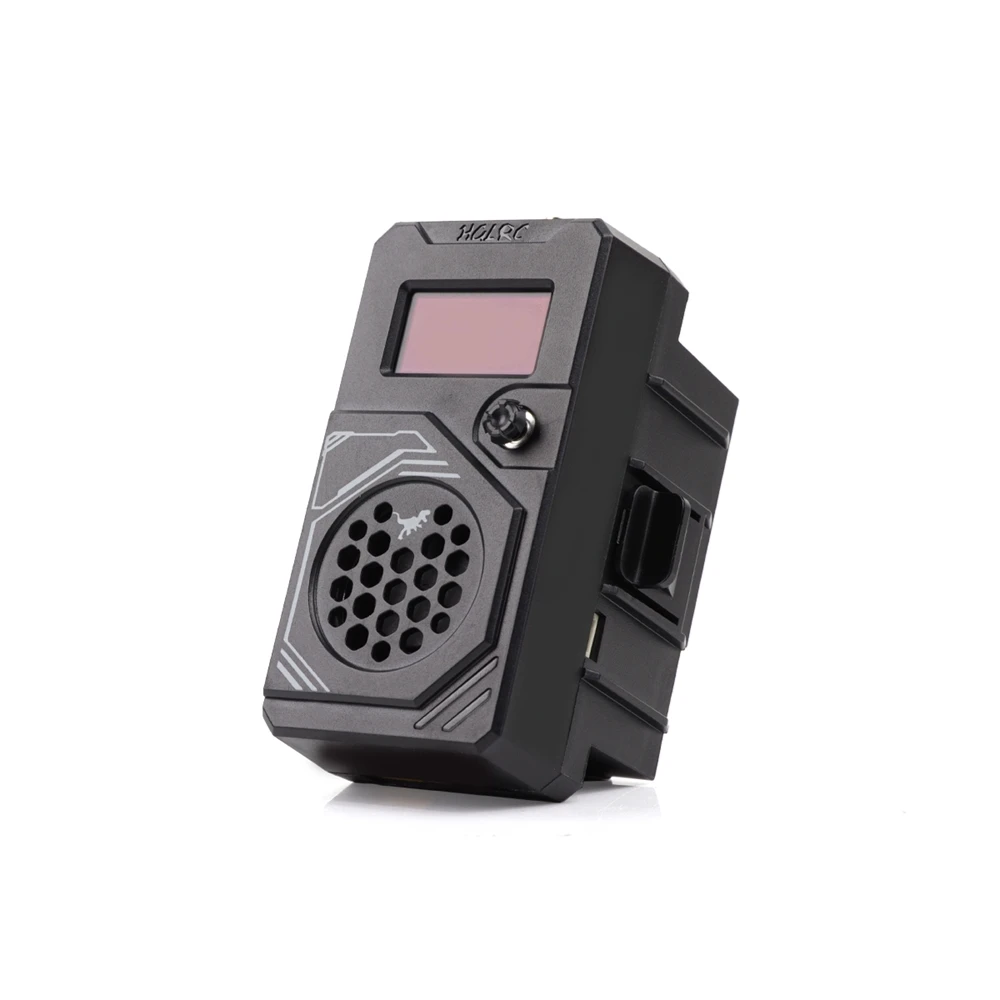

It has two replaceable bottom shells: JR standard 5-pin and NANO standard 8-pin, which are compatible with most remote control TX
Module compartments on the market. You only need to remove 4 screws and plug in a 3pin port to complete the replacement.

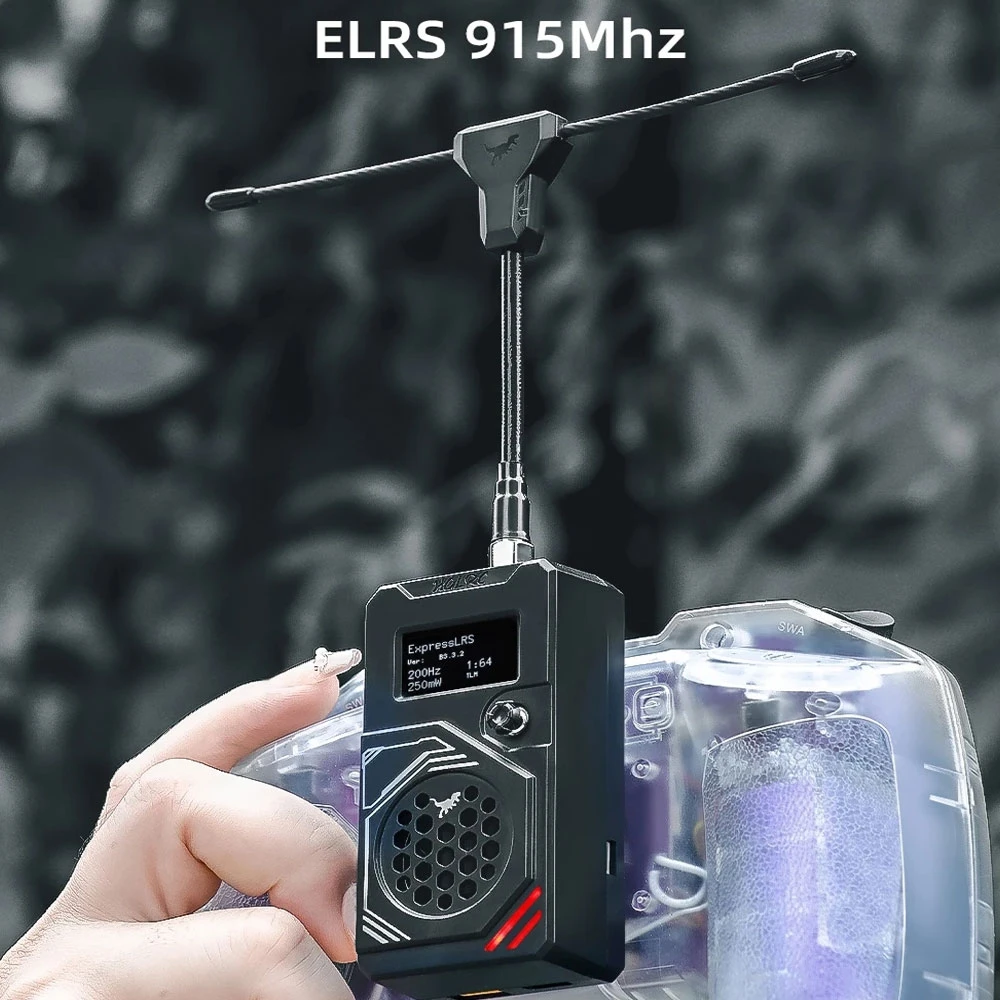

OLED display, high contrast, can display clearly in any application environment
XT30 external power input port, can support up to 25.2V voltage input
Technical parameters
Product model: T ONE TX Module
Working frequency band: 868-915MHz FCC
Output power: 100mw/250mw/500mw/1000mw/2000mw
Refresh rate: 25Hz/50Hz/100Hz/200Hz
XT 30 external power supply port voltage: DC 7.4V~25.2V (2S~6S)
Adaptive position: JR standard 5-pin/NANO standard 8-pin
Display: OLED

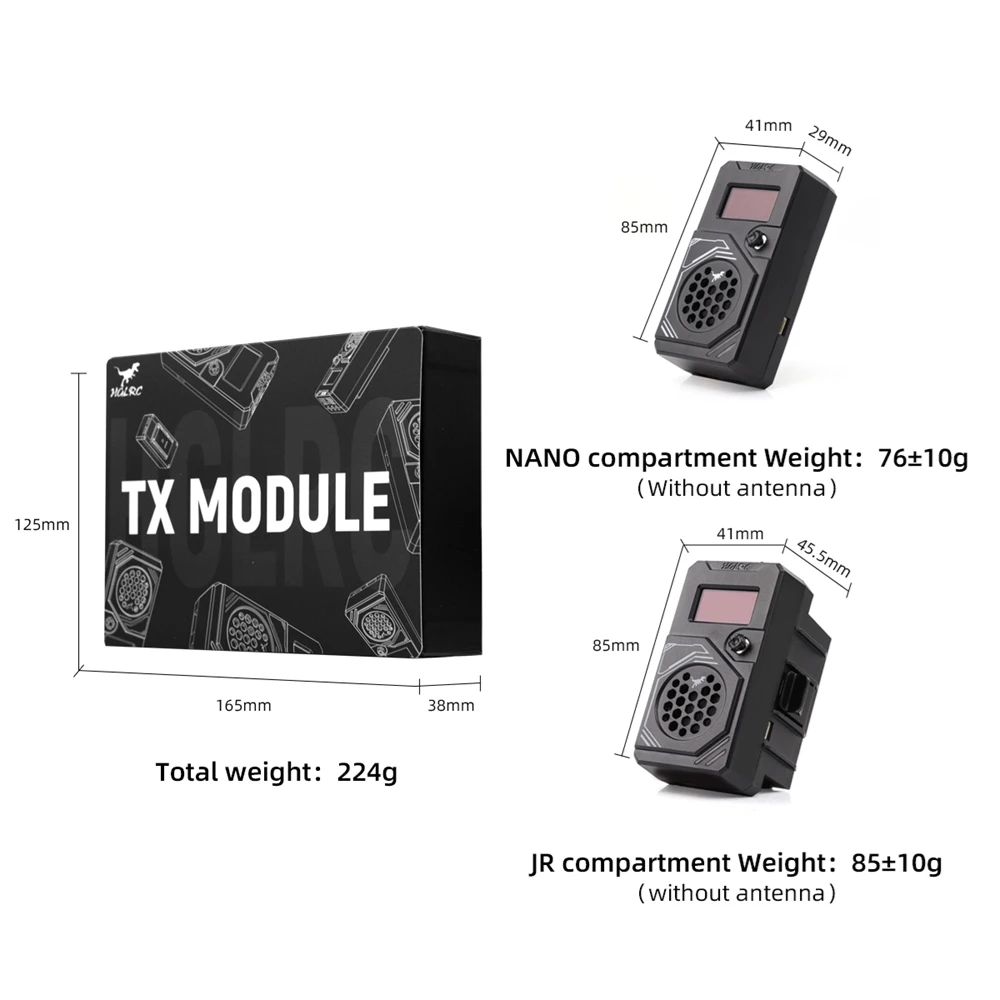

Weight: 76g (Nano without antenna)
85g (JR without antenna)
Dimensions: 41*85*29 (NANO bottom shell without antenna)
41*85*45.5 (JR bottom shell without antenna)

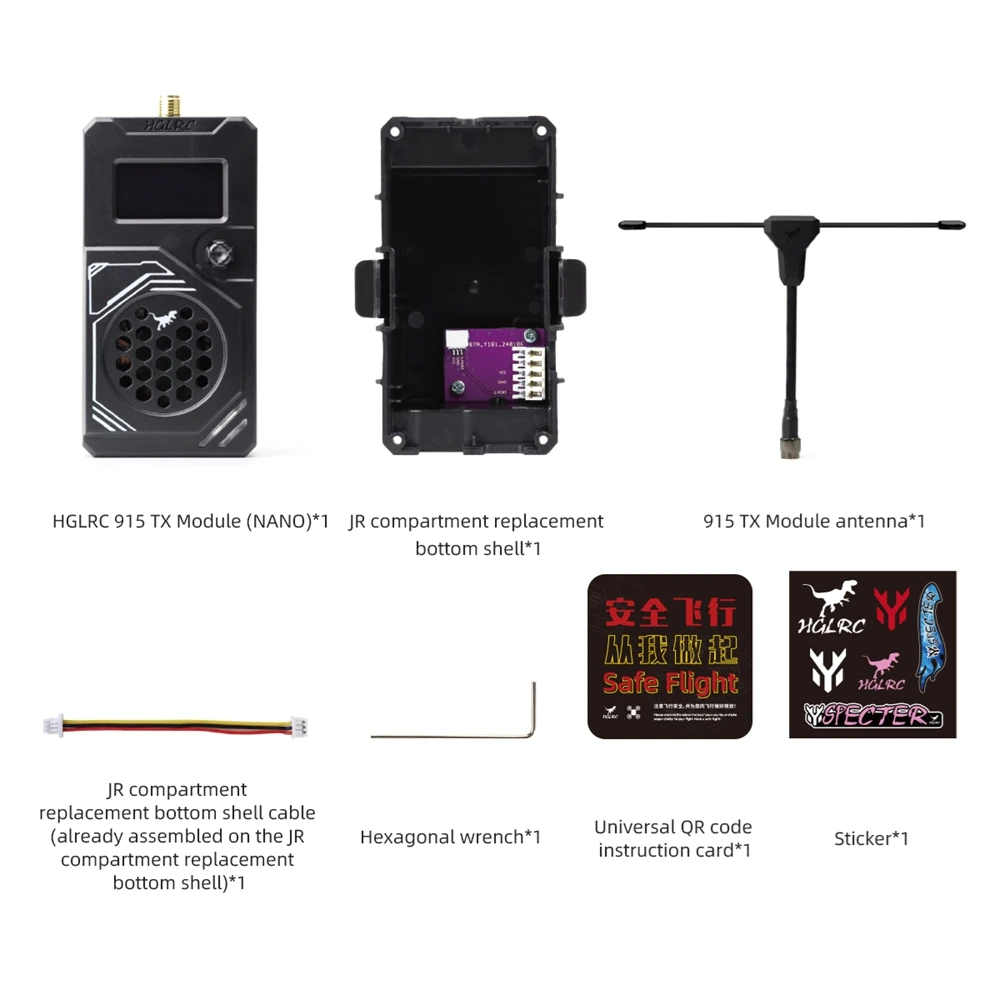

Shipping list:
915 TX Module (NANO)*1
JR compartment replacement bottom shell*1
JR compartment replacement bottom shell cable (already assembled on the JR compartment replacement bottom shell)*1
915 TX Module antenna*1
Hexagonal wrench*1
Introduction:
The HGLRC ELRS T ONE TX Module is based on the ExpressLRS project, an open source RC link for RC applications. T ONE has a high
power of up to 2W, which can escort customers to long-distance flights. The heat sink across the entire high-frequency head is not
afraid of high power and long-term operation. The two replaceable bottom shells are perfectly compatible with most remote controls
on the market.
Features:
The performance has been upgraded, and the maximum wireless power can reach 2w, which can escort ultra-long-distance flight, bring
stronger signals, longer transmission distance and wide remote control range.
The cooling system composed of CNC metal heat sink and turbofan across the entire TX Module is not afraid of the high temperature
caused by high-power operation. Even at 2W power, it can run stably for a long time without losing power under normal environment.
It has two replaceable bottom shells: JR standard 5-pin and NANO standard 8-pin, which are compatible with most remote control TX
Module compartments on the market. You only need to remove 4 screws and plug in a 3pin port to complete the replacement.
OLED display, high contrast, can display clearly in any application environment
XT30 external power input port, can support up to 25.2V voltage input
Technical parameters
Product model: T ONE TX Module
Working frequency band: 868-915MHz FCC
Output power: 100mw/250mw/500mw/1000mw/2000mw
Refresh rate: 25Hz/50Hz/100Hz/200Hz
XT 30 external power supply port voltage: DC 7.4V~25.2V (2S~6S)
Adaptive position: JR standard 5-pin/NANO standard 8-pin
Display: OLED
Weight: 76g (Nano without antenna)
85g (JR without antenna)
Dimensions: 41*85*29 (NANO bottom shell without antenna)
41*85*45.5 (JR bottom shell without antenna)
Shipping list:
915 TX Module (NANO)*1
JR compartment replacement bottom shell*1
JR compartment replacement bottom shell cable (already assembled on the JR compartment replacement bottom shell)*1
915 TX Module antenna*1
Hexagonal wrench*1
Specification
Product Name | VTX20-600 |
Model | ACM0005 |
Brand | JHEMCU |
MOQ | 1PCS |
Company Profile
Shenzhen Core Plus Fruit Technology Co., Ltd.
Located in Shenzhen, China, Shenzhen Core Plus Fruit Technology Co., Ltd. has been deeply engaged in R&D and sales of drone accessories for decades. We provide high quality products for drone enthusiasts, such as VTX,FPV,ESC, brushless motor, flight control, receiver, rack, antenna, etc. All the accessories come from brand factories. And we also have a 2000 square meters production workshop, employing experienced technical and management staff, strict quality control procedures to ensure product quality is guaranteed. Welcome to our drone enthusiasts, thank you for watching and have a nice life.
Production Process
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q：How can we guarantee quality?
A：Alwavs a pre-production sample before mass production;
Always final Inspection before shipment.
Q：What can you buy from us?
A：Motor and ESC,Transmitter&Receiver ,Rc Antenna, Flight Control, GPS, Frame, FPV Camera , RC Tool ,Rc Connecter, Drone, Battery Charger, RC Propellers and other RC accs and parts.
Q：Why should you buy from us not from other suppliers?
A：The company has obtained the agency right of many famous brands, the drone accessories products are comprehensive, the products are all oriainal and cenuine, to provide you with professional technical services;in addition, the company also provides a variety of logistics methods,you order will be delivered to your address on time!
Q：What services can we provide?
A：Accepted Delivery Terms: FOB , Express Delivery;
Accepted Payment Currency : USD , RMB;
Accepted Payment Type : L/C，D/A，D/P，T/T，Western Union，MoneyGram;
Language Spoken:English ,Chinese.
A：Alwavs a pre-production sample before mass production;
Always final Inspection before shipment.
Q：What can you buy from us?
A：Motor and ESC,Transmitter&Receiver ,Rc Antenna, Flight Control, GPS, Frame, FPV Camera , RC Tool ,Rc Connecter, Drone, Battery Charger, RC Propellers and other RC accs and parts.
Q：Why should you buy from us not from other suppliers?
A：The company has obtained the agency right of many famous brands, the drone accessories products are comprehensive, the products are all oriainal and cenuine, to provide you with professional technical services;in addition, the company also provides a variety of logistics methods,you order will be delivered to your address on time!
Q：What services can we provide?
A：Accepted Delivery Terms: FOB , Express Delivery;
Accepted Payment Currency : USD , RMB;
Accepted Payment Type : L/C，D/A，D/P，T/T，Western Union，MoneyGram;
Language Spoken:English ,Chinese.
Похожие товары
UHF 400-470 мГц 433 мГц 40 Вт RF усилитель мощности домофон + радиатор + вентилятор
Матек M10Q-3100 GNSS гоночный Дрон дальнего действия FPV AP_PERIPH встроенный магнитный компас PNI RM3100 патч-антенна металлический материал
5 809,18 ₽ - 6 028,47 ₽

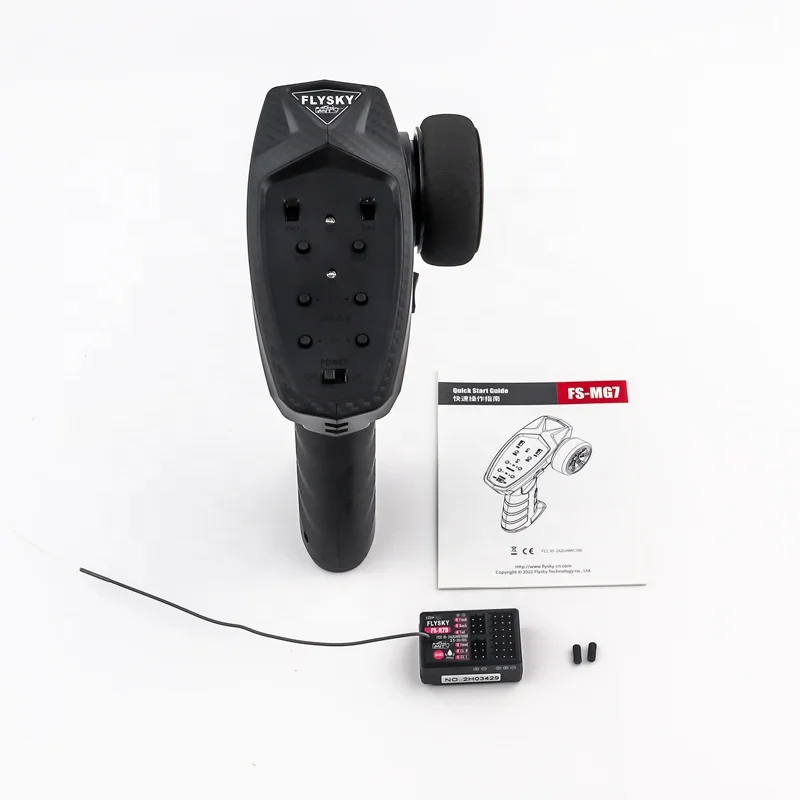

Flysky FS-MG7 7-канальный Радиоуправляемый передатчик и приемник FS-R7D 2,4 GHzANT для радиоуправляемой машины и лодки
2 253,28 ₽ - 2 412,27 ₽

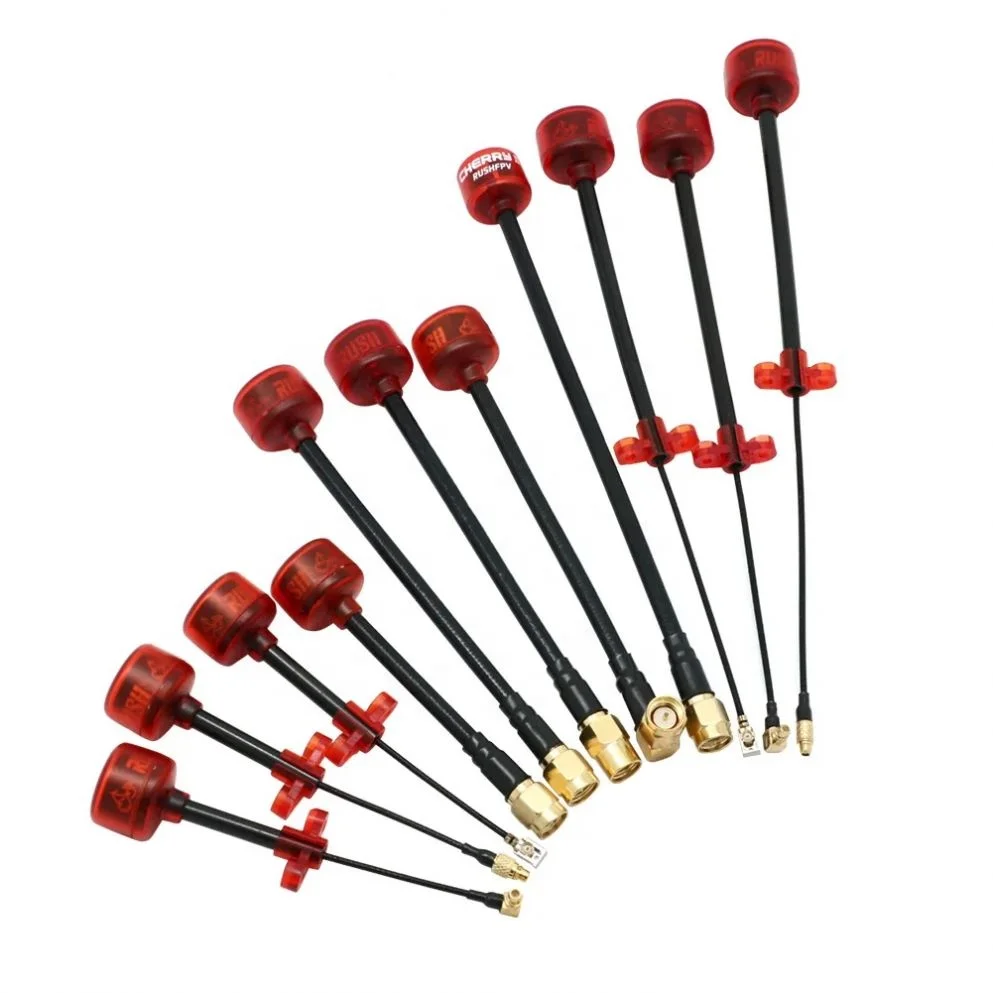

FPV Rush Cherry 5,8G антенна SMA MMCCX UFL IPEX LHCP длинный разъем антенны адаптер короткая для гоночных дронов очки

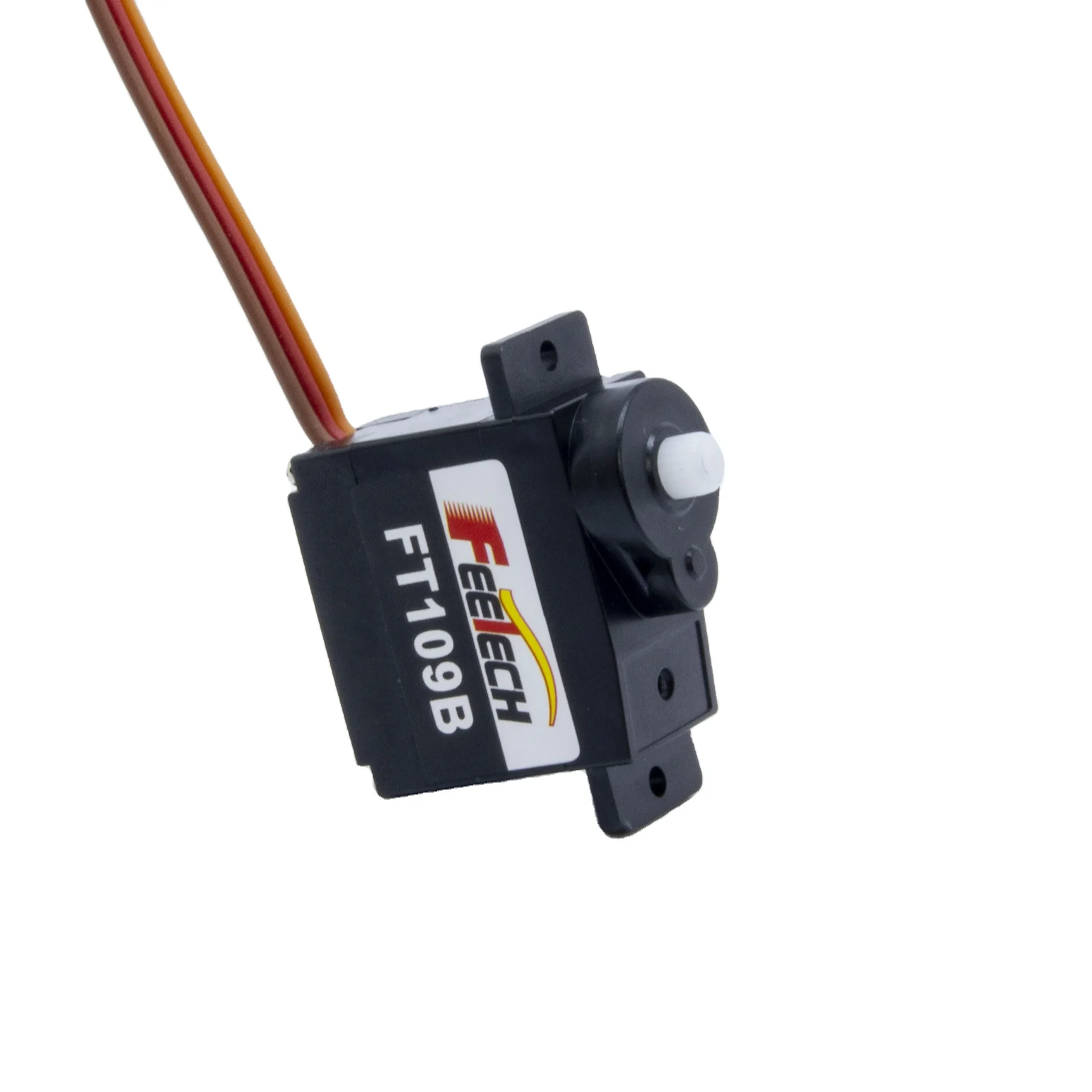

Мини-сервопривод FT109B, 6 В, 1,8 кг, основной двигатель для настольного компьютера
1,76 $ - 2,26 $

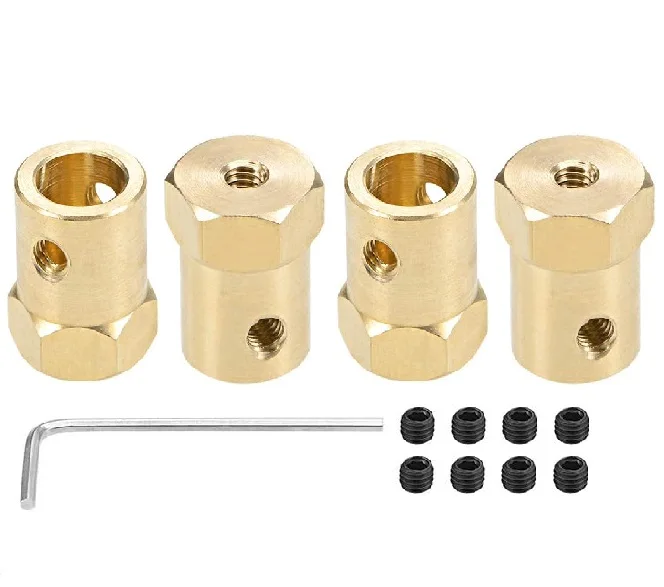

NTFHOBBY латунный шестигранный соединитель вала двигателя соединитель для RC автомобиля Лодка шестигранный разъем шины 2-8 мм
142,55 ₽ - 197,37 ₽

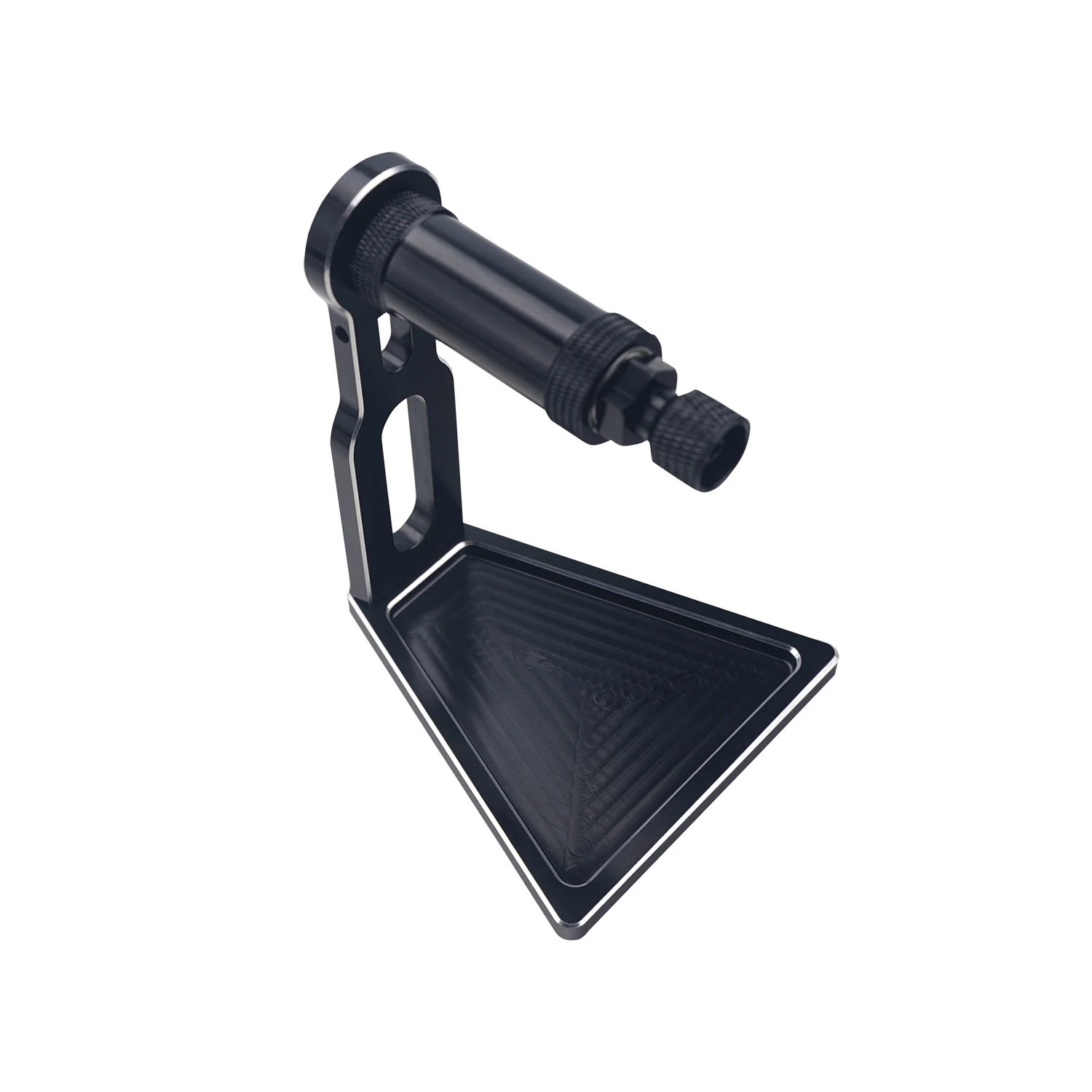

Модель пульта дистанционного управления, аксессуары для автомобиля, шинный балансировочный инструмент, втулка вала 17 мм, соединитель для 1/8 1/10 модели автомобиля
