Алюминиевая опалубка для настенной плиты

Алюминиевая опалубка для настенной плиты

Категория: >>>
Поставщик: Hunan CIEZN New Material Technology Co. Ltd.Hunan Ltd.

Цена:11 629,04-13 957,41 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Aluminum formwork is a kind of building formwork that is made by extruding aluminum alloy through special equipment.

It consists of four major systems: formwork panel, reinforcement system, support system and auxiliary system.
It has the characteristics of light weight, high strength, stability and safety, quick assembly and disassembly, and repeated use. It can also be assembled into overall models of different sizes and shapes.

* CIEZN Aluminum Formwork System Features

Item	Specification
Alloy and Temper	6061-T6
Elasticity modulus(Ea)	70000N/mm2
Yield strength(Fa)	240N/mm2
Tensile strength(Fva)	260N/mm2
Material Type	Complete extrusion
Formwork system	Flat tie system/Tie-rod system
Main welding type	Argon arc welding
Thickness of Panel	4mm
Thickness of Frame	8mm
Height of Frame	65mm
Standard Wall Panel Width	50mm to 600mm

* CIEZN Aluminum Formwork System Structure SOLUTIONS

Using CIEZN aluminum formwork, all structural building components can be cast in concrete in a single operation that dramatically reduces construction times and results in an extremely strong and high quality concrete structure.
The formwork is custom designed and made-to-measure for each project and is able to monolithically form all components at the same time including
1. Walls
2. Decking / slabs
3. Columns and Beams
4. Stairs
5. Balconies
6. Door and window openings are also incorporated

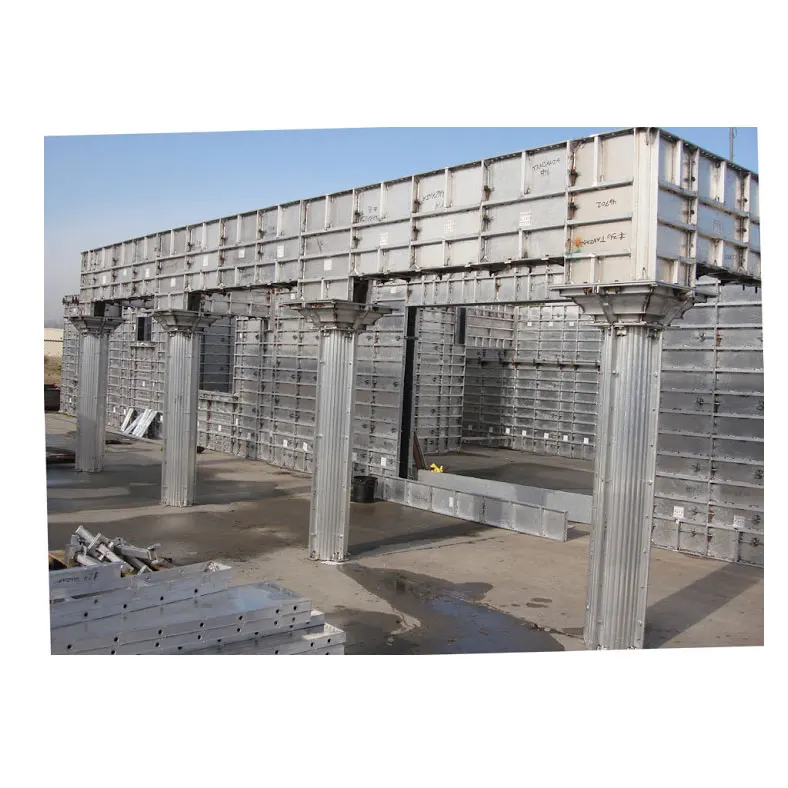

wall structure

Decking structure

Beam Structure

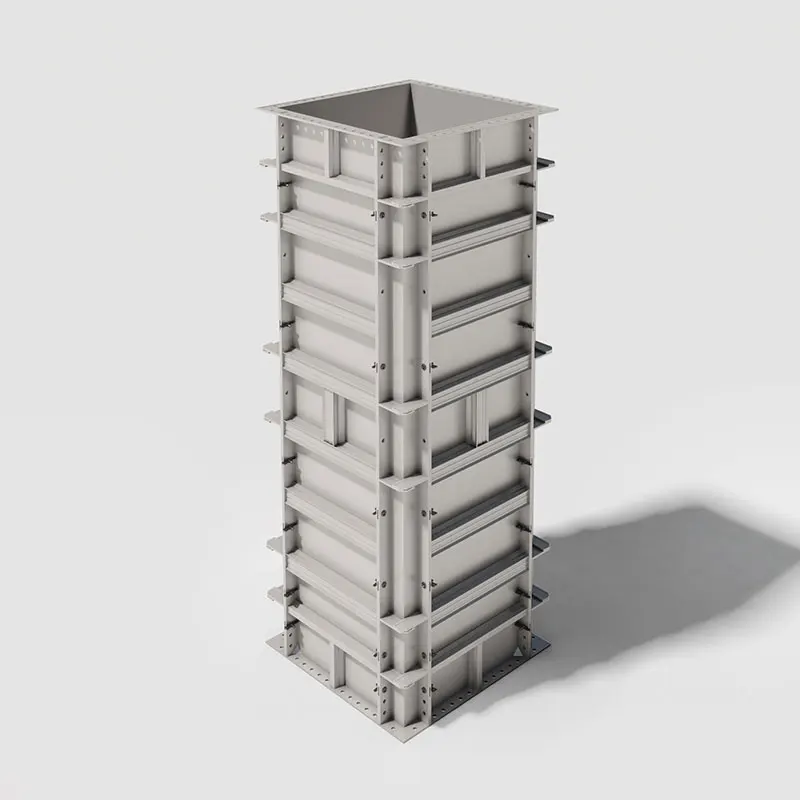

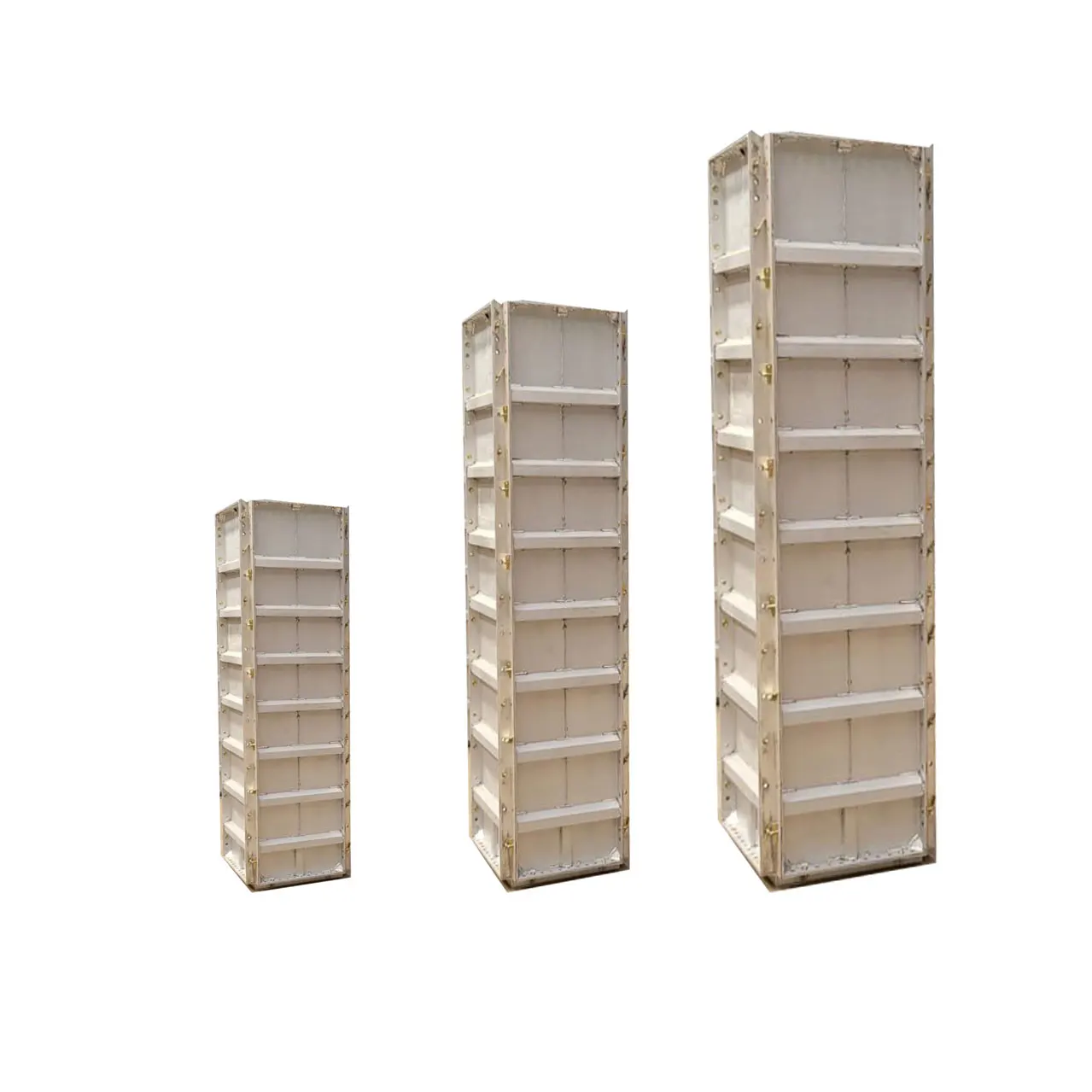

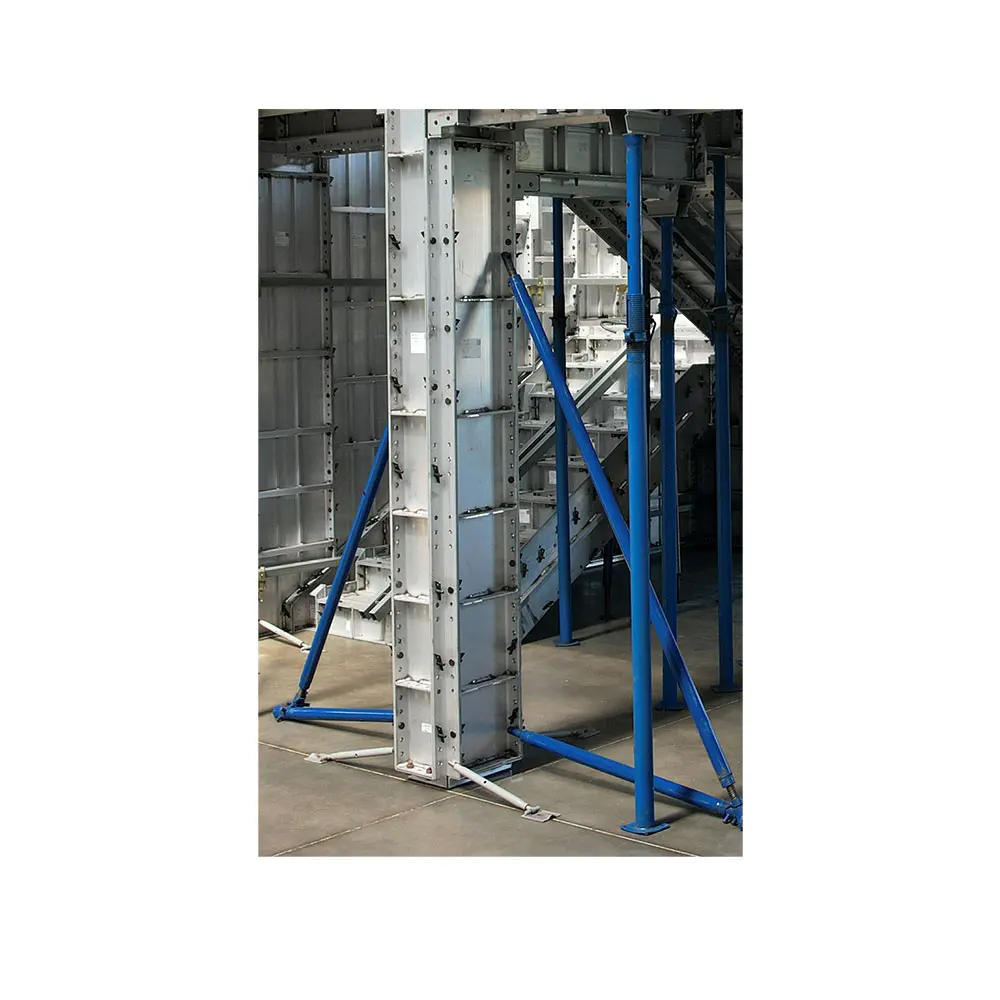

Column structure

Window structure

Staircase Structure

* CIEZN Aluminum Formwork Benifits

Characteristics	steel formwork	plastic formwork	Timber formwork	Aluminum formwork
Easy construction, low dependence on equipment		√		√
Form staircase with accurate dimensions for riser and thread				√
High strength&bearing capacity	√			√
Suitable for high-rise buildings				√
Dismantle slab panels without moving props				√
Excellent concrete surface quality without plastering	√			√
Easy to combine with other types of formwork			√	√
Recycle utilization, less average cost				√
High speed of construction, save time cost		√		√
Self correction feature provides unmatched forming accuracy	√			√
Environment-friendly, no construction waste	√			√

* CIEZN Aluminum Formwork Production Process

Eco-friendly---The first single industrial park in China to achieve a large cycle of aluminum formwork industry. we produce raw material, so that the price is surely cheaper than other supplier.

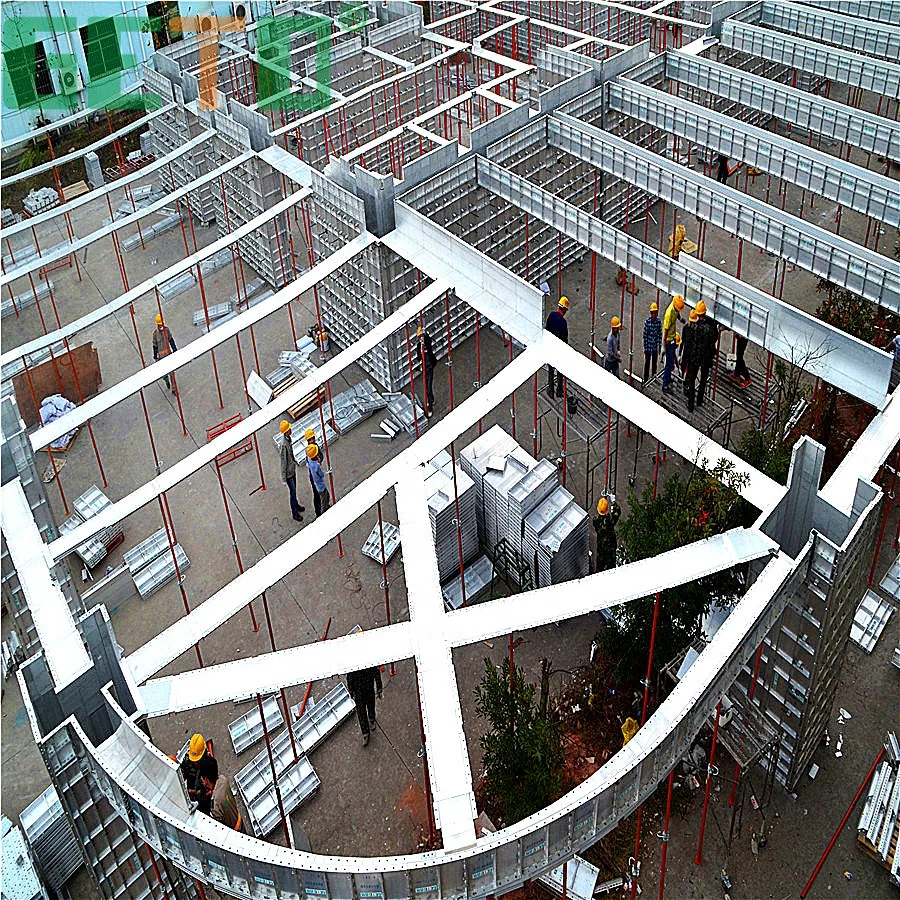

* CIEZN Aluminum Formwork Application Case

Aluminium formwork application space is constantly increasing: such as small high-rise, medium and low-rise, basements, public buildings, complex structures, road auxiliary structures, pipe gallery projects, etc.

Project Name: Changsha Fuxing World Financial Center
Project Site: Changsha, Hunan Province, China
Construction Year: 2021
Project Type: Super high-rise building
Main Product: CIEZN Aluminium Formwork

Project Name: Changsha CSCEC Meixi Lake Center
Project Site: Changsha, Hunan Province, China
Construction Year: 2011
Project Type: Standard floor buildings
Main Product: CIEZN Aluminium Formwork

Project Name: Loudi Country Garden Louxing Mansion
Project Site: Loudi city, Hunan Province, China
Construction Year: 2022
Project Type: Super High-rise Building
Main Product: CIEZN Aluminium Formwork

Project Name: Changsha Vanke Golden Dream dwellingProject Site: Changsha city, Hunan Province, China
Construction Year: 2021
Project Type: Low-rise buildings
Main Product: CIEZN Aluminium Formwork

Our Services

* 3D Construction scheme design

From simple to highly complex designs, CIEZN’s engineers are able to produce elaborate 3D visualisations and optimise the design for rapid construction sequences and best working cycles on-site.

* Technical and On-site support

The CIEZN technical team could help our customer's construction team to install the first 2-3 floor of their project.

Company Profile

CIEZN Group was founded in 1998, with two industrial parks, one is located in Yueyang,Hunan , and the other is located in Yiyang,Hunan. For more than two decades, it has been following the development concept of green innovation, focusing on the R&D, application innovation, advanced manufacturing and installation of prefabricated building aluminum formwork, CIEZN has grown into a well-known high-tech enterprise in China.

* CERTIFICATION

After 27 years development, CIEZN has got each of the certifications requested in the productions. Like: ISO9001-2015 certification, ISO45001:2018 certification, etc.

ISO9001

ISO14001

ISO45001

* PARTNERS(WORLD FURTUNE 500 COMPANIES)

* Productin line show

FAQ

-Q-:Can I use this set of formwork to another project?
Yes, there are nearly 70% standard panels can be common reused.

-Q-:What's your packing methods?
Protection foam+heat contracted plastic film. / wooden packing(non-fumigation) / Metal pallet or depend on clients special
requirement.

-Q-:What's your payment terms?
T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status

-Q-:Are you manufacturer or trader?
A: CIEZN is the manufacturer of aluminum formwork system for 9 years. Our group has 4 factories, cove raged every scaffolding
systems.

-Q-:If I don't have construction crew knew well about your forwmork system, what can I do?
Well, we will send one or two field specialists to your construction site for guidance if you require.

-Q-: Do you have pre-mocking up service?
Yes, we have pre-mocking up service, it depends on customer, sometimes, our clients need the cargo urgently,
then they do not need pre-mocking up, normally, we will do pre-mocking up to our customers.

-Q-: How to proceed an order for aluminum formwork?
1- Please provide completed project drawings to us.
2- CIEZN design engineer will work out formwork solution base on project drawings, we have a meeting to discussing details solution.
3- Construction details confirmed, sign sales contract, receiving deposit.
4- To work out shell drawings and modulation drawings.
5- Have meeting for confirming model details.
6- Production.
7- Acceptance and check.
8- Shipping.
