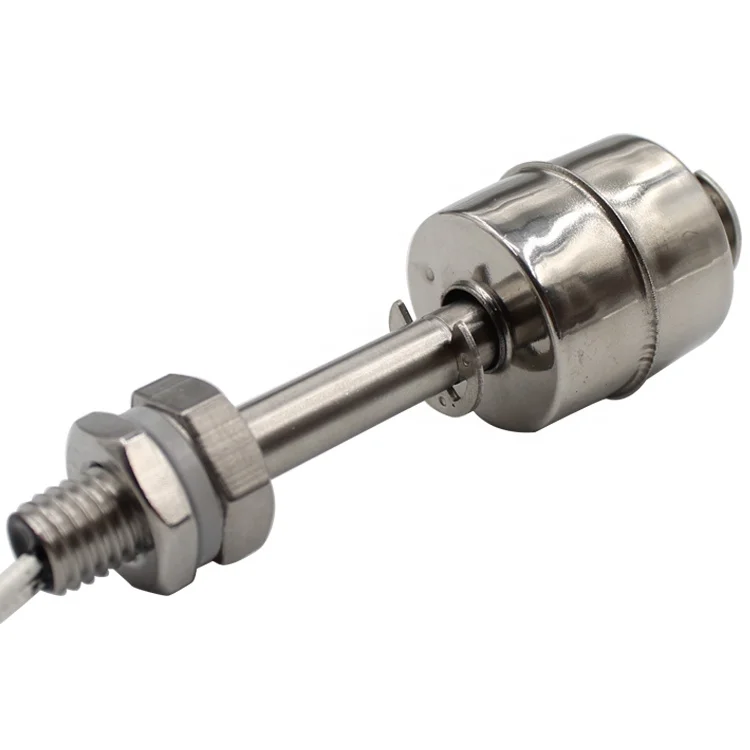

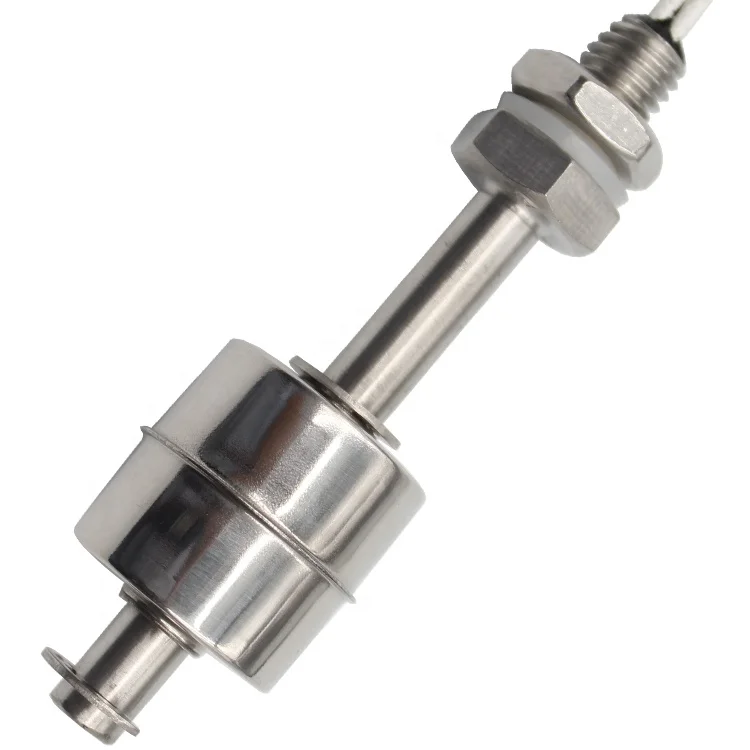

                                                        magnetic float ball steel level sensor for water tank

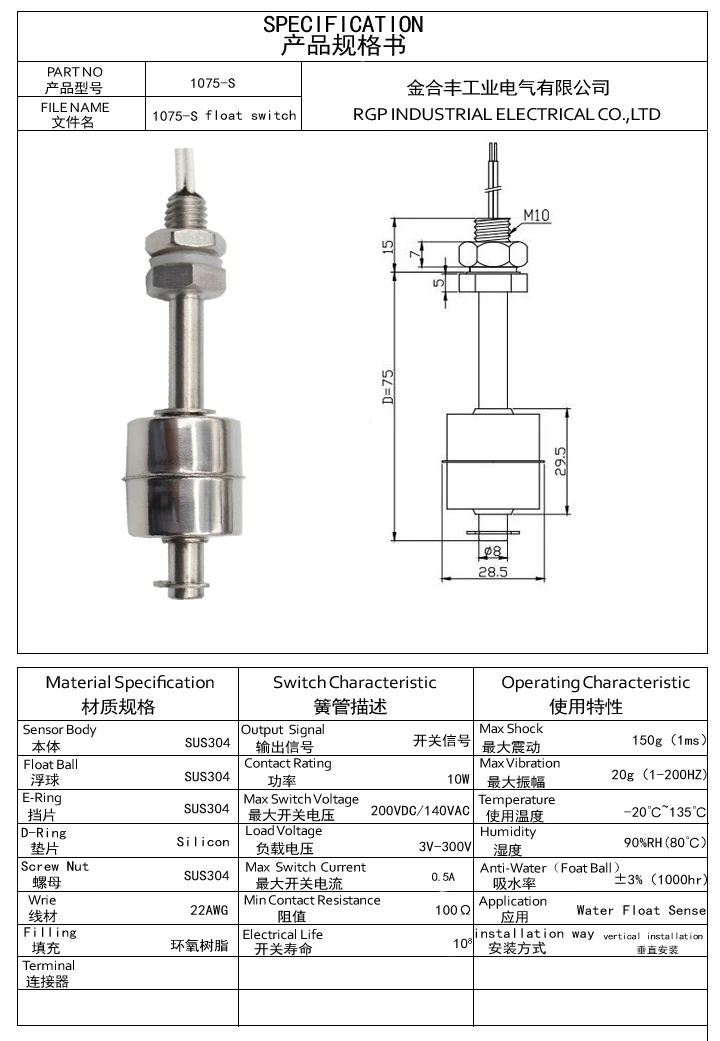

1075-S Spec.jpg





Description


Level float switch 1075-S(see Figure 1) new designed,  for vertical mount float   switch, it is made of SUS304/316 , one of our  hot sell   products. with slosh shield protect ,suit for high temperature and steaming liquid ,  It is robust construction anti corrosive ,can be  easily install and used, when mounted stemp up operating functions are reversed,safely and reliablely  to control the level of the liquid , it  has smaller volume than mechanical switches, and high speed, longer life, stronger anti-load impact to compared with the electronic switch. It without complex circuit ,won't be disturbed by electric ,and easy to use to control.





The stainless steel series float switch is designed specifically for liquid level sensing in demanding fluid level sensor applications. This durable stainless steel float switch is the perfect sensor for a wide range of liquids, from high purity to high temperature or high pressure corrosive liquids





By means of float with magnetic filed an reed switches , One or more reed switches are placed in at a specific height inside a guide tube. The changes in liquid level modify the float position in this guide tube, so that when it reaches the switch position, it changes its status ,providing an output signal for level detection.





1075-sstainless automatic magneitcal vertical mounted diesel fuel tank level sensor





General information



  1. Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.

  2.  Switches should be mounted in a tank area free of severe turbulence turbulence or protected from such turbulence by appropriate and adequate slosh shields.

  3.  Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with  the stem at up to a 30 degree angle from vertical.

  4.  Side mount switch stems must be mounted with arrow vertically either up or down depending on switch operation .

  5.  Care should be taken that switches are always operated within electrical ratings.

  6.  Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem.





Maintenance should consist of inspection to see that the float is free to move and coated with any substance , which would change its weight or volume significantly. IF this occurs, this float should be cleaned .This is easily accomplished without disturbing the installation . In addition , the stem may be wiped down to remove any build-up.The only repair possible in the field is replacement of either the float or stem . Dents or nicks on the float are usually of  no consequence to operation.








Side mounted  level switch


stainless automatic magneitcal vertical mounted diesel fuel tank level sensor=


slosh shied model(anti flow water)


stainless automatic magneitcal vertical mounted diesel fuel tank level sensor


1043-pt high stable level switch(anti high corrosive)


stainless automatic magneitcal vertical mounted diesel fuel tank level sensor











E .Application:





 Sanitary sensor switch that suit for a variety of food and beverage equipment ,medical equipment and industrial equipment,such as household appliances, humidifiers, chillers, fog machine, constant temperature and humidity level detection machines, printing machines, medical equipment, beverage machinery, and pressure tank, the signal remote switch police, health, environmental, toxic, corrosive liquid with acid use.








stainless automatic magneitcal vertical mounted diesel fuel tank level sensorresistance stainless automatic vertical mounted electrical water level control float switch











About us








 Jinhefeng industrial electrical co., ltd is devoting to designs and manufacture the sensing switch for more than 10 years .we  have striven and now provides some of the best sensor solutions for liquid level, flow control , for the most demanding float switch applications. Whether you need a single point float switch or continuous liquid level sensor, JHF Company can direct you to the proper float switch and liquid level sensor solution. Our Company offers standard float switch sensors in stock for same day shipment, and can also custom configures multiple-point float level switches in only 5 days.


  We can combine our wide range of sensing technologies with numerous material choices to fit almost any application. We have material choices such as stainless steel, Polypropylene,PVC , Teflon ,copper etc. to ensure that you are provided with a sensor that will provide durability and long life.


  The float switches are stand up to harsh environments, hazardous locations and pressures,sanitary and food grade, that designs meet agency approvals like ROHS and ISO.


  Whether you need a float switch, continuous liquid level sensor, pressure or temperature sensor, utilized in Water and Waste Water Tanks, Food and Food Processing Equipment, HVAC, Specialty Vehicles, Medical, Marine, Washing Equipment, or any Industrial Application, let JHF provide it.


resistance stainless automatic vertical mounted electrical water level control float switch


stainless automatic magneitcal vertical mounted diesel fuel tank level sensor





 The float switch delivery cargo and the payment.


stainless automatic vertical mounted liquid level indicator


stainless automatic magneitcal vertical mounted diesel fuel tank level sensor





1: How soon can we get a sample of the sensing switch?
A : We have usual models(float switches in stock,it can be sent to you within 1-2 working days. and  the order depend on how many pis you need.let us discuss it.


2: What is the payment terms?
A :We can accept T/T and L/C at sight payment.
3: Can the logo or company name or the pattern to be printed on the products or package?
A : Sure.Your logo or company name or pattern can be printed on your products or package by printing,etching,or sticker,


4: Can we choose color of the product?
A : Yes,please discuss with us.
6: Can package be change?
A : We have professional designer that can help you to design beautiful product
package for your product.
7: Can you help us to develope our own product?
A : OEM project is welcome, we have professional workshop for doing OEM project.
8: How can you guarantee quality of your product?
A : Quality is our life!And the level sensor are stable and reliable.
     For every product, we have passed more than one hundred time of inspection, because QC checking on each production process.
9: MOQ?
A :Usually for the special order (OEM) 100pcs is the least ,but for the usually products you can choose any piece,but we can also talk in detail.





stainless automatic magneitcal vertical mounted diesel fuel tank level sensorprofessional level sensor maker
