PVC-U Water Supply Pipe Factory Pvc-U Environmentally Friendly Water Supply Pipe China Pvc-U Pipe For Water Supply
Product Description

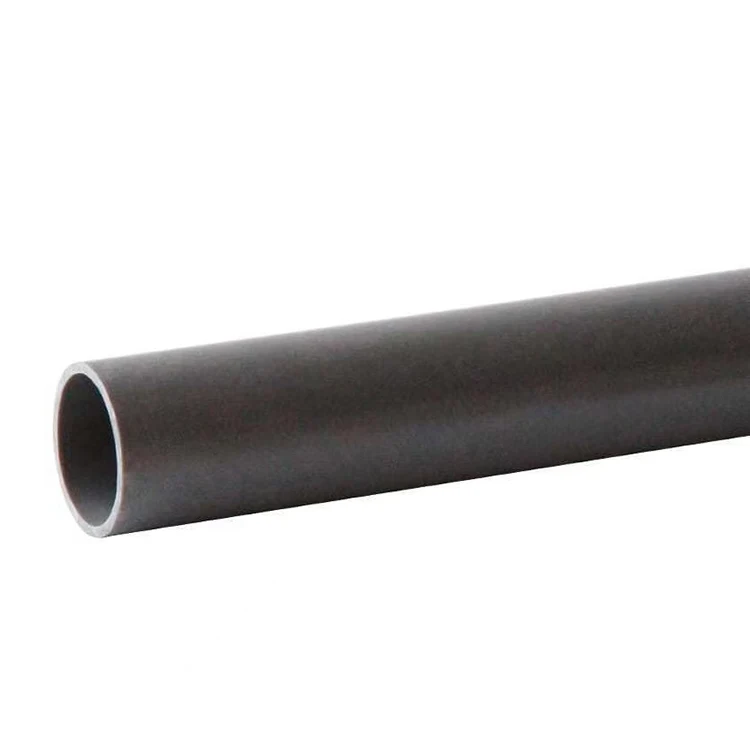

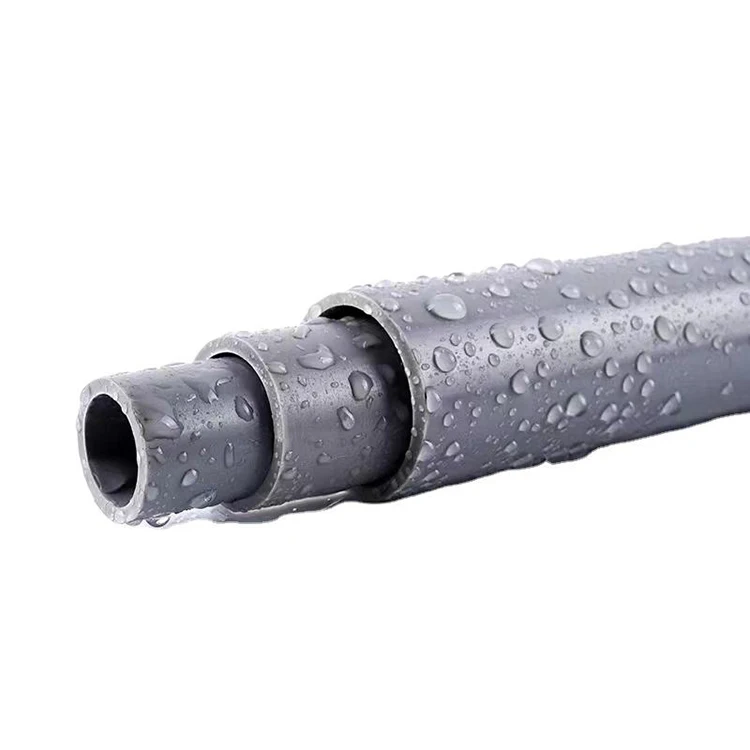

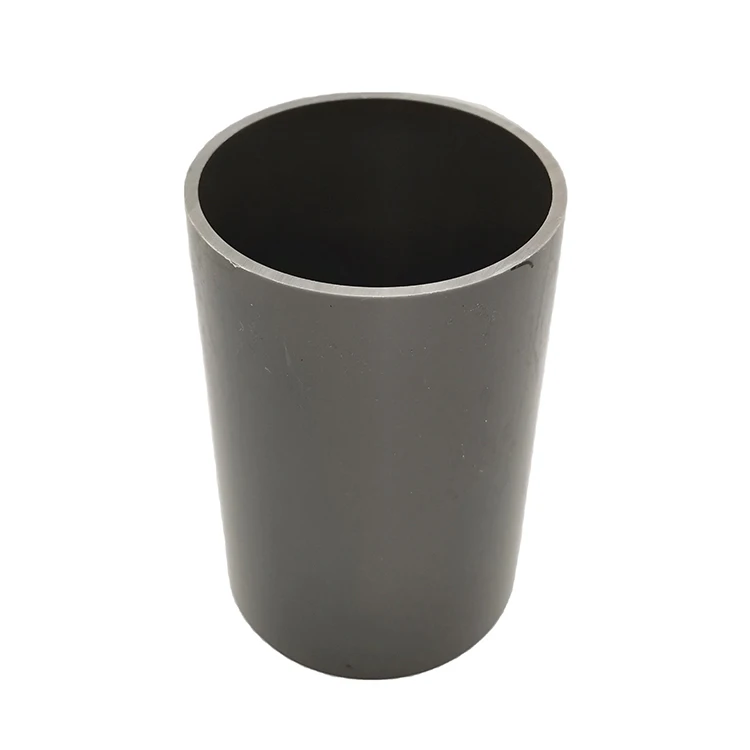

PVC-U Water Supply Pipe

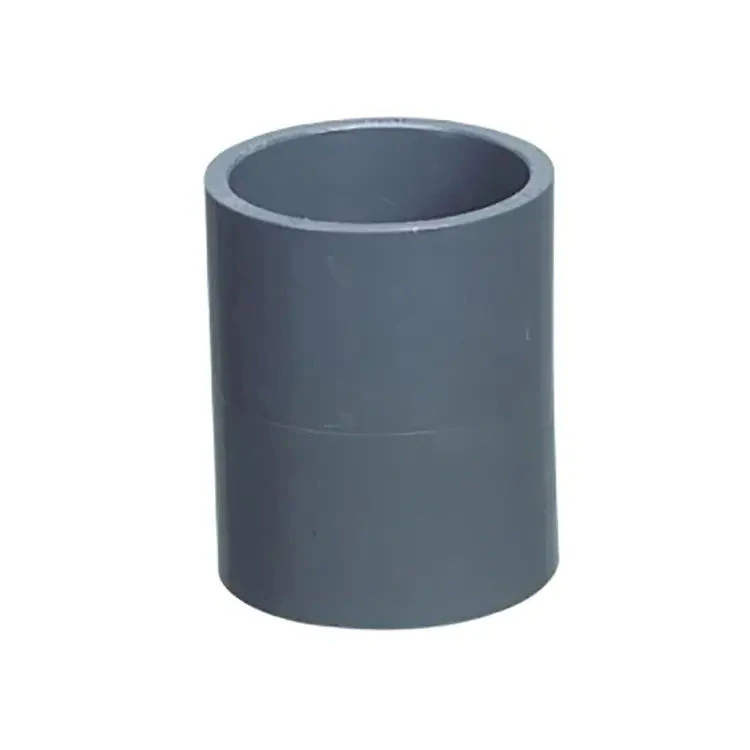

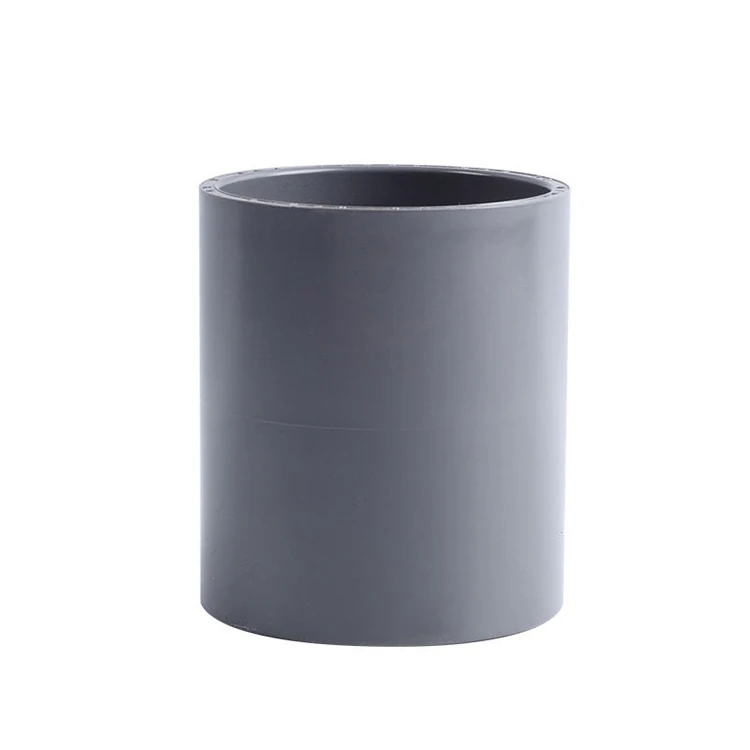

PVC-U pipes are made of sanitary polyvinyl chloride (PVC) resin as the main raw material, with appropriate amounts of stabilizers, lubricants, fillers, colorants, etc. added through extrusion molding by a plastic extruder and injection molding by an injection molding machine. , curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings. Compared with traditional pipes, PVC-U pipes have the advantages of light weight, corrosion resistance, small water flow resistance, energy saving, quick installation, and low cost. They have been vigorously promoted and applied, and the benefits are significant
-Sanitary
There is no heavy metal additives in PVC-U water pipe and it would not be covered with dirt or contaminated by bacterium.
-High Flow Capacity
The smooth interior walls and low friction of PVC-U water pipe result in low flow resistance and high volume.
-Corrosion Resistance
PVC-U water pipe is non-conductors of electricity and unaffected by electrochemical reactions caused by acids, bases, and salts that cause corrosion in metals.
-Low Installation costs
PVC-U water pipe is lightweight and is installed with solvent cement, thread, flange, and gasketed joint. Ease of installation reduces the installation costs
-Longevity
PVC-U water pipe can work for more than 50 years under proper use.
Specification
Product Name | PVC-U Water Supply Pipe |
Keyword | Pvc-U Pipe For Water Supply |
Material | PVC |
Specification | Standard or Customized |
Color | White, Dark Grey |
Advantage | Environment Friendly |
Working pressure | PN6 PN8 PN10 PN12.5 PN76 PN2 |
Shape | Round |
Application | Water Supply Drainage |
Working Temperature | -40℃ to 40℃ |
Nominal Diameter (mm) | Nominal Diameter (inch) | Wall Thickness (mm) | ||||||||||
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | |||||||
PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | |||||||
20 | 3/4" | -- | -- | -- | -- | -- | 2 | |||||
25 | 1" | -- | -- | -- | -- | 2 | 2.3 | |||||
32 | 1 1/4" | -- | -- | -- | 2 | 2.4 | 2.9 | |||||
40 | 1 1/2" | -- | -- | 2 | 2.4 | 3 | 3.7 | |||||
50 | 2" | -- | 2 | 2.4 | 3 | 3 | 4.6 | |||||
63 | 2 1/2" | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | |||||
75 | 3" | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | |||||
90 | 3 1/2" | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | |||||
110 | 4 1/4" | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | |||||
125 | 5" | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | |||||
140 | 5 1/2" | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | |||||
160 | 6 1/4" | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | |||||
180 | 7" | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | |||||
200 | 8" | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | |||||
225 | 9" | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |||||
250 | 10" | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |||||
280 | 11" | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |||||
315 | 12 1/2" | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |||||
355 | 14" | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |||||
400 | 15 3/4" | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |||||
450 | 17 3/4" | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |||||
500 | 19 3/4" | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |||||
560 | 22" | 13.7 | 17.2 | 21.4 | 26.7 | -- | -- | |||||
630 | 24 3/4" | 15.4 | 19.3 | 24.1 | 30 | -- | -- | |||||
710 | 28" | 17.4 | 21.8 | 27.2 | -- | -- | -- | |||||
800 | 31 1/2" | 19.6 | 24.5 | 30.6 | -- | -- | -- | |||||
Details Images
100% VIRGIN HDPE GRANULES
Our works with only top brand suppliers
for PE100 HDPE granules. And the raw materials will be 100% virgin.
CUSTOMIZED SERVICE
Available from16mm up to 1000mm in diameter,PN6 to PN20 in pressure; customized colors,lengths, and functions available
SEEINGIS BELIEVING
Patented cutting technology;Highly smooth inner wall for superior flowcharacteristic
STRICT PRE-DELIVERY INSPECTION
Each pipe and fitting will be strictly inspectedafter manufacturing and before delivery.
Our Advantages
Material chemical stability is high,material test and engineering examples prove that the actual service life of UPVC is more than 70 years
Low Cost
The price of raw materials is relativelylow, the engineering cost is lower thanother products, the weight is about 1 /6 of galvanized steel pipe, the loadingand unloading is convenient, and thetransportation cost is low.
Corrosion Resistance
It is not affected by residual chlorine inwater (chlorinated disinfection residue)while many polyolefin materials (suchas PE, PPR) are vulnerable to residualchlorine damage, resulting in reducedlife.
Smooth Pipe Wall
The surface roughness coefficient isonly 0.009, which can reduce scale andfouling plug, reduce fluid resistance, andeffectively reduce energy consumptioncost in long-term use.
Product Application
1. Indoor water supply and gray water systems of civil buildings and industrial buildings;
2. Underground water supply systems in residential areas and factory areas;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Marine aquaculture industry;
6. Pipes for garden irrigation, well digging and other projects and other industrial pipes.
2. Underground water supply systems in residential areas and factory areas;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Marine aquaculture industry;
6. Pipes for garden irrigation, well digging and other projects and other industrial pipes.
