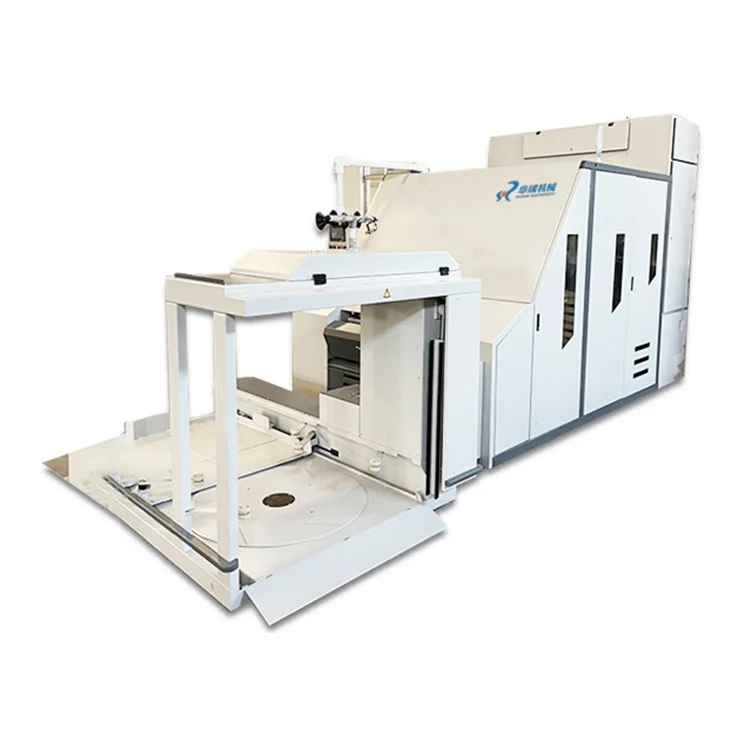

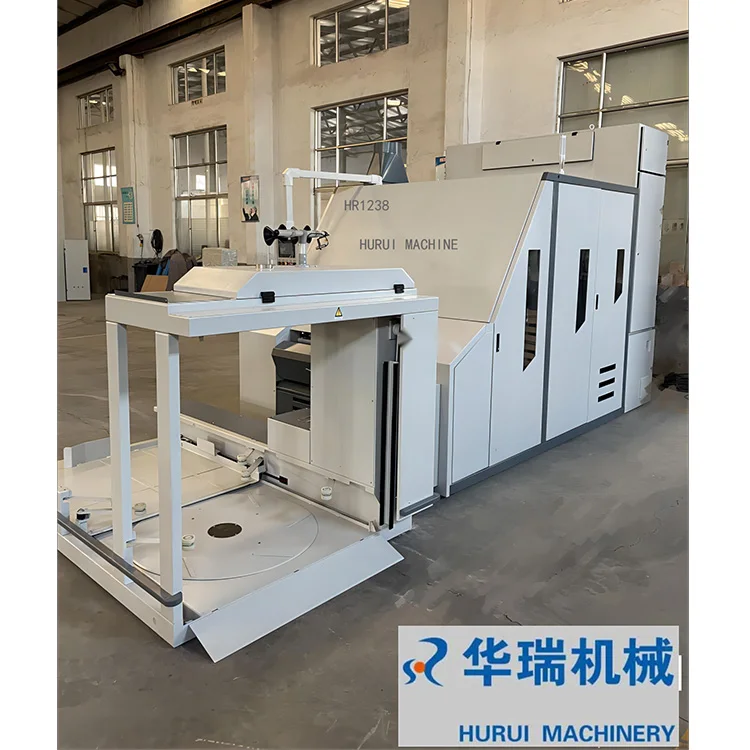

Высокопроизводный кардинговый станок Hr1238 Hurui широкополосный для хлопка
- Категория: >>>
- Поставщик: Qingdao Hurui Textile Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601208441650:
Описание и отзывы
Характеристики
The excellent configuration and precise control system ensure the perfect quality of the cotton strips and create superior yarn quality.
Scope of application | For pure cotton, chemical fiber and their blends with fiber lengths of 22 to 76 mm. | ||||
Maximum output (kg/hour) | 140 | Maximum delivery speed (m/min) | 280 | ||
Cotton sliver quantity (g/m) | 3.5~10 | Cotton feeding weight (g/m) | 400~1300 | ||
Working width (mm) | 1280 | Total draft ratio | 38~370 | ||
Working diameter of cotton feeding roller (mm) | Φ100 | Licker-in working diameter (mm) | Φ250 | ||
Doffer working diameter (mm) | Φ706 | Doffer working speed (rev/min) | 4.3~84 | ||
Cylinder working diameter (mm) | Φ1288 | Cylinder working speed (rev/min) | 347~477 | ||
Safety cover form | fully enclosed | Cover speed (mm/min) | 70~408 | ||
Brush roller speed (rev/min) | 7~26 | Feeding form | cotton box feeding | ||
Machine net weight (kg) | about 7800 | Applicable sliver can (mm) diameter | Φ600 Φ1000 | ||
Height | 1100,1200 | Continuous vacuum air volume (m3/hour) | 4200 | ||
Outlet static pressure(Pa) | -800 | Compressed air pressure (kg/cm2) | 6~7 | ||
Air consumption (m3/hour) | 0.5 | Total installed power (kW) | 13.99 | ||
Number of rotary covers (working covers/total number of covers) | 30/84 | Overall dimensions (length x width x height) (mm | 5825X2480X3720 (∮1000) | ||
Cotton mesh cleaner | front 3 and rear 3 (spinning cotton)2 front and 2 back (spinning chemical fiber) | disposition | 8 front fixed covers 10 rear fixed covers | ||
1.Applicable range: cotton, polyester and blends with length 22-76mm.
2.Delivery speed: Max.300m/min
3.Production: theoretical max.100kg/h
4.Working width:1000mm
5.Cylinder diameter:中1288mm
6.Front and rear fixed cover, cotton web cleaner and carding plate
7.Doffer diameter:中706mm
8.Total power: 11.51KW (including chute feeder, carding)
2.Delivery speed: Max.300m/min
3.Production: theoretical max.100kg/h
4.Working width:1000mm
5.Cylinder diameter:中1288mm
6.Front and rear fixed cover, cotton web cleaner and carding plate
7.Doffer diameter:中706mm
8.Total power: 11.51KW (including chute feeder, carding)
1.Make structural optimization and adjustment for the whole carding system, and adjust the carding arc length up to 2820mm; efficiently improve the carding of cotton webs and increase the output;
2. Brand new feed plate and feed roller design with forward feeding mechanism, improve the gripping to cotton layers and efficiently reduce fiber damage;
3. Improved single licker-in structure of integrated design, which can help remove trash and short staple efficiently;
4. High strength aluminum alloy movable flats, high planeness, light weight, reliable operation and convenient maintenance.
2. Brand new feed plate and feed roller design with forward feeding mechanism, improve the gripping to cotton layers and efficiently reduce fiber damage;
3. Improved single licker-in structure of integrated design, which can help remove trash and short staple efficiently;
4. High strength aluminum alloy movable flats, high planeness, light weight, reliable operation and convenient maintenance.
5. Integrative aluminum alloy dual-linked stationary flats and web purifier, reasonable allocation of density excellent tip neatness, guarantee full fiber carding and efficiently remove dust and seed bits;
6.The combination of multiple motor individual transmission and frequency conversion technology is adopted to improve the automation of the whole machine, and it is convenient for process adjustment;
7. Positive multiple suction dust filter system is adopted to ensure dust removal in time and the stability of sliver quality.
6.The combination of multiple motor individual transmission and frequency conversion technology is adopted to improve the automation of the whole machine, and it is convenient for process adjustment;
7. Positive multiple suction dust filter system is adopted to ensure dust removal in time and the stability of sliver quality.
Qingdao Hurui Textile Machinery Manufacturing Co.,Ltd is an enterprise that develops and produces textile machinery.Since its establishment in 2000, Qingdao Hurui Textile Machinery Manufacturing Co.,Ltd. has established outstanding talents, high-quality production and processing equipment, rich experiences, excellent technology and excellent service. The products are sold domestic and overseas, and are highly praised by customers. Hurui Textile Machinery focuses on product development and quality. The company has advanced equipment such as CNC machining centers to ensure that each component is meticulous and to ensure the accuracy of each machine. The products form water-jet loom series, carding machine series. The leading products, carding machines and water-jet looms, have been sold to India, Turkey, Malaysia, Taiwan, and other countries and regions.The company is located in the Qingdao West Coast Economic New Zone. All Hurui employees sincerely welcome domestic and foreign friends to visit the company for inspection, guidance, and cooperation.
Q1: Are you a manufacturer or Trade Company?
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q2: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q3: ls the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q4: How about the quality?
The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q5: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q2: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q3: ls the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q4: How about the quality?
The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q5: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
