Dzl 0.7Mw 1.4Mw 2.8 Mw 4.2Mw 5.6Mw 7Mw Coal Wood Pellet Biomass Fired Steam Boiler For Heating
- Категория: >>>
- Поставщик: Henan Yuji Boiler Vessel Co. Ltd.
Сохранить в закладки 1601208543532:
Описание и отзывы
Характеристики
Product Overview

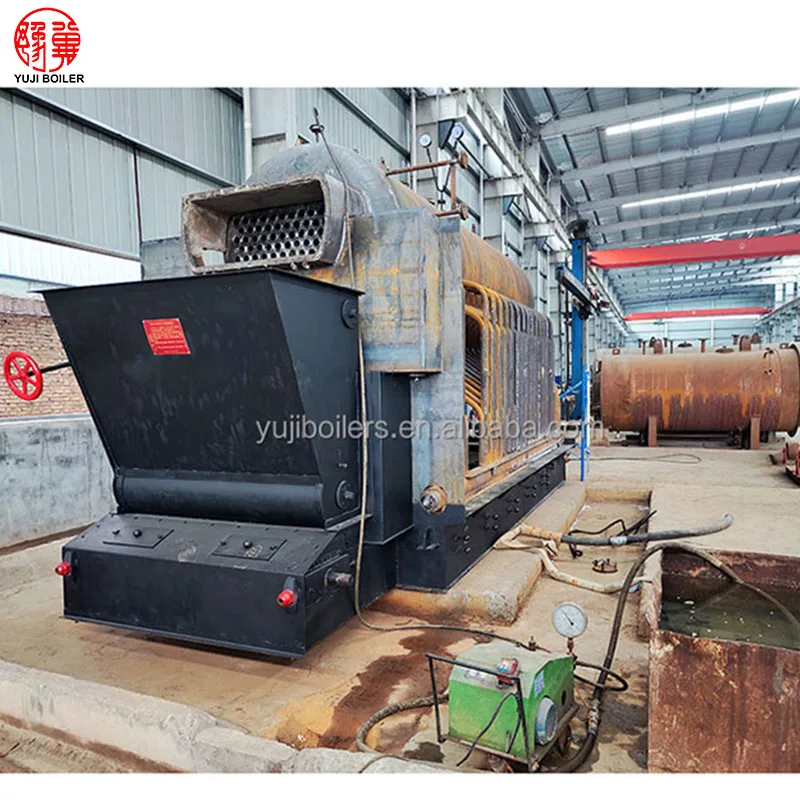

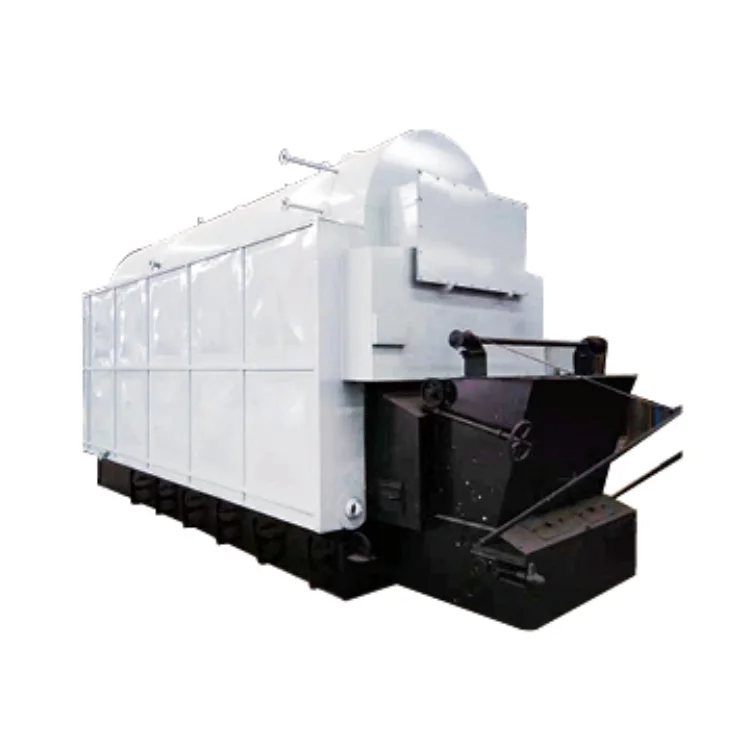

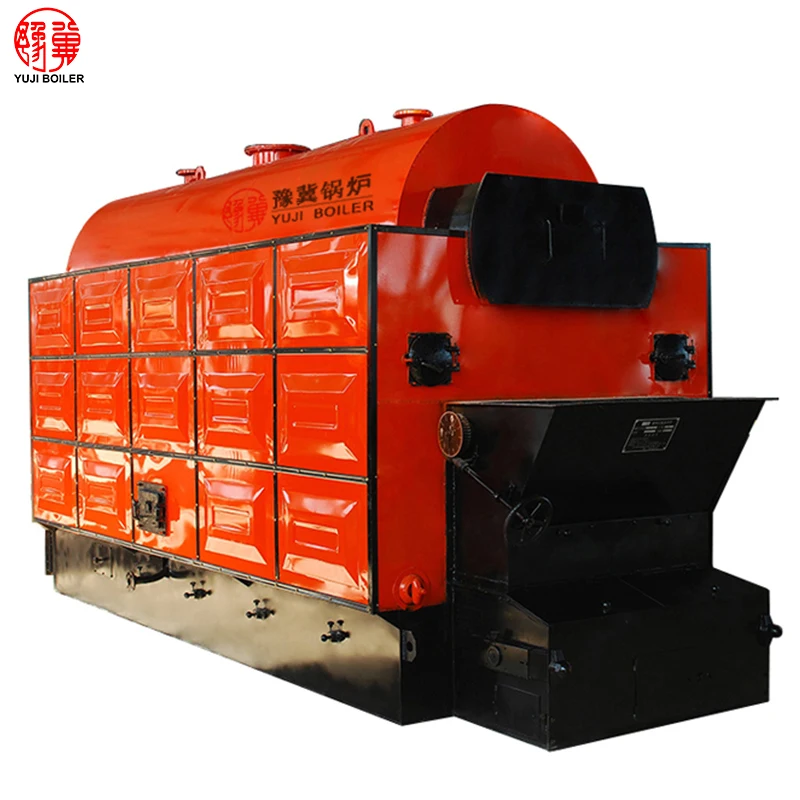

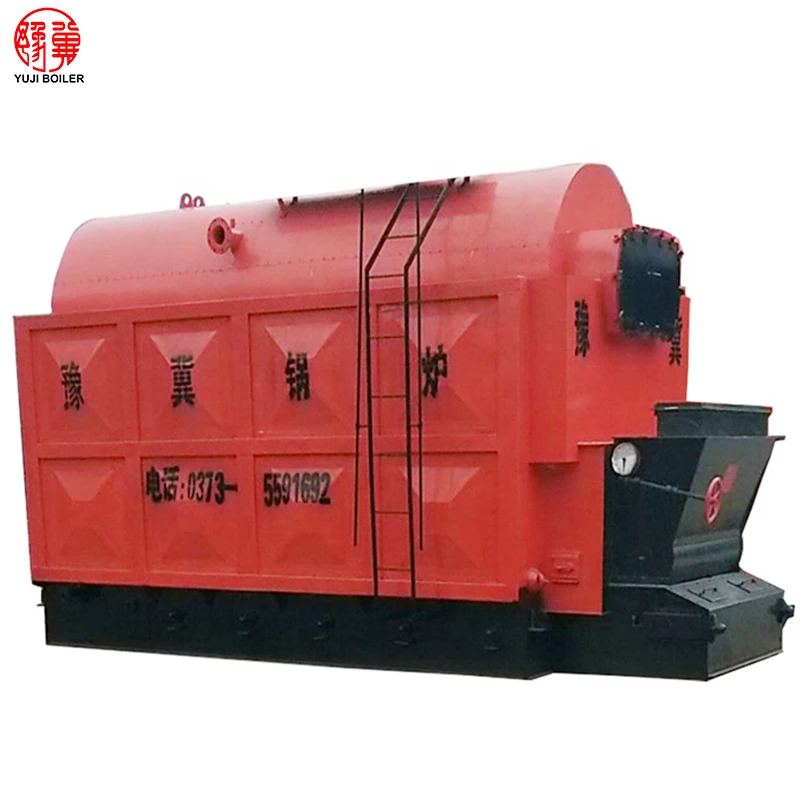

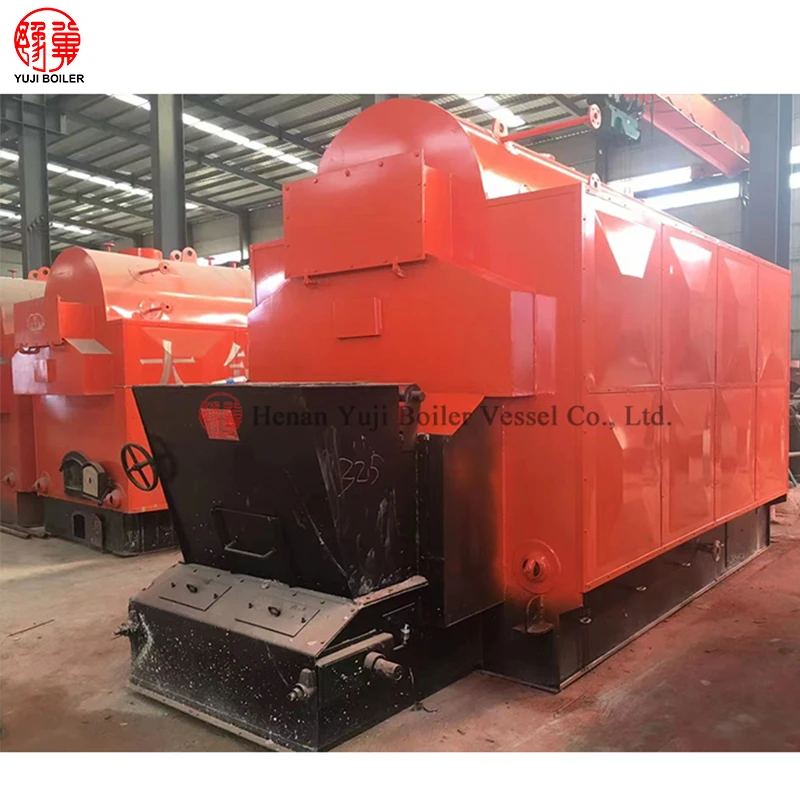

DZL Chain Fired Boiler
DZL series chain grate coal fired steam boiler is designed with single drum boiler with fire tube and water pipe. It has fast heat conduction and steam pressure rise quickly. It can adapt to various kinds of coal with compact structure and high thermal efficiency. This series of boilers adopt the latest science and technology such as arched tube sheet and spiral corrugated smoke pipe, which effectively improves the overall efficiency of the boiler, and prevents the occurrence of grate coking, tube sheet leakage and other failures.
Steam output:
* Steam volume: 1t / h-25t / h
* Steam pressure: 0.7mpa-2.5mpa (optional as required)
* Steam temperature: 0 ℃ - 226 ℃
* Fuel: coal, anthracite, bituminous coal, lignite, etc.
* Steam pressure: 0.7mpa-2.5mpa (optional as required)
* Steam temperature: 0 ℃ - 226 ℃
* Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:
* Rated thermal power: 0.7~7Mw
* Work Pressure: 0.7~1.25Mpa
* Rated outlet temperature: 95~115°C
* Work Pressure: 0.7~1.25Mpa
* Rated outlet temperature: 95~115°C
PS: Customizable according to the fuel, steam quantity and steam pressure
FEATURES AT A GLANCE
1. Water and fire pipes ensure high thermal efficiency
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short
installation cycle, convenient hoisting and transportation
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short
installation cycle, convenient hoisting and transportation
Structure and parameters:
* PLC intelligent control system can realize automatic operation of feeding, grate operation, fan start-up and stop, water feeding and slag discharging.
* Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
* The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
* Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
* The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
PRODUCT SPECIFICATIONS
DZL Steam Boiler | ||||||||||||||
Model | Rated evaporation(t/h) | Rated pressure(MPa) | Steam temperature(℃) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) | |||||||
DZL1-1.0/1.25-AII | 1 | 1.0/1.25 | 193/204 | ≥83 | 176.6 | 5.1×2.2×2.9 | 15 | |||||||
DZL2-1.0/1.25-AII | 2 | 352.3 | 6.14×2.6×3.3 | 18 | ||||||||||
DZL3-1.25/1.6-AII | 3 | 1.25/1.6 | 522 | 6.33×2.7×3.3 | 24 | |||||||||
DZL4-1.25/1.6-AII | 4 | 571 | 6.88×2.7×3.3 | 27 | ||||||||||
DZL6-1.25/1.6-AII | 6 | 1044 | 7.29×3.2×3.7 | 31 | ||||||||||
DZL8-1.25/1.6-AII | 8 | 1396.5 | 7.8×3.4×3.7 | 33 | ||||||||||
DZL10-1.25/1.6-AII | 10 | 1743.3 | 8.5×3.4×3.7 | 41 | ||||||||||
DZL Hot Water Boiler | ||||||||||||||
Model | Rated power(mw) | Rated pressure(MPa) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) | ||||||||
DZL0.7-0.7/95/70 | 0.7 | 0.7/1.0 | ≥83 | 174.3 | 5.1×2.2×2.9 | 15 | ||||||||
DZL1.4-1.0/95/70 | 1.4 | 1 | 348.6 | 6.14×2.6×3.3 | 18 | |||||||||
DZL2.1-0.7/95/70 | 2.1 | 517 | 6.33×2.7×3.3 | 24 | ||||||||||
DZL2.8-0.7/95/70 | 2.8 | 687.2 | 6.88×2.7×3.3 | 27 | ||||||||||
DZL4.2-0.7/95/70 | 4.2 | 1.0/1.25 | 1024 | 7.29×3.2×3.7 | 31 | |||||||||
DZL5.6-1.25/95/70 | 5.6 | 1374.3 | 7.8×3.4×3.7 | 33 | ||||||||||
DZL7-1.25/95/70 | 7 | 1708 | 8.5×3.4×3.7 | 39 | ||||||||||
Recommend Products
Company Profile
Title goes here.
Henan Yuji Boiler Vessel Co., Ltd. is the general administration of quality supervision, inspection and quarantine of the People’s Republic of China approved the boiler and pressure vessel designated manufacturing enterprise, The company passes ISO 9001international quality system certification, and gains the EU CE and other international certification ect.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also
available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas,
liquefied gas etc.
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also
available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas,
liquefied gas etc.
Contact Us
Похожие товары
3% энергосберегающий 1 2 4 6 8 10 тонн цепная решетка угольный паровой котел текстильная промышленность Кальдера для
52 000,00 $ - 55 000,00 $

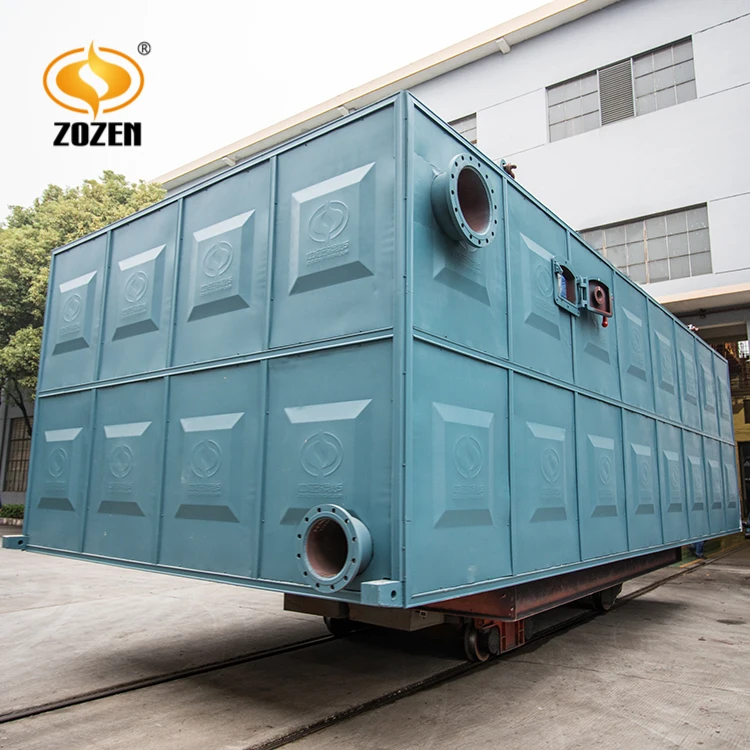

4,000,000 ккал/ч 4,6 МВт промышленный угольный/биомассовый термомасляный котел для строительной промышленности

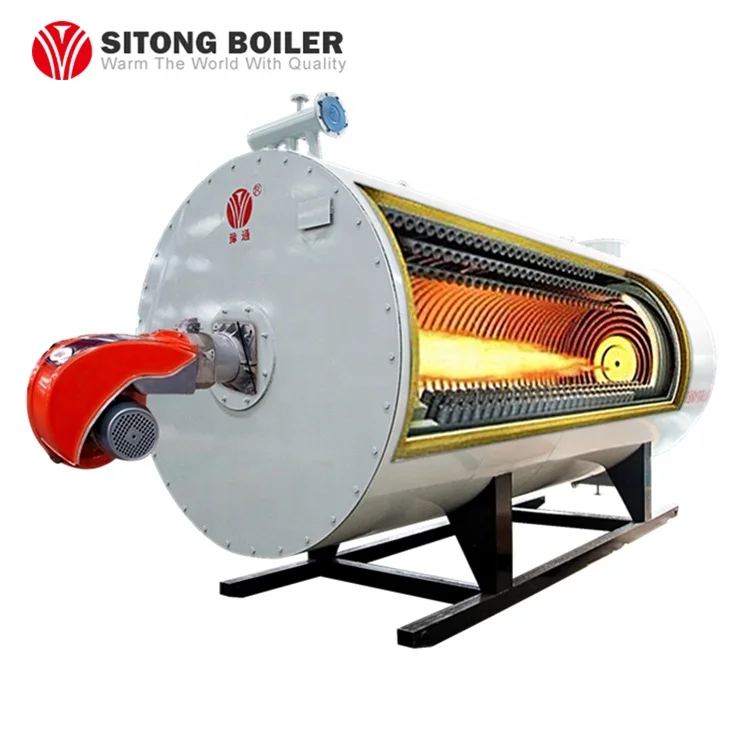

Промышленный котёл sitong 2 тонны 3 МВт для нефти газа дизельного топлива биогаза тепловой масляный отопительный
4 800,00 $ - 5 000,00 $

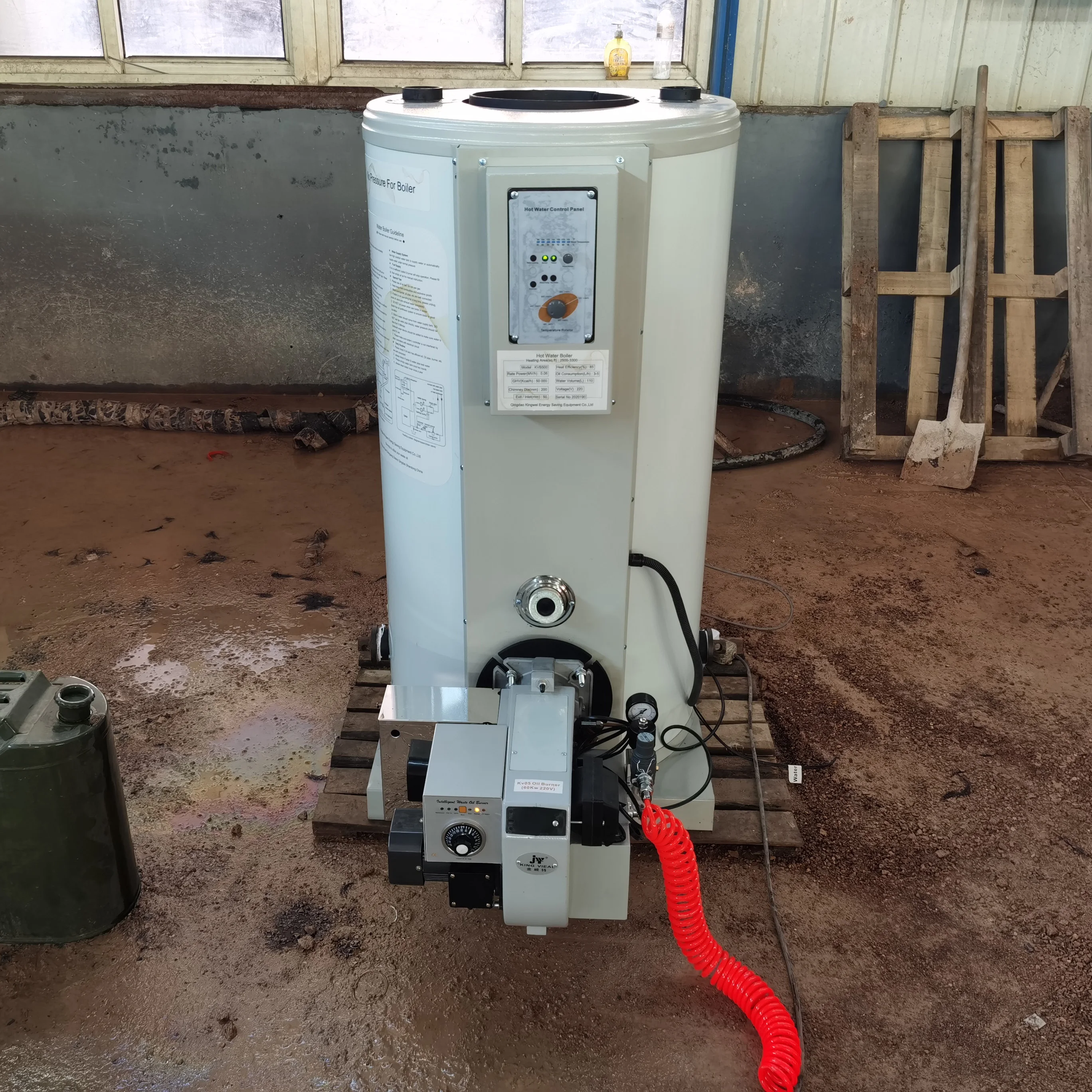

Бойлер для горячей воды на масляном топливе небольшого размера домашнего
Китайский производитель небольшой паровой котел низкого давления для
Запасные части для бойлера из нержавеющей
20,00 $

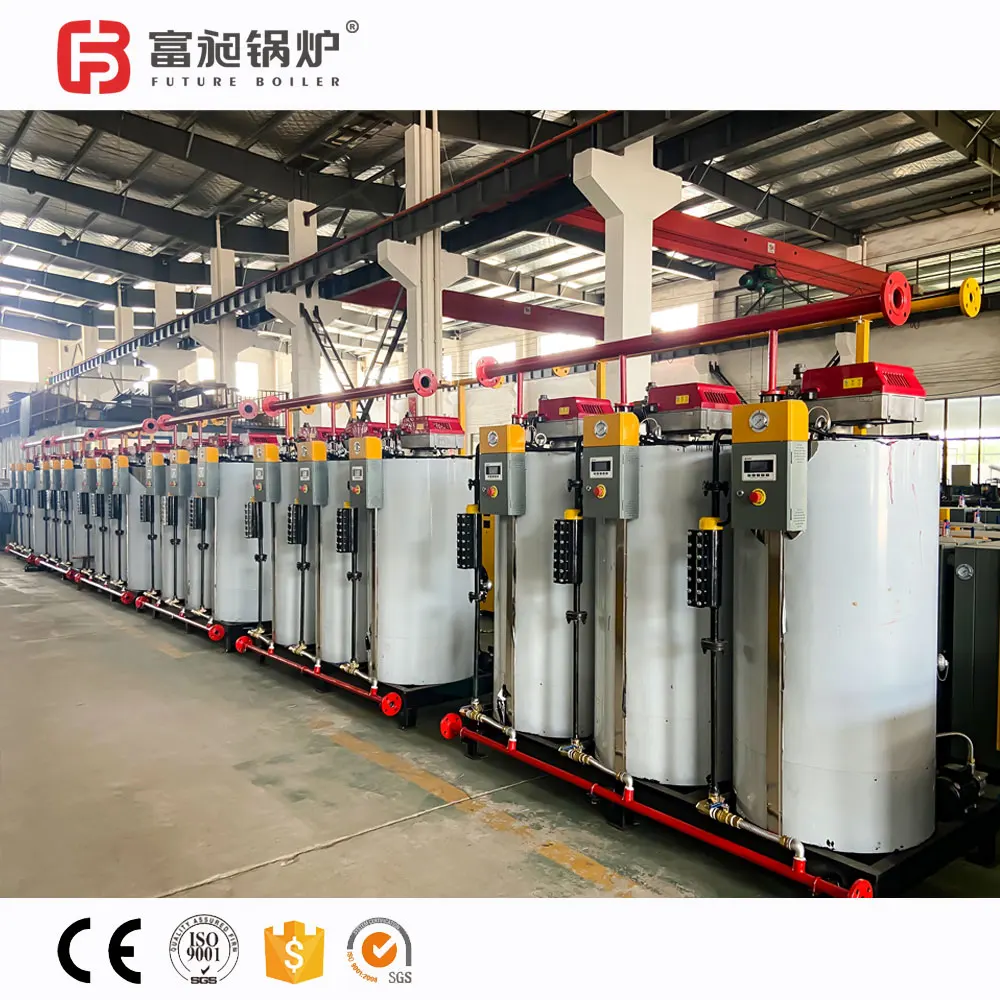

Полностью автоматическая мощность пара 120 кВт Комбинация 4 комплекта 30 электрический котел для
