Новое многофункциональное зарядное устройство Lii 600 DDP ЖК дисплей 3 7 В 18650 21700 26650 выходного тока 3А внутреннее для испытаний сопротивления

Новое многофункциональное зарядное устройство Lii 600 DDP ЖК дисплей 3 7 В 18650 21700 26650 выходного тока 3А внутреннее для испытаний сопротивления

Категория: >>>
Поставщик: Hunan Xiaolithium Technology LimitedHunan Limited

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

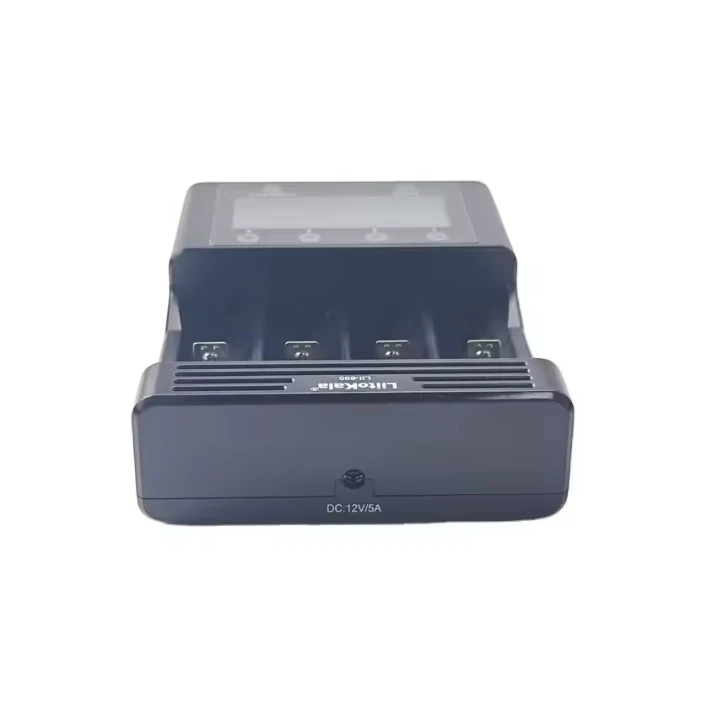

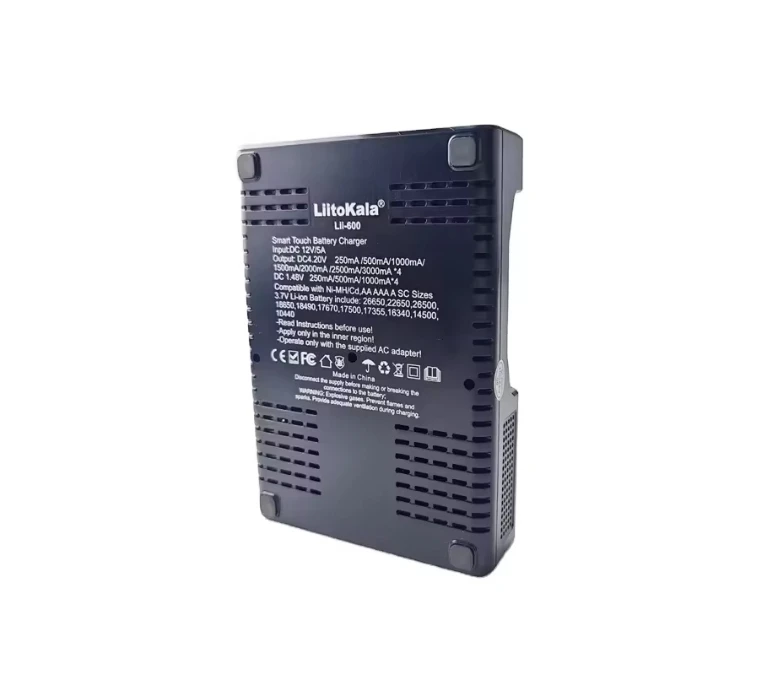

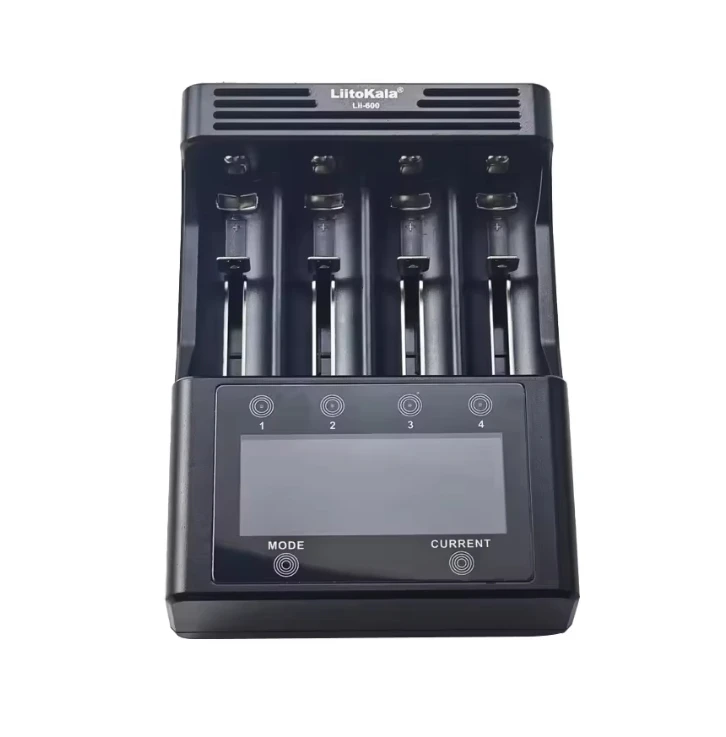

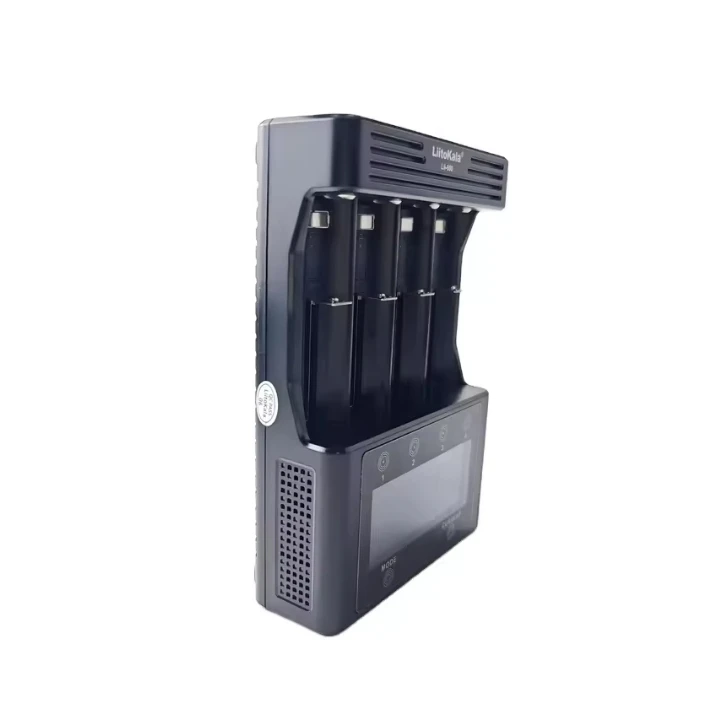

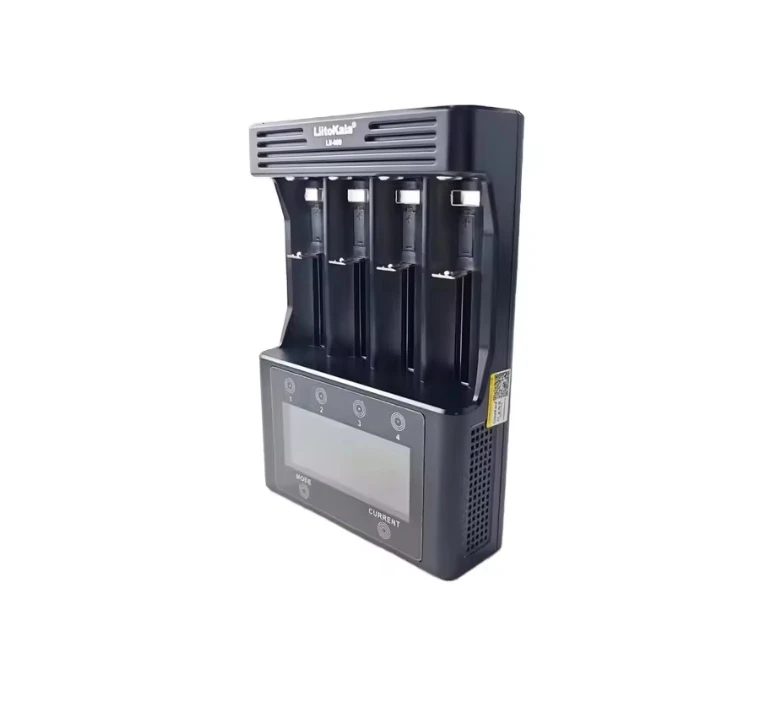

New DDP Lii-600 multifunctional Battery Charger LCD 3.7V 18650 21700 26650 Output current 3A internal resistance test charger

Products Description

Liitokala lii-600 Feature:：
1. New touch control function;

2. The four slots work independently;

3. It has two working modes: automatic AUTO and MANUAL; (The default of the system is AUTO AUTO, automatically distributing
current)

4. A variety of optional charging current: 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;

5. Third-stage discharge current: 250mA/500mA/750mA;

6. Different specifications (18650/26650... /AA/AAA) Charging the battery at the same time;

7. Use a separate LCD display for this product. Contains battery type (Li - ion - 3.7 V, the Ni - MH1.2 V), work (AUTO
automatic/MANUAL MANUAL), battery channel (CH1 - CH4), work mode (CHARGE CHARGE/DISCHARGE DISCHARGE models/TEST inspection/REPAIR
REPAIR mode), CHARGE and DISCHARGE capacity (mAh), CHARGE and DISCHARGE time (h), CHARGE and DISCHARGE current (mA), battery
voltage (V), battery percentage %, battery internal resistance (m Ω) ℃, temperature and other parameters, detailed and clear;

8. In CHARGE mode, 4 channels work independently, and each channel can choose different charging current and test charging
capacity;

9. Under DISCHARGE mode, four channels work independently, and each channel can select different DISCHARGE current and detect
DISCHARGE capacity;

10.TEST mode: The normal TEST process of battery capacity consists of three steps (1 charge,2 discharge, and 3 recharge) to TEST
the battery capacity process;

11. Different channels can be operated with different modes (CHARGE, DISCHARGE, TEST and REPAIR); Independently set
charging/discharging capacity testing/normal capacity testing functions;

12. Multiple protection function: the overcharge discharge, short circuit, temperature and activation function, 0 V voltage (- Δ
ΔV & 0 V), 1.65 V to 2.2 V cannot charge function, bad battery intelligent recognition and reverse connect battery protection.

Model Number	LitoKala charger
Output	DC 4.2V / 1.48V
Input	DC 12V/5A
Output current	DC 0.25A/ 0.5A/ 1A/ 1.5A/ 2A/ 2.5A/ 3A* 4
Discharge current	DC 250mA / 500mA / 750mA
Charge detection	CC/CV/-VV/-V0/MaxV
Charging protection	Overcharge,Over discharge,Temperature protection
Suitable battery model	26650,22650,26500,18650,18490,17670,17500, 17355,16340,14500,10440AA,AAA,C
Size	16511540 mm
Weight	307g
MOQ	10PCS
Package weight	0.558 kg
Package Contents	1 x Battery Charger 1 x US/EU/UK Power Adapter 1 x English User Manual

Recommend Products

Applications

Why Choose Us

Packing & Shipping

About us

Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.

These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.

Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!

FAQ

1.What is the common port and separate port? what is the difference?

We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.

2.What is the balance function?

The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well

3.The relationship between Battery capacity and BMS current?

There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.

4. What type of charger should I choose?

Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.

5. What current BMS should I choose ?

Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.

6. Whether my BMS damaged?

if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
