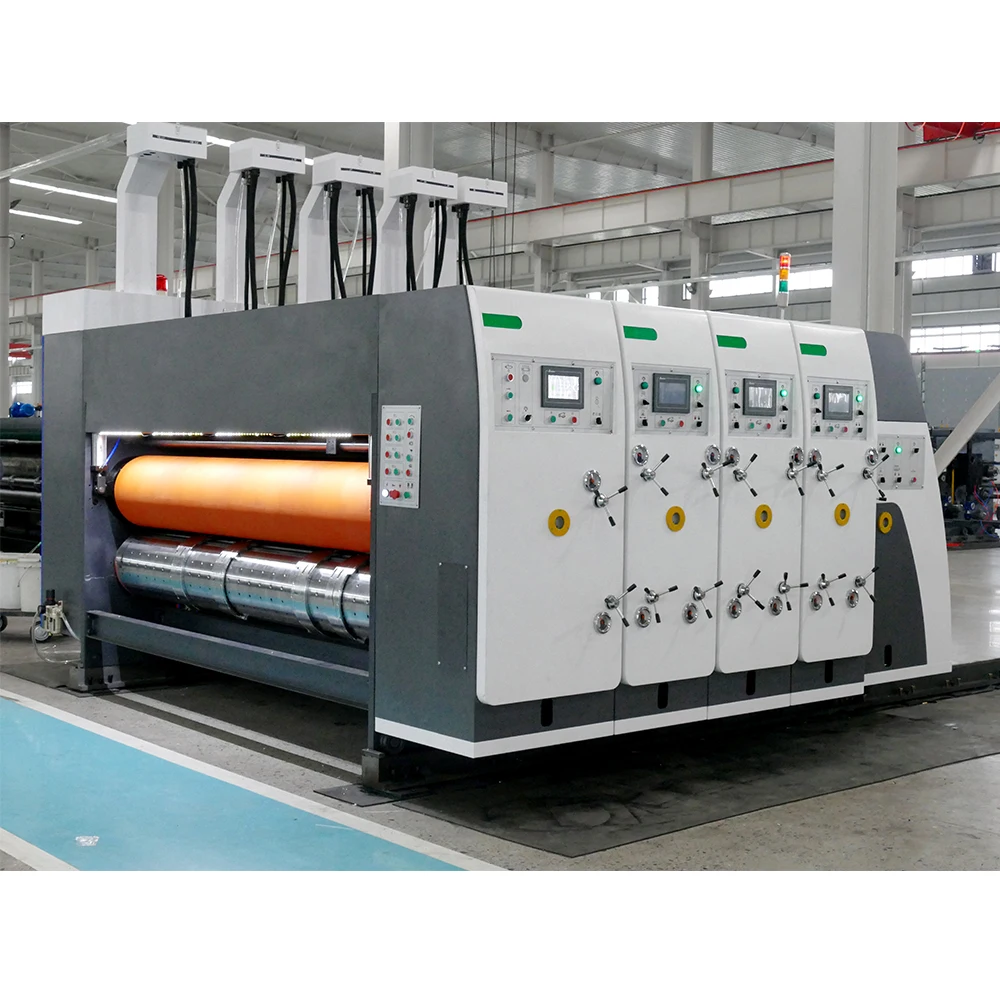

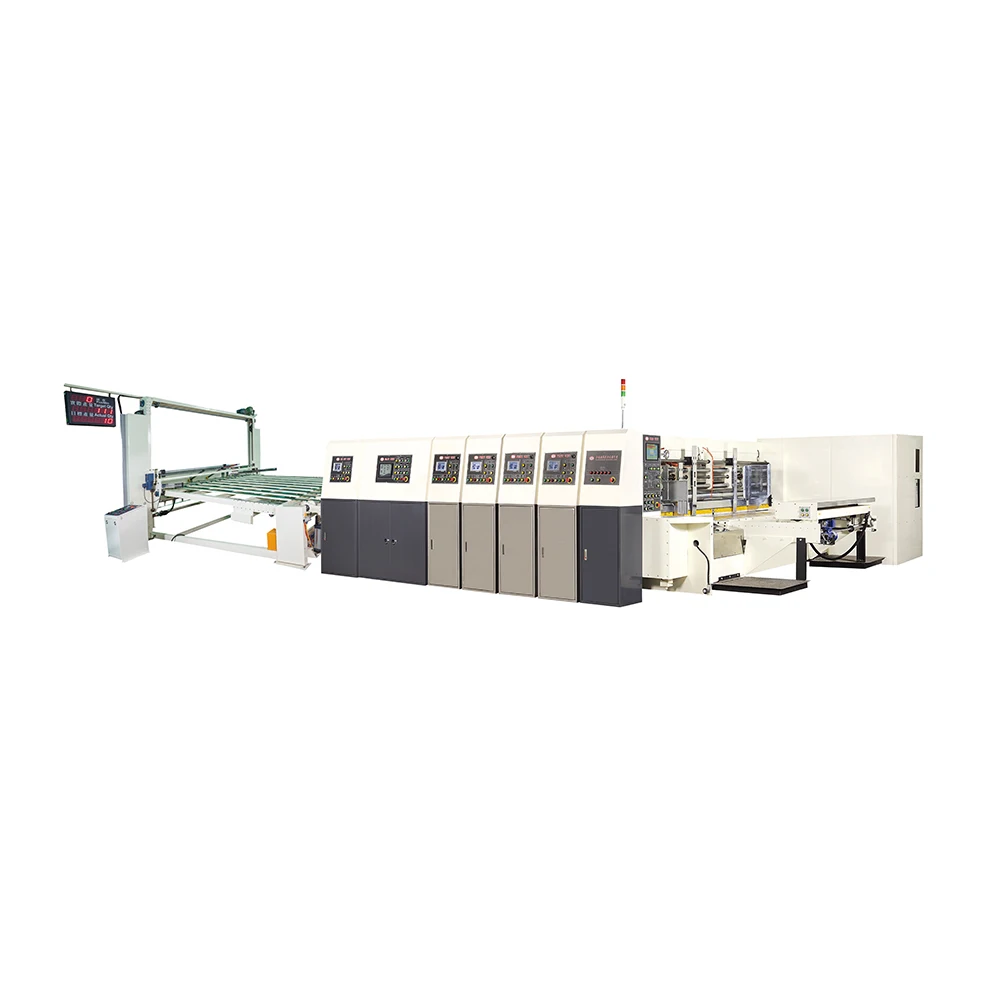

Высокоскоростная Экологически чистая 6-цветная формовочная машина для флексографской печати на бумажных стаканчиках по хорошей цене
9 217 051,50 ₽ - 9 759 231,00 ₽
Картонная печатная машина для вырубки флексографической печати с высокой скоростью
- Категория: >>>
- Поставщик: Jiangsu Chenguang Precision Technology Co. Ltd.
Сохранить в закладки 1601208829454:
Описание и отзывы
Характеристики
Product Description
The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable.Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)There is lack of ink alarm device and the real-time monitoring for the ink working condition system .

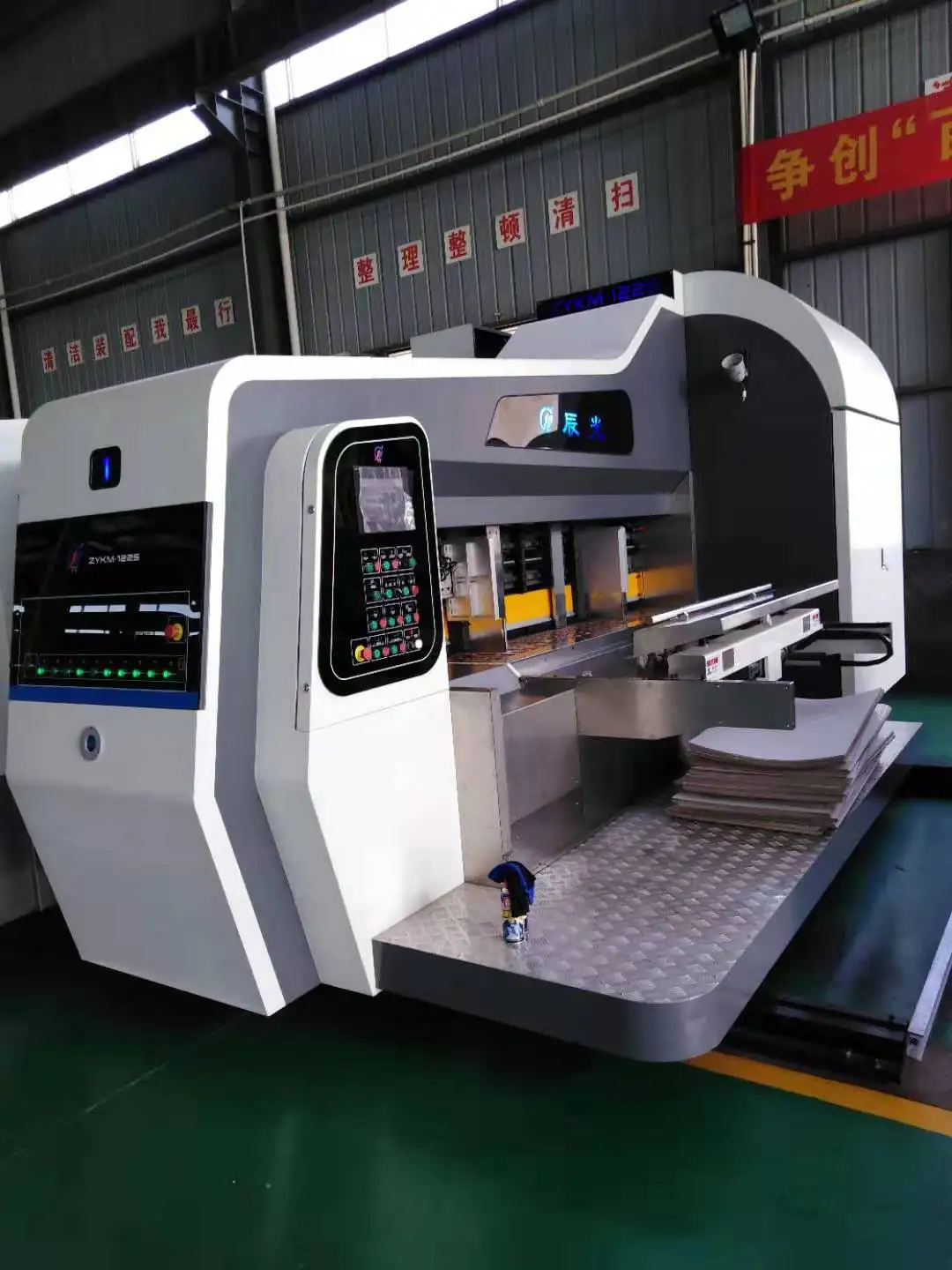

Feeding unit
1.Advanced leading edge paper feeding technology, the paper feeding is stable and fast, equipped with automatic beat-up device.
2.Using synchronous belt transmission, the transmission is more stable and reliable.
3.Equipped with automatic alarm device, each unit is equipped with an emergency switch to ensure the safety of the operators.
4.Paper feed cots using wear-resistant rubber material, using quick-change structure, more convenient maintenance and repair.
5.Electrostatic dedusting brush with V-strong dedusting bellows structure, to ensure printing quality.

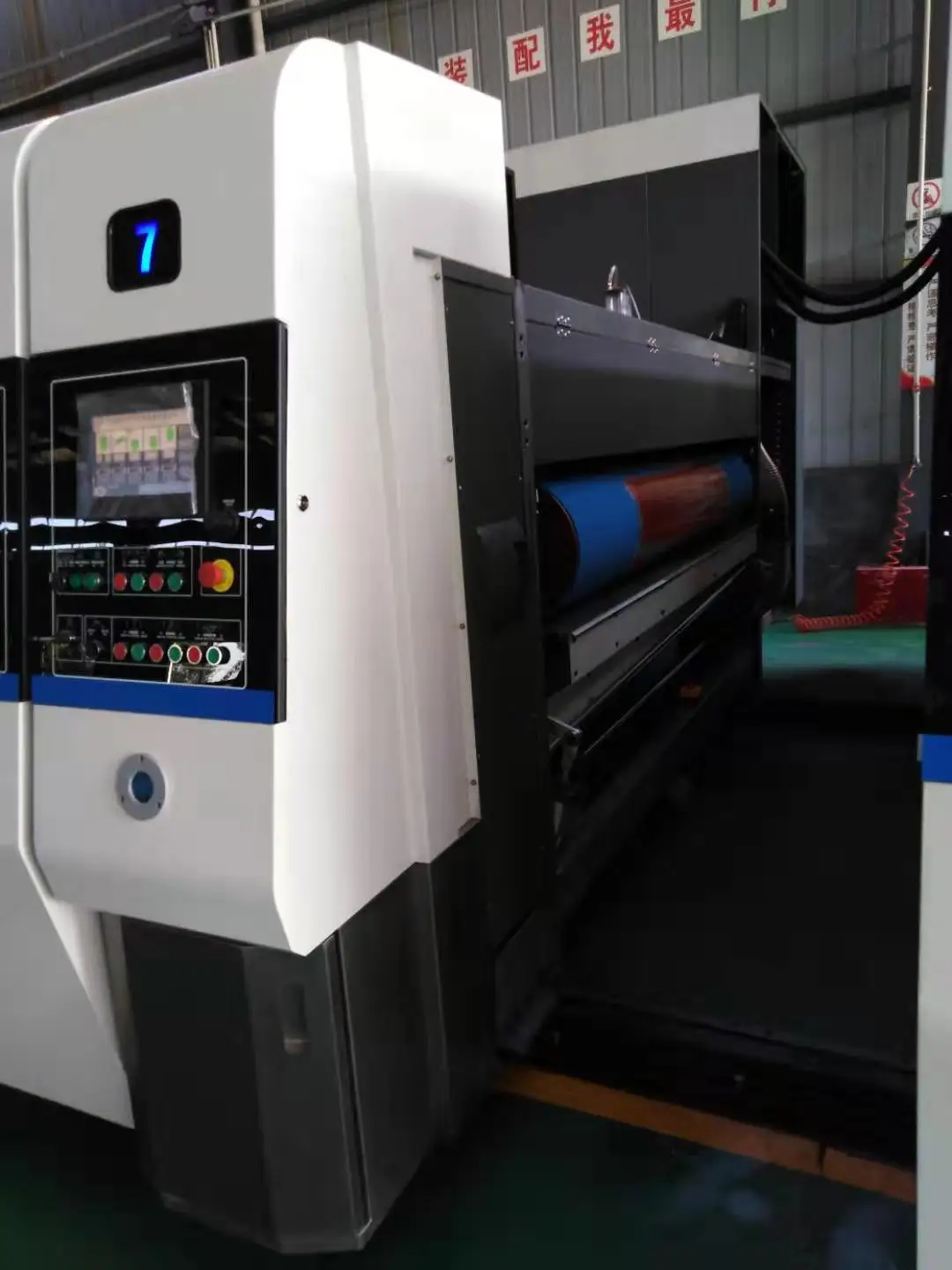

Printing unit
1.Printing wheel (printing plate form wheel) phase position adjust by planetwheel, twirl 360°adjust electrically, itcan stop at operation or stop. PLC control system, setups are return to zero,scrape form memory, automatic reset and phase position adjust after entering values.
2.Printing roller can move from left to right, by ±5MM. printing surface with scale mark make hang form and distance measurement easily.
3.Install foot pedal control roller rorate. It is easy to change form,scrape form and pull switch so as to ensure staff safety.
4.Anilox roller use “ Haili” to ensure ink distribution effect and printing quality.
Rubber shaft use Dongjun, waist drum type, good ink distribution effectand good printing quality.
5.Optional: high reticle ceramic anilox roller with doctor blades, single scrapetype, closed scraper cavity. They can save more ink and ensure .
2.Printing roller can move from left to right, by ±5MM. printing surface with scale mark make hang form and distance measurement easily.
3.Install foot pedal control roller rorate. It is easy to change form,scrape form and pull switch so as to ensure staff safety.
4.Anilox roller use “ Haili” to ensure ink distribution effect and printing quality.
Rubber shaft use Dongjun, waist drum type, good ink distribution effectand good printing quality.
5.Optional: high reticle ceramic anilox roller with doctor blades, single scrapetype, closed scraper cavity. They can save more ink and ensure .

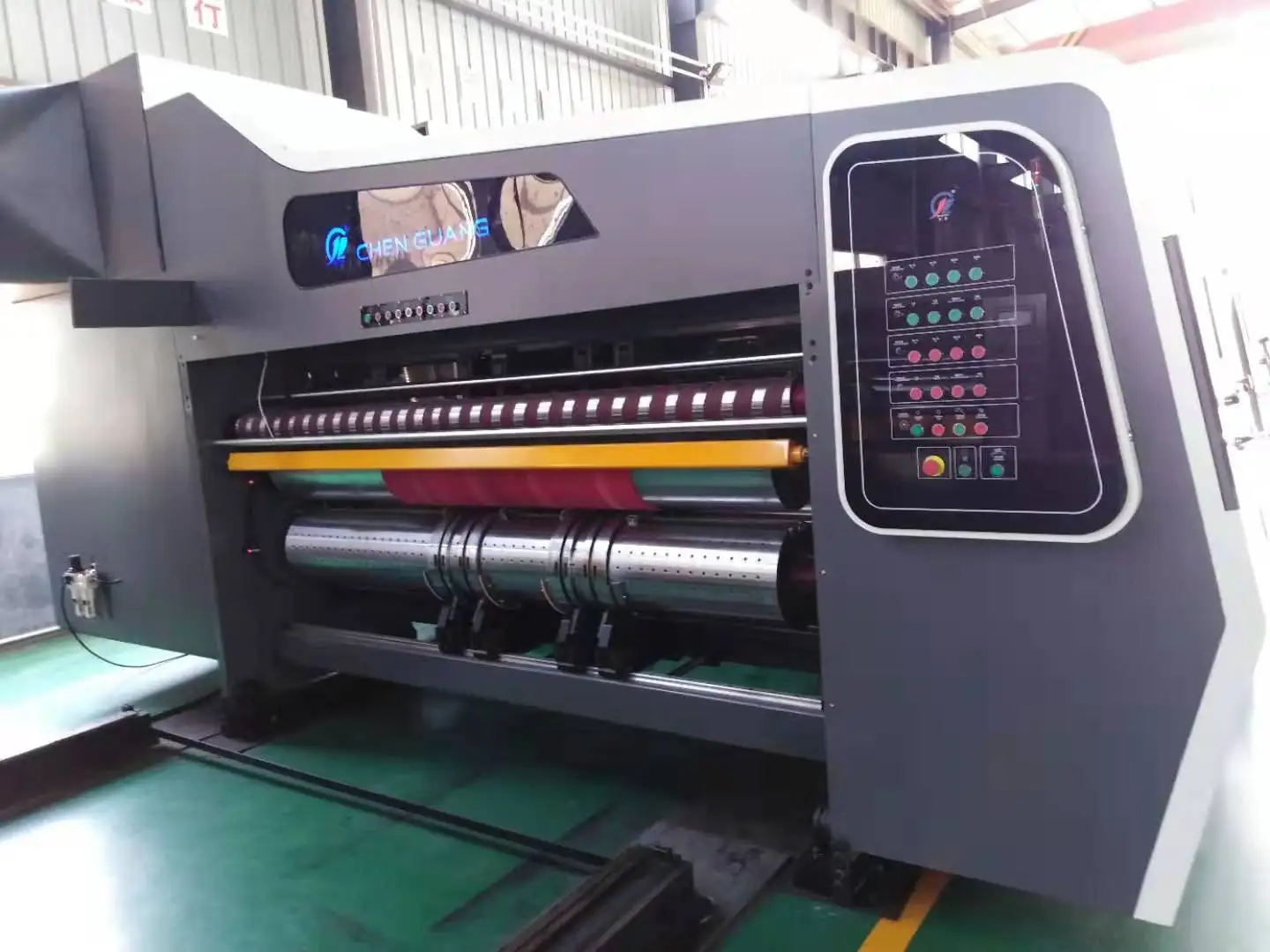

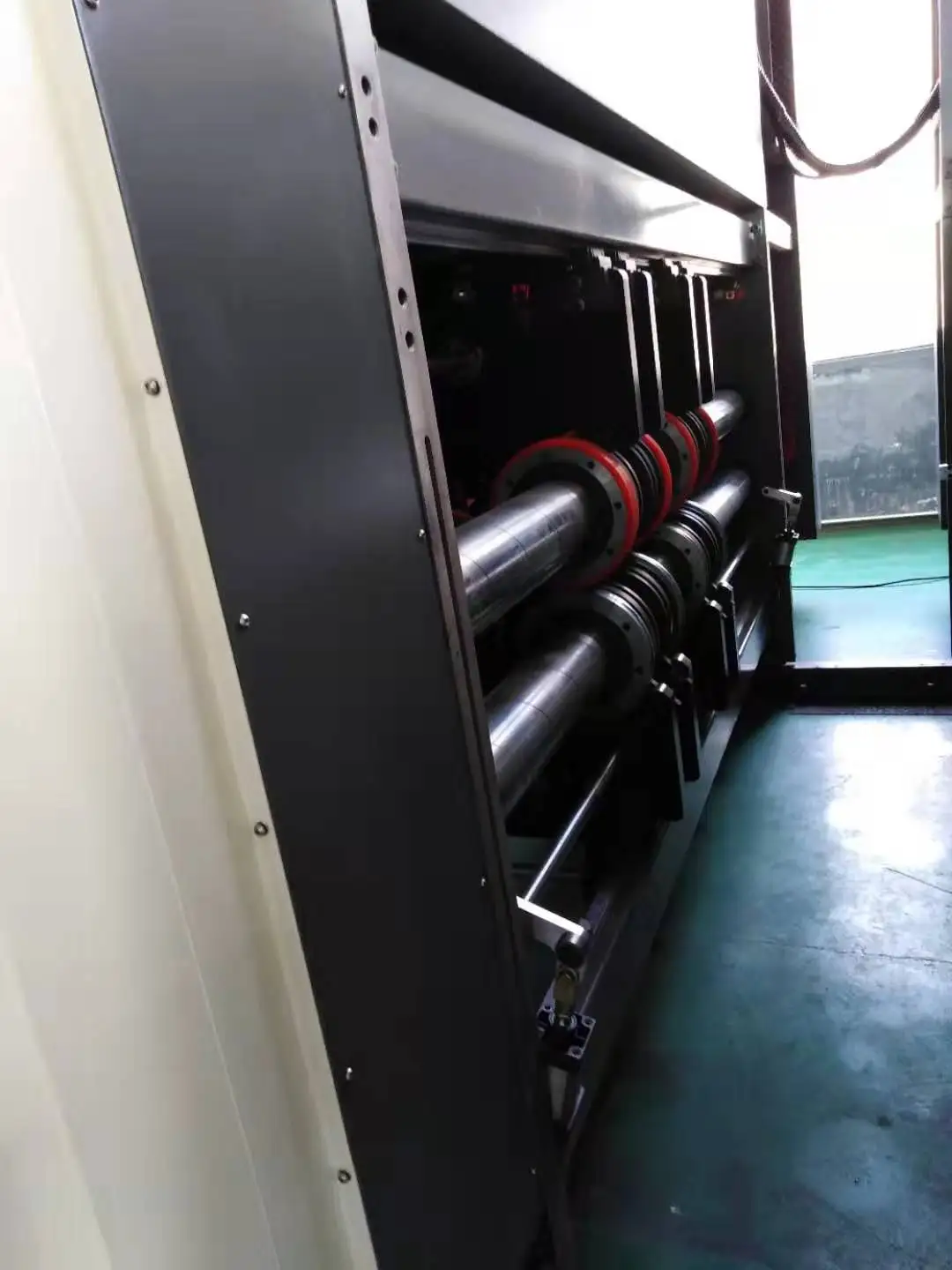

Slotting unit
1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have
automaticknife slotting, restore orders and so on functions, it makes slotting more convenience and high efficiency.
2.Synchronous tool apron is made ofhigh-precision screw with a linear slide rail, which can move left and rightstably and precisely so that the slotting cutter can be adjusted smoothly.
3.The copper folk of cutter is designed forautomatically compensating gap device, which prolongs the service life ofcopper fork.
4.Multiple-spacing device is installed in case ofknife collision.
5.Automatic inflatable paper-carving knife.1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions.
automaticknife slotting, restore orders and so on functions, it makes slotting more convenience and high efficiency.
2.Synchronous tool apron is made ofhigh-precision screw with a linear slide rail, which can move left and rightstably and precisely so that the slotting cutter can be adjusted smoothly.
3.The copper folk of cutter is designed forautomatically compensating gap device, which prolongs the service life ofcopper fork.
4.Multiple-spacing device is installed in case ofknife collision.
5.Automatic inflatable paper-carving knife.1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions.
Die-cutting unit

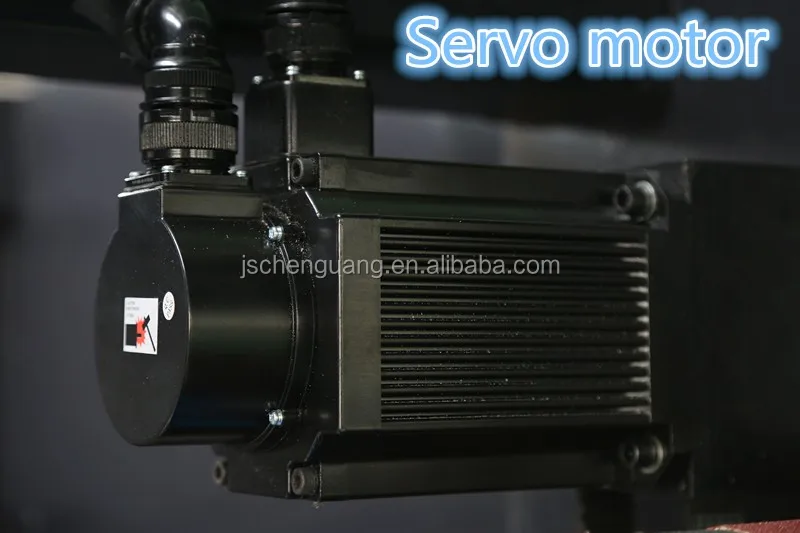

1.Using servo speed to make rubber mat speed and knife tool speed same, toensure paperboards die-cutter size exactly, to increase die-cutting quality andlengthen rubber mat lifetime.
2.Rubber mat moves from left to right. It can adjust main machine operation speed.
3.Lengthen rubber mat lifetime.
4.Die-cutting roller surface have stainless steel dental crown to fix knife tool.
2.Rubber mat moves from left to right. It can adjust main machine operation speed.
3.Lengthen rubber mat lifetime.
4.Die-cutting roller surface have stainless steel dental crown to fix knife tool.
Main features
a.It adopts centralized computer control and servo independent drive; it can connect to the whole plant ERP management system.
b.A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.
c.The PLC program controls the servo drive to ensure the stability and reliability of the operating data.
d.The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders. Size Information
b.A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.
c.The PLC program controls the servo drive to ensure the stability and reliability of the operating data.
d.The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders. Size Information
Specification
item | value |
Type | Flexographic Printer |
Applicable Industries | Retail, Printing Shops, Other, Advertising Company |
Condition | New |
Plate Type | Letterpress |
Place of Origin | China |
Jiangsu | |
Brand Name | DongChen |
Use | Paper Printer, Card Printer |
Automatic Grade | Automatic |
Color & Page | Multicolor |
Voltage | 380V |
Weight | 8600KG |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Gear |
Structure | Stack |
After-sales Service Provided | Video Technical Support |
Product name | Flexo Printing Machine |
Function | High Efficiency |
Color | Cutomized |
Certification | CE Certification |
Keyword | Slotting |
Ink | ink printing |
Size Information
Device Partment
Model | 920 | 1224 | 1425 | 1628 | |||
Max Mechanical Speed | 350 | 260 | 220 | 200 | |||
Max Feeding Size(L*Wmm) | 900x2050 | 1200x2500 | 1400x2600 | 1600x2900 | |||
Milimum Feeding Size(L*Wmm) | 280x600 | 350x600 | 380x650 | 450x650 | |||
Alternate Sheet Feeding Size(mm) | 1100x2000 | 1500x2500 | 1700x2600 | 1900x2900 | |||
Max.Printing Area(mm) | 900x2000 | 1200x2400 | 1400x2500 | 1600x2800 | |||
Standard Plate Thickness(mm) | 7.2 | ||||||
Min.Slotting Spacing Of The Positioner(mm)axb | 150x150 | 160x160 | 160x160 | 160x160 | |||
Min.Slotting Space For Reverse Cutter(mm)axb | 240x80 | 260x80 | 260x80 | 260x80 | |||
*Product parameter changes and organizational improvements without prior notice
Packing&Shipping
Packing detail | packing(inner):with stretch film Packing(outside):Wooden frame | ||||||
Delivery time | 60days after get your deposit and confirmed all the artworks | ||||||
Delivery claus | FOB Shanghai port | ||||||
Tertms of payment | T/T | ||||||
Guarantee | The whole machine is guaranteed for one year. | ||||||
After Sales Service
Installation and Training Services
a.Installation Services are available with all ChenGuang machines.Our Comapny will dispatch technician to The Buyer's factory to installation and preparation of machines.Moreover,we will training your operators, so that you can use the machine in a best way.
b.ChenGuang company advise the buyer could send their own technican come to our factory to learn how to operate machines. ChenGuang company technician will teach and train the learners hand by hand till he can operate machine by himself.
b.ChenGuang company advise the buyer could send their own technican come to our factory to learn how to operate machines. ChenGuang company technician will teach and train the learners hand by hand till he can operate machine by himself.
After Sales Service
a.ChenGuang Company machines guarantee time is one year.
b.Many easy broken spare parts will be prepared in the tool box together with machines.
c.Any parts broken ,Just a pictures or a videos.
d.The new free parts will reach within 3-7 Express working days .
b.Many easy broken spare parts will be prepared in the tool box together with machines.
c.Any parts broken ,Just a pictures or a videos.
d.The new free parts will reach within 3-7 Express working days .
Company Introduction
Chenguang Precision Technology Co., Ltd has been the supplier of intelligent cartons around the world for more than ten years. We are intended to provide our clients with the most practical carton manufacturing service. Dongchen, which is the registered trademark of Chenguang, has been honored with many rewards at home and abroad, such as internationally advanced and high-tech enterprise award.Today, you can find Chenguang among carton machinery manufacturing companies at every corner of the world, and our partners are from over 90 countries around the world.
FAQ
Q1.Are you a factory ora trading company?
A1:We are an experienced factory.
Q2:Can I see the running machine in your factory?
A2:Seeing is believing ! It would be our honor If you can come and visit us. and we have confidence that our machine performance will make you satisfatory.
Q3: How about your machine quality?
A3: We have the most strict QA & QC system for the quality suppporting, the machine quality is guaranteed with the CE standard and passed the ISO9001:2008, SGS and TUV certificated.
Q4:What are you main products?
A4:Our main products includes OLABO-Vacuum Transfer Top Pringting Slotting Die-Cutting Machine, SAIO-High-Speed Printing Slotting Die-Cutting Machine, Chain Feeder Pringting Slotter Machine and full-automatic OLABO-Open&Close Type Vacuum Transfer Top Flexo Folder Gluer etc.
A1:We are an experienced factory.
Q2:Can I see the running machine in your factory?
A2:Seeing is believing ! It would be our honor If you can come and visit us. and we have confidence that our machine performance will make you satisfatory.
Q3: How about your machine quality?
A3: We have the most strict QA & QC system for the quality suppporting, the machine quality is guaranteed with the CE standard and passed the ISO9001:2008, SGS and TUV certificated.
Q4:What are you main products?
A4:Our main products includes OLABO-Vacuum Transfer Top Pringting Slotting Die-Cutting Machine, SAIO-High-Speed Printing Slotting Die-Cutting Machine, Chain Feeder Pringting Slotter Machine and full-automatic OLABO-Open&Close Type Vacuum Transfer Top Flexo Folder Gluer etc.
