Конкурентоспособная цена полностью автоматическая машина для волочения проволоки из тонкой оцинкованной стали
- Категория: >>>
- Поставщик: Hebei Mingyang Intelligent Equipment Co. Ltd.
Сохранить в закладки 1601209090891:
Описание и отзывы
Характеристики
Product Description
This Nail Wire Drawing Machine is used to produce common low carbon steel wires,they are used into constuction fields,or weld all kinds of construction meshes,fence meshes,cage meshes,nail wires or other fields.
Usage and Features
With the introduction, assimilation and absorption of the foreign advanced technology and its essence, the straight line type Nail Wire Drawing Machine developed & produced by our factory is a kind of wire drawing equipment suitable for drawing the steel wire with higher tensile strength & performance. This kind of machine fits the production of tyre cords, bead wires, wire for steel ropes, stainless steel wires and carbon dioxide gas shield welding wires, etc.
| Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
| Material Intensity | ≤1250Mpa | ||||||||
| Drawing Passes | 2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2-9 | 2-9 |
| Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 5.0mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm |
| Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm |
| Max. Speed Of Drawing | ~25m/s | ~20m/s | ~20m/s | ~16m/s | ~15m/s | ~15m/s | ~12m/s | ~12m/s | ~8m/s |
| Drawing Power | 7.5~18.5kw | 11~22kw | 11~30kw | 15~37kw | 22~45kw | 22~55kw | 30~75kw | 45~90kw | 55~110kw |

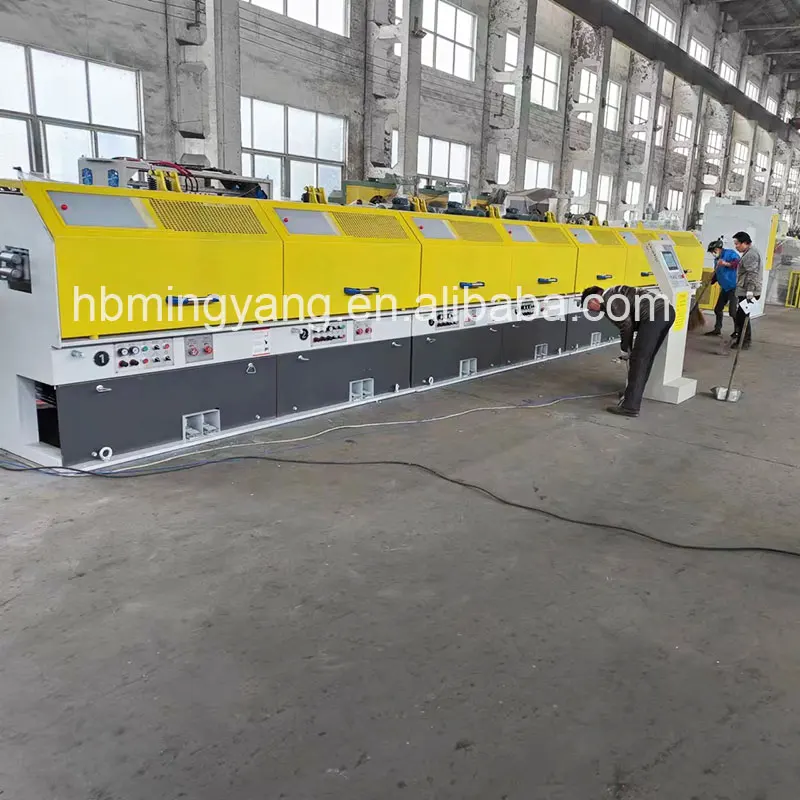

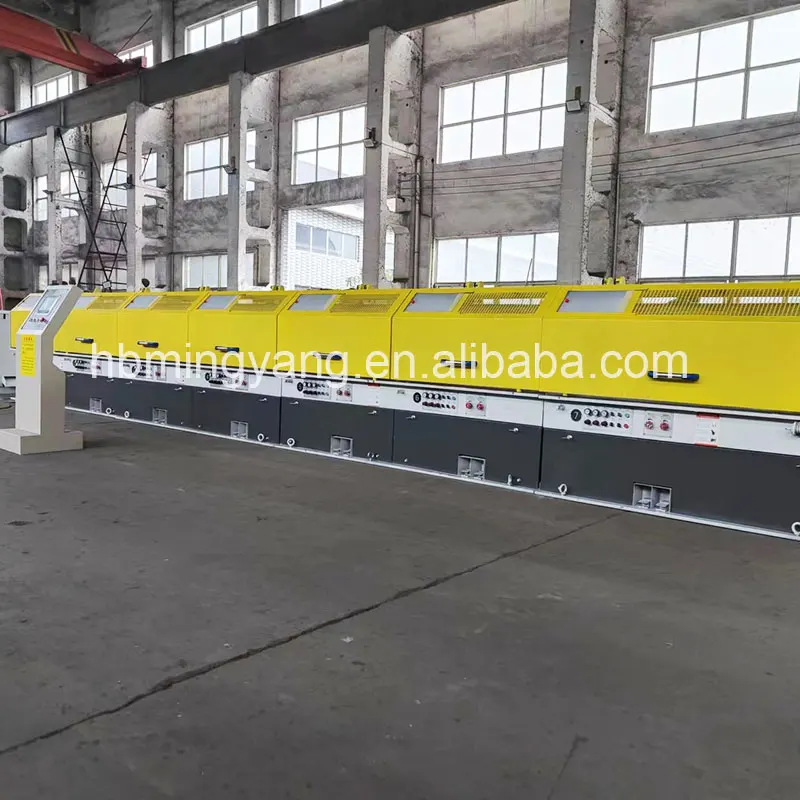

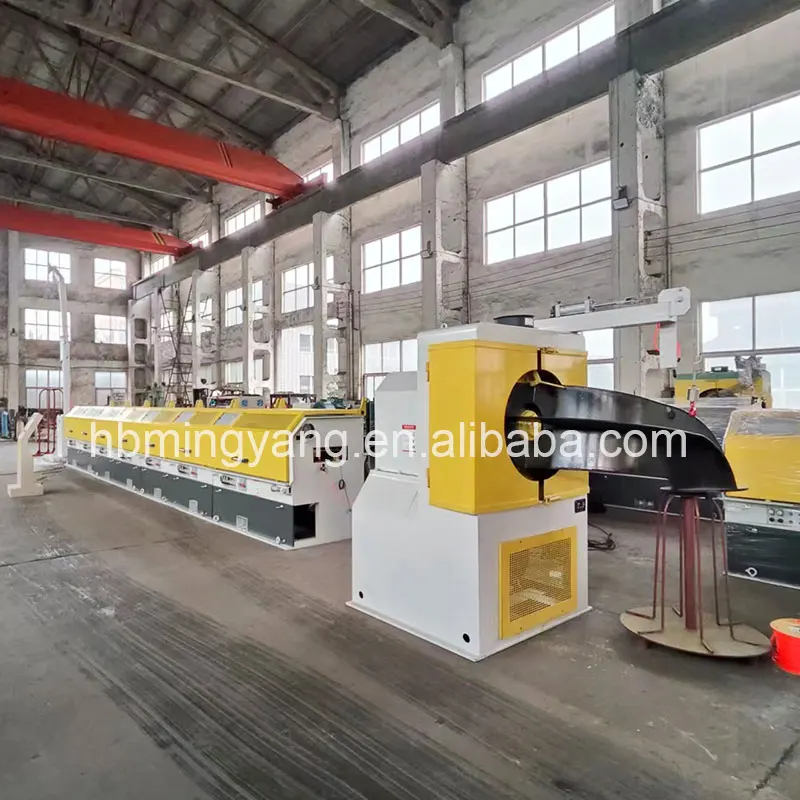

Machine Display

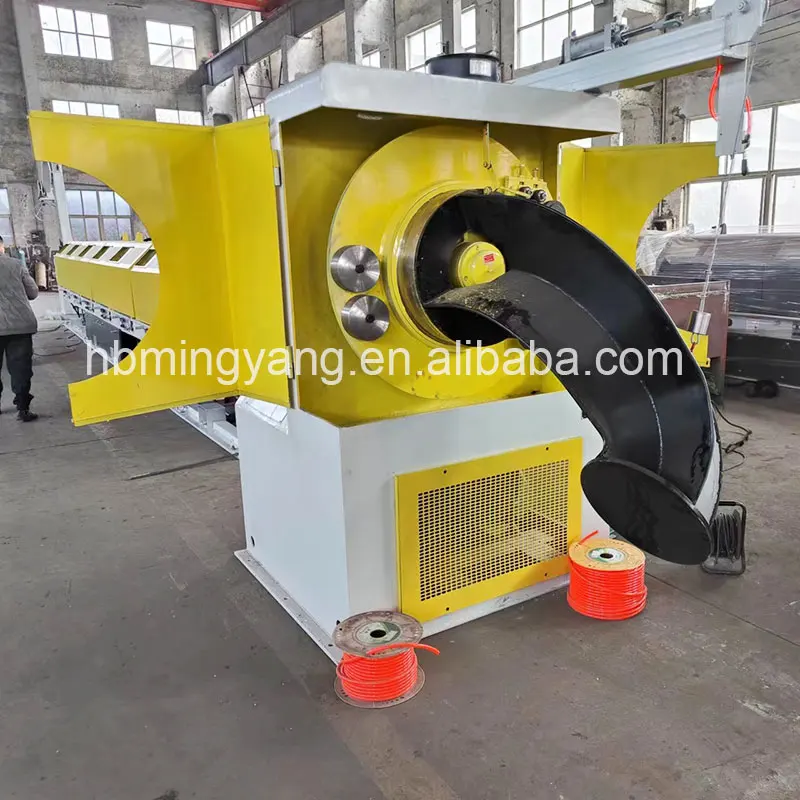

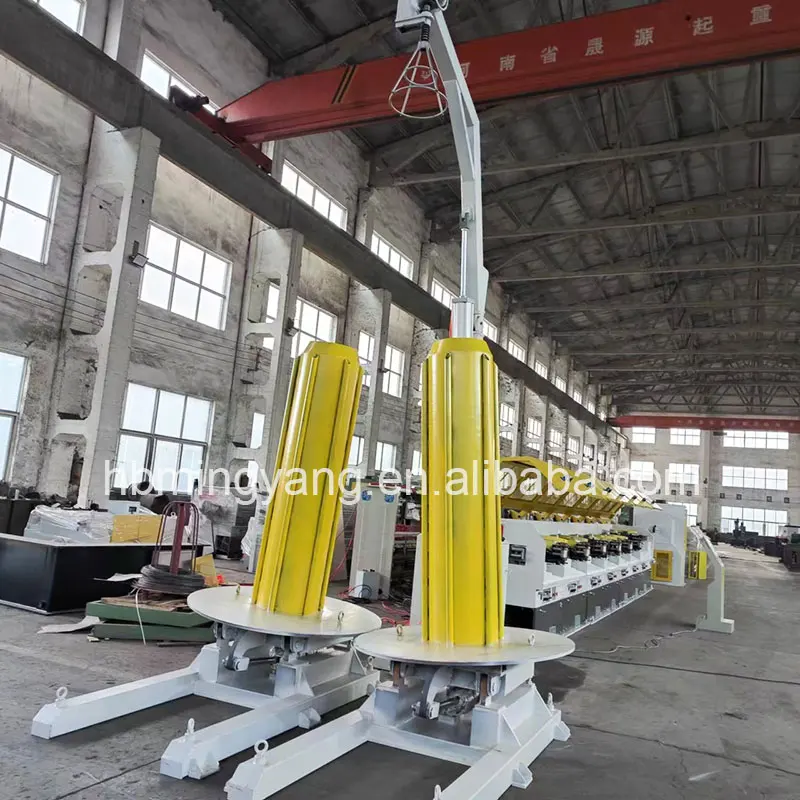

Machine detials
Main Features
1.Easy in installation and maintenance.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.Running in a high automatization and intellectualization,no pollution
4.As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5.Good cooling system, final wire quality is very good.
Detailed Description
| Straight line Nail Wire Drawing Machine | ||
| 1 | Wire drawing drum material | Cast steel, tungsten coating and surfacing, HRC60. Roughness is less than 0.8umm |
| 2 | Drum cooling | 1. Drum inside cooling: drum’s inner wall has 3 water channels which displayed in 120 degrees direction by water spraying. 2. Drum external cooling: the ventilation pipe below the outside of the drum uses 360 degrees of forced air cooling on the surface of the drum and wire to lower the surface temperature of the reel below 80 degrees |
| 3 | Die box cooling way | The drawing die is cooled by using direct water inlet and outlet water, and the cooling effect is especially good |
| 4 | Tension machine | Built-in |
| 5 | Main frame | Steel plate and square tube welding |
| 6 | Safety device | Safety protection cover, broken line stop test |
| 7 | Vacuum design | Vacuum cleaning hole |
| 8 | Lighting | Each machine is equipped with separate lighting |
| 9 | Parking brake | Pneumatic brake |
| 10 | Electric cabinet | Protection level IP54 |
| 11 | Energy consumption | Monitoring is equipped with electricity meter |
| 12 | Field cable supply | The dedicated control line is provided by the seller, and other control cables and power cables are provided by the buyer |
Compact and cost-effective
1:wire drawing in a single, compact unit
2:economic and user-friendly machine design with easy maintenance
3:left and right-hand versions for Non Ferrous
4:metal wires with the highest quality requirements
5:single wire path with no crossover effective single-wire drying
2:economic and user-friendly machine design with easy maintenance
3:left and right-hand versions for Non Ferrous
4:metal wires with the highest quality requirements
5:single wire path with no crossover effective single-wire drying
Finished product
Packaging & Shipping
Related product
 |  |  |
| Razor barbed wire machine | Barbed wire making machine | China link fence machine |
 |  |  |
| Welded wire mesh machine | PET hexagonal mesh machine | Hexagonal wire mesh machine |
Certifications
Company Information
Hebei Mingyang Intelligent Equipment Co., Ltd. is a professional manufacturer of wire mesh weaving machinery and wire mesh products. It was founded in 1988 and has a total area of 15,000 square meters. It is a manufacturer integrating R&D, production and sales.
Since its establishment, the factory has always adhered to the business philosophy of "honesty, quality first, service first". The wire mesh weaving machinery produced by our factory has always been at the leading level in the industry. The main products are hexagonal mesh machine, polyester hexagonal mesh machine, gabion mesh machine, earth bag ball wire weaving mesh equipment, Nail Wire Drawing Machine, welded wire mesh machine, chain link fence machine and other net making machines and related wire mesh products.
The factory has R&D department, production department, assembly department, quality control department, machine deployment department, sales department, finance department and other departments. Each department cooperates with each other and has a clear division of labor to ensure to provide users with high-quality products and the most complete services. Through the joint efforts of all staff, the products are sold to many countries, and are well received by domestic and foreign users, and have established long-term cooperative relations.
Hebei Mingyang Intelligent Equipment Co., Ltd. sincerely looks forward to comprehensive cooperation with business partners to create brilliant!
Our Clients
FAQ::
Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipments.
Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
Q: How many years are your company engaged in the wire drawing machines?
A: More than 30 years. We have our own technology develop department and testing deparment.
