3 года гарантии smd 5050 rgb светодиодные модули ультразвуковой dc12v 0 72 Вт умный Светодиодный модуль для буквенного знака и рекламных щитов
- Категория: >>>
- Поставщик: Shenzhen Diming Optoelectronics Co. Ltd
Сохранить в закладки 1601209108652:
Описание и отзывы
Характеристики

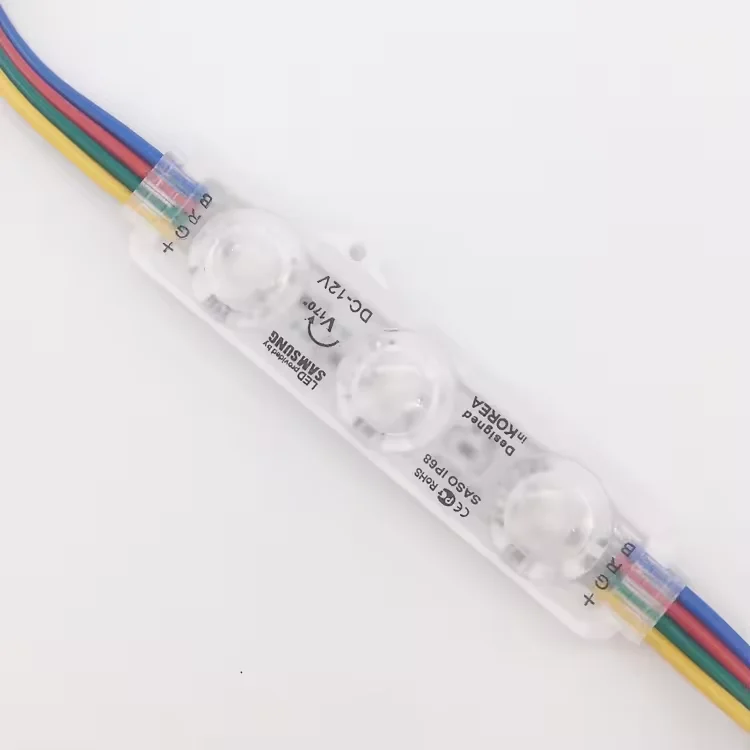

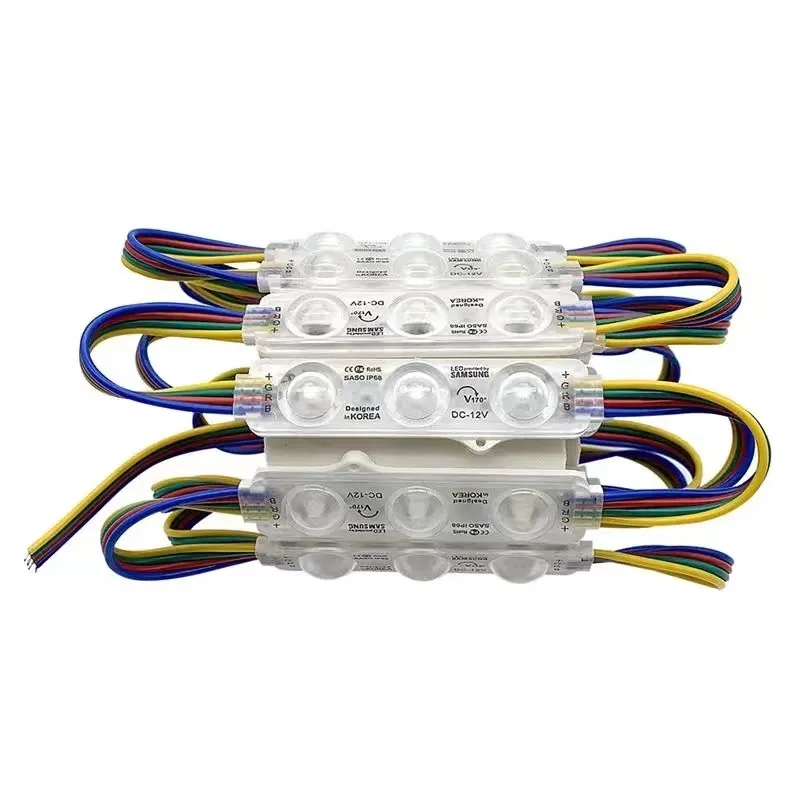

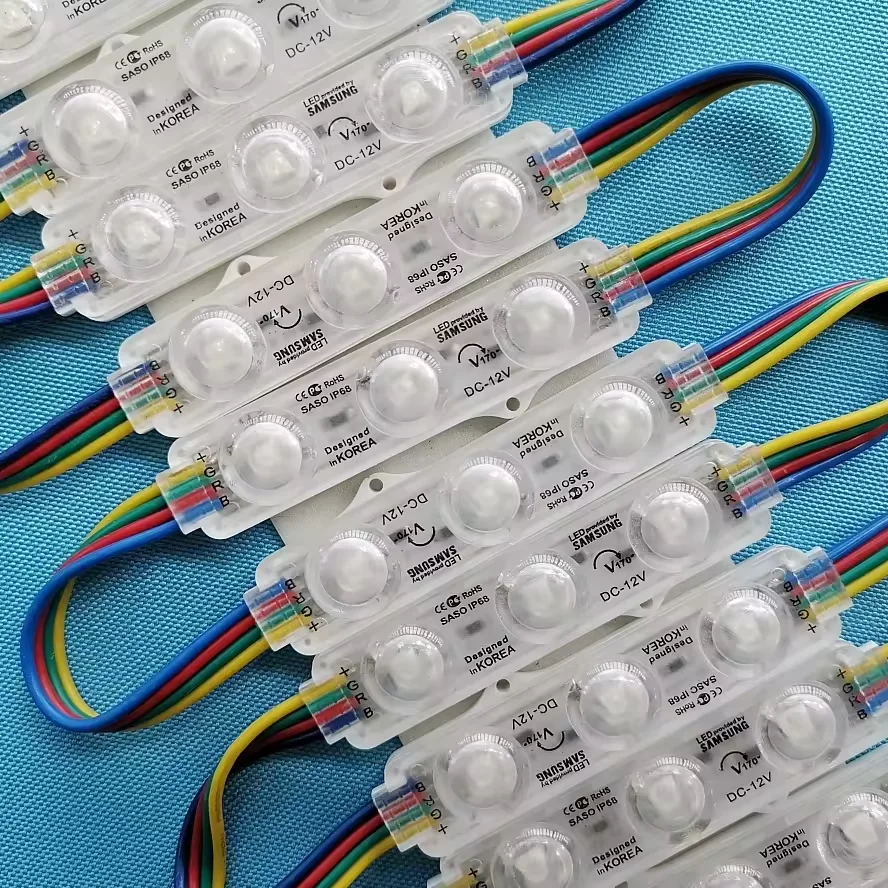

5050 rgb LED Module
Easy Installation: LED modules are designed for easy installation, which can save time and reduce installation costs. They can be
mounted using a variety of methods, including adhesive tape, screws, or magnets.
Low Maintenance: LED modules require minimal maintenance compared to traditional lighting sources, which can result in significant
cost savings over time. This is because they have a longer lifespan and do not require frequent replacement.
Wireless Control: LED modules can be controlled wirelessly using Bluetooth or Wi-Fi technology, which allows for remote control of
lighting levels, colors, and other settings. This makes them ideal for use in smart homes, offices, and other environments where
advanced lighting control is desired.
mounted using a variety of methods, including adhesive tape, screws, or magnets.
Low Maintenance: LED modules require minimal maintenance compared to traditional lighting sources, which can result in significant
cost savings over time. This is because they have a longer lifespan and do not require frequent replacement.
Wireless Control: LED modules can be controlled wirelessly using Bluetooth or Wi-Fi technology, which allows for remote control of
lighting levels, colors, and other settings. This makes them ideal for use in smart homes, offices, and other environments where
advanced lighting control is desired.
Model: | 5050 RGB LED Module |
Chip: | SMD5050 |
Size: | 68*18mm |
Colors: | RGB |
Power（W）: | 0.72Watts |
Voltage: | DC12V |
Lumen/module: | 150ML |
Operation temperature: | -25°C~60°C |
IP Rate: | IP65 |
Beam Angle: | 170°degree |
Life time: | 50,000hrs |
Warranty: | 3 Years |
Dimmable: | YES |
Material: | Aluminum PCB + integrated PC material optical lens + Pure copper power cord |
Certification: | CE and ROHS |
Application scenarios: | Outdoor lighting products such as lightboxes, signs, and illuminated letters with logos |
Feature
· LED modules do not support serial connections. A serial connection produces a voltage drop,Use needs to connect the loop

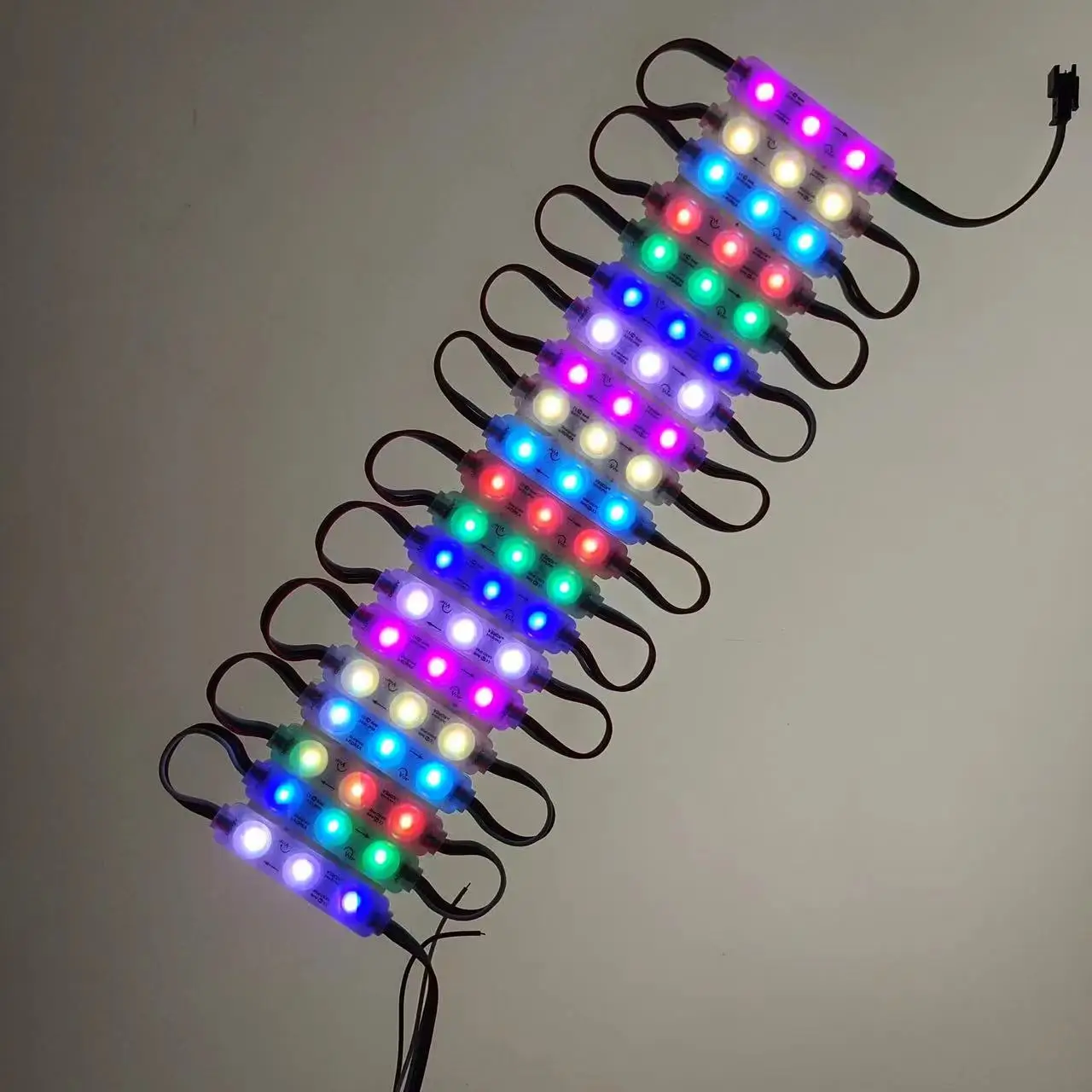

·LED module RGB can change different colors by using a LED module controller, it is amazing choice for sign makers in shallow and
halo LED channel letters.
·High quality PVC injection molding process with 160 angle optical lens,
·2811IC and 8206IC are available,All can be programmed by controller
·All materials are certificated with CE and ROHS
·Super high brightness with best price, quality guarantee more than 3years
·DC12V low voltage input, safe and reliable, waterproof IP65 can use indoor and outdoor
·LED module RGB can change different colors by using a LED module controller, it is amazing choice for sign makers in shallow and
halo LED channel letters.
·High quality PVC injection molding process with 160 angle optical lens,
·2811IC and 8206IC are available,All can be programmed by controller
·All materials are certificated with CE and ROHS
·Super high brightness with best price, quality guarantee more than 3years
·DC12V low voltage input, safe and reliable, waterproof IP65 can use indoor and outdoor
How to install LED modules?
Step 1, preparation. Before installing the LED module, you need to prepare the corresponding tools and materials, such as LED modules, wires, connectors, clips, etc. At the same time, you also need to check whether the selected LED module matches the required load environment and whether it meets the safety requirements.

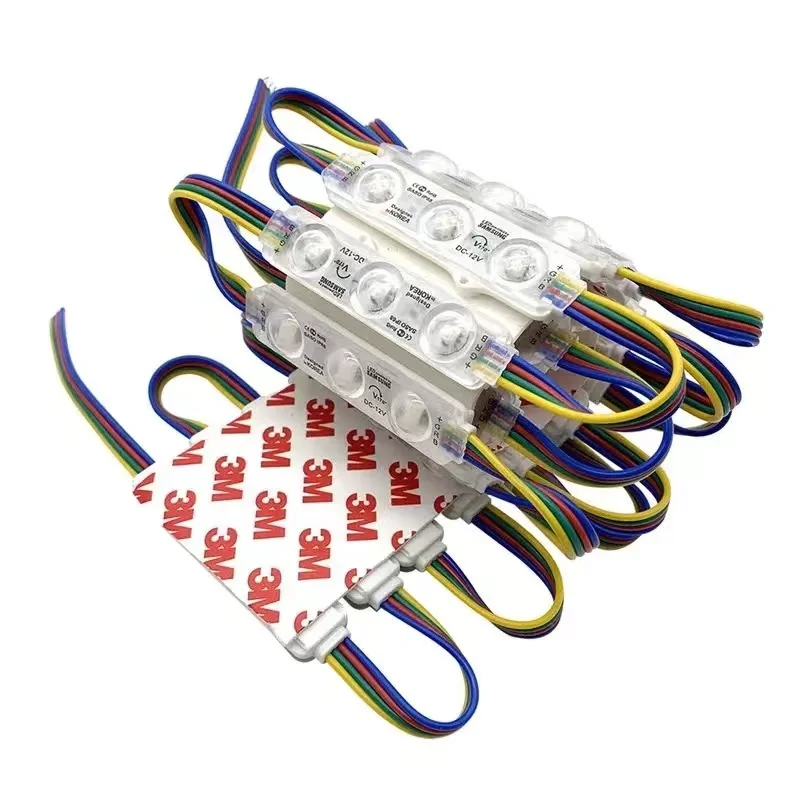

Step 2, install the LED module. Align the LED module to the installation position, tear off the adhesive on the back, and fix it on it with screws or clips. It should be noted that during the installation process, it is necessary to avoid damaging the LED module or circuit, especially pay attention to the correctness of the power wiring.
Step 3, connect the power supply. When connecting the LED module to the power supply wire, you need to ensure the safety and firm connection of the wire to avoid problems such as poor contact or short circuit of the wire. Correctly distinguish between positive and negative poles
Step 4, turn on the power supply. Turn on the power switch, observe whether the LED module is emitting light normally, and check whether there are any circuit abnormalities. If there is a problem, turn off the power supply in time, check the line connection and power supply, etc.
Step 5, debugging. After the installation is completed, the LED module needs to be debugged, such as adjusting the brightness and color of the light to meet the use requirements.
Package:
Every 20 pcs per a string,,200 pcs string a package. 3000pcs a cartoon, Carton size: 58*30*30 cm.
Net Weight: 7.5g/pcs; 150 g/string; 23kg/carton.
Step 1, preparation. Before installing the LED module, you need to prepare the corresponding tools and materials, such as LED modules, wires, connectors, clips, etc. At the same time, you also need to check whether the selected LED module matches the required load environment and whether it meets the safety requirements.
Step 2, install the LED module. Align the LED module to the installation position, tear off the adhesive on the back, and fix it on it with screws or clips. It should be noted that during the installation process, it is necessary to avoid damaging the LED module or circuit, especially pay attention to the correctness of the power wiring.
Step 3, connect the power supply. When connecting the LED module to the power supply wire, you need to ensure the safety and firm connection of the wire to avoid problems such as poor contact or short circuit of the wire. Correctly distinguish between positive and negative poles
Step 4, turn on the power supply. Turn on the power switch, observe whether the LED module is emitting light normally, and check whether there are any circuit abnormalities. If there is a problem, turn off the power supply in time, check the line connection and power supply, etc.
Step 5, debugging. After the installation is completed, the LED module needs to be debugged, such as adjusting the brightness and color of the light to meet the use requirements.
Applications:
IP68 3030 LED sign modules are high-brightness LED modules that are widely used in indoor and outdoor billboards, signs, entertainment facilities, and buildings.
IP68 3030 LED sign modules are high-brightness LED modules that are widely used in indoor and outdoor billboards, signs, entertainment facilities, and buildings.
Package:
Every 20 pcs per a string,,200 pcs string a package. 3000pcs a cartoon, Carton size: 58*30*30 cm.
Net Weight: 7.5g/pcs; 150 g/string; 23kg/carton.
Package & Delivery
FAQ
1. What is MOQ?
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power
supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs
within 24 hours.
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power
supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs
within 24 hours.
Похожие товары

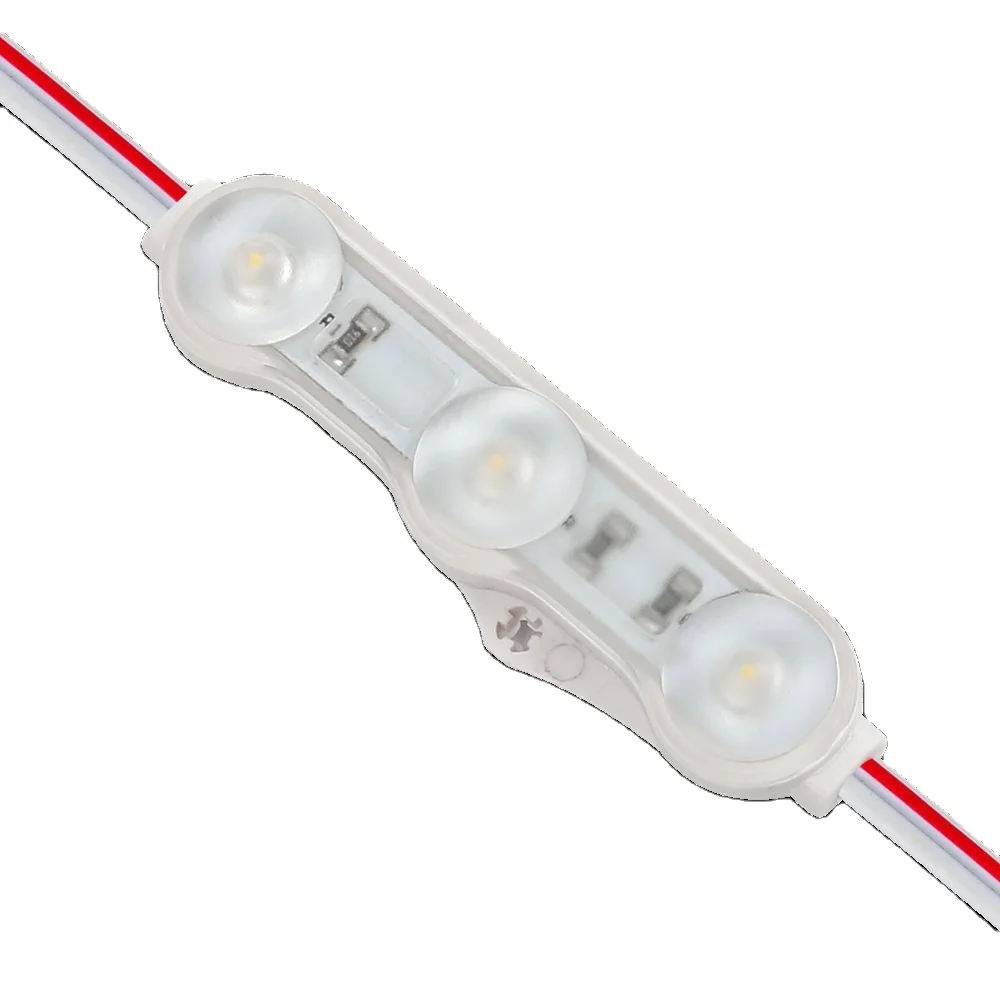

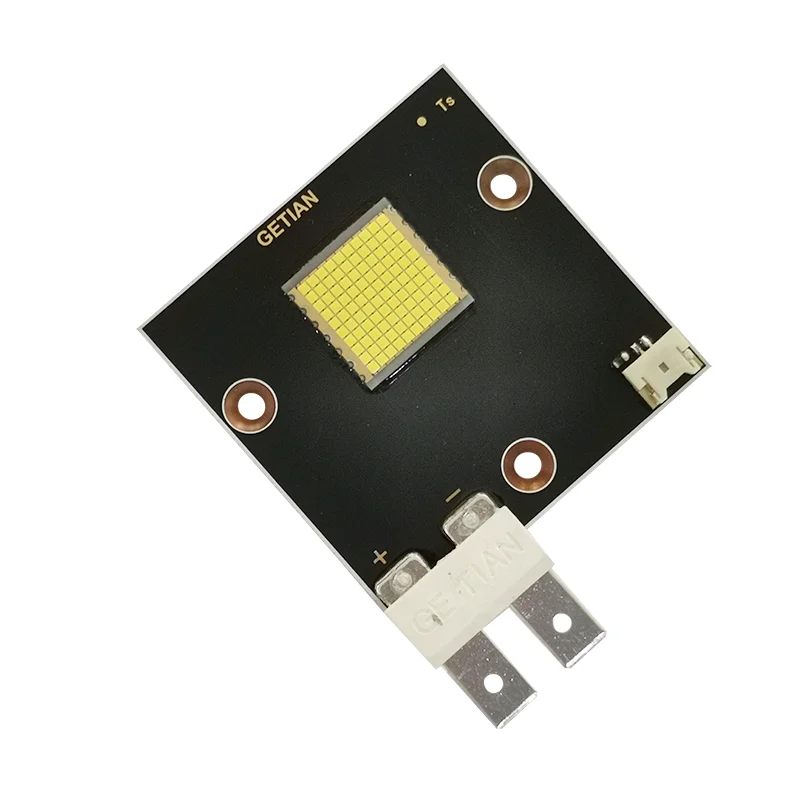

Светодиодный модуль высокой интенсивности света Bridgelux Chip Flip 300W

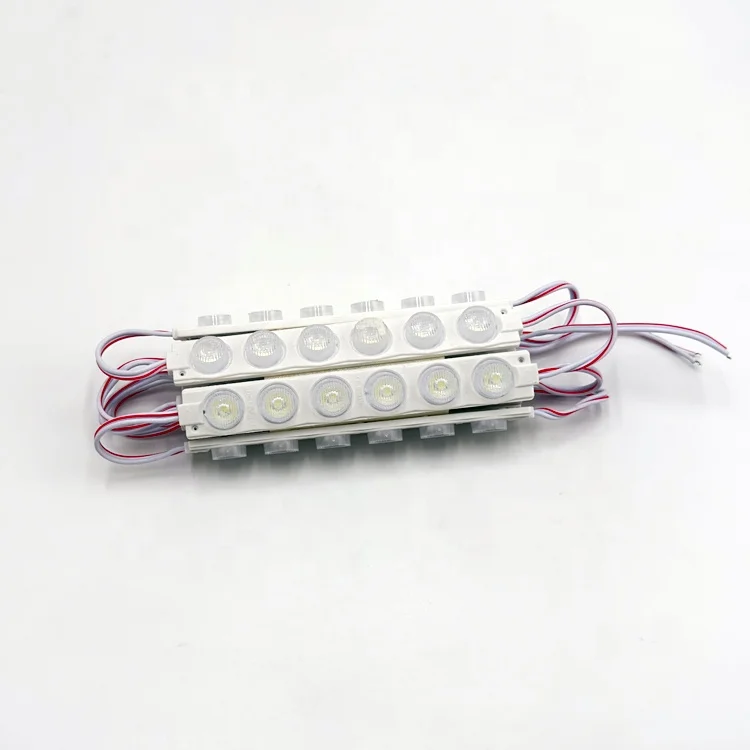

Высокояркие светодиодные модули постоянного тока 1 5 Вт ультразвуковая инъекционная рекламная вывеска индивидуальная светодиодная услуги по установке проекта
3,33 ₽ - 4,44 ₽

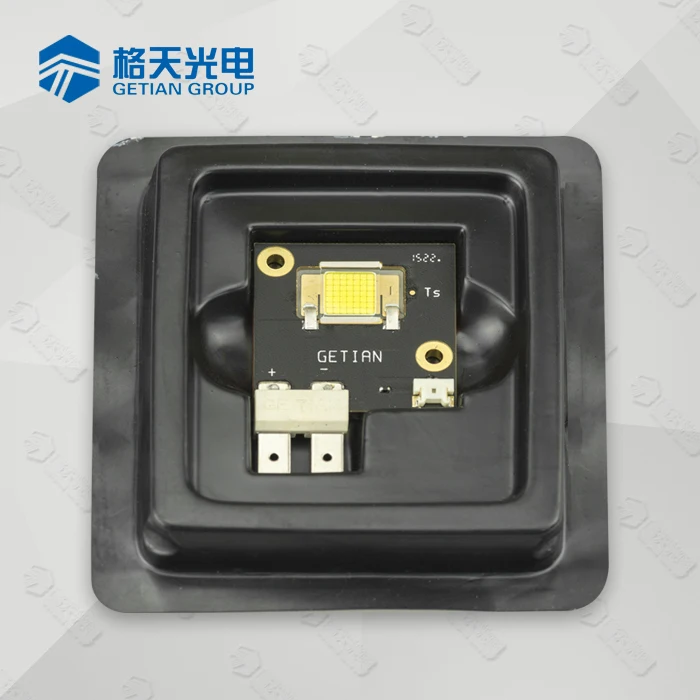

Светодиодный флип-чип 400 Вт с керамическим основанием светодиодный массив для поискового освещения
4 348,36 ₽ - 4 492,57 ₽

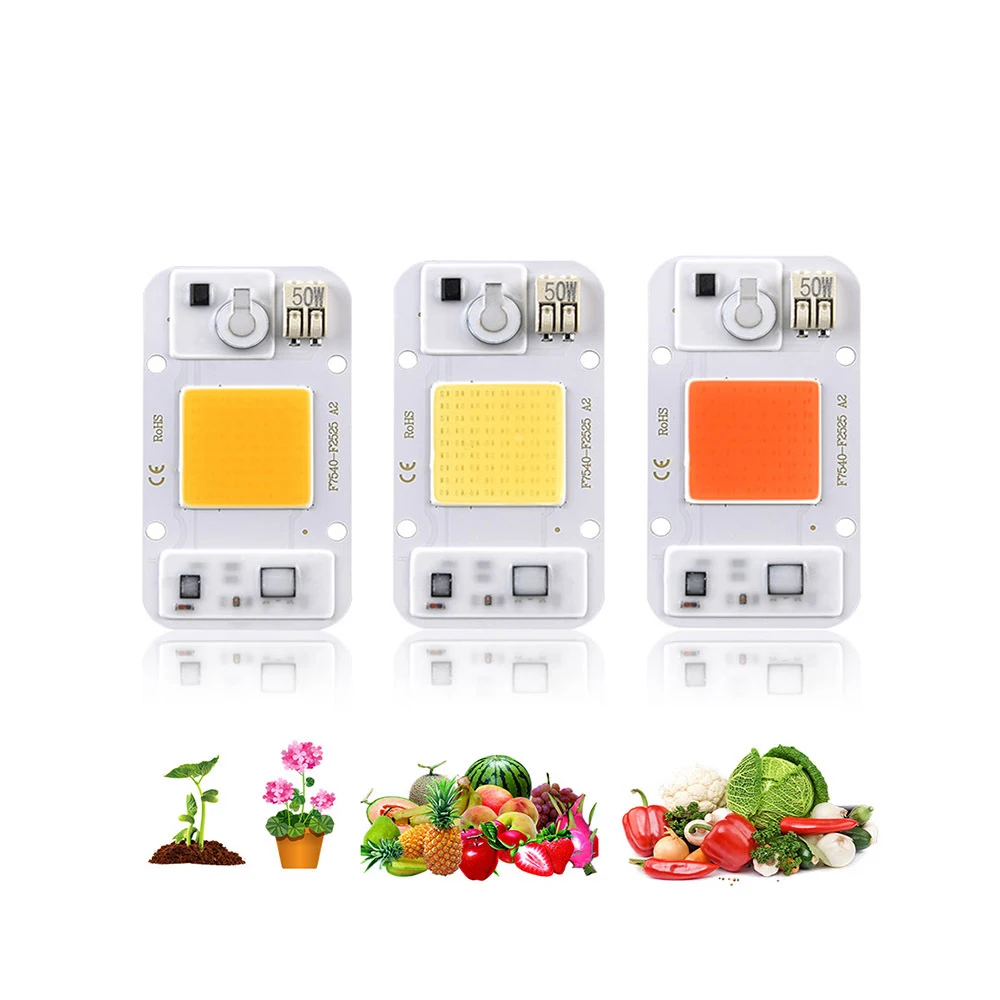

110 В 220 полный спектр светодиодный чип 20 Вт 30 50
