Products Description

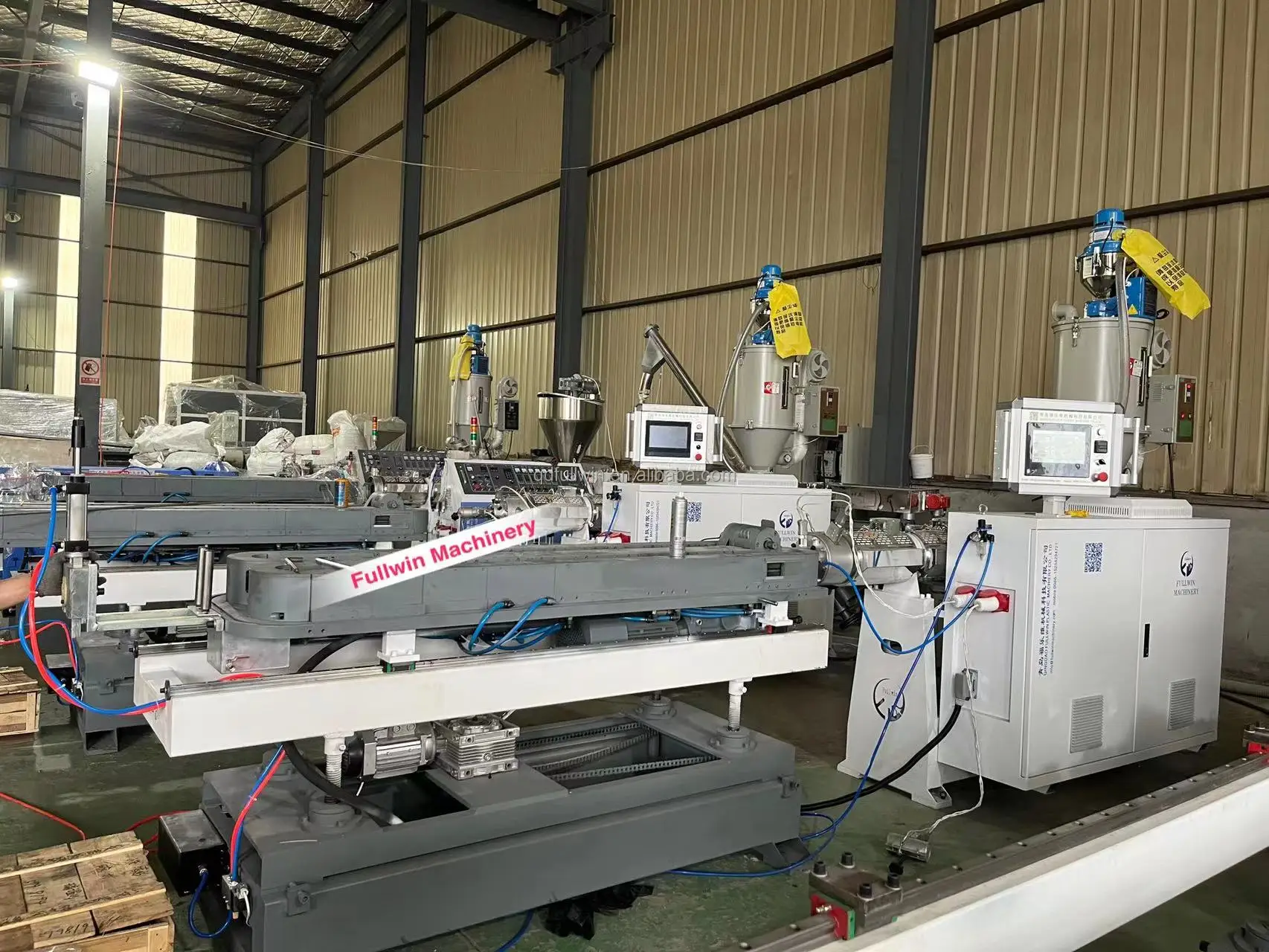

Plastic Electric Wire Sheath Pipe Production Line Plastic Corrugated Pipe Extrusion Line
FULLWIN plastic High speed single wall corrugated pipe production line is developed by our company independently. It adopts gears to run moulds so as to realize water circulating cooling of the products, which also ensures high-speed production, nice and smooth inner and outer pipe wall corrugation. The final corrugated pipe is suitable for wire protection of high-class cars, disposable hookah pipe, electric wire pipe, air conditioner pipe, washing machine outlet pipe, drain pipe, retractable pipe and so on. High-speed machines can produce at speeds of up to 20-35 m/min.
Process Flow

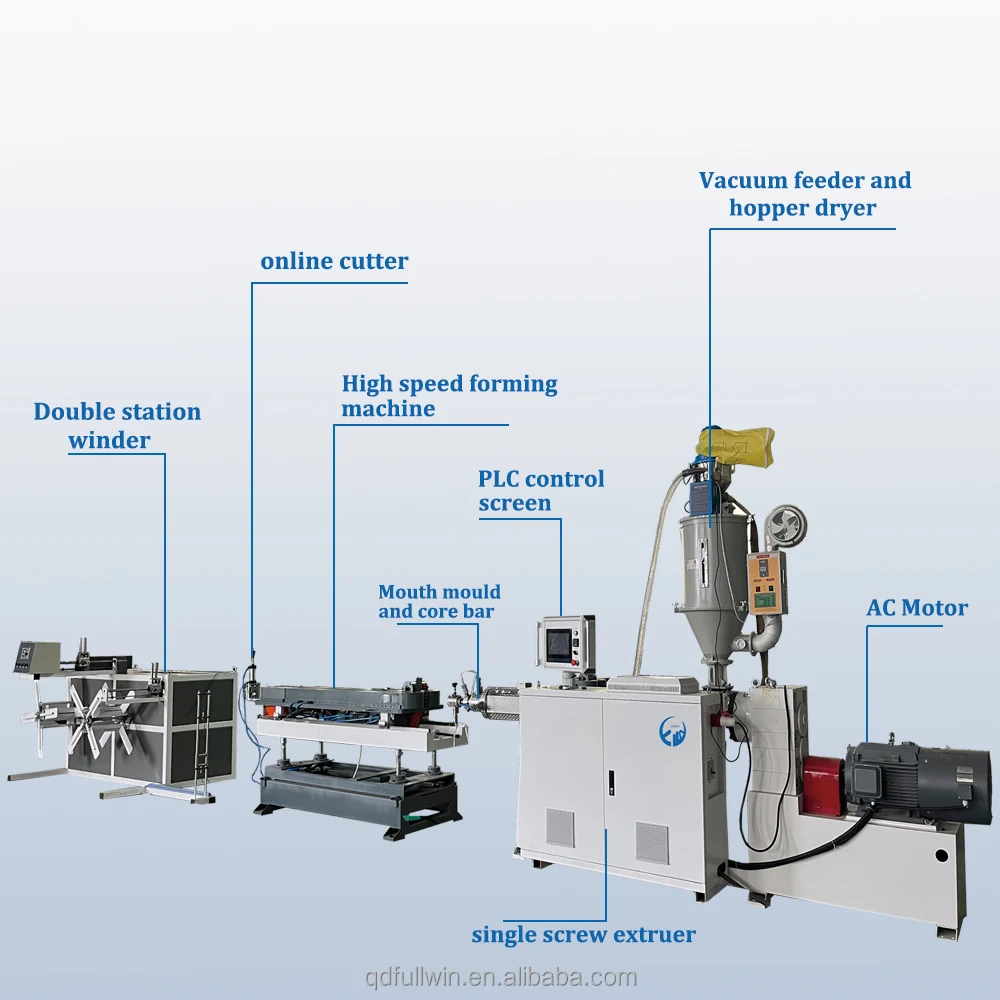

Raw material → Automatic feeding system → Single screw extruder→ Die head and mould → Forming machine → Cutting machine / Winding machine
Machine details
NO. | Name | QTY |
1 | Vacuum feeder and hopper dryer | 1 set |
2 | SJ65/30 Single Screw Extruder | 1 set |
3 | New Design Die head | 1 set |
4 | Mouth mould and core bar | 1 set |
5 | Corrugated pipe forming mould | 1 set |
6 | Corrugated pipe forming machine | 1 set |
7 | Double station winding machine | 1 set |
1. Vacuum Feeder and Hopper Dryer
Feeder
Material :Stainless steel
Method :Vacuum suction
Drying feed hopper :Hot air dryer
Feeding base
Method :Water jacket type cooling system
Material Q235-A

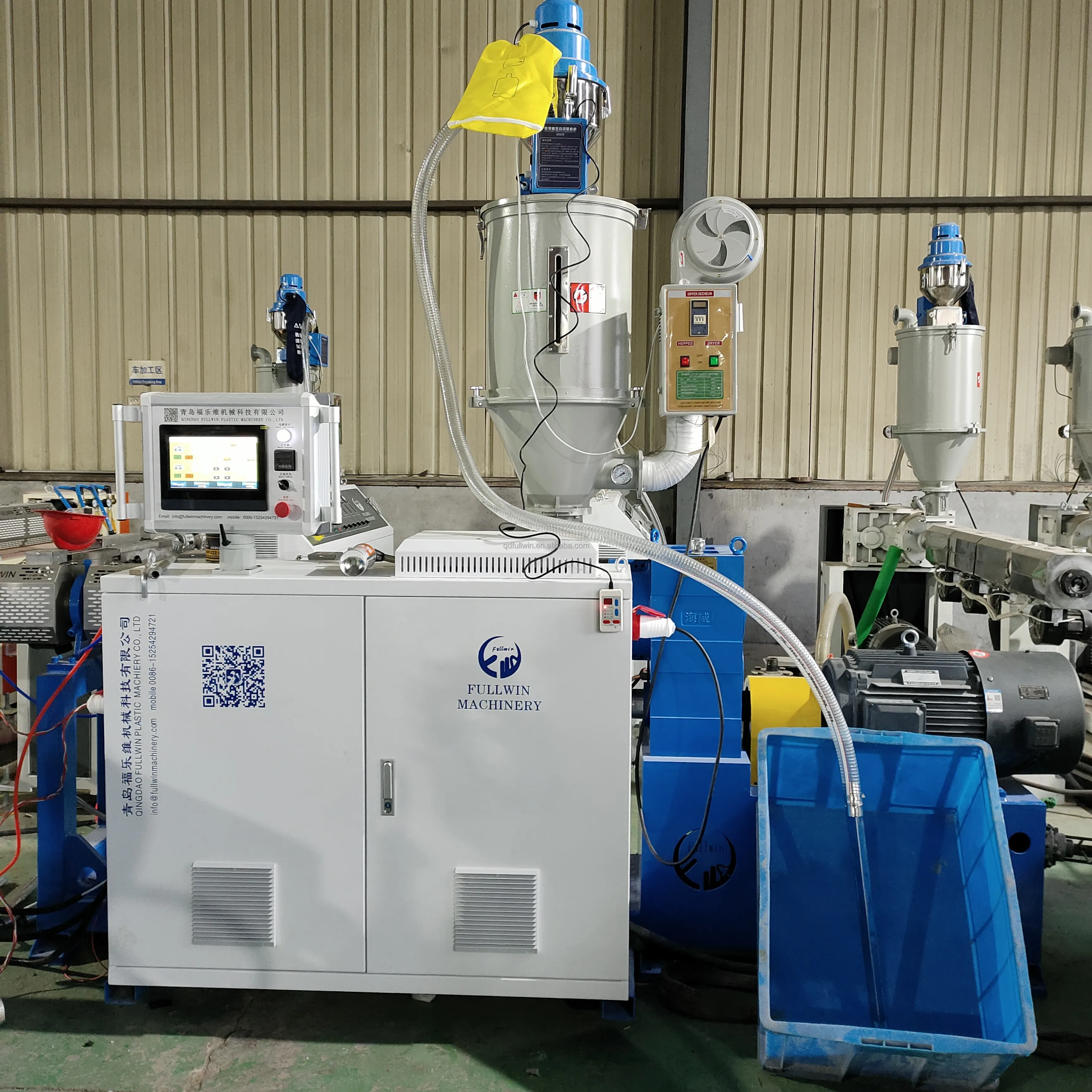

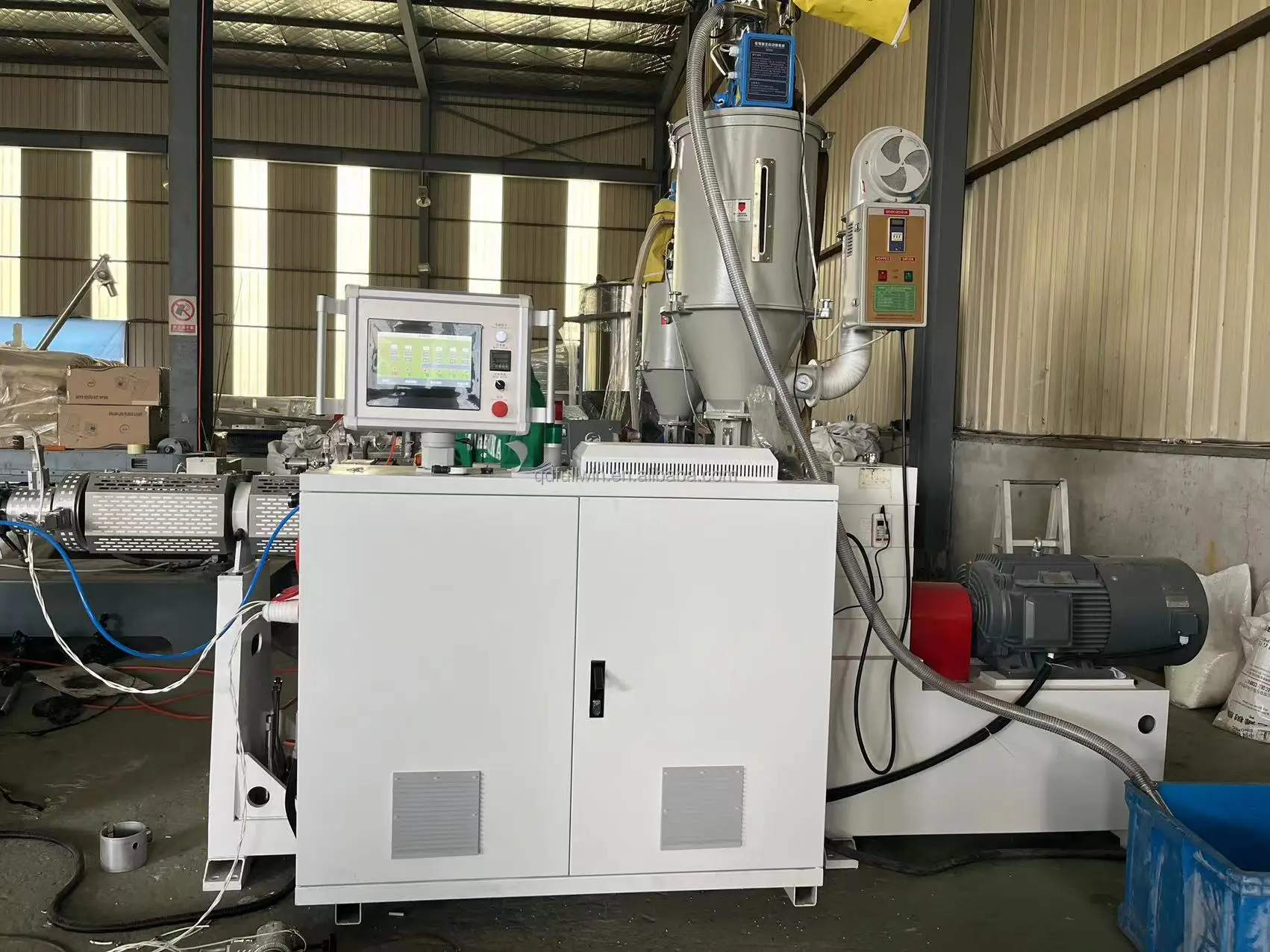

2. Single Screw Extruder
Hopper capacity:50kg
Model: SJ65/30Screw diameter: 65mm
Ratio of screw:30:1
Screw material: 38CrMoAIA
Heating areas: 4 areas
AC motor: 22kw
Inverter: ABB or Delta
Contactor: Siemens
PLC control system
3. New Design Die Head
Material :High quality electroplating die head
Heating type :Ceramic heating collar
Advantage: New design energy saving heater ring,can save 30% electric
4.Mouth mould and core bar
We have adopted a newly developed combined mouth mold and core bar. The key distinction from the previous design is that, when changing the pipe diameter, you only need to replace the entire unit. This innovation results in a time-saving of at least 1.5 hours, as it eliminates the need to remove the mold, clear the material, and heat it again.
Customisable Quantity
5. Corrugated pipe forming mould
Sizing mould specification :
Double and single cavity
Mould material :
Hardness 63.4HRC
Customised service:
customer's logo can be engraved on the mould.

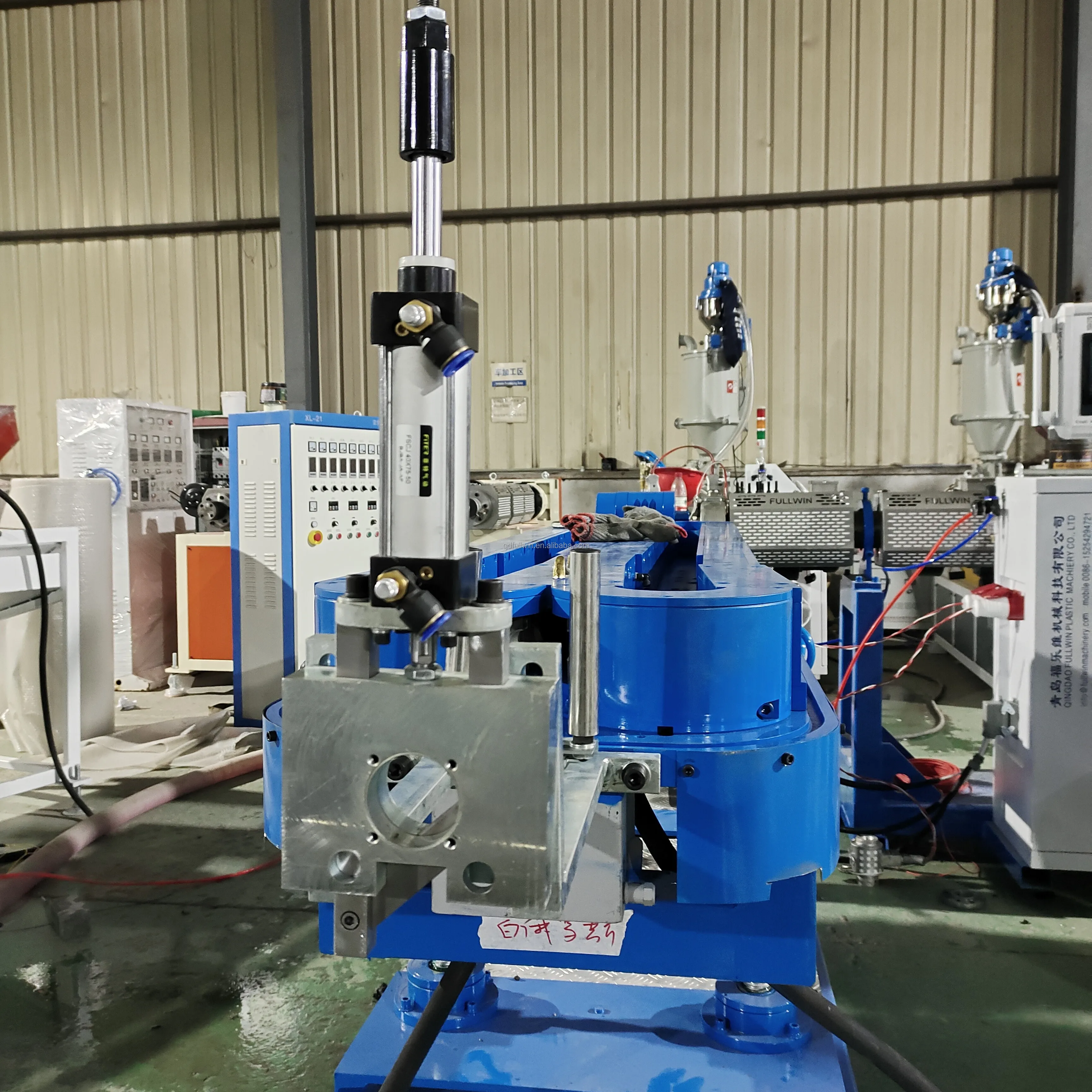

6.Corrugated pipe forming machine
(1) The plate of the moulding machine is made of the same material as the module, with a hardness 63.4 HRC, which can effectively reduce wear and tear and have a longer service life compared with 45# steel.
(2) The forming machine has a large water-cooled side plate, which provides an even better cooling effect. This greatly improves the speed of the corrugated pipe and guarantees the quality of the pipe.
(3) Both up and down and left and right movements are all electric., and the moving distance of the platform is 800mm.
(4) The forming machine is blow moulding with pneumatic cutting and is controlled by PLC or Omron.
(3) Both up and down and left and right movements are all electric., and the moving distance of the platform is 800mm.
(4) The forming machine is blow moulding with pneumatic cutting and is controlled by PLC or Omron.
7.Double station winding machine
The main operation of the winder is spindle speed tracking with frequency controlled traverse. It uses a pneumatic self-locking switch.In addition, the machine is equipped with a counter to adjust the winding speed inductively.
Final Product
Shisha hookah hose pipe
PP PE corrugated pipe also widely used in hot sale Arabic shisha hookah water smoking pipes
Medical breathing corrugated pipe
EVA corrugated pipe main used in medical breathing tube
Electrical wire conduit corrugated pipe
Can also be used for wire and cable protection sleeve, threading pipe, automotive wire harness pipe
Washing machine water drainage pipe
PP PE PVC sink corrugated pipe can be washing machine drain pipes, drainage water extension pipes with connectors
Air conditioning pipe
PE corrugated pipes can be designed as air conditioning drain pipes,extension pipes with connectors, with good flexibility and corrosion resistance
Shrinking corrugated pop tube
The telescopic bellows can be used as toy pop tube, often used as children's decompression toy tubes, finger tubes, to relieve children's depression, autism, and can also be used as party decoration tubes
About US
About FULLWIN
Fullwin Plastic Machinery is a professional manufacturer of plastic extrusion machine with over 15 years of experience. Actually, we not only have rich production experience, but also product design ability, so we can customize machines according to the specific needs of different customers. Until now, we have obtained more than 35 design patents and established 3 factories with a total area of more than 10,000 square meters. Over the past three years, we have exported to more than 60 countries and have gradually realised our goal of spreading the Fullwin brand to every corner of the world.
Our main products include single and double wall corrugated pipe production line, PVC/HDPE/PP/PPR plastic pipe production line, plastic hose production line, PVC/UPVC plastic profile production lines, PP/PE/PVC/WPC production line and various auxiliary machines. Among these production lines, single and double wall corrugated pipe machine is the most popular machine at present, which is widely praised by customers from all over the world.
Double wall corrugated pipe production line
Pipe diameter: 40-160mm
Among them, 75mm, 110mm double-wall new wind corrugated pipe is widely used in new environmental protection projects.
PVC conduit pipe production line
Pipe diameter:12-63mm
The die head adopts the special design of"one out of two,one out of four", which can speed up production and increase output
HDPE PE pipe production line
Pipe diameter:12-630mm
The newly developed automatic cutting machine without dust makes the cutting section smooth and flat, high precision and low noise.
PVC Suction Hose production line
Pipe diameter:12-100mm
Mainly used in industry, agriculture, construction and irrigation and other fields.
PVC fiber reinforced hose production line
Pipe diameter:12-50mm
Widely used in machinery, coal mines,petroleum,chemical industry,agricultural irrigation contruction,civil(solar water heaters,gas tanks) and other fields.
PET/PP packing belt production line
It can meet the needs of different customers,and produce equipment of different specifications such us one out of one,one out of two,one out of four.
PP hollow grid sheet production line
The thinkness of the plate can be 2-5mm,8-18mm,the width of the plate can be customized according to customer requirements 915-1220mm,1800mm,2600mm.
PP construction board production line
PP hollow building formwork is one of the new contruction materials that can replace steel formwork and bamboo glue formwork.
PVC/WPC window door frame production line
Raw material use PVC mixing with wood powder,width 700-1100mm,thickness from 15-50mm,the surface can be coated,carved painted, embedded glass etc.
