The ZLP630 high-altitude work basket design boasts exceptional adaptability and construction flexibility. It operates with minimal constraints on construction height, thereby reducing site occupation and maintaining high-quality output. The system is also highly efficient and easy to install and dismantle, requiring fewer personnel and labor-intensive efforts. In addition, it caters to construction operations that experience significant changes in building shape. Under specified circumstances, the basket can also serve as auxiliary equipment for lifting or hoisting materials.
The ZLP series features several models, each different in load capacity, platform size, and configurations to meet various project requirements.
This is the lightest electric suspended platform model with a load capacity of around 250kg. It’s suitable for single-person operations, such as building facade cleaning or maintenance.
With a load capacity of approximately 500kg, this model is designed for two-person operations. Its versatility makes it suitable for a wider range of aerial work tasks.
This medium-load model has a capacity of 630kg and is one of the most widely used models. It strikes a balance between load requirements and cost-effectiveness.
The ZLP800 model is a high-load electric suspended platform with a maximum load capacity of 800kg, suitable for multiple workers or tasks requiring heavy tools and materials.
The highest load capacity model in the ZLP series, with a capacity of up to 1000kg. It’s designed for particularly heavy load requirements, such as large-scale construction or industrial maintenance projects.
Name | Suspended platform nd main parameters | ||||||
ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |||
Rated load capacity | 250kg | 500kg | 630kg | 800kg | 1000kg | ||
Lifting speed | 9-11m/min | ||||||
Suspension platform length (standard configuration) | 1.2m | 2.5m*2 | 2m*3 | 2.5m*3 | 2.5m*3 | ||
Wire rope | Structure | 4*31SW+FC | |||||
Diameter | 8.3mm | 9.1mm | 9.1mm | ||||
Min breaking force | 50KN | 62.7KN | 62.7KN | ||||
Hoist | Model | LTD500 | LTD500 | LTD630 | LTD800 | LTD1000 | |
Rope rolling mechanism form | α type | ||||||
Ultimate working load | 500kg | 500kg | 630kg | 800kg | 1000KG | ||
Number of hoists | 1 | 2 | 2 | 2 | 2 | ||
Electric motor | Power | 1.1kw | 1.1kw | 1.5kw | 1.8kw | 2.2kw | |
Power supply | AC 380V 50HZ | ||||||
Braking torque | 15.2Nm | ||||||

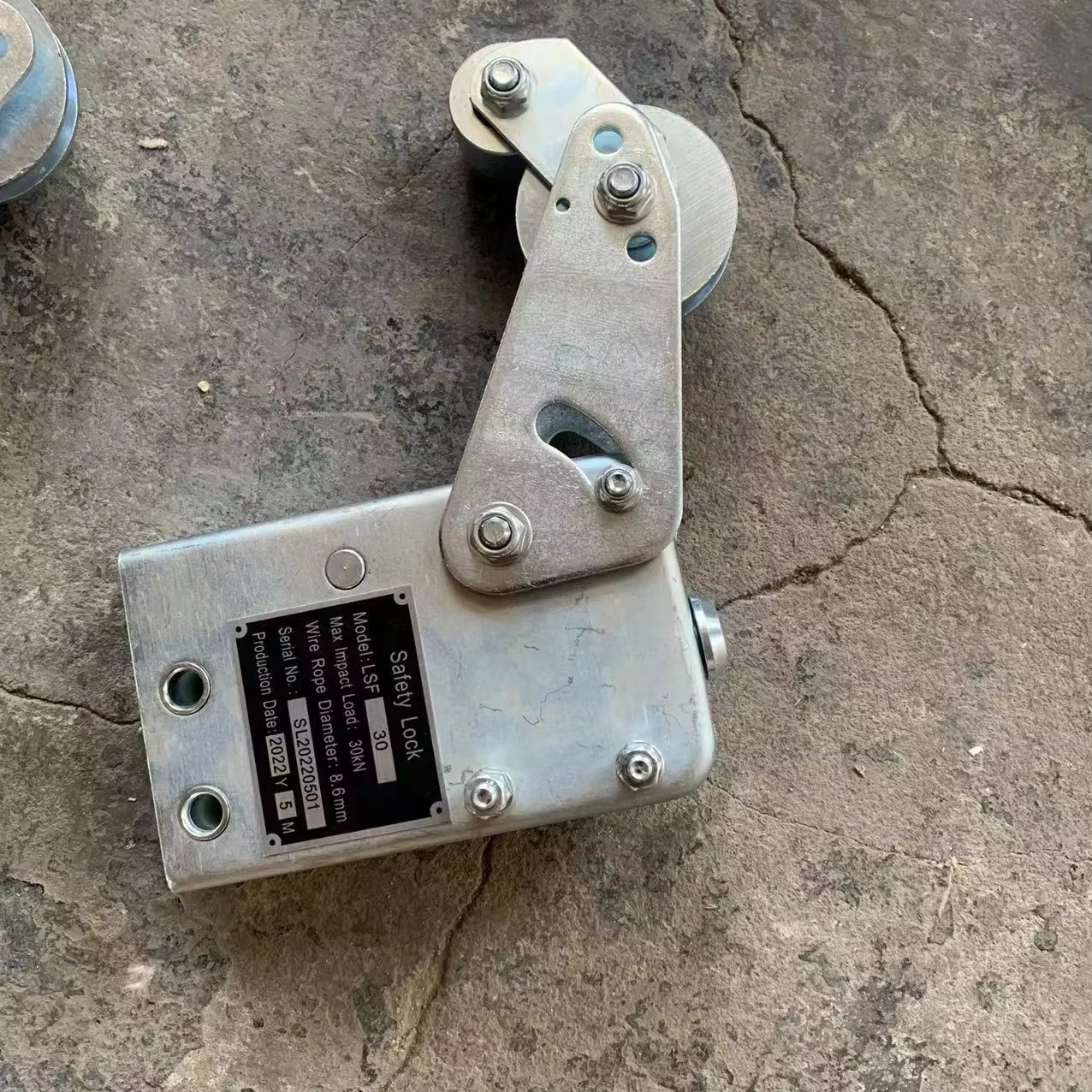

Security lock | Type | Centrifugal speed limiter | Swing arm anti-tilt | ||||
Model | LSL30 | LSF30 | |||||
Suspension device | Quantity | Set | Second set | ||||
Adjust height | 1.15-1.75m | ||||||
Extended length of front beam | 1.16-1.76m | ||||||
Quality | Suspension platform | 220kg (Steel, including 100m cable) | 435kg (Steel, including 100m cable) | 505kg (Steel, including 100m cable) | 550kg (Steel, including 100m cable) | 700kg(Steel,including 100m cable) | |
Suspension mechanism (excluding counterweight) | 180kg | 180kg*2 | |||||
Normal working environment of hanging basket | Ambient temperature -10℃~+55℃ | ||||||
Ambient relative humidity<=90% 25℃ | |||||||
Power supply voltage deviates from rated value ±5% | |||||||
The gust wind force at the work place is ≤8.3m/s (equivalent to level 5 wind force) |
Shandong Hongming Machinery Co., Ltd. established a manufacturing factory in Shandong in 2008, specializing in the production of suspended platform, scissors lifting platforms, construction elevators,brick making machine and crusher machine and other construction machinery. It is an integrated enterprise specializing in the research and development, production, sales, installation, and maintenance of high-altitude operating equipment. It has a standardized production plant of 5,000 square meters and more than 100 employees, including more than 10 product design and R & D technical personnel, and more than 30 middle and senior management personnel. Its business has developed to more than 30 countries and regions around the world.
