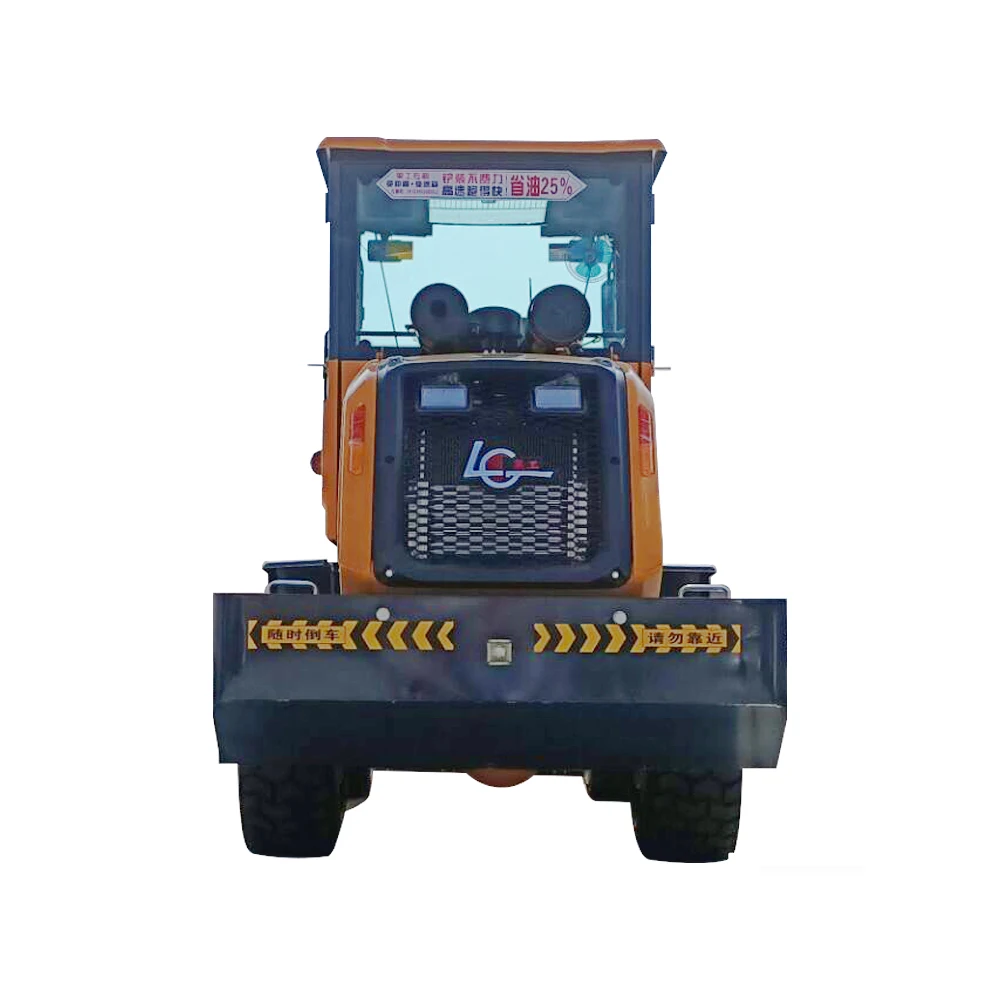

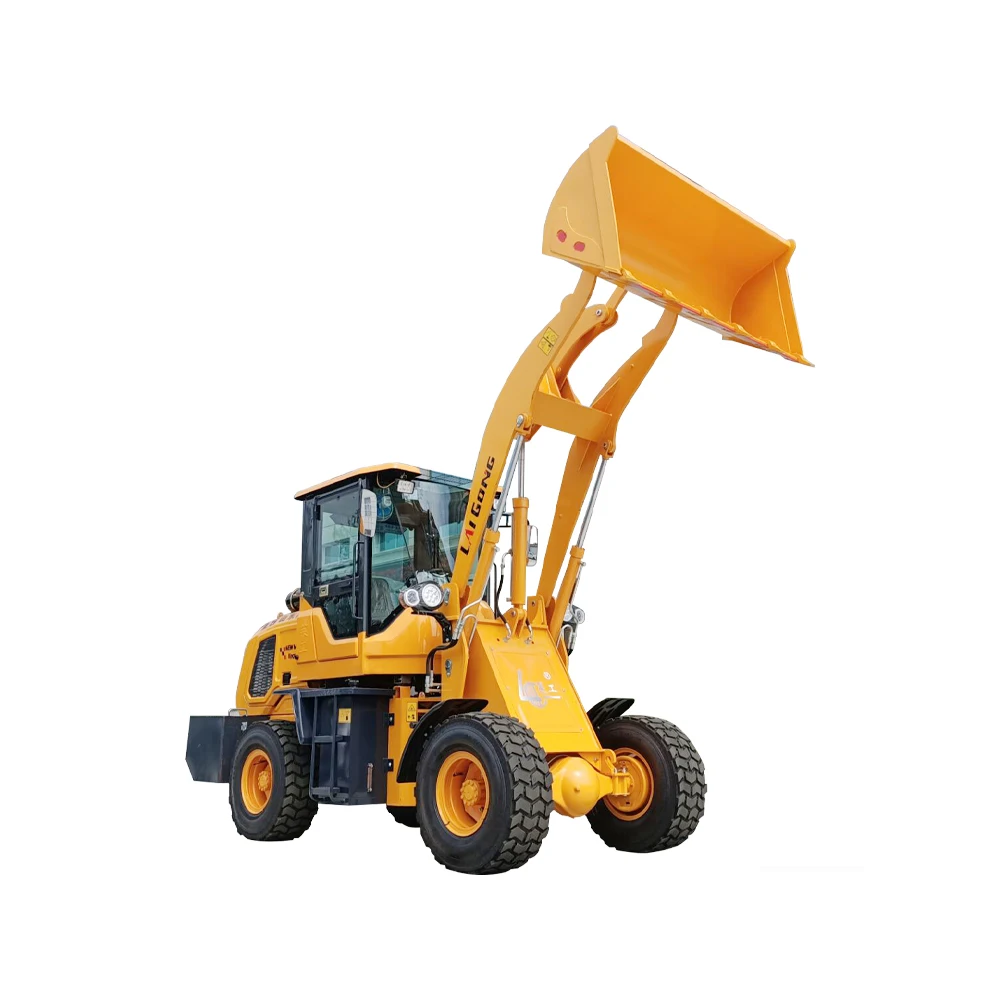

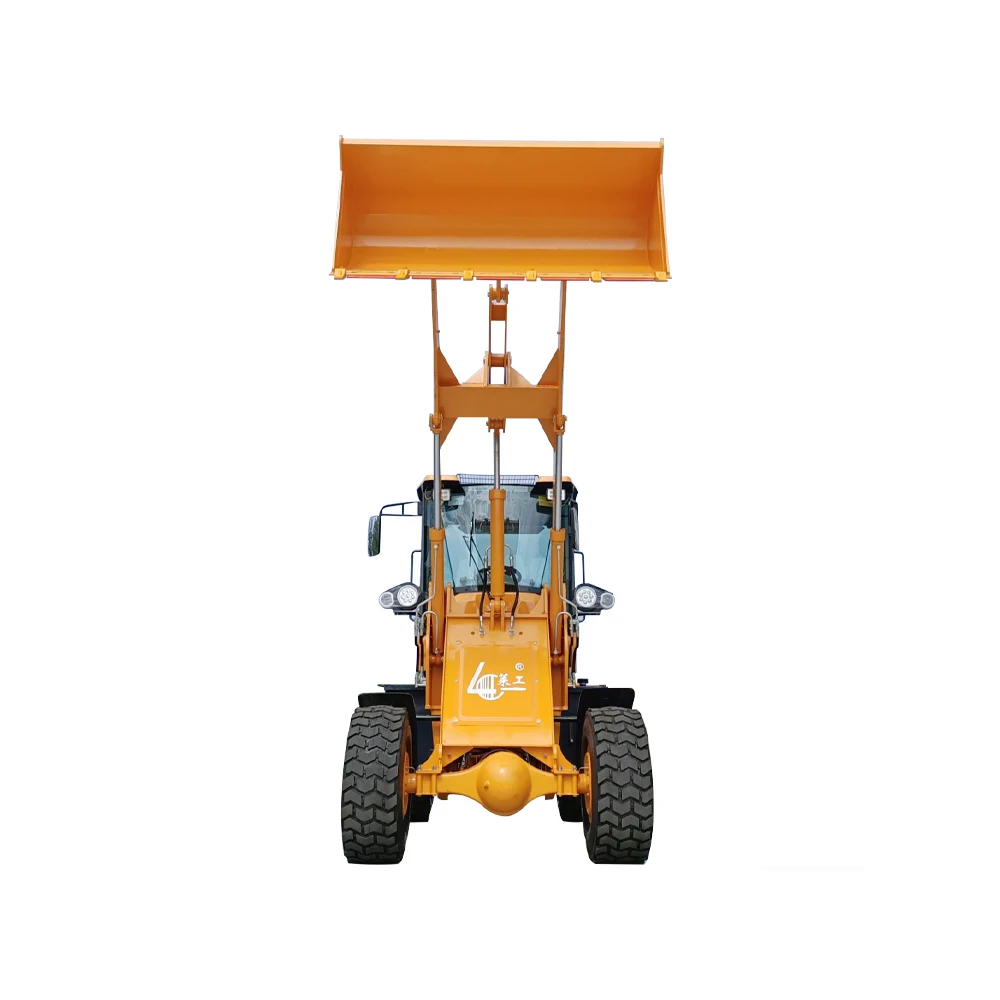

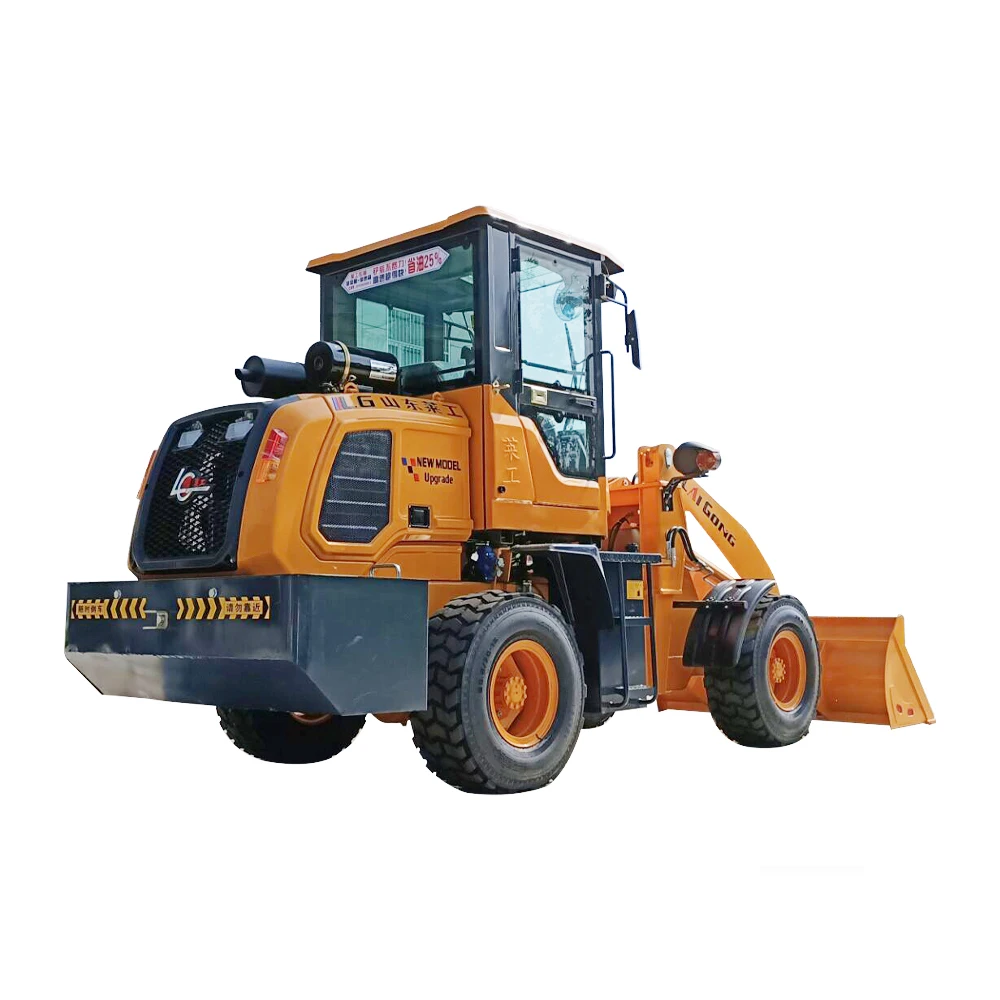

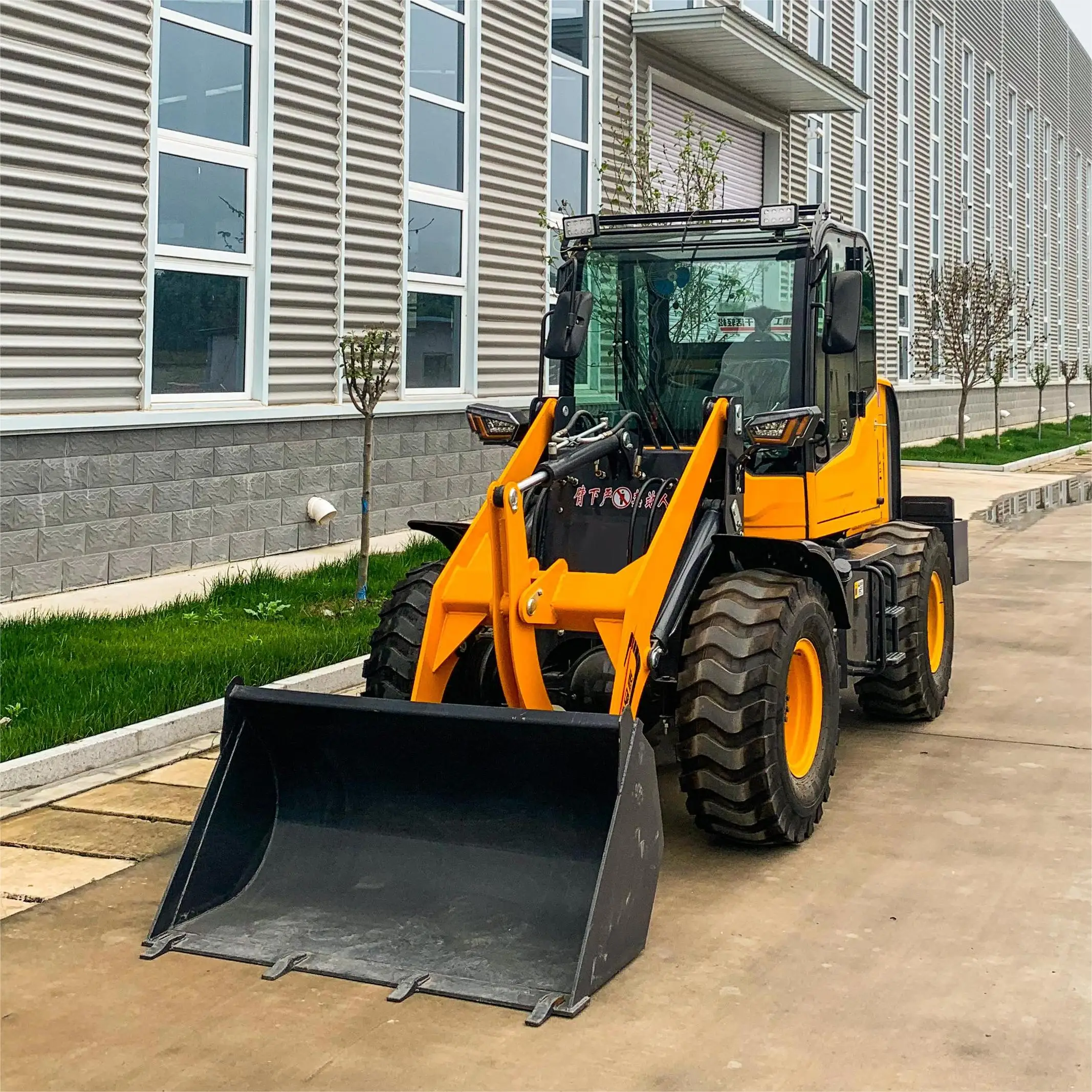

LAIGONG LG916 ER420T шарнирный сельскохозяйственный редуктор, лопата, небольшой мини-колесный погрузчик, 2 тонны, фронтальный погрузчик, Китай, 37 кВт
624 728,27 ₽ - 635 518,05 ₽
Строительная машина фронтальный погрузчик стандартный дизельный двигатель 1.5Ton мини скребок
- Категория: >>>
- Поставщик: Shandong Laigong International Business Co. Ltd.
Сохранить в закладки 1601209349212:
Описание и отзывы
Характеристики
LAIGONG wheel loader with optimised design, Laigong loader has reasonable structure configuration, easy maintenance, light and flexible operation, large turning angle, which is more suitable for narrow lot operation, labour-saving and high efficiency,widely used in agriculture and forestry.
Product Description
Model | LG916 | LG918 | LG920 | LG926 | LG928 | ||||
Operating weight(kg） | 2150 | 2800 | 3100 | 3400 | 3500 | ||||
Length（mm) | 4750 | 5140 | 5460 | 5500 | 5600 | ||||
Width(mm) | 1300 | 1600 | 1800 | 1800 | 1900 | ||||
Height(mm) | 2500 | 2670 | 2700 | 2700 | 2720 | ||||
Wheel base(mm) | 2020 | 2050 | 2200 | 2200 | 2250 | ||||
Wheel track(mm) | 1120 | 1350 | 1400 | 1400 | 1400 | ||||
Total cycle time(s) | 9 | 9 | 9 | 9 | 9 | ||||
Tire size(size) | 7.50-16 | 8.25-16 | 20.5-16 | 20.5-16 | 23.5-16 | ||||
Max.travelling speed(km/h) | 35 | 35 | 35 | 35 | 35 | ||||
Loading weight(kg) | 800 | 1200 | 1500 | 1500 | 1600 | ||||
Standard bucket capacity(m3) | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | ||||
Bucket width(mm) | 1300 | 1580 | 1800 | 1800 | 1900 | ||||
Dumping height(mm) | 2400 | 2800 | 3200 | 3200 | 3200 | ||||
Dumping reach(mm) | 600 | 650 | 700 | 700 | 800 | ||||
Max. lifting height(mm) | 3500 | 3750 | 4010 | 4010 | 4030 | ||||
Transmission type | Automatic | Automatic | Automatic | Automatic | Automatic | ||||
Control type(kw) | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | ||||
Engine | ZN390BT-25 | YUNNEI 490 | YUNNEI 490 | YUNNEI 490 | YUNNEI 490 Turbo | ||||
Power(kw/ rpm) | 37 | 37 | 37 | 42 | 58 | ||||
Integrated gearbox and torque converter design could have shorter wheel base and radius of turning circle to adapt to various working conditions. Adopt double high-low speed system same as Laigong wheel loader to match the engine power precisely, raise the fuel use ratio and decrease the operation cost of customer.
Split gearbox is better in heat dissipation effect and convenient in maintenance and repair. The split gear box also adopts the double high-low speed system.
Reinforced swing arm, tank shelf and revolving platform guarantee stability and service life of working device.
High efficient cooling system for smooth operation under high temperature status.
Wheel-loader Accessories
Wood Grabber
Grass Catcher
Bucket With Grabber
Glass/Pallet/Marble fork
Snow Blade
Grain Bucket
Breaking Hammer
Tree Moving
Drilling
Related Products
LG916
Engine:ZN390BT-25
Load :0.8t
Dumping height:2.4m
Bucket width :1300mm
Bucket width :1300mm
LG918
Engine:YUNNEI 490
Load :1.2t
Dumping height:2.8m
Bucket width :1580mm
Load :1.2t
Dumping height:2.8m
Bucket width :1580mm
LG920
Engine:YUNNEI 490
Load :1.5t
Dumping height:3.2m
Bucket width :1800mm
Load :1.5t
Dumping height:3.2m
Bucket width :1800mm
LG926
Engine:YUNNEI 490
Load :1.5t
Dumping height:3.2m
Bucket width :1800mm
Load :1.5t
Dumping height:3.2m
Bucket width :1800mm
LG928
Engine:YUNNEI 490 Turbo
Load :1.6t
Dumping height:3.2m
Bucket width :1900mm
Load :1.6t
Dumping height:3.2m
Bucket width :1900mm
LG930
Engine:YUNNEI 490 Turbo
Load :1.8t
Dumping height:3.5m
Bucket width :2000mm
Load :1.8t
Dumping height:3.5m
Bucket width :2000mm
VR
Main Categories
Company Profile
Shandong Laigong Machinery Manufacturing Co., Ltd is a state-level high-tech enterprise. It was founded in 1998, covers an area of 150, 000 square meters located in Shandong Laizhou Laigong Industrial Park and specializes in mini construction machinery industry.
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept. There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept. There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Customer Case
transportations
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
Похожие товары
Приспособления для автогрейдеров с бортовым поворотом
Rhoroceros XN800 мини-самосвал фронтальный погрузчик с дизельным двигателем Гусеничный мини-самосвал грузовик
86 318,24 ₽ - 561 068,56 ₽
Мини-погрузчик с водяным охлаждением
215 795,60 ₽

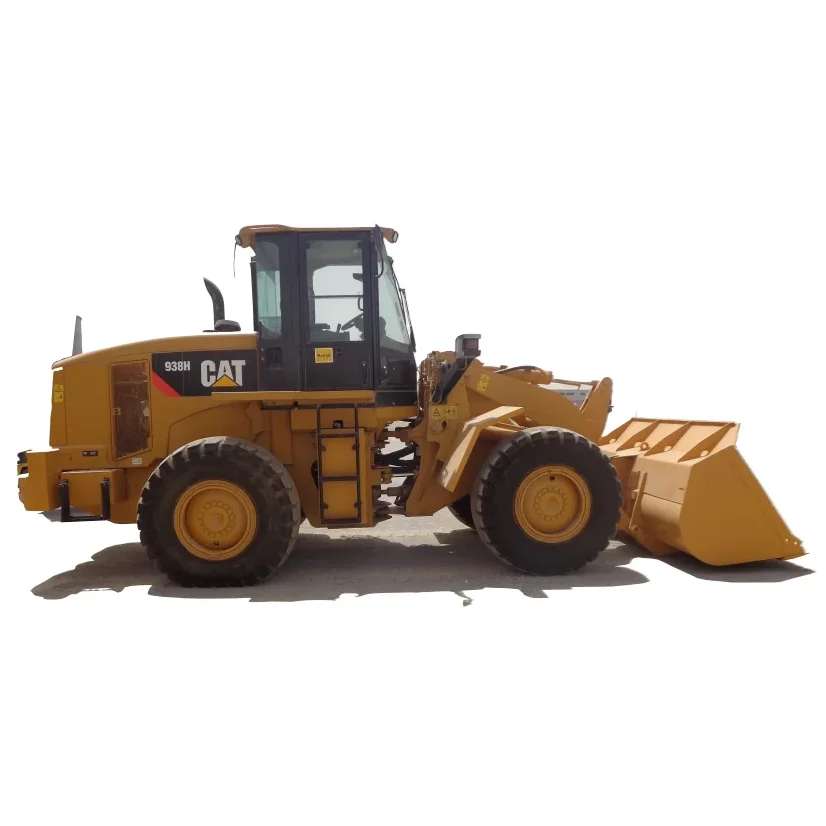

Оригинальный Подержанный фронтальный погрузчик Cat, большой колесный погрузчик, дешевый Cat 938H, Подержанный фронтальный погрузчик для продажи

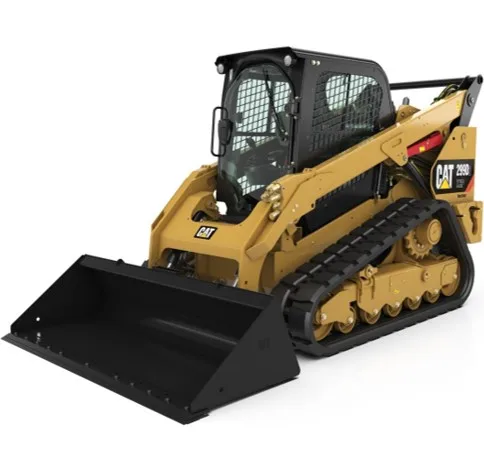

Высокое качество отличное состояние по справедливой цене 2018 гусеничные мини-погрузчики 299D2 на продажу
1 726 364,80 ₽
Лидер продаж, 4-Тонный фронтальный погрузчик
129 477,36 ₽

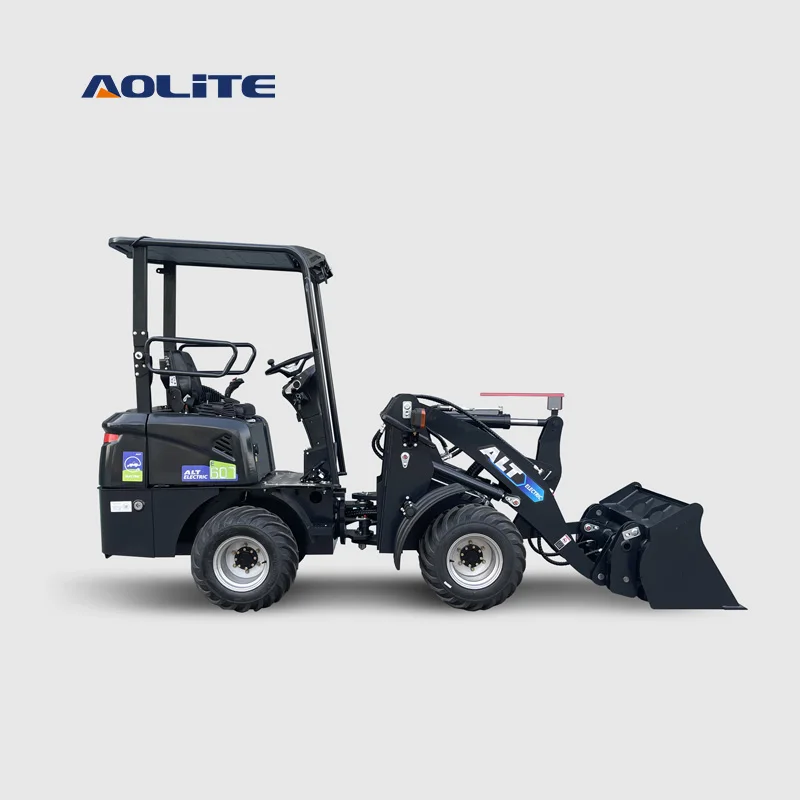

AOLITE E607 700 кг ALT Электрический Компактный вездеходный фронтальный погрузчик для сада
