Легкий стальной киль машина cz полностью автоматическая для формовки рулона
4 767 095,93-5 185 513,20 ₽
Машина дверной рамы и машина каркаса дома
- Категория: >>>
- Поставщик: Henan Fantai Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601209398211:
Описание и отзывы
Характеристики
Product Display

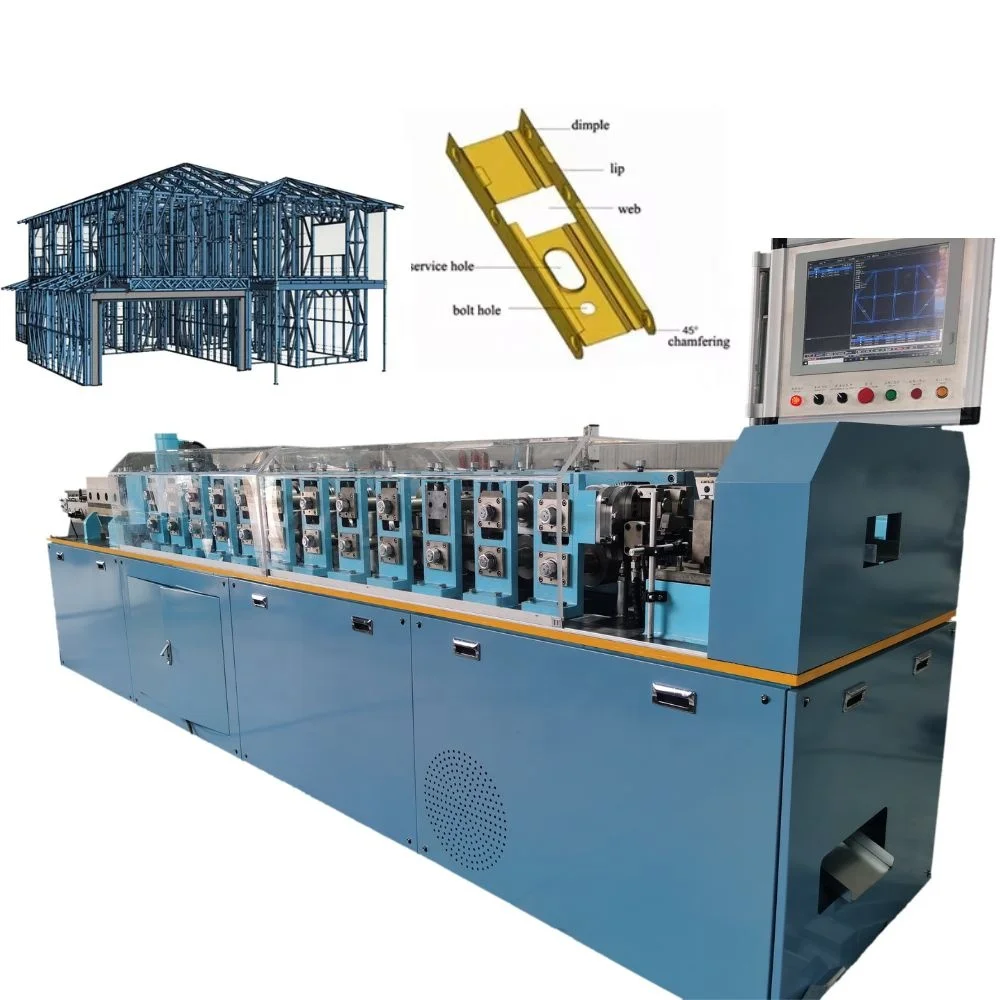

According to the specific requirements of the construction of light steel villas, equipped with stamping molds and coding devices such as concave screw holes, chamfers, web through holes, small edge shear, pipe line holes, web shrinkage, shear, etc. Adopting professional industrial computer numerical control automatic control, it has the characteristics of wide application range, high product accuracy, high degree of automation, material saving, and high degree of automation. Intended to continuously innovate
prefabricated buildings and diverse structural forms in the market, We can design and manufacture specialized equipment according to customer requirements, and provide supporting equipment such as planking/adjustable C-steel.
DETAILS IMAGES
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine,Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production
enterprises's growing demand..
enterprises's growing demand..

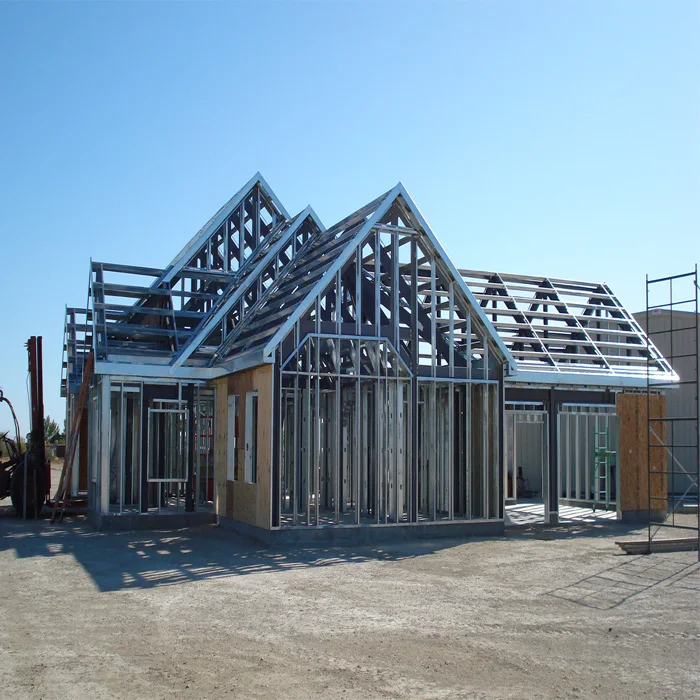

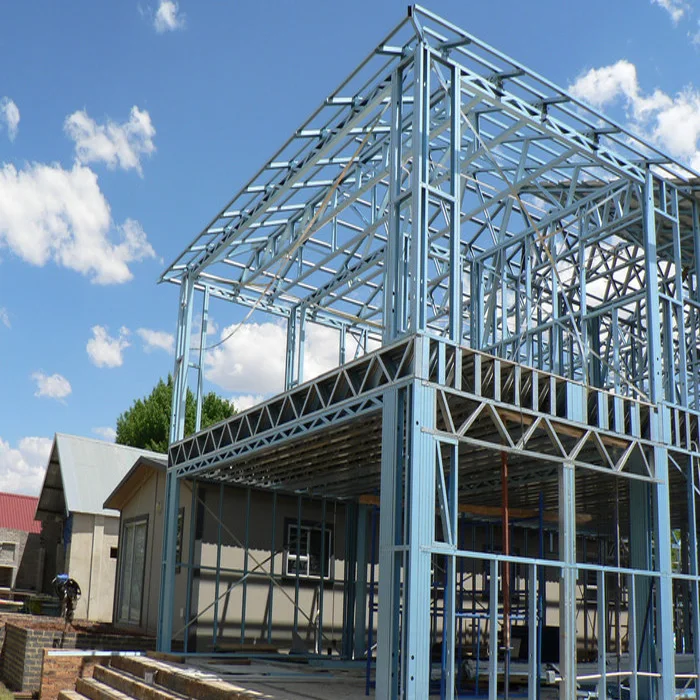

Application
Specification
Feeding machine | 1. Drive mode: motor drive, brake device. 2. Load capacity: 3 tons 3. Inner diameter range: 450--530 mm 4. Maximum outer diameter:1300 mm 5. Other features: active feeding. | ||||||
Forming Machine | 1. Weight: 3 tons Specifications (length * width * height): 4 x 0.8x1.8 meters Total energy consumption: 15 KWH 2. Number of forming rollers: 8 sets, 4 sets of fine-tuning rollers Is waist height adjustable: No 3. Transmission mode: gear chain Yes gear +chain Power: 7.5KW; 4. Roller material/brand: Cr12MoV, spindle material/brand: 40G, modulation treatment Cutter material/brand:Cr12MoV; 5. Conventional forming speed: 50 meters/min; Production capacity: According to the length of the profile and punching,the comprehensive output is 0.5-0.6 tons/hour; 6. Hole spacing tolerance: plus or minus 0.3 mm; length tolerance: 0.5 mm; straightness tolerance: 0.3 mm; | ||||||
Hydraulic system | Power: 5.5 KWH; Fuel tank capacity: 80 L; With energy storage device | ||||||
Support rack | 4m support rack + storage table | ||||||
Shipping
Company
FAQ
Q1.Do you provide customized?Can you make the machine according to my design or prototype?
Q3.Can you be responsible for transport?
Q4.What can you buy from us? The main products are: Roof Roll Forming Machine, Decoration Forming
Q5.How is your after-sales support?
Sure,We have an professional designerfor working out the most suitable design and productionplan for the machine that you are going to book with us.We are a professional roll forming machine designer and manufacturer.
Q2.What can you do if the machine is broken?
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services.
Q3.Can you be responsible for transport?
Yes,please tell us the destination port or address.we have rich experience in transport.
Q4.What can you buy from us? The main products are: Roof Roll Forming Machine, Decoration Forming
Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
Q5.How is your after-sales support?
The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
