4 в 1, популярная Лазерная Очистительная Машина, головные линзы, 50 Вт, лазерное удаление ржавчины, 3000 Вт, максимум, круто
393 816,24 ₽

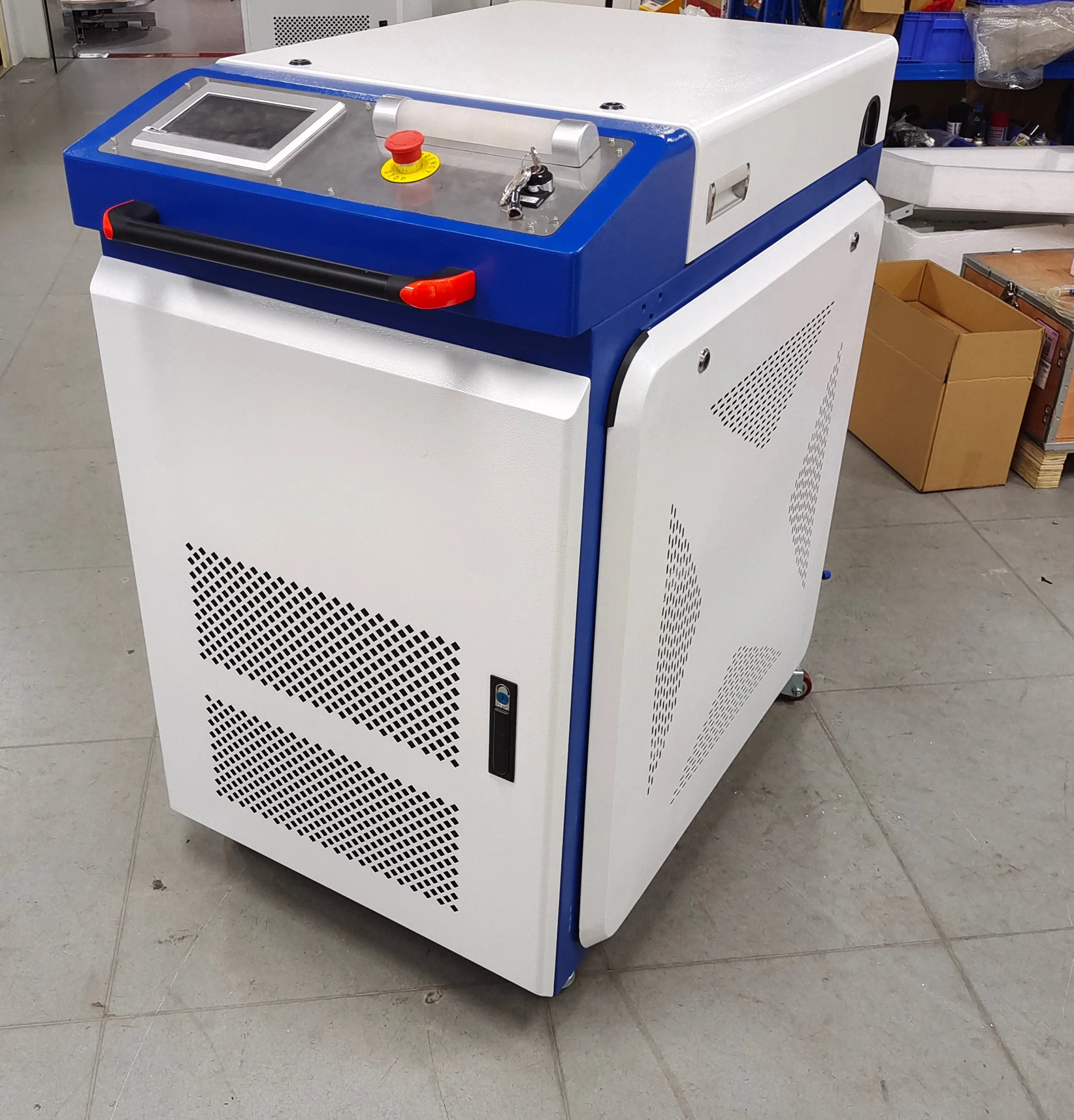

Импульсная лазерная машина для очистки мини ржавчина цена
- Категория: >>>
- Поставщик: Jinan Goodcut Cnc Machinery Co. Ltd.
Сохранить в закладки 1601209451107:
Описание и отзывы
Характеристики

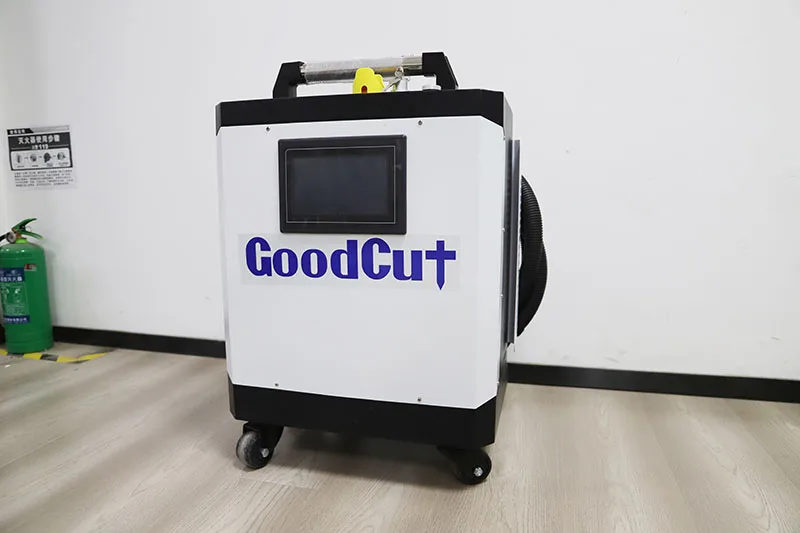

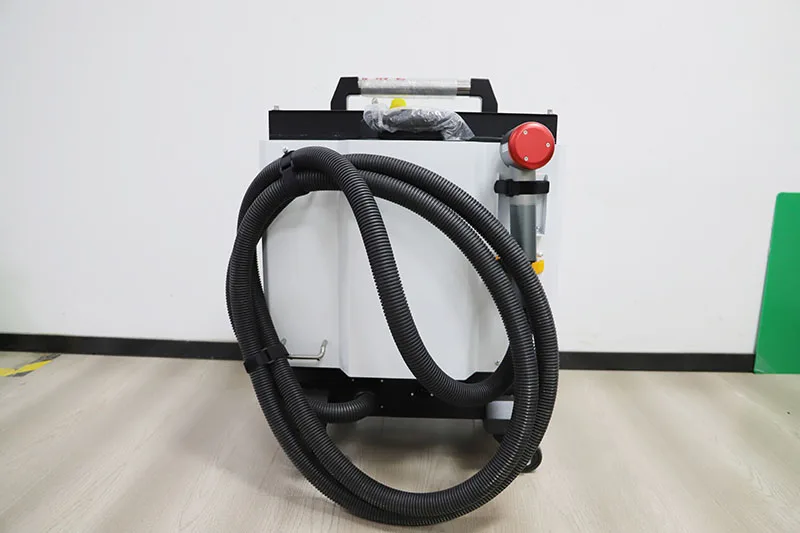

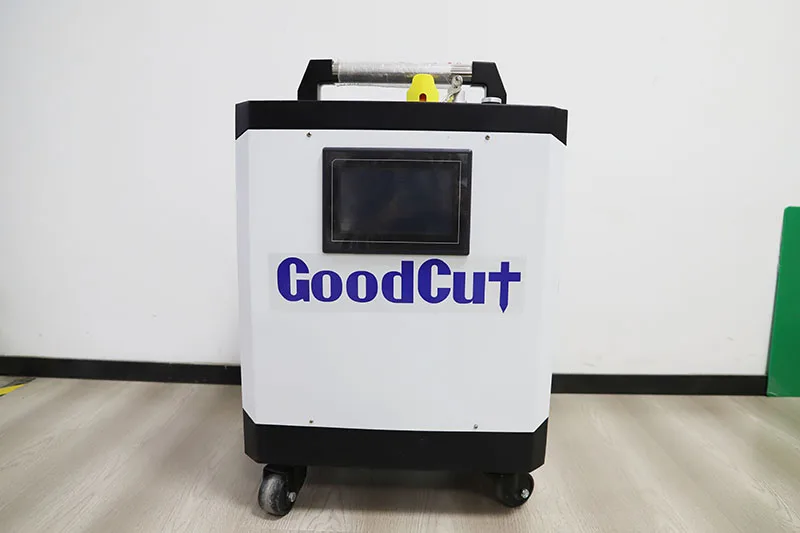

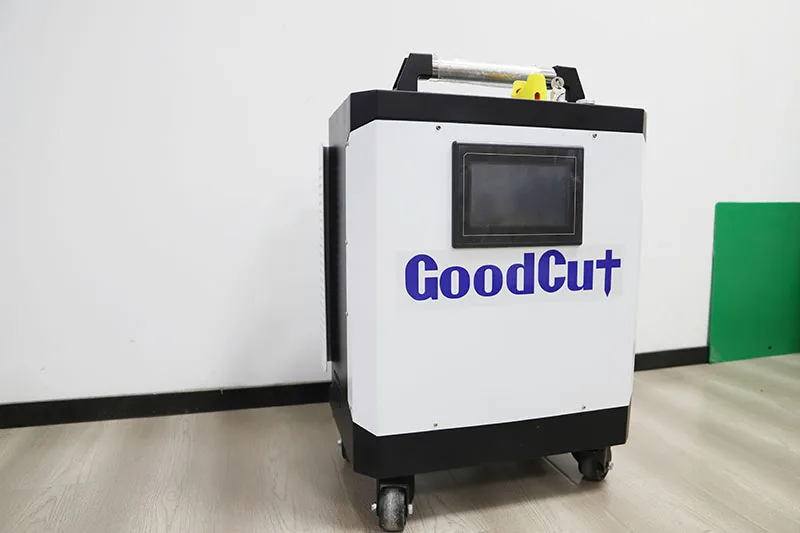

Pulse Laser Cleaning Machine Mini Laser Rust Remover Price
Parameter:
Specifications | |||
Model | GC-CP100 Pulse Laser Cleaning Machine | GC-CP200 Pulse Laser Cleaning Machine | GC-CP300 Pulse Laser Cleaning Machine |
Laser power | 100w | 200w | 300w |
Power adjustment range (%) | 10~100 | 10~100 | 10~100 |
Maximum pulse energy | 1.6mj | 1.8mj | 1.8mj |
Pulse width | 150-190ns | 10-500ns | 20-500ns |
Laser source | JPT | JPT | JPT |
Cleaning head | GuoYuan | GuoYuan | GuoYuan |
System | GuoYuan | GuoYuan | GuoYuan |
Clean head weight | <0.75kg | <0.9kg | <1.25kg |
Scan width | 0mm-100mm adjustable | 0mm-100mm adjustable | 0mm-145mm adjustable |
Scan line diameter | 160mm | 160mm | 160mm |
Delivery cable length | Factory 3 meters | Factory 5 meters | Factory 5 meters |
Laser wave length | 1070nm | 1070nm | 1070nm |
Total power | <500W | <1000W | <1200W |
Package size | 640*410*590mm | 560*640*980mm | 570*650*1030mm |
Weight | 28kg | 85kg | 85kg |
Cooling system | Air cooling | ||
Language | Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc. | ||
Cleaning mode | Line mode, rectangular first mode, rectangular two mode,prototype mode, sine mode, dual spiral mode, free mode and ring | ||
Ambient temperature range | 10-40 Degrees | ||
Ambient humidity | ≤70% | ||
Voltage | Single phase 220V ±10%, 50/60HZ AC | ||
Application | Cleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating. | Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning. | Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning. |
Feature:
1. High cleanliness.
2. Precise positioning cleaning.
3. Non-contact cleaning, protecting brittleness material surface.
4. Effective removal of micron pollution particles.
5. Environment friendly type, No consumables.
Advantage:
1. Advantages of environmental protection: laser cleaning is a "green" cleaning method. It does not need to use any chemical agent and cleaning solution. The cleaned waste is basically solid powder. It is small, easy to store and recyclable. It can easily solve the problem of environmental pollution caused by chemical cleaning.
2. Effect advantages: the traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the cleaned object,which cannot be removed and produces secondary pollution. The non grinding and non-contact of laser cleaning can solve these problems; Laser cleaning can remove various types of pollutants on the surface of various materials and achieve cleanliness that conventional cleaning cannot achieve. It can also selectively clean the pollutants on the material surface without damaging the material surface.
3. Control advantages: the laser can be transmitted through optical fiber, cooperate with manipulator and robot, conveniently realize long-distance operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.
4. Cost advantage: laser cleaning has high efficiency and saves time; Although the one-time investment in the purchase of laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time and has low operation cost.
More importantly, it can easily realize automatic operation.
Application:
1,metal surface rust removal.
2,Surface paint removal and paint stripping treatment.
3,surface oil, stains, dirt cleaning.
4, surface plating, coating removal.
5,Welding surface/spraying surface pre-treatment.
6,Stone statue surface dust and adhesion removal.
7,Rubber mould residue cleaning.
Company Information

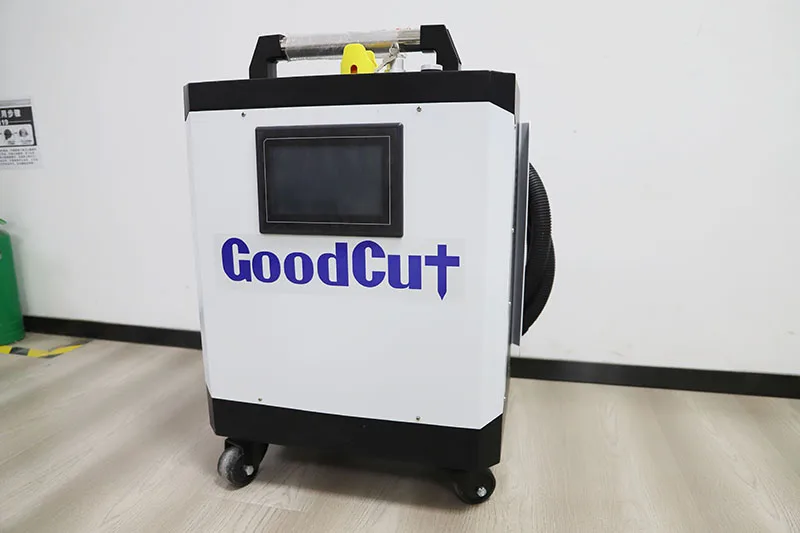

Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1.15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
Good Price
1. GoodCut manufactures about 500 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching
