Ycb из нержавеющей стали медное колесо круговой дуговой шестеренный насос

Сохранить в закладки 1601209903706:


Цена:22 042,26 ₽ - 28 654,94 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

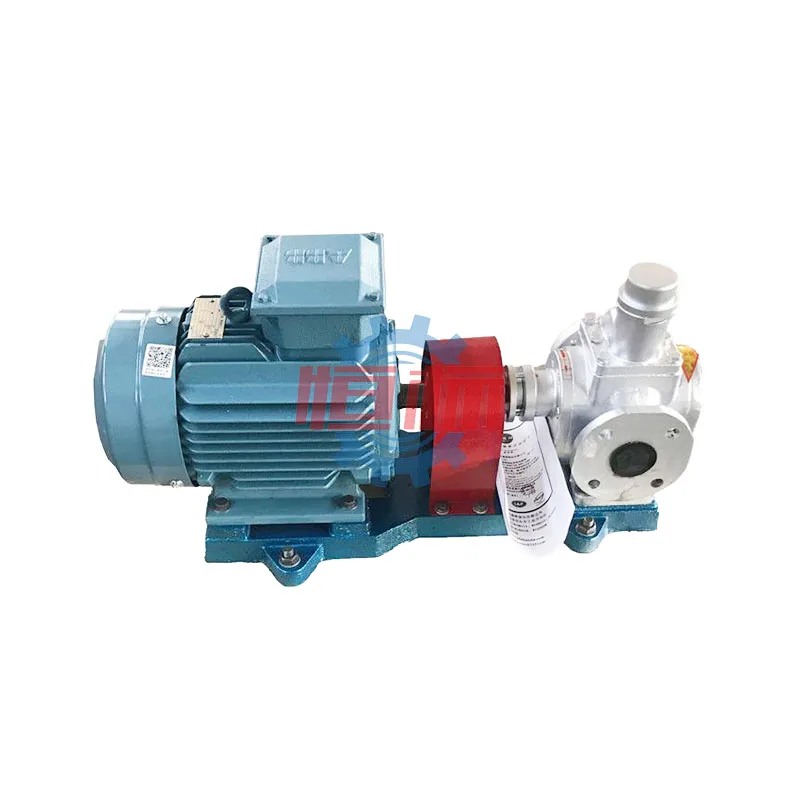

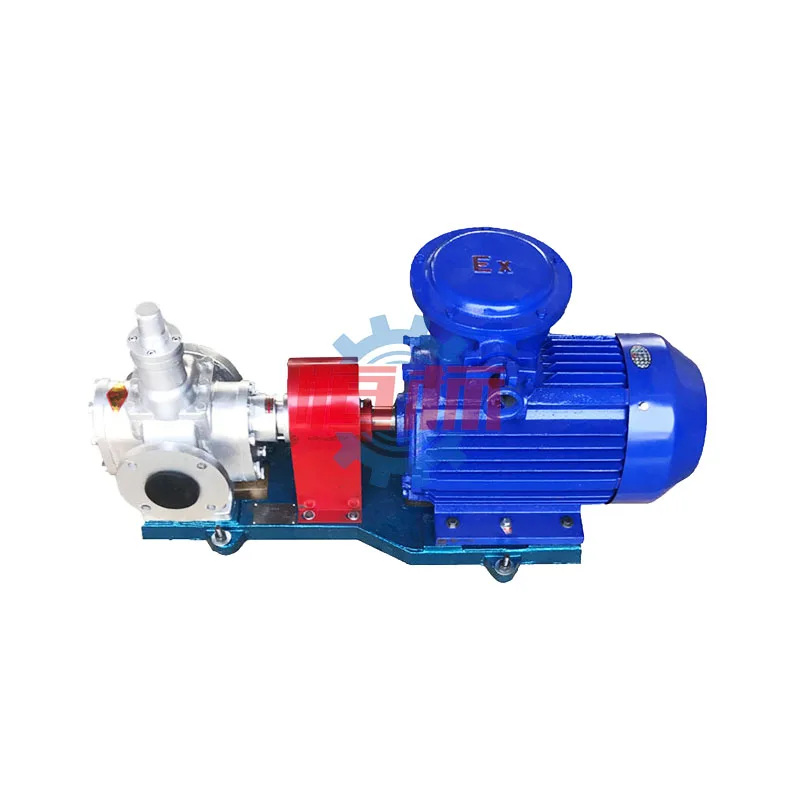

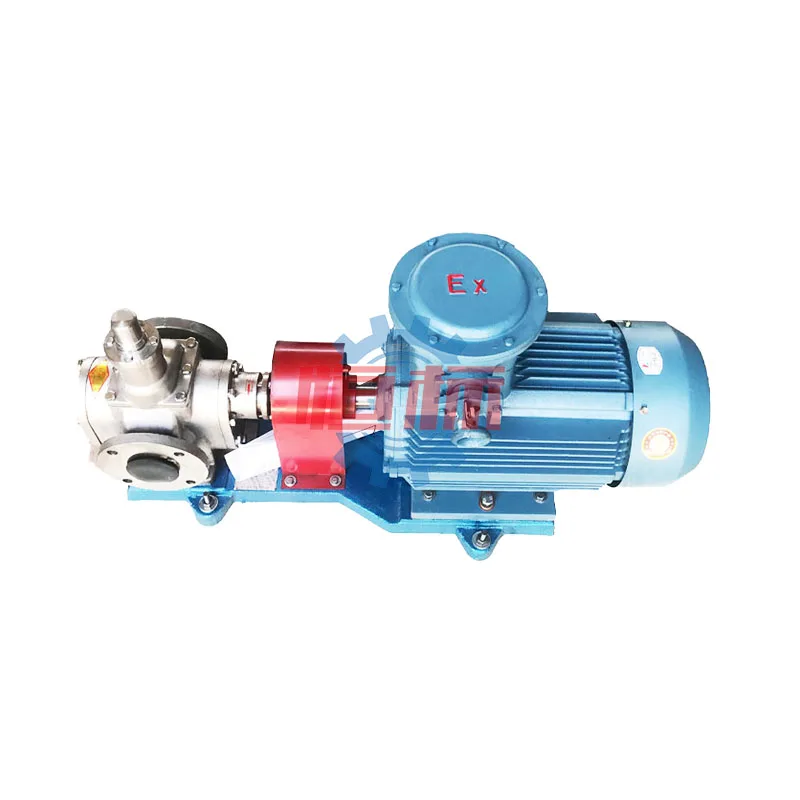

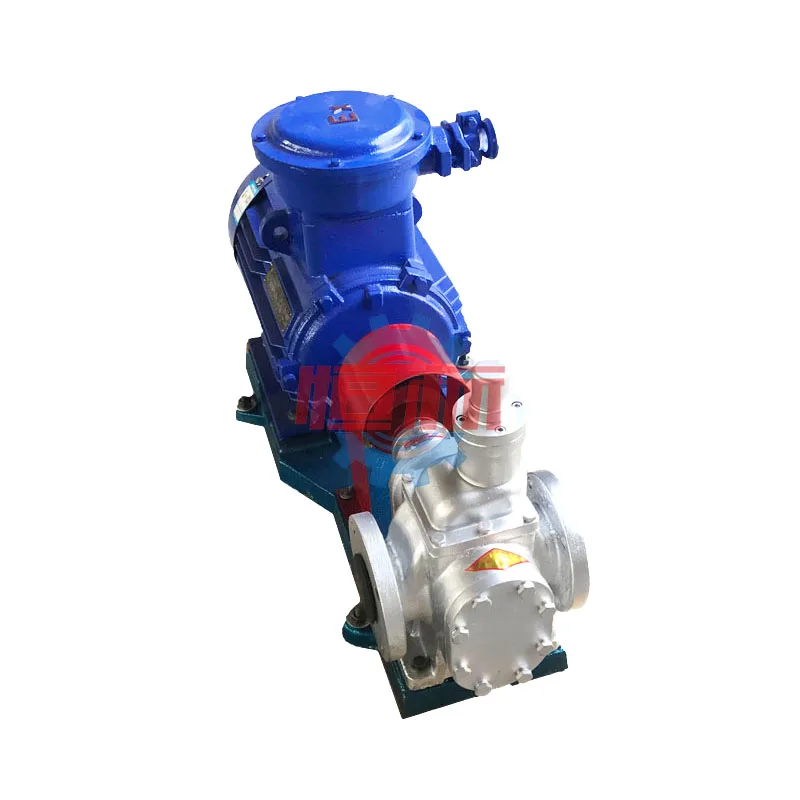

Ycb Stainless Steel Copper Wheel Circular Arc Gear Pump



Product Description





The rotary gear pump applies to delivering non-corrosive lubricating oil or equivalent liquid without solid particles and fibers.


medium temperature can not be more than 300 centi degree.


medium viscosity is 5-1500 cSt


240v oil transfer pump22YCB  oil pump





Advantages


1 rotary gear pump is horizontal, and can be designed according to user requirements.



2 Stainless steel castings are added, and the thermal insulation system is set up.
3 The arc gear pump is simple and compact, pump body and safety valve is separated, easy to use and maintain.
4 Oil pump has good self-priming function.
5 Oil pump is automatically lubricated by the oil. Therefore, there is no need to add lubricating oil.


6 In the gear meshing process, the tooth profile surface has no relative sliding, so the tooth surface has no wear
7 common motor and ex-proof motor are avaible.


8 small oil gear pump can be mounted on skid with four wheels. easy to move.


QQ20180622110237






Product display































YCB0.6-YCB1.6




flow:0.6-1.6m3/h


pressure: 0.6/1.6Mpa


power:  0.75-4kw


the rotary gear pump adopts mechanical seal or packing seal.


gear material is 40Cr 2Cr13



Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump
Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump

YCB3.3-YCB4




flow:3.3-4m3/h
pressure: 0.6/1.6Mpa
power: 1.5-7.5kw
the gear pump adopts mechanical seal or packing seal.
gear material is 40Cr 2Cr13





YCB8-YCB15




flow: 8-15m3/h
pressure: 0.6/1.6mpa
power: 3-18.5kw
the gear pump adopts mechanical seal or packing seal.

gear material is 40Cr 2Cr13



Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump
Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump

YCB20-YCB25




flow : 20-25m3/h
pressure : 0.6mpa
rotary speed: 970-1450rpm
the gear pump adopts mechanical seal or packing seal.

gear material is 40Cr 2Cr13





YCB30-YCB35




flow : 30-35m3/h
pressure : 0.6mpa
rotary speed: 970-1450rpm
the gear Pump adopts mechanical seal or packing seal.
gear material is 40Cr 2Cr13



Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump


Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump





YCB40-YCB80




flow : 40-80m3/h
pressure : 0.6mpa
power: 15-37kw
the gear Pump adopts mechanical seal or packing seal.
gear material is 40Cr 2Cr13






YCB-G type gear pump is update, has heat insulation jacket. can transfer coagulability medium, such as heavy oil , asphalt, resin, glue, detergent , etc.



Product Uses


 The rotary gear pump can be used as transfer pump or booster pump in the oil transportation system;
A fuel gear pump used in a fuel system for transportation, pressurization, and injection;
A hydraulic gear pump used to provide hydraulic power in a hydraulic transmission system;
The cirlular arc gear pump can be used as lubricating oil pump in all industrial fields.


Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump




Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump






Company Information


3-20





Packaging & Shipping


 Shenghui arc lubricant fluid transfer oil refinery electric heavy fuel oil industrial lube manufacture gear oil pump


Detail-12Detail-13





.jpg
