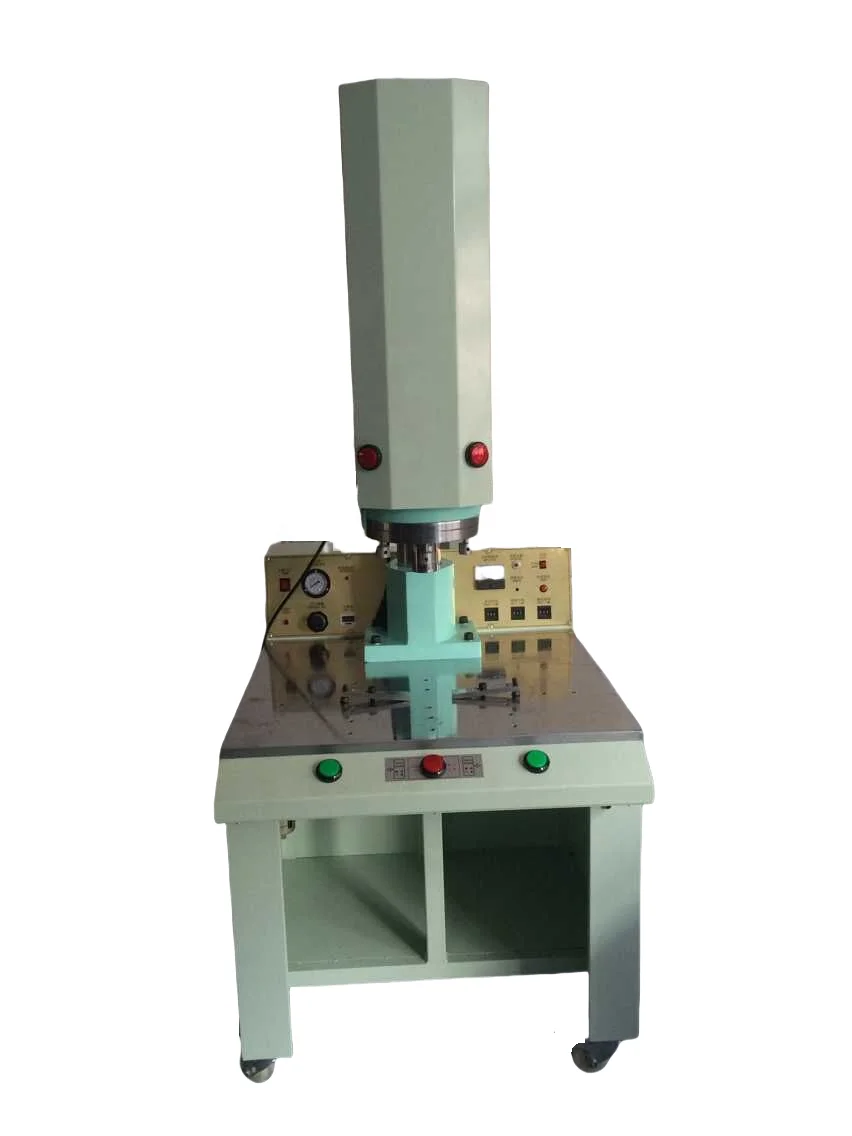

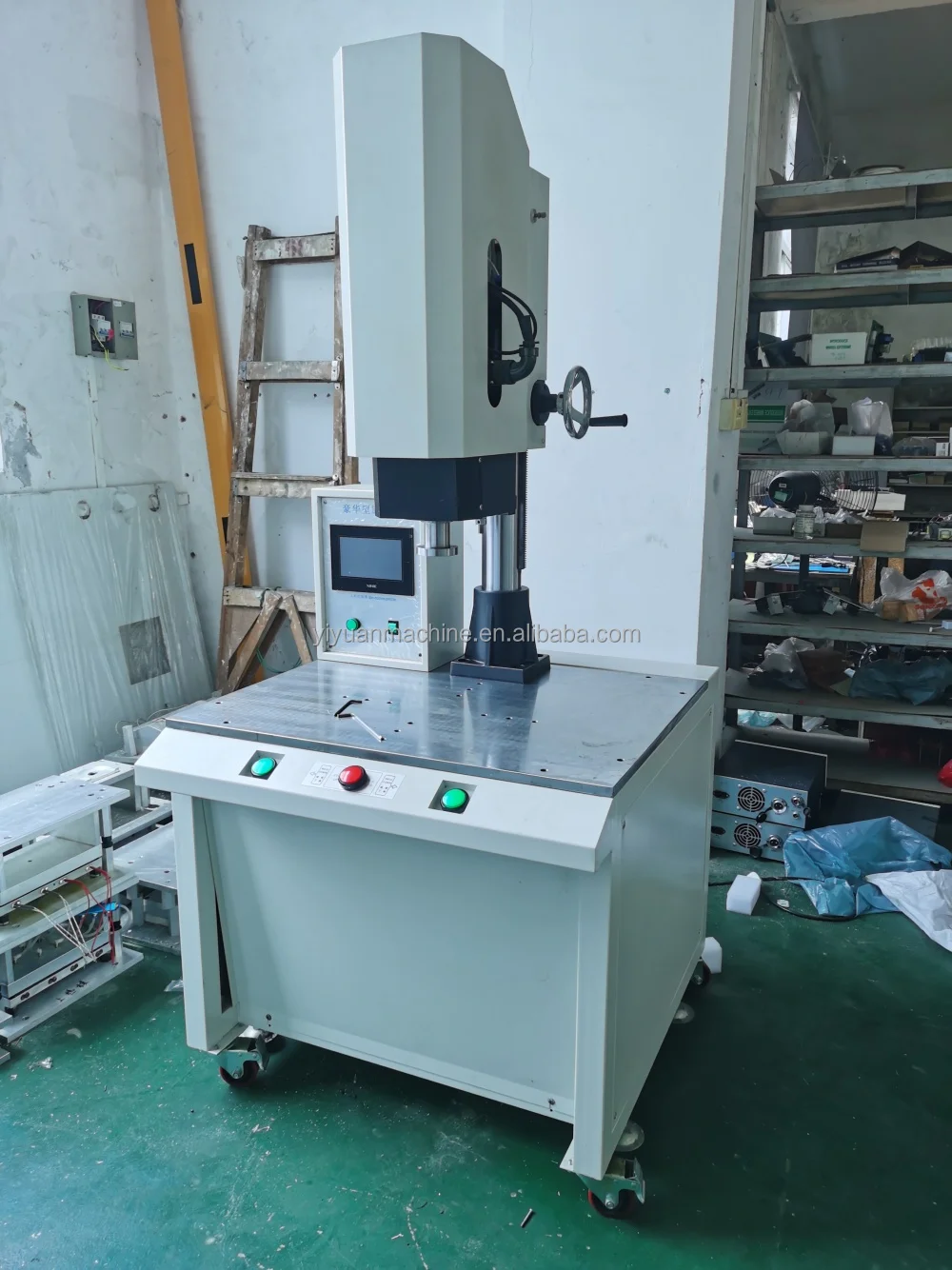

Вращающийся фрикционный станок для сварки PP nylon products
517 979,48 ₽ - 529 000,32 ₽
Прямо с завода сделанный фильтр для воды автомобильный бак пластиковый вращающийся фрикционный сварочный аппарат продажи
- Категория: >>>
- Поставщик: Huizhou Yiyuan Machinery Co. ltd
Сохранить в закладки 1601210294469:
Описание и отзывы
Характеристики

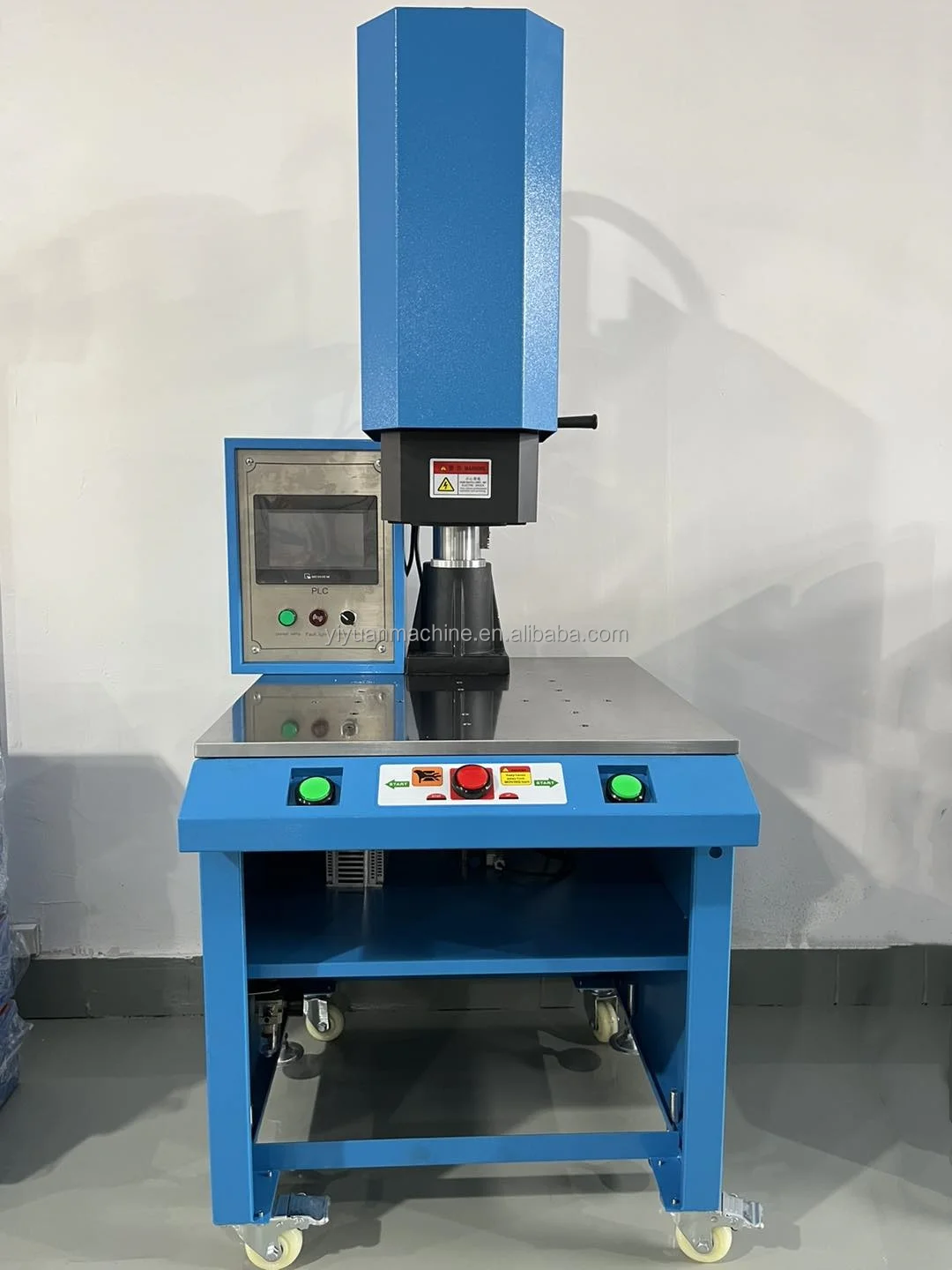

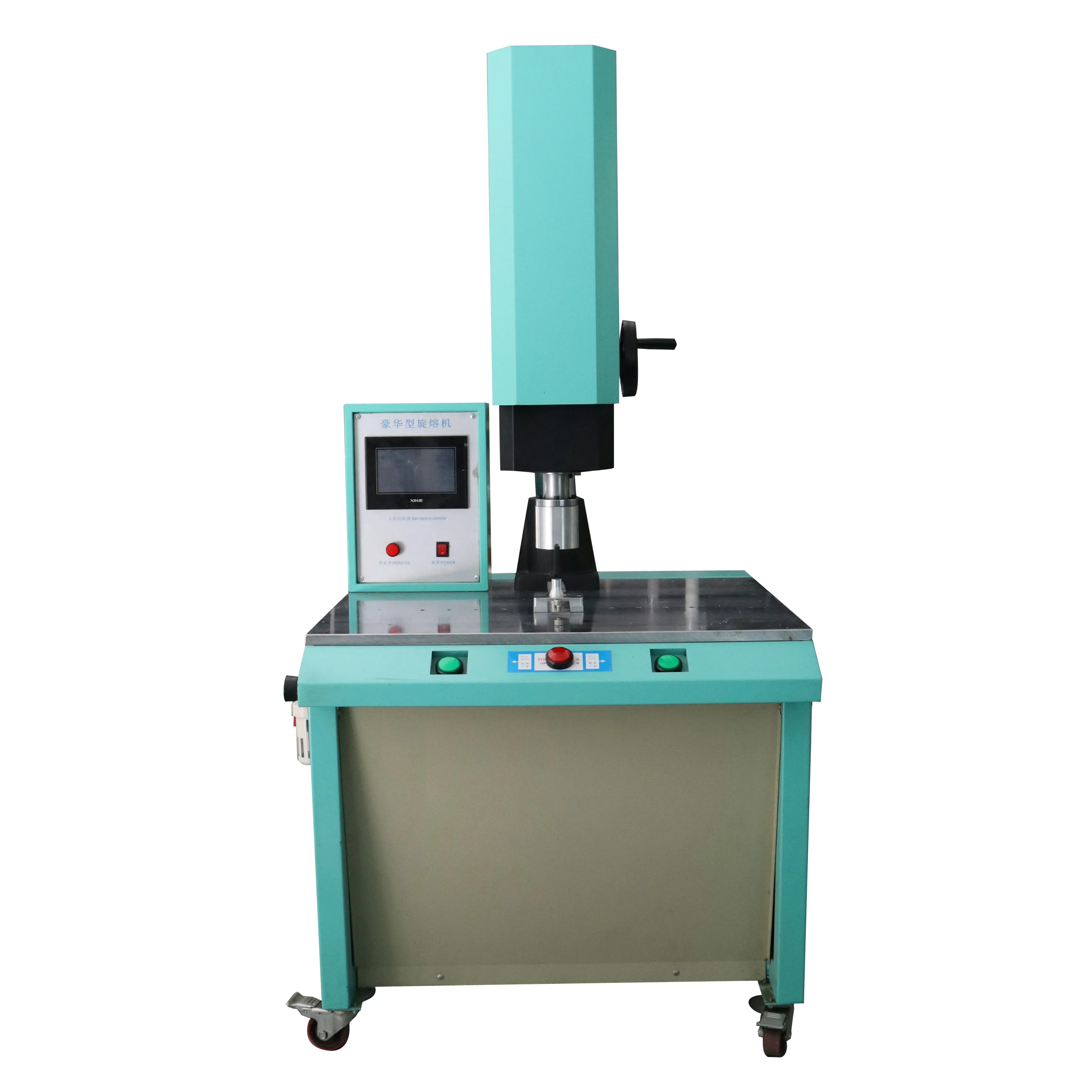

Plastic Spin Welding Machine，Rotating Friction Welding Machine
Main Features:
1. Large color touch screen with intuitive menu structure;2. High precision servo spin drive with orientation accuracy of +/- 0.1 degree;
3. Programmable welding methods include Weld by Time,Rotations Circles, Rotation Speed, pre-spin orientation;
4. Password protection of setup parameter;
5. Up to 150 mm stroke for greater versatility and easier part load and unload;
6. Integrated design eliminates cables and makes installation more compact;
7. PLC touch screen operation., simple operation and parameter setting.
8. New mechanical, electrical and pneumatic designs.
Spin Welding Process Advantages:
Spin welding is a welding technique that uses heat generated by rotational friction at the joint line to weld thermoplastic parts. In this technique, friction is used to heat the parts to be welded. It applies pressure axially as it rotates one part against another stationary part.
(1). Ability to weld parts with circular joint that are not easily welded by ultrasonic.
(2). Relatively fast cycle times when compared with other methods.
(3). Compatible with most thermoplastics.
(4). Ideal for welding of Nylon + GS filled, PP and PE materials.
(5). Ability to weld several dissimilar materials.
(6). No consumables, fumes or emissions.
(7). High strength, hermetic welds are typical.
(8). Heat confined to weld interface.
(9). Easily automated.
(10). Low cost, quick change tooling.
(11). Low maintenance.
(12). Low power consumption
(1). Ability to weld parts with circular joint that are not easily welded by ultrasonic.
(2). Relatively fast cycle times when compared with other methods.
(3). Compatible with most thermoplastics.
(4). Ideal for welding of Nylon + GS filled, PP and PE materials.
(5). Ability to weld several dissimilar materials.
(6). No consumables, fumes or emissions.
(7). High strength, hermetic welds are typical.
(8). Heat confined to weld interface.
(9). Easily automated.
(10). Low cost, quick change tooling.
(11). Low maintenance.
(12). Low power consumption
Model No | YY-SP1500 | YY-SP2030 | YY-SP2040 | YY-SP1500 | |||||
Motor Power | 1.5KW | 2.9KW | 4.4KW | 1.5KW | |||||
Motor Type | Non-servo | Servo | Servo | ||||||
Precision | N/A | 0.1 Degree | 0.1 Degree | ||||||
Power Supply | AC 380V 3P, 50/60Hz(customization offered) | ||||||||
Rotation Speed | Max.1500RPM | Max.3000RPM | Max.3000RPM | ||||||
Rotation Circles | 1-100(adjustable) | ||||||||
Welding Delay Time | 1-99 seconds(adjustable) | ||||||||
Cooling Time | 1-99 seconds(adjustable) | ||||||||
Driven Mode | Pneumatic Press(Air Compressor), Servo Press Optional | ||||||||
Air Pressure | 0.5MPa | ||||||||
Dimension | 115*90*185 CM | 115*90*215CM | 115*90*215CM | ||||||
Weight | 250KGS | 320KGS | 320KGS | ||||||
Application:
Application of Spin Welding Machine for Plastic Toys

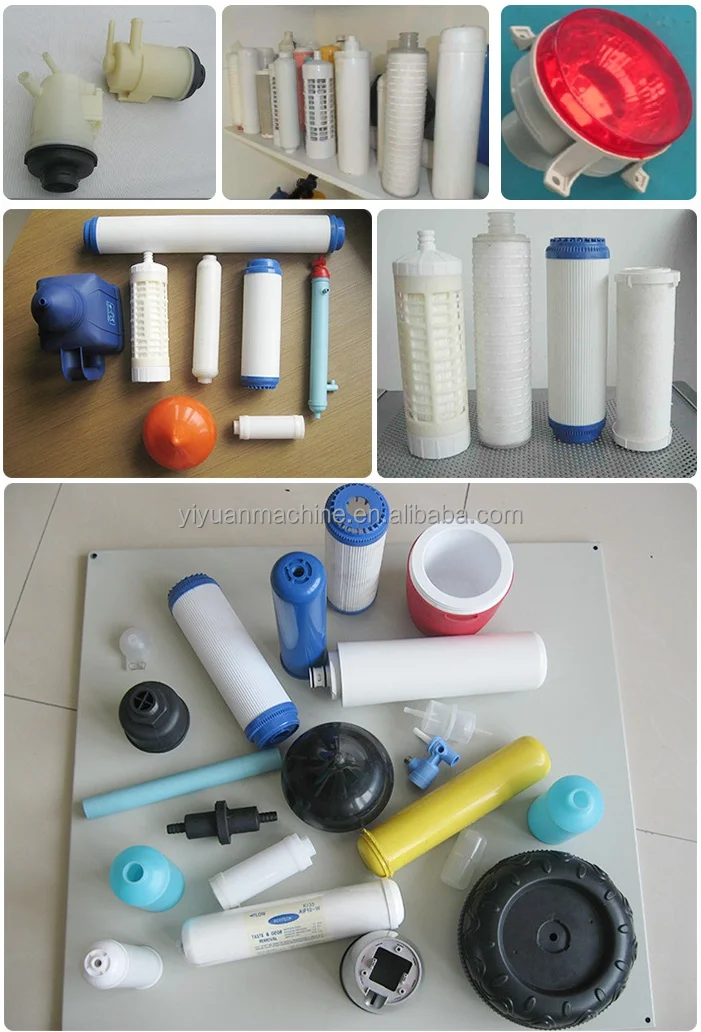

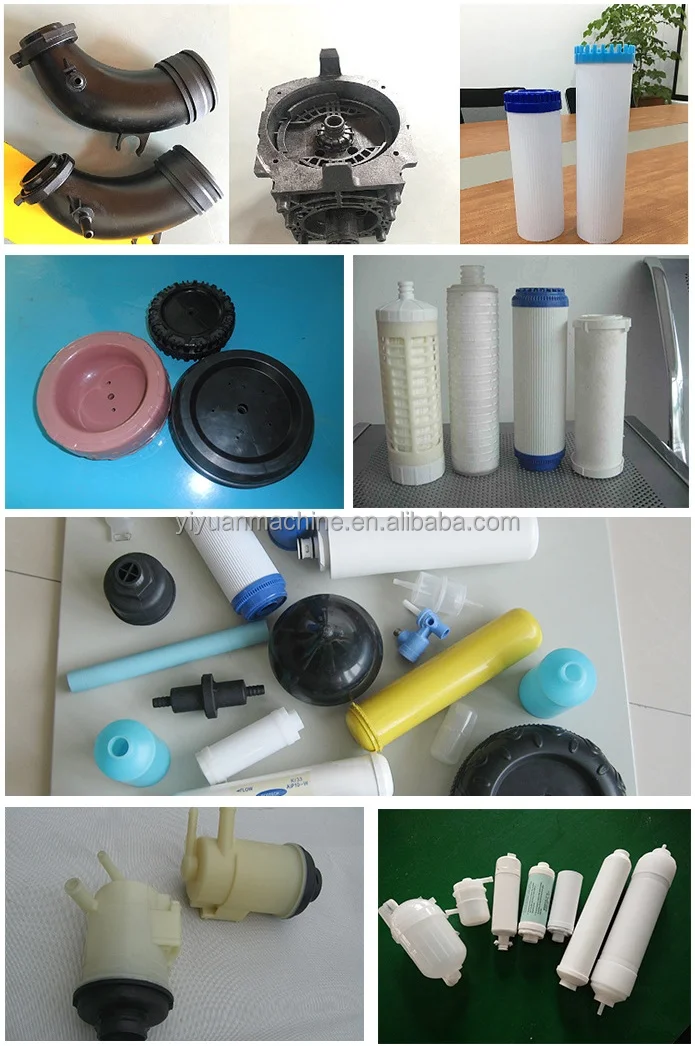

Applications that can benefit from utilizing the spin welding process include
*Automotive: Fuel system filtration, Air duct, Filter bowls, and Oil fill tube components
*Appliance: Water Valves, Refrigeration water Filtration, and Toilet components
*Irrigation system: sprinklers components
*Pool and Spa: filtration components
*Beverage: dispensing, beverage cups
*Medical: syringes
Applications that can benefit from utilizing the spin welding process include
*Automotive: Fuel system filtration, Air duct, Filter bowls, and Oil fill tube components
*Appliance: Water Valves, Refrigeration water Filtration, and Toilet components
*Irrigation system: sprinklers components
*Pool and Spa: filtration components
*Beverage: dispensing, beverage cups
*Medical: syringes
Packing & Delivery:
Standard export wood cases, no solid wooden. With soft packaging material inside the box.
Company Profile:
Huizhou YIYUAN machinery CO.,Ltd based in Guangdong, China, start from 2001,has been devoted into high frequency machine,ultrasonic machine,hot air welding machine,blister packing machines and other plastic welding machine for more than 20 years.
FAQ:
3. Why choose us ?
Innovative R&D team and professional production department,provied high value-added products to customer.Strict quality control system,make sure all machines be tested before delivery.
Excellent sales team,help customer choose suitable products and provide great after-sale service
1. Who are we?
We are based in Guangdong, China, start from 2001,has been devoted into high frequency machine,ultrasonic machine,hot air welding machine,blister packing machines and other plastic welding machine for more than 20 years.
We are based in Guangdong, China, start from 2001,has been devoted into high frequency machine,ultrasonic machine,hot air welding machine,blister packing machines and other plastic welding machine for more than 20 years.
2. What do we produce ?
High frequency welding machine:
High frequency welding machine:
For shoes/footwear indutry,garment/clothes,pvc packing bag/pvc blister packing,for pvc/eva/tpu medical bags,for waterproof bag,for pvc book cover/file folders etc.PU/PVC leather embossing,TPU badge/patches
,logo making,pvc inflatable products,car seat cover,PVC carpet/coil mat welding & embossing and all high frequency welding & embossing
Ultrasonic welding machine:
ABS,PC,PP,PS,Acrylic,Non-woven,Nylon etc plastic part welding,ribbon & fabric welding.
Packing Machines:
Blister packing machines,skin packing machine,blister card packing machines,vacuum packing machines.
Plastic vacuum forming machine:
use for PVC,PP,PS,PET,PETG and Acrylica plastic vacuum forming
Hot air welding machines:
For waterproof clothes,inflatable product like floating boat，Canoe Lifeboat etc
Spin welding machines
3. Why choose us ?
Innovative R&D team and professional production department,provied high value-added products to customer.Strict quality control system,make sure all machines be tested before delivery.
Excellent sales team,help customer choose suitable products and provide great after-sale service
when machines arrive to customer site.
Contact Details:
Huizhou Yiyuan Machinery Co.,Ltd | ||
Contact | Jack Zhu | |
Mobile/Whats App/wechat | +86 15017056514 | |
Email: | jingyihf@aliyun.com | |
Youtube | https://www.youtube.com/channel/UClrrhp0S4ffhadPy-hz-CuQ | |
Facebook | facebook.com/hfplasticwelder | |
Website | www.yiyuanmachine.en.alibaba.com | |
Add: Longqiu 2nd Str,Longxi Town,Boluo County, Huizhou,Guangdong Province | ||
