Гроватт на сетке Гибридные солнечные инверторы 20 кВт 30 кВт Гибридные солнечные инверторы на сетке Growatt
117 762,39 ₽
Мощный инвертор 5 кВт 10 8 12
- Категория: >>>
- Поставщик: Shenzhen Hehejin Industrial Co. Ltd.
Сохранить в закладки 1601210312679:
Описание и отзывы
Характеристики
Product Description
Feature
⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Support three-phase pure sine wave output (350~415V)
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, back fill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Support three-phase pure sine wave output (350~415V)
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, back fill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Specification
POW-SunSmart | POW-SunSmart | |||||||||
INVERTER OUTPUT | ||||||||||
Rated Output Power | 8,000W | 12000W | 10000W | 10000W | 5000W | |||||
Rated Output Voltage | 230/400Vac (three-phase) | 230/400Vac (three-phase) | 120/240Vac | 120/240Vac | 110/120Vac | |||||
Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||
Output Waveform | pure sine wave | pure sine wave | pure sine wave | pure sine wave | pure sine wave | |||||
Switching Time | 10ms | 10ms | 10ms | 10ms | 10ms | |||||
BATTERY | ||||||||||
Rated Battery Voltage | 48Vdc | 48Vdc | 48Vdc | 48Vdc | 48Vdc | |||||
Max. PV Charging Current | 180A | 260A | 200A | 200A | 100A | |||||
Max. Hybrid Charging Current | 180A | 260A | 200A | 200A | 100A | |||||
PV INPUT | ||||||||||
No. of MPPT | 2 | 2 | 2 | 2 | 1 | |||||
Max. Input Power | 6000W/6000W | 9000W/9000W | 11,000W | 11,000W | 5500W | |||||
Max. Input Current | 22/22A | 22/22A | 22/22A | 22/22A | 22/22A | |||||
Max. Open-circuit Voltage | 800Vdc | 800Vdc | 500Vdc | 500Vdc | 500Vdc | |||||
MPPT Operating Voltage Range | 200-650Vdc | 200-650Vdc | 125-425Vdc | 125-425Vdc | 120-500Vdc | |||||
GENERAL | ||||||||||
Dimensions | 620*445*130mm | 620*445*130mm | 620*445*130mm | 620*445*130mm | 446.9*350*133mm | |||||
Weight | 27kg | 27kg | 27kg | 27kg | 14Kg | |||||
COMMUNICATION | ||||||||||
Internal Interface | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | USB/RS485/Dry contact | |||||
External Module (optional) | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | |||||
CERTIFICATION | ||||||||||
Safety | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | CE(IEC62109-1) | |||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000 | |||||
RoHS | Yes | Yes | Yes | Yes | Yes | |||||
Recommend Product
Shenzhen HeHejin Industrial Co.,Ltd(Hongkong YSmart Technology Co.,Ltd) is an energetic and technological innovative company,
dedicated in researching, manufacturing and marketing solar related proudcts,the factory islocated in Shenzhen China.We provide
products including Solar Controllers,Micro Grid Tie Inverters,Solar Lamps,MC4 Connectors and other Solar Related Products. The
company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the
relevant national company check (CE), get high evaluation of the customer. Since 2009, our service has been expanded to all over
world.Our products are widely used in Spain,United Kingdom,France,India,Italy,Australia and many other countries and regions ,and
have been extensively applied and highly appraised in a number of major projects. "Quality first, customer orientation" is our
purpose. YSmart Technology will be committed to provide the best service to you! Product line: 1A-100A Solar Charge Controllers;
500W-5000W Off Grid Tie Inverter; 200W-2000W Micro Grid Tie Inverters; MC-4 Solar Panel Connectors; Solar Water Pump; Solar
Related Products.
dedicated in researching, manufacturing and marketing solar related proudcts,the factory islocated in Shenzhen China.We provide
products including Solar Controllers,Micro Grid Tie Inverters,Solar Lamps,MC4 Connectors and other Solar Related Products. The
company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the
relevant national company check (CE), get high evaluation of the customer. Since 2009, our service has been expanded to all over
world.Our products are widely used in Spain,United Kingdom,France,India,Italy,Australia and many other countries and regions ,and
have been extensively applied and highly appraised in a number of major projects. "Quality first, customer orientation" is our
purpose. YSmart Technology will be committed to provide the best service to you! Product line: 1A-100A Solar Charge Controllers;
500W-5000W Off Grid Tie Inverter; 200W-2000W Micro Grid Tie Inverters; MC-4 Solar Panel Connectors; Solar Water Pump; Solar
Related Products.
FAQ
Q1: How to insatll and use the solar inverter? A1: We have the English teaching manual and videos; All the videos about every step
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
Похожие товары
Солнечный инвертор Deye SUN-23/25/30K-G04-LV 23 кВт 25 кВт 30 кВт солнечный инвертор на сетке
3 кВт, 5 кВт, 8 кВт, 10 кВт, гибридный солнечный инвертор на сетке, инверторы с разделенной фазой, инвертор с контроллером солнечного заряда Mppt
57 017,17 ₽ - 64 692,56 ₽
200 кВт 300 кВт 500 кВт 1 МВт сетка-галстук солнечная система канадская 100 кВт 110 кВт на сетке инвертор с Wi-Fi
258 660,58 ₽ - 276 094,68 ₽
Гибридный инвертор Growatt, 3 кВт, 24 В постоянного тока, солнечные инверторы
12 061,33 ₽ - 14 254,30 ₽
2024 deye Гибридный инвертор 5 кВт 6 кВт 7 кВт 8 кВт SUN-SG05LP1-EU инвертор Гибридный на сетке инвертор deye eu
786,00 $ - 815,00 $
Недорогой Гибридный Инвертор солнечной энергии с немодулированным синусоидальным сигналом мощностью 3 кВт, 5 кВт, 6 кВт, HYD 5000-ES Growatt SPH5000

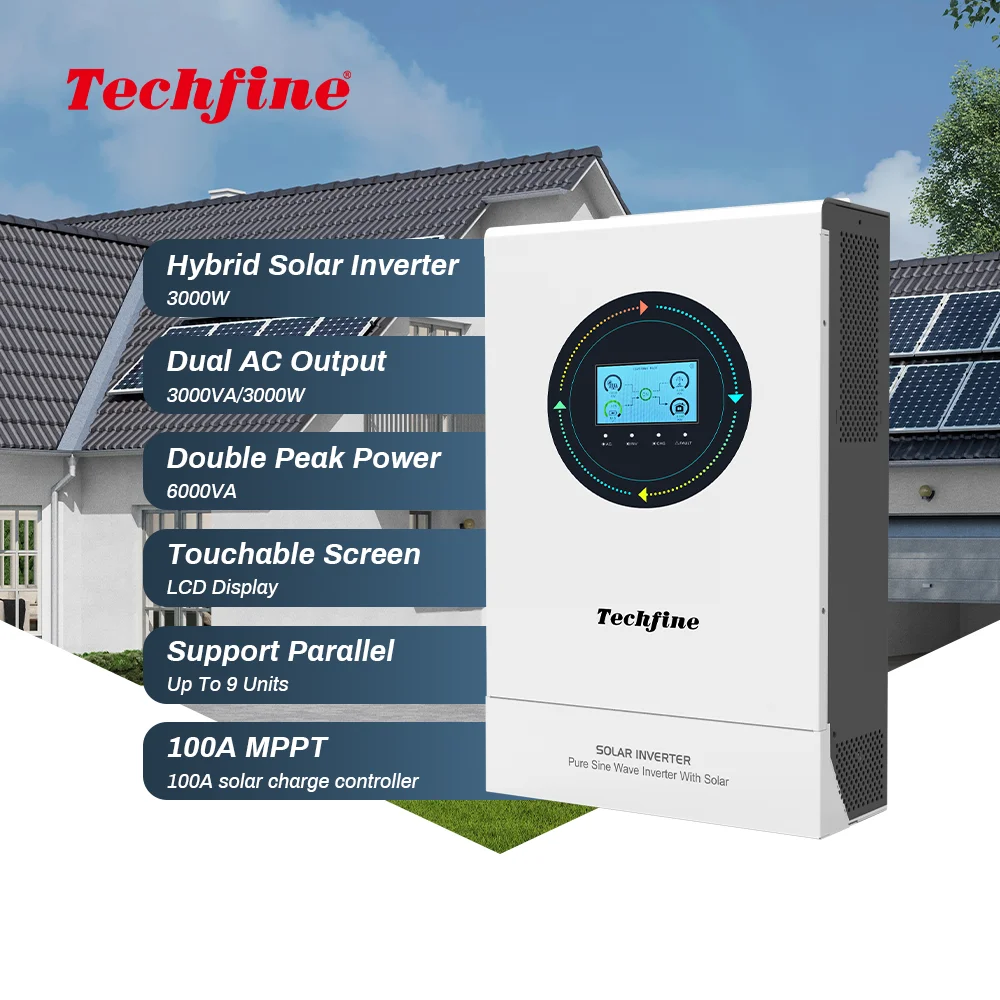

Синусоидальный солнечный инвертор Techfine, 3 кВт, 3000 Вт, 48 В, 24 В, 220/230 В, двойной переменный ток, 100 А, MPPT, солнечный гибридный инвертор
