Main Features:

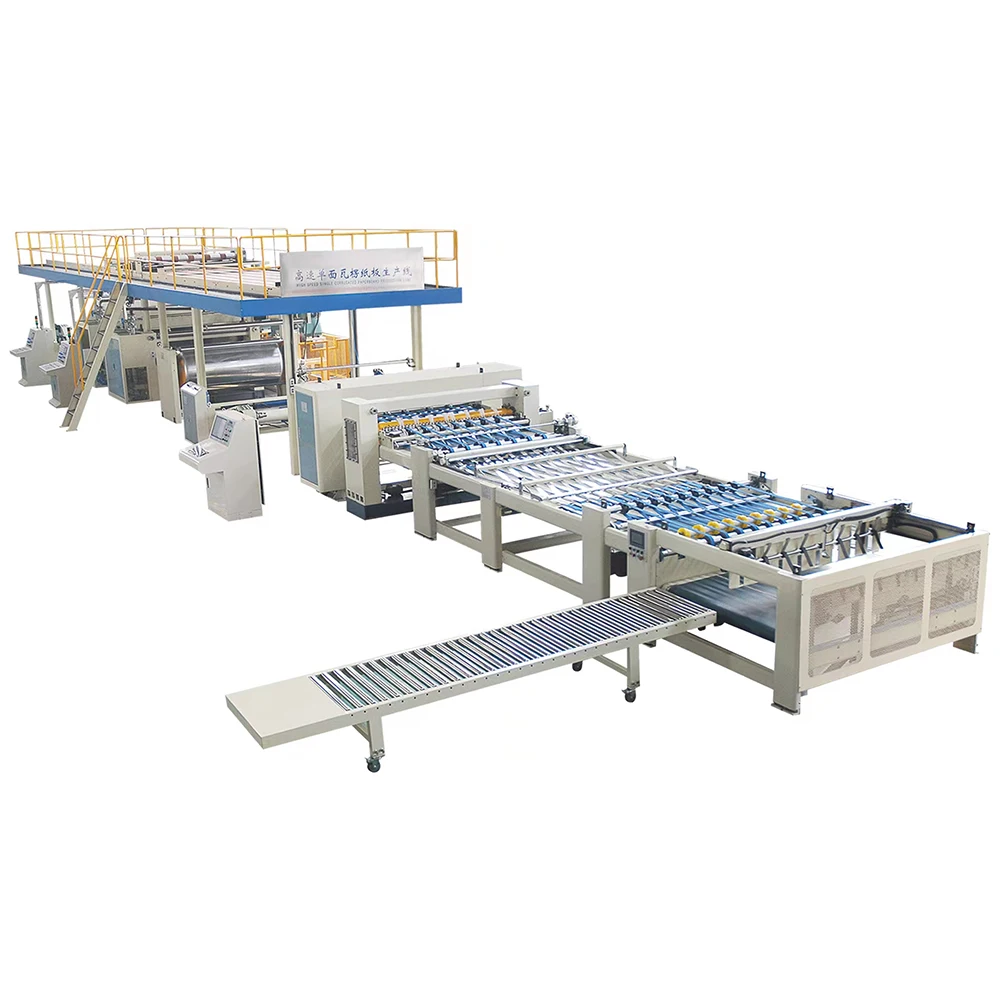

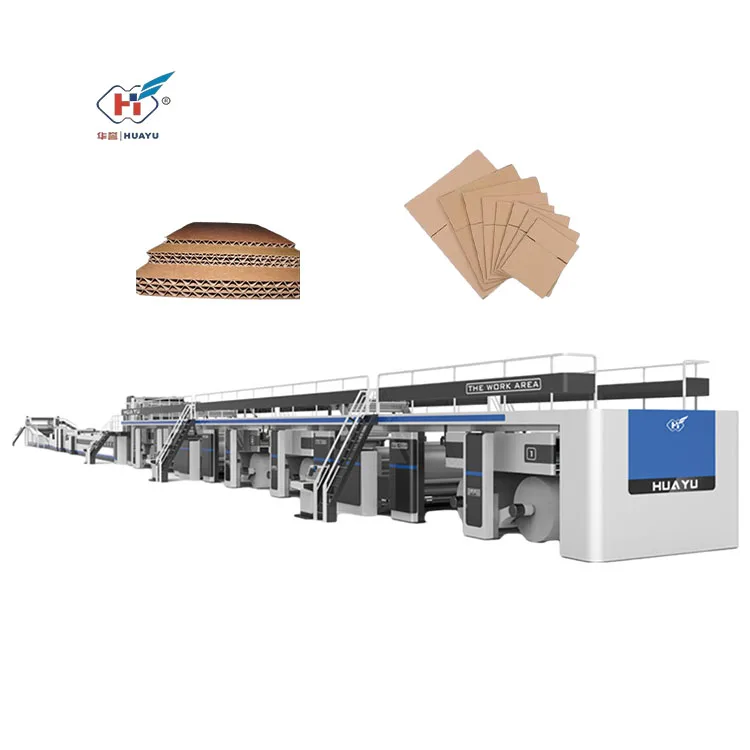

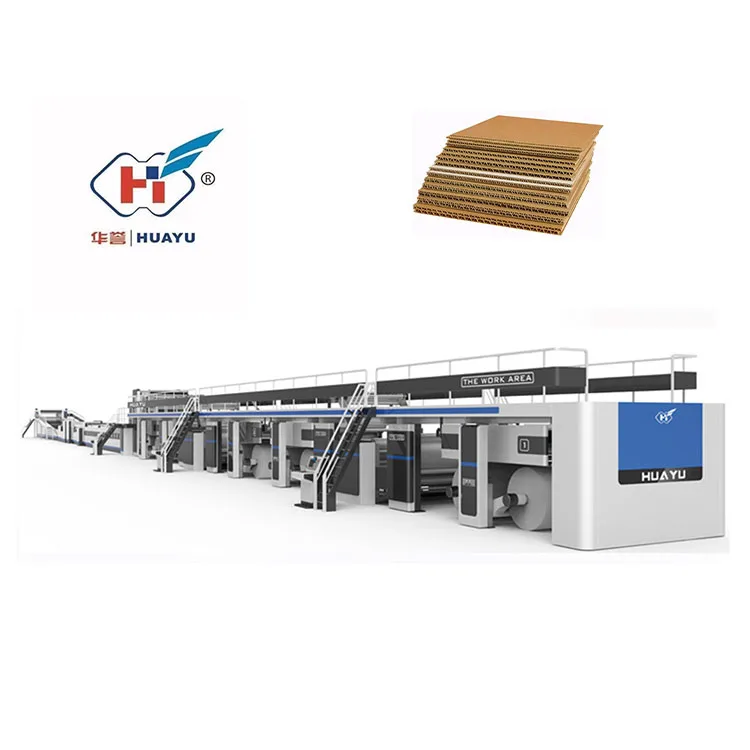

Corrugated board production line is composed of hydraulic mill roll stand, pre-heater, single facer machine, overhead bridge, gluing machine, double facer machine, thin blade slitter scorer machine, cut-off machine, stacker machine, gluing making station, which can be continuously produced and cut into the required specifications of corrugated board. Our company's production line automation degree is high, can improve the level of production management, to achieve high quality, save energy, save manpower, reduce consumables, reduce waste purposes.

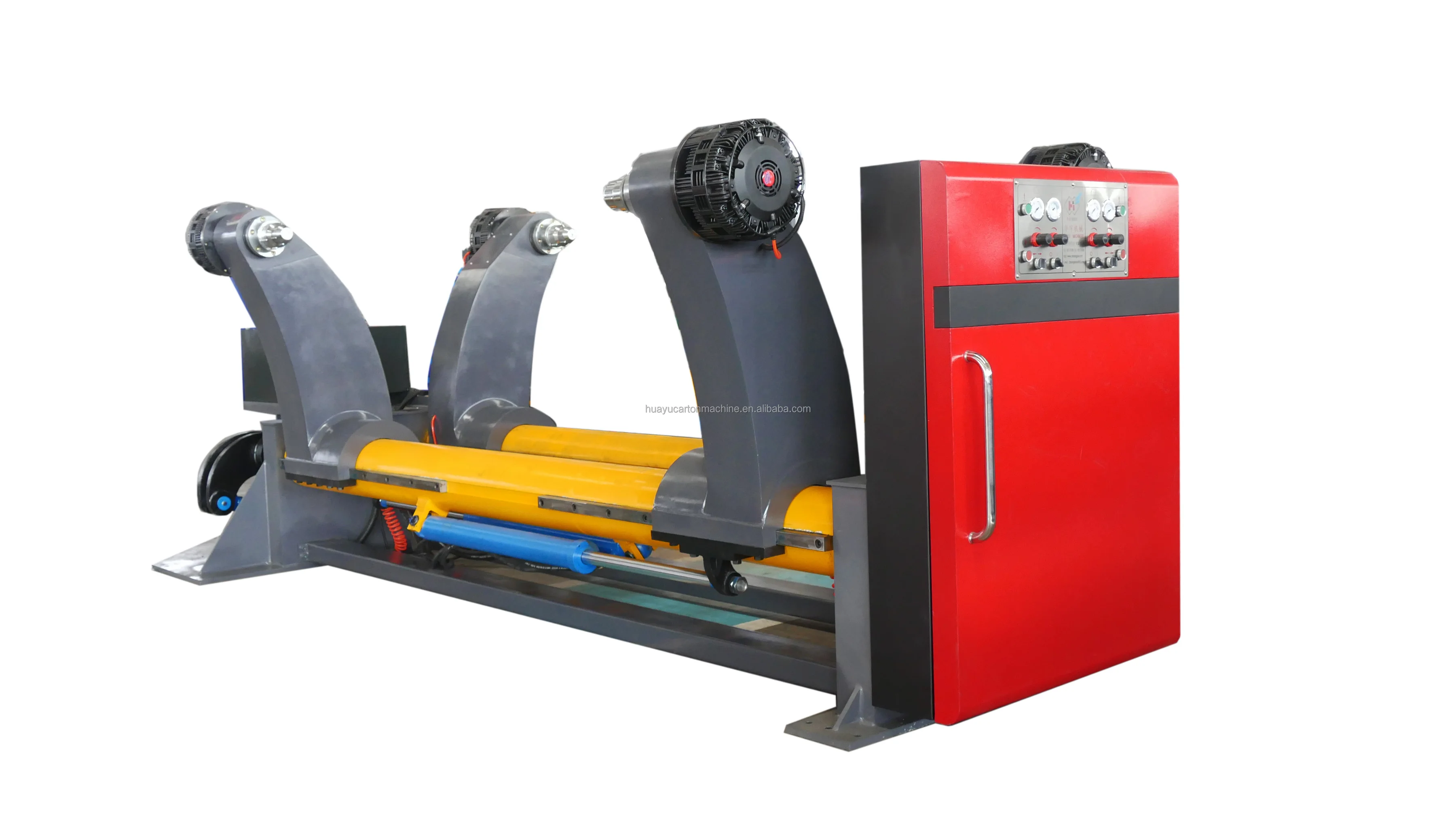

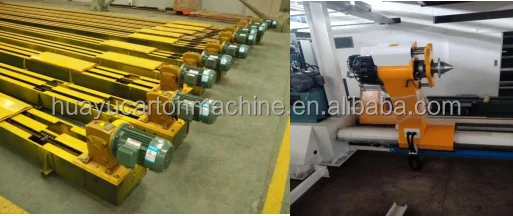

1. ZJ-YHeavy type hydraulic mill roll stand
Structural features:
★ It adopts double roller symmetrical four arm structure, which can support two rolls of base paper at the same time
★ The clamping, loosening, lifting, left-right translation and other operations of the base paper are hydraulically driven
★ Imported multi-point braking device and expanded paper clamping head are adopted to reduce the waste of base paper
★ The clamping, loosening, lifting, left-right translation and other operations of the base paper are hydraulically driven
★ Imported multi-point braking device and expanded paper clamping head are adopted to reduce the waste of base paper
2. Paper loading trolley and guide rail
Structural features:
★ Push the web into position
★ The track is buried as a whole. The main frame is 14 channel steel welded with ￠ 20mm cold drawn round steel. The length of the ground rail is 6000mm
★ Each paper rack is equipped with two paper loading trolleys, which can load paper from both sides at the same time
★ Push the web into position
★ The track is buried as a whole. The main frame is 14 channel steel welded with ￠ 20mm cold drawn round steel. The length of the ground rail is 6000mm
★ Each paper rack is equipped with two paper loading trolleys, which can load paper from both sides at the same time

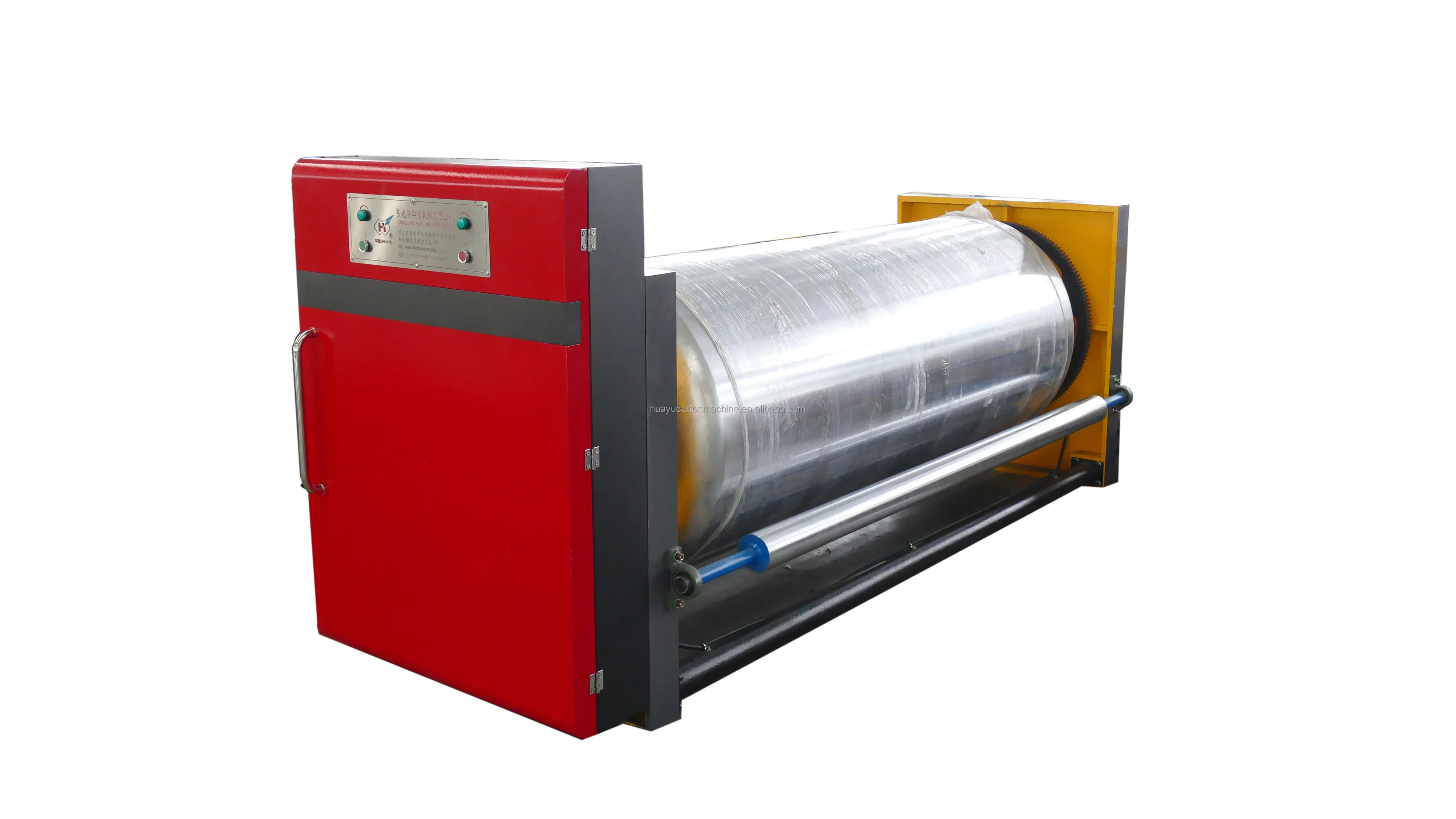

3. RG-1000 Pre-heater
Structural features:
★ The preheating roller meets the national standard of class I pressure vessel, and is attached with pressure vessel certificate and inspection certificate
★ After precision grinding, the surface of each roller is finely ground and plated with hard chromium. The surface friction is small and durable
★ Electrically adjust the wrapping angle, which can rotate and adjust the heating area of the paper within 360 °
★ The preheating roller meets the national standard of class I pressure vessel, and is attached with pressure vessel certificate and inspection certificate
★ After precision grinding, the surface of each roller is finely ground and plated with hard chromium. The surface friction is small and durable
★ Electrically adjust the wrapping angle, which can rotate and adjust the heating area of the paper within 360 °

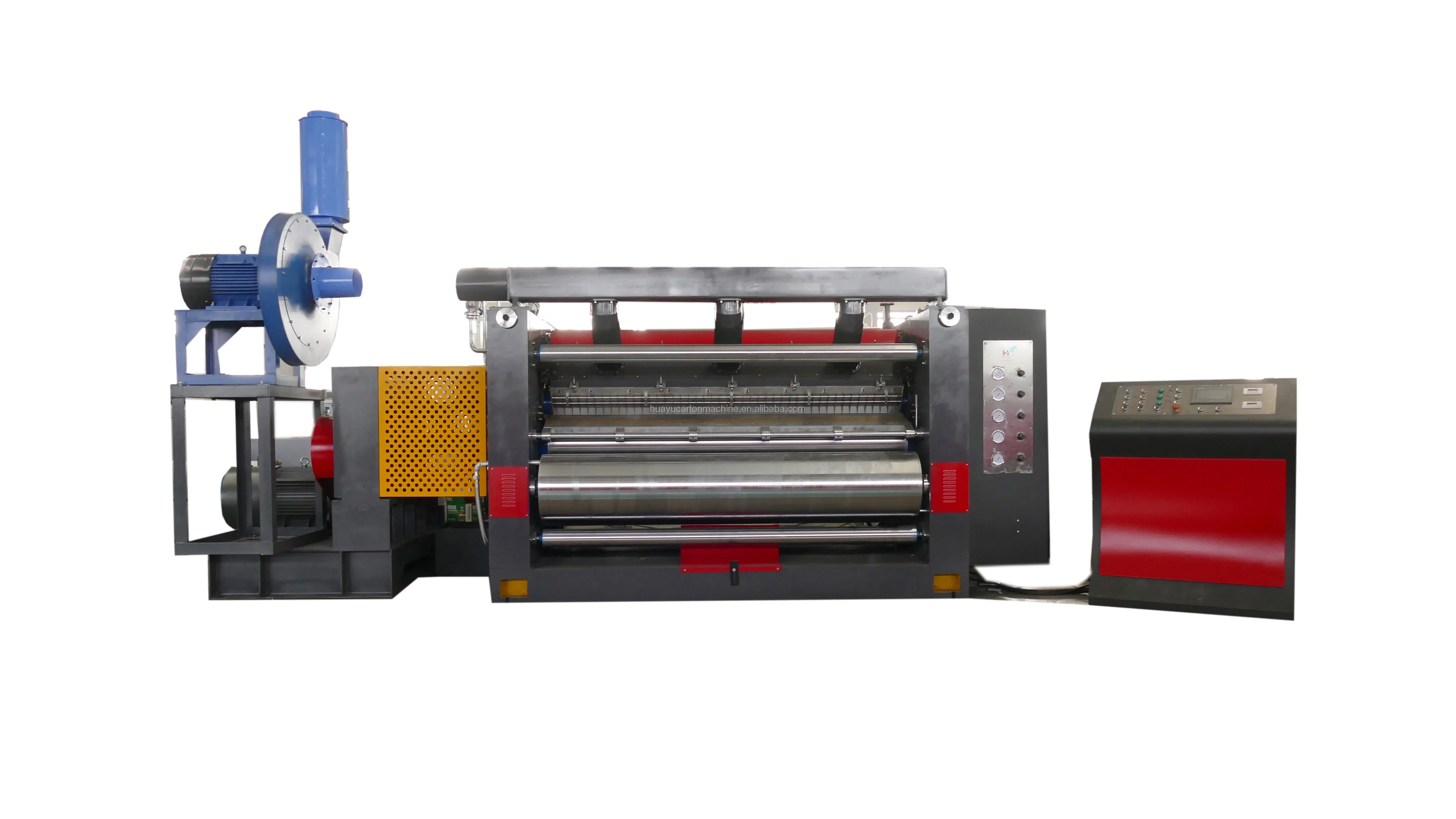

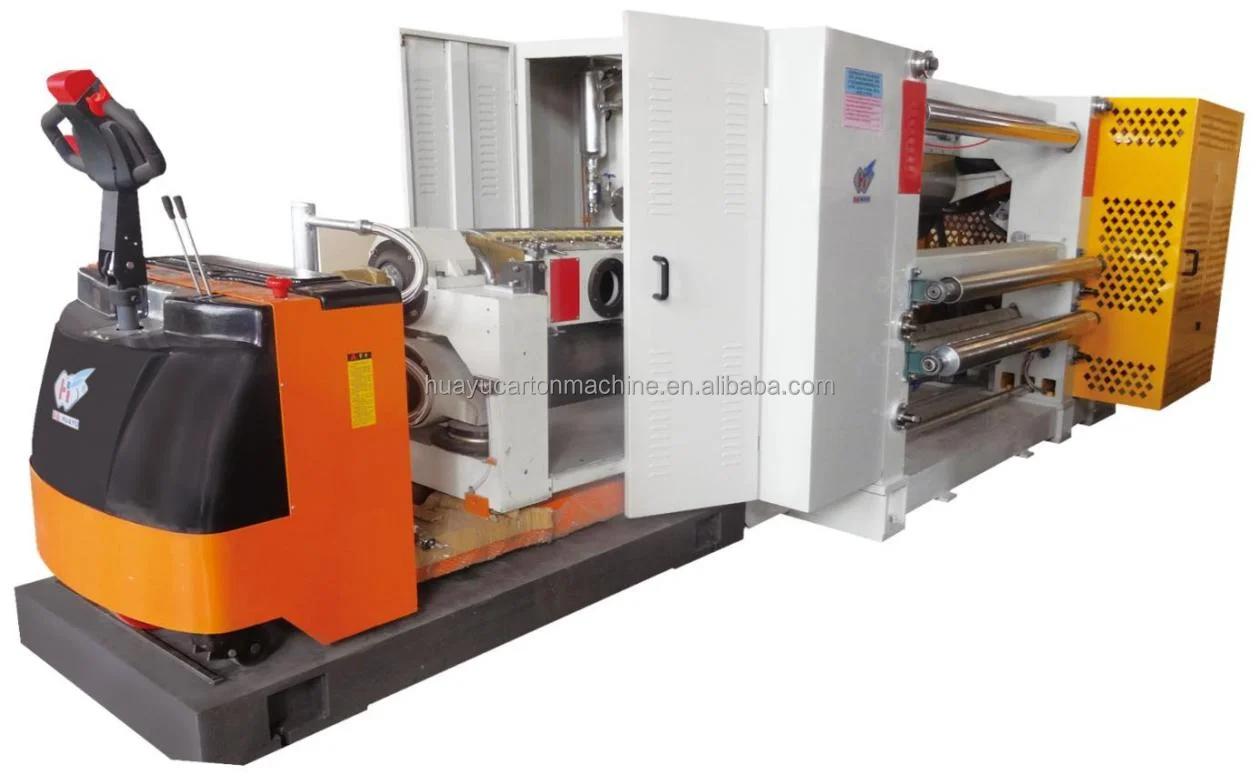

4. SF-380D Cassette type single facer machine
Structural features:
★ The upper and lower corrugated rollers are made of 52crmo high-quality alloy steel. After heat treatment, the hardness is above HV1200
★ The surface of the rubber coating roller is treated with anilox engraving and chrome plating to make the glue coating more uniform and less glue loss and waste
★ The negative pressure design is adopted, so that the corrugated paper can be evenly pressed and attached to the surface of the corrugated roller, and the glue is evenly coated to make the bonding condition of single-sided corrugated paper better
★ The surface of the rubber coating roller is treated with anilox engraving and chrome plating to make the glue coating more uniform and less glue loss and waste
★ The negative pressure design is adopted, so that the corrugated paper can be evenly pressed and attached to the surface of the corrugated roller, and the glue is evenly coated to make the bonding condition of single-sided corrugated paper better
4-1. SF-380C adsorption single facer machine
Structural features:
★ The upper and lower corrugated rollers are made of 52crmo high-quality alloy steel. After heat treatment, the hardness is above hv1200, and the surface is treated with tungsten carbide
★ The surface of the rubber coating roller is treated by anilox engraving and chromium plating to make the glue coating more uniform and less glue loss
★Negative pressure design is adopted, so that the corrugated paper can be pressed evenly and attached to the surface of the corrugated roller, and glue is applied evenly to make the bonding of single-sided corrugated paper better
★ The upper and lower corrugated rollers are made of 52crmo high-quality alloy steel. After heat treatment, the hardness is above hv1200, and the surface is treated with tungsten carbide
★ The surface of the rubber coating roller is treated by anilox engraving and chromium plating to make the glue coating more uniform and less glue loss
★Negative pressure design is adopted, so that the corrugated paper can be pressed evenly and attached to the surface of the corrugated roller, and glue is applied evenly to make the bonding of single-sided corrugated paper better

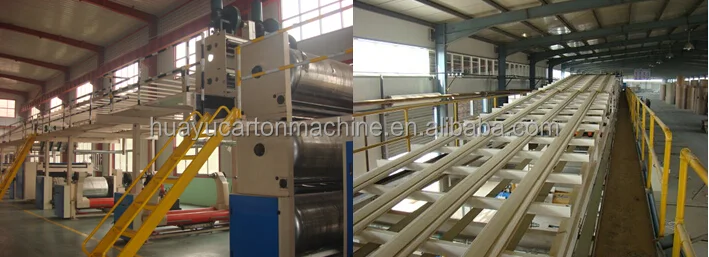

5. ZDF Heavy overhead bridge
Structural features:
★ The main beam is connected by 20 channel steel, 18 I-beam, 63 angle steel and column
★ Both sides are equipped with safety guardrails, ladders (made of 14 C-shaped steel) and high-strength herringbone pedals to ensure personnel's work safety and convenient operation
★ Independent frequency conversion motor lifting mechanism, PVC conveyor belt transmission, single tile paperboard in wavy shape, regular and stable
★ The main beam is connected by 20 channel steel, 18 I-beam, 63 angle steel and column
★ Both sides are equipped with safety guardrails, ladders (made of 14 C-shaped steel) and high-strength herringbone pedals to ensure personnel's work safety and convenient operation
★ Independent frequency conversion motor lifting mechanism, PVC conveyor belt transmission, single tile paperboard in wavy shape, regular and stable

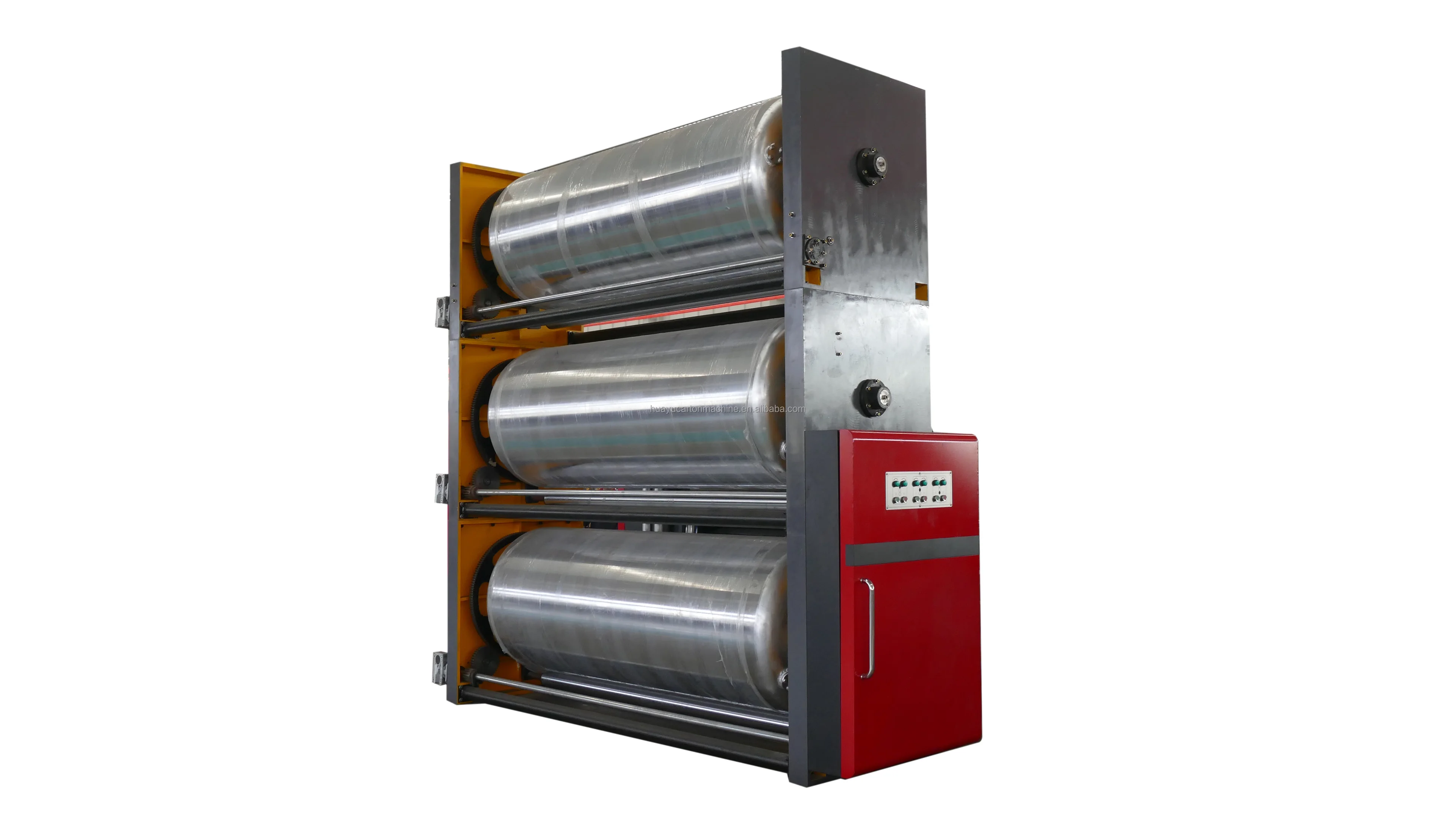

6. RG-1000 Triplex pre-heater
Structural features：
★ The preheating roller meets the national standard of class I pressure vessel, and is attached with pressure vessel certificate and inspection certificate
★ After precision grinding, the surface of each roller is finely ground and plated with hard chromium. The surface friction is small and durable
★ Electrically adjust the wrapping angle, and the wrapping angle axis rotates within 360 ° to adjust the heating area of the paper
★ The preheating roller meets the national standard of class I pressure vessel, and is attached with pressure vessel certificate and inspection certificate
★ After precision grinding, the surface of each roller is finely ground and plated with hard chromium. The surface friction is small and durable
★ Electrically adjust the wrapping angle, and the wrapping angle axis rotates within 360 ° to adjust the heating area of the paper
7. GM-C Double glue machine
Structural features：
★ After the surface of the rubber coating roller is quenched and tempered, the inner hole is processed, the dynamic balance surface is finely ground, and 32 line pit anilox is engraved. The glue coating is uniform and the glue consumption is less
★ The rotation of the coating roller is controlled by frequency conversion motor and frequency conversion. The frequency conversion control ensures that the linear speed of the coating roller is synchronized with the double-sided machine and can operate independently
★ Electrically adjust the glue quantity of digital display or manually adjust the glue quantity
★ After the surface of the rubber coating roller is quenched and tempered, the inner hole is processed, the dynamic balance surface is finely ground, and 32 line pit anilox is engraved. The glue coating is uniform and the glue consumption is less
★ The rotation of the coating roller is controlled by frequency conversion motor and frequency conversion. The frequency conversion control ensures that the linear speed of the coating roller is synchronized with the double-sided machine and can operate independently
★ Electrically adjust the glue quantity of digital display or manually adjust the glue quantity

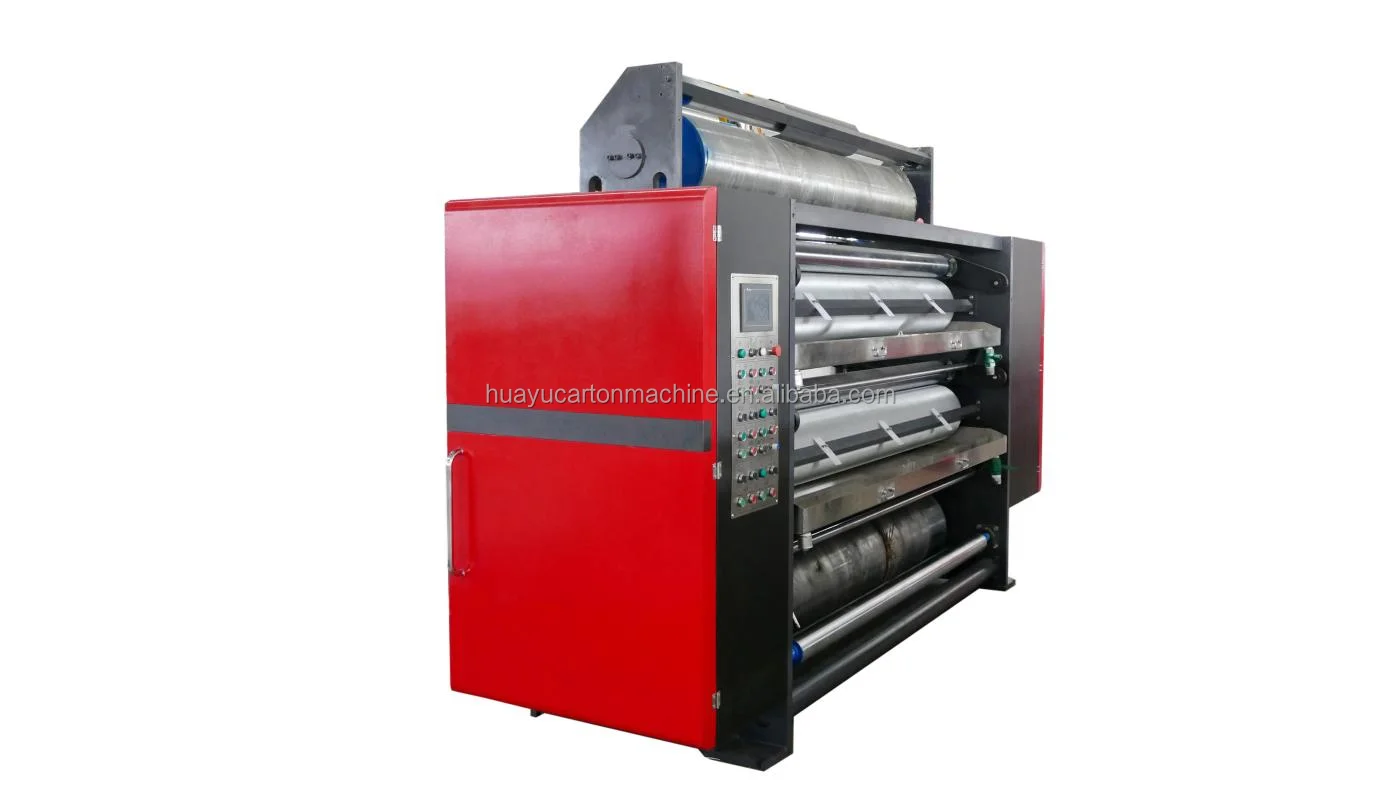

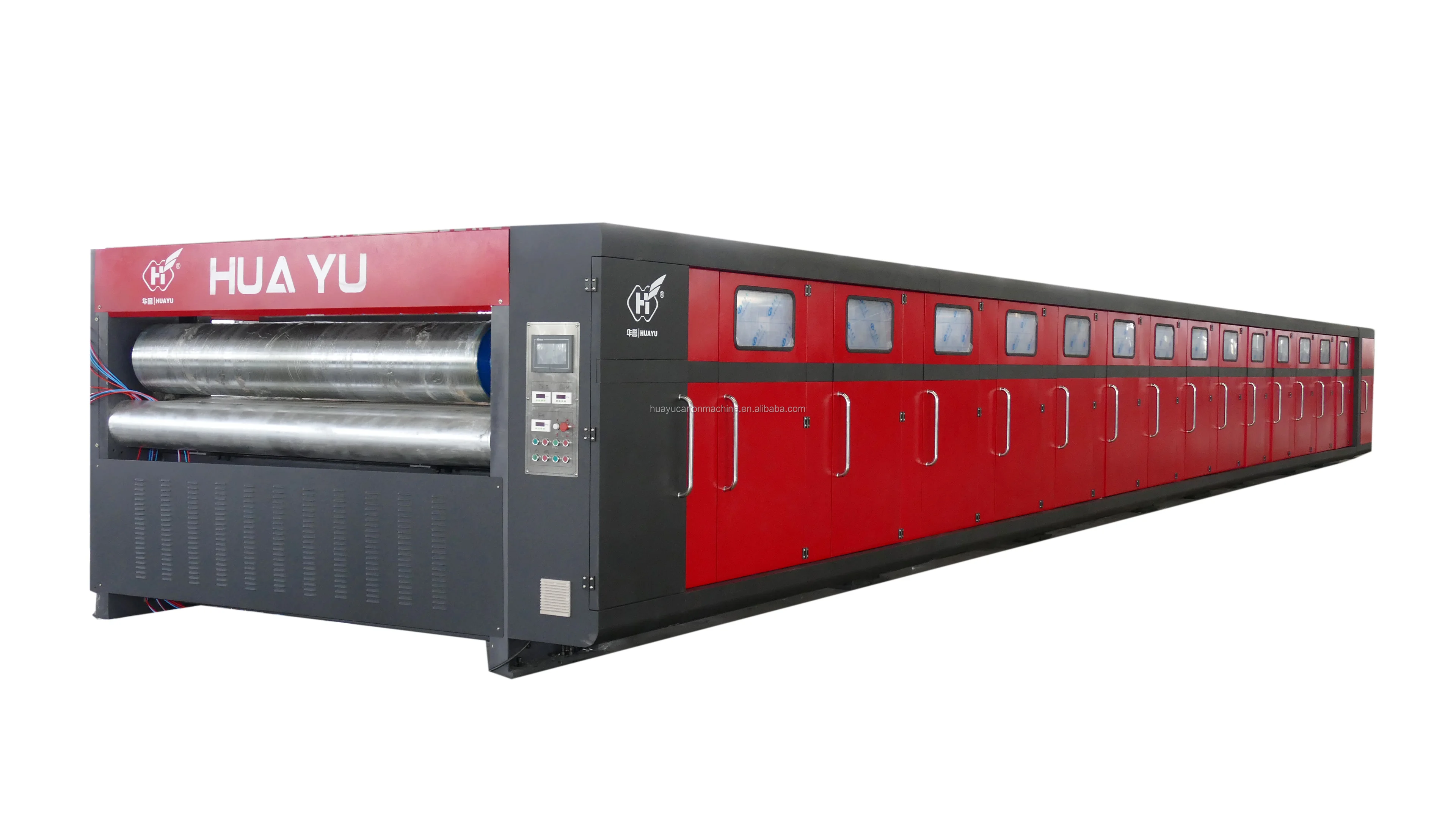

8. SM-C Double backer facer machine
Structural features：
★ The surface of the heating plate is grinded. The width of the heating plate is 600mm. There are 16 heating plates in total, and the cooling length is 5m
★ The heating plate is made of container plate, which meets the national class I pressure vessel standard, and is attached with pressure vessel certificate and inspection certificate
★ The left and right deviation correction adjustment of the upper conveyor belt adopts automatic adjustment on both sides, and there are 2 sets of upper conveyor belt tensioning systems
★ The surface of the heating plate is grinded. The width of the heating plate is 600mm. There are 16 heating plates in total, and the cooling length is 5m
★ The heating plate is made of container plate, which meets the national class I pressure vessel standard, and is attached with pressure vessel certificate and inspection certificate
★ The left and right deviation correction adjustment of the upper conveyor belt adopts automatic adjustment on both sides, and there are 2 sets of upper conveyor belt tensioning systems

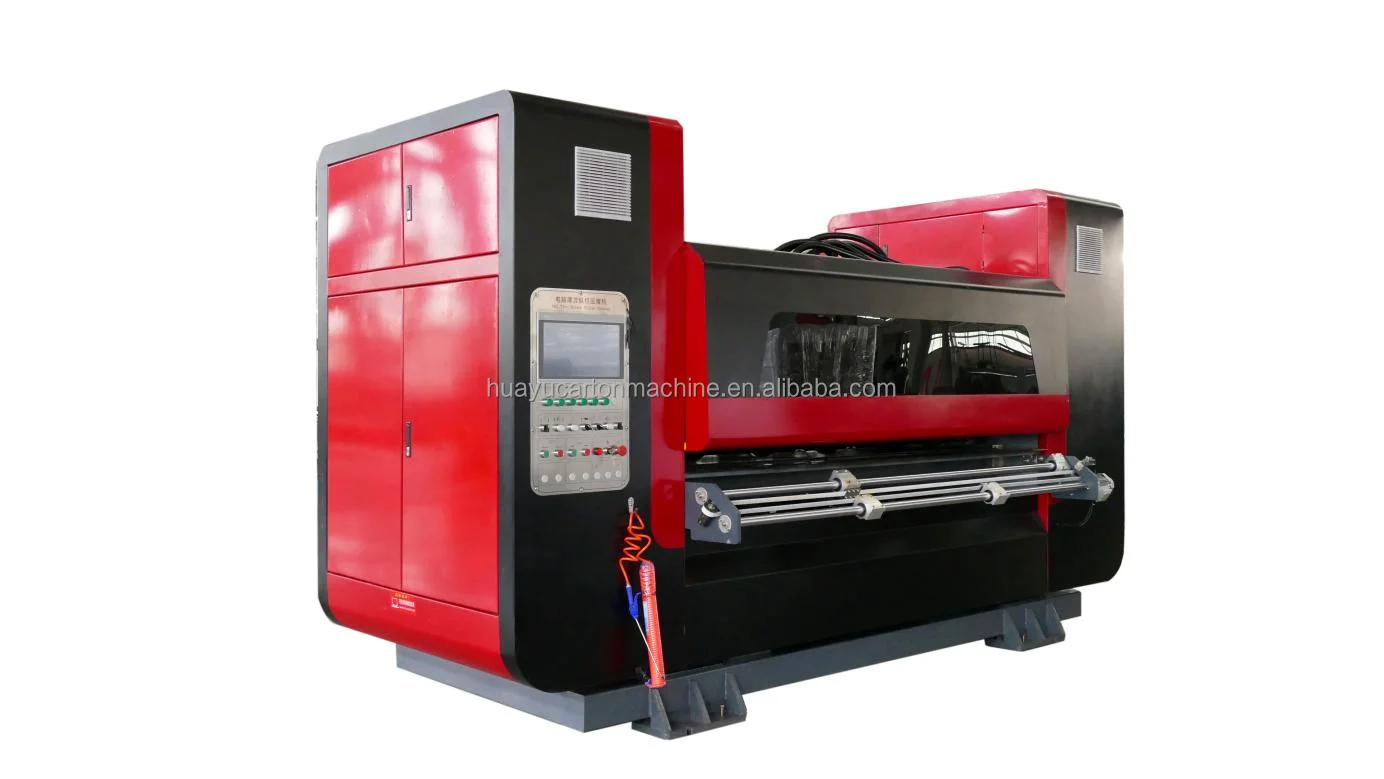

9. ZQS Computerized thin blade slitter scorer
Structural features：
★ The whole machine control system is controlled by Taiwan technology, computer and programmable controller, and the system is stable and efficient
★ Synchronous servo motor controls tool arrangement and wire arrangement. Automatic reset. Precise size. The order replacement time is 3 seconds. When the two machines are used together, the order can be changed immediately without speed reduction. Store 999 groups of orders to realize automatic order replacement or manual order replacement without shutdown
★ Taiwan Yonghong control system adopts can open bus system, has order management function, and is equipped with signal input interface synchronized with dryer speed
★ The whole machine control system is controlled by Taiwan technology, computer and programmable controller, and the system is stable and efficient
★ Synchronous servo motor controls tool arrangement and wire arrangement. Automatic reset. Precise size. The order replacement time is 3 seconds. When the two machines are used together, the order can be changed immediately without speed reduction. Store 999 groups of orders to realize automatic order replacement or manual order replacement without shutdown
★ Taiwan Yonghong control system adopts can open bus system, has order management function, and is equipped with signal input interface synchronized with dryer speed
10. NC Double computerized cut-off machine
Structural features：
★ The paper feeding part is mainly composed of a cardboard support platform with an independent paper feeding roller. The paper feeding part has a push-pull design that can be pulled out and separated from the paper cutting part, which is very convenient for tool adjustment and maintenance.
★ The paper cutting part is mainly composed of cylindrical running spiral knife roller. The impact force generated by the cutter roller during cutting is relieved, so that it has only very low inertia. The position of the upper knife can be adjusted through the adjusting screw on the knife shaft to achieve the best paper cutting effect. In particular, the automatic knife sharpening function of the paper cutting part (optional) makes the knife sharpening operation more convenient and ensures that the upper and lower knives are always sharp.
★ Out of paper unit mainly adopts internal suction device to ensure that the whole journey of paperboard conveying from paper cutting part to paper part is stably stacked.
★ The paper feeding part is mainly composed of a cardboard support platform with an independent paper feeding roller. The paper feeding part has a push-pull design that can be pulled out and separated from the paper cutting part, which is very convenient for tool adjustment and maintenance.
★ The paper cutting part is mainly composed of cylindrical running spiral knife roller. The impact force generated by the cutter roller during cutting is relieved, so that it has only very low inertia. The position of the upper knife can be adjusted through the adjusting screw on the knife shaft to achieve the best paper cutting effect. In particular, the automatic knife sharpening function of the paper cutting part (optional) makes the knife sharpening operation more convenient and ensures that the upper and lower knives are always sharp.
★ Out of paper unit mainly adopts internal suction device to ensure that the whole journey of paperboard conveying from paper cutting part to paper part is stably stacked.

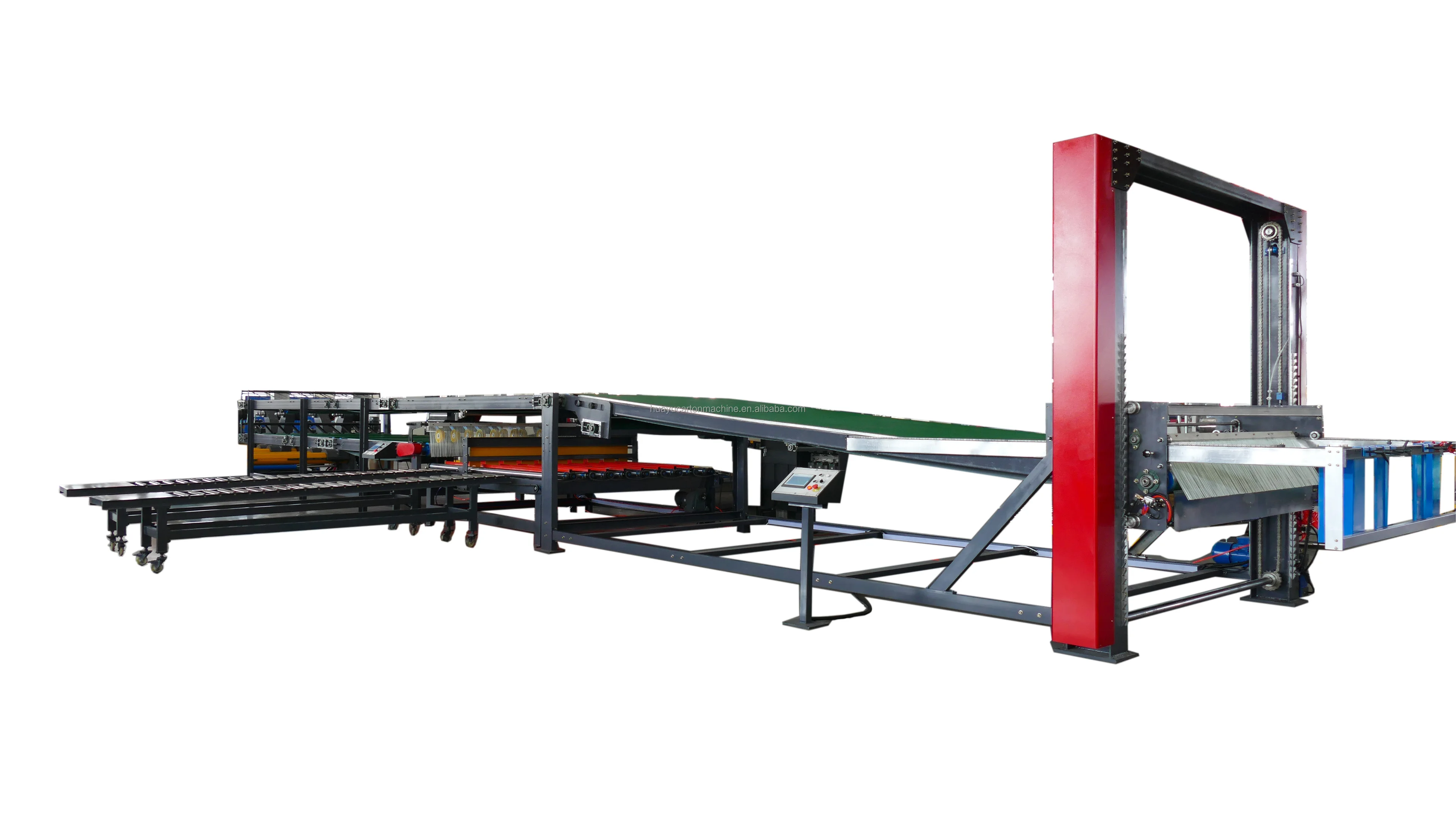

11. DMT Double layer gantry and delivery stacker
Structural features：
★ The upper layer is stacked by gantry, and the lower layer is stacked at right angles
★ The control part adopts high-quality industrial PLC, and the system can be connected to the production management system
★ The power adopts gear reduction motor, and the speed of the conveyor belt can automatically track the speed of the production line, realizing the working concept of energy saving and high efficiency
★ The upper layer is stacked by gantry, and the lower layer is stacked at right angles
★ The control part adopts high-quality industrial PLC, and the system can be connected to the production management system
★ The power adopts gear reduction motor, and the speed of the conveyor belt can automatically track the speed of the production line, realizing the working concept of energy saving and high efficiency

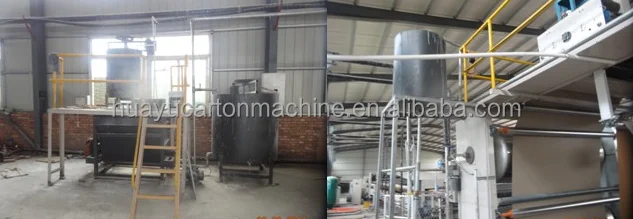

12. Glue station
Structural features：
* The whole system is controlled by PLC through program, and the measurement is accurate
* The system is equipped with temperature sensor and temperature display to control the glue temperature, so as to ensure that the starch molecules are more soluble in water, and avoid large changes in the quality of glue affected by ambient temperature
* The machine is equipped with an automatic tank washing program, which automatically cleans the tank after each delivery of glue
* The whole system is controlled by PLC through program, and the measurement is accurate
* The system is equipped with temperature sensor and temperature display to control the glue temperature, so as to ensure that the starch molecules are more soluble in water, and avoid large changes in the quality of glue affected by ambient temperature
* The machine is equipped with an automatic tank washing program, which automatically cleans the tank after each delivery of glue

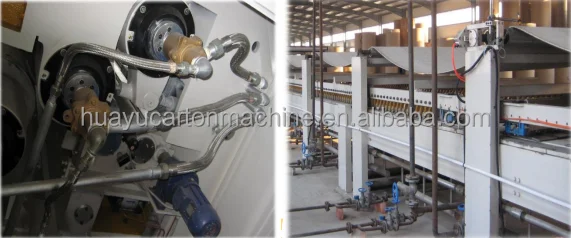

13. ZQ Steam system
Structural features：
* Deliver heating energy for each heat equipment of the production line to maintain the stability of working temperature.
* Each unit is designed as an independent small unit steam supply system with segmented temperature control, energy saving and convenient adjustment.
* The working temperature is controlled by adjusting the steam pressure, and a pressure monitoring dial is set.
* Deliver heating energy for each heat equipment of the production line to maintain the stability of working temperature.
* Each unit is designed as an independent small unit steam supply system with segmented temperature control, energy saving and convenient adjustment.
* The working temperature is controlled by adjusting the steam pressure, and a pressure monitoring dial is set.
Wide Range of Application

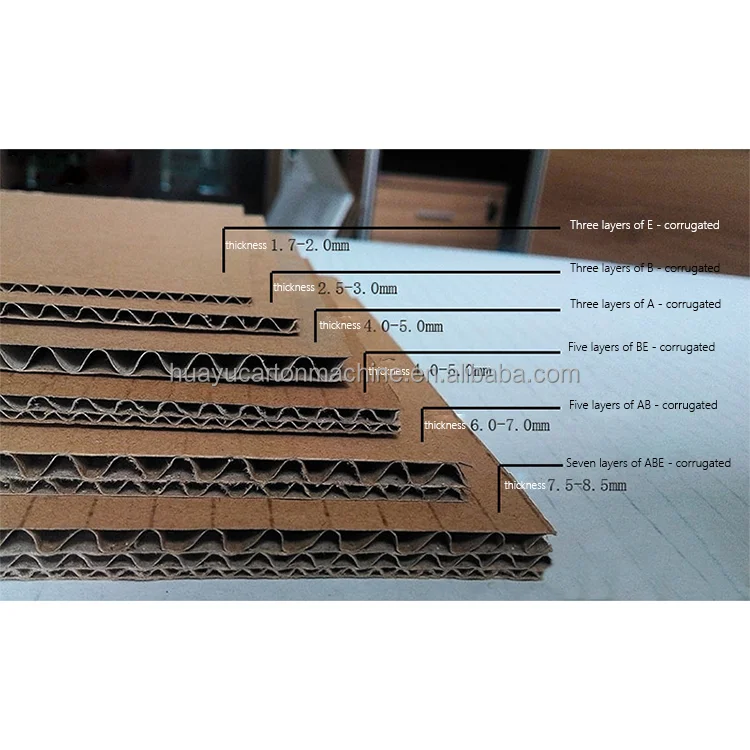

Suitable for all types of corrugated cardboard processing

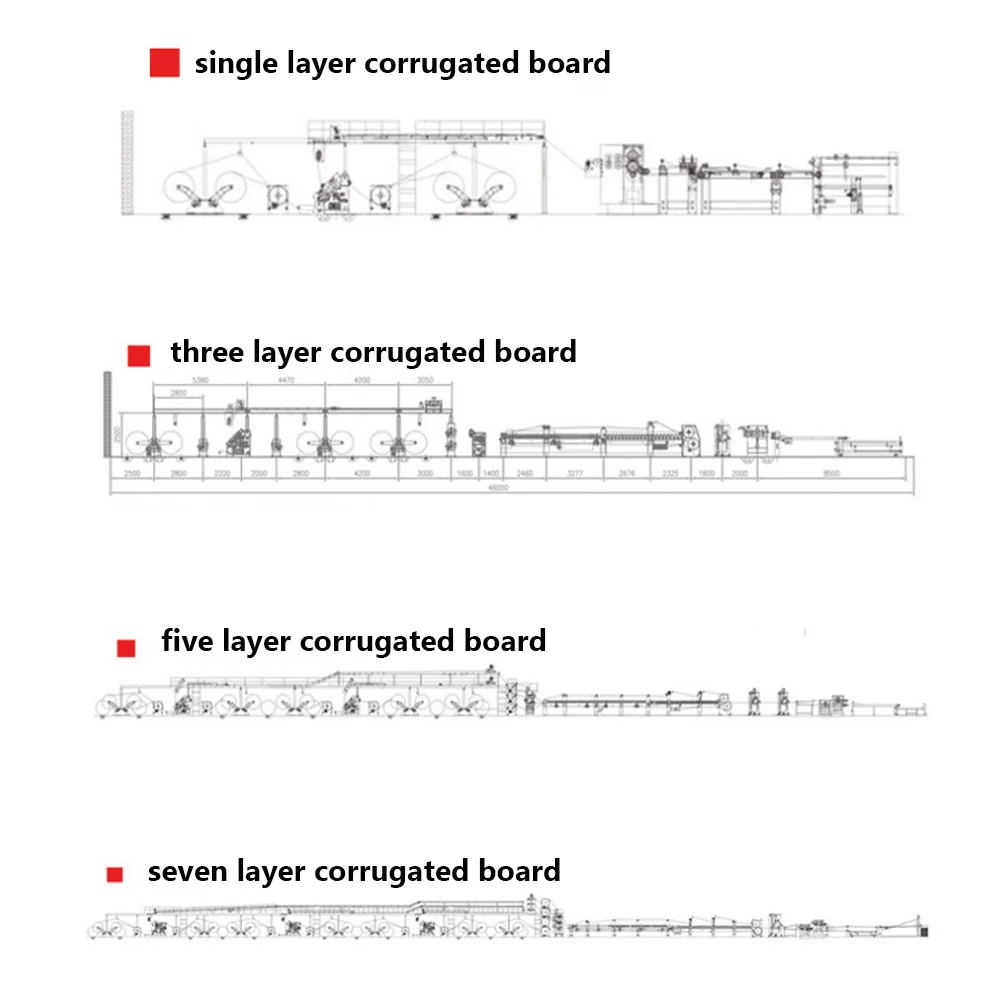

Basic Flowchart of Corrugated Board Production Line

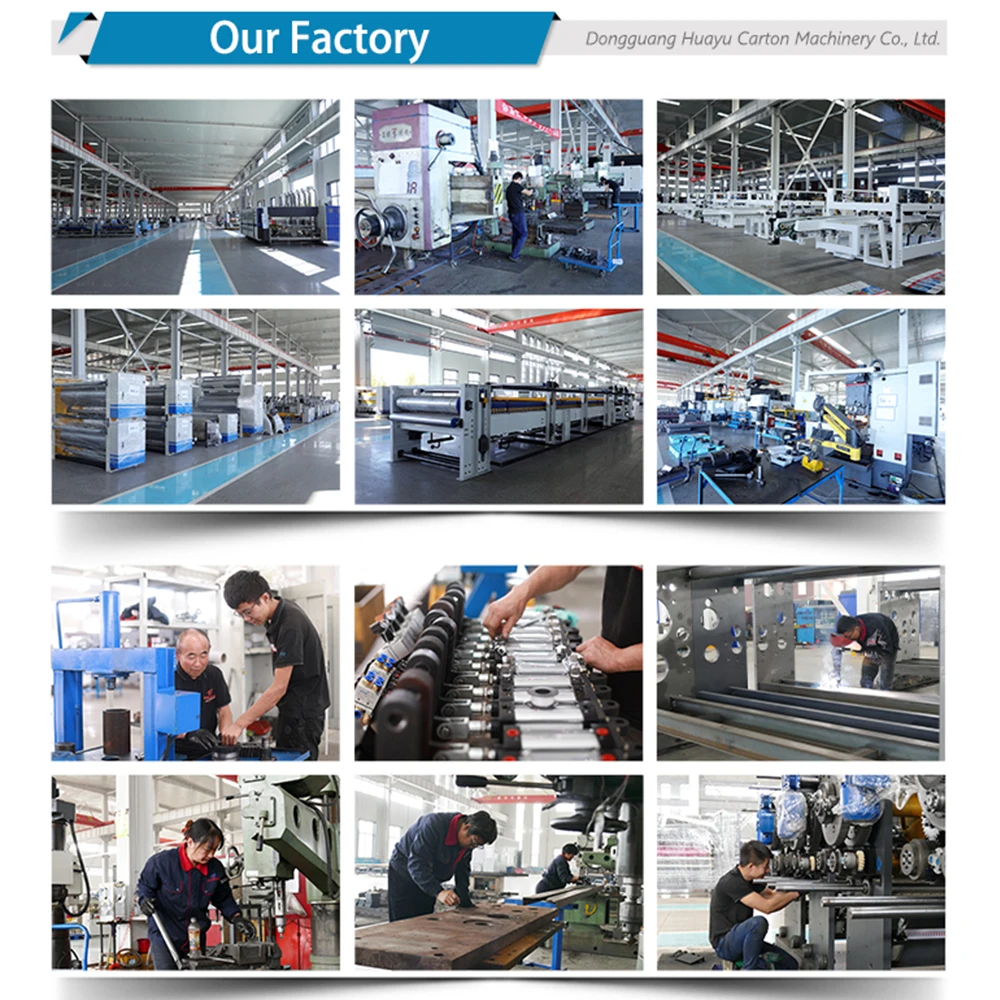

Dongguang Huayu Carton Machinery Co., Ltd. is an enterprise specializing in the R&D, design and manufacturing of carton machinery.
It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc. It has passed ISO 9001 international quality management system certification and EU CE certification.
It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc. It has passed ISO 9001 international quality management system certification and EU CE certification.
At present, it has many sets of advanced production equipment such as CNC processing machine, CNC drilling machines, etc.
Over the years, it has successively developed and produced high-speed corrugated board production lines, automatic printing and gluing machine, full computer high-definition printing machines, high-speed carton printing slotting. Die-cutting machines the products produced by the company have been exported to the united states, spain, austria, italy, germany, poland, russia, more than 100 countries are the enterprises with the largest export volume in the same industry in cangzhou city, ranking first in terms of export for 13 consecutive years.
The company's r&d center has more than 30 personnel specializing in scientific research and development, equipped with advanced r&d instruments and equipment, which ensures the smooth progress of the company's technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more sophisticated production technology.
Over the years, it has successively developed and produced high-speed corrugated board production lines, automatic printing and gluing machine, full computer high-definition printing machines, high-speed carton printing slotting. Die-cutting machines the products produced by the company have been exported to the united states, spain, austria, italy, germany, poland, russia, more than 100 countries are the enterprises with the largest export volume in the same industry in cangzhou city, ranking first in terms of export for 13 consecutive years.
The company's r&d center has more than 30 personnel specializing in scientific research and development, equipped with advanced r&d instruments and equipment, which ensures the smooth progress of the company's technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more sophisticated production technology.
Rich experience
The company has been engaged in carton machinery manufacturing industry for 25 years, foreign trade exports for 14 years, with
rich experience.
Quality of products
The company has a number ofhigh-precision processing equipment to ensure product quality. Quality of productsThe company has a
number ofhigh-precision processing equipment to ensure product quality.
Research and development team
The company has a research and development team of more than 20 people, including 5 postgraduate
students.
First in the industry
The company currently exports to more than 120 countries, 14 consecutive years in the same industry exports first.
Multiple patents
The company has a number of patent certificates and product quality certification.
Quality service
The company will provide customers with high quality products, excellent service and the most competitive price.
QUALITY/QUANTITY DISCREPANCY AND CLAIM
* In case the quality and/or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
* The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification. 2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration of warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
4. Installation services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
01 Who Are We?
Dongguang Huayu Carton Machinery Co., Ltd. Is an enterprise specializing in the R&D, design and manufacturing of carton machinery. It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc. It has passed ISO 9001 international quality management system certification and EU CE certification.
02 How Can We Guarantee Quality?
Our company has more than 20 precision processing equipment.
When the machine parts are processed, they will be strictly checked by the quality inspection department to ensure the accuracy and quality. After the machine is completed, we need at least two days to run the machine to ensure the smooth production of the machine.
03 What Can You Buy From Us?
Our company mainly produces automatic carton box printing slotting die cutting machine ,automatic carton box printing slotting die cutting folder gluier with auto bundle machine, automatic 3/5/7 ply corrugated cardboard production line, automatic carton box folder gluer machine.
05 What After-sales Services Can We Provide?
When the machine is finished, we can arrange engineers to go abroad to install and debug the machine. If the parts of the machine are damaged, we will immediately send the parts to the customer by international express. If the machine has some operation problems, we will take some videos to guide customers to operate the machine.
06 Delivery Time
If the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days. If the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc. It has passed ISO 9001 international quality management system certification and EU CE certification.
02 How Can We Guarantee Quality?
Our company has more than 20 precision processing equipment.
When the machine parts are processed, they will be strictly checked by the quality inspection department to ensure the accuracy and quality. After the machine is completed, we need at least two days to run the machine to ensure the smooth production of the machine.
03 What Can You Buy From Us?
Our company mainly produces automatic carton box printing slotting die cutting machine ,automatic carton box printing slotting die cutting folder gluier with auto bundle machine, automatic 3/5/7 ply corrugated cardboard production line, automatic carton box folder gluer machine.
04 Why Should You Buy From Us Not From Other Suppliers?
Our company has many sets of advanced production equipment such as CNC processing machine, CNC drilling machines, etc. The products produced by the company have been exported to the United States, Spain, Austria, Italy, Germany, Poland, Russia, More than 100 countries are the enterprises with the largest export volume in the same industry in Cangzhou City, ranking first in terms of export for 13 consecutive years.
The company's R&D center has more than 30 personnel specializing in scientific research and development, equipped with advanced R&D instruments and equipment, which ensures the smooth progress of the company's technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more
sophisticated production technology. 05 What After-sales Services Can We Provide?
When the machine is finished, we can arrange engineers to go abroad to install and debug the machine. If the parts of the machine are damaged, we will immediately send the parts to the customer by international express. If the machine has some operation problems, we will take some videos to guide customers to operate the machine.
06 Delivery Time
If the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days. If the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
Похожие товары

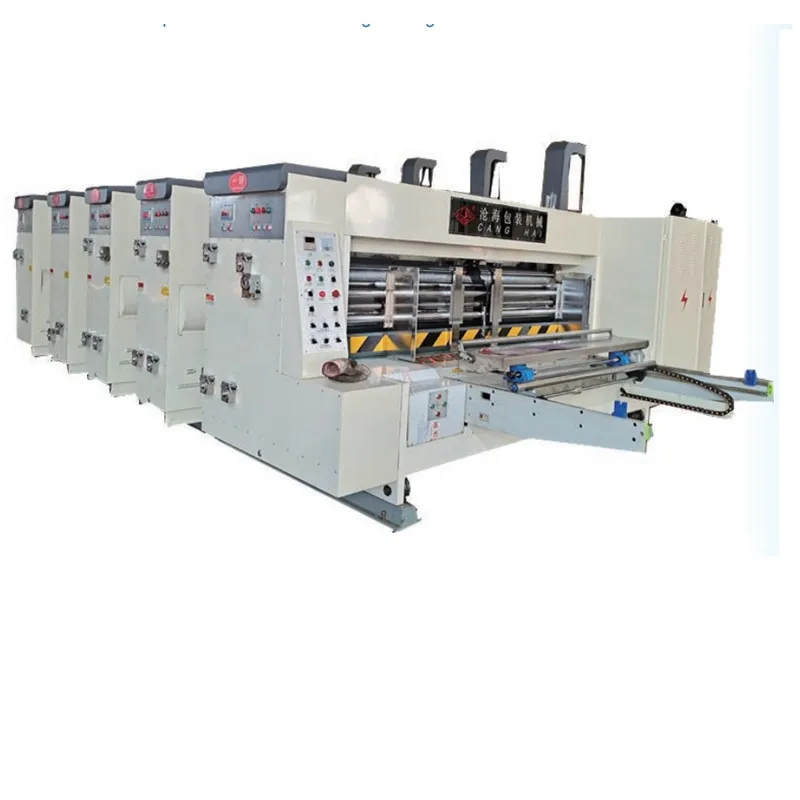

Высокоскоростная флексографская печатная машина 6 цветов с вырубкой и прорезью
4 686 001,46 ₽
Полностью автоматическая машина для изготовления коробок для пиццы с принтом из гофрированного картона, цена, 2, 3, 4, цветная печатная машина
3 236 934,00 ₽
ZYKM-920/1226/1630 гофрированная картонная коробка автоматическая машина для производства бумажных коробок для пиццы флексографская печатная машина
13 810 918,40 ₽ - 14 026 714,00 ₽
Автоматическая 4 вида цветов картонная коробка для пиццы, машина для гибкого принтера, гофрированный картон, картонная печать, режущее оборудование
3 129 036,20 ₽ - 3 236 934,00 ₽
Высокоскоростная печатная склеивающая коробка, упаковочная коробка, формовочная машина, линия для производства картона
7 531 266,44 ₽ - 10 573 984,40 ₽
Xinglong, полностью компьютерное управление, автоматическая машина для производства картона, печатная машина
2 697 445,00 ₽
Машина для производства картонных коробок из гофрированного картона, высокоскоростная машина для вырубки флексографской печати
5 394 890,00 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
300 Вт безопасный для посудомоечной машины 5-скоростной турбо с крючками для теста, венчик, электрический ручной миксер
571,11-666,30 ₽
Медицинский портативный прибор для гемодиализа катетер и кровообращения диализа почек ухода за здоровьем
Многофункциональная роскошная водонепроницаемая палатка из брезента для кемпинга однокомнатная всесезонная с настраиваемым размером новый стиль рынка Ближнего Востока
45 688,76-56 159,10 ₽
Санитарно-гигиеническое сиденье для
Счетчик купюр с низким уровнем шума на тонкопленочных транзисторах, автоматическое определение разных валют, 4,2 дюйма
50 448-52 351,70 ₽
Ожерелье из нержавеющей стали изящное ожерелье с чакрами на заказ модное позолоченное ювелирное изделие водонепроницаемой подвеской без
121,84-217,03 ₽
Мужские спортивные кроссовки с логотипом
856,67-999,45 ₽
OEM ODM, настоящее изобретение, персонализированный прямой автоматический открытый пользовательский логотип, рекламный зонт для гольфа с логотипом для отелей
842,39-938,53 ₽
