Солнечные литиевые батареи felicity литиевая батарея 15 кВт 10 кВтч 5 цена дома хранения энергии
57 017,17 ₽ - 65 679,40 ₽
Аккумулятор LiFePo4 24 В 48 100 А/ч 200 300 6000 литиево ионный аккумулятор с длительным сроком службы
- Категория: >>>
- Поставщик: Whayo Energy Technology Co. Ltd.
Сохранить в закладки 1601210828687:
Описание и отзывы
Характеристики
Product Description
Advantages
--Small in size, light in weight and large in capacity,
--Clear battery indication: the LCD screen can display power, voltage, current, battery status, etc.
--Long lifespan, high quality LiFePO4 A grade battery cells, deep cycle more than 6000 times.
Service:
--Accept OEM & ODM
--AC output accept customized
--5 years free maintenance
--Provide several spare parts for replacement according to the bulk quantity
--Clear battery indication: the LCD screen can display power, voltage, current, battery status, etc.
--Long lifespan, high quality LiFePO4 A grade battery cells, deep cycle more than 6000 times.
Service:
--Accept OEM & ODM
--AC output accept customized
--5 years free maintenance
--Provide several spare parts for replacement according to the bulk quantity

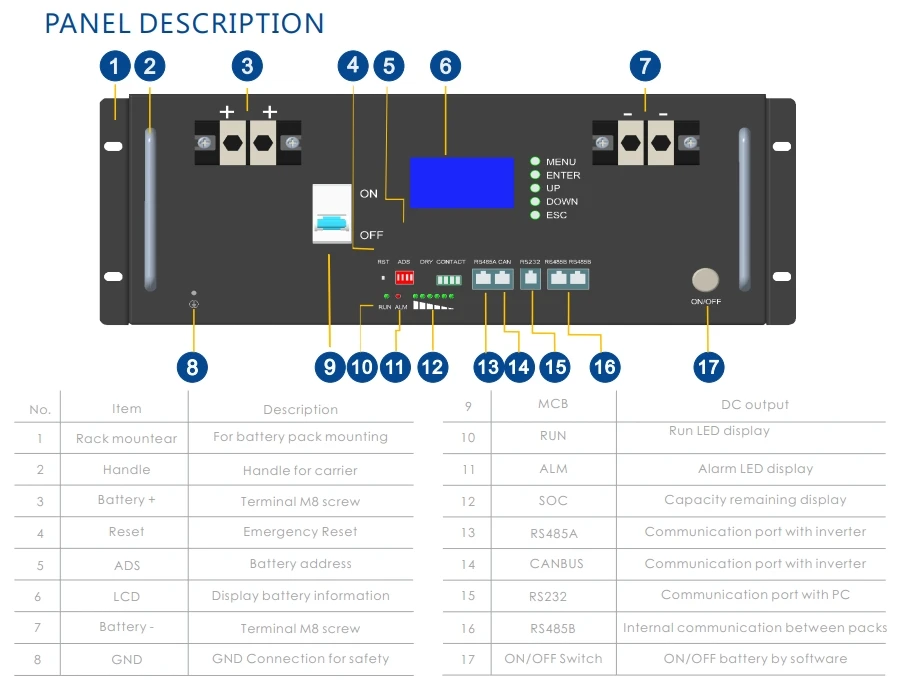

No. | Item | Description | 9 | MCB | DCoutput |
1 | Rack mountear | For battery pack mounting | 10 | RUN | Run LED display |
2 | Handle | Handle for carrier | 11 | ALM | Alarm LED display |
3 | Battery+ | Terminal M8 screw | 12 | SOC | Capacityremaining display |
4 | Reset | Emergency Reset | 13 | RS485A | Communication port with inverter |
5 | ADS | Battery address | 14 | CANBUS | Communication port with inverter |
6 | LCD | Display battery information | 15 | RS232 | Communication port with PC |
7 | Battery- | Terminal M8 screw | 16 | RS485B | Internal communication between packs |
8 | GND | GND Connection for safety | 17 | ON/OFF Switch | ON/OFF battery by software |
Specification
Model | WHR48100 | WHR48200 | WHR512100 | WHR512200 | |||
Battery Type | LiFePO4 | ||||||
Rated Energy | 4.8kWh | 9.6kWh | 5.12kWh | 10.24kWh | |||
Usable Energy | 4.32kWh | 8.64kWh | 4.60kWh | 9.20kWh | |||
Design Capacity | 100Ah | 200Ah | 100Ah | 200Ah | |||
Nominal Voltage | 48V(15 series) | 51.2V(16 series) | |||||
Max Charge / Discharge Current | 50A/100A | ||||||
Voltage Range(Vdc) | 42-54V | 45-56.5V | |||||
Scalability | Up to 10 parallel | Up to 15 parallel | |||||
Battery Internal Resistance | ≤80mΩ | ||||||
Cycle Life | 6000cycles@25℃，90% DOD，60%EOL | 6000cycles@25℃，80% DOD，60%EOL | |||||
Design Life | ≥10 years(25℃) | ||||||
Charging Temperature Range | 0℃~55℃ (Under 0℃ extra heating mechanism) | ||||||
Discharging Temperature Range | -20℃~60℃ (Under 0℃work with reduced capacity) | ||||||
Storage Temperature | -10℃~35℃ @ 60%±25% relative humidity | ||||||
Altitude (m) | ≤2000 | ||||||
Humidity | ≤95%(Non-condensing） | ||||||
Communication | RS232-PC,RS485(B)-PC,RS485(A)-Inverter,Canbus-Inverter | ||||||
Certification | US38.3,MSDS,UL1973,IEC62619 | ||||||
Weight | 48kg | 85kg | 49kg | 89kg | |||
Product Dimension | 483*480*178mm | 442*680*178mm | 483*480*178mm | 483*680*178mm | |||
IP Grade | IP21 | ||||||
Protection | BMS, Breaker | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications

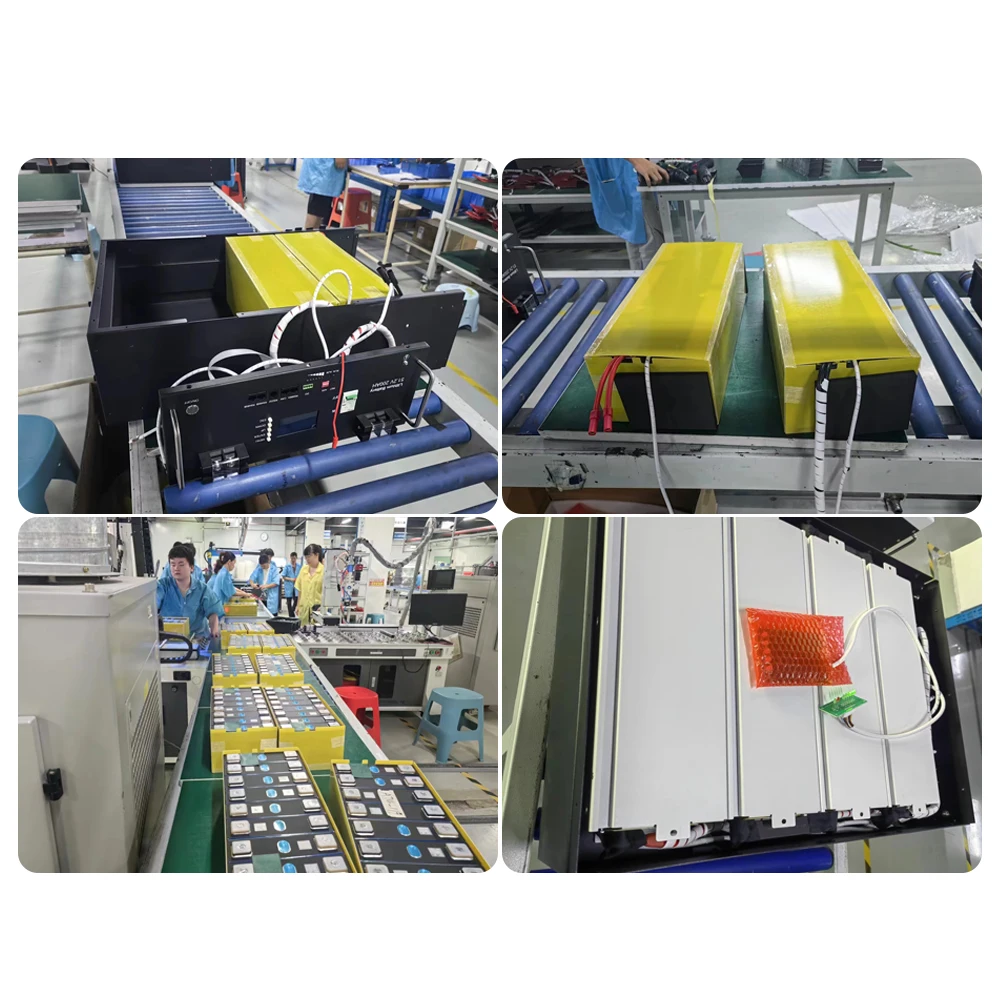

Company Profile
Whayo Energy Technology Co., Ltd. is a leading enterprise specializing in the research, development, sales, and service of solar panels, solar inverters, solar batteries, solar systems, and energy storage systems. Established in 2008 and located in Hefei , Anhui Province, China, our company boasts a high-quality R&D and management team, along with advanced production and testing equipment.
With a commitment to providing high-quality energy storage products and services to global customers, we have developed a number of independently patented core technologies. These technologies include preparation methods for key materials such as lithium-ion battery cathode materials, anode materials, electrolytes, separators, and lithium-ion battery pack management systems, supercapacitor energy storage systems, fuel cell storage systems, and other core technologies. These offer significant advantages in improving energy storage product performance, reducing costs, and extending service life, laying a solid technical foundation for our company's sustainable development.
Our experienced staff are dedicated to strict quality control and thoughtful customer service, ensuring complete customer satisfaction. We have obtained CE, TUV, and ISO9001 ,ISO14001 certificates, and our products are sold nationwide and exported to customers in Europe, America, Asia, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, our Customer Service Center is ready to discuss your purchasing requirements. Choose Whayo Energy Technology for innovative and reliable energy storage solutions.
With a commitment to providing high-quality energy storage products and services to global customers, we have developed a number of independently patented core technologies. These technologies include preparation methods for key materials such as lithium-ion battery cathode materials, anode materials, electrolytes, separators, and lithium-ion battery pack management systems, supercapacitor energy storage systems, fuel cell storage systems, and other core technologies. These offer significant advantages in improving energy storage product performance, reducing costs, and extending service life, laying a solid technical foundation for our company's sustainable development.
Our experienced staff are dedicated to strict quality control and thoughtful customer service, ensuring complete customer satisfaction. We have obtained CE, TUV, and ISO9001 ,ISO14001 certificates, and our products are sold nationwide and exported to customers in Europe, America, Asia, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, our Customer Service Center is ready to discuss your purchasing requirements. Choose Whayo Energy Technology for innovative and reliable energy storage solutions.
The advantage of our company is that our quality is very guaranteed. The products are directly sourced from the Jinko factory, and the products sent to you are absolutely the same as what you want.
FAQ
Q: Are you a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide various OEM/ODM services to customers allover the world.
Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,and Canada have tax-included shipping channels if needed.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.
Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, the additional cost will be borne by the buyer, please contact us for more details.
Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
A: We are a professional battery manufacturer with our own factory and brand. We provide various OEM/ODM services to customers allover the world.
Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,and Canada have tax-included shipping channels if needed.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.
Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, the additional cost will be borne by the buyer, please contact us for more details.
Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
