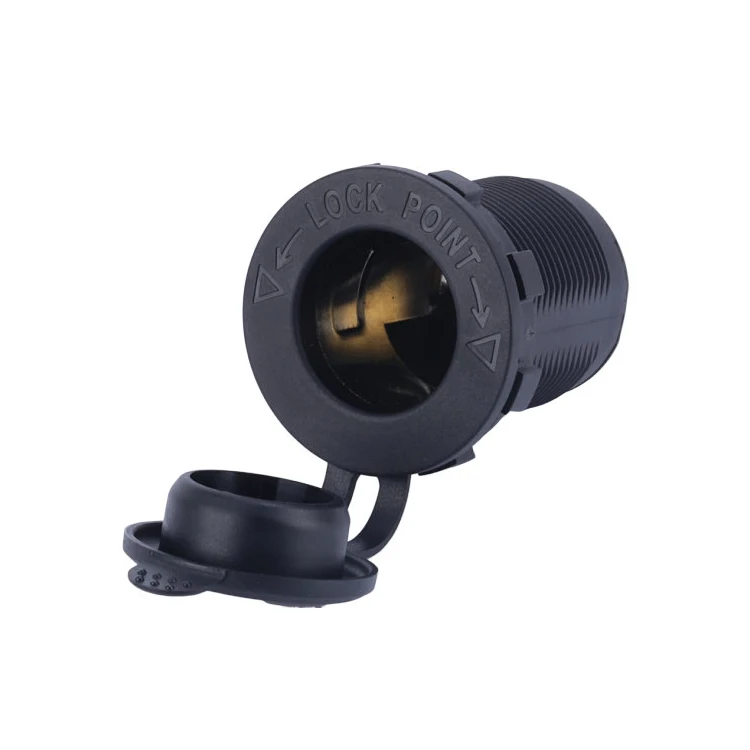

Водонепроницаемый Электронный женский держатель индикатор 12 В переменного тока розетка прикуривателя для автомобиля лодки RV грузовика
59,52 ₽ - 66,13 ₽

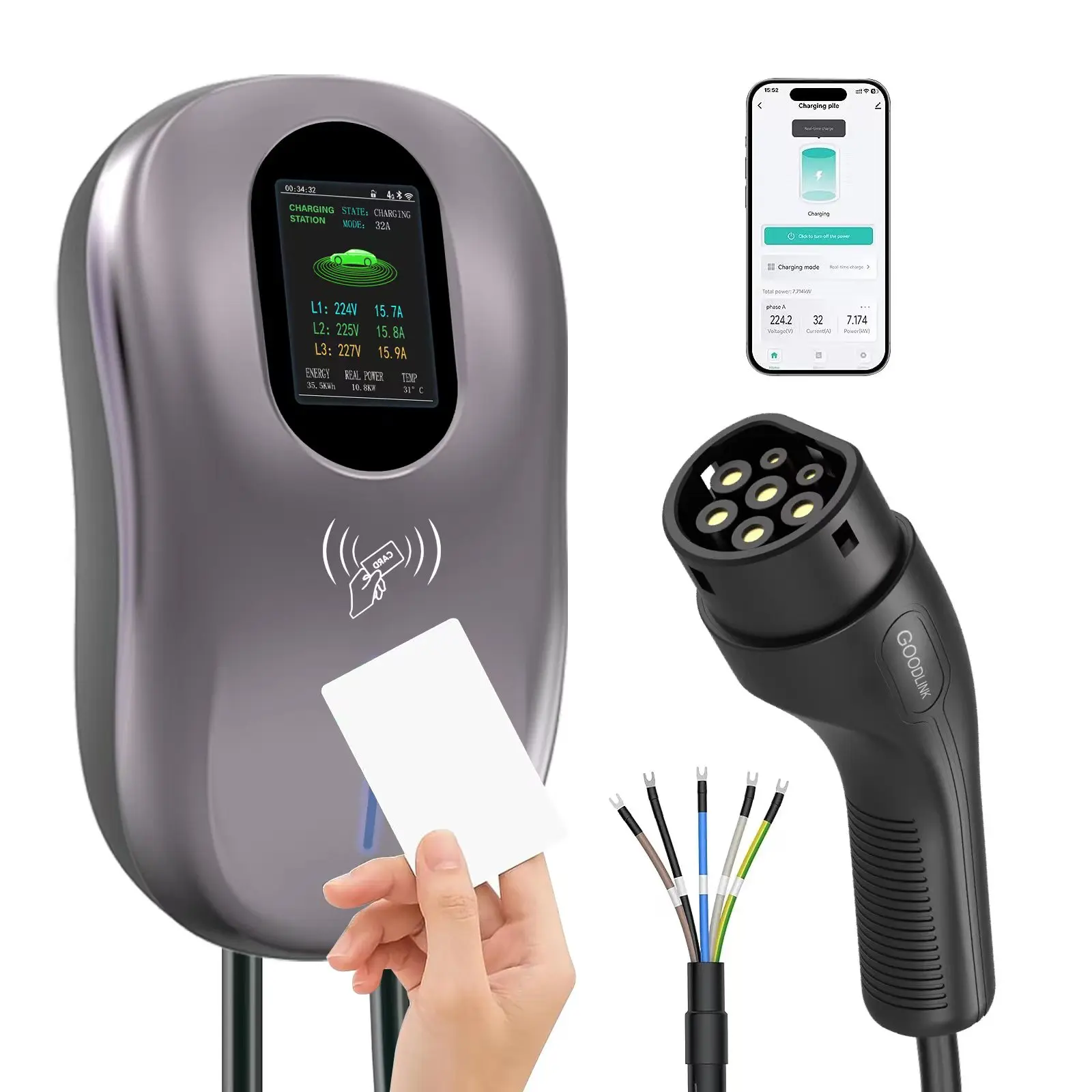

Зарядная станция переменного тока мощностью 22 кВт с кабелем типа 2 для надежного энергоснабжения
- Категория: >>>
- Поставщик: Nanjing Ark Tech Co. Ltd.
Сохранить в закладки 1601211399150:
Описание и отзывы
Характеристики
Products Description
Product Highlights | ||||||||
Bluetooth Remote Control (Optional) | The device offers an optional Bluetooth remote control feature for convenient operation from a distance. | |||||||
Embedded Emergency Stop Mechanical Switch | It includes a built-in mechanical emergency stop switch for immediate power cutoff in case of emergencies, ensuring safety. | |||||||
RS485 and Ethernet Communication Monitoring Modes Reserved | The device has reserved interfaces for communication and monitoring through RS485 and Ethernet, facilitating remote management and status monitoring. | |||||||
Ten Protection Functions | Equipped with multiple protective mechanisms, the device ensures safety, reliability, and peace of mind during use. | |||||||
Easy Installation, Operation, and Maintenance | The device is designed with user experience in mind, simplifying the processes of installation, operation, and maintenance, making it user-friendly. | |||||||
Certificate | CE by DEKRA | |||||||
The EU version of the AMP07 is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminatingmost brand barriers toelectric vehicle owners.
AMP07 allows your vehicles to be charged during off-peak periods by allowing you to set charging times, saving money on electricity bills. You can also check the charging status on your mobile phone and make an appointment for charging.Charging current and charging delay configuration makes
charging adjustable for various situations.
App Control mode allows you to set charging times, adjust charging current and track all useful data about your car’s charging status with your smartphone. In Plug-and-Play mode, the charging begins as you slot the charger into the vehicle, and you can stop charging by pressing the button on the side of AMP07 to pull out the charger.
The AMP07 EV Charger comes with a rugged charging cable made of PVC and copper, which can accommodate up to 40A. This 5m cable allows maximum flexibility in use. The charger can be saved in the socket when not in use, and you can coil the charging cable and hang it over the socket for storage.
Product Paramenters
Specification | Model | AMP22-C |
System | Charging type | Mode 3 |
Dimension (H x W x D) | 222 x 104 x 405mm | |
Enclosure protection grade | IP65 | |
Installation method | Wall mounting/Pedestal mounting(optional) | |
Cable routing | Bottom inlet and Bottom outlet | |
Net weight | 3.62kgs | |
Charging standard | IEC 61851-22 | |
Certificate | CE by DEKRA | |
Input | input voltage | 380Vac ±20%, 50±3Hz, 3-phase + Neutral + PE |
Power factor | 0.99 at nominal output | |
RCCB | Type-A + 6mA DC | |
Output | Output power | 22kW max |
Outlet type | IEC 62196 Type-2 | |
Output voltage range | 380Vac ±20%, 50±3Hz, 3-phase + Neutral + PE | |
Output current range | 32A max | |
Charging outlet | Cable, 5m | |
User interface | User authentication | App interface |
Display | LCD or 7 inch TFT display | |
Interface languages | English (other languages upon request) | |
Network interface | Wi-Fi, Bluetooth, 4G(optional) | |
Environmental | Working temperature | -25°C – +50°C |
Storage temperature | -25°C – +70°C | |
Altitude | <2000m | |
Cooling | Natural cooliing | |
The protection grades | IP65/IK10 | |
Protection | Emergency shutdown, overvoltage protection, undervoltage protection, overcurrent protection, leakage protection, grounding protection, temperature protection, waterproof protection, power-off protection and data protection. |
Why Choose Us
Product Packing
FAQ
1. Why choose us as your preferred EV Charger supplier?
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.
3. What are the advantages of your products?
I. Telecom level product design and production.
II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.
III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.
IV. Fast customer response, prefessional technical support and more solutions come out.
4. Can you explain the differences of global DC fast charging standards?
Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.
CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.
CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.
GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.
Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.
5. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a
certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
6. If we purchase your EV DC charger, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.
3. What are the advantages of your products?
I. Telecom level product design and production.
II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.
III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.
IV. Fast customer response, prefessional technical support and more solutions come out.
4. Can you explain the differences of global DC fast charging standards?
Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.
CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.
CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.
GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.
Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.
5. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a
certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
6. If we purchase your EV DC charger, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
Похожие товары

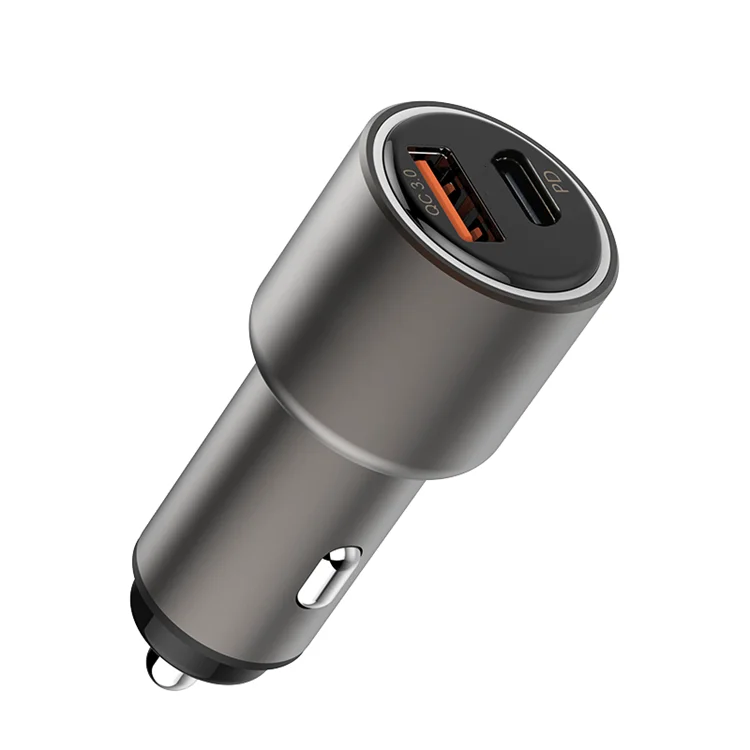

Автомобильное зарядное устройство из цинкового сплава 36 Вт для мобильного телефона Тип C USB QC 3 0 Быстрая зарядка 12 В 24
630,41 ₽ - 663,48 ₽
Usb-адаптер с двумя портами
152,10 ₽ - 165,32 ₽

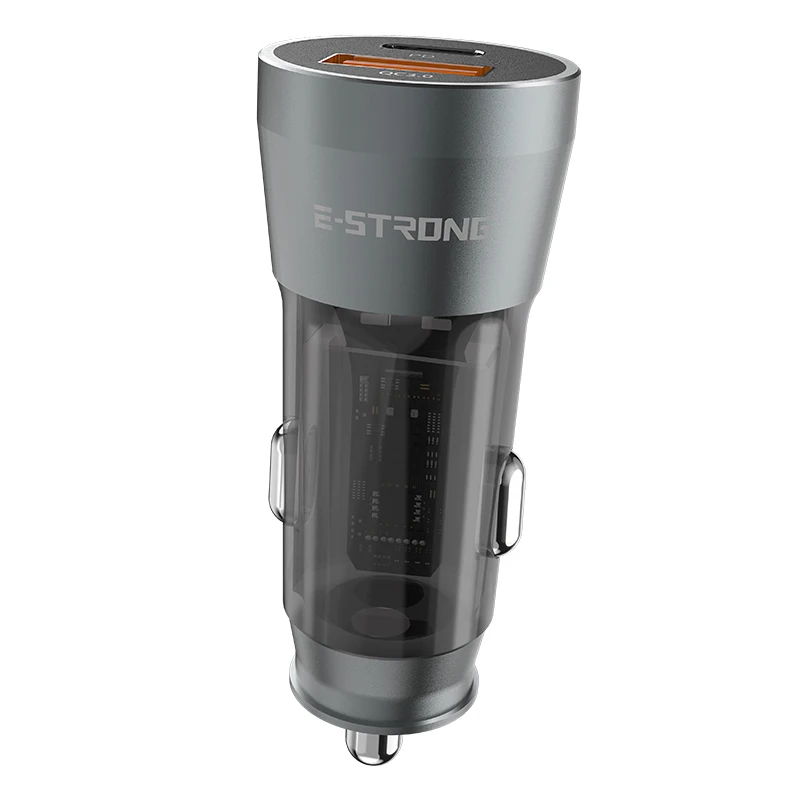

Автомобильное зарядное устройство 72 Вт с двойным QC3.0 + PD кнопкой откидной крышкой для автомобиля автобуса лодки автомобильного
440,85 ₽ - 506,98 ₽

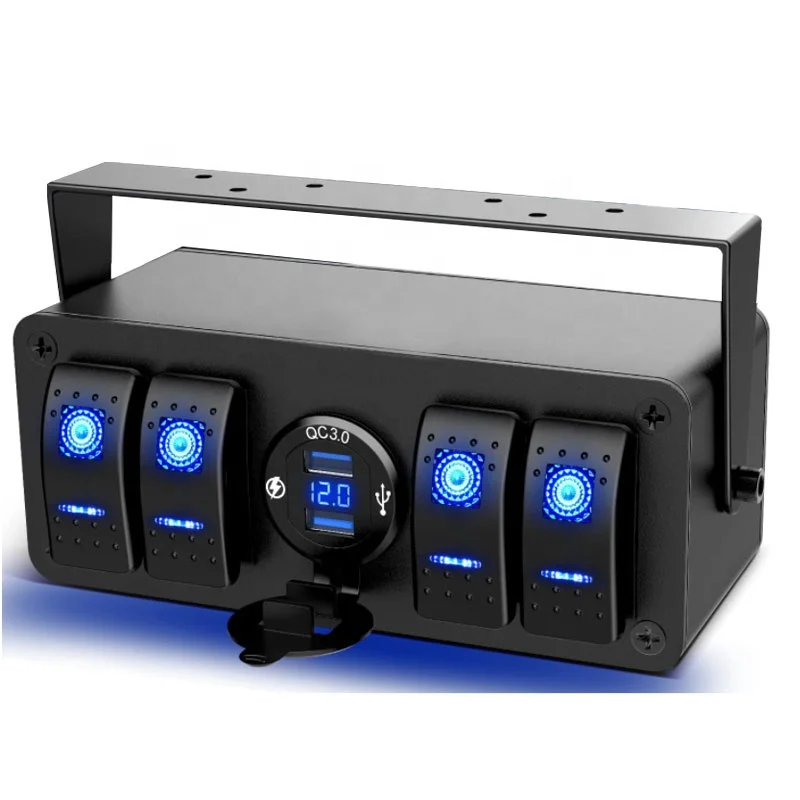

12V 4Gang SPST переключатель QC 3 0 USB зарядное устройство вольтметр Водонепроницаемый Алюминиевый коромысло
2 705,69 ₽ - 2 926,12 ₽

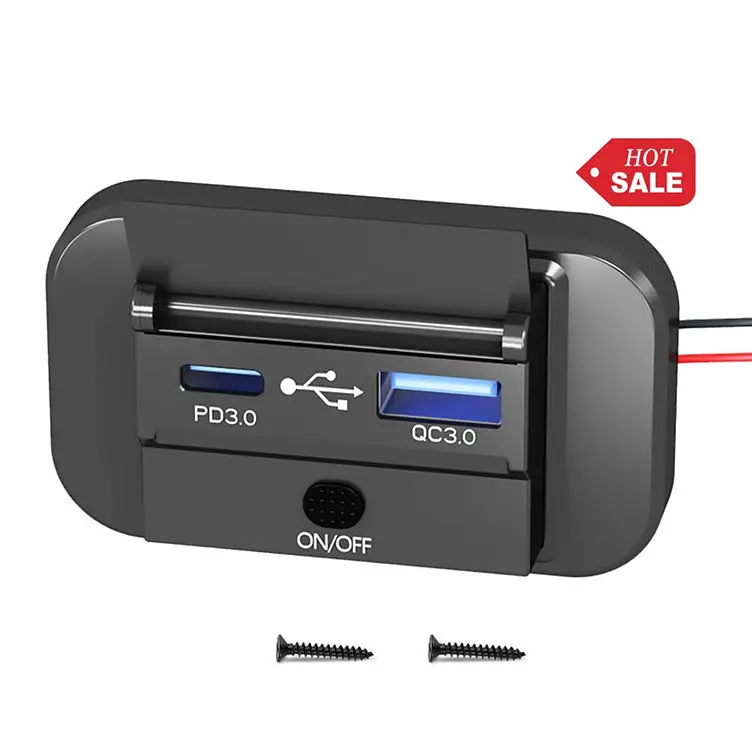

QC3.0 PD и USB квадратное автомобильное быстрое зарядное устройство с крышкой для автомобиля лодки морской RV грузовика
319,62 ₽ - 396,77 ₽

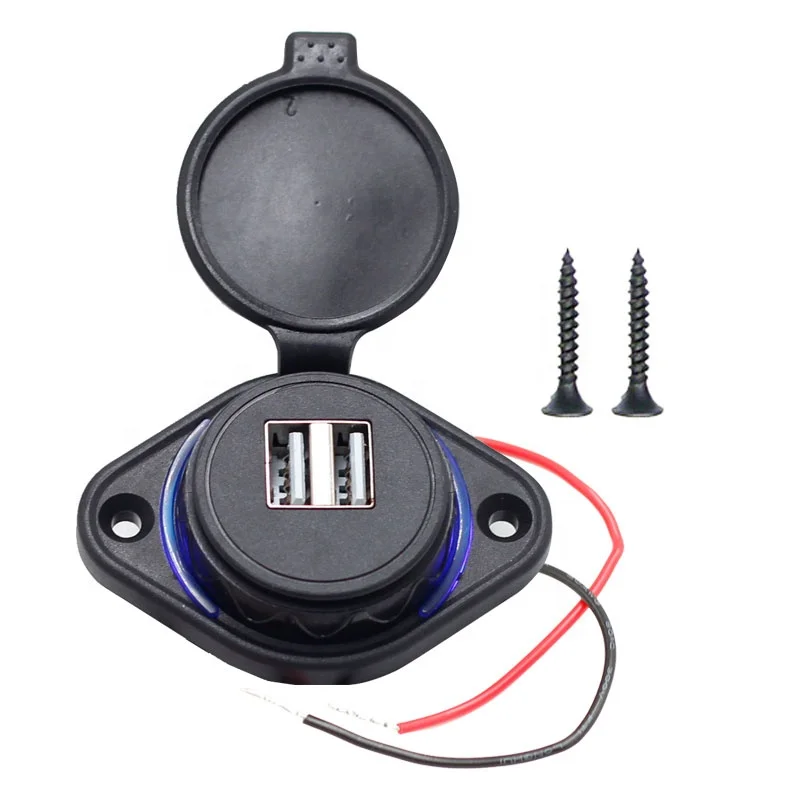

Автомобильное зарядное устройство 12 В 2 порта usb для автобуса лодки сотового телефона Usb 3.1A зарядки автомобиля с двумя портами со светодиодными кольцами
