Быстрая установка стенового материала PU PIR EPS SIP MGO сэндвич-панель
959,53 ₽
Огнеупорные материалы MGO EPS/ XPS сэндвич панель из оксида магния для наружных и внутренних стен
- Категория: >>>
- Поставщик: Shandong Juhe Steel Co. Ltd.
Сохранить в закладки 1601211669528:
Описание и отзывы
Характеристики
Sandwich Panel products are composed of two layers of formed metal panels (or other material panels) and a polymer insulating core foamed and cooked into shape directly in the middle of the panels. These finished sandwich panels are easy to install, lightweight and efficient. The filling system uses a closed-foam molecular structure as well, which eliminates condensation of water vapor. The outer layer of steel sheets is molded to take full account of structural and strength requirements and aesthetics, while the inner layer is molded as a flat panel to suit various needs.
Product Description
Polyurethane PU Foam Sandwich Panel
The PU foam core composite board is a typical sandwich structure, the middle is a PU foam board for heat preservation, the upper
and lower layers are skin materials, and the skin and core materials are combined with an adhesive (usually polyurethane resin
glue). In order to make the adhesive more evenly distributed, so that the skin and the core material are combined more tightly,
and to prevent problems such as bulging and delamination, grooves will be cut on the PU foam board.
and lower layers are skin materials, and the skin and core materials are combined with an adhesive (usually polyurethane resin
glue). In order to make the adhesive more evenly distributed, so that the skin and the core material are combined more tightly,
and to prevent problems such as bulging and delamination, grooves will be cut on the PU foam board.
PlR Foam Sandwich Panel
PlR (Polyisocyanurate) foam is a high-performance thermal insulation foam materia, which is a type of polyurethane foam. t
iscomposed of polyisocyanate resin and foaming agent and has excellent thermal insulation and flame retardant properties.
iscomposed of polyisocyanate resin and foaming agent and has excellent thermal insulation and flame retardant properties.

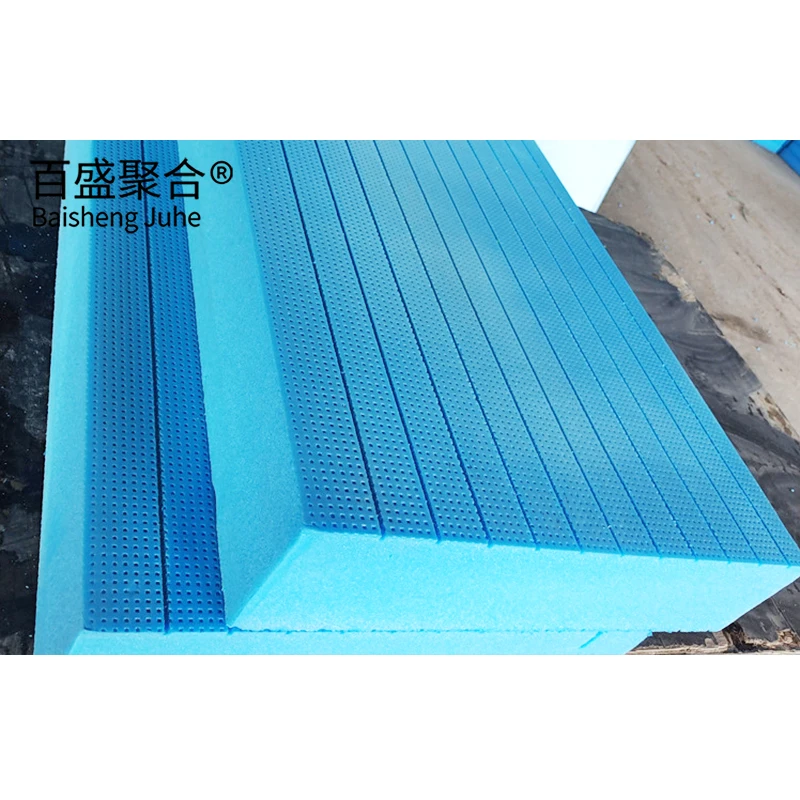

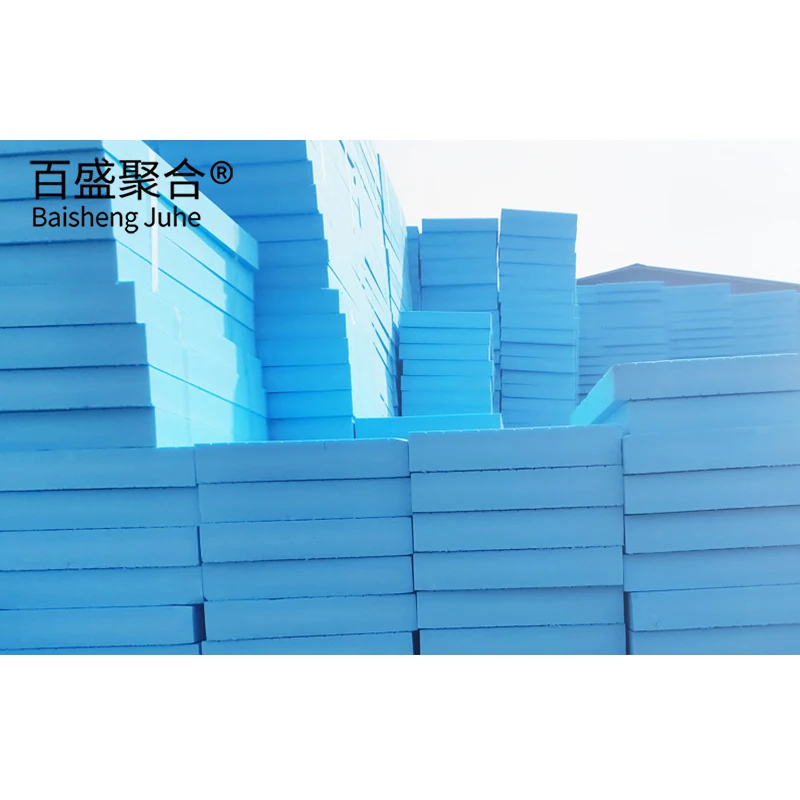

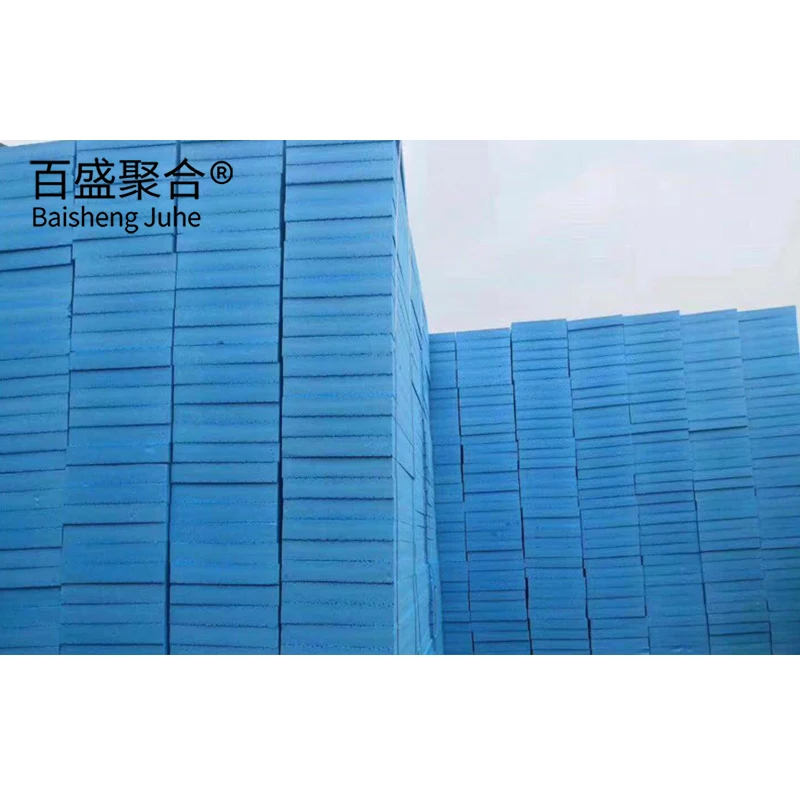

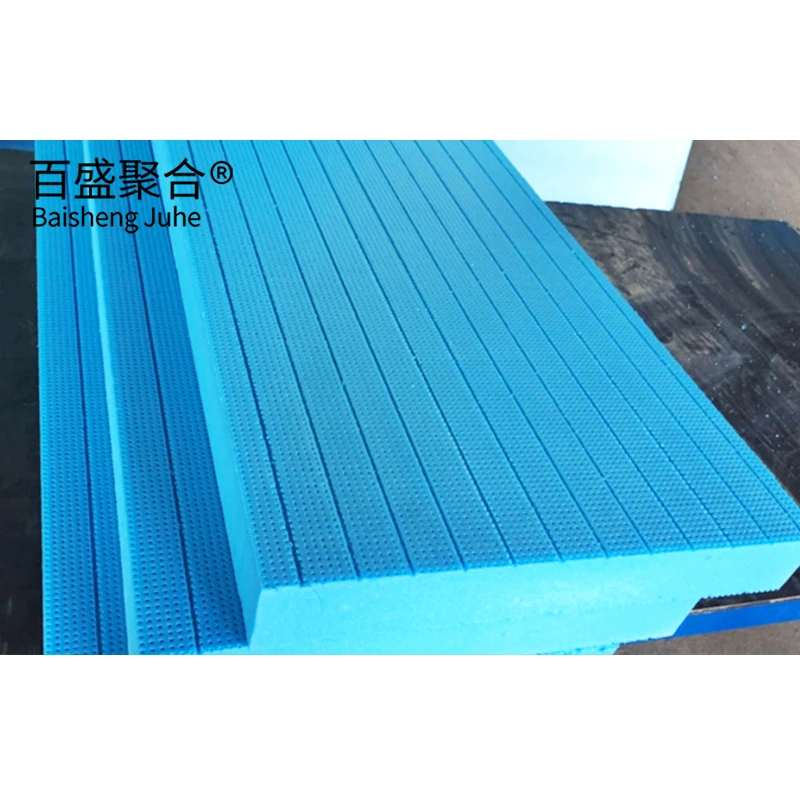

XPS Foam Sandwich Panel
XPS foam sandwich panels are one of the most popular foam sandwich composite panels, which is a typical representative material combining strength and lightweight, lts core material is closed-cell extruded polystyrene foam, and its skin material has a
variety of options (fiberglass.aluminum, wood, steel, etc.). The skin and core are bonded together by vacuum compression molding
using high-quality polyurethane glue as an adhesive.
variety of options (fiberglass.aluminum, wood, steel, etc.). The skin and core are bonded together by vacuum compression molding
using high-quality polyurethane glue as an adhesive.
Rockwool Sandwich
The fireproof rock wool sandwich panel is made of two layers of color-coated steel plates or other metal plates. The rock wool is
bonded with the metal panel to form beautiful, flat, rigid, and tough building panels. The formed panels have the characteristics
of fire prevention, heat preservation, and environmental protection, which provides a good choice for industrial building systems.
bonded with the metal panel to form beautiful, flat, rigid, and tough building panels. The formed panels have the characteristics
of fire prevention, heat preservation, and environmental protection, which provides a good choice for industrial building systems.
EPS Foam Sandwich
The EPS core sandwich panels are universal solutions for roof and wall coverings, and are easy on your budget.Good insulating
efficiency and safety;The sandwich panel core is of self-extinguishing EPS.High fire integrity;The carefully designed lock profile
helps to complete the installation, quickly and effectively.
efficiency and safety;The sandwich panel core is of self-extinguishing EPS.High fire integrity;The carefully designed lock profile
helps to complete the installation, quickly and effectively.
Product name | Sandwich Panel | ||
Core material | EPS,PIR,PU,ROCK WOOL,XPS,Rockwool Sandwich | ||
Effective width | Wall panel: 800mm, 950mm, 1000mm, 1150mm, 1200mm Roof panel: 960mm, 970mm | ||
Length | Customized(not exceeding 11.8m) | ||
Thickness | 30mm, 50mm, 75mm, 100mm, 150mm, 200mm | ||
Steel Sheet Thickness | 0.4-0.8mm | ||
Zinc content | Z40-275g/m2 | ||
Color | RAL color | ||
Density | EPS ≥18kg/m3 XPS ≥30kg/m3 PIR ≥30kg/m3 Rockwool:50-140kg/m3 Glasswool:28-64kg/m3 | ||
Temp tolerance | -120-90℃ | ||
Surface profile | flat,corrugated,big rib, small wave | ||
Material | upper layer | PPGI (prepainted galvanised steel) color steel sheet | |
inner layer | EPS,PIR,PU,ROCK WOOL,XPS,Rockwool Sandwich | ||
bottom layer | PPGI (prepainted galvanised steel) color steel sheet | ||
Fireproof | B1 /B2 Grade OPTIONAL | ||
Characteristics | heat insulation energy-saving | 100mm width can keep temp at 0℃ (suit for fresh keeping) | |
150mm width can keep temp at -18℃ (suit for cold storage) | |||
200mm width can keep temp at -38℃ (suit for freezing) | |||
water resistance and sound proof | |||
weather proofing | |||
fire retardant level:B | |||
high strength and bending resistance | |||
easy quick installation and dismantling,labour cost saving | |||
light weight compared to traditional stone or plaster panel | |||
safe and green,good appearance,without formaldehyde | |||
Lifespan | can reach 15-20 years | ||
Application | Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc. | ||
Formed Metal Panels
Color steel sheet: More RAL colors can be supplied for your choice.
Company Profile
Shandong Juhe Steel Co., Ltd
Established in 2009,Shandong Juhe Steel Structure Co, Ltd. lt focuses on product applications in multiple fields such as Polyurethane PU， XPS extruded boards, EPS building modules, floor heating modules, rock wool,EPS packaging,EPp packaging and EPppipes, as well as the research and development of environmental protection and energy-saving technologies. Alarge-scale new materials group company integrating R&D, production, sales and construction. Products are widely used in large-scale cold storage, centralair conditioning, floor heating, south-to-north water diversion, airport runwayscivil construction and other engineering projects, as well as in cold chain and packaging fields. We have been unanimously recognized by customers so to grab a larger market share. At present, our production workshop covers an area of more than 40,000 square meters, with 8 designers, 16 technicians, more than 150 senior production technicians. Our company will provide regular training for them.And we also have a very strict seven systems, which are mainly divided into supply system, production management system, quality control system, packaging system, storage system, pre-factory inspection system, and after-sales system. The improvement of the system is to ensure our production capacity and production the high quality and after-sales service are completed to better serve customers.
Product packaging
Packing Details :
Carton package:
Standard pacakge for mono block unit is carton, it is with pallet on the bottom for easy transportation. Sutiable for container shipment.
Plywood package:
For LCL delivery without container, you can update the package with plywood, the unit can be well protected.
Plastic film for panel :
Each panel is well wrapped with plastic film respectively,the corner is protected with brown paper.
Applications
Our Partners
FAQ
Q: Are you trading company or manufacturer ?
Q: How many years experience do you have in this industry ?
Q: Why we are your best choice?
Q:What's the Payment Terms?
Q:What about your delivery time? Can we receive the goods on time ?
Q:How to guarantee the products I bought?
A: We are factory. Certainly if you need other special product, we will do our best
to help you, so we can build a long-term business relationship.
to help you, so we can build a long-term business relationship.
Q: Can I order the product with special size?
A: Of course you can, also we will produce the products according to your detail requests.
Q: How many years experience do you have in this industry ?
A: Our factory was established in 2009, thanks for 15 years
development, our design and production team became stronger and stronger.
development, our design and production team became stronger and stronger.
Q: Why we are your best choice?
A: We have direct factory and many years of export experience, and offer the best price with high
quality product, timely delivery, also have good after-sales service, therefore with good reputation on boards and with many clients have good long-term business relationship.
quality product, timely delivery, also have good after-sales service, therefore with good reputation on boards and with many clients have good long-term business relationship.
Q:What's the Payment Terms?
A: 30% T/T as deposit, balanced before shippment arranged. We'll show you the photos of the products
and packages before you pay the balance. T/T, L/C, Western Union acceptable...Other way can be negotiated.
and packages before you pay the balance. T/T, L/C, Western Union acceptable...Other way can be negotiated.
Q:What about your delivery time? Can we receive the goods on time ?
A: Usually around 3-5 weeks after order confirmed, it also depends on the total quantity of your order. During the production process, we will report the production progress to you at any time.
Q:How to guarantee the products I bought?
A:We will offer TDS for each item before delivery. Any quality problem, customer
provide samples/pictures/test data, once confirmed, exchange or other ways as you like.
Q:Does the product have quality inspection before loading?
provide samples/pictures/test data, once confirmed, exchange or other ways as you like.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, an dunqualified products will be destroyed.
