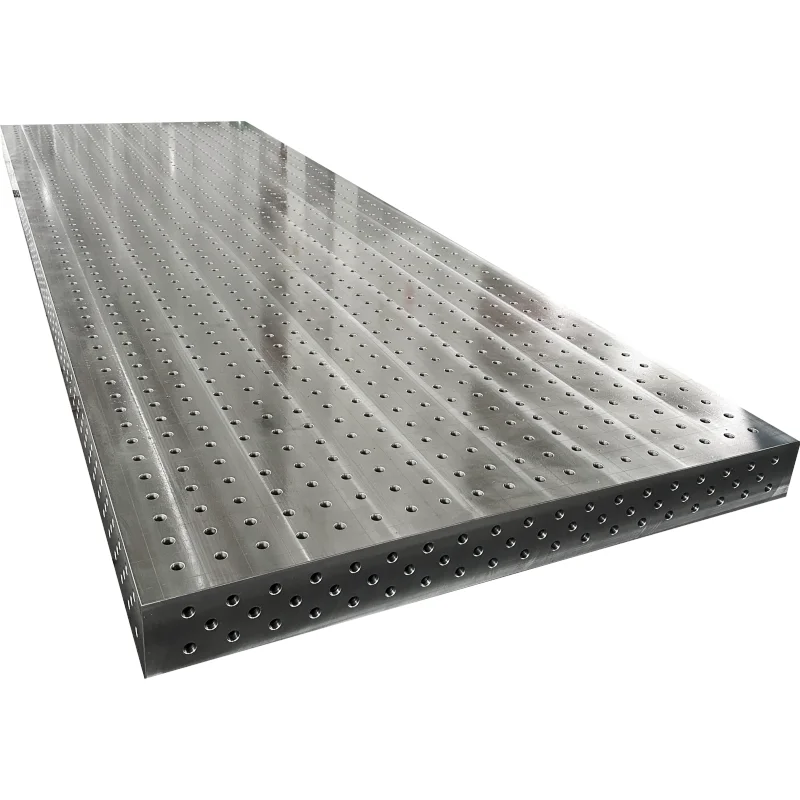

Стабильная сварочная платформа из чугуна с Т-образным пазом обеспечивающая плавную и точную работу
1 300,00-1 506,00 $

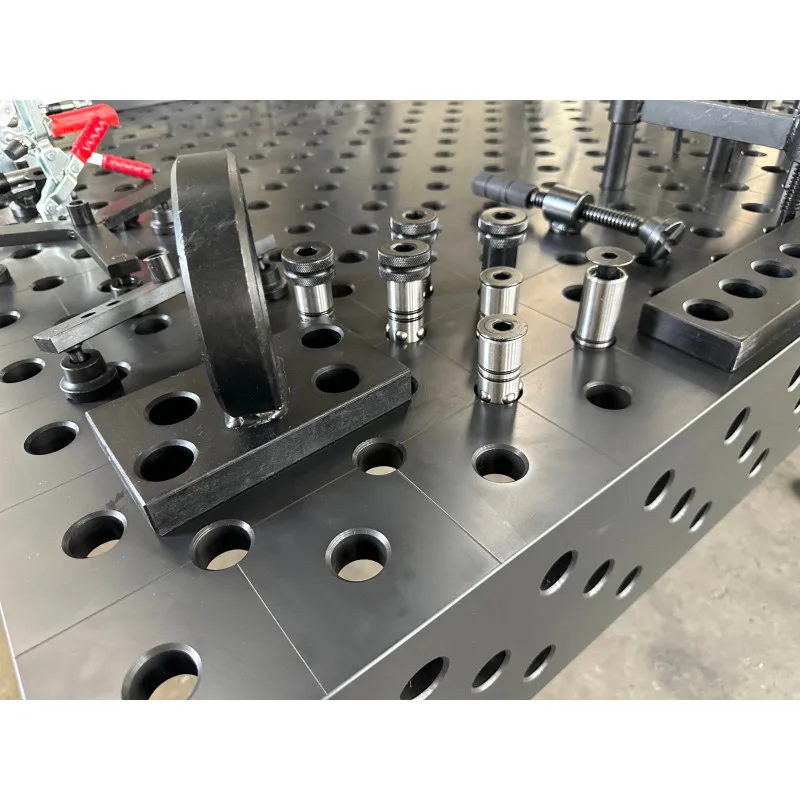

3D сварочный стол с комплектами аксессуаров из стали чугуна
- Категория: >>>
- Поставщик: Botou Jingpu Machinery Co. Ltd.Botou Ltd.
Сохранить в закладки 1601211760523:
Описание и отзывы
Характеристики
Product Description
Regular size | Hole diameter | Dimension | Material | |||
(Other size customized) | ||||||
1000*1000mm | D28/D16 | 3D/2D | Q355 steel & HT300 cast iron | |||
1200*1000mm | ||||||
1500*1000mm | ||||||
1200*1200mm | ||||||
1500*1500mm | ||||||
2000*1000mm | ||||||
2400*1200mm | ||||||
2000*1500mm | ||||||
3000*1500mm | ||||||
3000*2000mm | ||||||

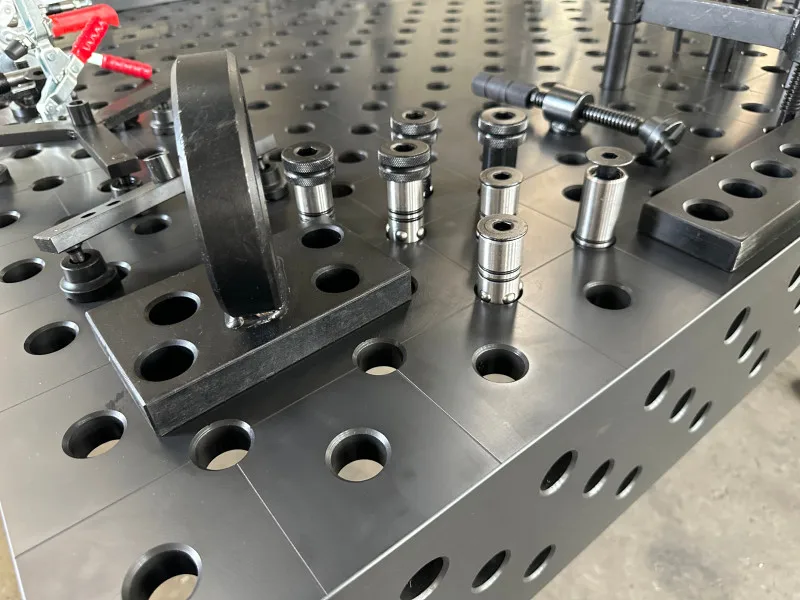

3D/2D welding table is the basic platform of 3D flexible combined tooling, which is used to support the workpiece to be machined, positioning fixture, clamping fixture, calibrating fixture, etc. . According to the hole series, the platform is divided into D16 and D28 series. According to the structure, the platform is divided into two-dimensional flexible combined tool and three-dimensional flexible combined tool. The platform is diversified in size and can be customized according to actual needs. It can be used not only as a welding platform, but also as an assembly platform, testing platform, machine tool processing platform.
Platform technical parameters: three-dimensional flexible welding platform planeness ≤0.1 mm/m ~ 2, verticality ≤0.10/200 mm, parallelism ≤0.10/200 mm, each of the five working surfaces of the work platform has holes of 100 mm × 100 mm (D28 series) or 50 mm × 50 mm (D16 series) with grid markings. The tolerance accuracy of plane, parallel and vertical of five surfaces can reach ≤0.15 mm/1000mm, and the tolerance of arbitrary hole distance can reach ± 0.05 mm. At the same time, according to customer requirements, the two right-angled sides of the platform can be described above the MM scale mesa in the form of mesh holes.
Platform technical parameters: three-dimensional flexible welding platform planeness ≤0.1 mm/m ~ 2, verticality ≤0.10/200 mm, parallelism ≤0.10/200 mm, each of the five working surfaces of the work platform has holes of 100 mm × 100 mm (D28 series) or 50 mm × 50 mm (D16 series) with grid markings. The tolerance accuracy of plane, parallel and vertical of five surfaces can reach ≤0.15 mm/1000mm, and the tolerance of arbitrary hole distance can reach ± 0.05 mm. At the same time, according to customer requirements, the two right-angled sides of the platform can be described above the MM scale mesa in the form of mesh holes.
Widely used in machinery industry, chemical industry, equipment assembly, automobile manufacturing, communication industry tooling or assembly of fixed clamping

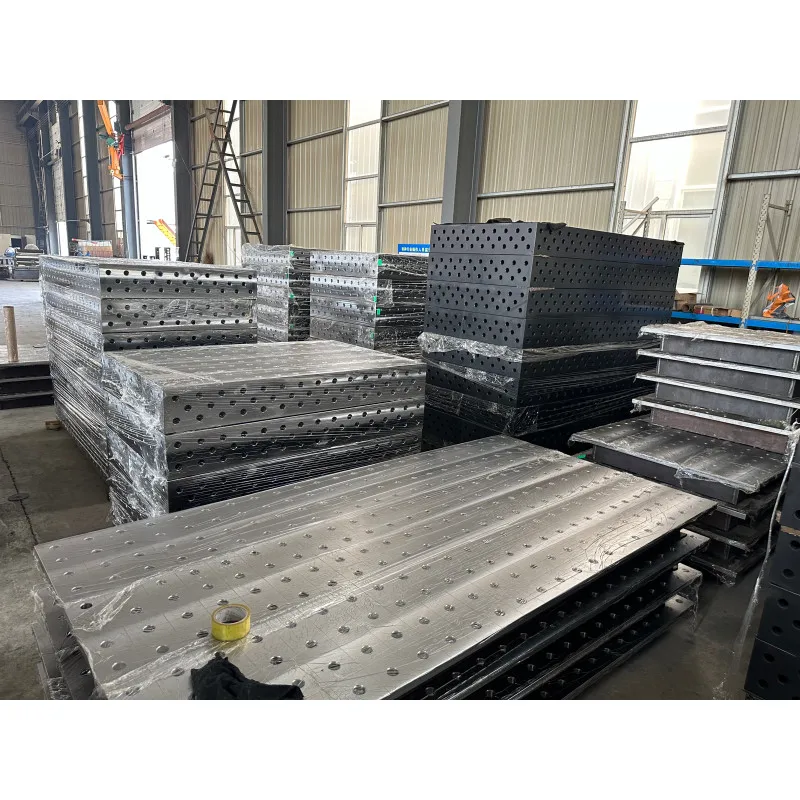

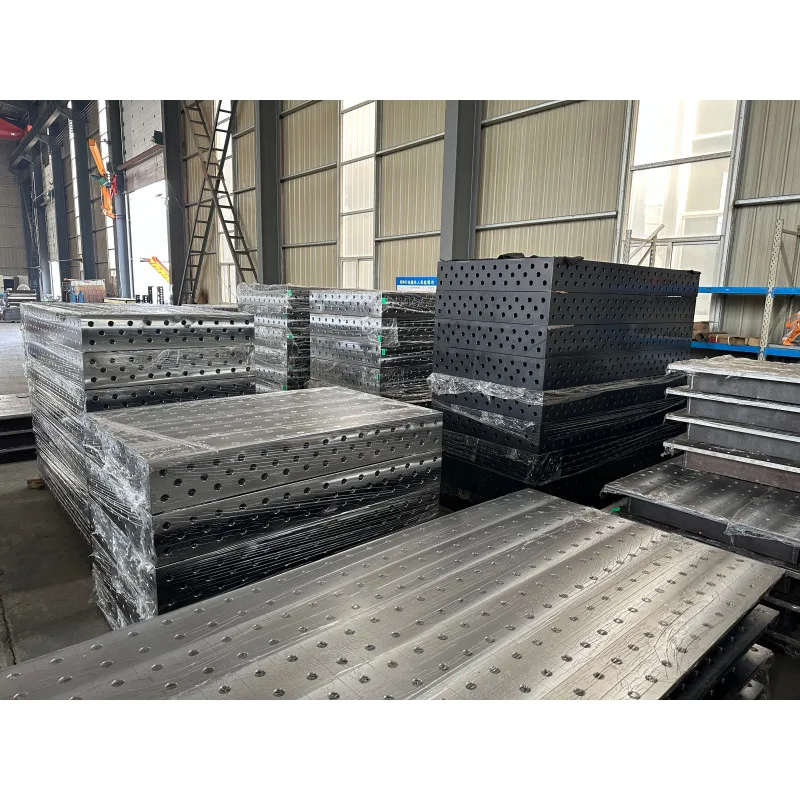

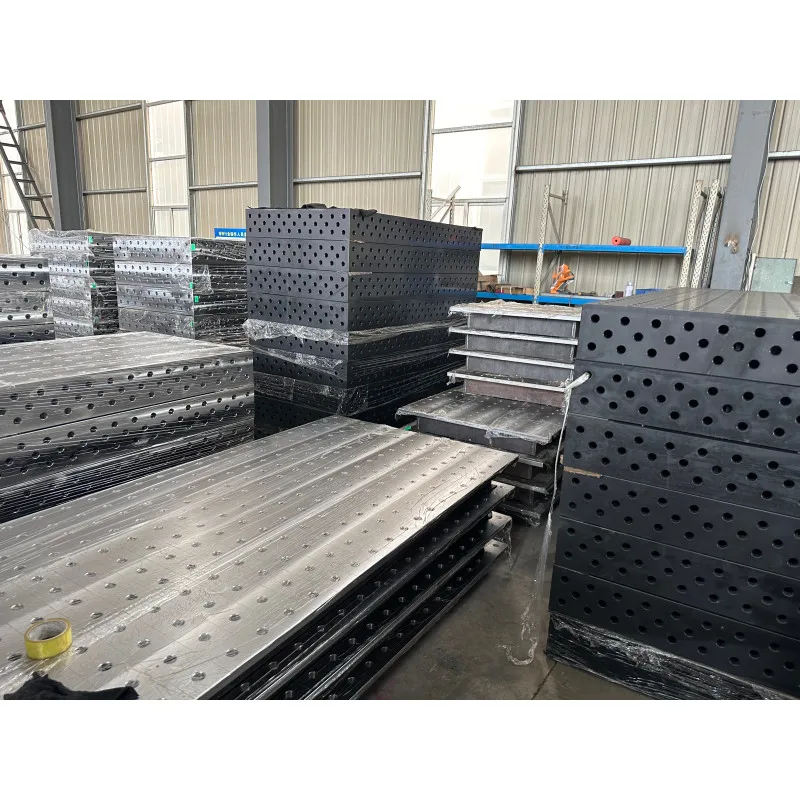

Packing & Delivery
Company Profile
Botou Jingpu Machinery Manufacturing Co., Ltd. is a main three-dimensional welding table series, cast iron platform series, machine tool casting series and other products of the enterprise. The company built a factory in 2011, the factory covers an area of 18,000 square meters, the company now employs more than 100 people, including workshop operators more than 60 people, the company's fixed assets of 15 million yuan, the annual production of cast iron about 12,000 tons, is Hebei Province machinery industry production platform, measuring tools of large private enterprises.
Botou Jingpu Machinery Manufacturing Co., Ltd. has further increased overseas business development in recent years, and now the company has developed overseas markets: the United States, Europe, Russia, Southeast Asia and other countries. Expand new horizons, adapt to the new normal, our company with a positive attitude to meet the comprehensive deepening of reform, adapt to market changes and grasp the national macro policy orientation, grasp the national "One Belt, One Road" strategic ideas, on the basis of ensuring the original development of overseas markets, focus on Kazakhstan, Turkey and other emerging regional markets, integrate resources to expand export business. To achieve the company's performance and market size synchronous growth, to achieve the company's own development and progress with partners.
"Honesty, integrity, pursuit, beyond" is Botou Jingpu Machinery Manufacturing Co., Ltd. was established to uphold the business philosophy, but also the company's highest guiding principle of management, all staff adhere to improve customer satisfaction and improve product quality as the goal, has a high standard, convenient service and high quality, low pollution products as a symbol. In the constant self-motivation and efforts to innovate, to pursue excellence.
Botou Jingpu Machinery Manufacturing Co., Ltd. has further increased overseas business development in recent years, and now the company has developed overseas markets: the United States, Europe, Russia, Southeast Asia and other countries. Expand new horizons, adapt to the new normal, our company with a positive attitude to meet the comprehensive deepening of reform, adapt to market changes and grasp the national macro policy orientation, grasp the national "One Belt, One Road" strategic ideas, on the basis of ensuring the original development of overseas markets, focus on Kazakhstan, Turkey and other emerging regional markets, integrate resources to expand export business. To achieve the company's performance and market size synchronous growth, to achieve the company's own development and progress with partners.
"Honesty, integrity, pursuit, beyond" is Botou Jingpu Machinery Manufacturing Co., Ltd. was established to uphold the business philosophy, but also the company's highest guiding principle of management, all staff adhere to improve customer satisfaction and improve product quality as the goal, has a high standard, convenient service and high quality, low pollution products as a symbol. In the constant self-motivation and efforts to innovate, to pursue excellence.
FAQ
Q1: How long will i get my table?A: 100% delivery in time based on customer needs;
within 3-5 weeks production time for customized goods;
within 1-2 weeks production time for stock with raw material goods;
within 1 week delivery time for stock goods;
Q2: Can i order the size i want?
A: Sure, we are professional factory in metal field, customization is welcome.
Q3: How about the shipping method?
A: We provide CIF , FOB , DDP(door-to-door service) delivery method, Fedex and AIR are also acceptable.
Q4: Will you provide video inspection?
A: Yes! We provide video inspection before loading ,we will also follow up with you throughout the production process of your order.
within 3-5 weeks production time for customized goods;
within 1-2 weeks production time for stock with raw material goods;
within 1 week delivery time for stock goods;
Q2: Can i order the size i want?
A: Sure, we are professional factory in metal field, customization is welcome.
Q3: How about the shipping method?
A: We provide CIF , FOB , DDP(door-to-door service) delivery method, Fedex and AIR are also acceptable.
Q4: Will you provide video inspection?
A: Yes! We provide video inspection before loading ,we will also follow up with you throughout the production process of your order.
Похожие товары

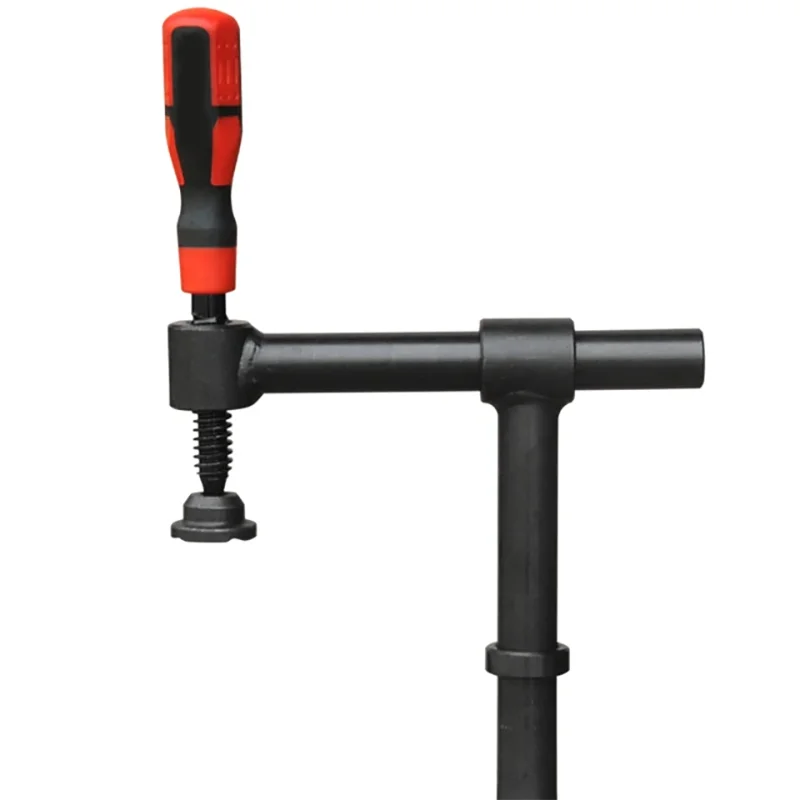

Индивидуальные пластиковые ручки горла регулируемые сварные стальные зажимы для сварочного стола
10,00-12,00 $

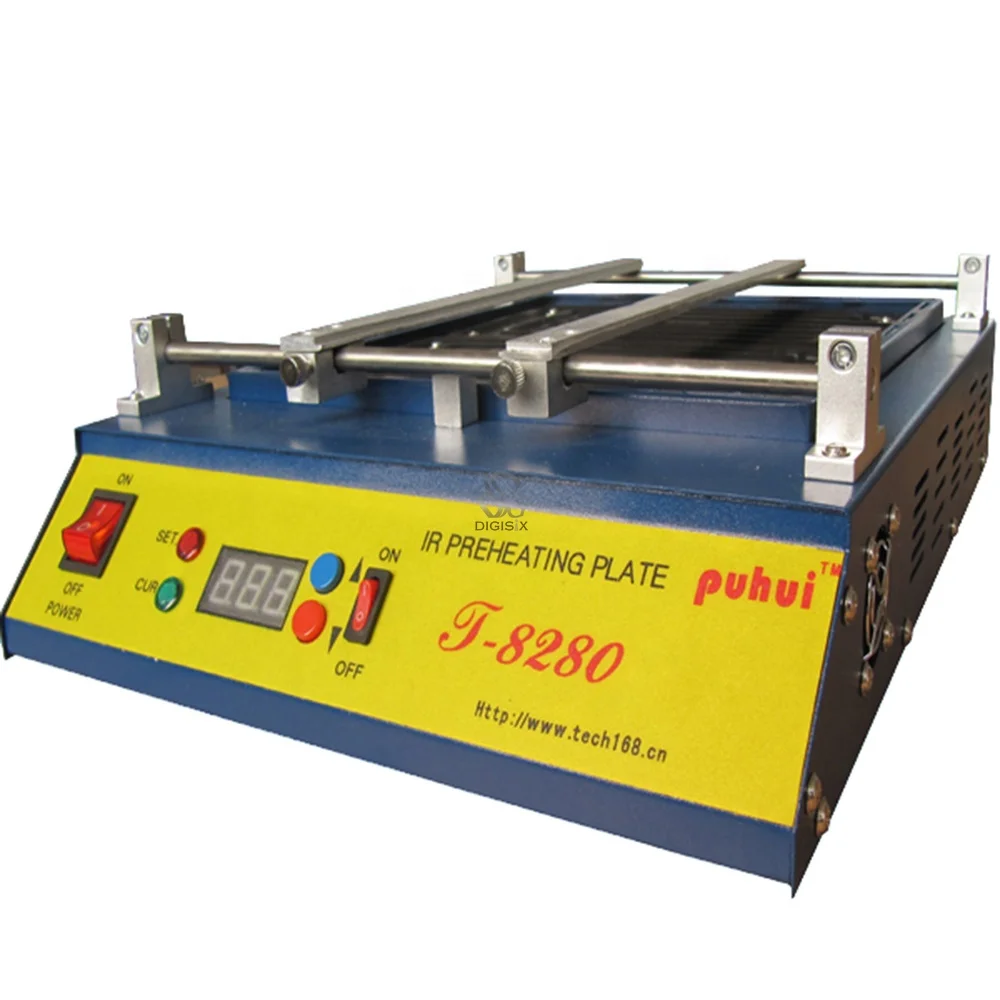

T-8280 инфракрасная станция предварительного нагрева T8280 для пайки PCB SMD BGA
106,00-129,00 $

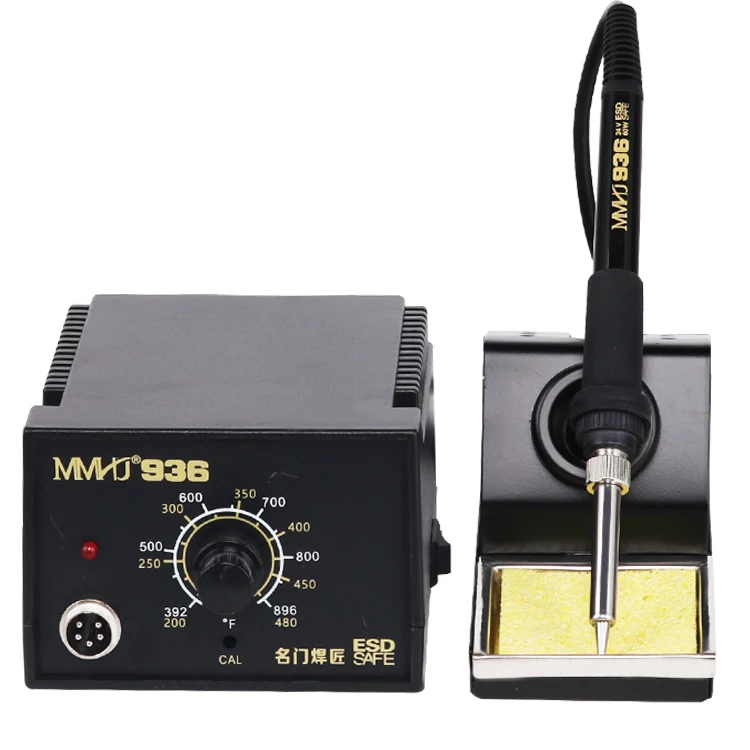

936 Электрический паяльник паяльная станция электронная цифровая наладочная патч ремонт компьютера wo
9,00-12,00 $

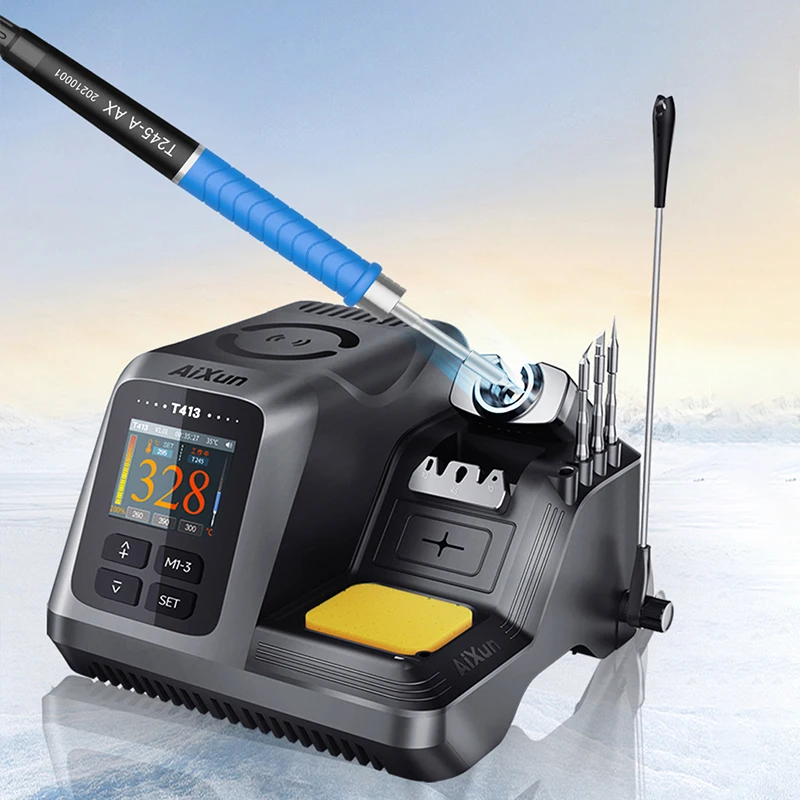

Iixun T413 200 Вт интегрированная интеллектуальная прецизионная паяльная станция совместимая с T210/T245/T225 ручка для точного ремонта сварки
148,00-168,00 $

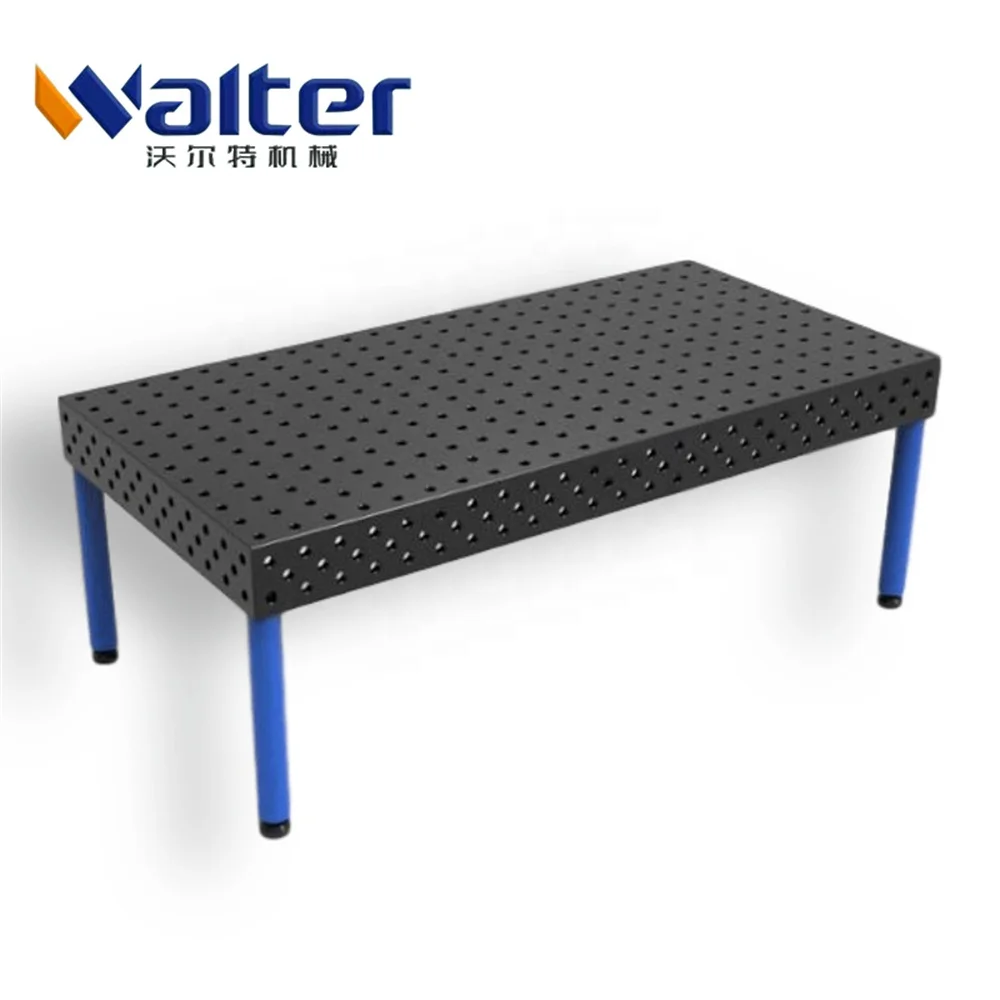

2024 3D сварочный стол с функциями D28 D16 в Китае
2 230,00 $

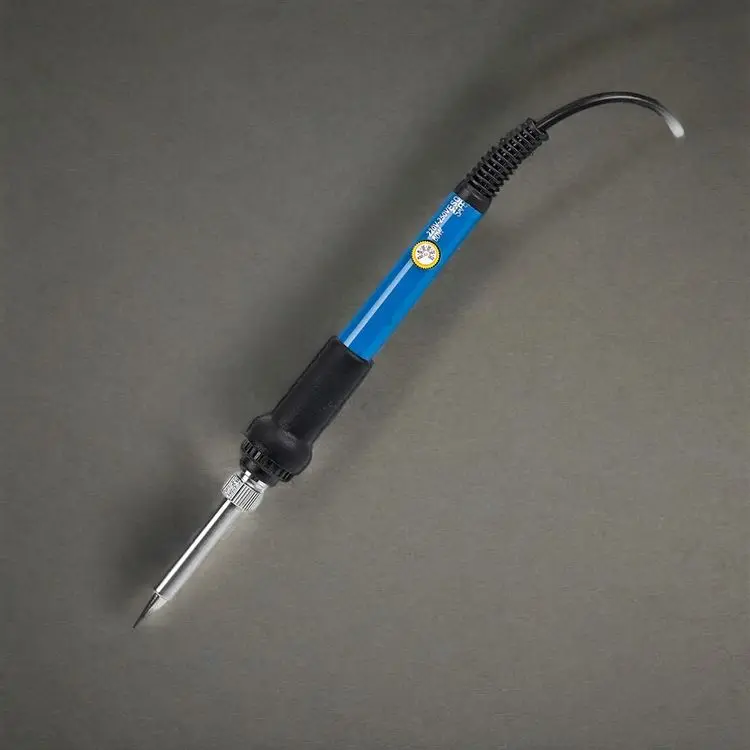

UYUE 301D Электрический сварочный паяльник с регулируемой температурой ручка термокарандаш ручной одиночный
