Product Description
Description of Fire Alarm System:

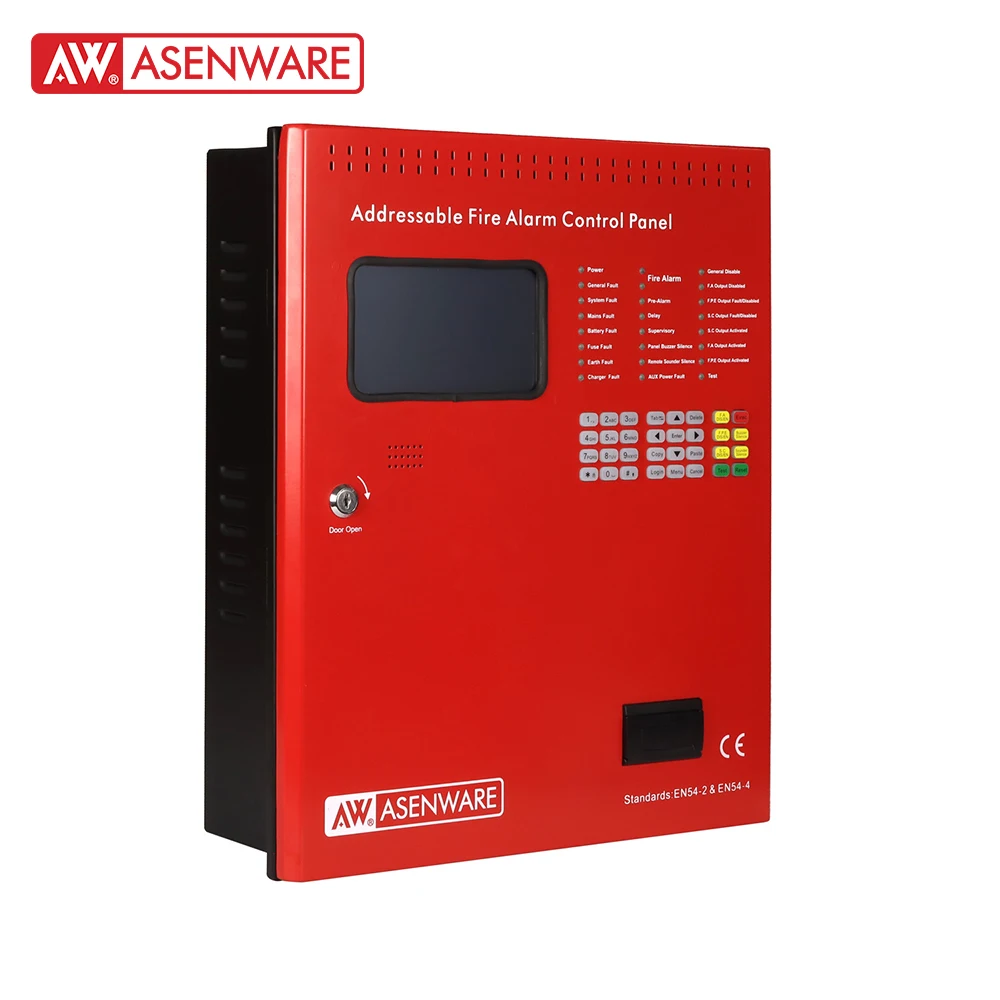

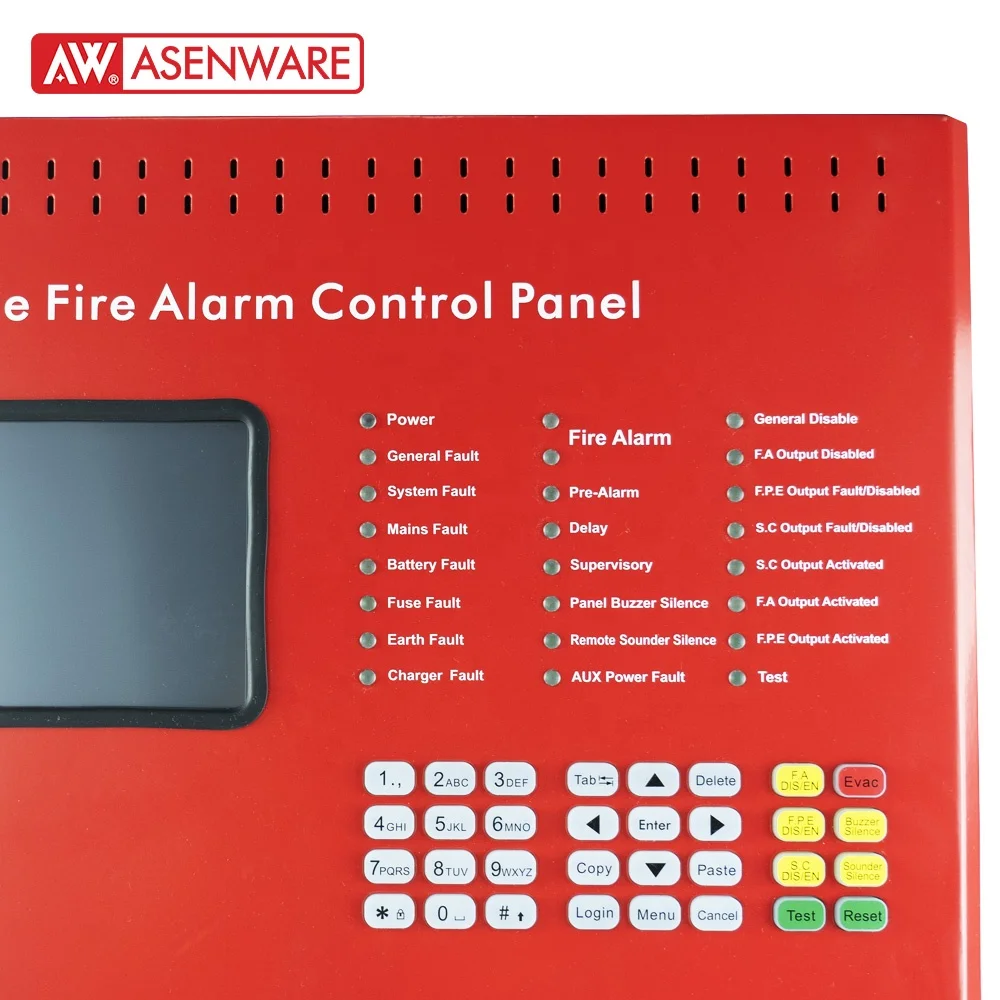

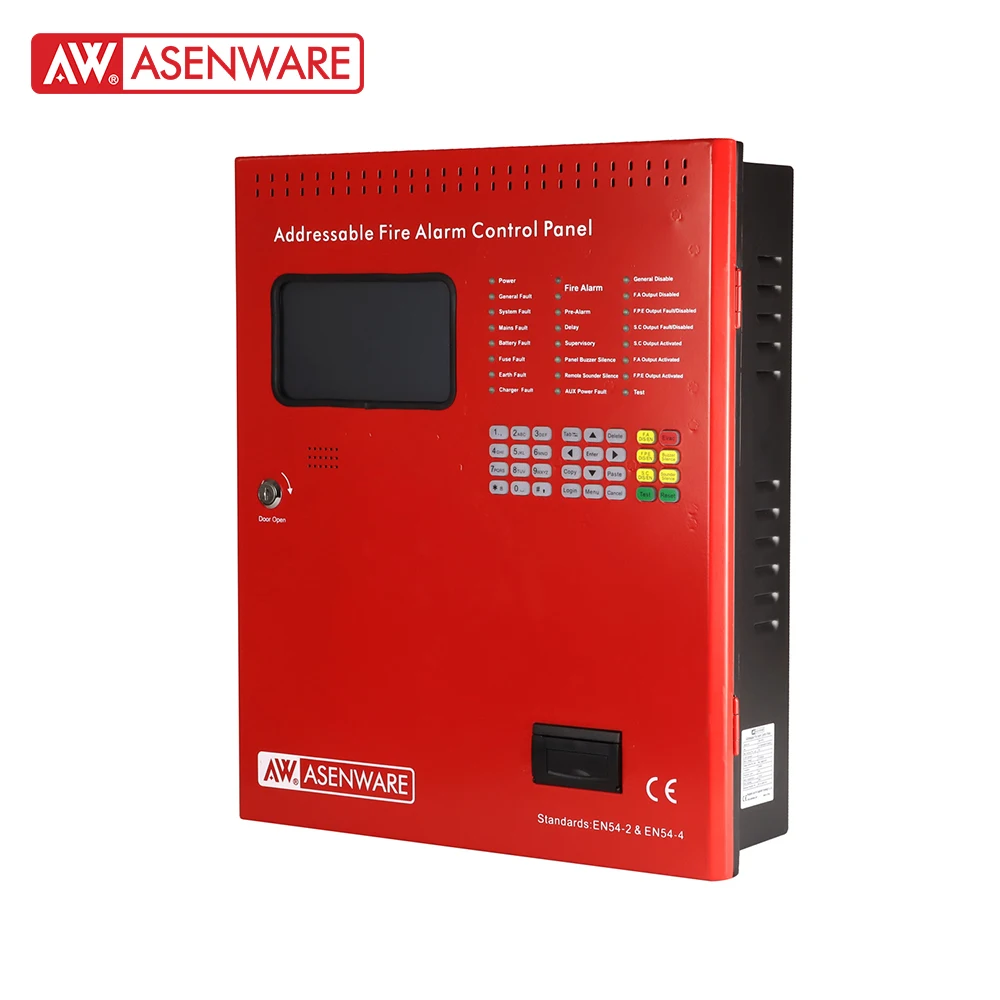

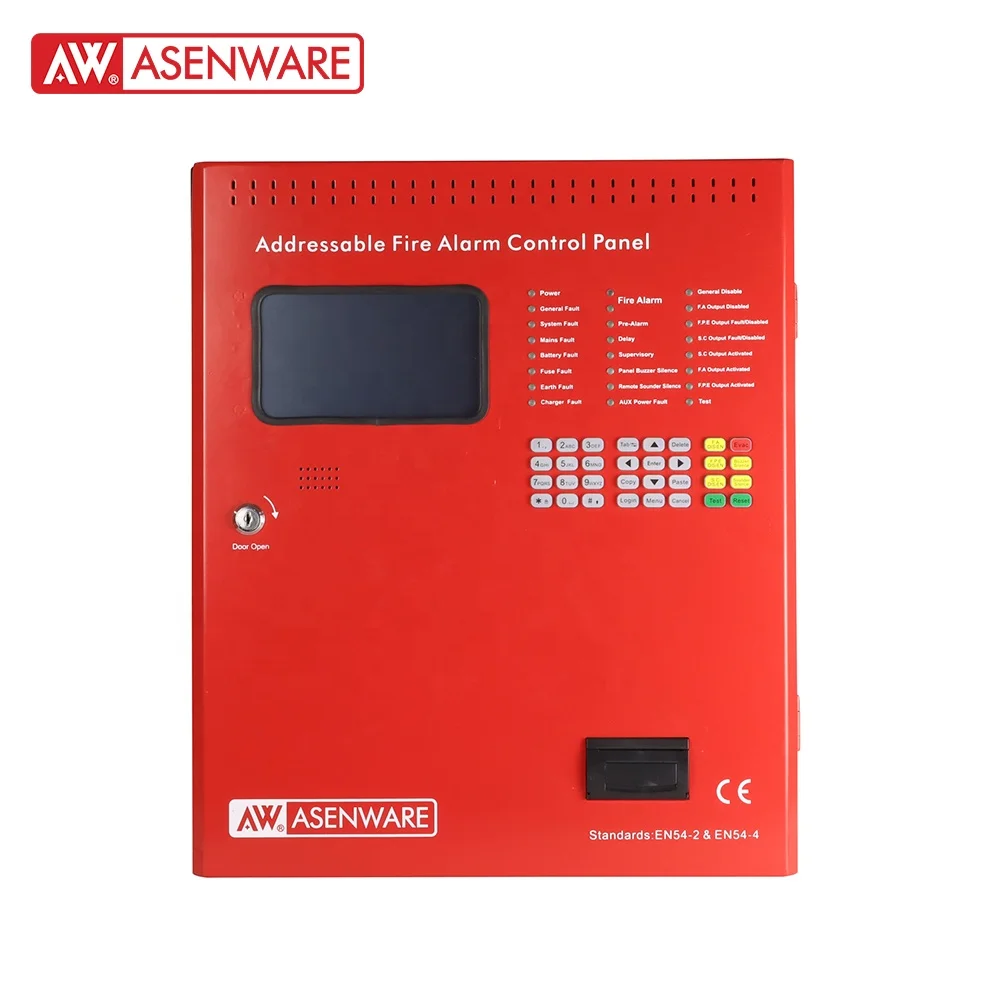

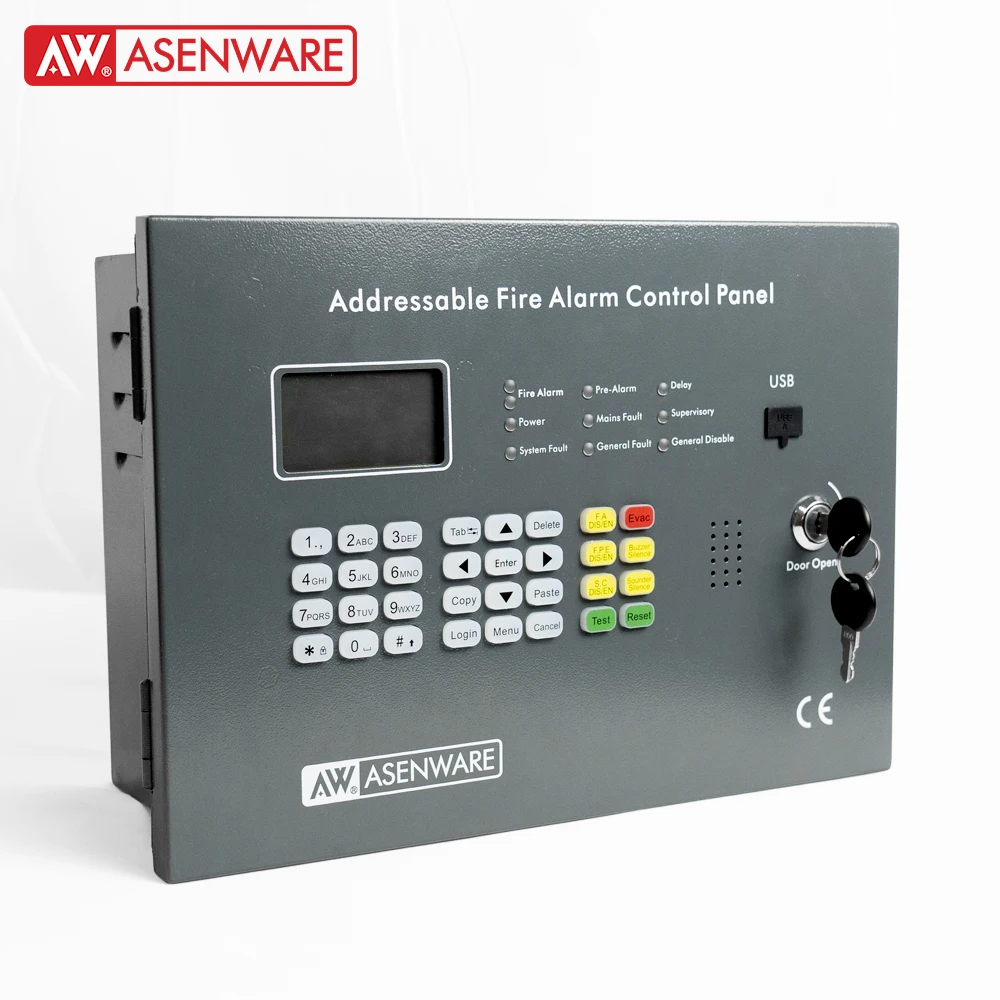

AW-FP200 series addressable fire alarm control panel is designed with 7-inch LCD display touch
screen with button operation, easy to operate, and nice human-computer interface.
This machine can be connected to 8 loops. Each loop can be connected to 250 devices, such as
smoke detectors, temperature detectors, input/output modules, each loop can be
connected to 10 groups of wireless loops, a group of wireless loops can be connected to 20
devices, such as smoke detector, temperature detector, input and output module, etc.
AW-FP200 series addressable fire alarm control panel is designed with 7-inch LCD display touch
screen with button operation, easy to operate, and nice human-computer interface.
This machine can be connected to 8 loops. Each loop can be connected to 250 devices, such as
smoke detectors, temperature detectors, input/output modules, each loop can be
connected to 10 groups of wireless loops, a group of wireless loops can be connected to 20
devices, such as smoke detector, temperature detector, input and output module, etc.
Features :
1.7-inch color LCD display, touch screen operation
2. All addressable devices use a two-wire system
3.A wired loop can connect 250 wired addressable devices, including 10 groups of wireless loops
4.One set of wireless loops can connect to 20 devices
5.Max 8 loop cards can be installed
6.Up to 999 records of history can be saved (save when power off)
7. Multiple access levels can be set
8.It has a rechargeable backup battery
9.Can simply judge the running status of the machine based on the LED lights
10.Automatic search device
11.Each of the 8 hosts CAN be controlled remotely
12. USB software upper computer to check and set the device status and fire history records
13. It can bind 10 mobile phone numbers to receive host alarm information (The GSM module must be added)
1.7-inch color LCD display, touch screen operation
2. All addressable devices use a two-wire system
3.A wired loop can connect 250 wired addressable devices, including 10 groups of wireless loops
4.One set of wireless loops can connect to 20 devices
5.Max 8 loop cards can be installed
6.Up to 999 records of history can be saved (save when power off)
7. Multiple access levels can be set
8.It has a rechargeable backup battery
9.Can simply judge the running status of the machine based on the LED lights
10.Automatic search device
11.Each of the 8 hosts CAN be controlled remotely
12. USB software upper computer to check and set the device status and fire history records
13. It can bind 10 mobile phone numbers to receive host alarm information (The GSM module must be added)
Rated input voltage | 85-260VAC 50Hz/60Hz |
Standby battery | Two 12V/7Ah lead-acid batteries in series |
Working environment | Relative humidity (<95%) at -10 ~45 ℃, no condensation) |
Fuse | AC power input fuse: 3.15A/250V 5*20mm, Glass tube fuse slowly blow Battery output fuse: 10A/250V 5*20mm, Glass tube fuse, slowly blow |
Auxiliary power supply | Resettable 24VDC 200mA (Max) |
F.A output | Normal output -12VDC Fire alarm output 24VDC/200mA (Max) |
Fault output | Normal output is 24VDC/200mA (Max), and the fault is output -12VDC |
S.C output | Normal state output - 12VDC Active state output -24VDC/200mA (Max) |
Maximum Load Current per Loop | 24VDC 1A(Max) |
Terminal blocks rating | All terminals rated for 12 to18 AWG (0.75 to 2.5 mm2) Screened or unscreened twisted-pair, Transmission distance ≤1000m |
Why Choose Us
Certificate
Company profile
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005. Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system,
central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system. Our fire safety products ,solutions and services are used in over 100 countries.
central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system. Our fire safety products ,solutions and services are used in over 100 countries.

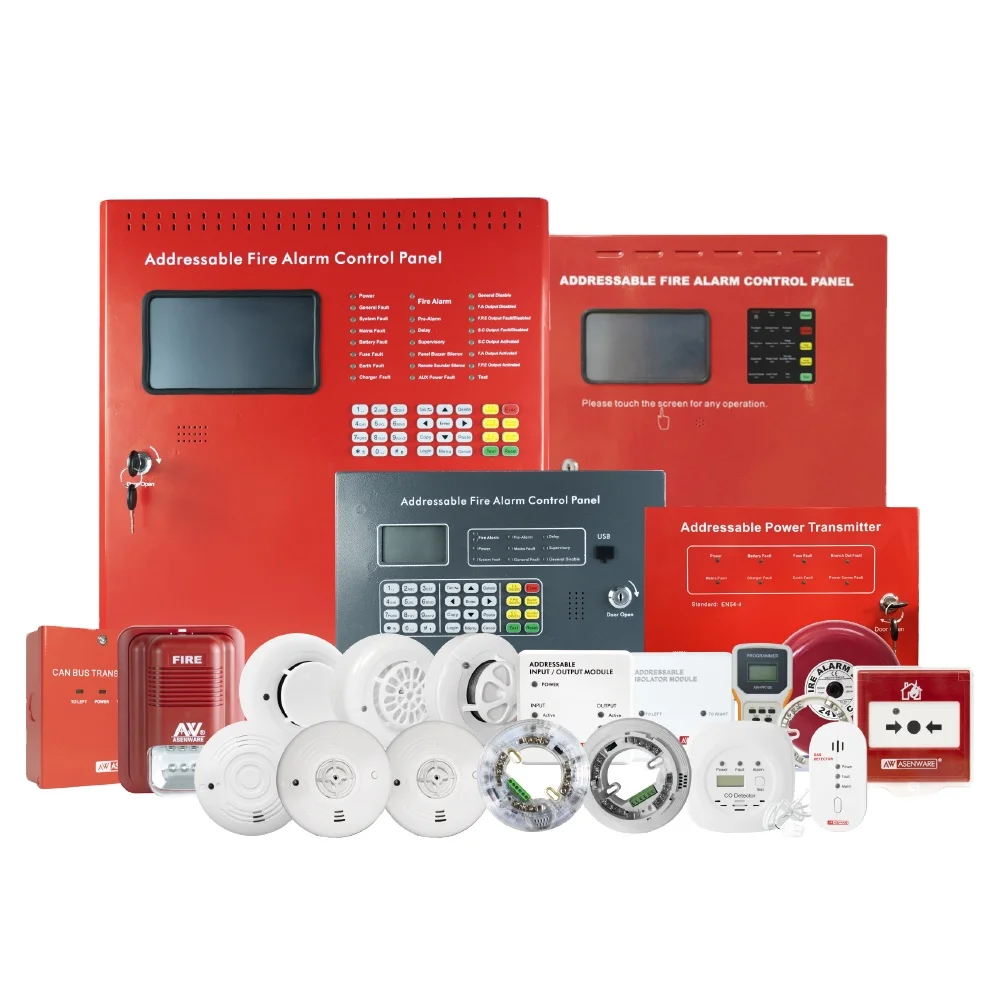

Here are our product ranges:
1-Conventional fire alarm system
2-Addressable fire alarm system
1-Conventional fire alarm system
2-Addressable fire alarm system
3-Wireless fire alarm system
4-Fire sprinkler
5-FM 200/CO2 gas fire suppression system
6-Emergency light system
7-Addressable fire telephone system
8-Voice evacuation control panel and speakers
4-Fire sprinkler
5-FM 200/CO2 gas fire suppression system
6-Emergency light system
7-Addressable fire telephone system
8-Voice evacuation control panel and speakers
9.Fire pump and fire valve
Overseas Project
Customer Photos
Exhibition
FAQ
1.Payment term
lWe support:A: TT, L/C at sight, Ali assurance online payment link (credit/debit card);
2.What’s your delivery time?
1)products in stock : one week working days
2)Products out of stock : two week working days
3)FM200 system: two week working days
4)Pump/ water system: four weeks/three week working days
2)Products out of stock : two week working days
3)FM200 system: two week working days
4)Pump/ water system: four weeks/three week working days
3.What’s your warranty?
2 years for fire alarm and suppression system
1 year for fighting systems like fire pump, fire valve, and fire hose and
cabinet.
2 years for fire alarm and suppression system
1 year for fighting systems like fire pump, fire valve, and fire hose and
cabinet.
4.Does your company has MOQ?
We know you need our products for tests only so we can support you for
a sample and not set MOQ for you.
We know you need our products for tests only so we can support you for
a sample and not set MOQ for you.
5.what’s kind of shipment you could support?
By sea/air/express/pick up by yourself
By sea/air/express/pick up by yourself
6.How is your package?
Carton box-fire alarm product
Wooden box-fire fighting product
Customized packing
Carton box-fire alarm product
Wooden box-fire fighting product
Customized packing
9.What’s the price term?
EXW;FOB;CFR;CNF;CIF;DDP.
EXW;FOB;CFR;CNF;CIF;DDP.
Похожие товары
Проводная и беспроводная панель управления пожарной сигнализацией с функцией голосового оповещения
83 025,95-88 956,38 ₽
AW-FP128 интеллигентая (ый) Панель управления адресной пожарным сигналом для новое поступление
34 159,25-42 699,06 ₽
Asenware AW-CFP2166-12 панель управления пожарной сигнализации с модулем GSM
AW-D110 Asenware addrerssable monitor совместимые модули сигнализации
Аналоговый интеллектуальный детектор дыма
58 711,21-59 304,25 ₽
Высокое качество 8 комплектов в партии зоны панель управления стандартной пожарной

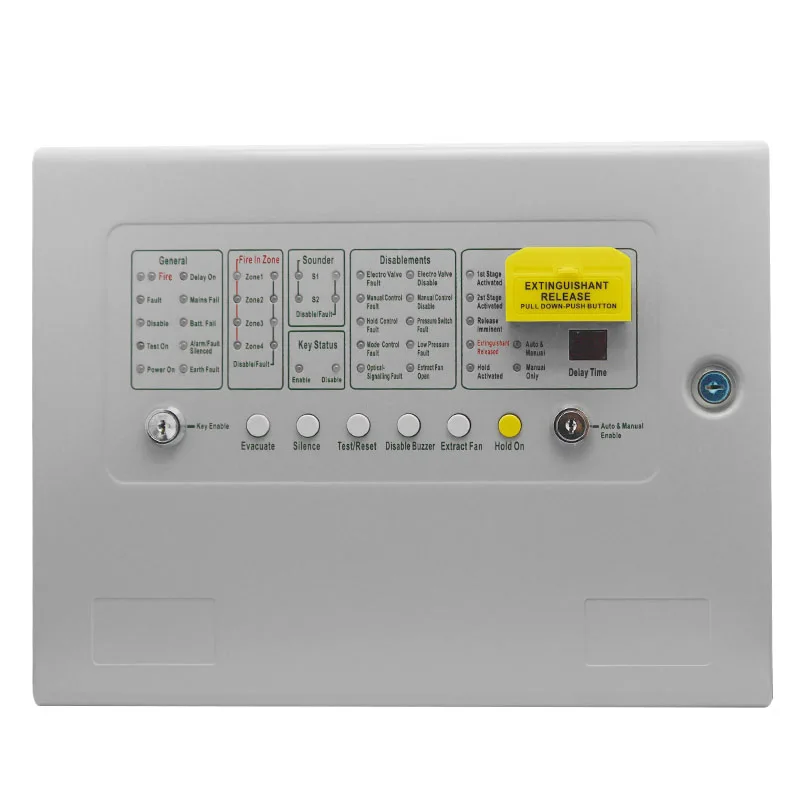

Автоматическая панель управления огнетушителем с четырьмя зонами
