Солнечный инвертор SunArk Vfd 2000VA 3000VA 5000VA 6000VA однофазный двойной MPPT инверторы солнечной энергии с печатной платой
11 020,77-18 253,14 ₽
Солнечный инвертор Sunark Mppt SunPilot ECO 3 кВт 4 2 кВА 6 7 оптом
- Категория: >>>
- Поставщик: Sunrack Solar Co. Ltd.Sunrack Ltd.
Сохранить в закладки 1601212386089:
Описание и отзывы
Характеристики
Product Description
· Pure sine wave inverter
· Programmable supply priority for PV,battery or Grid
· High PV input voltage range(55-450VDC)
· Built-in Max 110A(3.8KW & 6.2KW) MPPT solar charge
· Compatibe with lithium-ion battery
· Support BMS communication with Lithium battery
· Smart battery charge design to optimize battery life
· High PV input voltage range(55-450VDC)
· Built-in Max 110A(3.8KW & 6.2KW) MPPT solar charge
· Compatibe with lithium-ion battery
· Support BMS communication with Lithium battery
· Smart battery charge design to optimize battery life
· Overload, high temperature,inverter output short circuit protection
· Cold start function
· Intelligent fan speed adjustment
· Built-in anti-dusk kit for harsh enviromen(optional)
· WIFI & GPRS available for IOS and android
· Cold start function
· Intelligent fan speed adjustment
· Built-in anti-dusk kit for harsh enviromen(optional)
· WIFI & GPRS available for IOS and android
Model | SunPilot ECO-2200 | SunPilot ECO-3200 | SunPilot ECO-4200 | SunPilot ECO-4200 | SunPilot ECO-7000 | |||||
Rated Power | 2200VA/1800W | 3200VA/3000W | 4200VA/3800W | 4200VA/3800W | 7000VA/6200W | |||||
INPUT | ||||||||||
Voltage | 230VAC | |||||||||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||||||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||||||||
OUTPUT | ||||||||||
AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |||||||||
Surge power | 4400VA | 6400VA | 8400VA | 8400VA | 14000VA | |||||
Transfer Time | 10ms(for personal computers) 20ms(for home appliances) | |||||||||
Waveform | Pure Sine Wave | |||||||||
BATTERY & AC CHARGER | ||||||||||
Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |||||
Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | 54VDC | |||||
Over charge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC | 61VDC | |||||
Maximum charge current | 60A | 80A | 60A | 80A | ||||||
SOLAR CHARGER | ||||||||||
MAX.PV Array Power | 2000W | 3000W | 6000W | |||||||
MPPT Range @ Operating Voltage | 55-450VDC | |||||||||
Maximum PV Array Open Circuit Voltage | 450VDC | |||||||||
Maximum Charging Current | 80A | 110A | 80A | 110A | ||||||
Maximum Efficiency | 98% | |||||||||
PHYSICAL | ||||||||||
Dimension.D*W*H(mm) | 405*286*98mm | 423*290*100mm | 423*290*105mm | |||||||
Net Weight(kgs) | 4.5kg | 5.0kg | 6.8kg | 6.9kg | 7.5kg | |||||
Communication Interface | RS232/RS485(Standard) WIFI(Optional) | |||||||||
OPERATING ENVIRONMENT | ||||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||||
Operating Temperature | -10°C to 55°C | |||||||||
Storage Temperature | -15°C to 60°C | |||||||||

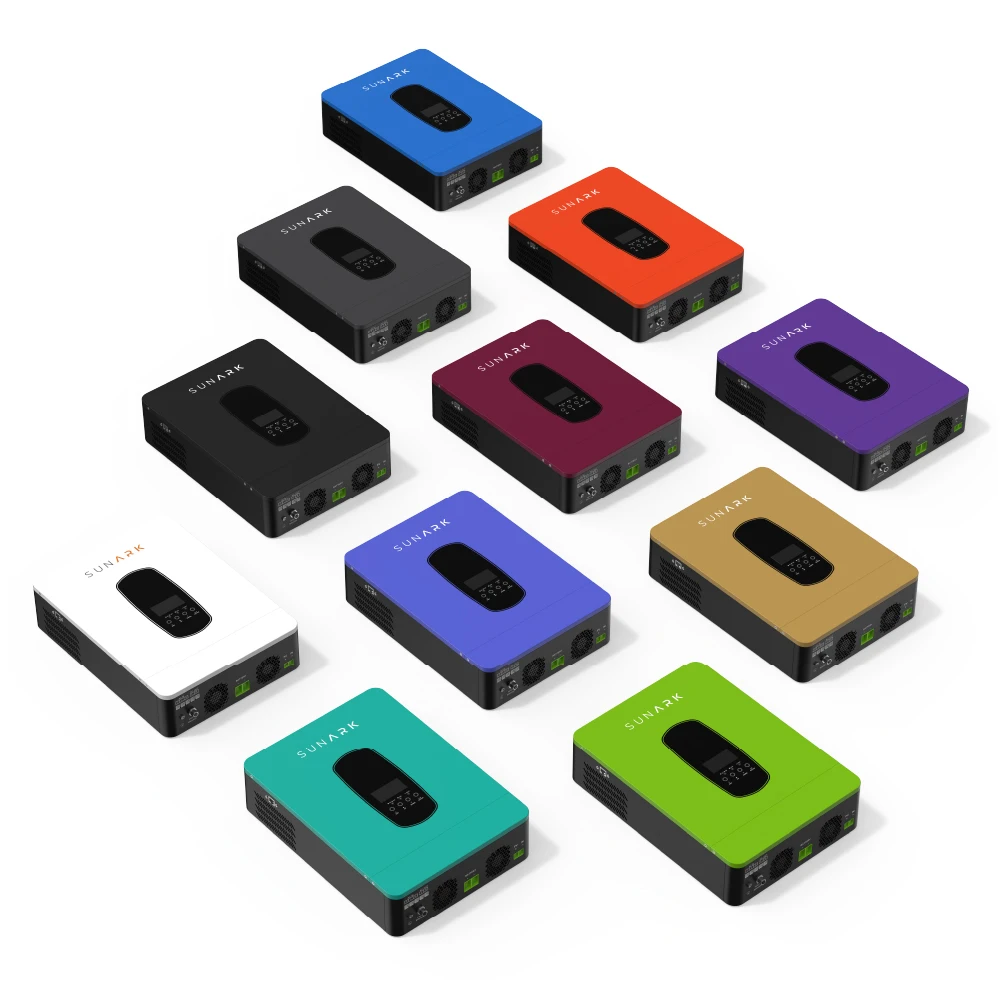

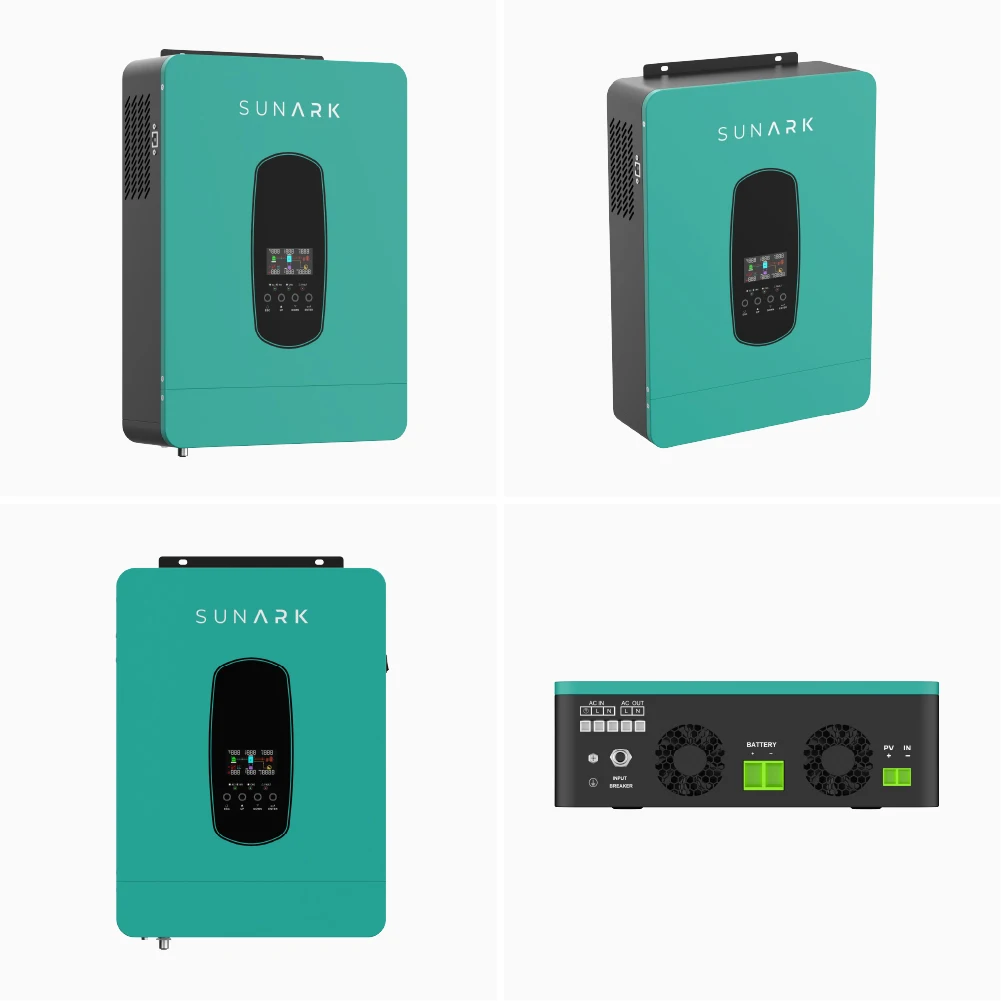

Details Images

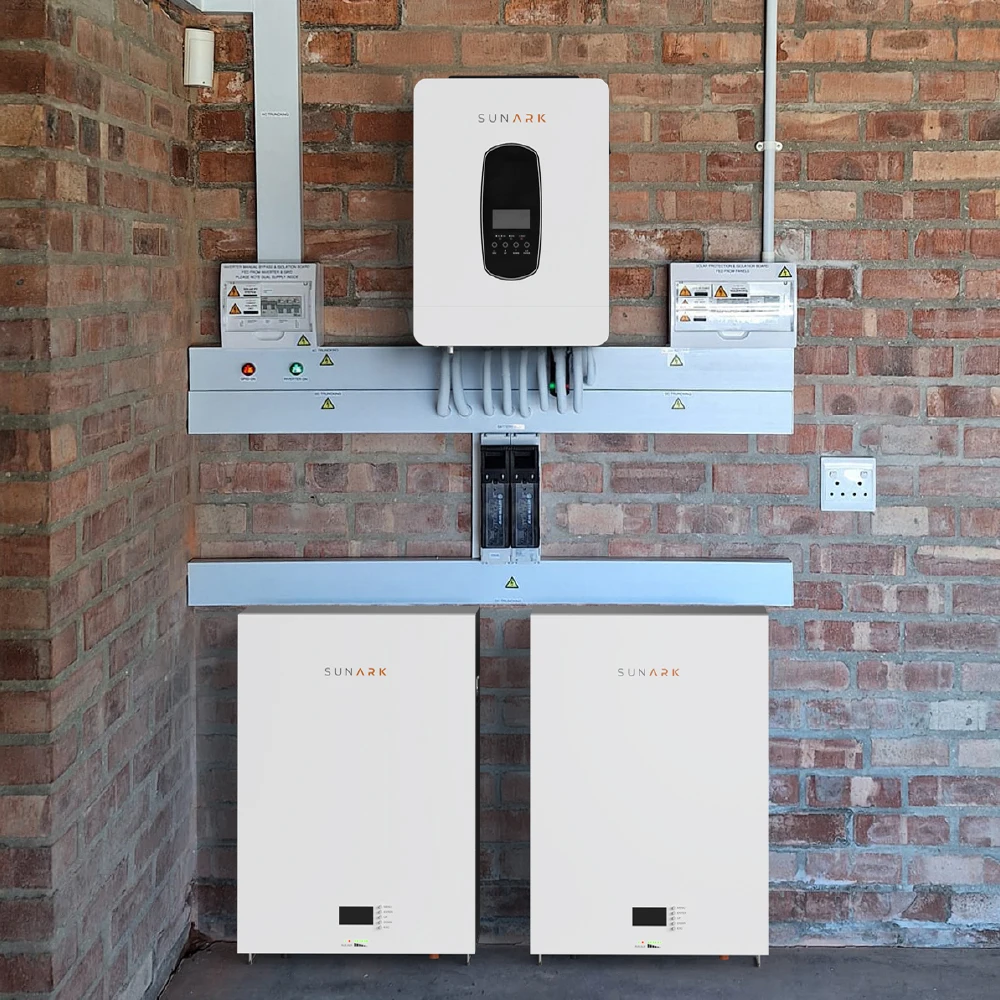

Applications

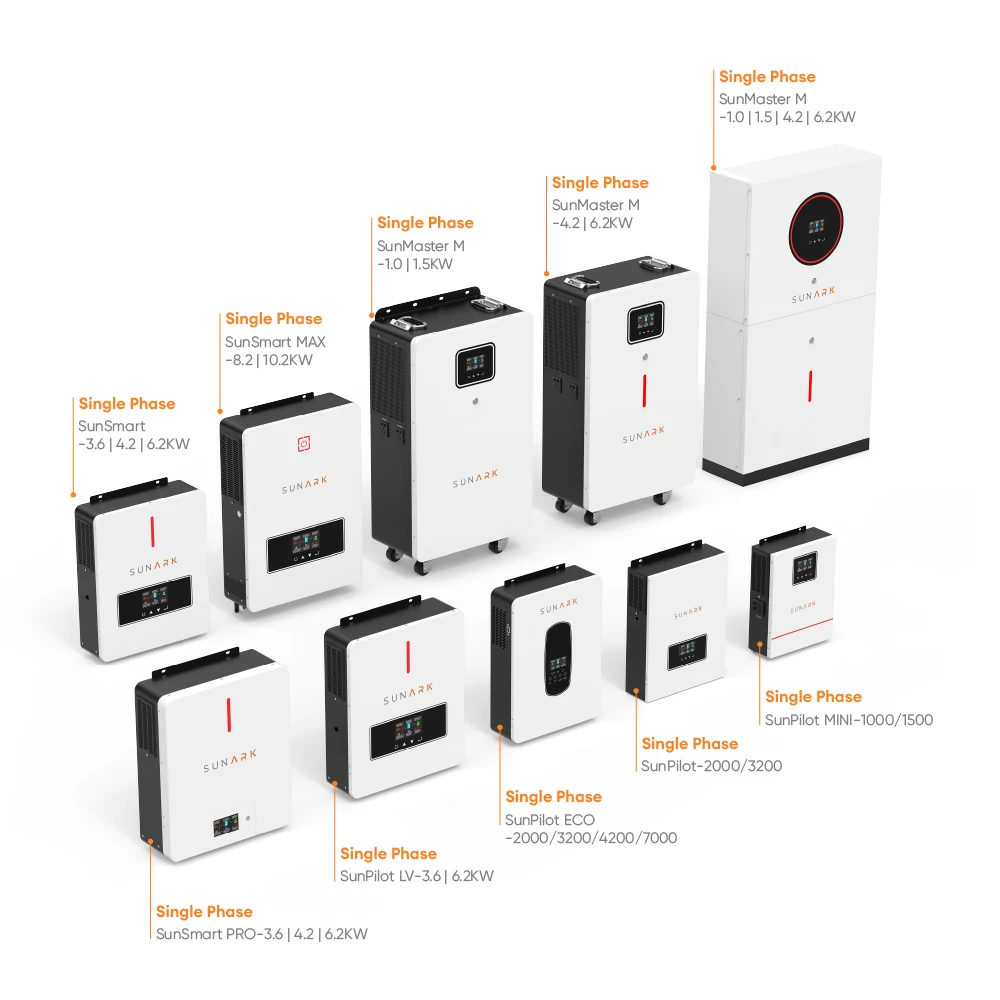

Products Series
SunSmart-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current: 120A
Battery Voltage: 24/48VDC
SunSmart PRO-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:120A
Battery Voltage: 24/48VDC
SunSmart MAX-8.2/10.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:120A
Battery Voltage: 24/48VDC
SunPilot-2000/3200
Output Power: 2200-3200VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
SunPilot ECO-2000/3200/4200/7000
Output Power: 2000-7000VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
SunPilot MINI-1000/1500
Output Power: 1000-1500VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
SunPilot LV-3.6/6.2KW
Output Power: 3.6-6.2KW Split
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
SunMaster-4.2/6.2/10.2KW
Output Power: 4.2-10.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
SunMaster M-1.0/1.5/4.2/6.2KW
Output Power: 1.0-6.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC

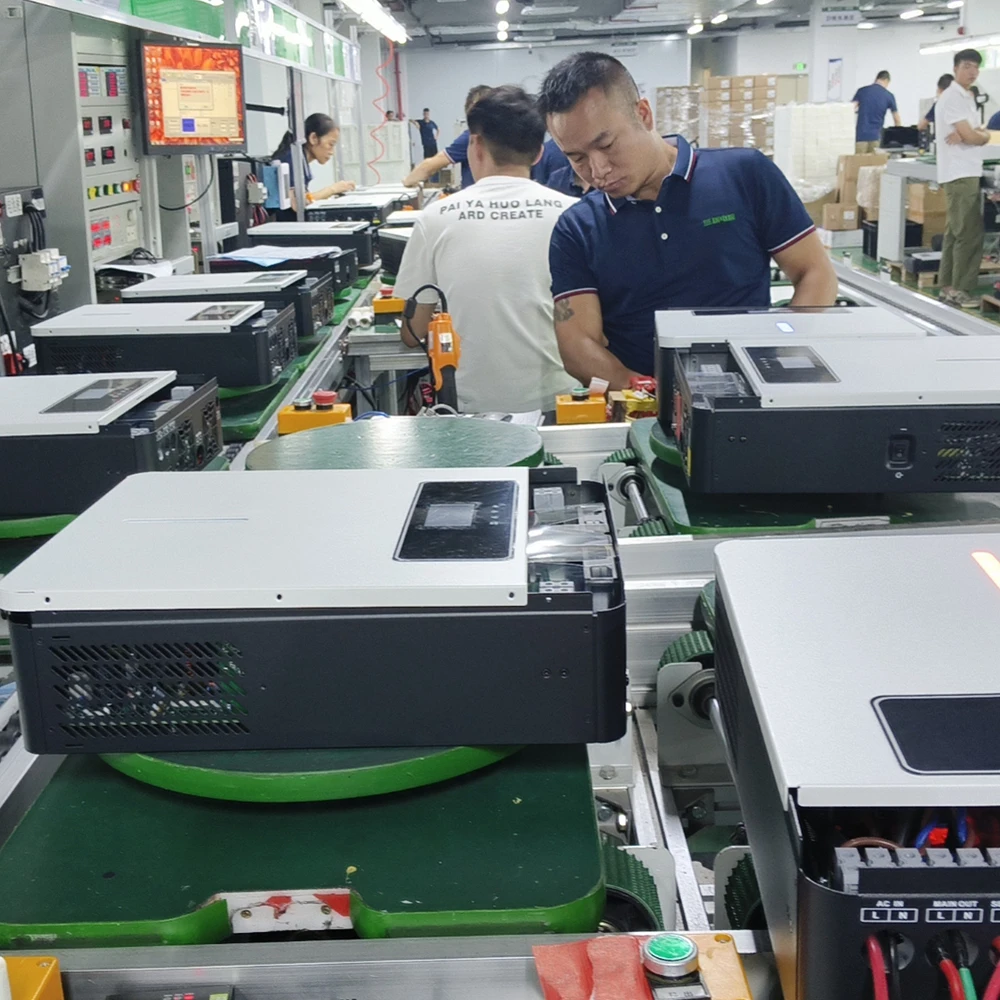

Our Factory
Project Case
Company Profile
Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on.SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
Contact Us
Похожие товары
Инвертор BLUESUN 15KW PV на сетке с нулевым экспортом от до 25KW трехфазный солнечный инвертор аккумулятором Lifepo4
91 839,68-138 103,92 ₽

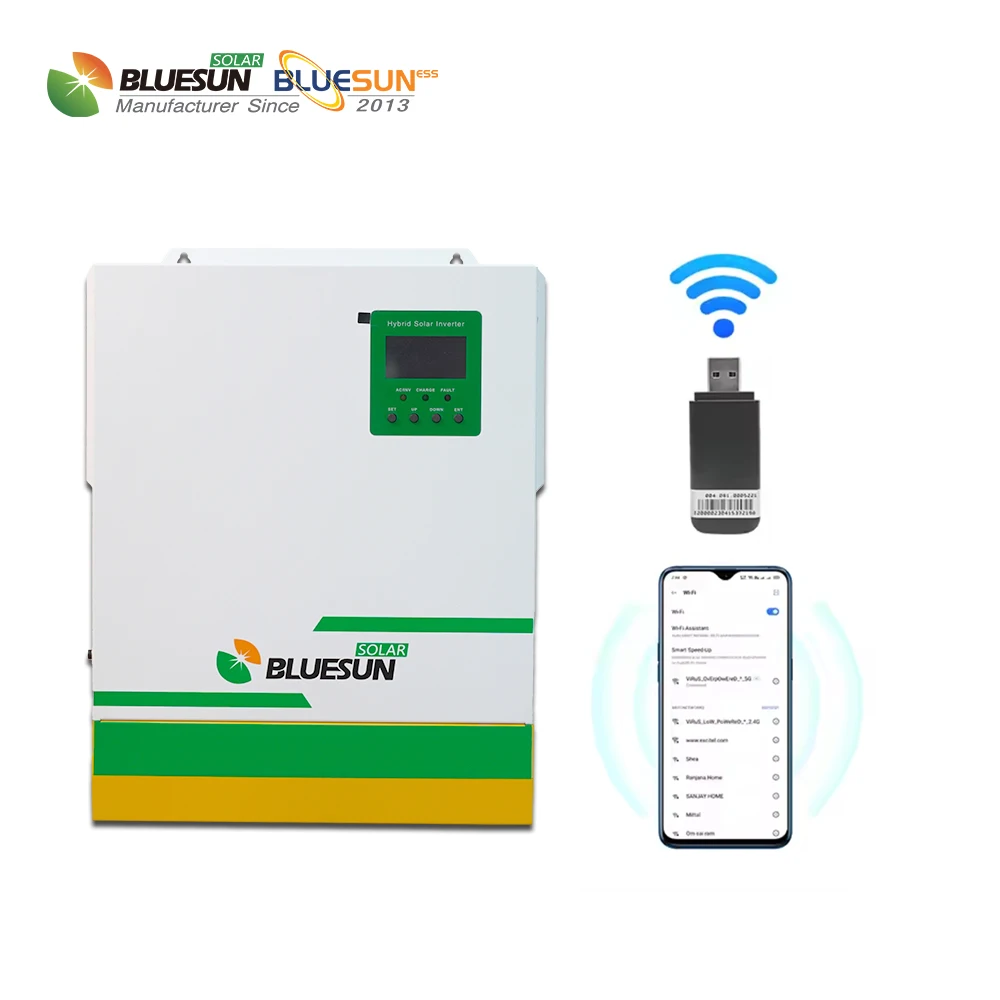

Солнечный инвертор Bluesun 5 кВт кВА на сетке для солнечных панелей система батарей бытового использования
31 225,50-32 717,89 ₽
Bluesun 10 кВт солнечный инвертор для возобновляемых источников энергии инвертная Солнечная энергия домашнего промышленного и коммерческого использования
186 204,96-202 391,70 ₽

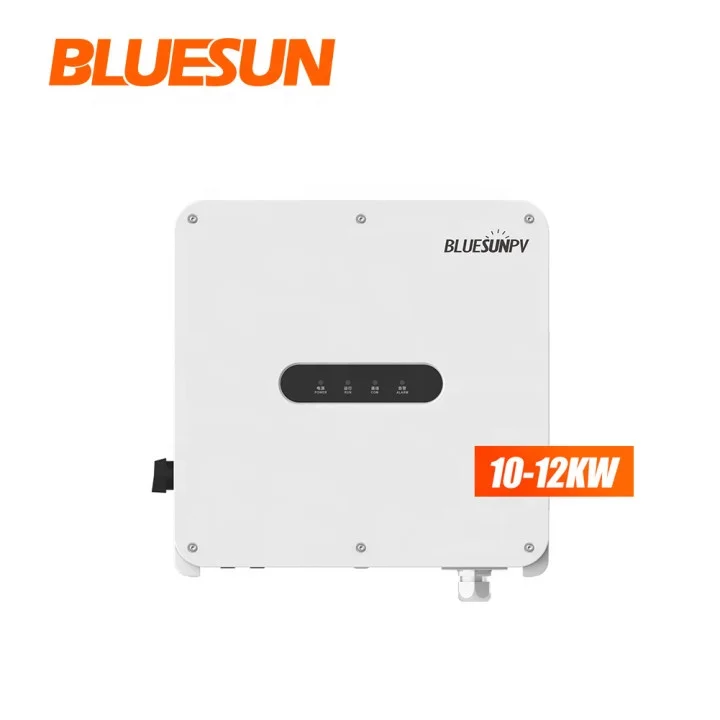

Bluesun 10kw инвертирующий усилитель мощности BSM10K-B 3P 10kW мощность солнечный инвертор трехфазный
66 239,37-71 520,16 ₽
Высокое качество 120 В 240 Разложенная фаза 8 кВт 10 SPI-10K-U Гибридный инвертор для гибридной солнечной системы
15 кВт 10 6 3 кВА 3000 Вт солнечный инвертор Sun-8k-sg01lp1-us/ЕС 8 однофазный 2 МППт Гибридный в наличии
61 532,59-66 468,97 ₽

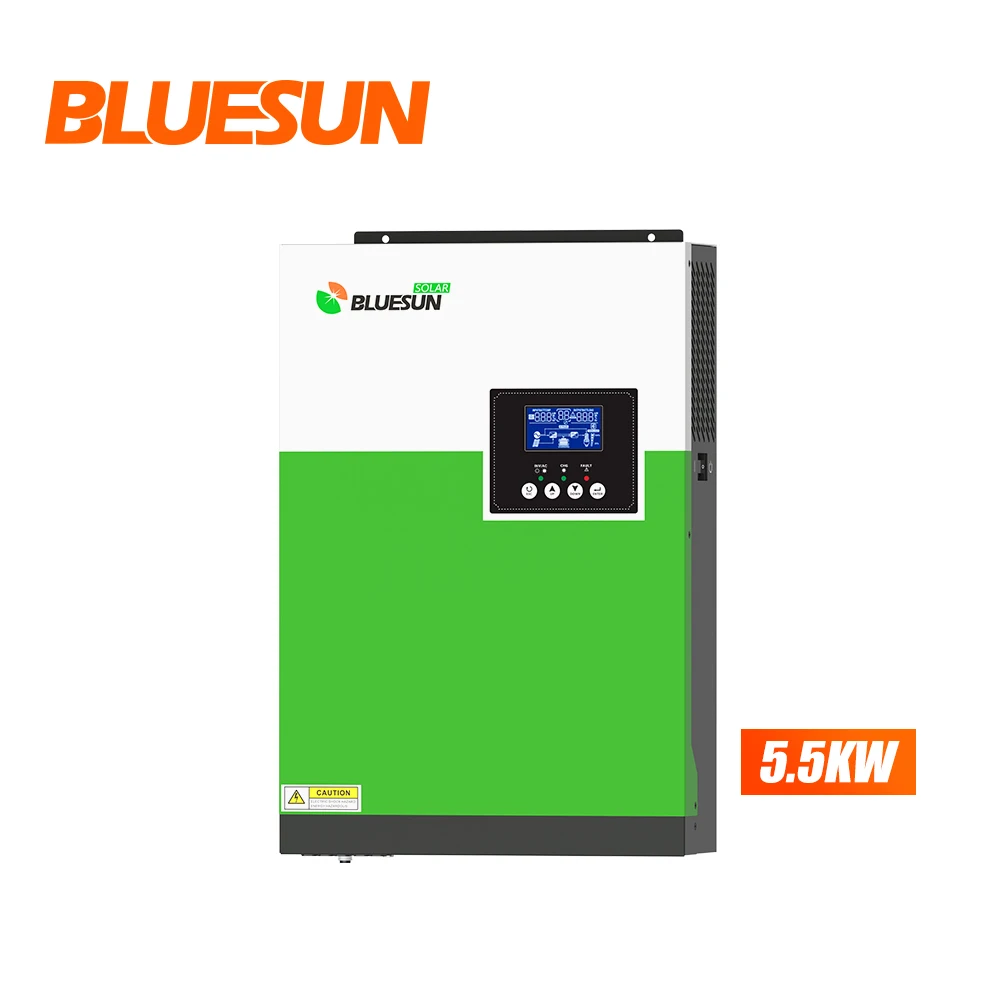

Солнечный инвертор bluesun 24 В 48 5000 Вт неэлектрический цена заводской лучший на сетке
