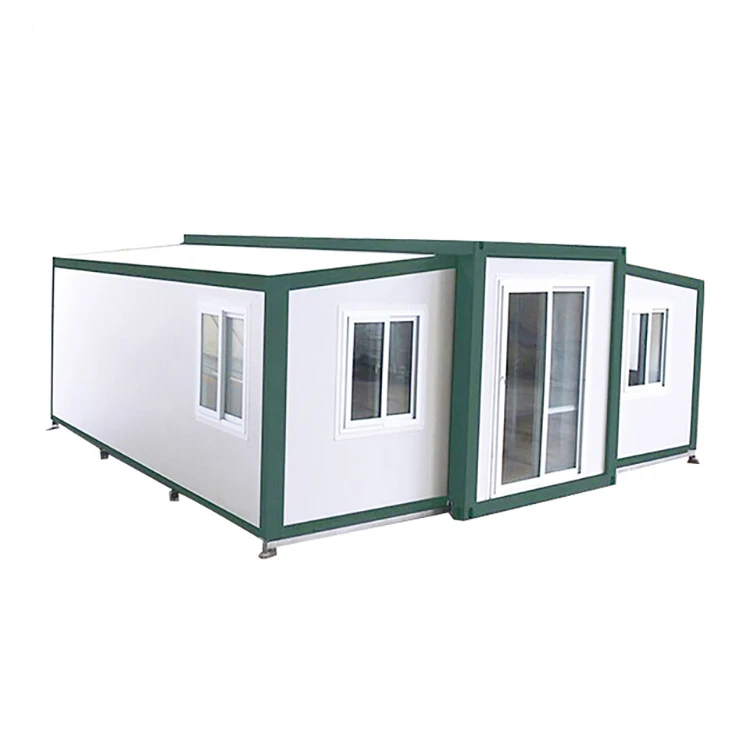

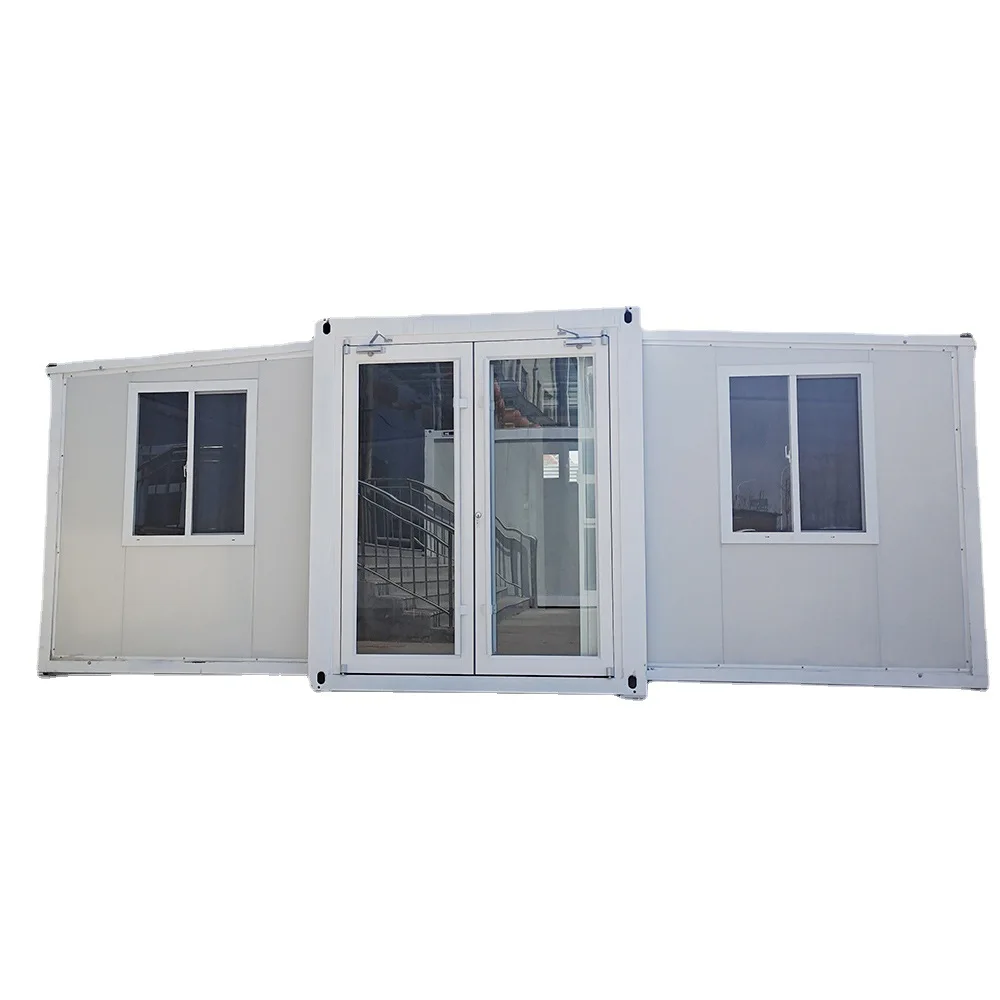

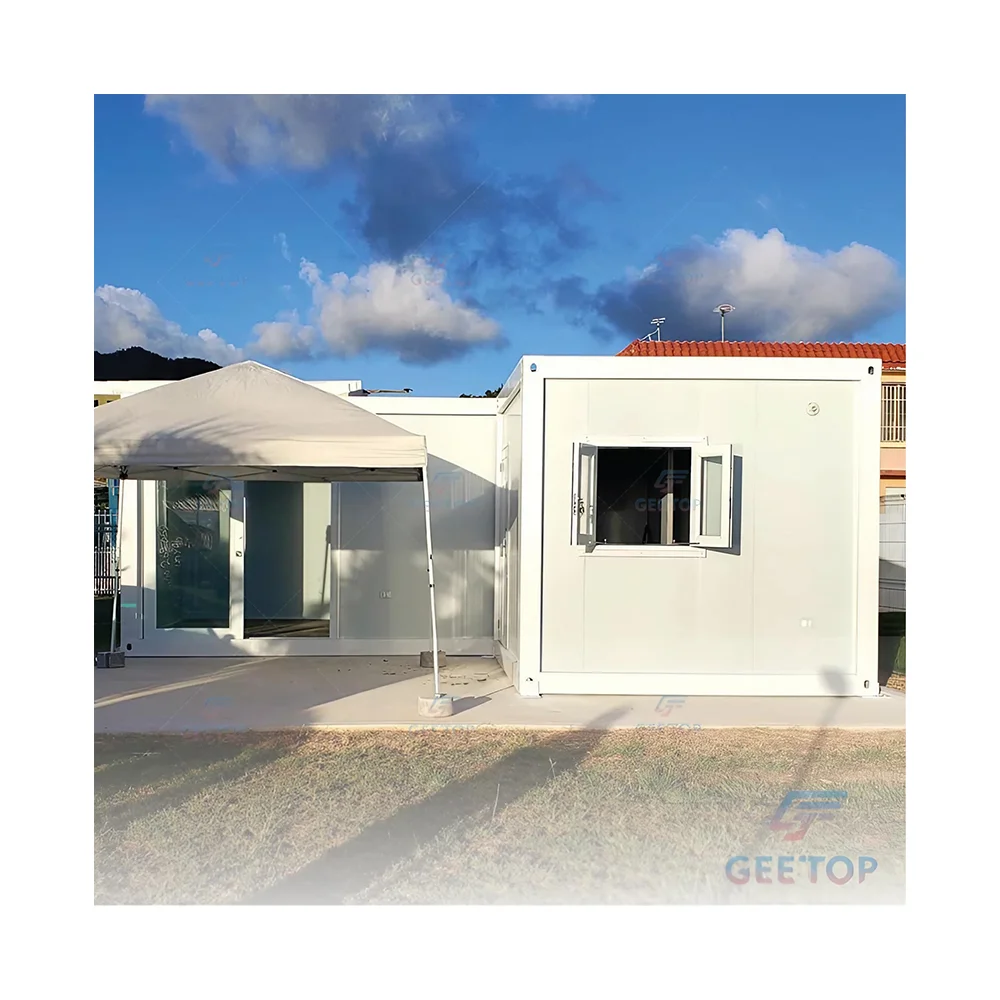

Product show
Specification
Scalable housing configuration parameters | ||||||||
Box | Outer dimensions | 5900*2200*2480mm | ||||||
Dimensions after deployment | 5900mm*6300mm*2480mm | |||||||
Indicators | Thermal insulation performance | In = 0.048 W/m · K fire performance | wind resistance performance | 0.60kN/m² | ||||
Sound insulation performance | Sound insulation ≥ 30dB | Fireproof performance | Class A | |||||
Waterproof performance | Precipitation 16 mm/min no leakage. | seismic performance | Level 8 | |||||
ground live load | 2.0kN/m² | Roof live load | 0.9kN/W² | |||||
Structure | Main frame | "Ground main beam: 80mm * 100mm square steel, galvanized beam 2mm thick; Ground secondary beam: 80*40*1.5mm thick galvanized square pipe; Column: specification 210*150mm, galvanized 2mm thick; Roof main beam: 80mm * 100mm square steel, galvanized 2mm thick Roof purlin 40*40*1.2mm thick, 20*40*1.2 square tubes * 2" | ||||||
Flank frame | 1.2mm special tube | |||||||
Surface treatment | Electrostatic spraying plastic powder baking varnish ≥ 80 Hm | |||||||
Wall Panel | Flame retardant benzene board | Color steel EPS composite board thickness 75mm, width 950mm, color steel plate thickness 0.3mm, color white gray, inside and outside flat non-embossed insulation board, bulk density 10 kg/m flame retardant. | ||||||
Roof | Roof panel | 50 thick EPS composite plate, steel plate thickness 0.3mm. Top with corrugated board, secondary waterproof, thickness 0.3mm | ||||||
Insulation layer | EPS thickness 50mm, unit weight 10 kg/m, flame retardant | |||||||
suspended ceiling | 200-type pressure-type gusset plate | |||||||
Ground | Structural plate | The main floor is glass magnesium board with a thickness of 18mm; The floors on both sides are 18mm wood veneer. | ||||||
Plastic floor | PVC floor leather, thickness 2.0mm | |||||||
Door | Entry door | "Broken bridge aluminum split/KFC aluminum alloy split/aluminum-magnesium alloy split/aluminum-magnesium alloy push-pull, size ≥ W1900mm × H2230mm, Tempered glass. (alternative one)" | ||||||
Interior door | W780xH2050 steel door | |||||||
Window | Exterior window | Broken bridge aluminum casement window/plastic steel casement window/aluminum-magnesium alloy track sliding window, size: W930mm × h930mm (alternative one, quantity can be customized) | ||||||
Electrical | Lamp | LED round ceiling lamp 15 W/set. Toilet 12W | ||||||
Socket | Optional European standard, American standard, Olympic standard, national standard | |||||||
Switch | double open, single open | |||||||
Distribution box | Distribution box × 1. With leakage protector x1. Air Switch x4 | |||||||
CEE industrial plug | 220V,50Hz,3P64A × 1. | |||||||
Wiring | Home line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | |||||||
Waterproof | D-shaped rubber strip for each movable joint; Butyl waterproof adhesive tape | |||||||
Integrated bathroom | Toilet, shower cubicle, wash basin, ventilation window, water supply and drainage pipe fittings (optional: empty container is not included) | |||||||
Wet and dry separated toilet | sliding door | |||||||
Scalable housing configuration parameters | ||||||||
Box | Outer dimension (L * W * h) | 9000*2200*2480mm | ||||||
Size after deployment (L * W * H) | 9000mm*6220mm*2480mm | |||||||
Indicators | Thermal insulation performance | In = 0.048 W/m · K fire performance | wind resistance performance | 0.60kN/m² | ||||
Sound insulation performance | Sound insulation ≥ 30dB | Fireproof performance | Class A | |||||
Waterproof performance | Precipitation 16 mm/min no leakage. | seismic performance | Level 8 | |||||
ground live load | 2.0kN/m² | Roof live load | 0.9kN/W² | |||||
Structure | Main frame | "Ground main beam: 80mm * 140mm square steel, galvanized beam 2.5mm thick; Ground secondary beam: specification 80*80*1.5mm thick Column: specification 210*150mm, galvanized 2.5mm thick; Roof main beam: 80mm * 140mm square steel, galvanized 2.5mm thick; Roof purlin 40*40*1.5mm thick, 20*40*1.2 square tube * 2" | ||||||
Flank frame | Concave tube * 1.2mm special tube | |||||||
Surface treatment | Electrostatic spraying plastic powder baking varnish ≥ 80 Hm | |||||||
Wall Panel | Flame retardant benzene board | Color steel EPS composite board thickness 75mm, width 950mm, color steel plate thickness 0.3mm,PE film attached, color white gray, inside and outside flat non-embossed insulation board, bulk density 14 kg/m flame retardant. | ||||||
Roof | Roof panel | 50 thick EPS composite plate, steel plate thickness 0.3mm. Top with corrugated board, secondary waterproof, thickness of 0.3mm | ||||||
Insulation layer | EPS thickness 50mm, unit weight 10 kg/m, flame retardant | |||||||
suspended ceiling | 200-type pressure-type gusset plate | |||||||
Ground | Structural plate | The main floor is glass magnesium board with a thickness of 18mm; The floors on both sides are 18mm wood veneer. | ||||||
Plastic floor | PVC floor leather, thickness 2.0mm. | |||||||
Door | Entry door | "Broken bridge aluminum split/KFC aluminum alloy split/aluminum-magnesium alloy split/aluminum-magnesium alloy push-pull, size ≥ W1900mm × H2190mm, Tempered glass. (alternative one)" | ||||||
Interior door | W780xH2050 steel door | |||||||
Window | Exterior window | Broken bridge aluminum casement window/plastic steel casement window/aluminum-magnesium alloy track sliding window, size: W930mm × h930mm (alternative one, quantity can be customized) | ||||||
Electrical | Lamp | LED round ceiling lamp 15 W/set. Toilet 12W | ||||||
Socket | Optional European standard, American standard, Olympic standard, national standard | |||||||
Switch | double open, single open | |||||||
Distribution box | Distribution box × 1. With leakage protector x1. Air Switch x4 | |||||||
CEE industrial plug | 220V,50Hz,3P64A × 1. | |||||||
Wiring | Household line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | |||||||
Waterproof | D-shaped rubber strip for each movable joint; Butyl waterproof adhesive tape | |||||||
Integrated bathroom | Toilet, shower cubicle, wash basin, ventilation window, water supply and drainage pipe fittings (optional: empty container is not included) | |||||||
Wet and dry separated toilet | sliding door | |||||||
Configuration parameters of wing extension | ||||||||
Box | Outer dimension (L * W * h) | 5900*700*2480mm | ||||||
Size after deployment (L * W * H) | 5900mm*4800mm*2480mm | |||||||
Indicators | Thermal insulation performance | In = 0.048 W/m · K fire performance | wind resistance performance | 0.60kN/m² | ||||
Sound insulation performance | Sound insulation ≥ 30dB | Fireproof performance | Class A | |||||
Waterproof performance | Precipitation 16 mm/min no leakage. | seismic performance | Level 8 | |||||
ground live load | 2.0kN/m² | Roof live load | 0.9kN/W² | |||||
Structure | Main frame | "Ground main beam: 80mm * 100mm square steel, galvanized beam 2mm thick; Ground secondary beam: 60*40*1.5mm thick galvanized square pipe; Column: specification 210*150mm, galvanized 2mm thick; Roof main beam: 80mm * 100mm square steel, galvanized 2mm thick Roof secondary beam 40*40*1.2mm thick * 7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes * 2" | ||||||
Flank frame | Concave tube * 1.2mm special tube | |||||||
Surface treatment | Electrostatic spraying plastic powder baking varnish ≥ 80 Hm | |||||||
Wall Panel | Flame retardant benzene board | Color steel EPS composite board thickness 75mm, width 950mm, color steel plate thickness 0.3mm, color white gray, inside and outside flat non-embossed insulation board, bulk density 12 kg/m flame retardant. | ||||||
Roof | Roof panel | 50 thick EPS composite plate, steel plate thickness 0.3mm. Top with corrugated board, secondary waterproof, thickness 0.3mm | ||||||
Insulation layer | EPS thickness 50mm, unit weight 10 kg/m, flame retardant | |||||||
suspended ceiling | 200-type pressure-type gusset plate | |||||||
Ground | Structural plate | The main floor is glass magnesium board with a thickness of 18mm; | ||||||
Plastic floor | PVC floor leather, thickness 2.0mm | |||||||
Door | Entry door | "Broken bridge aluminum split/KFC aluminum alloy split/aluminum-magnesium alloy split/aluminum-magnesium alloy push-pull, size ≥ W1900mm × H2230mm, Tempered glass. (alternative one Tempered glass. (alternative one)" | ||||||
Window | Exterior window | Broken bridge aluminum casement window/plastic steel casement window/aluminum-magnesium alloy track sliding window, size: W930mm × h930mm (alternative one, quantity can be customized | ||||||
Electrical | Lamp | LED round ceiling lamp 15 W/set. Toilet 12W | ||||||
Socket | Optional European standard, American standard, Olympic standard, national standard | |||||||
Switch | double open, single open | |||||||
Distribution box | Concise distribution box × 1. With leakage protector x1. Air Switch x4 | |||||||
CEE industrial plug | 220V,50Hz,3P64A × 1. | |||||||
Wiring | Household line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | |||||||
Waterproof | D-shaped rubber strip for each movable joint; Butyl waterproof adhesive tape | |||||||
Scalable housing configuration parameters | ||||||||
Box | Outer dimension (L * W * h) | 11800*2200*2480mm | ||||||
Size after deployment (L * W * H) | 11800mm*6220mm*2480mm | |||||||
Indicators | Thermal insulation performance | In = 0.048 W/m · K fire performance | wind resistance performance | 0.60kN/m² | ||||
Sound insulation performance | Sound insulation ≥ 30dB | Fireproof performance | Class A | |||||
Waterproof performance | Precipitation 16 mm/min no leakage. | seismic performance | Level 8 | |||||
ground live load | 2.0kN/m² | Roof live load | 0.9kN/W² | |||||
Structure | Main frame | "Ground main beam: 80mm * 100mm square steel, galvanized beam 2mm thick; Ground secondary beam: 60*40*1.5mm thick galvanized square pipe; Column: specification 210*150mm, galvanized 2mm thick; Roof main beam: 80mm * 100mm square steel, galvanized 2mm thick Roof secondary beam 40*40*1.2mm thick * 7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes * 2" | ||||||
Flank frame | Concave tube * 1.2mm special tube | |||||||
Surface treatment | Electrostatic spraying plastic powder baking varnish ≥ 80 Hm | |||||||
Wall Panel | Flame retardant benzene board | Color steel EPS composite board thickness 75mm, width 950mm, color steel plate thickness 0.3mm,PE film attached, color white gray, inside and outside flat non-embossed insulation board, bulk density 14 kg/m flame retardant. | ||||||
Roof | Roof panel | 50 thick EPS composite plate, steel plate thickness 0.3mm. Top with corrugated board, secondary waterproof, thickness 0.3mm | ||||||
Insulation layer | EPS thickness 50mm, unit weight 14 kg/m, flame retardant | |||||||
suspended ceiling | 200-type pressure-type gusset plate | |||||||
Ground | Structural plate | The main floor is glass magnesium board with a thickness of 18mm; The floors on both sides are 18mm wood veneer. | ||||||
Plastic floor | PVC floor leather, thickness 2.0mm. | |||||||
Door | Entry door | "Broken bridge aluminum split/KFC aluminum alloy split/aluminum-magnesium alloy split/aluminum-magnesium alloy push-pull, size ≥ W1900mm × H2190mm, Tempered glass. (alternative one)" | ||||||
Interior door | W780xH2050 steel door | |||||||
Window | Exterior window | Broken bridge aluminum casement window/plastic steel casement window/aluminum-magnesium alloy track sliding window, size: W930mm × h930mm (alternative one, quantity can be customized) | ||||||
Electrical | Lamp | LED round ceiling lamp 15 W/set. Toilet 12W | ||||||
Socket | Optional European standard, American standard, Olympic standard, national standard | |||||||
Switch | double open, single open | |||||||
Distribution box | Concise distribution box × 1. With leakage protector x1. Air Switch x4 | |||||||
CEE industrial plug | 220V,50Hz,3P64A × 1. | |||||||
Wiring | Household line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | |||||||
Waterproof | D-shaped rubber strip for each movable joint; Butyl waterproof adhesive tape | |||||||
Integrated bathroom | Toilet, shower cubicle, wash basin, ventilation window, water supply and drainage pipe fittings (optional: empty container is not included) | |||||||
Wet and dry separated toilet | sliding door | |||||||
Company Profile
Production workshop display
Production equipment display
Production and Construction
Hebei Hongshun Guangju Metal Structure Manufacturing Co., Ltd. is located in Fucheng County, Hengshui City, Hebei Province, with a registered capital of 50 million yuan and an area of 74000 square meters. It is a modern enterprise that integrates research and development, learning, production, and foreign trade. We adhere to the company's core values, with "integrity" as our business philosophy, unity, progress, and innovation. We integrate high-tech development, international trade, industrial investment, and domestic and international networks, focusing on the research and innovation of fastener products. Our business covers Asia, Europe, Africa, and North America, and we are moving towards our corporate vision of becoming an international group with global influence. Our company specializes in producing container houses, foldable houses, and expandable mobile houses. We are a comprehensive manufacturer that integrates research and development, production, mechanical processing, and sales. The company has a complete and scientific quality management system. Serving hundreds of cooperative enterprises, adhering to the business philosophy of "people-oriented, customer first", sincerely cooperating with customers for common development. The integrity,
strength, and product quality of this limited company have been highly praised by the industry. Welcome to inquire!
strength, and product quality of this limited company have been highly praised by the industry. Welcome to inquire!
Packing & Delivery
FAQ
1. Who are we?
We are based in Hebei Province, China, start from 2023,sell to North America(20.00%),South Asia(10.00%),Northern
Europe(10.00%),Central America(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),South
America(10.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Container House,Foldable house,Expandable house,Prefabricated house
4. Why should you buy from us not from other suppliers?
For many years, we have been focusing on the R & D of container houses. Our R & D team has more than 20 years of R & D experience.
All our products are produced directly from the factory. We accept OEM and ODM!
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei Province, China, start from 2023,sell to North America(20.00%),South Asia(10.00%),Northern
Europe(10.00%),Central America(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),South
America(10.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Container House,Foldable house,Expandable house,Prefabricated house
4. Why should you buy from us not from other suppliers?
For many years, we have been focusing on the R & D of container houses. Our R & D team has more than 20 years of R & D experience.
All our products are produced directly from the factory. We accept OEM and ODM!
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Плоский дизайн крыши расширенные дома 20 футов 40 роскошный сборный расширяемый контейнерный дом

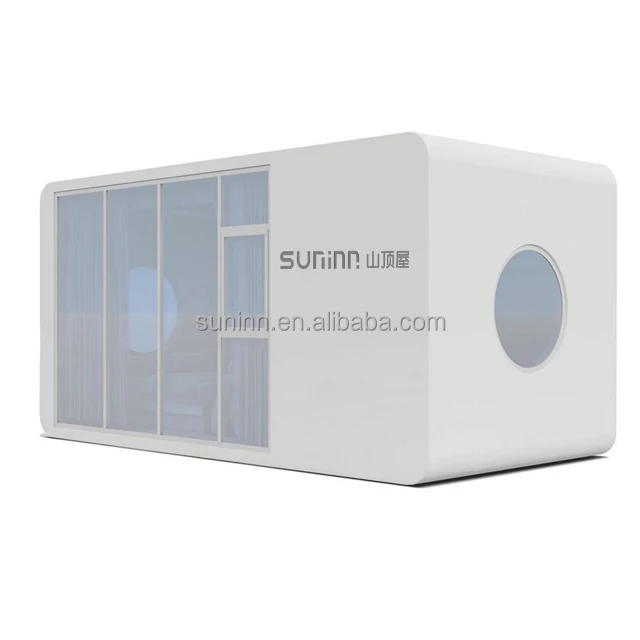

SUNINN BOX-07 сборный дом портативный купить капсульный лучшее качество роскошный Яблочный домик
