50mm Plastic Geocell Price Hdpe Geocell Gravel Grid Geocells For Road
Product Description
The geocells can reinforce various fill materials. It can be filled with soil, rocks, sand and so on. The close-connected structure among cells forms a compact interlocking system. Therefore, Geocell can largely decrease the flow rate on the earth's surface and effectively prevent the erosion channels from formation.
Geocell can greatly improve the structure of soil and aggregate infill materials. It performs well in preventing soil erosion and water loss. Geocell is easy to transport and install.

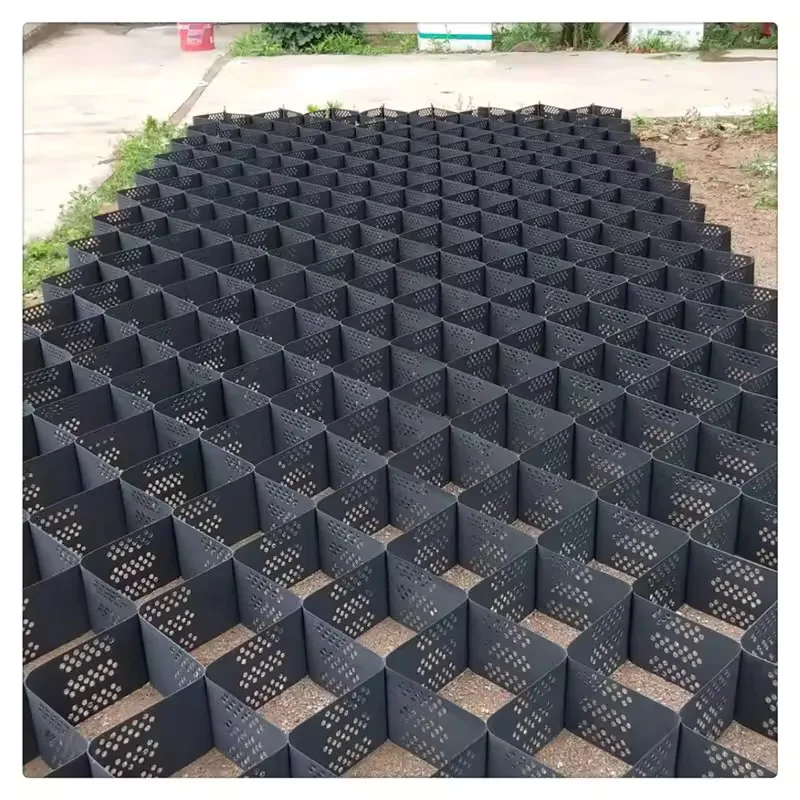

Our Geocell is perfect for driveway installations on slopes and/or flat areas. The ideal solution for all sorts of projects - from parking lots, landscaping, and anything that needs to withstand a heavy load!
Made from polyethylene material which lasts the test of time, and will hold any type of aggregate or filling you desire to fill it with!

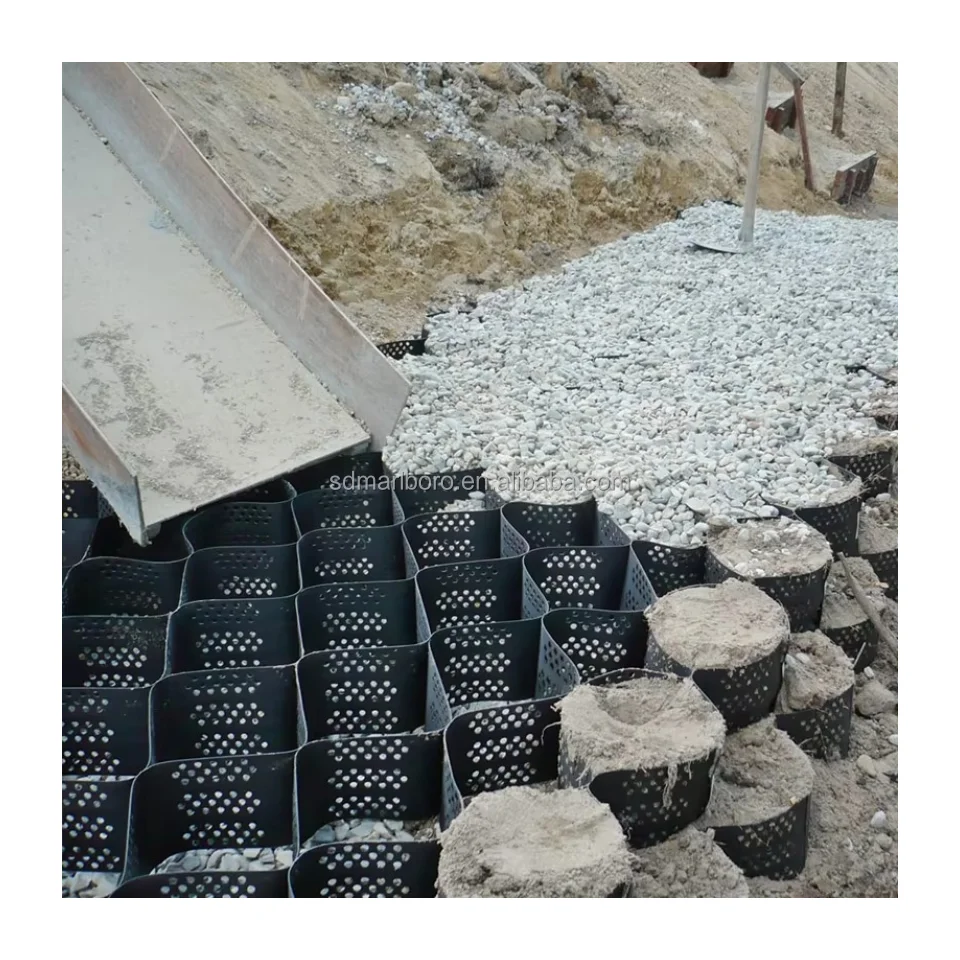

Our geocell makes it even easier to install. Simply spread out the material, anchor to the ground, and fill the cells with either soil, grass, sand or gravel! The geogrid is able to withstand heavy loads and a high volume of foot traffic. It also effectively eliminates further eroding - For areas where you experience poor or unstable soil!
Product details
50mm Plastic Geocell Price Hdpe Geocell Gravel Grid Geocells For Road | ||
Material | HDPE PP | |
Height | 75/100/150/200 (as request) | |

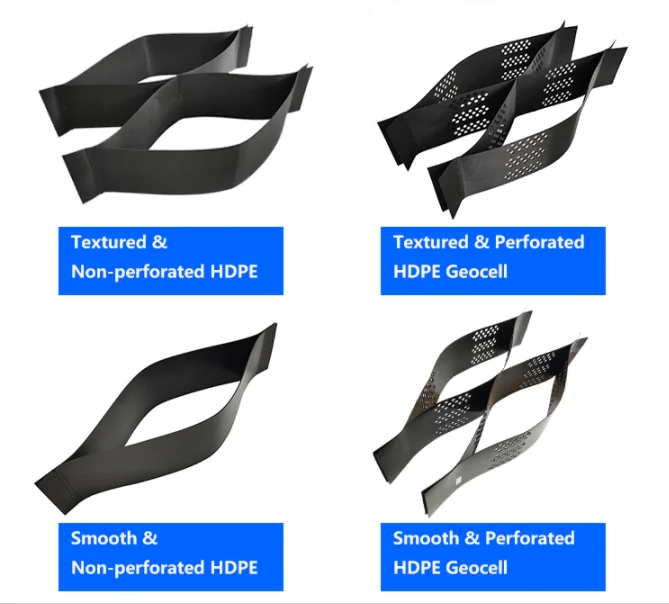

Surface | Smooth/Textured | |
Color | Black | |
Cell Depth | 50mm ,100mm , 150mm , 200mm , 250mm | |
Welding Space | 330mm ~ 1600mm | |
Thickness | 1)1.0mm~1.2mm for smooth geocell 2) 1.5mm~1.7mm for textured geocell | |
Product Features
Three dimensional structure.
Good erosion control.
Excellent corrosion resistance.
High seam strength.
Good resistance to vertical deflection.
Cost effective.
Good erosion control.
Excellent corrosion resistance.
High seam strength.
Good resistance to vertical deflection.
Cost effective.
Flexible HDPE Material
The three-dimensional honeycomb structure can be simply expanded upon your project site and folded for easy transportation and
storage.
The three-dimensional honeycomb structure can be simply expanded upon your project site and folded for easy transportation and
storage.
Scalable Grid
Expand and contract freely, easy folded, and can be stretched into a network during construction. fill the cells with either soil, grass, sand, or gravel to form a structure with strong lateral restriction and large stiffness
Expand and contract freely, easy folded, and can be stretched into a network during construction. fill the cells with either soil, grass, sand, or gravel to form a structure with strong lateral restriction and large stiffness
Light and Wear Resistance
Light material, wear-resistant, stable, light oxygen aging and acid alkali resistant. Suitable for lateral restriction and antiskid of soil conditions such as different soil and desert.
Light material, wear-resistant, stable, light oxygen aging and acid alkali resistant. Suitable for lateral restriction and antiskid of soil conditions such as different soil and desert.
Product Specification
Material Properties | unit | Tested Method | |||||||||||
Cell Depth | mm | 75 | 100 | 150 | 200 | ||||||||
Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||||||||
Enviroment Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||||||||
Enviroment Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||||||||
Carbon Black Content | % | 1.5%-2.0% | ASTM D 1603 | ||||||||||
Nominal Sheet Thickness Before Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | ||||||||||
Nominal Sheet Thickness After Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | ||||||||||
Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||||||||
Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO 13426-1B | |||||||
Seam Efficiency | % | GRI100 | GRI-GS13 | ||||||||||
Norminal Expanded Cell Size(width x length) | mm | 320x287,475x508 etc | |||||||||||
Norminal Expanded Panel Size(width x length) | m | 2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44 | |||||||||||
Product Applications
Tree root and river bed protection.
Channel wall, road, high way construction.
Soil and ground stabilization.

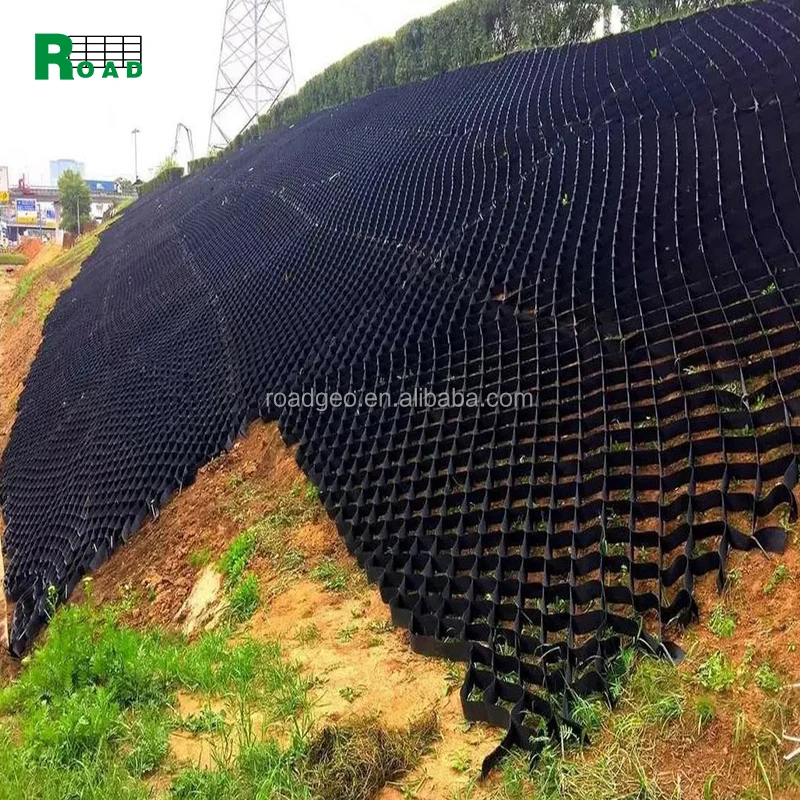

Slope, greenbelt and vegetation erosion control.
Load platform application.
Retaining wall, embankment and levees reinforcement.
Channel wall, road, high way construction.
Soil and ground stabilization.
Slope, greenbelt and vegetation erosion control.
Load platform application.
Retaining wall, embankment and levees reinforcement.
Geocell is suitable for the reinforcement of soft soil, cement, concrete and gravel.

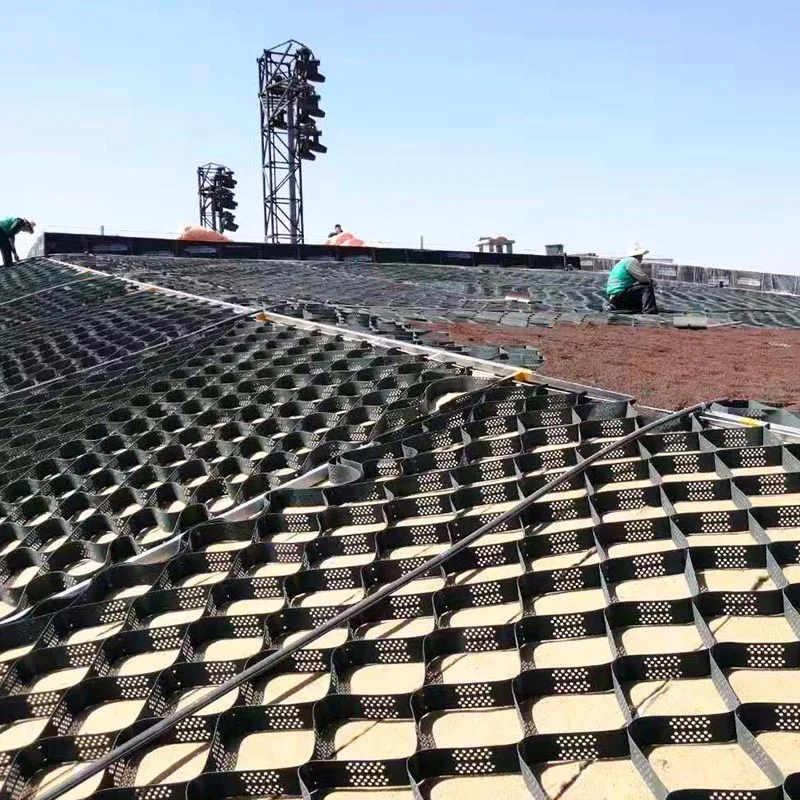

Geocell is widely used in vegetation protection.

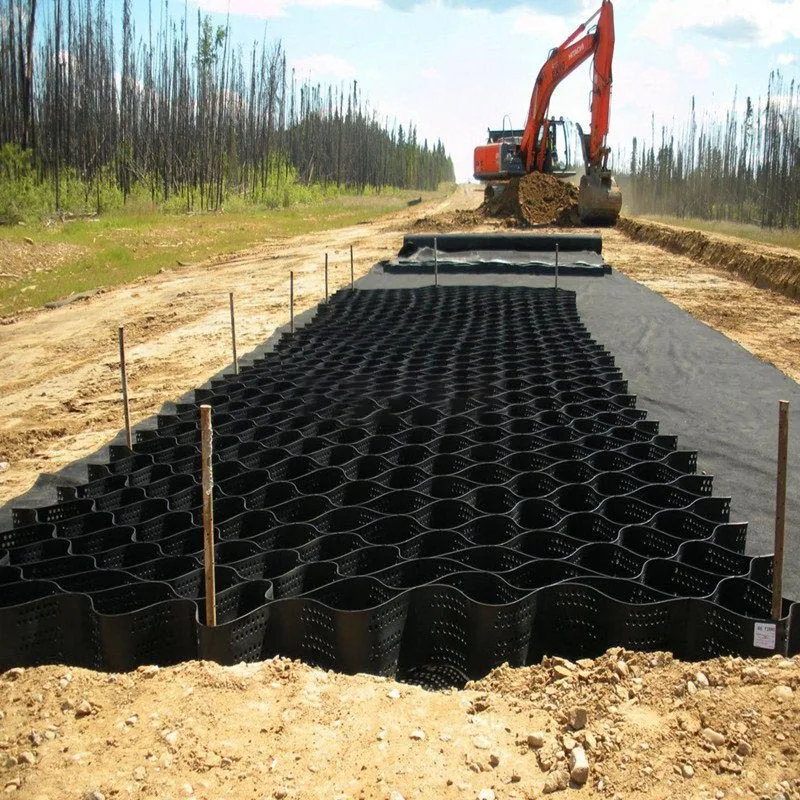

Geocell can largely improves the bearing capacity of roads. It is widely applied in the road reinforcement.

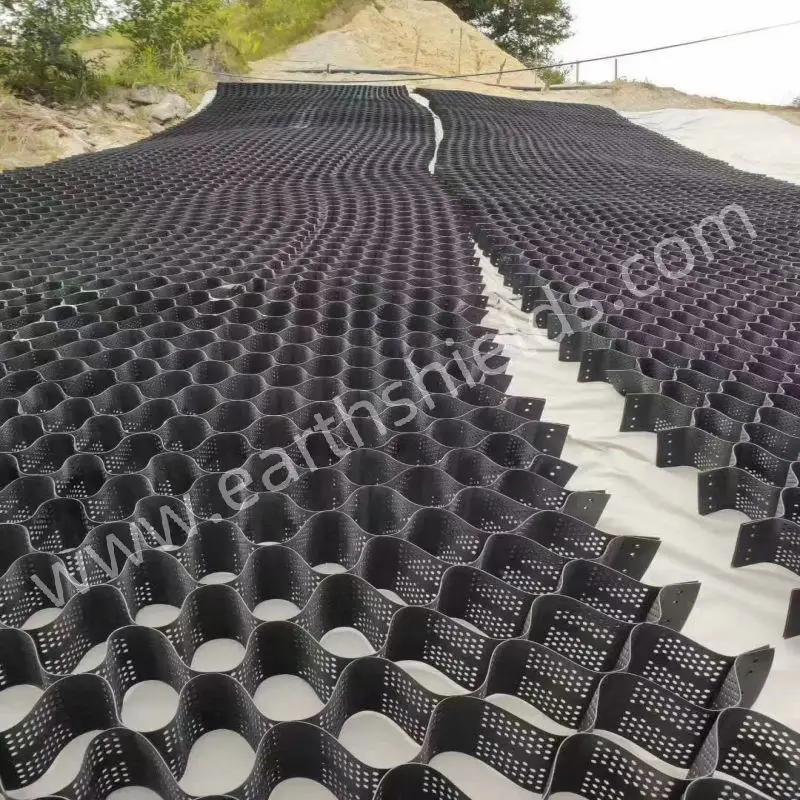

Geocell can effectively prevent the slope from soil erosion and water loss.
Packing And Delivery

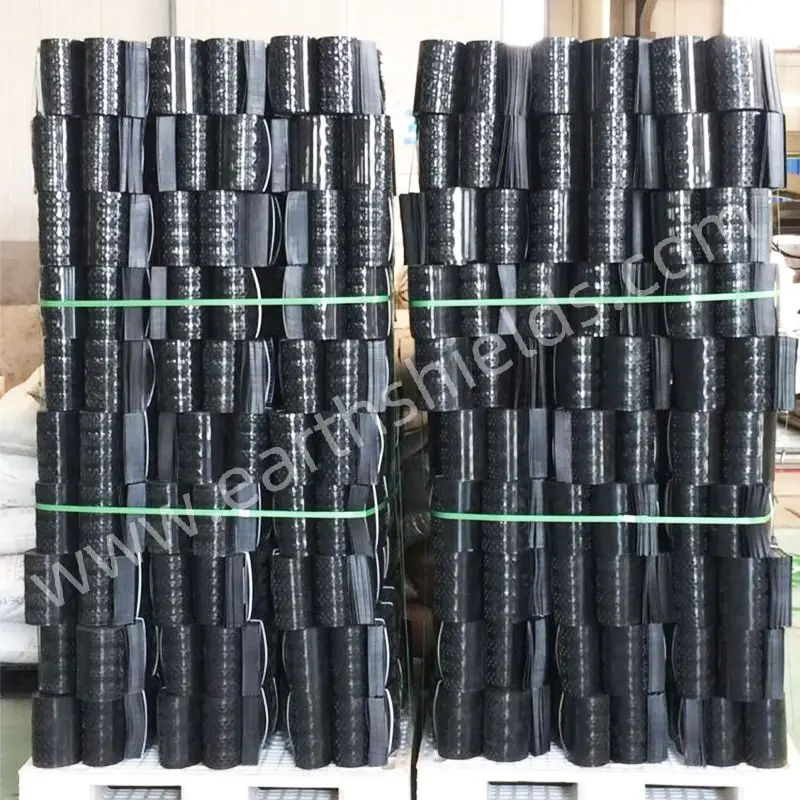

HDPE Paving Plastic Gravel Stabilizer Geocells Production&Packing
Our Clients
FAQ
Q: Are you trading company or manufacturer?
A: We are a leading professional manufacturer in China.
Q: Do you provid samples? Is it free or extra?
A: Yes, we can offer the sample for free charge but do not pay the cost of freight.
Q: What about delivery time?
A: According to your Quantity. Generally speaking, if in stock, the delivery time is 5-10 days, or if not in stock, the delivery
time is 10-15 days.
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, 70% balance before shipment.
Q: Do you provid samples? Is it free or extra?
A: Yes, we can offer the sample for free charge but do not pay the cost of freight.
Q: What about delivery time?
A: According to your Quantity. Generally speaking, if in stock, the delivery time is 5-10 days, or if not in stock, the delivery
time is 10-15 days.
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, 70% balance before shipment.
Q: Can I customized?
A: Yes, it can be customized as request.
Q: Can the geogrid be cut to size?
A: Yes, it can be cut very easily with a scissors to any size you wish.
Please do not hesitate to contact me should you have any further questions.
Q: Can the geogrid be cut to size?
A: Yes, it can be cut very easily with a scissors to any size you wish.
Please do not hesitate to contact me should you have any further questions.
