Лидер продаж оптовая продажа carro de golf electrico KingHike 48V5KW двигатель переменного тока четырехколесная внедорожная тележка для гольфа Электрический 4-местный
332 782,50 ₽ - 532 452,00 ₽
Заводская цена электрическая тележка для гольфа 72 В оптовая продажа
- Категория: >>>
- Поставщик: Suzhou Lexsong Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1601213387614:
Описание и отзывы
Характеристики

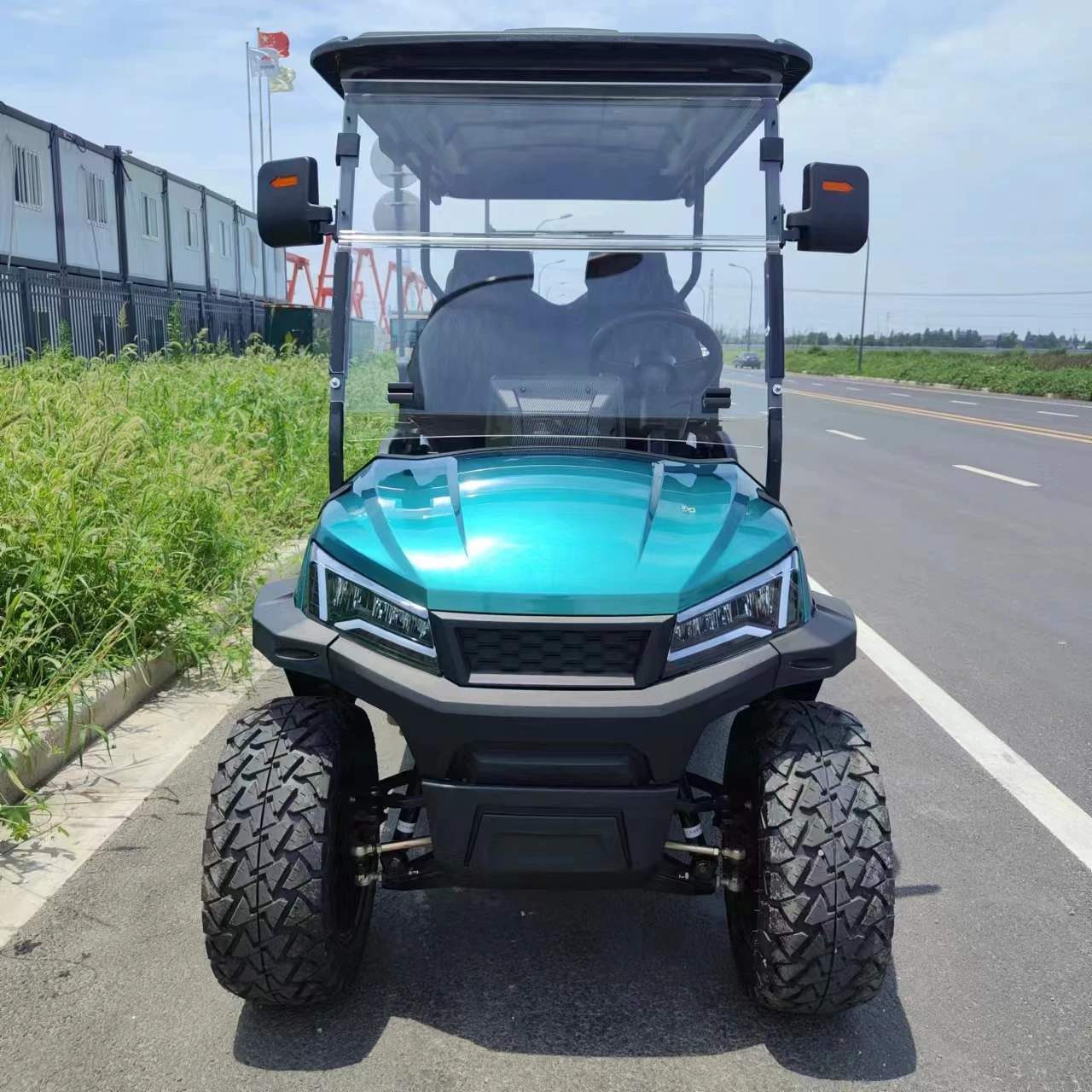

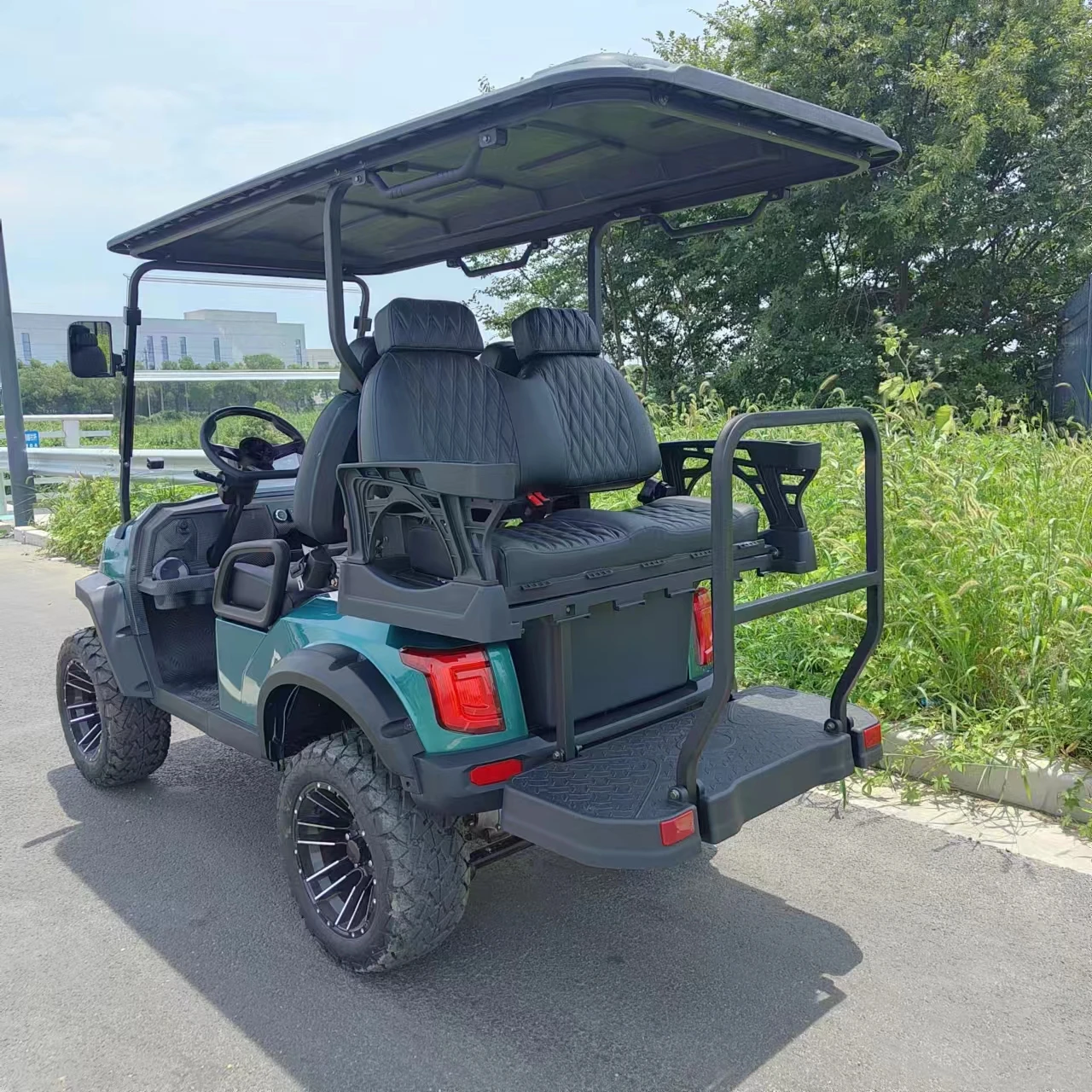

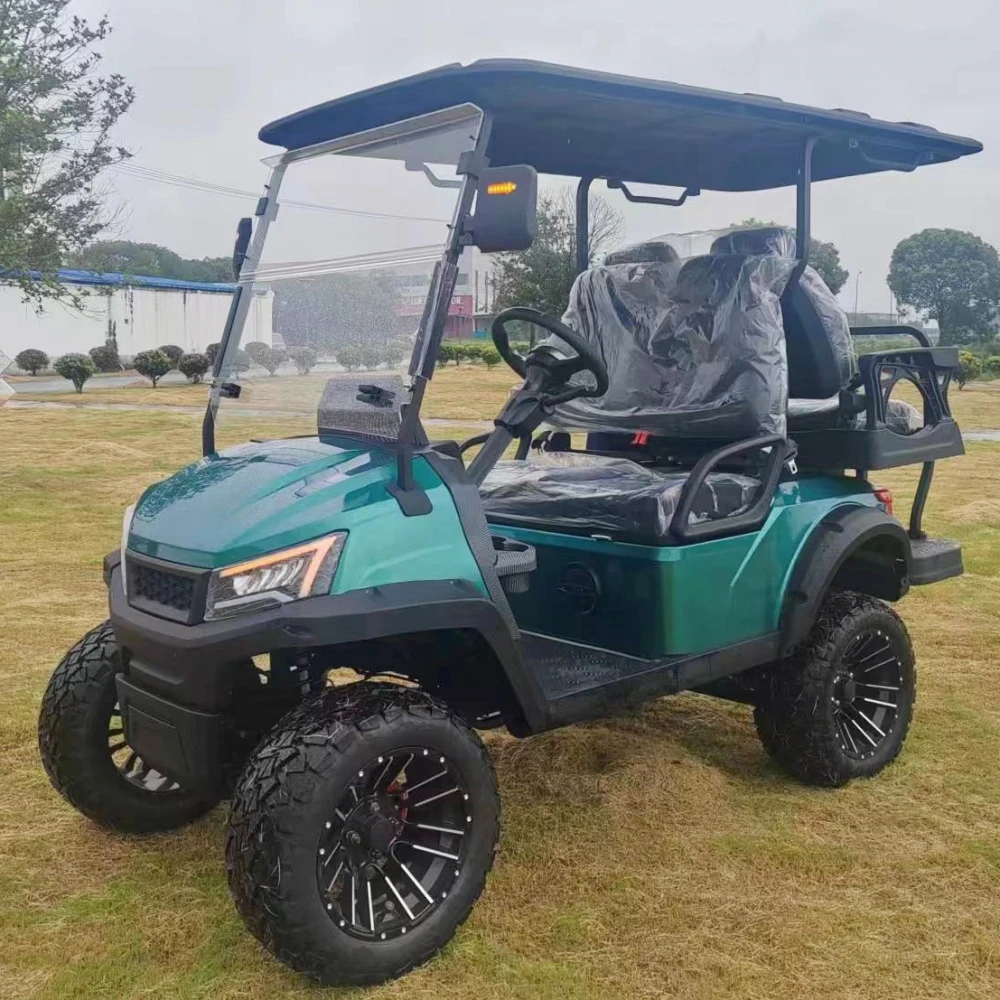

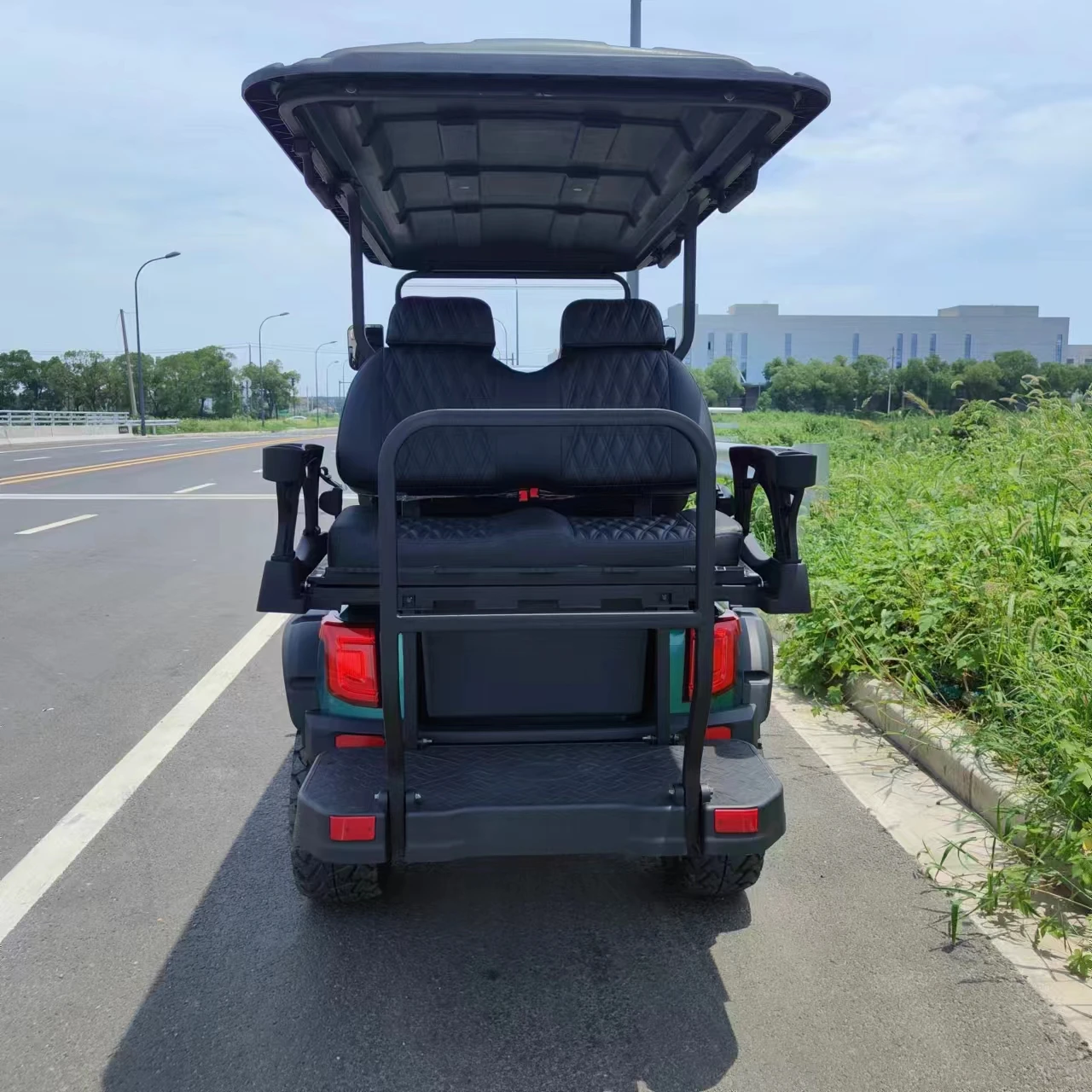

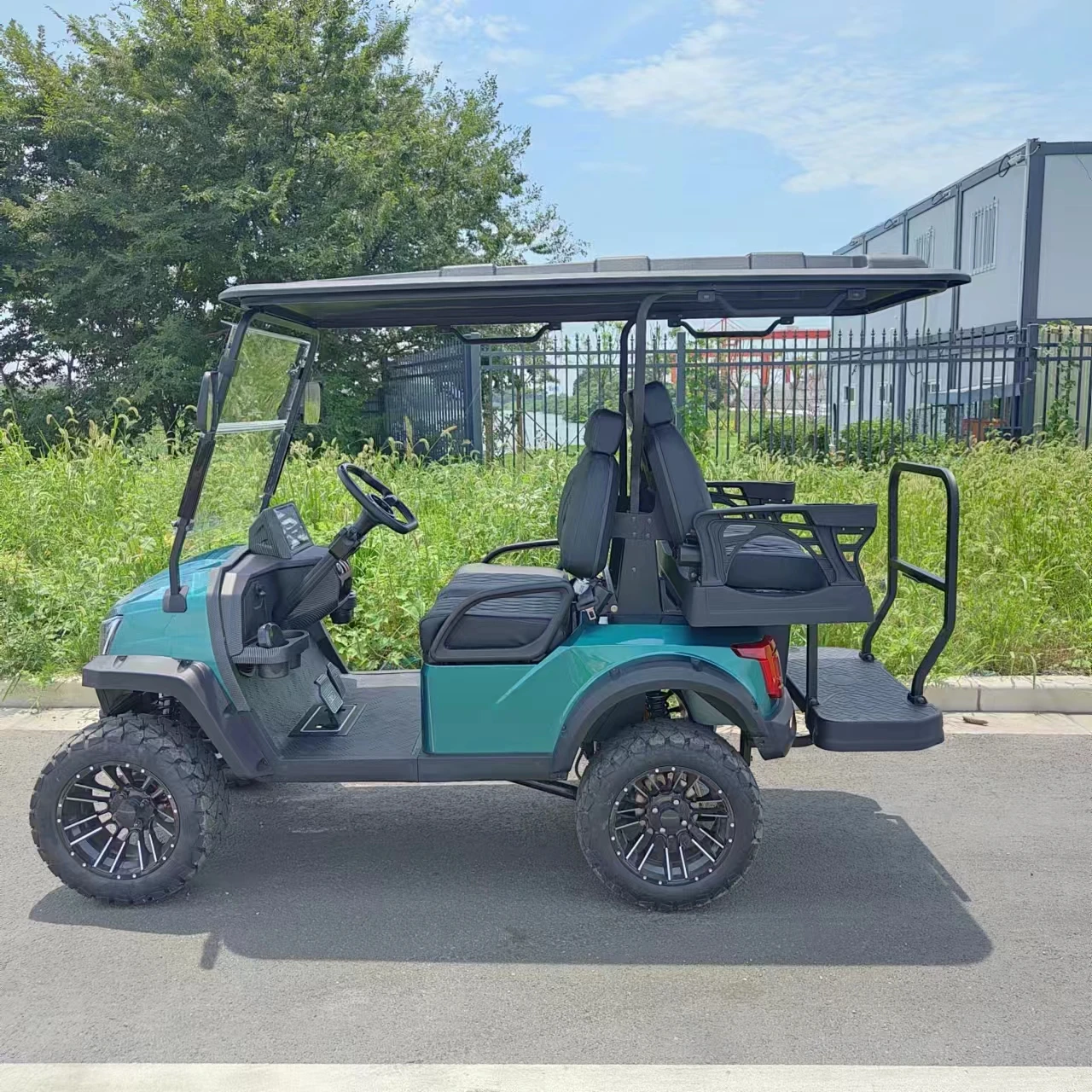

Product Display
· 72v Lithium battery
- 72V100Ah capacity
- 4000 times life cycles(@99% DOD)
- 3 Years Warranty Lithium Battery
- Lower life cost
- 4000 times life cycles(@99% DOD)
- 3 Years Warranty Lithium Battery
- Lower life cost
· Powerful AC Motor
- 5kw / 7.5kw rated power
- Powerful and Maintenance Free motor
- Strong rear axle
- Strong rear axle
· Programable Controller
- 72V 400A/450A AC Controller
- BMS intelligent control
- High and Stable Quality Powerful
- 2 Years Global Warranty
- BMS intelligent control
- High and Stable Quality Powerful
- 2 Years Global Warranty
Product Details
Details Make Difference
Disc Brake
Front Macpherson Suspension
Sports Steering Wheel
Front Brush Guard and Basket
Rear support arm
Double wishbone
Rear Under Seat Ice Bucket
Carbon fiber finish
Backup Camera
3-point Seatbelt
2-tone Color Seat
Ball bag stand
14‘ Aluminum Rim
Charging Receptacle
Split Tinted Windshield and Side Mirror
Digital Meter
LED Headlight
LED Taillight
3500 lbs electric winch
One-touch start button
Large sound bar
Automatic wiper
Tow hook
Solar panels
Headrestless seat
USB Port
12V Plug
OEM / ODM
· Customized body color
To make cart unique, we can paint any colors if you provide Pantone code or RAL code to us.
· Customized on seats
We supply variants of golf cart, which with different seats and different style.
· Customized on function
If you want to buy a cart which used for business with utility functions, please let us know, we can do design for you.
Product Parameter Table
SPECIFICATIONS OF Solar 6 Seaters Off Road Electric Street Legal Golf Cart Buggy LS2041ASZ | ||||||
Key Components | Controller | China local brand AC controller or Curtis Controller | ||||
Motor | 4KW/5KW/7.5KW AC motor | |||||
Battery | 72V115AH Lithium Battery | |||||
Performance and Dimensions | Passenger Capacity | 6 (4+2) | ||||
Range (Loaded) * | 100kms | |||||
Max.speed | 32-40km/h | |||||
Min. Turning Radius | 4.7m | |||||
Max. Gradeability | 25% | |||||
Max. Loading Weight | 480kgs | |||||
Net Weight | 550kgs | |||||
Overall Dimensions | 3650X1350X2100mm | |||||
Body and Frame | ||||||
Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | |||||
Body and Roof | PP plastic front body and rear body; FRP roof | |||||
Windshield | Organic plastic windshield, one-piece | |||||
Roof supports | Carbon Steel, powder coated | |||||
Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | |||||
Floor | Galvanized Steel plate and anti-slip rubber floor mat | |||||
Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | |||||
Side trim | Aluminum alloy | |||||
Sider mirror | 2pcs, foldable | |||||
Electric System | ||||||
Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | |||||
Backup Buzzer | 12V | |||||
Digital Meter | Battery power meter, speedometer, odometer and various indicators | |||||
Charger | Smart onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 18A | |||||
Steering, Brake, Transmission and Suspension | ||||||
Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | |||||
Brake system | 4-wheel hydraulic front disc rear drum brake, with park brake | |||||
Accelerator | Stepless speed change | |||||
Driving mode | Rear axle two stage deceleration, motor direct driving | |||||
Rear axle | Integrated, Gear ratio12.49:1 | |||||
Suspension system | Front Macpherson Independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber | |||||
Wheel & Tyre | 12x7 black aluminum rim & 23*10.5-12 Tire | |||||
Let us know if you want anything specially!
Packing & Delivery
Our Company
Suzhou Lexsong Electromechanical Equipment Co., Ltd.
Suzhou Lexsong Electromechanical Equipment Co., Ltd. over 12 years of experience in the electric vehicle business. 3 production lines with an annual production capacity of 15,000 units .We have exported our electric vehicles to over 40 countries worldwide We are widely used in golf courses, hotels, resorts, parks and gardens, campuses, stations, airports, residential communities, shopping centres, etc. 100 models in 10 categories for different applications. Golf carts, utility vehicles, personal transporters, sightseeing vehicles, electric trucks, rubbish trucks, fire trucks, etc. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
Certifications
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the
customization is not related to the chassis modification.
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the
customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
