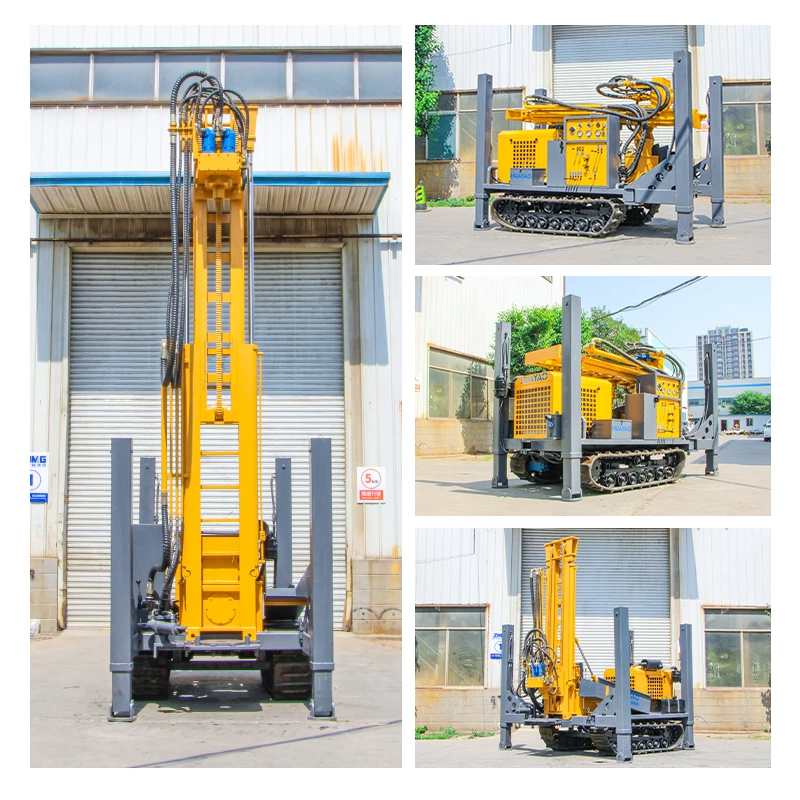

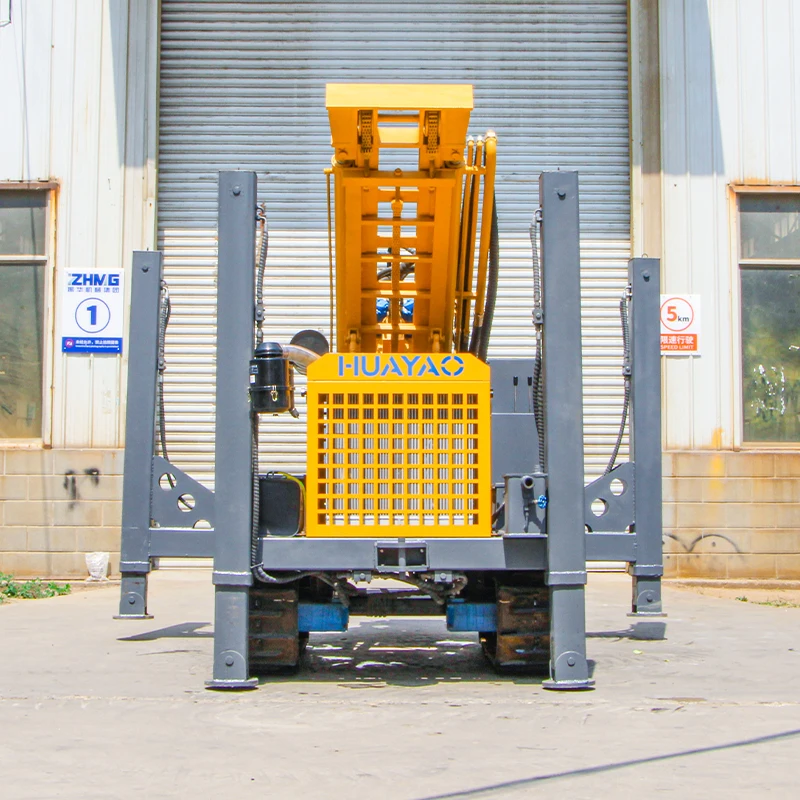

Сверлильный станок для фотогальванической сваи
871 684,87 ₽
Глубокая дрель грузовик молотковый винтовой сваной сверлильный станок пневматический ствол солнечной панели сваи
- Категория: >>>
- Поставщик: Shandong Huayao Construction Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601213531078:
Описание и отзывы
Характеристики
Product Information
Deep drill truck hammer screw pile drilling machines pneumatic bore solar panel pile drilling machine
Product Description:

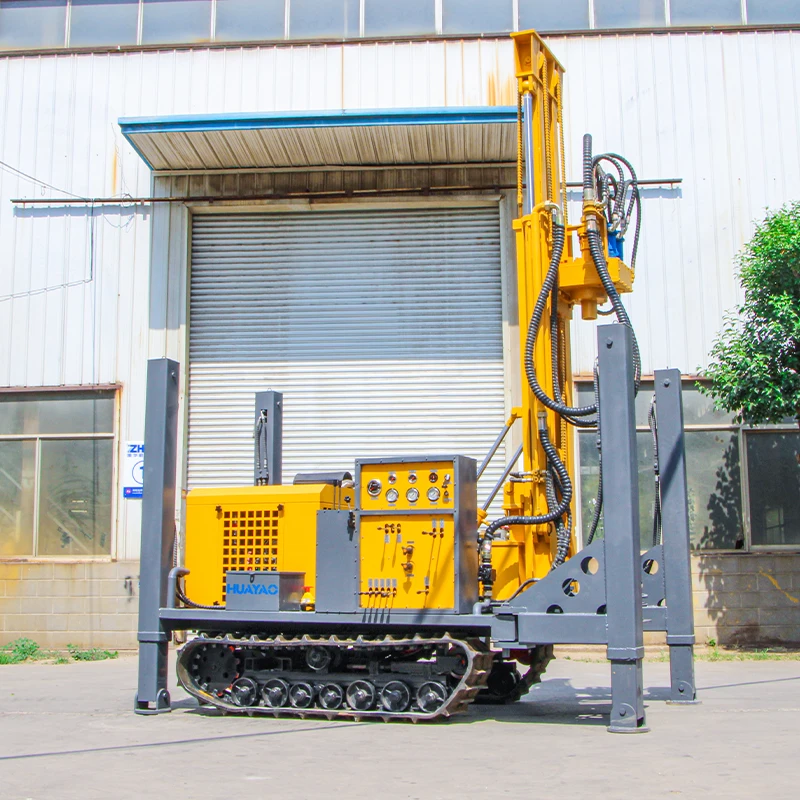

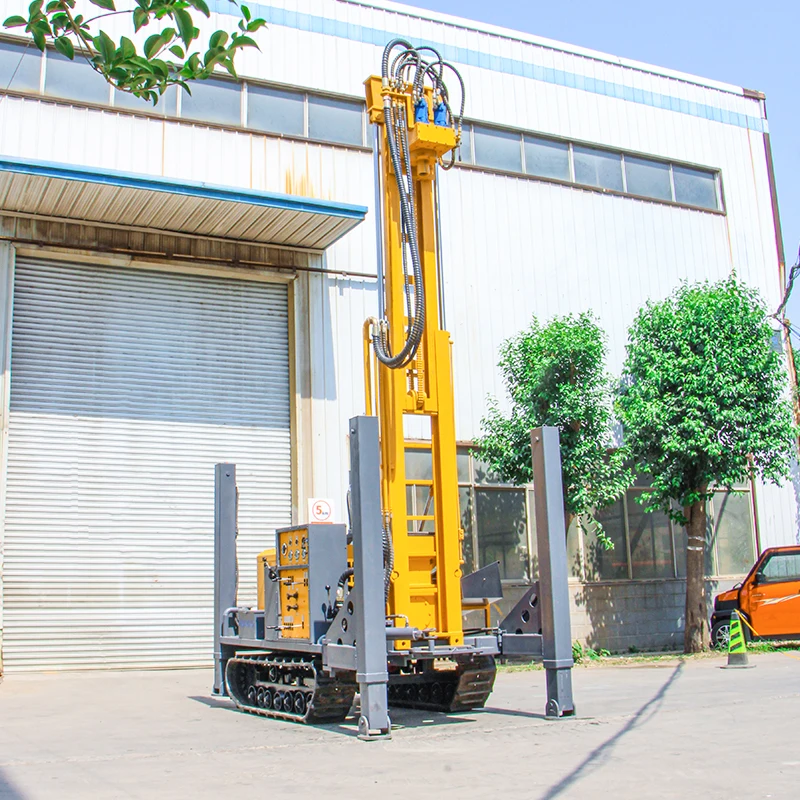

HUAYAO Water well drilling rig is a kind of light, efficient, and multifunctional drilling equipment, which is mainly suitable for industrial, civil, and geothermal drilling.
The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area. It is especially suitable for taking water from mountain areas and rock stratum.
HY200 can be used in different strata, and the diameter of the drilling can reach 130-400mm.

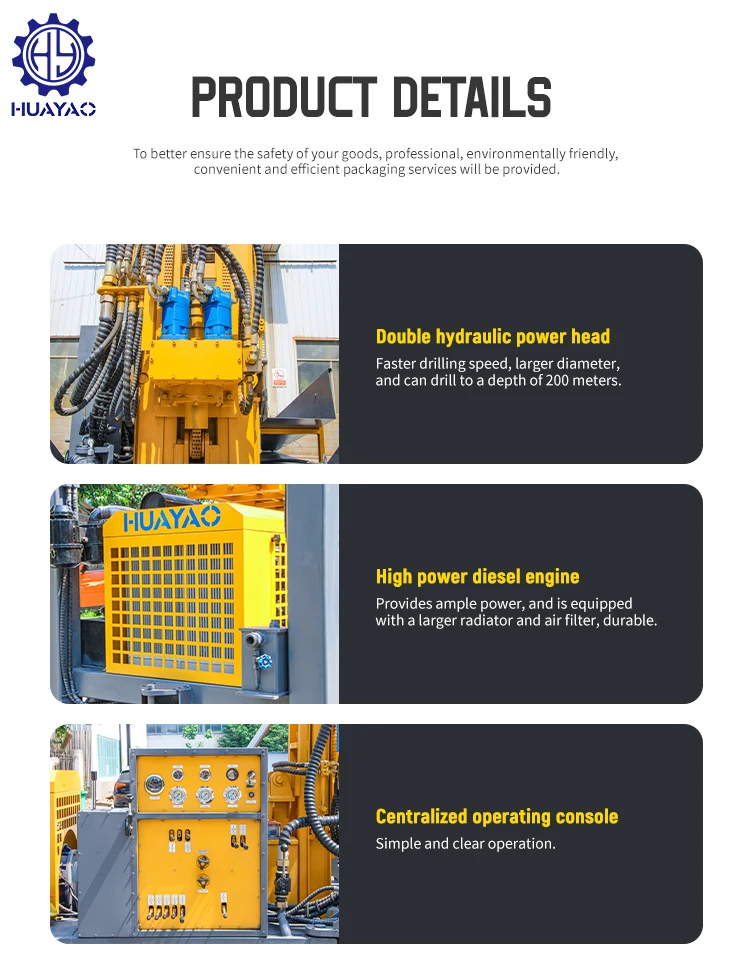

HY200 adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion.
The famous brand CHANGCHAI 78KW four-cylinder engine provides power for the hydraulic system.
The unique design of the hydraulic pump set is convenient for maintenance and reduces maintenance costs.

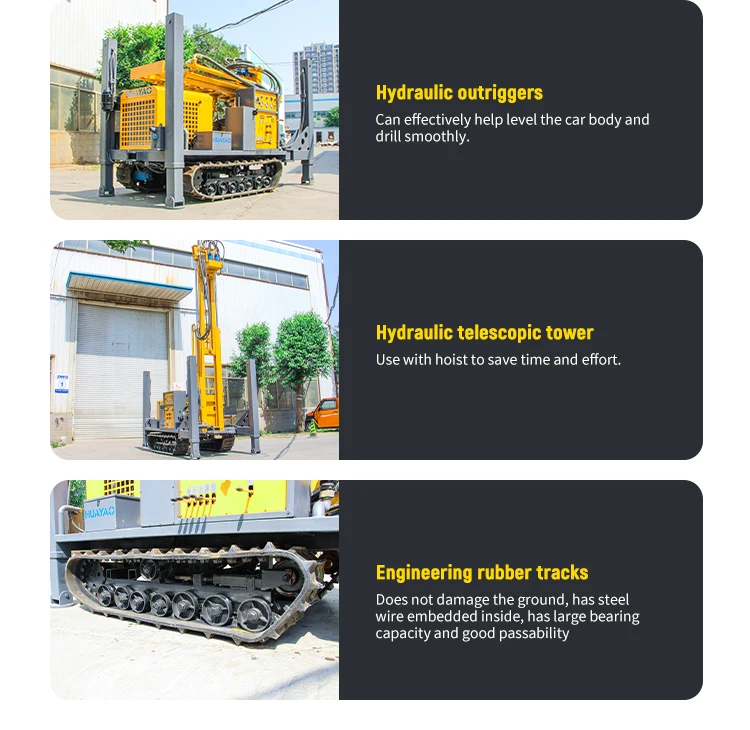

HY300 adopts engineering special rubber track, which will not damage the road surface during driving.
The hydraulic operating lever and instrument panel are centrally arranged on the right side of the machine, which is convenient for operation and improves the operating efficiency of the machine.
The hoist with 15T lifting force can easily lift the drill pipe and impactor.
The transportation size is 3.8m*1.7*2.3m long, and the small size is convenient for the transportation of the drilling rig.
The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area. It is especially suitable for taking water from mountain areas and rock stratum.
HY200 can be used in different strata, and the diameter of the drilling can reach 130-400mm.
HY200 adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion.
The famous brand CHANGCHAI 78KW four-cylinder engine provides power for the hydraulic system.
The unique design of the hydraulic pump set is convenient for maintenance and reduces maintenance costs.
HY300 adopts engineering special rubber track, which will not damage the road surface during driving.
The hydraulic operating lever and instrument panel are centrally arranged on the right side of the machine, which is convenient for operation and improves the operating efficiency of the machine.
The hoist with 15T lifting force can easily lift the drill pipe and impactor.
The transportation size is 3.8m*1.7*2.3m long, and the small size is convenient for the transportation of the drilling rig.

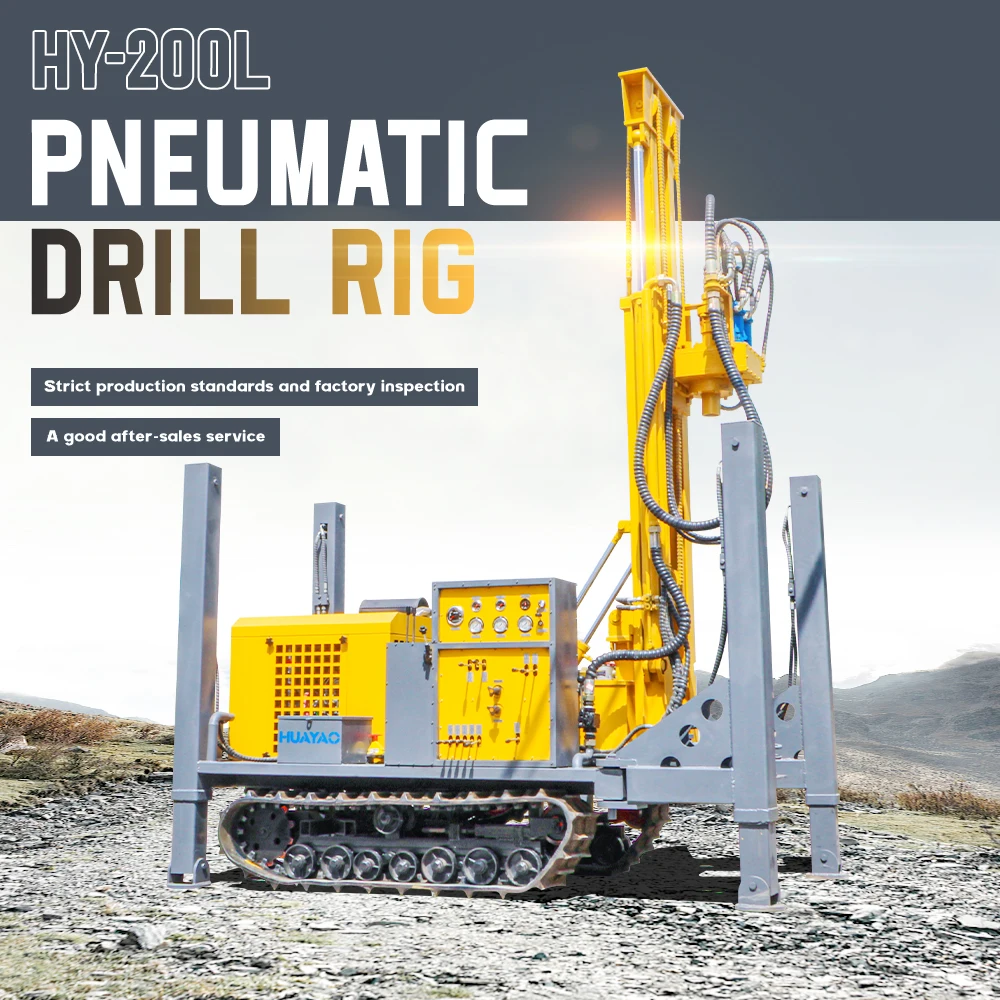

HY-200 pneumatic drilling rig is an efficient and versatile drilling equipment. Mainly used for drilling
Wells such as water wells, agricultural irrigation wells, geothermal air conditioning wells, etc. It is particularly suitable for water intake projects in mountainous areas and rock formations. Its efficiency is ten times that of traditional rotary drilling rigs, and the economic benefits it creates for users are impressive. Especially, it solves the difficulty of drilling with soil and gas down the hole hammer, and solves the construction problems of rotary drilling machines in hard rock layers, gravel and pebble layers. It can work efficiently in various geological structures and achieve a perfect combination of water and gas drilling.
Product Name | pneumatic Water Well Drilling Rig | |
Model | HYQ-200 | |
Overall Weight | 4500kg | |
Dimension | 3500mm*1700mm*2250mm | |
Drilling Diameter | Ф130-Ф254mm | |
Drilling Depth | 200m | |
Diameter of Drill Rod | Ф76mmФ 89mm | |
Maximum Drilling Length Per Time | 2m | |
Working Air Pressure | 1.45- 2.5Mpa | |
Air Consumption | 17 -31m³ | |
Engine Power | 65KW Engine | |
Lift Force | 15T | |
Rotary Speed | 42-60rpm/min | |
Rotary Torque | 4100-4500N.m | |
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. | ||
Drilling Mode | Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling | |
Impactor | China Famous Brand New Diamond Middle and High Pressure Series Impactor | |
Optional Accessories | 1.1000 hours Spare Parts 2.Mud Pumps 3.Electric welding machine 4.Foam Pump | |

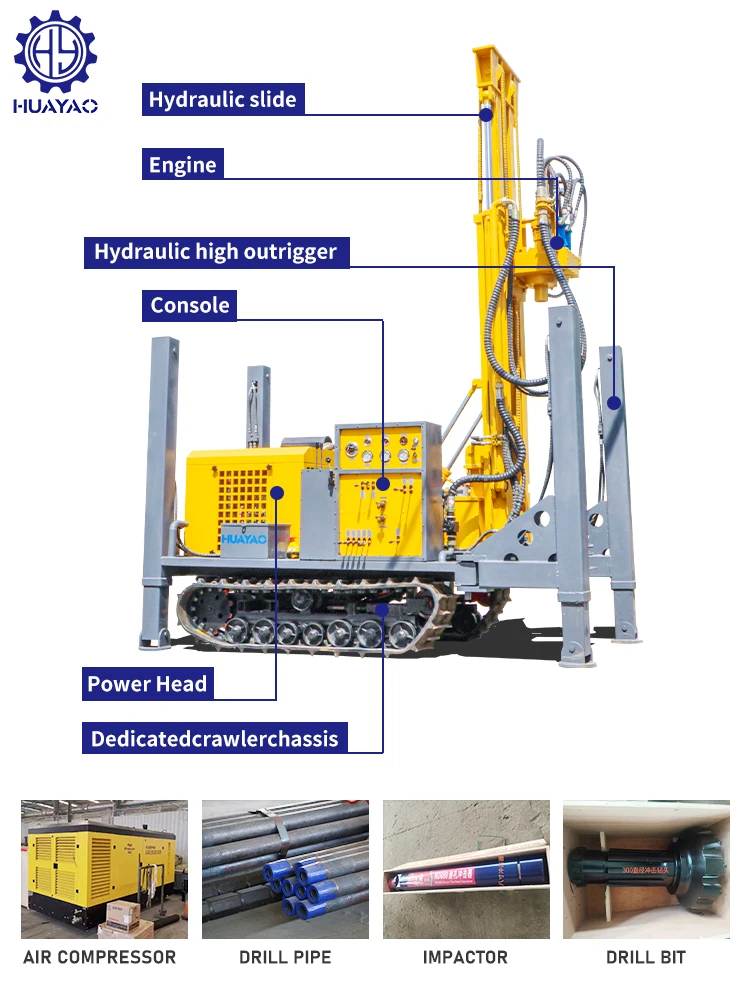

Please refer to the structure diagram of our pneumatic water well drilling rig as follows ：
Specification
For pneumatic drilling rig , if customer need air compressor , it can loading full container . If not need air compressor , itcanloading LCL
Drill Rig and Air Compressor Recommendation | ||||
Drill Depth/Drill Diameter | Within 219mm | 219-300mm | ||
100 Meter | HZ-160L KSZJ-18/17 | HZ-160L ZEGA-S85D（24-22) | ||
150 Meter | HZ-160L ZEGA-S85D（24-22） | HZ-160L KSZJ-29/23G | ||
200 Meter | HZ-260L KSZJ-29/23G | HZ-360L KSZJ-31/25 | ||
300 Meter | HZ-360L KSZJ-31/25 | HZ-400L LUY400-30 | ||
350 Meter | HZ-400L LUY400-30 | HZ-450L KSZJ-31/25 (2 Sets) | ||
400 Meter | HZ-450L KSZJ-31/25 (2 Sets) | HZ-500L LUY400-30 (2 Sets) | ||
450 Meter | HZ-500L LUY400-30 (2 Sets) | HZ-550L LUY400-30 (3 Sets) | ||
Air Compressor Technical Parament | ||||||||
Model | Free Air Delivery (m3/min) | Discharge Pressure (Mpa) | Power | Machine Weight(KG) | ||||
KSZJ-18/17 | 18 | 1.7 | 191KW | 3200 | ||||
ZEGA-S85D | 24 | 2.2 | 228KW | 3500 | ||||
KSZJ-29/23G | 29 | 2.3 | 295KW | 5000 | ||||
KSZJ-31/25 | 31 | 2.5 | 367KW | 6000 | ||||
LUY400-30 | 40 | 3.0 | 410KW | 5750 | ||||
Please contact the sales manager to recommend a suitable air compressor model for you! | ||||||||
Customer Feedback
FAQ
1.Are you manufacture?
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Contact Way
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific
price,please contact us or send us inquiry,then we can give you detail quotation list,thanks.
price,please contact us or send us inquiry,then we can give you detail quotation list,thanks.
