Products Description
Introduction
The handheld laser marking machine provides a quick and easy method for marking large, heavy or immobile objects that are difficult to mark conventionally. Ideal for marking flat metal and non-metal surfaces, handheld laser marker is an excellent solution for permanent, high-contrast and detailed markings.
Advantages of the Portable Handheld Laser Marking Machine
1. Small size and compact, making it convenient to use. beginners can quickly get started.
2. Easy to carry, facilitating portability.
3. High Precision: Re-position precision is 0.002mm.
4. High adaptability, suitable for marking a wide range of materials and various types of content.
5. High Speed: Imported scanning system makes the scanning speed up to 12000mm/s.
3. High Precision: Re-position precision is 0.002mm.
4. High adaptability, suitable for marking a wide range of materials and various types of content.
5. High Speed: Imported scanning system makes the scanning speed up to 12000mm/s.
6. Low Running Cost: No wearing part. Free maintaining.
7. Energy Saving: The efficiency of optic-electrical converting is up to 30%.
Product Paramenters
Item | Parameter table | Z-FH20 | Z-FH30 | Z-FH50 | ||
Overall characteristics | Material of machine | Sand blasting oxidation all aluminum structure | ||||
Laser | The service life of fiber laser generator is more than 100000 hours | |||||
Laser wavelength | 1064nm | |||||
Actual output power | ≥20W | ≥30W | ≥50W | |||
Marking speed | ≤12000mm/s | |||||

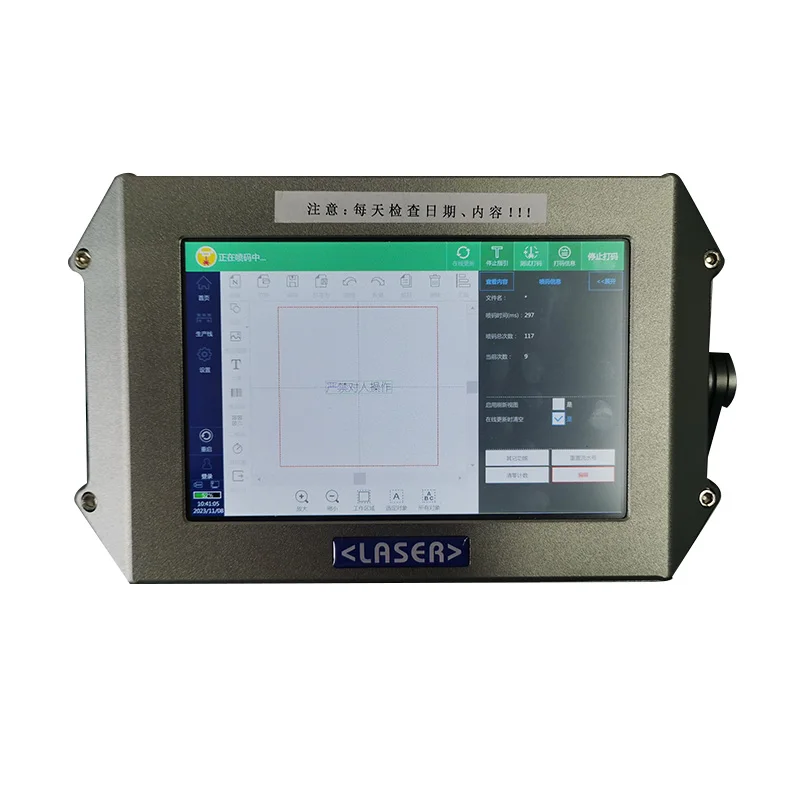

master control | 8 inches touch screen controller | |||||
Cooling system | Normal temperature air cooling | |||||
Minimum line width | 0.0012mm | |||||
Repetitionaccuracy | 0.003mm | |||||
Marking range | 75mm*75mm or 120*75mm（others optional） | |||||
Positioning mode | Red light indication | |||||
Number of lines of engraved characters | Within the marking range Any number will do | |||||
Production line speed | 0 ~ 130m / min (depending on the material) | |||||
Software introduction | Multilingualism | English, French, Spanish, German, Chinese, Russian, Arabic, etc | ||||
Operation authority | Multi user management authority | |||||
operating system | Linux system | |||||
Inkjet mode | Static, analog and encoder. Three printing modes | |||||
Reserved signal | Start printing, printing status, printing completion, fault alarm | |||||
data protection | With power-off data protection function | |||||
Missing print monitoring | False triggering due to material reflection, providing overspeed alarm function | |||||
Remove intersections | Automatically remove intersection points to avoid overlapping | |||||
Coding software | It can realize single and dual code sending | |||||
Supporting content | typeface | Chinese, English, digital, traditional and other standard font | ||||
file format | BMP/DXF/HPGL/JPEG/PLT | |||||
bar code | Code39, code128, code126, QR, Zhizhi code (optional) | |||||
Parameter | Power Supply | Standard configuration: external power supply 220V / 50Hz | ||||
Power consumption | 200W | |||||
Net machine weight | Handheld body: 7kg, handpiece: 1.25Kg | |||||

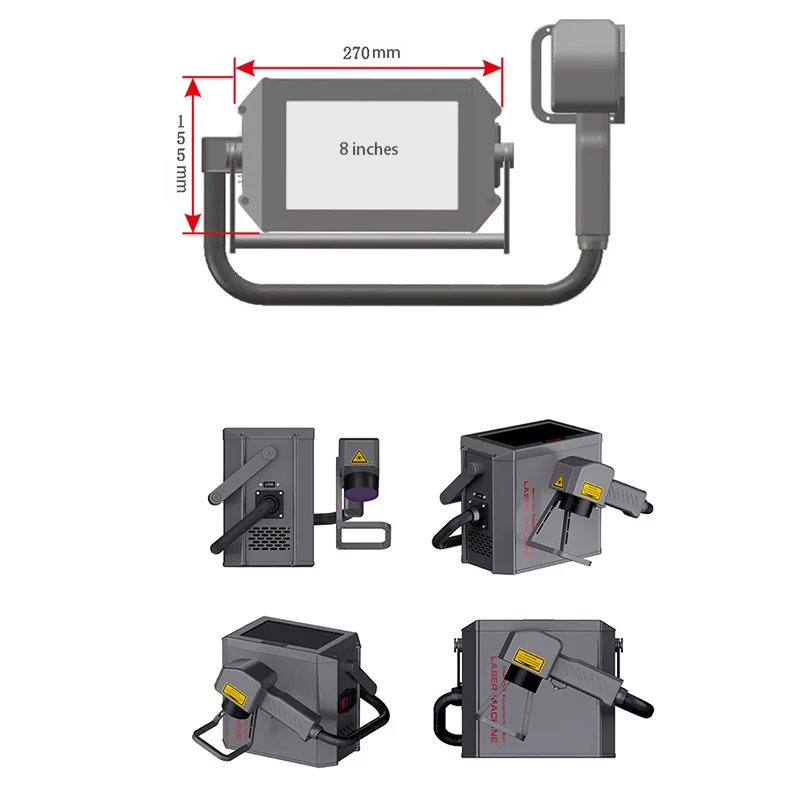

Overall dimensions | Case: 270 * 155 * 245, hand-held head: 240 * 100 * 230mm | |||||
Packing size | 470 * 410 * 360mm.8.25kg | |||||
Battery endurance | Standard: External power supply: 220V 50HZ Optional: built in battery: 12000mA normal use time 12-16 hours | |||||
Environment | requirement | External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration | ||||
Application Industries
Suitable for use in the following industry examples:
Food and Beverage: Packaged Food, Beverage, Baked Goods, Candy and Confectionary, Pet Food, Snacks, Fruits and Vegetables.
Consumer Products: Cosmetics, Personal Care, Nutraceutical, Pharmaceutical, Home Care,Chemicals.
Company Profile
Hebei Zhongshi Shuzhi Technology Co., Ltd.
Hebei Zhongshi Shuzhi Technology Co., Ltd. has been an industry-leading coding and marking technology solutions provider for over 10 years, manufacturing industrial coding and marking equipment. We serve customers from a wide range of industries and help to improve their productivity, efficiency, and protect their business.
Our products are used on production lines across the world. These include Thermal Transfer Overprinters (TTO) used for marking plastics, film packaging, labels, gloss card, and other flexible materials. Our laser coders for industries such as beverage, pharmaceuticals or cosmetics. Continuous Ink Jet (CIJ) printers used in industries such as food, beverage and automotive, Large Character Printers for outer case coding and packaging, printers coding onto boxes, trays, sleeves and packaging materials. Any industry which requires product identification codes, batch numbers, use by dates and barcodes may have our printer on its line.
We have exported more than 100 countries like Philippines, Malaysia, Singapore, Thailand, India, Canada, Spain, Russia, etc. Our team have rich experience in export coding machine. We will take care of your production, shipping and after-sales service.
Our products are used on production lines across the world. These include Thermal Transfer Overprinters (TTO) used for marking plastics, film packaging, labels, gloss card, and other flexible materials. Our laser coders for industries such as beverage, pharmaceuticals or cosmetics. Continuous Ink Jet (CIJ) printers used in industries such as food, beverage and automotive, Large Character Printers for outer case coding and packaging, printers coding onto boxes, trays, sleeves and packaging materials. Any industry which requires product identification codes, batch numbers, use by dates and barcodes may have our printer on its line.
We have exported more than 100 countries like Philippines, Malaysia, Singapore, Thailand, India, Canada, Spain, Russia, etc. Our team have rich experience in export coding machine. We will take care of your production, shipping and after-sales service.
Certifications
Delivery
FAQ
1.Why choose Zhongshi?
Our company has devoted to research & development, manufacturing and sales of high quality coding machines and consumables for 10 years. Meanwhile, We have a complete after-sales service team and system to satisfy customers’ different requirements and fix various problem.
2.What’s the regular lead time for Zhongshi Products?
Lead time for all Zhongshi goods is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 3 working days.
3.What's the warranty of Zhongshi products?
Regularly 12 months after leaving Warehouse.
4.How about your after-sales service?
We offer complete after-sales service and technical support. Provide technical guidance on installation, use, maintenance and repair （video）
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash
