TRUETEC Китай горячая Распродажа печь для расплава закаленного стекла оборудование производства
115 000,00-118 000,00 $
Горячая распродажа промышленная Стеклоомыватель для очистки сушильное оборудование обработки стекла
- Категория: >>>
- Поставщик: Shandong Zhengke Automation Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601214229528:
Описание и отзывы
Характеристики
Glass washing machine
Model | Max. glass size | Min. glass size | Air pressure | Dimensions (L*W*H) |
QX2500A | 2500×3500mm | 280×480mm | 0.5-0.8MPa | 9700×2700×3550mm |
QX2000A | 2000×2500mm | 280×480mm | 0.5-0.8MPa | 7700×2600×3050mm |
Equipment features
Available for washing coating glass, tempered glass, LOW-E glass etc.
Washing machine adopts oilless bearing.
The machine adopts inclined structure, stable conveying, key components automatic detection.
The equipment could complete functions of: glass conveying, glass washing, drying, testing and discharging etc.
Available for washing coating glass, tempered glass, LOW-E glass etc.
Washing machine adopts oilless bearing.
The machine adopts inclined structure, stable conveying, key components automatic detection.
The equipment could complete functions of: glass conveying, glass washing, drying, testing and discharging etc.

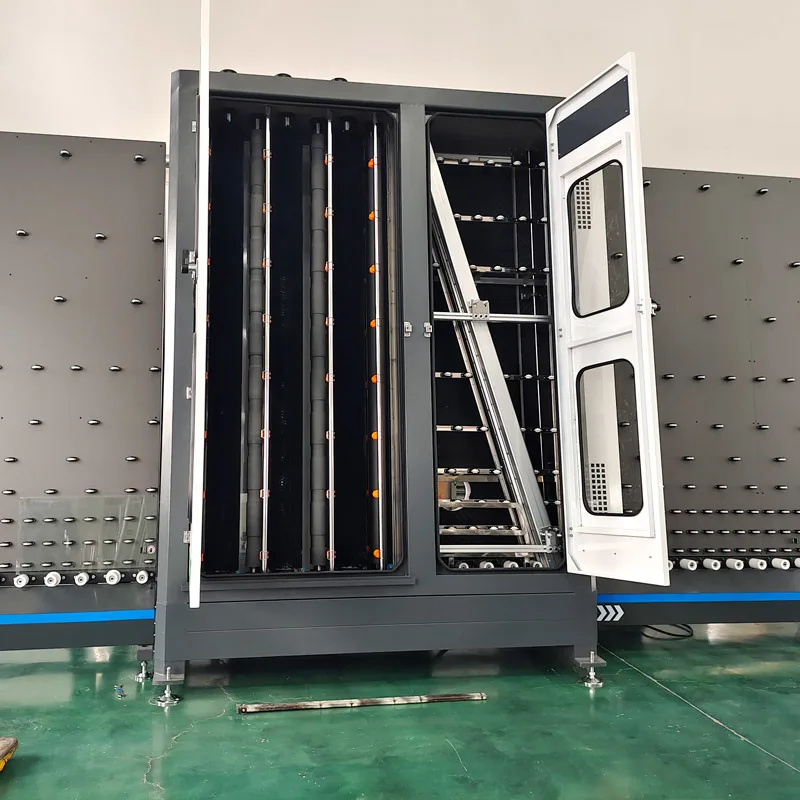

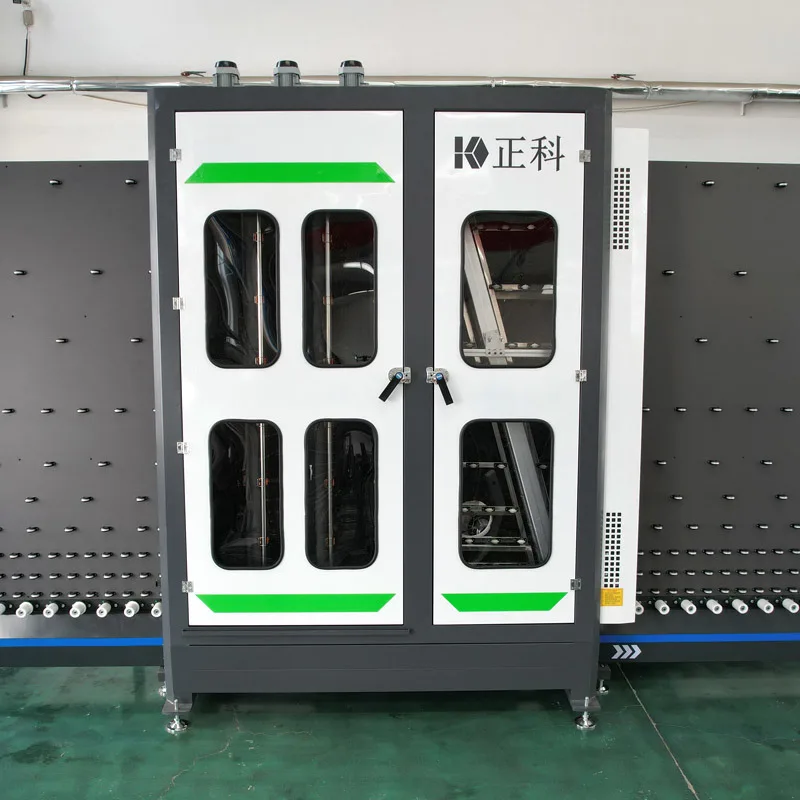

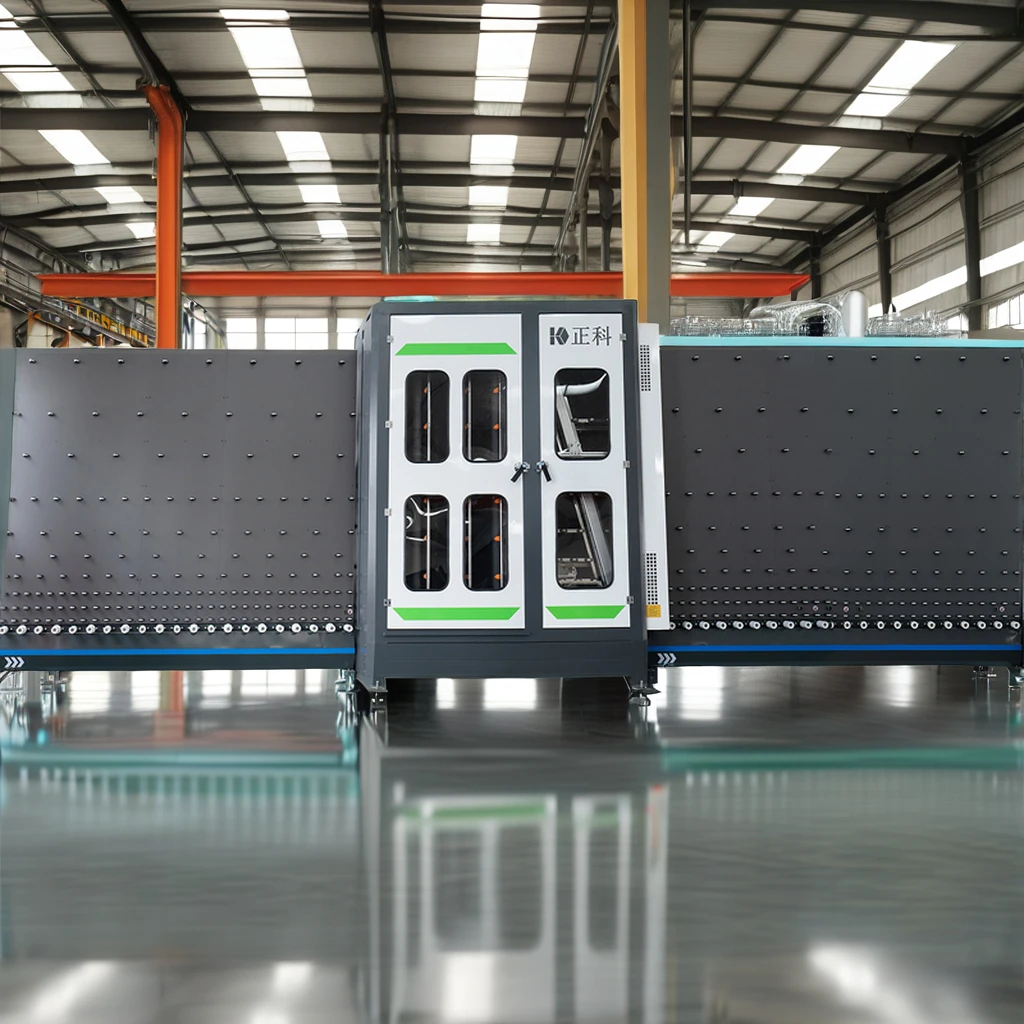

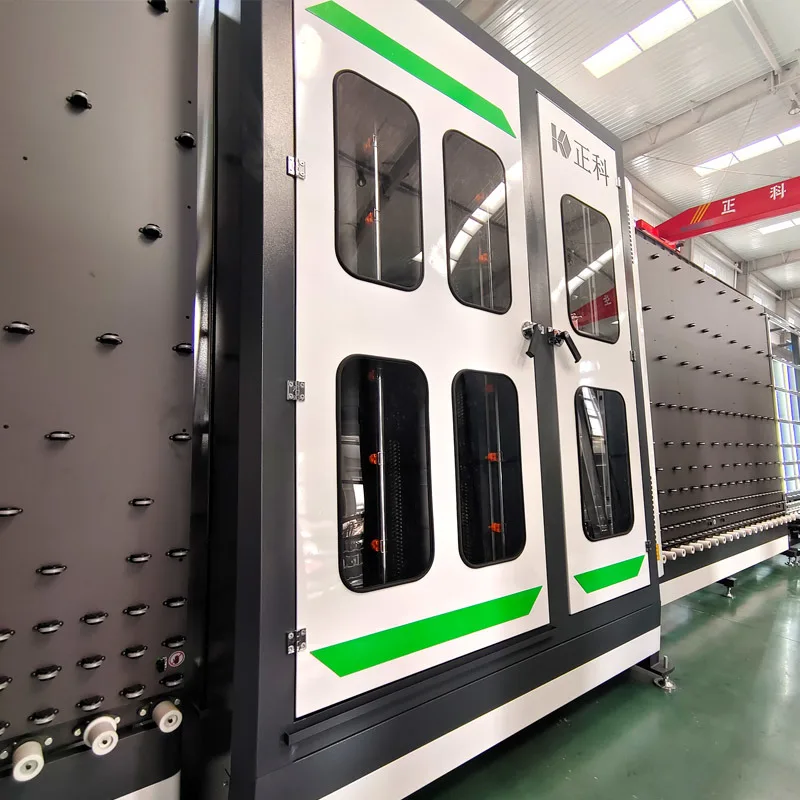

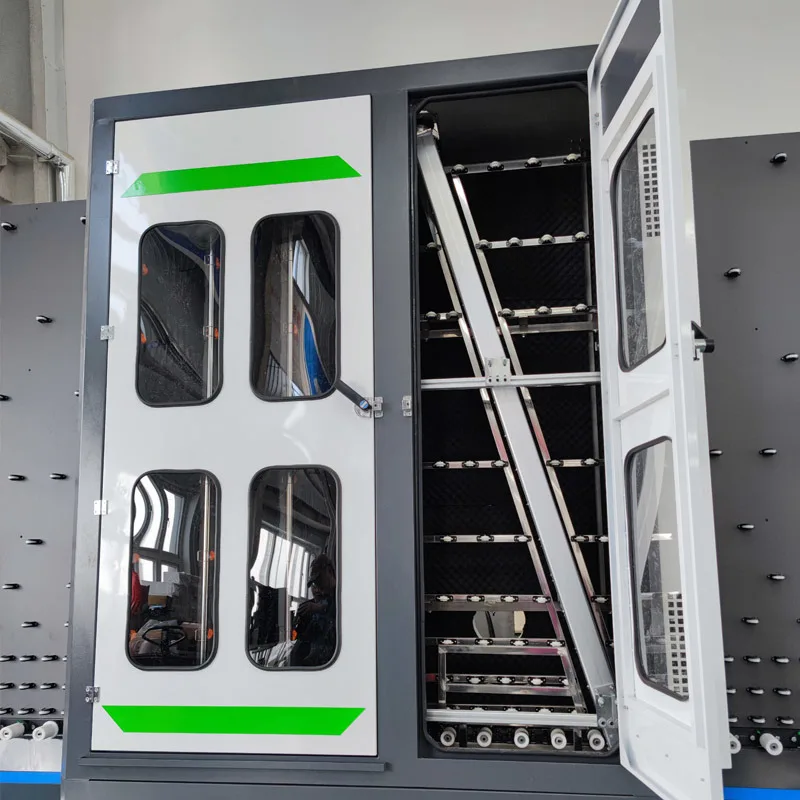

1 | Name | Vertical glass washing machine |
2 | Voltage Power | 380V 50Hz 24KW |
3 | Air Pressure | 0.6~0.8Mpa |
4 | Cutting Glass Size | 2500×3500mm |
5 | Min Glass Size | 280×480mm |
6 | Glass Thickness | 3~18mm |
7 | Conveying Speed | 0~50m/min |
8 | Cleaning Speed | 2~15m/min |
9 | Overall Dimension | 9700×2700×3550mm |
Some product advantages
4 independent motors
Strong power and synchronization performance: The 4 independent motors on the top provide powerful power support for the cleaning machine. Each motor can operate independently and efficiently, and work together to ensure that the cleaning machine is fully powered during operation. The gear transmission design makes the synchronization between the motors reach an excellent level, whether in high-speed rotation or in complex cleaning tasks, it can maintain a stable and consistent working state, greatly improving the efficiency and quality of cleaning. For example, when cleaning large areas of industrial parts, this synchronization performance can ensure that each part can be cleaned evenly and thoroughly, without omissions or uneven cleaning.
Water Filtration System
Filtered water is softer, reducing the risk of friction and scratches on the glass surface caused by hard particles in the water. During the cleaning process, it can effectively remove stains while protecting the integrity and finish of the glass to the greatest extent, extending the service life of the glass. For example, for some glass with coatings or special treatments on the surface, this gentle cleaning method can ensure that the coating is not damaged and maintain its original performance.
The vertical glass washing machine with water filtration system is an ideal solution for glass cleaning, bringing you a more efficient, higher quality and more economical cleaning experience, keeping your glass in a crystal clear and perfect state at all times.
Finished samples
Fast glass cleaning speed
Quick drying
Patented wind knife design, higher efficiency
Quick drying
Patented wind knife design, higher efficiency
Product packaging
1. Small items are usually packed in wooden boxes (suitable for sea transportation)
2. For whole containers, we usually use simple packaging, and fix the machine corners with wire.
3. For special packaging requirements, you can tell us and we will package according to customer requirements.
2. For whole containers, we usually use simple packaging, and fix the machine corners with wire.
3. For special packaging requirements, you can tell us and we will package according to customer requirements.
Company Profile
Shandong Zhengke Automation Co., Ltd. was founded in 2014, located in Jiyang Industrial Park, Jinan, Shandong Province. The company covers an area of 5000 square meters, the core team of 50 people. Have independent technology design, research and development team. Have modern office space. Is the domestic professional glass machinery high-tech enterprises.
The company focuses on glass cutting machine.glass edging machine.glass washing machine.glass tempering machinery.insulating glass machine.glass tempering machine.laminated glass machine...etc. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of glass two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other
high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production machine.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology",based on talent, technology, service and reputation, not only to provide customers with high quality glass machine, but also toprovide you with case debugging machine, technical consulting guides, staff operation training and other comprehensive after-sales service.
high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production machine.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology",based on talent, technology, service and reputation, not only to provide customers with high quality glass machine, but also toprovide you with case debugging machine, technical consulting guides, staff operation training and other comprehensive after-sales service.
Our Advantages
1. We provide professional glass production solutions.
2. Professional online service team, any mail or message will reply within 24 hours.
3. We have a strong team provide wholehearted service to customer at any time.
4. We insist on Customer is Supreme, Staff toward Happiness.
5. Put the Quality as the first consideration;
6. OEM & ODM, customized design/logo/brand and package are acceptable.
7. Advanced production equipment, strict quality testing and control system to make sure superior quality.
8. Competitive price: we are a professional glass machine manufacturer in China, there is no middleman's profit, and you can get
the most competitive price from us.
9. Good quality: good quality can be guaranteed, it will help you keep the market share well.
10. Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss with trading
companies. We will try our best to meet your request.
1. We provide professional glass production solutions.
2. Professional online service team, any mail or message will reply within 24 hours.
3. We have a strong team provide wholehearted service to customer at any time.
4. We insist on Customer is Supreme, Staff toward Happiness.
5. Put the Quality as the first consideration;
6. OEM & ODM, customized design/logo/brand and package are acceptable.
7. Advanced production equipment, strict quality testing and control system to make sure superior quality.
8. Competitive price: we are a professional glass machine manufacturer in China, there is no middleman's profit, and you can get
the most competitive price from us.
9. Good quality: good quality can be guaranteed, it will help you keep the market share well.
10. Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss with trading
companies. We will try our best to meet your request.
Exhibition
1.Question:Are you a manufacturer? Answer : Yes,we are the professional glass processing machines manufacturer, which has 10-years history since 2014. 2.Question: How about
the service ? Answer :
1).Timely reply it at once on Alibaba store , WhatsAPP and Email. 2).24 hours online for after-sale service.
3).More than 10 years experience in this glass processing machine field.
4).Fluent English ,communication barrier free. Point-to-point service help you solve the problems timely. 3.Question:What's the
guarantee ? Answer :
1). Our guarantee for 1 year. 2). 24 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support. 4. Question: Do you provide equipment operation
training? Answer :
Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical
engineer, one is mechanical engineer) to install and adjust the machines and help train the workers. 5.Question:Why your price
isn't the lowest price compared with others company or factories ?
Answer :
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team.
Every year we will apply for innovation patents for our glass processing machine. 2)Compared with the same level brand, we have
the same functions and components, but our price is the most competitive. At the same time, our after sales service is
satisfactory. We have a good reputation in our customers.
the service ? Answer :
1).Timely reply it at once on Alibaba store , WhatsAPP and Email. 2).24 hours online for after-sale service.
3).More than 10 years experience in this glass processing machine field.
4).Fluent English ,communication barrier free. Point-to-point service help you solve the problems timely. 3.Question:What's the
guarantee ? Answer :
1). Our guarantee for 1 year. 2). 24 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support. 4. Question: Do you provide equipment operation
training? Answer :
Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical
engineer, one is mechanical engineer) to install and adjust the machines and help train the workers. 5.Question:Why your price
isn't the lowest price compared with others company or factories ?
Answer :
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team.
Every year we will apply for innovation patents for our glass processing machine. 2)Compared with the same level brand, we have
the same functions and components, but our price is the most competitive. At the same time, our after sales service is
satisfactory. We have a good reputation in our customers.
