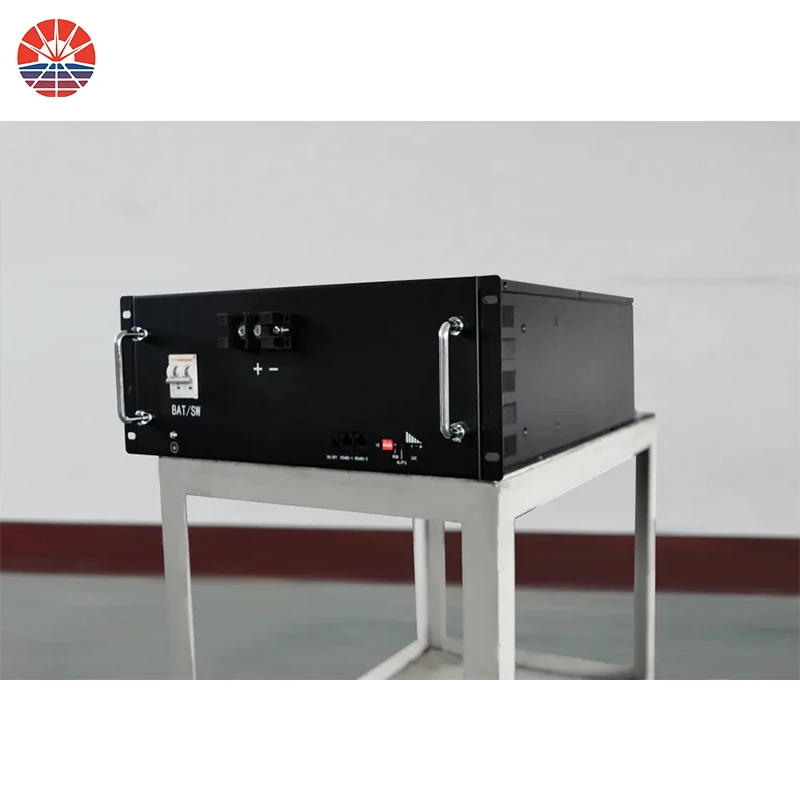

Литий ионный аккумулятор на стойке 5 кВтч 10 15 51 2 В 100 А · ч 200 300 48 Аккумулятор Lifepo4
- Категория: >>>
- Поставщик: Redsun new energy Co. Ltd
Сохранить в закладки 1601214478052:
Описание и отзывы
Характеристики
Product Description

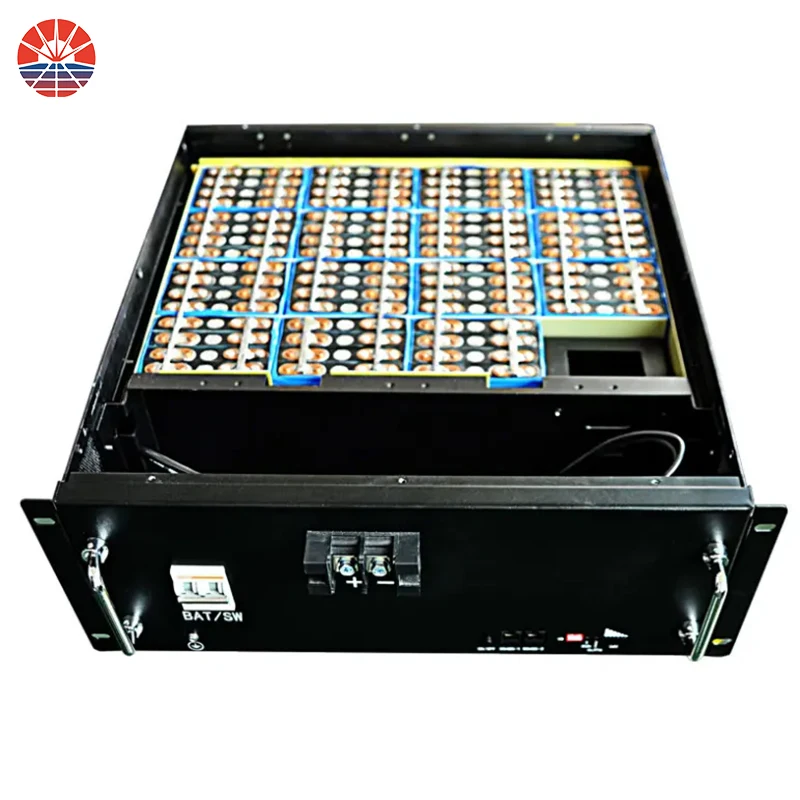

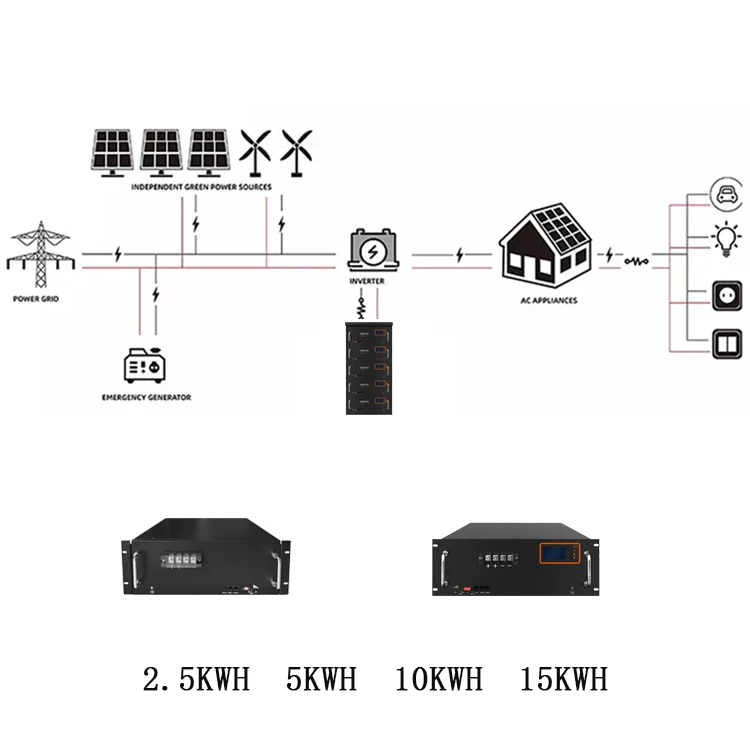

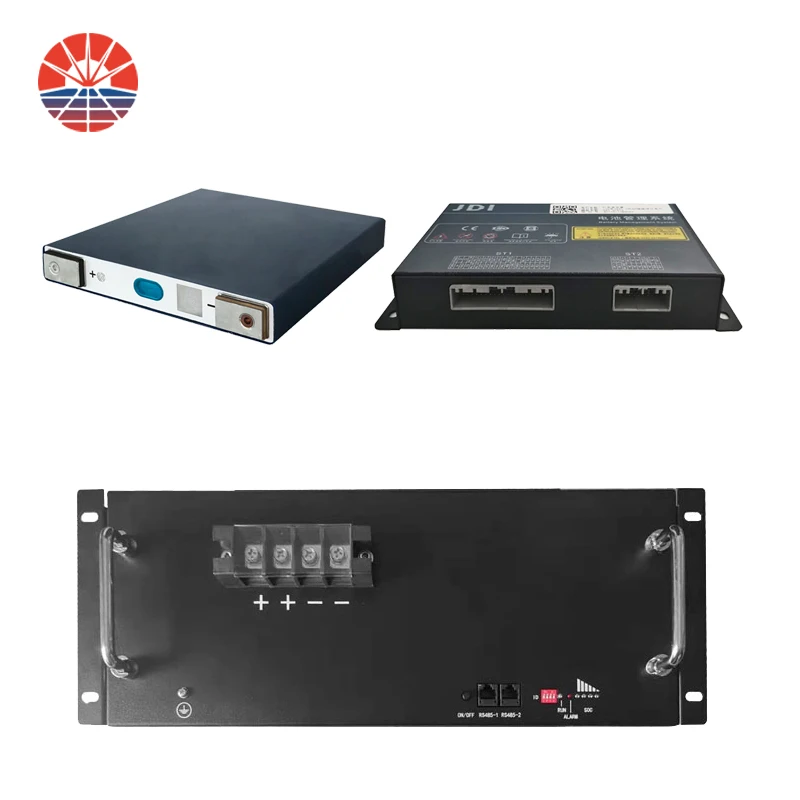

Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, medical equipment, electric mobility, power back up, ups and other application,lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices. This battery cell cyclelife is 5000 times at 80%DOD what we use is a smart BMS with many function here ,In the front of the battery you could see it has ON/OFF buttons ,Running light ,alarm light,SOC light which could be show the battery capacity when you discharge and charge the battery.
Model | GBP48-100R | GBP48-200R | GBP51.2-100R | GBP51.2-200R | |||
Nominal voltage (V) | 48 | 51.2 | |||||
Nominal capacity (Ah) | 100 | 200 | 100 | 200 | |||
Nominal energy (kWh) | 4.8 | 9.6 | 5.12 | 10.24 | |||
Recommended charging voltage (V) | 42~54.75 | 44.8~58.4 | |||||
Recommended discharge cut-off voltage (V) | 51.75 | 55.2 | |||||
Operating voltage range (V) | 45 | 48 | |||||
Standard charge/discharge current (A) | 0.5C | ||||||
Maximum continuous charge/discharge current (A) | 1C | ||||||
Applicable temperature (℃) | -30~60 | ||||||
Allowable humidity range (%RH) | 85 | ||||||
Storage temperature (℃) | -20~65 | ||||||
Protection level | IP20 | ||||||
Cooling method | Natural cooling/smart fan | ||||||
Number of cycles | 80% DOD 5000+ times | ||||||
Maximum size (d*w*h) mm | 689*459*162 | 682*510*246 | 689*459*162 | 682*510*246 | |||
Weight (kg) | 46 | 89 | 49 | 93 | |||
Specification
Nominal Capacity
The battery pack is placed in a 25℃ environmental chamber,0.2C constant current and constant voltage to 54.65V, 0.05C cut-off,put it aside for 60 minutes; 1C discharge to 37.5V.
Rate Charging
The battery pack are charged at a constant current of 0.1C,0.2C,0.3C,0.5C,and 1C to 54.75V in an environment of 25℃.Stop charging
after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
Storage performance-place at room temperature
In a normal temperature environment,100% SOS storage for 28 days,test capacity retention and recovery rate(Test for 5 groups batteries)
Storage performance-place at high temperature
55℃,100%SOC storage 4*7 28 days,test capacity retention and recovery rate(Test average value for 5 groups batteries)
42V,cycle to 80%SOC cut-off;
25℃,1C constant current charge to 53.25V,constant voltage to 0.05C cut-off;after 30 minutes of storage,1C discharge to 42V,cycle
to 80%SOC cut-off.
Certificate
Feed Back
Company Profile
Located in the beautiful spring city - Jinan, Redsun (Shandong) New Energy Co., Ltd. is committed to the development of new energy science and technology and the popularity of environmental protection energy.
The production base is located in Linuo Science and Technology Park, No. 30766, Jingshi East Road, Jinan Hi-Tech Zone. It maintains close cooperation with several large-scale high-tech enterprises in China and has signed long-term co-operation agreements for the development of distributed photovoltaic projects.
By the beginning of 2024, we had provided products and services for more than 1,000MW of PV power plant projects in more than 20 countries and regions, and have successfully explored the markets in Africa, Europe, North America and Asia-Pacific.
Our photovoltaic modules, inverters and energy storage batteries are exported to many European countries. Redsun New Energy is always committed to the strategic development of new green energy for mankind to meet the ever-changing world energy demand.
By the beginning of 2024, we had provided products and services for more than 1,000MW of PV power plant projects in more than 20 countries and regions, and have successfully explored the markets in Africa, Europe, North America and Asia-Pacific.
Our photovoltaic modules, inverters and energy storage batteries are exported to many European countries. Redsun New Energy is always committed to the strategic development of new green energy for mankind to meet the ever-changing world energy demand.

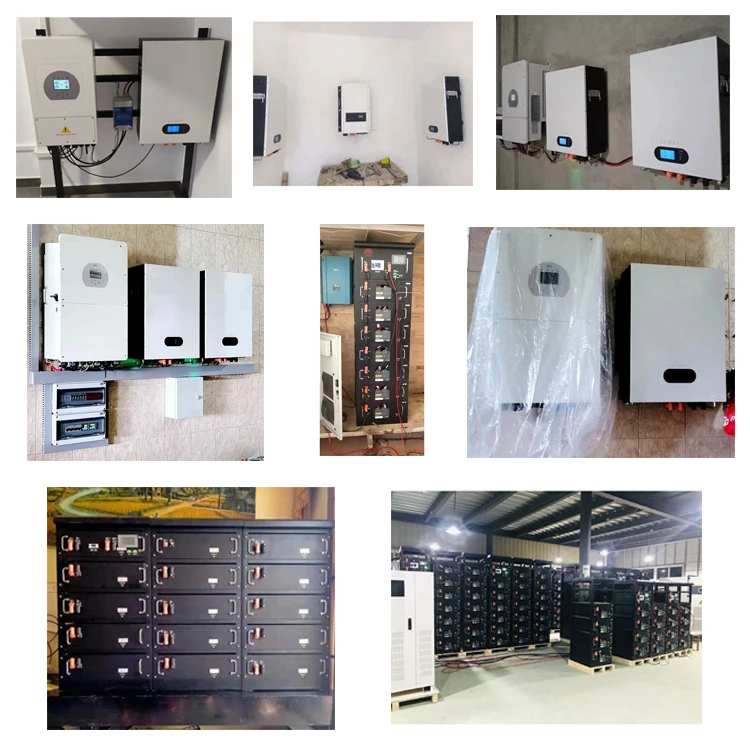

Reference Projects
Packing & Delivery
FAQ
1.What is your advantage in photovoltaic products?
Solar Energy Storage Lithium Battery, such as low voltage, high voltage, big capacity energy storage container, ect. and you will get the best design solution for free!!!
Solar Energy Storage Lithium Battery, such as low voltage, high voltage, big capacity energy storage container, ect. and you will get the best design solution for free!!!
2.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.Do you provide after-sales serive?
Yes,the warranty is 5 years, if any quality problems on our side in this period, we can send new one as replacement.
4.What is the payment term?
By T/T, L/C, Alibaba Trade Assurance,etc
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.Do you provide after-sales serive?
Yes,the warranty is 5 years, if any quality problems on our side in this period, we can send new one as replacement.
4.What is the payment term?
By T/T, L/C, Alibaba Trade Assurance,etc
Похожие товары

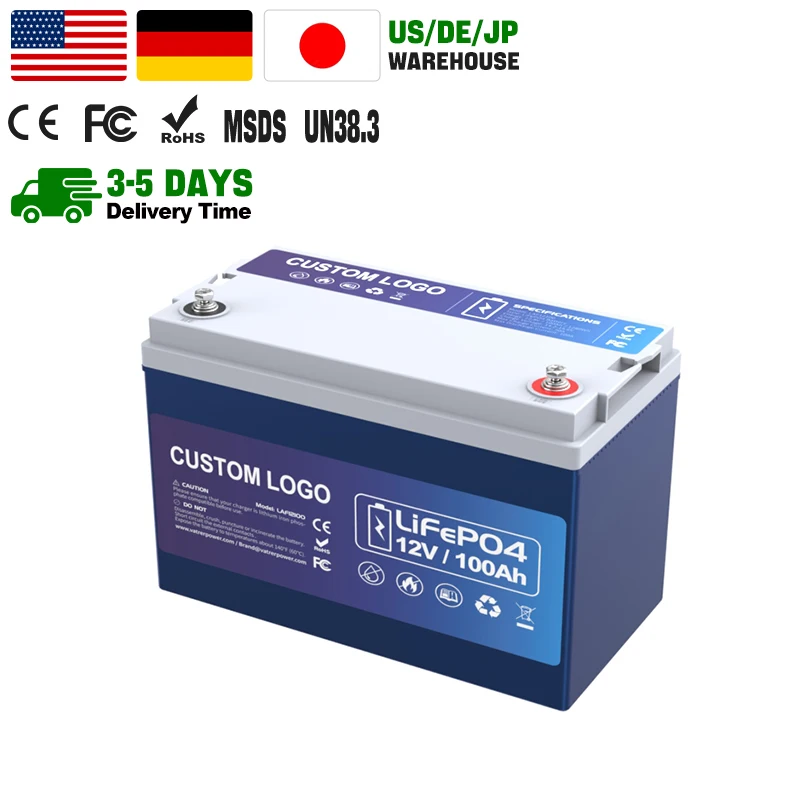

Литиевый Железный аккумулятор высокой плотности Lifepo4, легкий, 12 В, 100 Ач, срок службы батареи Lifepo4 5000 + для жилого автофургона
12 852,74 ₽ - 17 064,98 ₽

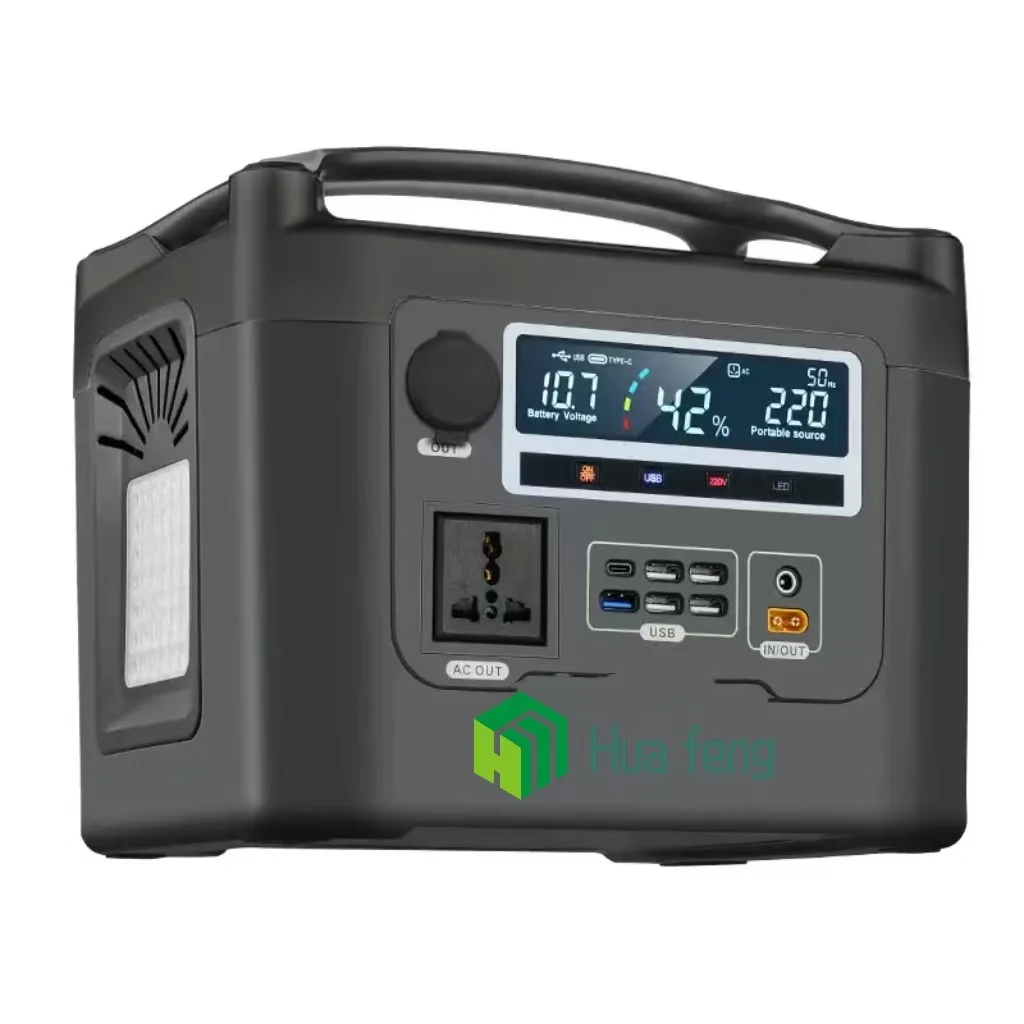

Huafeng 1200 Вт 1024Wh Lifepo4 аварийный генератор солнечной энергии 2000 Вт солнечный генератор 1200 Вт портативная электростанция

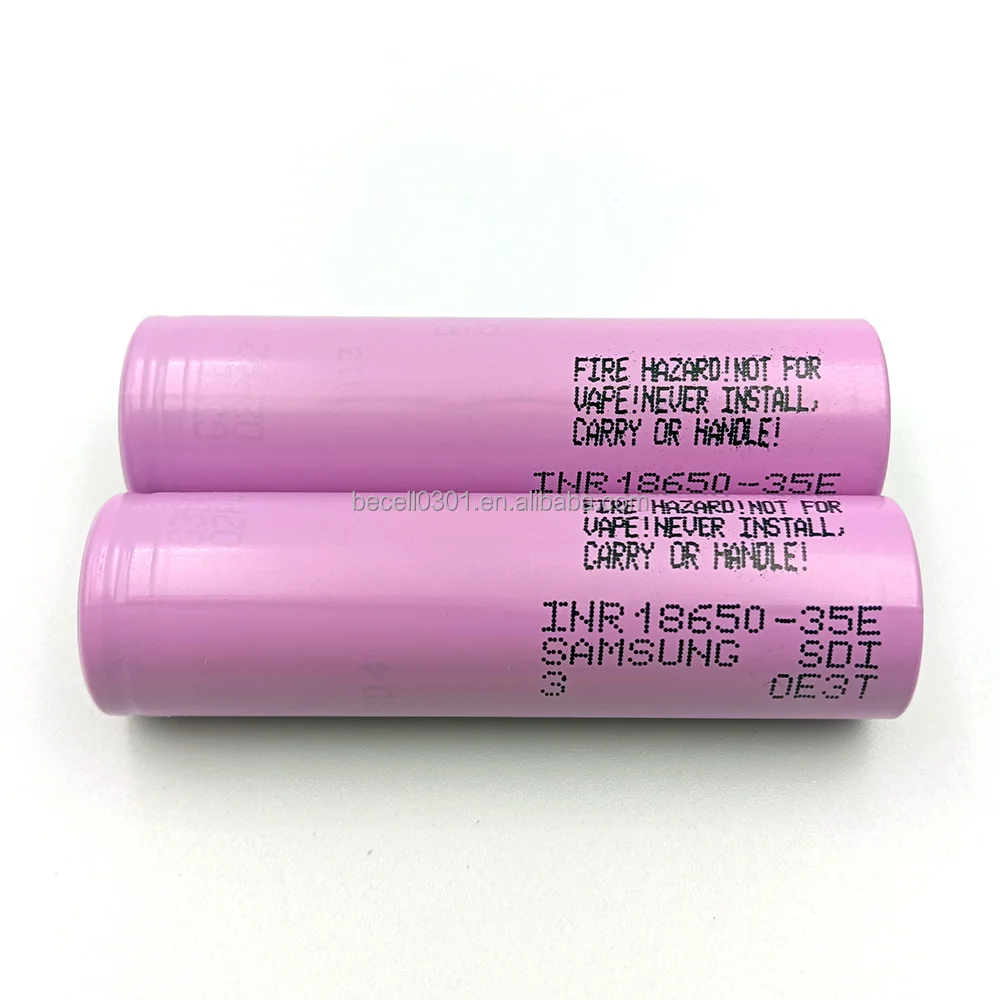

Samsung 35E 18650 3500 мАч 8A аккумулятор 100% оригинальный 18650 высокой емкости для Samsung INR18650 35E 18650 Аккумулятор 3,7 В 3500 мАч CE KC
167,41 ₽ - 189,02 ₽
3,6 В 3500 мАч INR18650 35E оригинальный корейский бренд перезаряжаемый литий-ионный аккумулятор INR18650 35E
178,22 ₽ - 193,34 ₽
Перезаряжаемая литий-полимерная батарея 3,7 В 7,4 В 3080135 3700 мАч 7400 мАч литий-ионная полимерная батарея

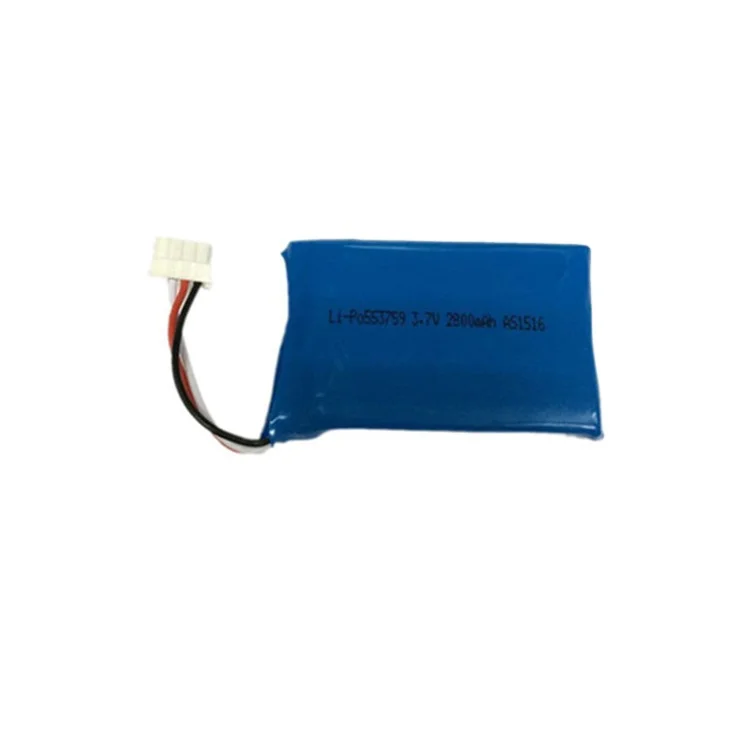

Перезаряжаемый литий-ионный аккумулятор 3,7 в 2700 мАч 2P 553759
318,62 ₽ - 329,42 ₽

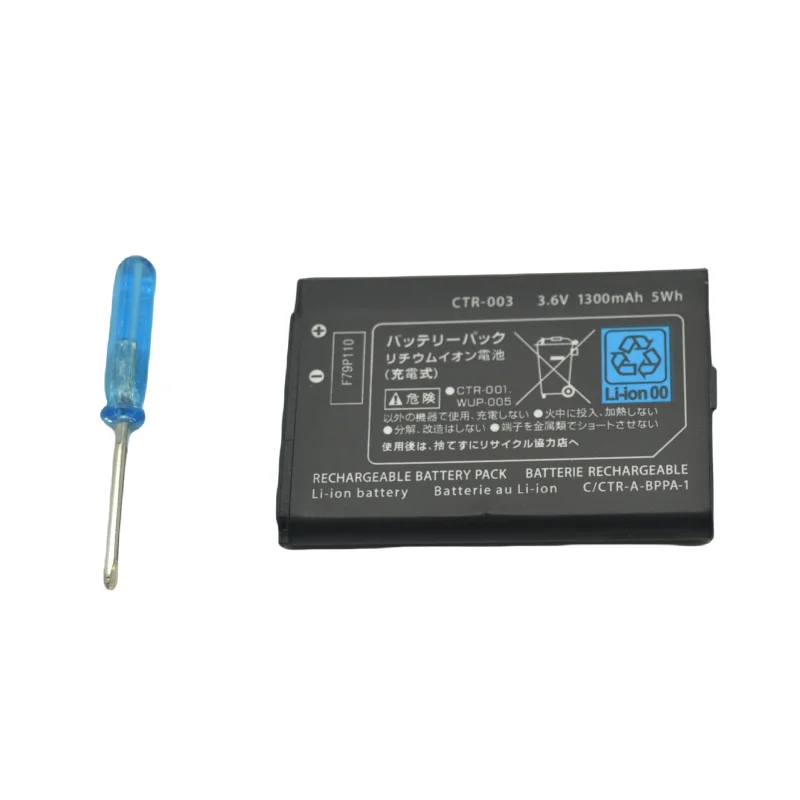

Высококачественный CTR-003 игровой аккумулятор 3,6 В 1300 мАч литий-ионный аккумулятор для игровой консоли 3DS 2DS
