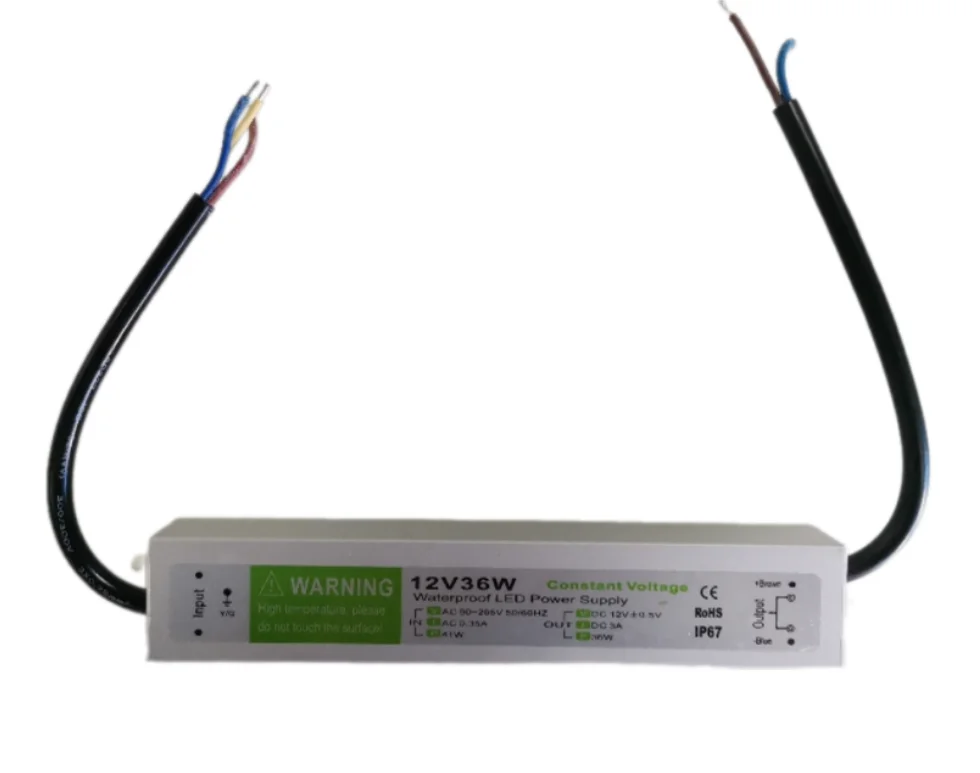

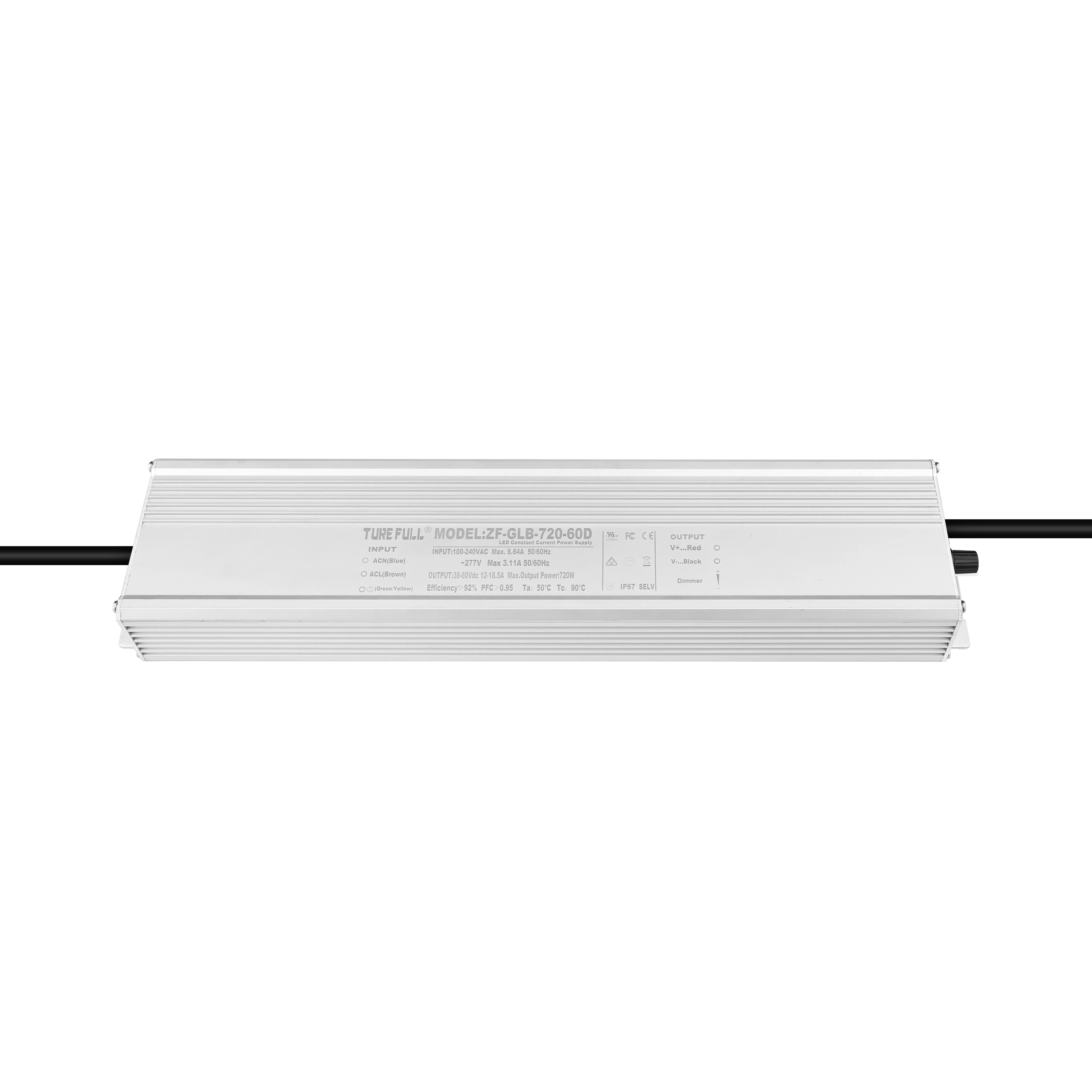

Высококачественный водонепроницаемый источник питания IP67 AC90-265v DC12/24 В 36 Вт серебристый корпус постоянного напряжения
330,57-356,00 ₽

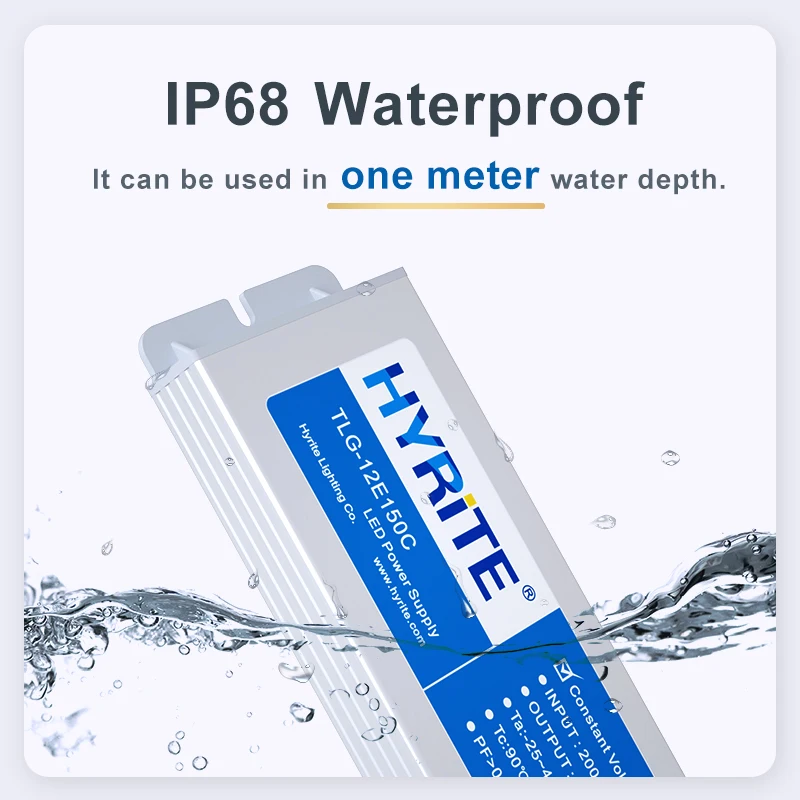

Супер водонепроницаемый IP67 IP68 супер тонкий SMPS светодиодный драйвер наружный 12 В 24 20 Вт AC DC импульсный источник питания
- Категория: >>>
- Поставщик: Hyrite Lighting Co.Hyrite Co.
Сохранить в закладки 1601214558361:
Описание и отзывы
Характеристики
VR
A) Features of led driver
·Small size,High efficiency,High reliability,Long lifetime;
·IP67 rating;
·Working temperature -25~+80°C;
·Protection:Overload,Short-circuit pratection,Over-temperature;
·Typical efficiency:90%;
·Start delay design,which can reduce the starting current when multiple simulatance start;
·CE,IP67 certifide,ROHS compliant;
·Low output ripple moises.
B) Applications of led driver
*Office lighting, Artwork lighting, Display case
*Home lighting, Hotel, Restaurant lighting and so on
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Other public lighting...
DC Output | DC Voltage: 24v/12v |
DC Current : 2.5a /5a/10a | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
AC Input | AC Voltage Range: 85-264VAC |
Frequency Range: 47-63Hz | |
Efficiency:90% | |
AC Current: 0.86/115V 0.4A/230V | |
AC Inrush Current: 20A/115V 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC,ISO9001 |
Product Details
ITEM NO. | 12E20/24E20 | 12E40/24E40 | 12E60/24E60 | 12E100/24E100 | 12E150/24E150 | 12E240/24E240 | |||||
INPUT VOLTAGE | 90-264Vac | ||||||||||
OUTPUT VOLTAGE | 12V/24V | ||||||||||
OUTPUT CURRENT | 1.67A/0.83A | 3.3A/1.67A | 5A/2.5A | 8A/4A | 12.5A/6.25A | 20.0A/10.0A | |||||
PF | >0.9 | ||||||||||
EFFICIENCY | 85% ~ 90% | ||||||||||

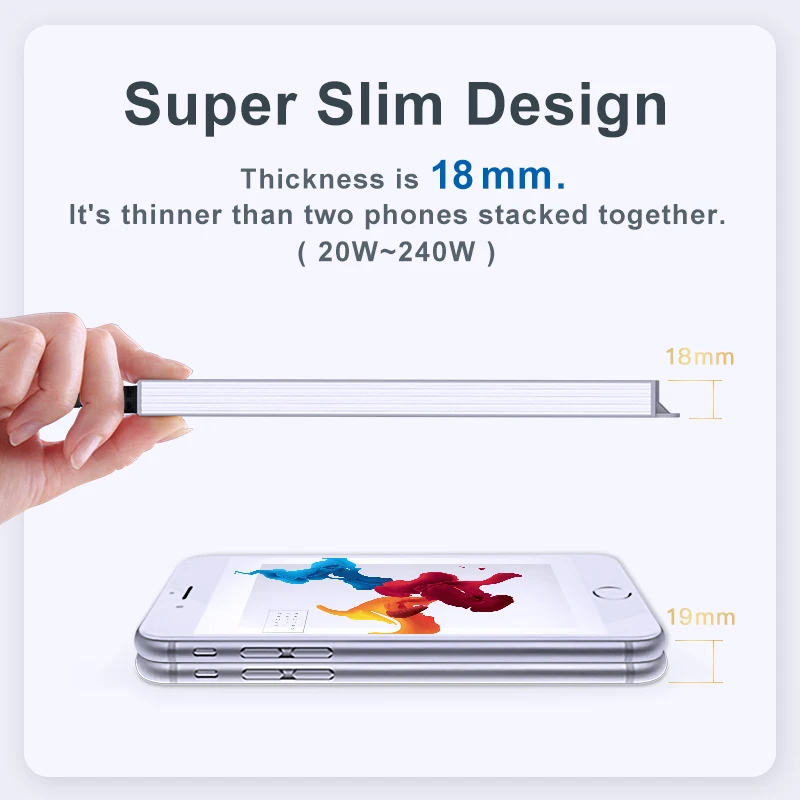

PRODUCT SIZE(mm) | 190*35*18 | 190*35*18 | 191*57*18 | 236*57*18 | 268*57*18 | 320*57*18 | |||||
IP | 67 | ||||||||||
Warranty | 3 years | ||||||||||
FREQUENCY RANGE | 50～60Hz | ||||||||||
Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | ||||||||||
Overload | 100-120% | ||||||||||
WORKING TEMP. | -10~+40℃ (Refer to output load derating curve) | ||||||||||
Why Choose Us
FAQ
Q1: Are you a manufacturer?
A: Of course, We are the manufacturer.
Our Hyrite Lighting Co. (formerly NeonPro Co.) was built in 1993, with 15,000m² clean workshops in China, and offices in USA.
Our China Factory is located in Shishan Industry Zone A, Nanhai, Foshan city, Guangdong. Welcome to visit us.
Q2: Do you have any MOQ requirement? Can I place a sample order?
A: Yes, sample order for testing and checking our quality is available.
Our MOQ is 1 carton at least for better packing. Also, mixed samples are acceptable.
Q3: Is it OK to print my logo on LED driver and use my own package and trade mark?
A: Yes. Using your own design is acceptable.
Kindly please inform us formally before our production and confirm the design firstly.
Q4: Does your company accept OEM & ODM?
A: Sure, OEM or ODM is no problem for us.
Q5: Do you have any certifications?
A: All of our products have CE certificate; some series have special SAA & C-Tick for Australia market; SASO certificate for Saudi Arabia; and UL & FCC for USA market.
Q6: Why choose you?
A: Here list our advantages as below:
● 30 years Manufacturer.
● Offer 3-5 years warranty.
● Stable quality, burn-in tests with 100% full load.
● More than 5 years cooperation with 80% customers.
● Manufacturer of full range LED/SMPS power supply.
● 10 production lines, customized process for each product, ensuring 100% on-time delivery
● With global product certifications: CE, RoHs, SAA, C-tick, RCM, FCC, UL, SASO, TUV, BIS approved.
● Products have been used in many landmark projects, such as Hong Kong-Zhuhai-Macao Bridge, 2008 Beijing Olympic Stadium, Xi'an Metro station etc.
