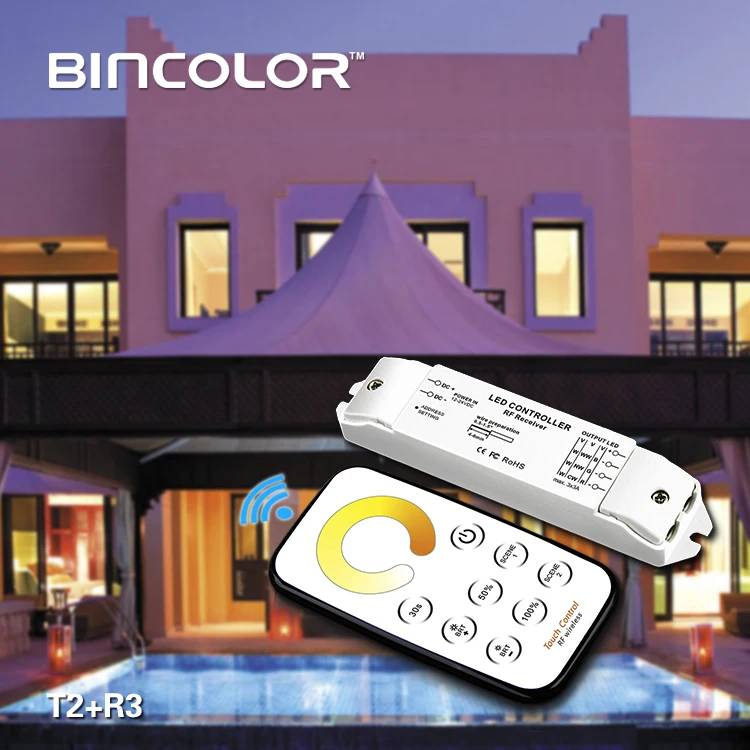

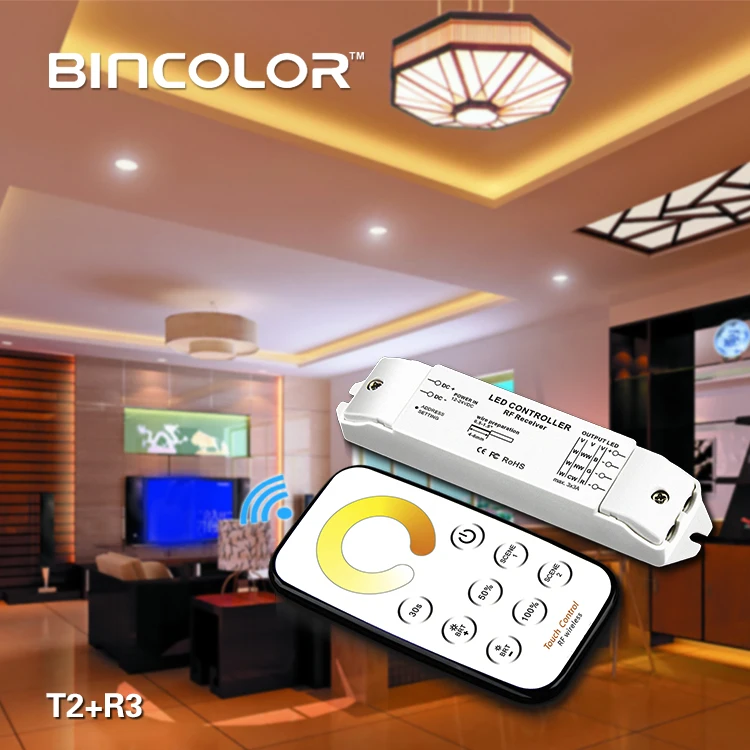

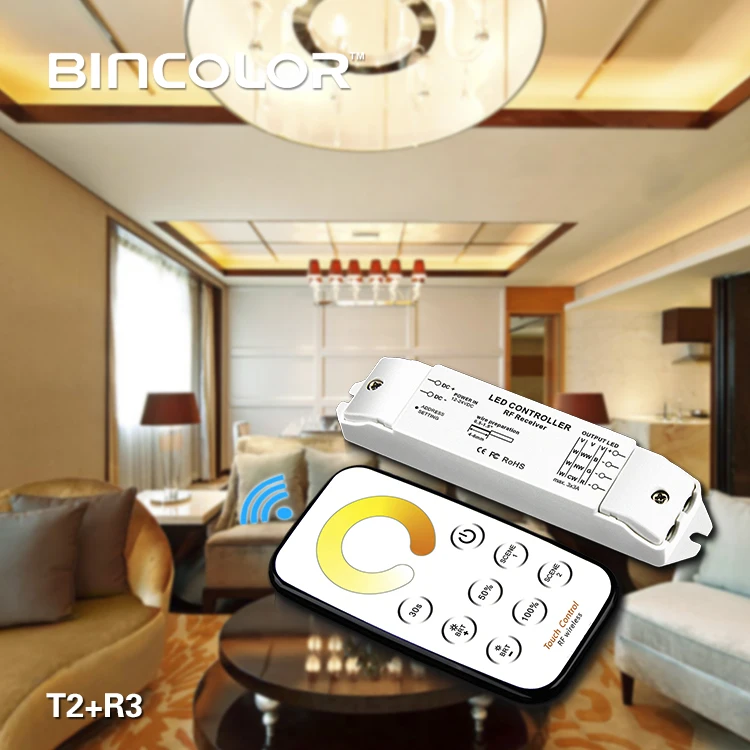

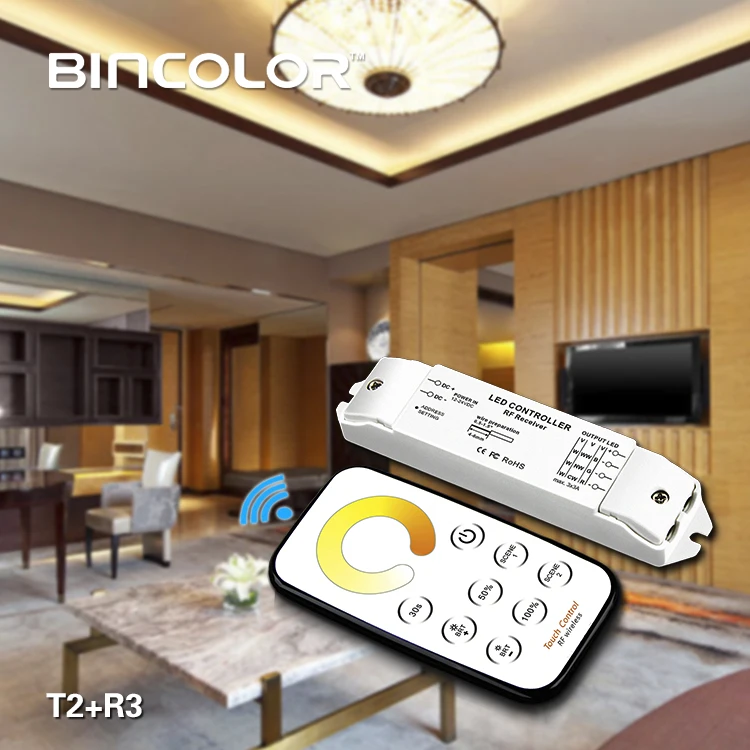

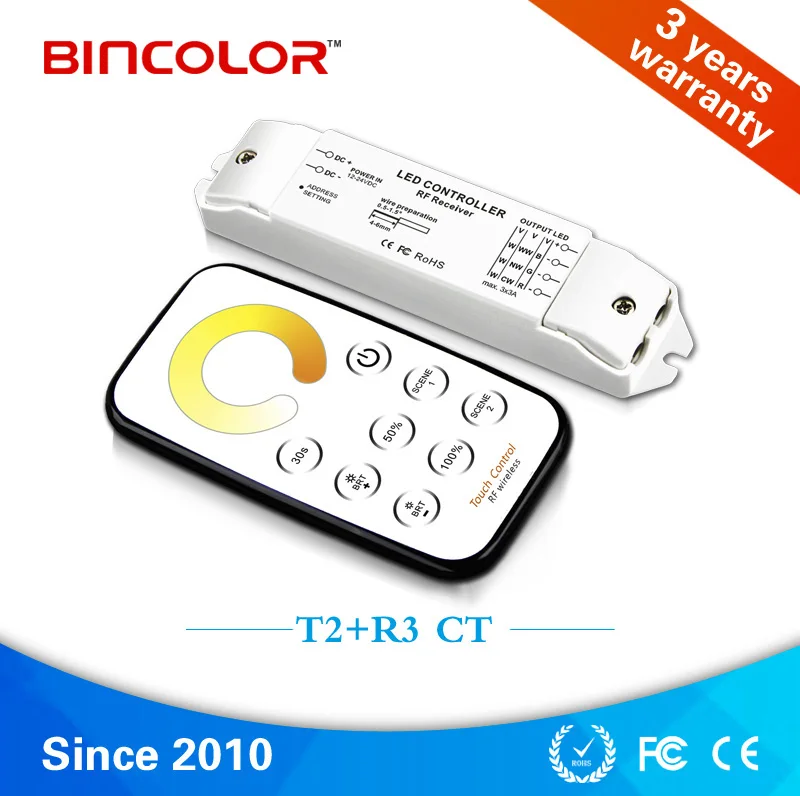

T2 R3 DC12V 24 В беспроводной мини CCT светодиодный контроллер RF

        Zhuhai Bincolor T2+R3 Wireless remote control 12V led light CT controller is dedicated to controlling led lamps by RF radio frequency;

there are several functions on the remote, such as on-off, pause, modes changing, brightness and

speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or

obstacles. With our R Series Reveiver, it is easy to change lamp lights such as: dimming, color

temperature, RGB etc; thus can satisfy the different demands of clients. T series have a simple

fashion design, comfortable hand feeling, and user friendly.

Specification :

Feature:

1. Automatically adapt to LED light which works from  DC12V-24V.

2. The  receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.

3. Using RF remote control, the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause, change mode , brightness and speed etc.

4. With 4096 grey scales per channel, led lamp is more rich and vivid without flash .

Dimension:

Typical Wiring Schematics:

The Learning ID Method of Remote Control:

Remote control has been matched to the receiver before leave factory,if deleted accidentally,

you can learn ID as follow.

Learning ID: Press ID learning button on the receiver until the running light is on,then press

any key on the remote control,the running light flashes several times,activated.

Cancel ID: Press ID learning button on the receiver for 5 seconds.

Notice: The remote control will enter dormant status without operation for 30 seconds, please press any key to reactive it.

      Touch panel CT dimmer        Multi-zone Touch panel CT dimmer        Rotary CT dimmer                  Push dim CT dimmer

    Touch remote CT dimmer     Touch remote Multi-zone CT dimmer        8 keys CT dimmer               Constant Current CT dimmer
