Высокопроизводительный бульдозер SHANTUI SD22 гидравлический цены на
- Категория: >>>
- Поставщик: Acntruck Vehicle & Machinery (Shanghai) Co. Ltd.
Сохранить в закладки 1601215195526:
Описание и отзывы
Характеристики
Products Description

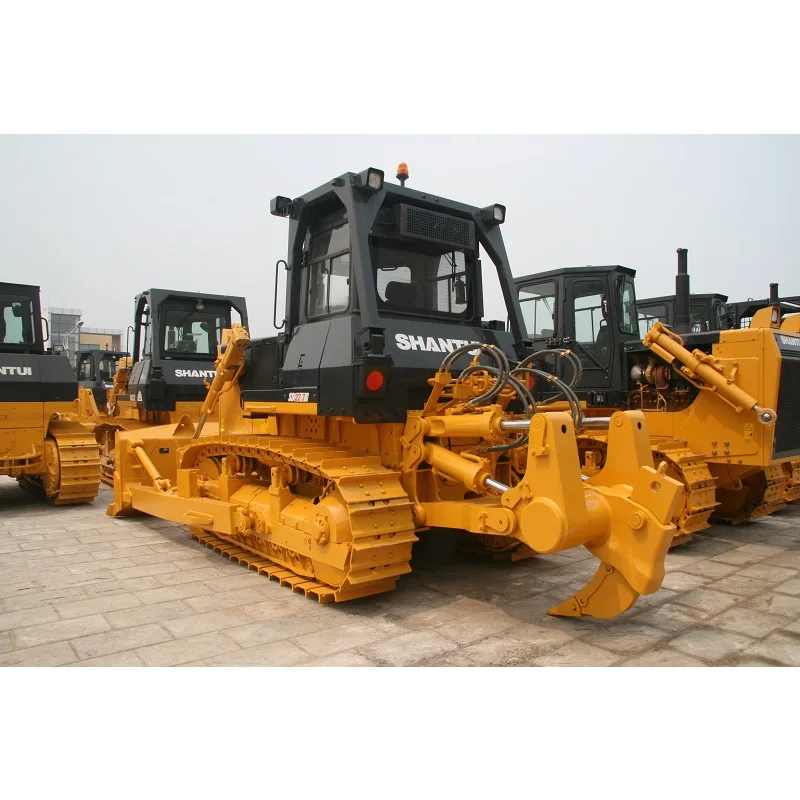

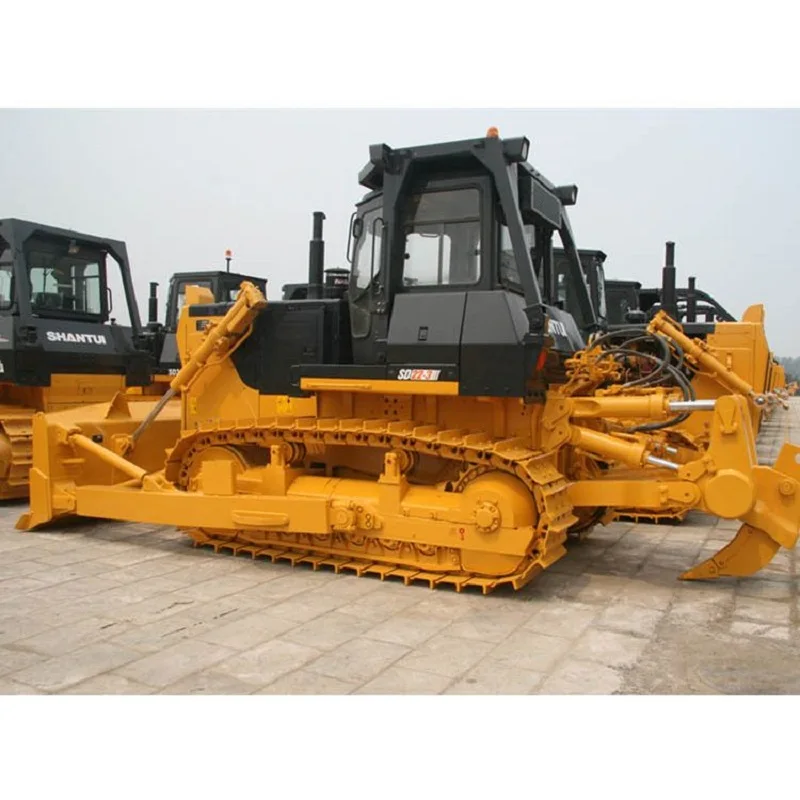

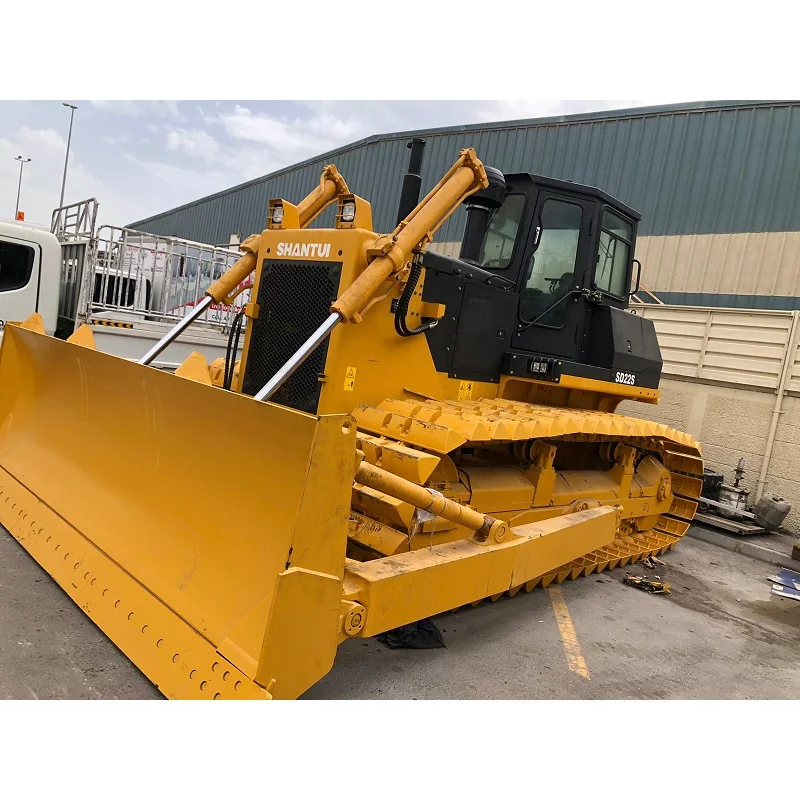

High Performance SHANTUI bulldozer SD22 Hydraulic Bulldozer Prices For Sale
The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.
Power System
1.The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
2.The rated power reaches 175kW, featuring high torque reserve coefficient.
3.The radially sealed intake system is applied to effectively prolong the engine life.
Drive system
1.The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
2.Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
1.The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
2.The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
3.The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
1.Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions.
2.The product features long ground length, high ground clearance, stable driving, and good trafficability.
3.The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy maintenances
1.The structural parts inherit the excellent quality of Shantui’s mature products;
2.The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
3.The openable large-space side hoods make the repairs and maintenance easier.
4.All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
Power System
1.The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
2.The rated power reaches 175kW, featuring high torque reserve coefficient.
3.The radially sealed intake system is applied to effectively prolong the engine life.
Drive system
1.The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
2.Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
1.The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
2.The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
3.The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
1.Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions.
2.The product features long ground length, high ground clearance, stable driving, and good trafficability.
3.The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy maintenances
1.The structural parts inherit the excellent quality of Shantui’s mature products;
2.The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
3.The openable large-space side hoods make the repairs and maintenance easier.
4.All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
Product Paramenters

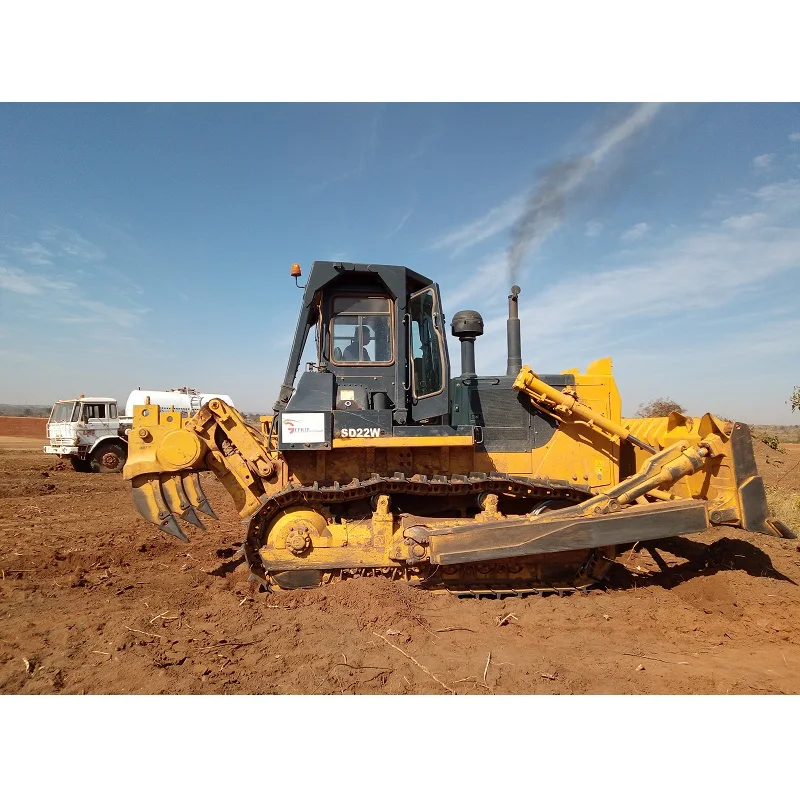

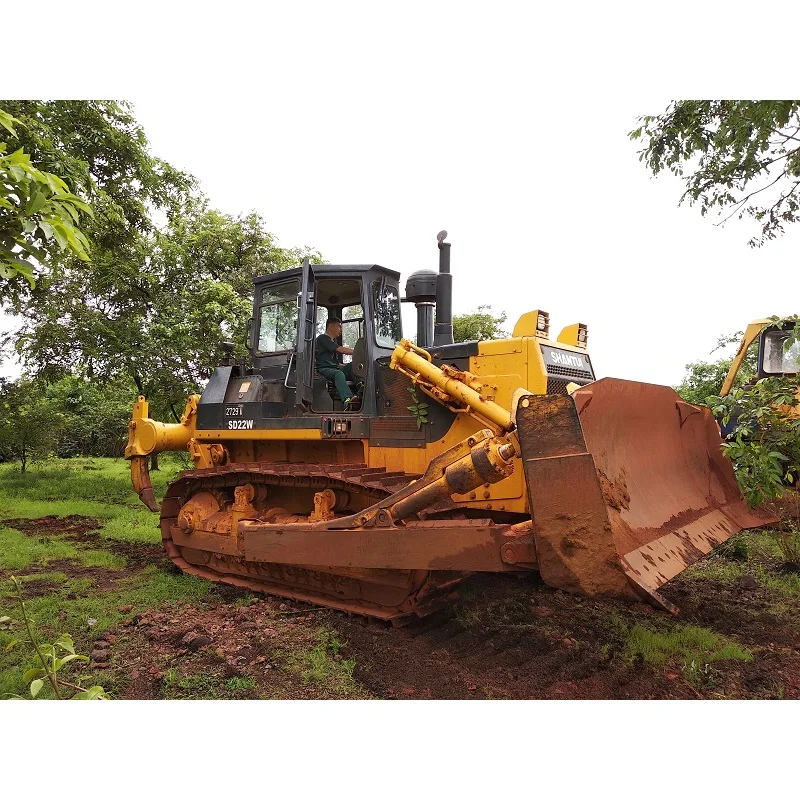

Parameter name | SD22 (Standard version) | SD22C (Coal version) | SD22W (Rock version) | SD22F (Forestry version) |
Performance parameters | ||||
Operating weight (Kg) | 23450 | 24000 | 23600 | 24700 |
Ground pressure (kPa) | 66 | 57.5 | 66 | 64 |
Engine | ||||
Engine model | WP12/QSNT-C235 | WP12/QSNT-C235 | QSNT-C235 | QSNT-C235 |
Rated power/rated speed (kW/rpm) | 175/1800 | 175/1800 | 175/1800 | 175/1800 |
Overall dimensions | ||||
Overall dimensions of machine (mm) | 5495*3725*3402 | 5820*4200*3402 | 5495*3725*3402 | 5495*3725*3402 |
Driving performance | ||||
Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 | F1:0-3.6 F2:0-6.5 F3:0-11.2 |
Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 |
Chassis System | ||||
Center distance of track (mm) | 2000 | 2000 | 2000 | 2000 |
Width of track shoes (mm) | 560/610/660 | 660 | 560/610/660 | 610/660 |
Ground length(mm) | 2730 | 2730 | 2730 | 2730 |
Tank capacity | ||||
Fuel tank (L) | 450 | 450 | 450 | 450 |
Working device | ||||
Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | Coal blade | Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
Digging depth (mm) | 540 | 538 | 540 | 540 |
Ripper type | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank |
Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) |
Pictures
Exhibition
