Лазерная Чистящая машина цена
389 743,86-685 004,36 ₽
200 Вт лазерная машина для очистки портативное устройство удаления краски 1000 импульсное волокно с воздушным охлаждением ручное масляное
- Категория: >>>
- Поставщик: Jinan Changtai CNC Technology Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601215385160:
Описание и отзывы
Характеристики
50W 100W 200W backpack laser cleaning machine paint metal rust cleaning pulse laser cleaning machine for paint removing
1. What is the speed of the laser cleaning machine?
The difference in laser power and the thickness of pollutants determines the cleaning speed of the cleaning machine.
2. Is the base material damaged?
No, this machine uses a pulsed laser that will not damage the substrate. It can be used on wood, rubber, plastic, mold and other non-metallic materials. You could contact us by email to get a demo video.
4. Operating system language interface:
It supports 12 languages including English, Russian, German, Chinese, Portuguese and Spanish, and the language settings can also be set according to customer needs.
The difference in laser power and the thickness of pollutants determines the cleaning speed of the cleaning machine.
Generally, the rust removal speed is 8m²/h-12m²/h, and the paint removal speed is 6m²/h-10m²/h.
2. Is the base material damaged?
No, this machine uses a pulsed laser that will not damage the substrate. It can be used on wood, rubber, plastic, mold and other non-metallic materials. You could contact us by email to get a demo video.
3. Pollutants that can be cleaned:
Corrosive metal, object oxide layer, paint, rust, graffiti, coating, dirt, carbon layer, oil stains, construction materials, automobile chassis and wheels, molds, etc.
Corrosive metal, object oxide layer, paint, rust, graffiti, coating, dirt, carbon layer, oil stains, construction materials, automobile chassis and wheels, molds, etc.
4. Operating system language interface:
It supports 12 languages including English, Russian, German, Chinese, Portuguese and Spanish, and the language settings can also be set according to customer needs.
5. Machine weight: 12kg, packing size: 465*179*325mm.
Support air delivery to door, 5-7 days.
MACHINE DESCRIPTION

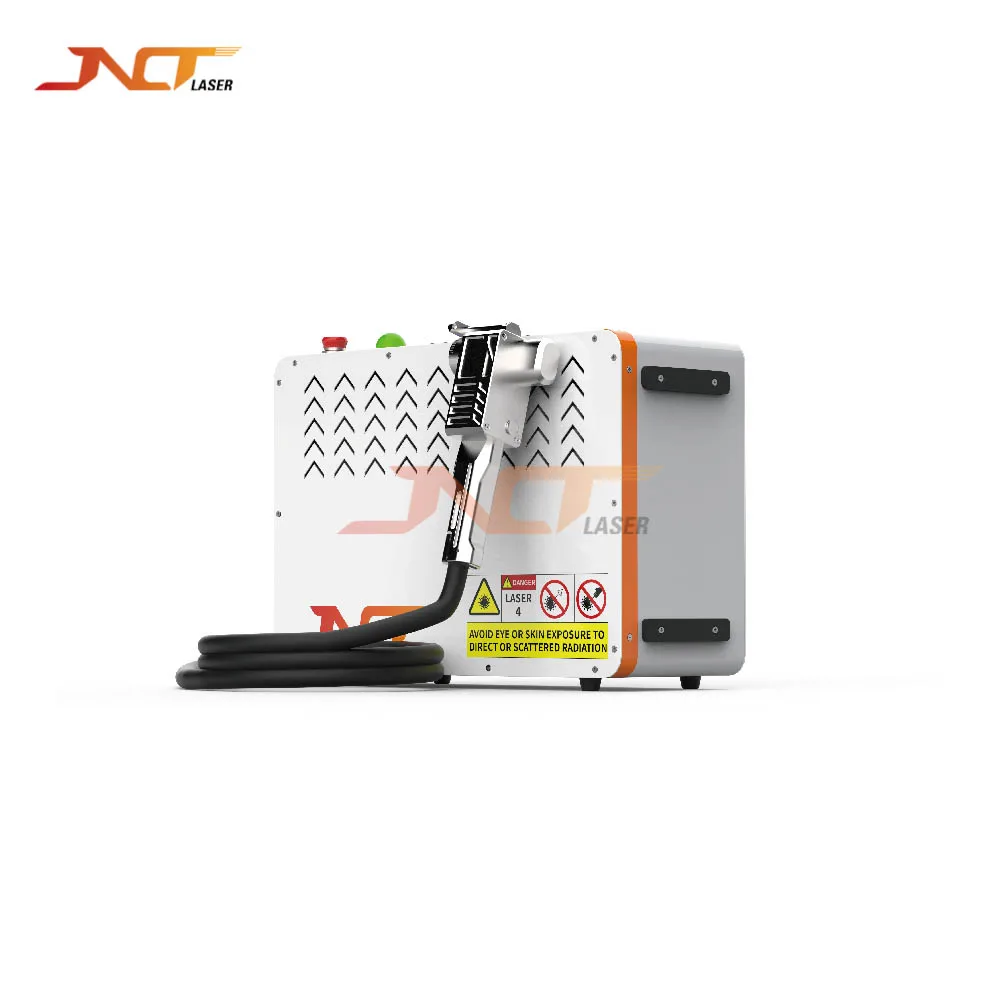

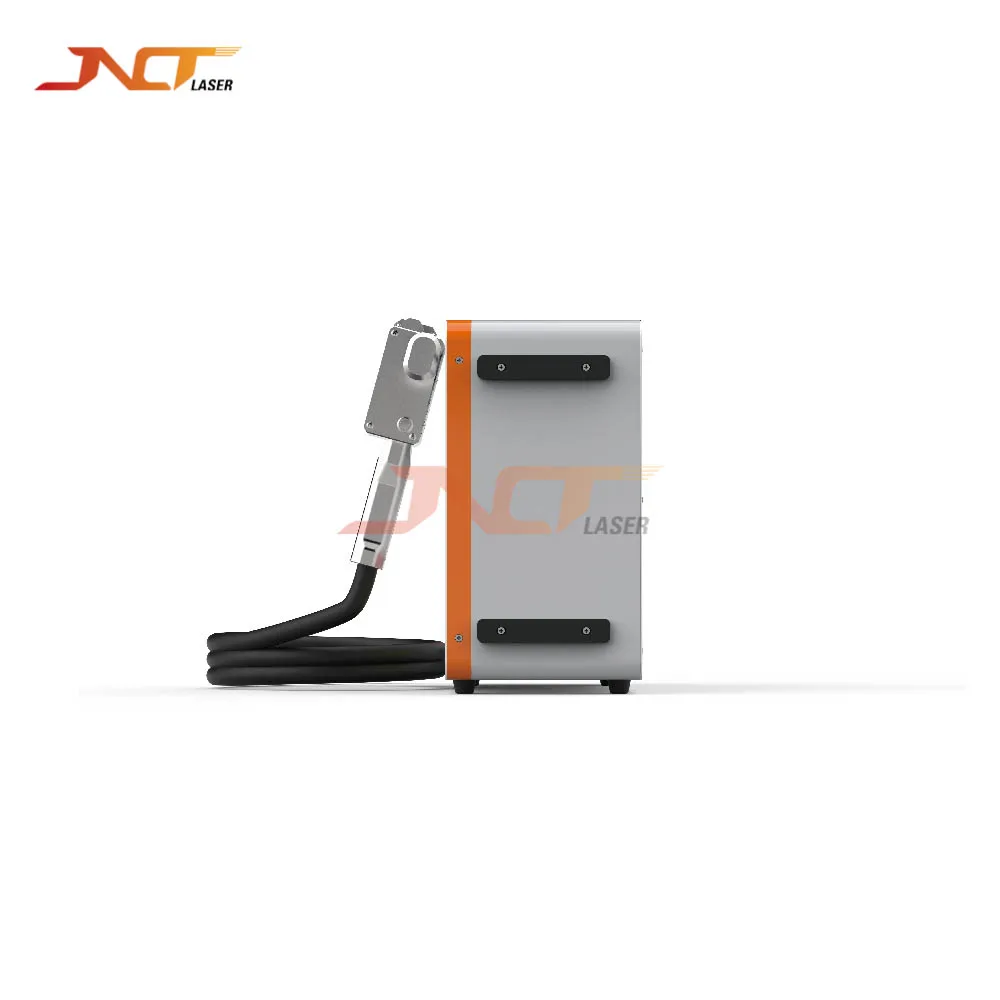

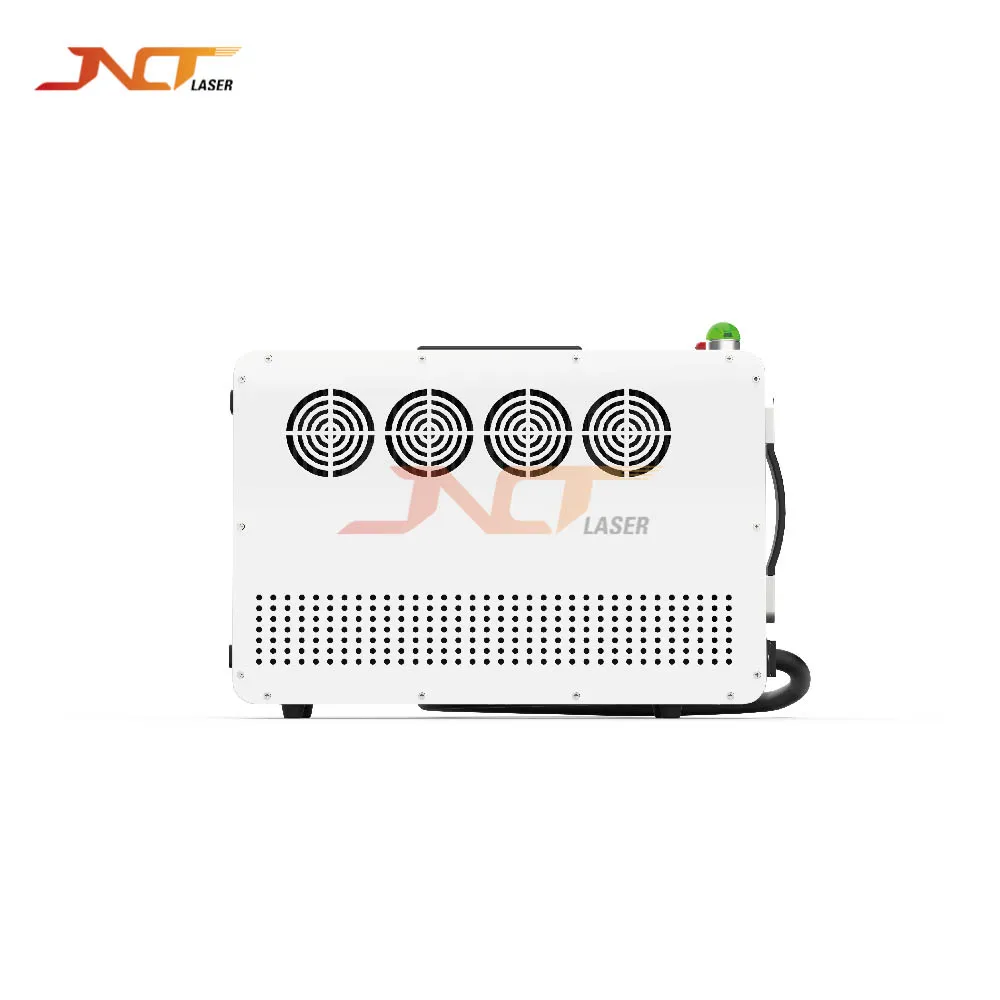

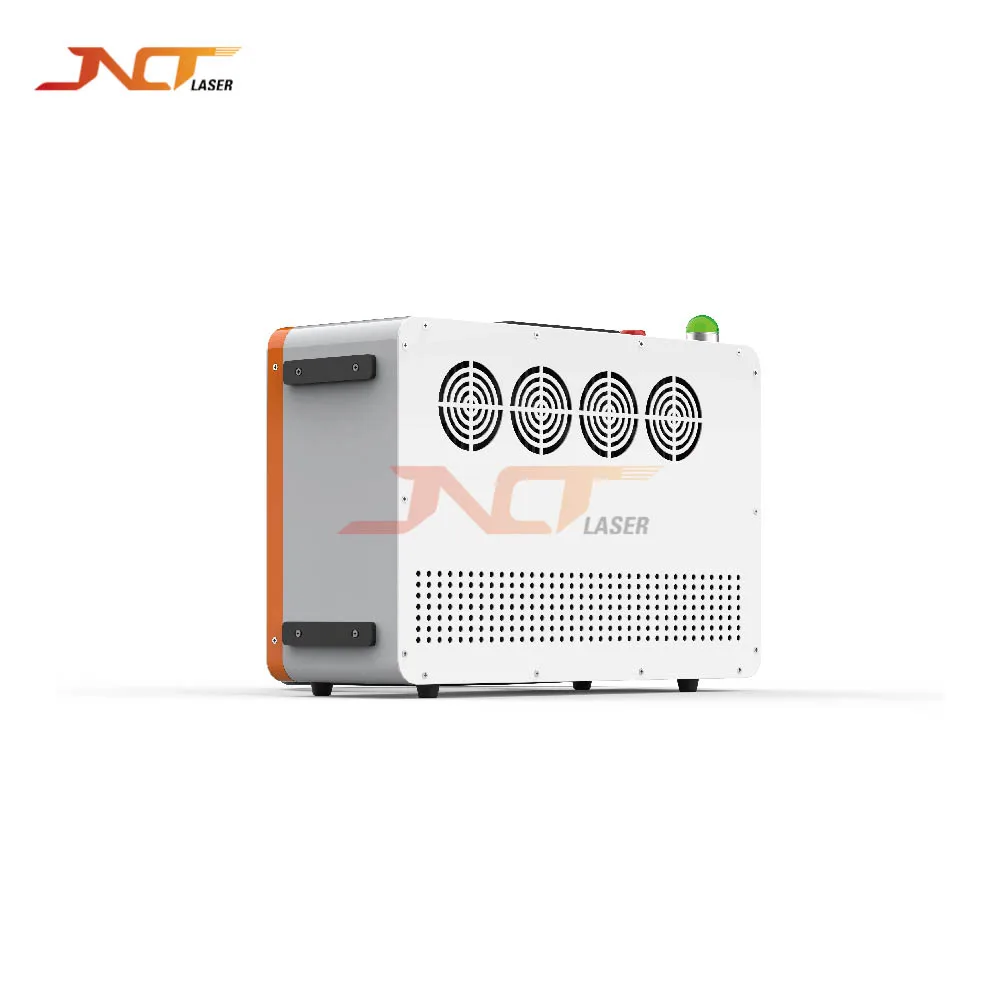

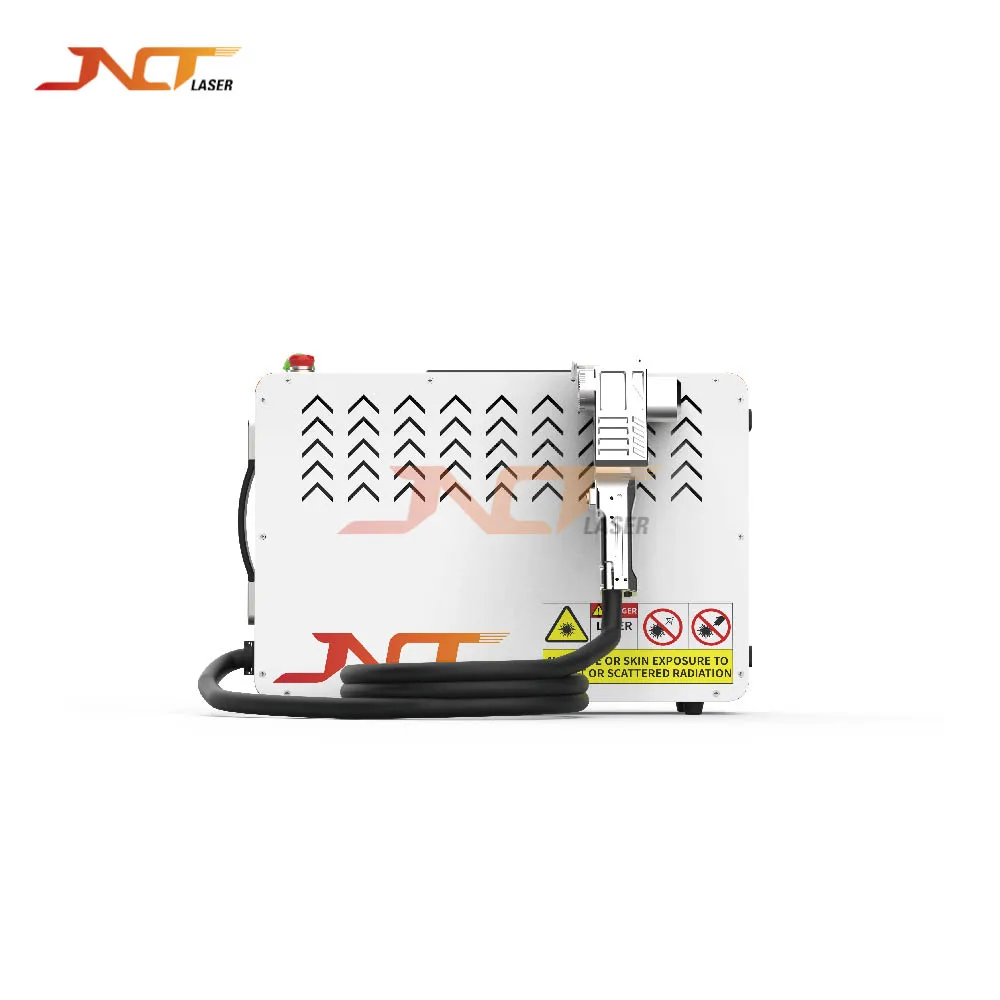

TPC-200W backpack cleaning machine
This 200W portable cleaning machine uses pulsed Gaussian light, and the laser beam diverges periodically, which can be applied to all metal and non-metal materials.
The single pulse energy of the machine is 1.5MJ, and the scanning width is 175mm/210mm.
The total weight of the machine is 12kg, and it can work on the back for a long time. It is suitable for high-altitude and super-large mechanical cleaning.
The machine is equipped with a high temperature sensing device, once the machine is overheated, it will qalarm in time.
APPLICATION
This 200W backpack pulse cleaning machine is suitable for removing old rust, old paint, oil, graffiti, oxides, thick stains, corrosive metals, building materials, graffiti on walls, etc.
It can be used for wood, marble, metal, stone, rubber and other materials.
It is widely used in large-scale mechanical old rust and paint removal, car tire and engine cleaning, foundry material refurbishment, construction industry and more.
It can be used for wood, marble, metal, stone, rubber and other materials.
100% will not damage the substrate.
It is widely used in large-scale mechanical old rust and paint removal, car tire and engine cleaning, foundry material refurbishment, construction industry and more.
MACHINE PARAMETERS
Machine model | TPC-200W | TPC-100W | |
Max average power(W) | 200W | 100W | |
Power Adjustment Range | 10%-100% | ||
Output central wavelength(mm) | 1064mm | ||
Power Consumption(W) | 1300W | 500W | |
Max pulse energy(mJ) | 1.5MJ | 1.6MJ | |
Laser type | Pulsed Gaussian light | ||
Laser Source | Raycus 200W | MAX 100W | |
Fiber optic cable | 3M (5M optional) | ||
Cooling method | Air cooling | ||
Machine size (L*W*H,mm) | 450*165*312mm | 380*150*280mm | |
Weight (kg) | 12kg | 10.5kg | |
Operating Voltage | 110V/220V±10% | ||
System operating language | English/Russian/Italian/French/German/Japanese/Spanish/Turkish/Polish/Dutch/ Roman/Chinese (Language Support Customization) | ||
Warranty | 3 years | ||
PACKANGE AND SHIPPING
Delivery:
Support air transportation and international express delivery, only takes 5-7 days. Carriers include Fedex, DHL, UPS, 4PX, TNT, etc.
Package:
1) Anti-collision edging: All parts of the laser cleaning machine are covered with soft materials, which can be shock-proof and impact-proof.
2) Packed in plywood wooden case. Waterproof and moisture-proof.
3) Packaging can be customized according to customer needs.
4) Packing size: 465*170*325mm, weighing about 17kg after packing in carton.
2) Packed in plywood wooden case. Waterproof and moisture-proof.
3) Packaging can be customized according to customer needs.
4) Packing size: 465*170*325mm, weighing about 17kg after packing in carton.
MACHINE CONFIGURATION
2D laser cleaning head:
Button control, easy to operate. The scanning width is 175/210mm, and the cleaning efficiency is high.
8 cleaning modes, which can be flexibly used in different cleaning scenarios.
The whole laser head weighs about 650g, can be held for a long time.
The optical fiber cable length is 3m(5m optional)
The whole laser head weighs about 650g, can be held for a long time.
The optical fiber cable length is 3m(5m optional)
Raycus laser source
It adopts mini Raucys200W laser source. The service life is 100000 hours.
Support 2-year warranty, global joint guarantee.
Support 2-year warranty, global joint guarantee.
Nanosecond cleaning system
With large display screen, easy to operate.
Support 12 languages including Chinese, English, Korean, Russian, Spanish, Portuguese, German and more (Can be customized).
The software is easy to operate, and the pre-stored parameters can be directly selected.
Support 12 languages including Chinese, English, Korean, Russian, Spanish, Portuguese, German and more (Can be customized).
The software is easy to operate, and the pre-stored parameters can be directly selected.
FAQ
Q1. Does that price includes all wires, guns and equipment? | ||||||||
Yes, our machines include all accessories, plug and play. | ||||||||
Q2. What are the consumables? | ||||||||
This machine only has the only consumable, which is the protective lens, which is used to protect the focusing lens from being polluted by the dust generated during cleaning. The service life is 2200h-2500h. | ||||||||
Q3. What is your warranty? | ||||||||
We support 3-year warranty for the whole machine and 2-year warranty for the laser source. During this period, once your machine has any failure, we will provide you with free repair and replacement parts (except man-made damage). | ||||||||
Q4. How long is the cable for the gun? | ||||||||
The standard fiber optic cable length is 3m, which can be extended. | ||||||||
Q5. I need to work continuously for 6-8 hours a day, can it do it? | ||||||||
Yes, it can do it. The machine has a high temperature alarm device, as long as there is no alarm, the machine can be used all the time. Normally, 6-8 hours of continuous work is fine. | ||||||||
Q6. What is the payment method? | ||||||||
We support installment payment, you can pay by bank wire transfer or Alibaba credit guarantee order. A. Consult us about this product on line or by e-mail. B. Negotiate and confirm the final price , shipping , payment methods and other terms. C. Send you the proforma invoice and confirm your order. D. Make the payment according to the method put on proforma invoice. E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping. F. Send your machine by air or by International Express (Fedex, UPS, HDL, TNT, etc.). | ||||||||
COMPANY PROFILE
Jinan Changtai CNC Technology Co., Ltd. is a manufacturer of laser machine & cnc router with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in cutting/marking/welding and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Vision: Become a cross-border e-commerce TOP-level laser machinery service provider.
Mission: To benefit 10,000+ metal processors worldwide.
Vision: Become a cross-border e-commerce TOP-level laser machinery service provider.
Mission: To benefit 10,000+ metal processors worldwide.
