Машина для производства гофрированного листового металла
7 000,00-12 000,00 $
Алюминиевый кровельный лист делая машину рулон формовочная машина
- Категория: >>>
- Поставщик: Henan Wadley Cnc Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1601215686545:
Описание и отзывы
Характеристики
Production Description

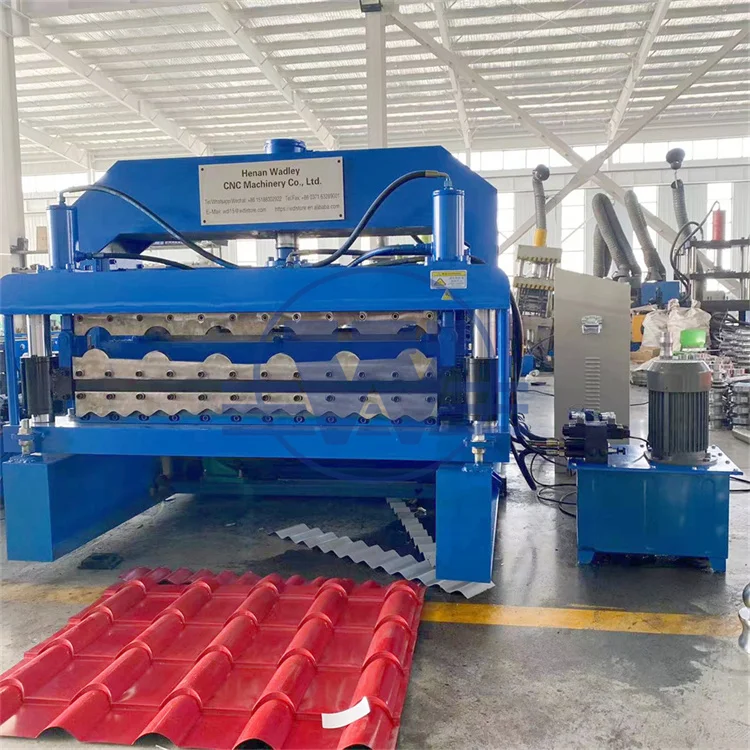

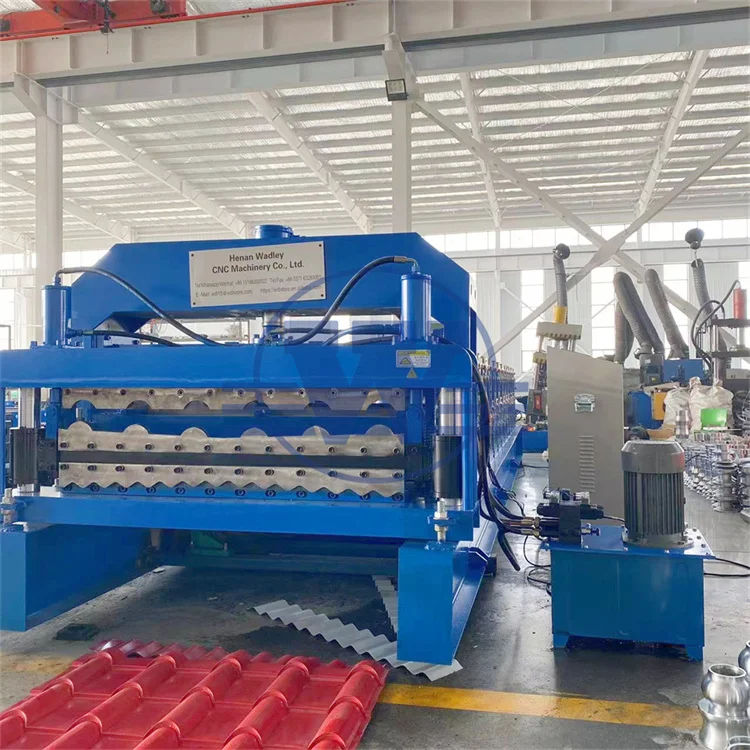

Glazed Corrugated Tile Roof Roll Forming Machine 800+850mm
The tile press is a machine composed of unwinding, forming, post-forming and cutting. The main components of the tile press include: color steel tile press machine, PLC computer control system, hydraulic pump station system, and automatic post-shearing system .
Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied.
Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied.
Right elevation
Front elevation
Left elevation
Product Parameters
Item | Description |
Applicable materials | Colored glazed steel |
Input width | 1000-1250mm |
Effective width | 800-1000mm |
Material thickness | 0.3-0.7mm |
Number of rollers | 13rows/9 roller |
Frame size | 350H section steel (national standard) |
Middle plate thickness | 16mm |
Roller material | 45 # steel |
Roller diameter | Roller diameter |
Drive servo motor | 5.5KW |
Oil pump power | 4KW(Large box + cooling air box) |
Tool material | Cr12 |
Voltage | 380v，50hz，3 phase |
Cutting accuracy | ±2 mm |
PLC panel | touch screen electric control cabinet |
Outside dimension | L*W*H=6500mm*1500mm*150mm |
Forming speed | Glazed tile 2m/min Common 10-15m/min |
Product Details

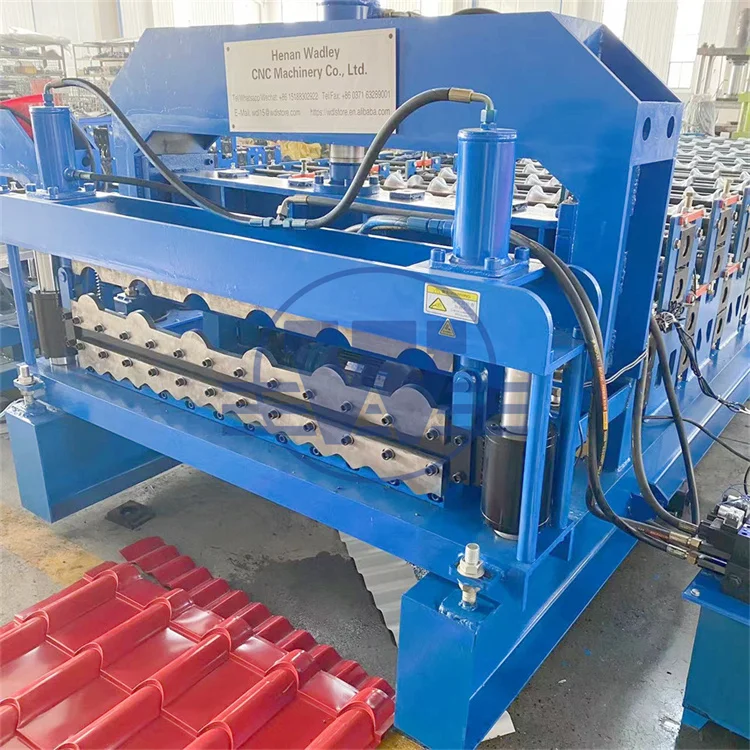

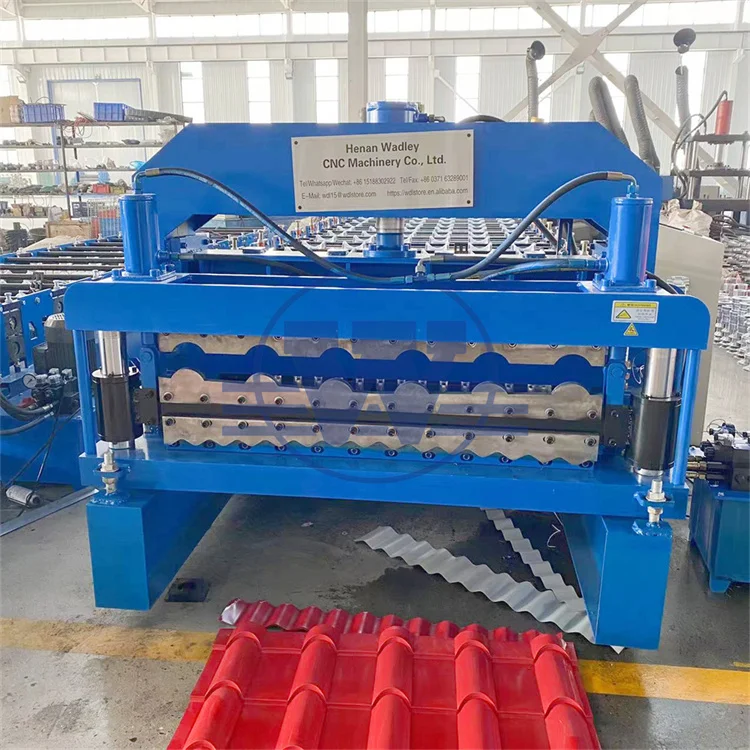

Glazed Tile Roll Forming machine
The glass tile press is divided into three parts: roller table forming part, pressing part and cutter part. The forming part of the roller table of the glazed tile press is driven by the motor, and the chain drives each roller to rotate. The molding part of the glazed tile press is the hydraulic cylinder that drives the mold up and down, which can press the color steel into many knots, similar to glazed tiles.
Cutting Blade .
The cutting blade of the glass tile roll forming machine can cut the formed iron plates quantitatively through the length parameters set by the PLC control system to obtain the required length. The cutting blade is very sharp and has fast cutting speed. At the same time, it is solid and durable, not easy to damage.

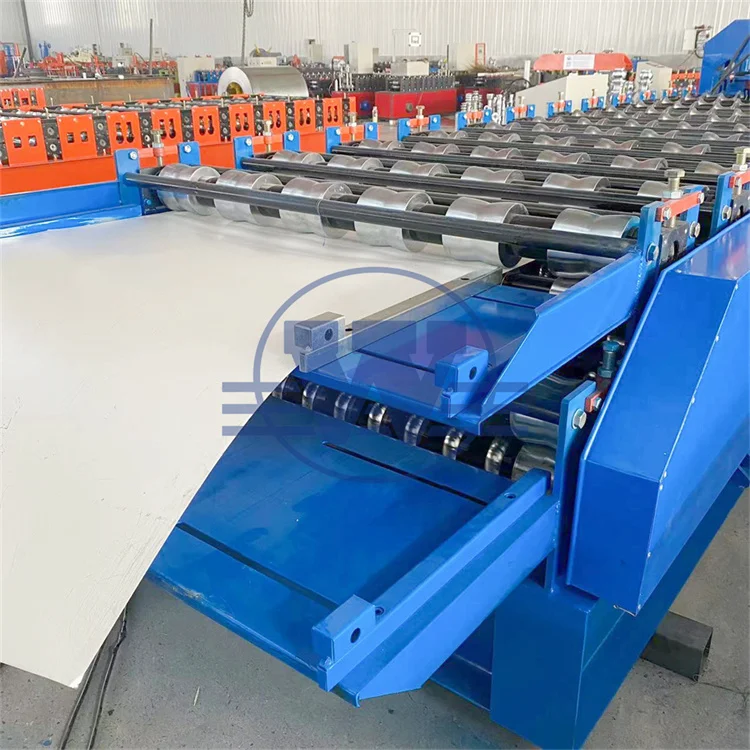

Forming Roller.
The roller of the glazed tile forming machine has high utilization rate, high strength, high degree of production automation, and is durable. This model of machine adopts the 9-13 roller design, which can better press the required shape. Compared with fewer rollers, the effect of wheels will be better.
PLC Control System.
The control system adopts the combination of touch screen and button to control, which is more convenient. All controls are controlled through the control panel. It is easy to touch the screen and operate simply. At the same time, the control panel is small in size, reducing space occupation, and the independent support extension design is far away from the machine, ensuring safety.
For every customer who buys our machine, we will give free parts randomly, and then contact the sales staff to have them.
Production flow：
350 H steel→steel cutting→Steel tube→ Tube cutting →wheel lathing→Axis and wheel → Assemble → Electric connect → Factory Test →Container → Delivery → Customer site
Application
The roof panel forming machine should be used for metal roofs or walls, which is waterproof and durable, has a long service life,low production costs, and saves manpower and financial pressure. The following are application scenario images.
Company Profile
Henan Wadley CNC Machinery Co.,Ltd..
Henan Wadley CNC Machinery Co., Ltd. Is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of machines. It is located in central by North of Henan, China . As a long history of cold roll forming machine production base. For example :color steel roofing sheet roll forming machines, C&Z Purlin machine, metal curtain machine, steel roof tile roll forming machines, metal roof tile machine,wave roof tile forming machine,High speed rolling shutter strips making machine,roof sheet pressing machine,Metal Shutter Roll Forming Machine Manufacturer,Galvanized steel rolling shutter slats roll forming machine,floor deck forming machines, roof tile making machine in india,EPS sandwich panel roll forming machine, highway guardrail forming machine,shearing machine, bending machine, slitting machine.All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia,Africa, Europe, South America, and Australia and so on. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.Based on our advanced research and commercial team, we are able to research and development,manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. We would like toinvite you come and join us to build our mutual benefit.
VR
Foreign customer service scenarios:
Похожие товары

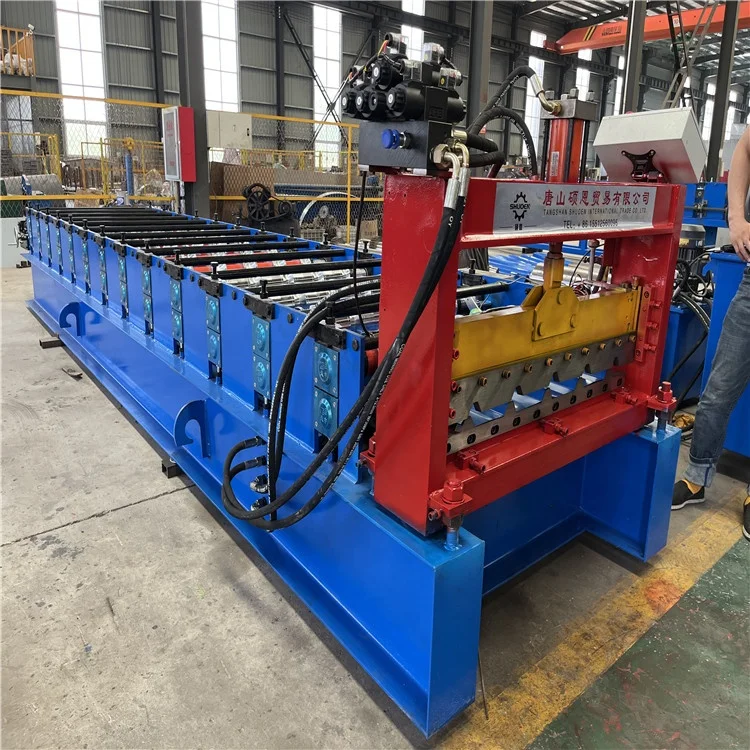

Машина для производства гофрированного листа
6 000,00 $

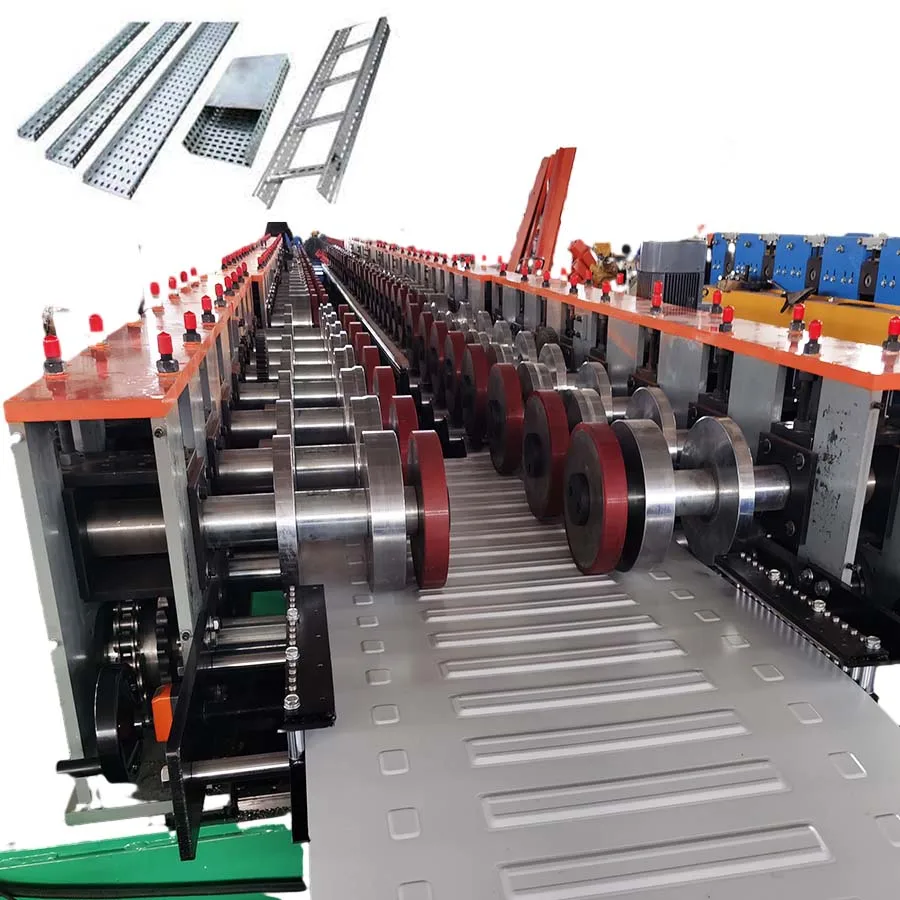

Машина для производства кабельных лотков
20 000,00-23 000,00 $

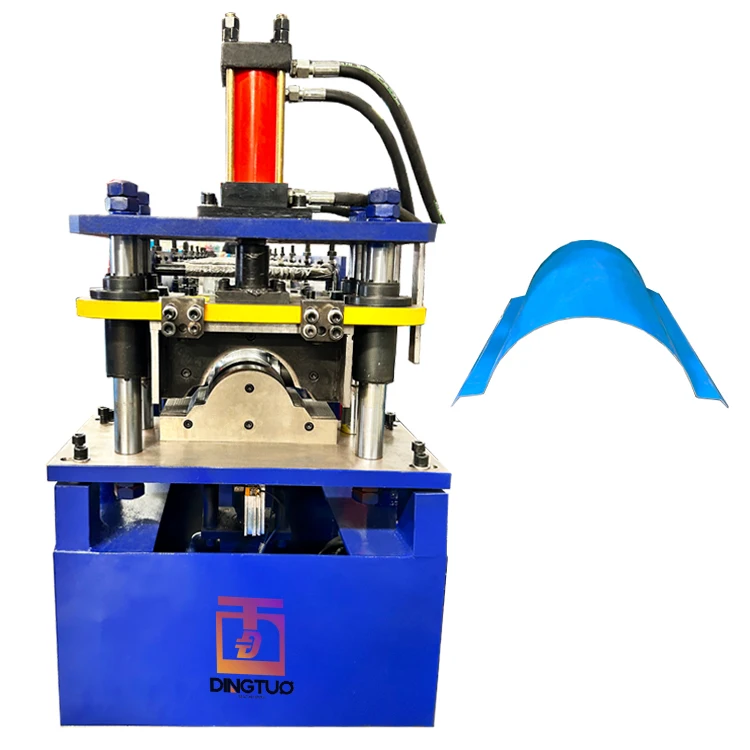

Колпачок гребня холодного ролика делая машину для кровельного листа
4 700,00-6 800,00 $

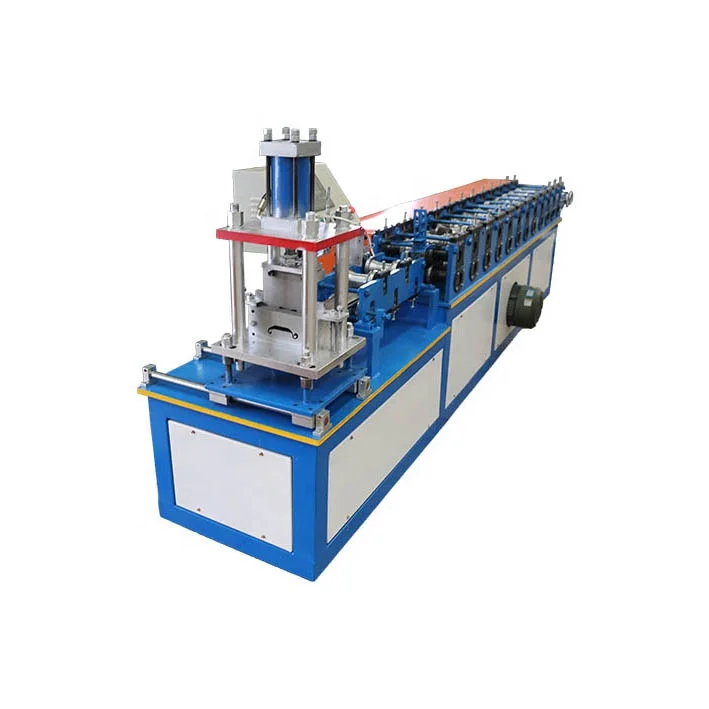

Машина для изготовления стержней металлических стад машина Профилегибочный станок стоечных и направляющих профилей
8 000,00-10 000,00 $
Распродажа Высококачественная стальная задвижная дверная
862 206,75-1 080 632,46 ₽

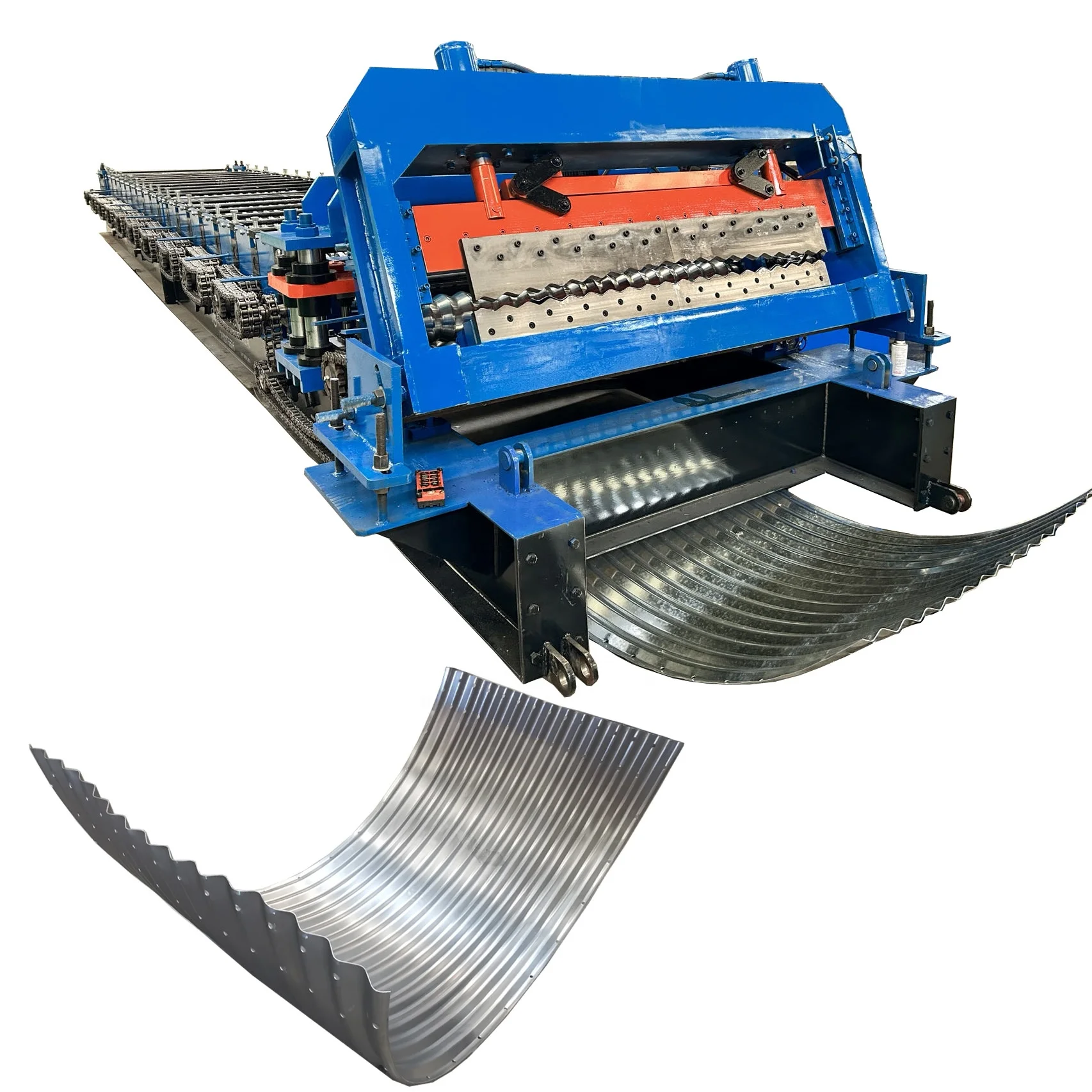

1250 мм ширина 1 2 толщиной оцинкованная стальная корзина для гофрированного листа формовочная машина бункера резервуар воды в зернах
