Машина для измельчения металлололома из чугуна
3 200,00 $

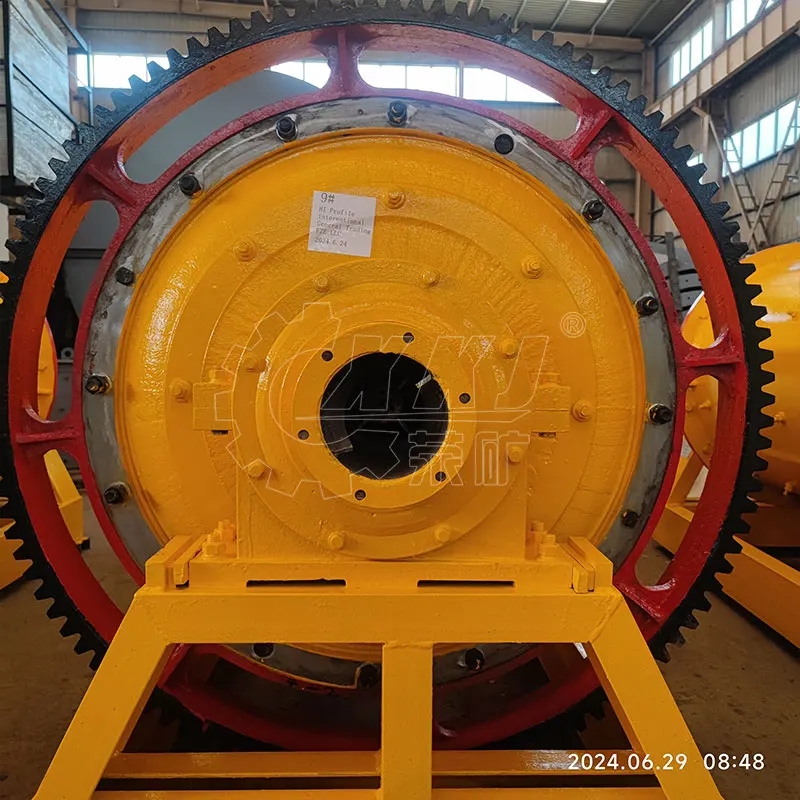

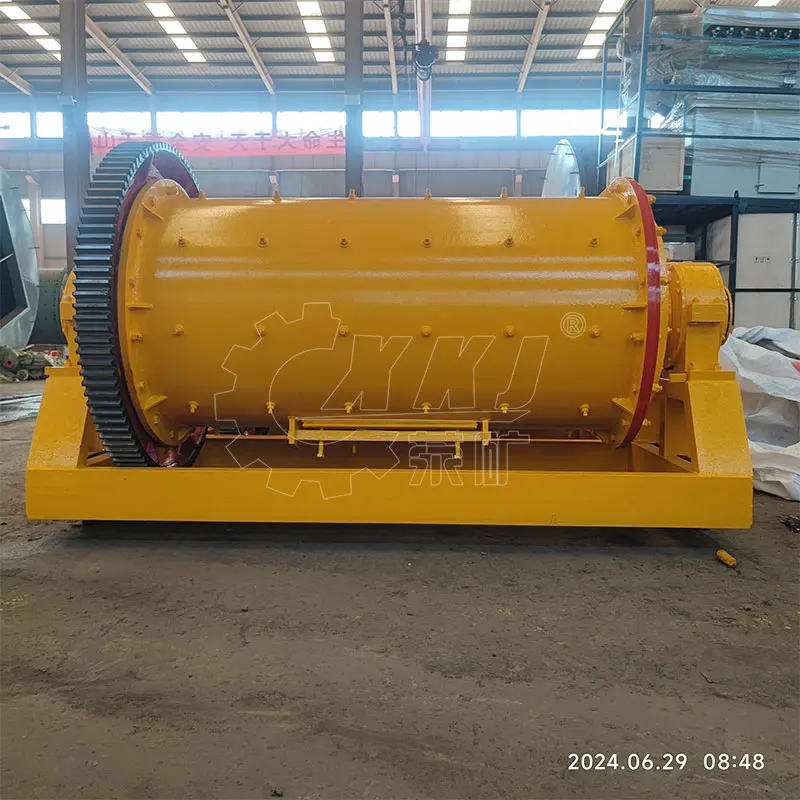

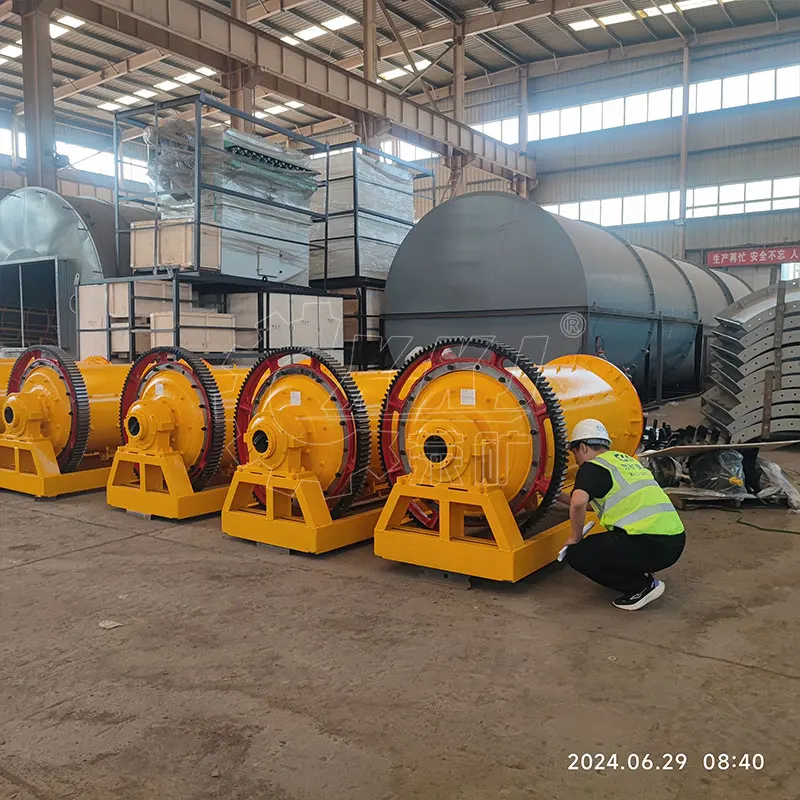

Высокоэффективная и энергосберегающая шаровая мельница первый выбор для тонкого измельчения металлических руд/неметаллических руд
- Категория: >>>
- Поставщик: Henan Xingyang Mining Machinery ManufactoryHenan Manufactory
Сохранить в закладки 1601215945412:
Описание и отзывы
Характеристики
Product Introduction

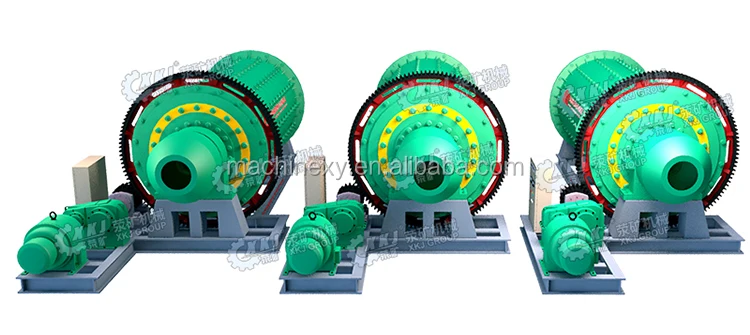

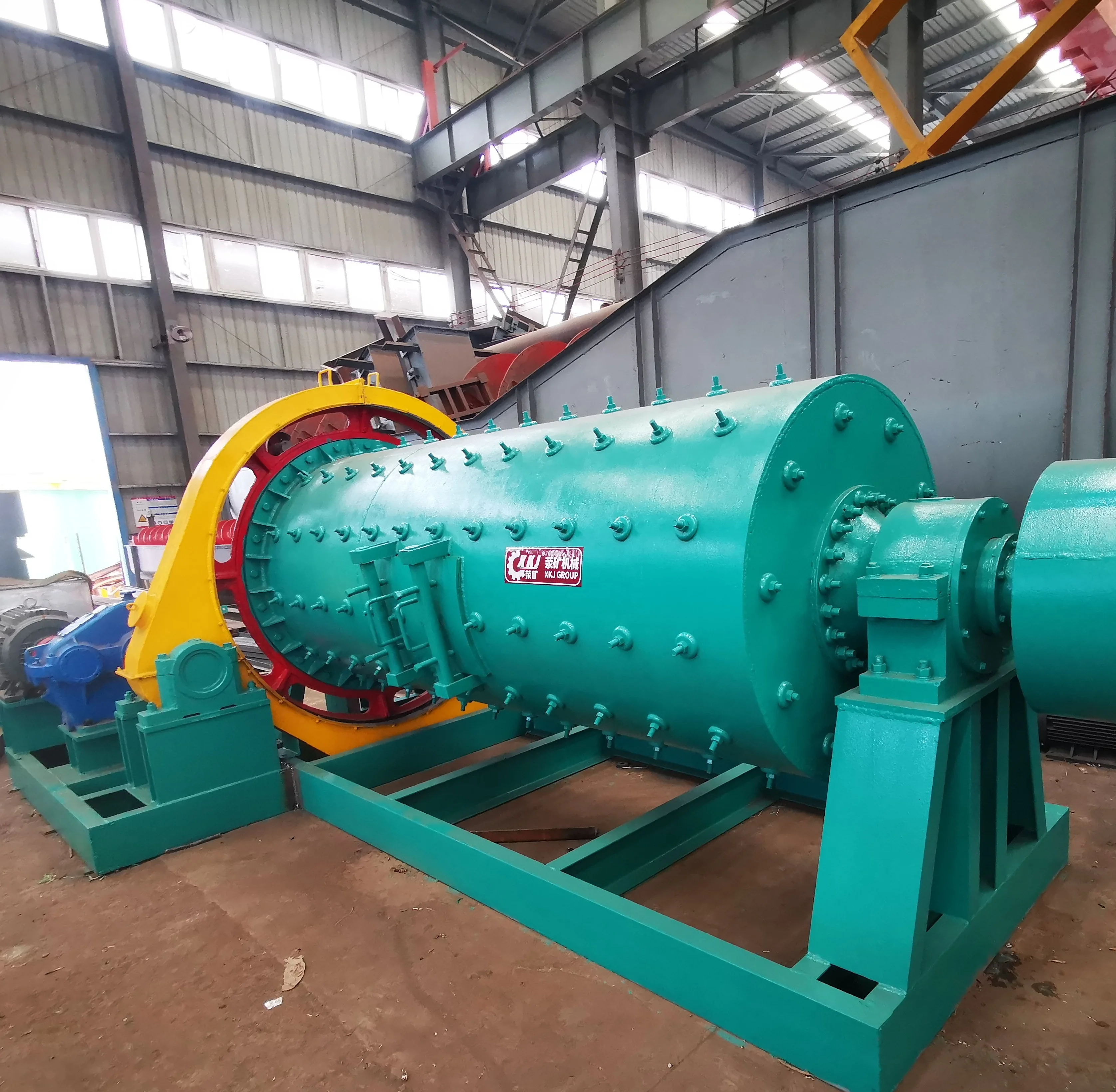

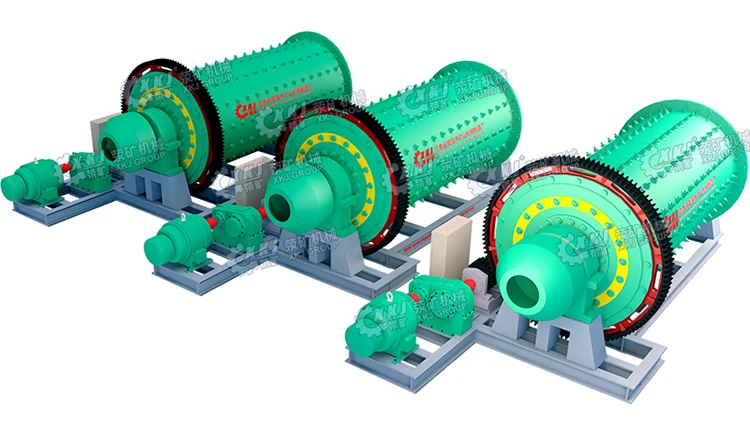

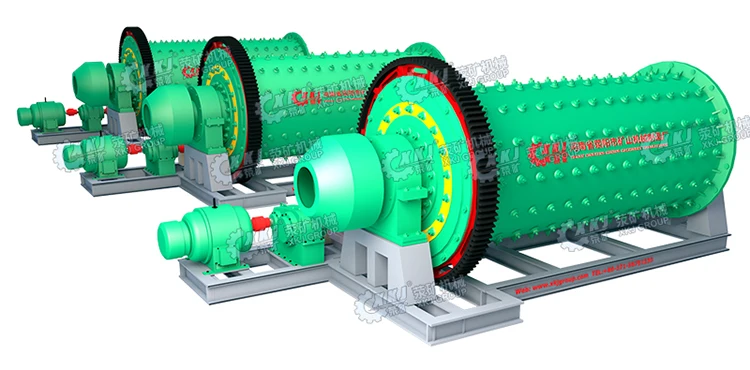

Ball mill is a key equipment widely used in mineral processing. It is mainly used to grind raw materials such as ores into finer particles for subsequent mineral processing and purification.
Mining equipment energy saving wet grid ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Features
1. It has strong adaptability to the fluctuation of material physical properties (such as particle size, moisture, hardness, etc.) and has a large production capacity.
2. The pulverization ratio is large (generally 300 or more, and it can reach 1000 or more when performing ultrafine grinding), the fineness of the product is fine, and the particle gradation is easy to adjust.
3. It can adapt to different situations: dry work, wet work, dry work and grinding can be combined at the same time; open road grinding, closed circuit grinding.
4. The sealing is good, it can be operated under negative pressure, and the working place is free from dust and flying.
5. It is biased towards large-scale, which can meet the needs of large-scale production of modern enterprises.
Working Principle

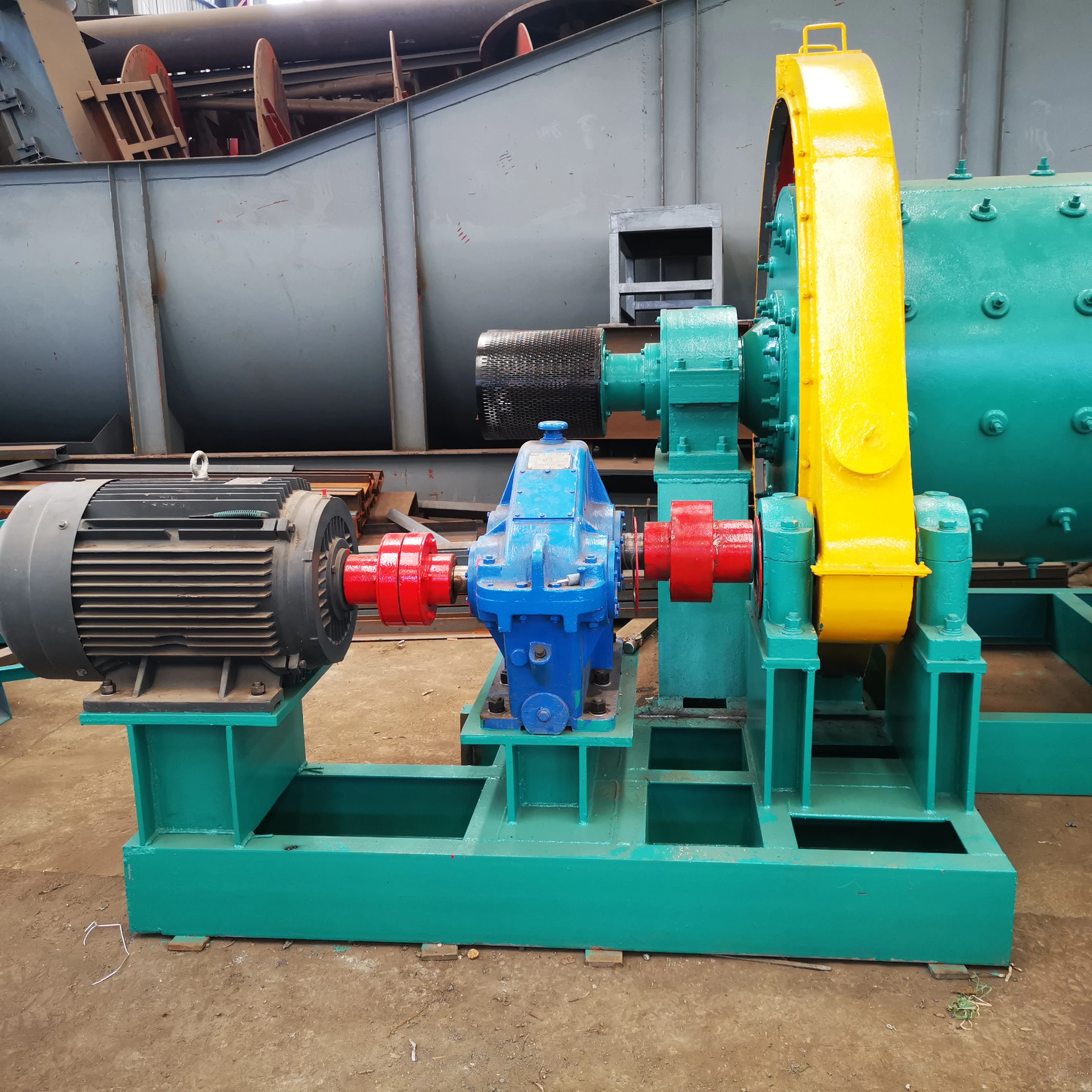

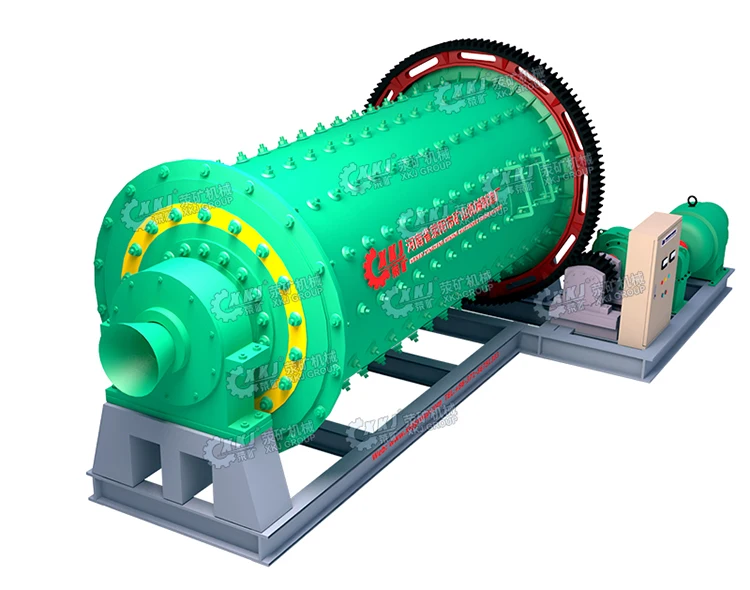

The main component of wet overflow ball mill is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Hollow shaft with the anti-spiral blade returns the steel ball and the coarse ore block. Wet type overflow ball mill works for fine fineness grinding.
Parameters
Model | Ball load (t) | Feeding size (mm) | size of outputting feed (mm) | Capacity (t/h) | Motor Power (kw) | Weight (T) |
900×1800 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
900×3000 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
1200×2400 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×3000 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
1500×4500 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
1500×5700 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
1830×3000 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
1830×6400 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
2200×7500 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |
If you cannot find the specifications you are looking for in the table above, please contact me. We are a factory and can customize size specifications.
Related Products
Click the picture to enter the product page！！！
https://machinexy.en.alibaba.com/productlist.html?spm=a2700.details.0.0.2bd8589bsDNJpt
SUCCESFUL PROJECTS
Mexico 500t copper ore production line
South Africa 600t gold mine production line
India grinding production line
Tibet zinc mine production line
Morocco 500t silver mine production line
Zambia 500t fluorite mine production line

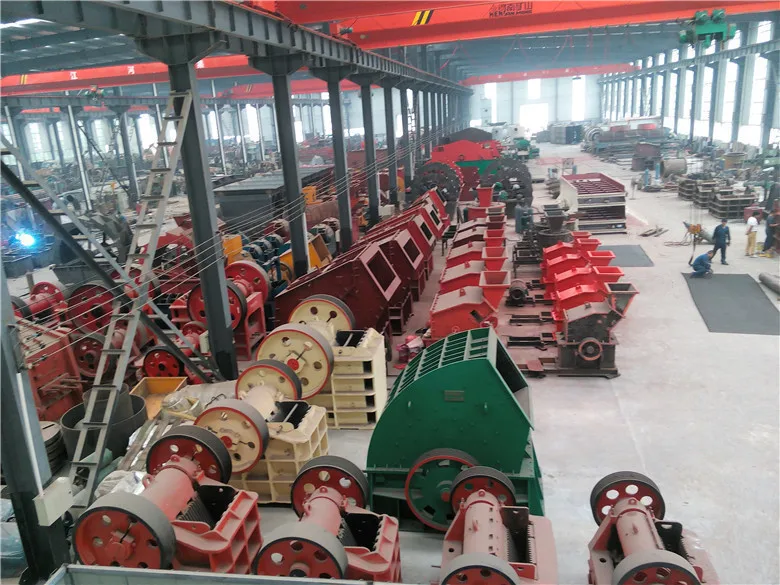

Factory Strength
WHY CHOOSE US
30 years of industry experience, continuously developing more efficient and energy-saving products

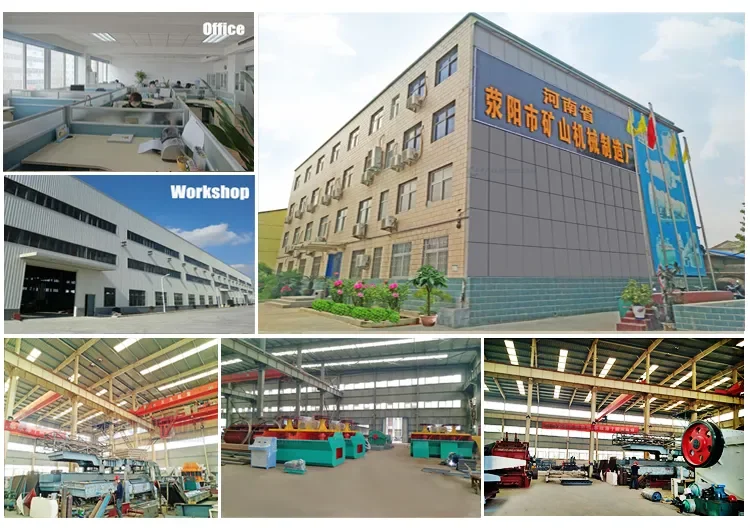

5 modern industrial plants covering an area of more than 80,000 square meters, we can deliver products to customers quickly.
60 high-precision processing equipment and strict product testing provide customers with high-quality and reliable products
Henan Xingyang Mining Machinery Manufactory(XKJ GROUP), a factory with over 30 years' history, is specializing in researching and developing mining machinery. With rich experience in ore dressing technology and work flow, we keep leading in ore dressing machinery manufacturing, including ferrous metal and nonferrous metal beneficiation production lines.
We design and manufacture general mining machines such as crushers, ball mills, floatation machines, magnetic separators, driers and other related products.Based on developing our advantages on ore dressing production line, we actively bring new high technology and have developed new machines such as energy-saving ball mills, MQG ball mills, and agitating tanks.
Since establishment, we believe quality is life of factory and customer is God. We insist on offering our customers with good quality, moderate price and sound service. And our products are sold to more than 100 countries.We will insist on manufacturing excellent products, giving after-sale service to all customers as usual.
We design and manufacture general mining machines such as crushers, ball mills, floatation machines, magnetic separators, driers and other related products.Based on developing our advantages on ore dressing production line, we actively bring new high technology and have developed new machines such as energy-saving ball mills, MQG ball mills, and agitating tanks.
Since establishment, we believe quality is life of factory and customer is God. We insist on offering our customers with good quality, moderate price and sound service. And our products are sold to more than 100 countries.We will insist on manufacturing excellent products, giving after-sale service to all customers as usual.
FAQ
1. Are you manufacture or trading company?
We are factory, established in 1956.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need a complete mineral processing line, can you help us build it?
We are factory, established in 1956.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need a complete mineral processing line, can you help us build it?
Yes, we can help you build a complete production line and provide you with relevant professional advice. We have established many mining projects in China and overseas.
6.Do you provide after-sale service?
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
7、Can we visit your factory?
Yes. You can visit our factory anytime you want.
